El Chichón volcanic complex, Chiapas, México: Stages of evolution based on field mapping and ⁴⁰Ar/³⁹Ar geochronology



P. W. Layer¹, A. García–Palomo², D. Jones¹, J. L. Macías³*, J. L. Arce² and J. C. Mora³



¹ Geophysical Institute, University of Alaska Fairbanks, Fairbanks, AK, 99775, USA

² Departamento de Geología Regional, Instituto de Geología, Universidad Nacional Autónoma de México, Del. Coyoacán 04510, México City, México

³ Departamento de Vulcanología, Instituto de Geofísica, Universidad Nacional Autónoma de México, Del. Coyoacán 04510, México City, México ^*Corresponding author: player@gi.alaska.edu



Received: May 15, 2008
Accepted: November 29, 2008



Resumen

Se presenta una nueva interpretación de la evolución del Volcán Chichón con base en fotogeología, trabajo de campo, química y fechamientos de rocas con el método de ⁴⁰Ar/³⁹Ar. El Chichón forma parte de un complejo volcánico formado por cráteres y domos con un volumen total de ~26 km³. El magmatismo en el complejo inició hace 370,000 años con la emisión de domos de lava actualmente sepultados por depósitos recientes. La actividad continuó con la formación de un complejo dómico andesítico (209,000–276,000 años) y flujos piroclásticos y lahares asociados. Este complejo dómico fue destruido por una erupción mayor que dejó un cráter de 1.5 km de diámetro conocido como Somma. La actividad continuó con la extrusión del Domo SW, hace 217,000 años en el borde suroeste del cráter Somma y con domos externos emitidos más allá del borde noroeste del mismo cráter hace 95,000 años. Dos bloques embebidos en los depósitos de la erupción de 1982 proporcionaron fechas de 44,000 y 29,000 años, lo que indica que el complejo estuvo activo durante el Pleistoceno. Durante el Holoceno la actividad magmática formó el cono de tobas Guayabal y un cono de tobas al interior del cráter Somma que fue reactivado en varias ocasiones, la última durante la erupción de 1982. Durante los últimos 8,000 años el complejo volcánico ha producido ~4 km³ de material por lo que se estima una descarga de magma de 0.5 km³/1000 años. Las rocas del complejo volcánico son andesitas potásico–alcalinas muy homogéneas.

Palabras clave: Fechamientos ⁴⁰Ar/³⁹Ar, evolución, complejo volcánico, Chichón, México.



Abstract

A new interpretation of the evolution of El Chichón volcano is presented in this paper based on photogeology, fieldwork, ⁴⁰Ar/³⁹Ar dating and chemistry of juvenile products. El Chichón volcano belongs to a volcanic complex formed by craters and peripheral domes with a total estimated volume of ~26 km³. Our data suggest that inception of magmatism began around 370 ka with the emission of lava domes buried by younger products. The activity continued with the formation of a large andesitic dome complex between 209 and 276 and associated block and ash flows and lahars. The dome complex was subsequently destroyed by a major eruption that left a 1.5–km wide Somma–type crater. The activity continued with the extrusion of the SW dome at 217 ka, that partially disrupted the southwestern Somma crater wall. Later on a series of dome extrusions occurred beyond the northwestern sector of the Somma crater at about 95 ka. Juvenile blocks found in 1982 products yielded ages of 44 and 29 ka attesting to heretofore unidentified late Pleistocene activity. The onset of Holocene activity occurred both outside the Somma crater with explosive eruptions that formed the Guayabal Tuff Cone and inside the Somma crater with the formation of a tuff cone that has been repeatedly reactivated during the Holocene, lastly during the 1982 eruption. All magmas produced during the past 370,000 years are K–alkaline andesites that exhibit minor variation in their chemical composition. An average discharge rate of 0.5 km³/ka is calculated during the past 8,000 years (~4 km³).

Key words: ⁴⁰Ar/³⁹Ar dating, evolution, volcanic complex, Chichón, México.



Introduction

El Chichón volcano (1100 m. above sea level) is one of the most active volcanoes in Mexico. It is located, 60 km southwest of Villahermosa, State of Tabasco, and 70 km north–northwest of Tuxtla Gutiérrez, State of Chiapas. Despite its proximity to these large capital cities the volcano is situated in a region with very difficult access. Up to the early twentieth century, El Chichón volcano was basically unknown to the volcanological community. The first description of El Chichón volcano was compiled following an episode of seismic unrest reported by inhabitants and described by Mülleried (1933). The fumarolic activity and the presence of a lake in the moat area prompted Mülleried to describe El Chichón as an active volcano. Almost fifty years later, Damon and Montesinos (1978) visited the volcano while doing field work in search of ore deposits in Chiapas. Because of its fumarolic activity these authors considered El Chichón to be the youngest volcano in the Chiapanecan Volcanic Arc (CVA), a NW–SE volcanic chain of Pliocene to Recent age (Fig. 1a). In addition, they obtained the first K–Ar date from andesite dome rocks of the moat area of the volcano, which yielded an age of 209 ± 19 ka. In 1980, the National Power Company (Comisión Federal de Electricidad) began evaluation of the El Chichón area for its geothermal energy possibilities (Canúl and Rocha, 1981). These authors presented the first general geological map of the volcano with a brief description of Jurassic to Tertiary sedimentary rocks and some volcanic units attesting to past eruptions. Between 1980 and 1981, coinciding with the geologic reconnaissance of Canúl and Rocha (1981), El Chichón seismic unrest began in the area increasing with time until early 1982 (Jimenez et al., 1998; Espíndola et al., 2002). Eruption began on March 28, 1982 and was followed by a catastrophic explosion on April 3 when pyroclastic surges and flows killed more than 2000 inhabitants. This event is the worst volcanic disaster to have occurred in Mexico in historical times. The 1982 event erupted 1.1 km³ of magma (Carey and Sigurdsson, 1986) of trachyandesitic composition (56 wt. % SiO₂; Luhr et al., 1984) through Plinian columns higher than 27 km that injected ash into the stratosphere (Luhr 1991; Rampino and Self 1984). The juvenile products of the magma contain anhydrite, a mineral that had never been reported as a primary mineral in magmas (Luhr et al., 1984; Rye et al., 1984). All of these features led several specialists to the study of the crater lake (Casadevall et al., 1984), the pyroclastic deposits (Tilling et al., 1984; Sigurdsson et al., 1984; Rose et al., 1984; Sigurdsson et al., 1987), the ash and plume dispersion (Varekamp et al., 1984; Carey and Sigurdsson, 1986), the sulphur content of the magma (Devine et al., 1984; Carroll and Rutherford, 1987), and the petrology of the products (Luhr et al., 1984).

The pyroclastic density currents produced by the 1982 eruption stripped the vegetation cover exposing old pyroclastic deposits and allowed for the study of past volcanic events with the aid of radiocarbon and K–Ar geochronology. Duffield et al. (1984) dated an andesite dome rock from the eastern flank of the Somma crater at 276 ± 6 ka (K–Ar) and a thick widespread pyroclastic flow at 1250 yr BP (¹⁴C). Tilling et al. (1984) published ¹⁴C ages for other eruptions dated at 600 and 1750 yr BP. Macías (1994) reported two other events at 900 and 1400 yr BP. Espíndola et al. (2000) summarized the Holocene stratigraphy of El Chichón describing at least 11 deposits related to the same number of eruptions at 550, 900, 1250, 1400, 1700, 1800, 2000, 2400, 3100, 3700 and 7500 yr BP. The oldest volcanic rock in the area is the early Pleistocene (1.1 Ma) Chapultenango basalt erupted 10 km to the east of El Chichón (García–Palomo et al., 2004).

Despite the background provided by the ¹⁴C and K–Ar geochronology, very little work has been done to constrain the Pre–Holocene history of El Chichón. In fact, the study of features such as the peripheral domes has been neglected except for some petrographic and chemical studies (e.g., Rose et al., 1984; McGeeet al., 1987; Tepley et al., 2000). Therefore, several pressing questions need to be answered. For instance: When did andesitic volcanism begin in the area? How has magmatism evolved through time? What is the extent (spatially and volumetrically) of pre–Holocene magmatism?

The aim of this paper is to present preliminary results that constrain the longevity and evolution of El Chichón volcano by integrating field mapping, a photogeological map, digital elevation models (DEM), geochemistry and ⁴⁰Ar/³⁹Ar geochronology. With this information we present a preliminary model of the volcano as part of a volcanic complex composed of several structures.



Tectonic setting

The origin of El Chichón volcano has been related to the subduction of the Cocos plate beneath the North American plate at the Middle American Trench (Luhr et al., 1984; García–Palomo et al., 2004) (Fig. 1a). This ongoing subduction process is occurring at an average convergence rate of 66 mm/yr in a northeast direction (Pardo and Suárez, 1995). The projected slab is dipping at an angle of 40° and has an approximate thickness of 39 ± 4 km (Rebollar et al., 1999). This geometry sets El Chichón, which is at 400 km from the trench to about 300 km above the subducted slab under Chiapas (García–Palomo et al., 2006). The origin of El Chichón K–alkaline magmas are probably derived from the partial melting of the slab (Luhr et al., 1984; Rye et al., 1984; Luhr and Logan, 2002), which likely interacted in different proportions with the mantle wedge (Taran et al., 1998), and the crust (Tepley et al., 2000; Espíndola et al., 2000; García–Palomo et al., 2004). However, Nixon (1982) has proposed an alternate hypothesis for the origin of El Chichón volcano and its K–alkaline volcanism as being related to extensional tectonics in southern Mexico associated with the triple junction between the North American, Caribbean, and Cocos plates.

Superimposed to the subduction tectonic setting there is a regional system of sinistral strike–slip faults called the Transcurrent Fault Province (Meneses–Rocha, 1991). This province has been divided into three major areas: Eastern, Central, and Western. El Chichón lies within the Central area, which is characterized by strike–slip faults with northwest trend (Meneses–Rocha, 1991).



Local geology

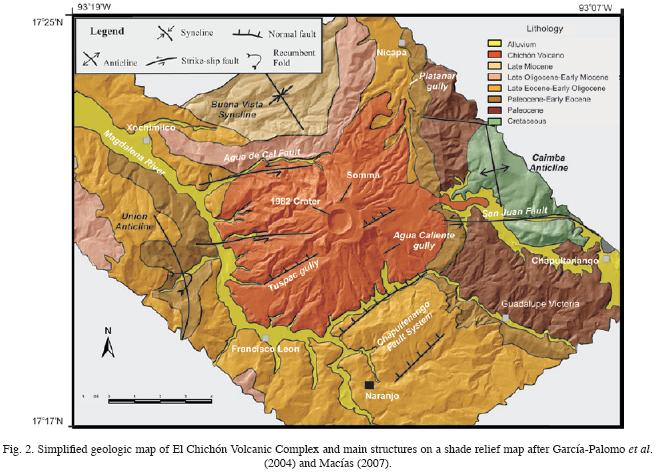

Locally El Chichón has been built upon a sedimentary substrate composed of Late Jurassic evaporites, Middle Cretaceous limestones, and Middle Miocene clay stones and sandstones (Canul and Rocha, 1981; Canul et al., 1983; Duffieldeia/., 1984; González–Lara, 1994; García–Palomo et al., 2004). These sequences are folded and form the Caimba and La Unión anticlines between the Buena Vista syncline (García–Palomo et al., 2004) (Fig. 2). According to these authors, the area is cut by three fault systems: 1) a dextral strike–slip N–S set, 2) a sinistral strike–slip E–W set, and a normal N45°E set called Chapultenango Fault System. The E–W San Juan Fault system passes under El Chichón volcano and may be related to the extrusion of the Chapultenango basalt. The Chapultenango Fault system produced a half–graben geometry of blocks, on top of which El Chichón has been emplaced (Macías et al., 1997a: García–Palomo et al., 2004). The structural analysis of the sedimentary rocks indicates that during the Late Miocene, the El Chichón area has been subjected to a maximum principal stress (σ1) orientated N70°E, a minimum principal stress (σ3) orientated N20°W, and a vertical intermediate principal stress. This stress pattern has generated strike–slip motion and crustal earthquakes (<40 km) with sinistral strike–slip focal mechanisms orientated along the major faults (Guzmán–Speziale et al., 1989) and suggests that the same tectonic regime has been occurring in southern Mexico from the Late Miocene to the Recent, controlling the emplacement and activity of El Chichón (García–Palomo et al., 2004).



Methodology

The geological map of El Chichón volcano presented in this paper is the result of a multidisciplinary approach to mapping in a highly vegetated, inaccessible region where the geomorphology has been changed rapidly following the 1982 eruption and subsequent erosion of the volcanic products. Initially, a photogeological interpretation of the area both before and after the 1982 eruption was carried out through the analysis of aerial photographs at a scale of 1:35,000 taken by DETENAL (Dirección General de Estudios del Territorio Nacional) in February 1978, and another set of photographs at a scale of 1:75,000 taken by DGG (Dirección General de Geografía) in 1984. In addition, two topographic maps of the area were used: the 1981 topographic map (E15C39, scale 1:50,000) published by INEGI (Instituto Nacional de Estadística Geografía e Informática) and a 1:50,000 topographic map produced by GYMS A using the 1984 aerial photography from DGG. The photogeological information obtained (volcanic structures, contacts, drainages, etc.) was merged with the topographic maps of the area to generate a relief model of the area using ARCGIS 9.3 and SURFER 8 commercial software. In addition we analyzed a Landsat TM image using bands 1, 2, 3, 4, 5 and 7, in order to identify morpholineal features and lithologic contacts between units. To calculate the areas occupied by the volcanic units described in this paper, we used the AUTOCAD 2005 and ARCGIS 9.3 programs. We determined the volumes of these units by combining thicknesses measured in the field with the areas using these programs.

We have conducted field mapping in the region from 1992 through 2007. Over this time we have constructed more than 500 strati graphic sections, described over 200 structural sites, and collected samples for ¹⁴C, K–Ar, and ⁴⁰Ar/³⁹Ar dating and other types of analysis (i.e., whole–rock chemistry of juvenile products). During these 17 years of work on El Chichón area, papers have been published on the structural geology of the volcano (García–Palomo et al., 2004), the volcanic stratigraphy (Macías et al., 1997b), petrological aspects (Espíndola et al., 2000; Macías et al., 2003; Jones et al., 2008; Andrews et al., 2008), and social effects of the eruption (Espíndola et al., 2002; Limón and Macías, this issue). A hazard map of the volcano (Macías et al., 2008) has also been published. Along with the study of the volcanic products, we have also mapped older sedimentary units shown in fig. 2 (García–Palomo et al., 2004).



Sample collection and ⁴⁰Ar/3⁹Ar analytical methods

Twelve samples from El Chichón volcano were acquired by the Geochronology Laboratory at the University of Alaska Fairbanks for the purposes of ⁴⁰Ar/³⁹Ar analysis (Fig. 3; Table 1). The majority were sent from the collections of the Universidad Nacional Autónoma de México, while CHI–SOMMA was collected during a reconnaissance campaign in 2005.

The samples were crushed, washed, sieved and hand–picked for small whole–rock chips suitable for dating. The monitor mineral TCR–2 with an age of 27.87 Ma (Lanphere and Dalrymple, 2000) was used to monitor neutron flux and calculate the irradiation parameter, J, for all samples. The samples and standards were wrapped in aluminum foil and loaded into aluminum cans of 2.5 cm diameter and 6 cm height. All samples were irradiated in position 5c of the uranium–enriched research reactor of McMaster University in Hamilton, Ontario, Canada for 0.5 (0.75 in the case of CHI–9521 and CHI–SOMMA) megaw att–hours.

Upon their return from the reactor, the whole rock chips and grains of the monitor mineral were loaded into 2 mm diameter holes in a copper tray that was then loaded in an ultra–high vacuum extraction line. The monitors were fused, and samples heated, using a 6–watt argon–ion laser following the technique described in York et al. (1981), Layer et al. (1987) and Layer (2000). Argon purification was achieved using a liquid nitrogen cold trap and a SAES Zr–Al getter at 400°C for 20 minutes. The samples were analyzed in a VG–3600 mass spectrometer controlled by either a Lab View or Visual Basic operating program written in–house. The measured argon isotopes were corrected for system blank and mass discrimination, and for the irradiated samples, calcium, potassium and chlorine interference reactions, following procedures outlined in McDougall and Harrison (1999). System blanks generally were 2 x 10 ^–16 mol ⁴⁰Ar and 2 x 10^–18 mol ³⁶Ar, which are 5 to 50 times smaller than fraction volumes. Mass discrimination was monitored by running both calibrated air shots and a zero–age glass sample. These measurements were made on a weekly to monthly basis to check for changes in mass discrimination.



⁴⁰Ar/3⁹Ar results

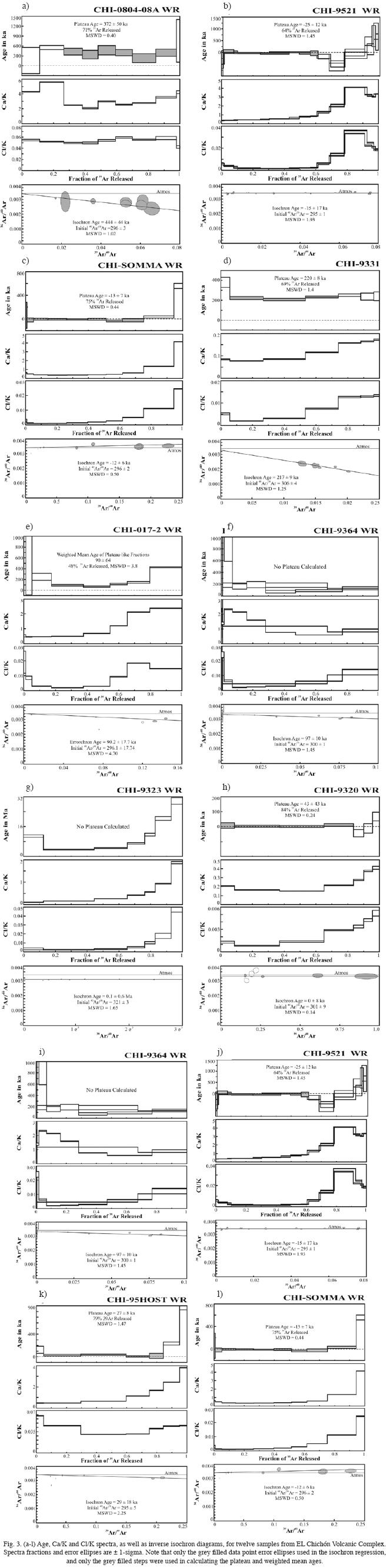

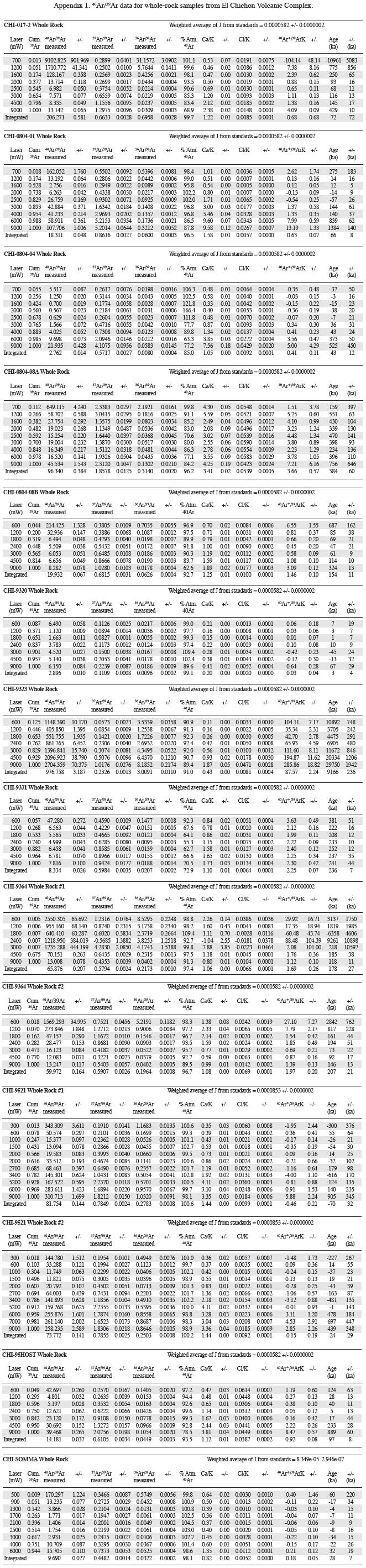

Fig. 3 shows the age, Ca/K, and Cl/K spectra as well as inverse isochron plots for the dated samples, and summary of the results is provided in Table 1. The raw data for the argon analyses are shown in Appendix 1. All ages are quoted to the 1–sigma level and calculated using the constants of Steiger and Jaeger (1977). The integrated age is the age given by the total gas measured and is equivalent to a potassium–argon (K–Ar) age. The age spectrum provides a plateau age if three or more consecutive gas fractions represent at least 50% of the total gas release and are within two standard deviations of each other (Mean Square Weighted Deviates less than ~2.5). If the age spectrum did not provide a good plateau, the weighted mean age of any 'plateau–like' steps was calculated in lieu of a plateau age. The isochron age is proportional to the X–intercept of the best–fit regression of the data on an isotope correlation diagram; the Y–intercept is the inverse of the initial ⁴⁰Ar/³⁶Ar ratio.

Jones et al. (2008) reported the presence of excess argon in phenocryst phases in younger El Chichón eruptive products. Many of the samples show high Ca/K steps (Fig. 3), perhaps due to degassing of high Ca plagioclase microphenocrysts. Because of the possibility of excess argon in these older units, and because excess argon (initial ⁴⁰Ar/³⁶Ar ratios significantly greater than 295.5) is seen in some of the samples (Table 1), isochron ages were chosen as the preferred ages when possible (highlighted in bold in Table 1), although for most samples plateau ages are within 2–sigma of the isochron ages. These interpreted ages are shown in Table 1 and Fig. 3.

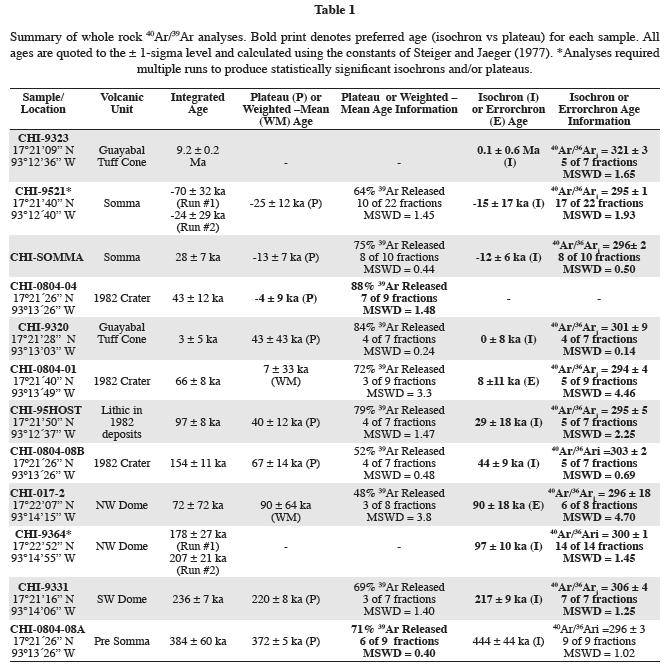

Six samples (CHI–95HOST, CHI–0804–08B, CHI–017–2, CHI–9364, CHI–9331, and CHI–0804–08A; Table 1) yielded statistically significant non–zero ages, while the other six (samples CHI–0804–01, CHI–0804–04, CHI–9320, CHI09323, CHI–9521 and CHI–SOMMA) are irresolvable from zero age due to small amounts of radiogenic argon. While it is difficult to assign ages to these very young samples, based on the error on the most precise isochrons, we estimate that the samples are probably less than 10,000 years old.



Units of El Chichón Volcanic Complex

Based on the analysis of aerial photographs and satellite image supported by field mapping and description of the volcanic units we were able to define six volcanic units of the El Chichón Volcanic Complex. These units are informally called Pre–Somma, Somma Edifice, the SW Dome, the NW Dome, the Guayabal Tuff Cone, and the Holocene tuff cone that includes the 1982 crater. Each volcanic unit has distinctive morphology and drainage pattern allowing us to uniquely identify and map the units. In order to define the chronological position of these units during the evolution of El Chichón Volcanic Complex we collected samples for chemical analysis and ⁴⁰Ar/³⁹Ar dating. The units are described below as shown in fig. 4.



Pre–Somma

As revealed by aerial photographs and landsat image analysis there are two areas of older undifferentiated rocks that outcrop outside the Somma Edifice (Fig. 4). These two areas have developed deep dendritic drainages and can be isolated from the other units. Sample CHI–0804–08A, an accidental lithic collected from the 1982 pyroclastic products exposed at the top of the 1982 crater produced a plateau age of 372 ± 5 ka (Fig. 3a). The isochron calculated for the sample indicates an initial ⁴⁰Ar/³⁶Ar indistinguishable from atmospheric thus the age is interpreted to represent xenolithic contamination of the most recent eruption from the volcanic substrate. The most likely source for this lithic fragment is from these undifferentiated units (not mapped yet) that represent an older period of volcanic activity at El Chichón at least 370 ka. These units represent so far the oldest exposed structures of El Chichón Volcanic Complex.



Somma Edifice

The Somma rises from surrounding elevations of 600 m in the east and 200 m in the west. The Somma crater is ~1.5 km wide and has inner steep slopes and external gentle slopes with a maximum elevation of 1150 m above sea level. This crater has three main notches that form the gorge heads of the El Platanar Valley to the east, the San Pablo–Cambac Valley to the north, and the Tuspac Valley to the southwest. The Somma crater rim consists of an amalgamation of steep dome extrusions of porphyritic andesites surrounded by an apron of block–and–ash flow deposits. The Somma edifice covers an area of ~40 km² and has an estimated volume of ~18 km³.

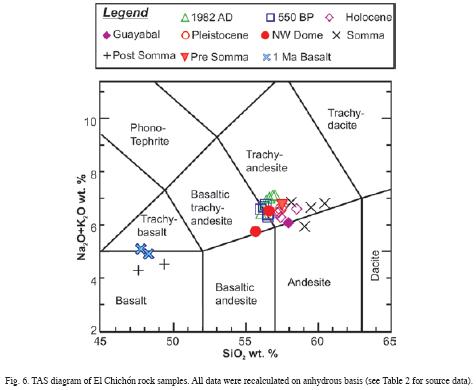

Prior to the 1982 eruption, Damon and Montesinos (1978) reported a whole–rock K–Ar age of 209 ± 19 ka from a sample of "dacite" collected at the moat area at an elevation of 950 m above sea level. According to the authors' description this sample was taken at the moat area likely at the base of the eastern wall of the Somma crater. After the 1982 eruption, Duffield et al. (1984) dated another sample of the eastern wall rocks of the Somma crater at 276 + 6 ka, significantly older than the age obtained by Damon and Montesinos (1978). This sample is a dome rock with a chemical composition of 57.8 wt. % SiO₂ (McGee et al., 1987) and falls in the alkaline series of figure 6 within the trend of most rocks of El Chichón.

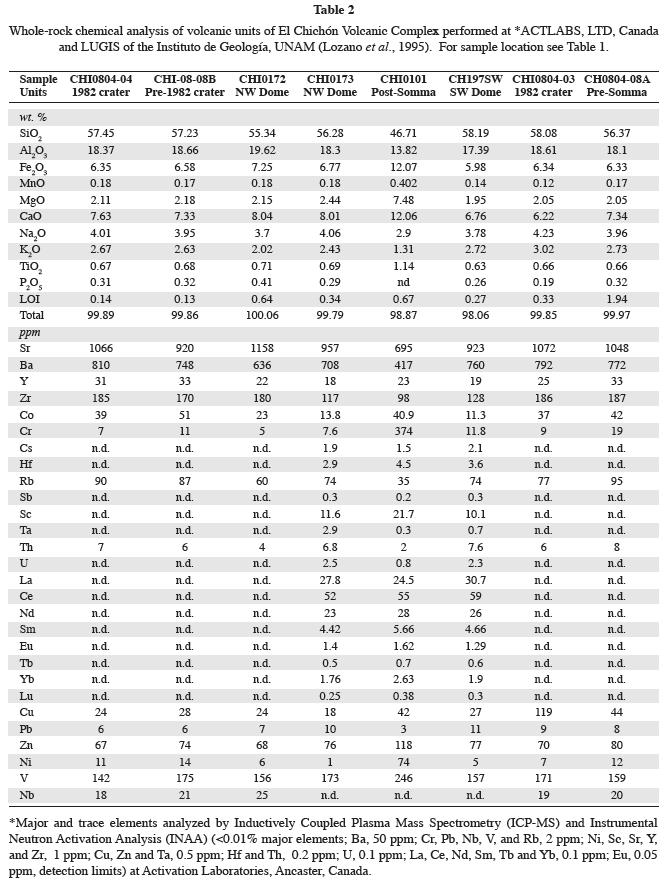

As mentioned above, the flanks of the Somma crater consist of highly indurated, gray, massive block–and–ash flow deposits with lapilli–and–block–clasts (unit E of Tilling et al., 1984) interbedded with lahar deposits. These deposits are widely distributed around the volcano and probably arose from the events that built up the Somma crater and contribute significantly to the overall morphology of the volcano. In addition, a gray porphyritic lava flow rich in plagioclase and hornblende phenocrysts was described as unit M by Espíndola et al. (2000). Whole–rock chemical analyses indicate that this lava flow is andesitic in composition (CHI–9521; 58.9 % SiO₂; Table 2). This lava flow (Fig. 3b) and another sample (CHI–SOMMA; Fig. 3c) collected at a dome near the east–southeastern rim of the Somma crater, yielded Holocene ages with large standard deviations (Table 1) implying that the Somma Edifice could have been reactivated during the Holocene.



SW Dome

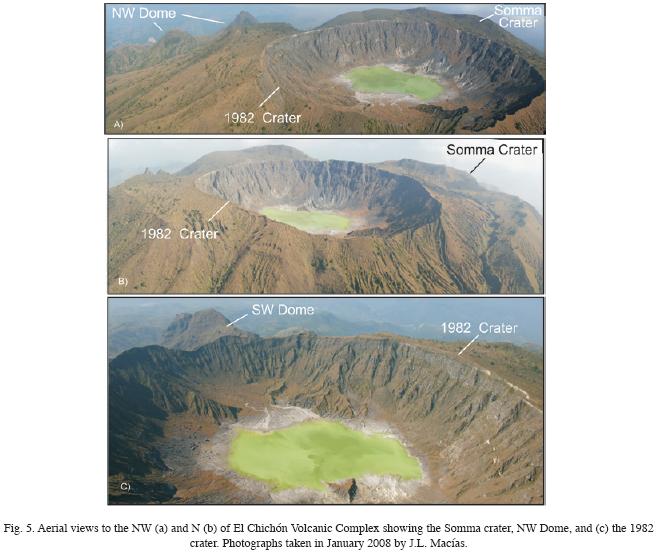

This structure was first described as a lateral flank dome (Canul and Rocha, 1981; Duffield et al., 1984), and as the SW Dome by Macías et al. (1997a). This dome has a maximum elevation of 990 m with 300–m high subverti cal walls poorly incised by drainage (Fig. 4). Extrusion of the SW Dome disrupted the southwestern rim of the Somma Crater. The SW Dome covers an area of 0.32 km² and has an approximated volume of 0.1 km³. The dome rock is a massive partly altered porphyritic andesite (58.2 wt. % SiO₂) (Table 2). Sample CHI–9331 is an andesite composed of plagioclase, hornblende and pyroxene in a glassy matrix, collected from the summit of the dome and gave an isochron age of 217 ± 9 ka displaying slight amounts of excess initial ⁴⁰Ar/³⁶Ar (Fig. 3d) (Fig. 5).



NW Dome

This unit was described by Macías (1994) and Macías et al. (1997a) as the NW Dome. It consists of a dome structure with a maximum elevation of 1048 m. above sea level. The photogeological map shows that the NW Dome is highly eroded with a deep incised drainage and a ~700 m wide collapse structure opened to the NW (Figs. 3 and 4). The NW Dome covers an area of ~5 km² with an estimated volume of ~3 km³ and is composed of gray to green partially altered andesitic lavas. We analyzed two different rocks from this structure. Sample CHI–017–2 a porphyritic andesite (56.3 wt. % SiO₂; Fig. 3e, Table 2) collected at the base of the dome near the NW rim of the Somma crater, and sample CHI–9364 was collected along the Cambac Gully. These rocks produced identical (within error) isochron ages of 90 ± 18 ka, and 97 ± 10 ka, respectively (Fig. 3f).



Guayabal Tuff Cone

This unit is represented by the remains of the Guayabal Tuff Cone. This cone has a horseshoe shaped crater open to the south into the Agua Caliente gully (Fig. 4). The tuff cone rests on top of the extrusive rocks of the Somma Edifice. The Guayabal cone has a maximum elevation of 950 m and it is ~700 m wide. The northeastern wall of the Guayabal Tuff Cone exposes at least three thick undifferentiated pyroclastic units with a pyroclastic surge on top. The latter contains white boulders of Cretaceous limestones from the volcano basement. The base of the Guayabal cone is exposed at the Agua Caliente gully upon andesite of the Somma crater. Here the andesites host abundant limestone xenoliths and trachybasaltic enclaves (CHI9505; 59.1 wt. % SiO ; Table 2).

Two samples collected at the crater summit and at northwestern flanks of the Guayabal Tuff Cone were dated. Sample CHI–9320 (summit) is a porphyritic andesite with mm–size plagioclase crystals and sample CHI–9323 (flank) a porphyritic andesite with plagioclase and hornblende. The flank sample (CHI–9323) collected from the dome rock forming the substrate of the Guayabal Tuff Cone yielded an imprecise age (due to a very high atmospheric argon signal) of 100 ± 600 ka, which does not provide any useful age constraint (Fig. 3g; Table 1). However the summit sample (CHI–9320), taken from a pyroclastic surge deposit below the 1982 products gave an age of 0 ± 8 ka (Fig. 3h), indistinguishable from zero and implies that the deposit is probably less than 10 thousand years old and suggests that the Guayabal Tuff Cone could have been active during the Holocene.



Holocene tuff cone

The youngest unit of El Chichón Volcanic Complex is a tuff cone located at the center of the Somma crater and is Holocene in age. This area has been the focus of activity of El Chichón volcano during the Holocene with the occurrence of at least 12 explosive events (Espíndola et al., 2000) and is now the site of the 1982 crater (Fig. 4). These explosive events have erupted magmas with a chemical composition varying from 55.18 to 58.8 wt. % SiO₂ falling within the trachyandesitic field of fig. 6 (Table 2).

Prior to the 1982 eruption this tuff cone was filled by a 1230 m high dome with two summit bulges. During dome growth, a 1.5 km long lava flow overflowed the SW flank of the Somma crater. The 1982 eruption destroyed the central dome and produced a 1 km wide crater with a maximum elevation of 1,000 m. This crater has vertical inner walls up to 140 m deep, with its floor sitting at an elevation of 860 m hosts a lake, fumaroles, mud and boiling water ponds (Taran et al., 1998; Tassi et al., 2003; Rouwet et al., 2004). The products of the 1982 crater extend all around El Chichón Volcanic Complex pyroclastic flows and surges destroyed ca. 100 km² of jungle. These deposits contain a large variety of juvenile and accidental blocks from the volcanic conduit and crater walls.

For this study we collected five samples associated to the 1982 crater rocks or pyroclastic products. Samples CHI–0804–01, CHI–0804–04, CHI–0804–08A and CHI0804–08B were all collected from the walls of the 1982 eruption crater. Samples CHI–0804–01, and CHI–0804–04, are indistinguishable from zero age and probably less than 10,000 years old (Fig. 3i and j; Table 1) suggesting that renewed explosive activity has taken place in this crater at least during the Holocene. Samples CHI–0804–08A and CHI–0804–08B are accidental lithics collected from the 1982 pyroclastic products exposed at the top of the 1982 crater. Sample CHI–0804–08B has an isochron age of 44 ± 9 ka (Fig. 3k), while sample CHI–0804–08A (discussed above, Fig. 3a) produced a plateau age of 372 ± 5 ka. Another accidental lithic collected from the 1982 pyroclastic flow deposits at the Platanar gully (CHI–95HOST) has an isochron age of 29 ± 17 ka (Fig. 3l; Table 1).



Discussion and conclusions

Inception of volcanism in the area began 1.1 Ma with the extrusion of the Chapultenango basalt located at ~10 km east of El Chichón Volcanic Complex (García–Palomo et al., 2004). Although, this basalt is not directly linked to the activity of El Chichón, it lies at the eastern tip of the E–W strike slip San Juan Fault whose trace transects El Chichón Complex. Following a significant hiatus, volcanism shifted ~10 km to the west around the present location of El Chichón. The oldest age from our suite of samples is 372 ± 5 ka, for an accidental lithic that may represent the onset of edifice building related to the Pre–Somma undifferentiated volcanics. Further field mapping, geochemical and geochronological analyses are needed to better describe this early history.

As the edifice developed, the locus of magmatism focused at the Somma edifice and occurred between 209–276 ka (Damon and Montesinos, 1978; Duffield et al., 1984) through the emplacement of a dome complex. These ages seem to indicate that the main volcanic edifice is an amalgamation of volcanic domes extruded over the course of roughly 77 thousand years (and maybe as long as 150 thousand years). The episode of dome extrusion and evolution was accompanied by the generation of block–and–ash flows that reach up to 3 km from the vent to form an apron around the domes. These deposits were immediately or subsequently remobilized as lahars emplacing deposits interbedded with the block–and–ash flow deposits. The activity of the Somma dome complex continued during late Pleistocene with a major eruption that destroyed the central part of the complex forming a 1.5 km wide crater. Unfortunately, with the available information we are unable to ascertain the type and magnitude of this eruption. Finally, the last activity of the Somma crater occurred during the Holocene with the emission of a lava flow on the northeastern flank of the crater.

A new episode of dome extrusion occurred at the SW edge of the Somma that disrupted parts of the crater rim indicating that extrusion might have occurred some time after or contemporaneously with the formation of the Somma crater. Alternatively, Duffield et al. (1984) considered that this "flank dome" was associated with a 1.2 km wide crater, although the timing of formation of this crater was not constrained.

Between 216 and 95 ka, the volcanic complex entered into an apparent quiescent stage because no products of this age have been so far dated. Around 95 ka magmatism migrated 2.5 km to the northwest outside of the Somma crater with the extrusion of domes. The NW dome has been affected by a large collapse that left a horseshoe shaped crater open to the NW.

Between 95 ka and the Holocene appears to be another period of quiescence. The only evidence of activity during this time are ages of 44 ± 10 ka, and 29 ± 18 ka from accidental lithics from the 1982 eruption that do not seem to be associated with any exposed structures. It is also possible that these ages reflect partial resetting of older material due to incorporation of the lithics in the 1982 magma.

The next locus of activity migrated 3 km to the southeast at the SE edge of the Somma crater rim. This event marks an important shift in the activity of El Chichón volcanic complex with the establishment of explosive hydromagmatic eruptions that formed the Guayabal Tuff Cone. This cone is formed by at least three undifferentiated pyroclastic deposits, the youngest of which is Holocene and contains cm–size limestone xenoliths carried to surface by the hydromagmatic explosions. This deposit directly underlies the products of the 1982 eruption.

During the Holocene explosive activity returned to the Somma crater. This activity formed a ~1 km wide tuff crater (reactivated during the 1982 eruption) that has been the locus of volcanic activity during the past 8,000 years (Espíndola et al., 2000). This crater has produced 12 eruptions during this time span including the 1982 eruption. These eruptions have produced about 4 km³ of trachyandesitic magma with an estimated average eruptive rate of 0.5 km3/ka.

To better understand the evolution of El Chichón further field reconnaissance and geochronological data are needed in some areas around the complex that might preserve signs of older or intermediate activity.
