Comparative study of bioconcentration potential and biomarkers in Biomphalaria glabrata exposed to ZnO nanoparticles and bulk ZnO

Estudio comparativo del potencial de bioconcentración y de biomarcadores en Biomphalaria glabrata expuesta a nanopartículas de ZnO y su análogo no nano

Ornela Paola Ghiglione1  *

María del Carmen Martinez1

Noemí Rosario Verrengia Guerrero1

Adriana Cristina Cochón1

1Universidad de Buenos Aires, Facultad de Ciencias Exactas y Naturales, Departamento de Química Biológica, Intendente Güiraldes 2160, Buenos Aires, C1428EGA, Argentina.


ABSTRACT

The uptake of nanoparticles (NPs) by aquatic invertebrates can lead to adverse health effects. The aims of the present study were: 1) to investigate the bioconcentration potential of ZnO NPs or its bulk analogous in Biomphalaria glabrata gastropods by measuring the soft tissue Zn content, and 2) to determine the responses elicited by the exposed snails through the analysis of recognized biomarkers of effect at the subcellular level. Snails exposed to 5 mg/L ZnO NPs or bulk ZnO for 48 h showed a significant higher soft tissue Zn content than control animals, with no significant differences between NPs- and bulk-treated snails. No significant differences were observed in the levels of lipid peroxidation and in the activities of acetylcholinesterase, carboxylesterase and catalase by 48 h-exposure to ZnO NPs or bulk ZnO with respect to control organisms. However, ZnO exposure induced a significant decrease in glutathione tissue content, without a nano-specific effect. The results as a whole encourage further studies to better understand the impact that engineered NPs may have on freshwater invertebrate species.

Key words: acetylcholinesterase; carboxylesterase; oxidative stress; nanotoxicology

RESUMEN

La incorporación de nanopartículas (NP) por parte de los invertebrados acuáticos puede tener efectos adversos para la salud de los mismos. Los objetivos del presente estudio fueron: 1) investigar el potencial de bioconcentración de NP de ZnO o de su análogo no nano en gasterópodos Biomphalaria glabrata midiendo el contenido de Zn en los tejidos blandos y 2) evaluar las respuestas generadas en los caracoles expuestos a través del análisis de reconocidos biomarcadores de efecto a nivel subcelular. Aunque los caracoles expuestos por 48 h a 5 mg/L de NP de ZnO o su análogo mostraron un contenido de Zn en los tejidos blandos significativamente más alto que los animales testigo, la acumulación de este metal fue similar entre los grupos tratados con ambas formas de ZnO. No se observaron diferencias significativas en los niveles de peroxidación lipídica y en las actividades de la acetilcolinesterasa, la carboxilesterasa y la catalasa luego de 48 h de exposición a NP de ZnO o su análogo con respecto a los organismos testigo. Sin embargo, la exposición a ZnO produjo una disminución significativa en el contenido de glutatión en los tejidos, sin un efecto nano específico. Los resultados en su conjunto fomentan el desarrollo de estudios con el fin de comprender mejor el impacto que las NP manufacturadas puedan tener en diversas especies de invertebrados de agua dulce.

Palabras clave: acetilcolinesterasa; carboxilesterasa; estrés oxidativo; nanotoxicología

INTRODUCTION

Nanoparticles (NPs) can exhibit different chemical reactivity, as well as optical, mechanical, electrical, and magnetic properties than the same compounds at the non-nano scale (Ju-Nam and Lead 2016). For this reason, they are particularly useful in diverse applications such as photocatalytic processes, sensors, environmental remediation and photodegradation of pollutants (Król et al. 2017, Khan et al. 2019). Within the vast world of NPs, zinc oxide NPs (ZnO NPs) have applications in the field of cosmetic products, especially in the formulation of sunscreens, as well as in the field of paints, due to their ability to block UVA and UVB rays, they are also used as catalysts, in the textile and food industry, and in the field of agriculture, to mention the most relevant (Espitia et al. 2012, Król et al. 2017, Yusefi-Tanha et al. 2020).

Considering the rise of nanotechnology, the release of ZnO NPs into aquatic ecosystems, due to accidental and/or intentional causes, may occur (Bundschuh et al. 2018). Once they reach the aquatic systems, NPs can interact with other contaminants, with dissolved organic or particulate matter, and they can also be incorporated by biological species (Bundschuh et al. 2018). It has been estimated that water environmental concentrations are 100 µg/L (Chen et al. 2022). However, it should be considered that much higher concentrations could be generated in effluents of treatment plants (Gottschalk et al. 2013).

According to previous results, molluscs can incorporate Zn after acute exposure to ZnO NPs (Ali et al. 2012, Montes et al. 2012, Fahmy et al. 2014, Trevisan et al. 2014, Gagné et al. 2019). However, to our best knowledge, there are no reports on the freshwater snail Biomphalaria glabrata (Planorbidae, Mollusca). The incorporation of NPs by the organisms can lead to bioaccumulation process and can induce a series of biological responses that account for adverse health effects, including an imbalance in the cellular redox state and other effects that reflect a process of neurotoxicity (Ma and Lin 2013, Almeida et al. 2019, Canesi et al. 2019). Interestingly, it has been reported that in several aquatic organisms exposed to ZnO NPs or its non-nano analogous, toxicity and influx rate may differ (Heinlaan et al. 2008, Wong et al. 2010, Khan et al. 2013).

Oxidative stress manifests itself when the generation of reactive oxygen species (ROS) overcomes the antioxidant defenses of cells, triggering damage to membrane lipids (lipid peroxidation), damage to the genetic material (DNA/RNA), damage to proteins and/or enzyme inactivation (Juan et al. 2021). Organisms have various antioxidant defences, of enzymatic and non-enzymatic nature, such as catalase (CAT) and glutathione (GSH), and these are commonly used as oxidative stress biomarkers (Bhagat et al. 2016, Almeida et al. 2019). On the other hand, the measurements of thiobarbituric acid reactive substances (TBARS) and acetylcholinesterase (AChE) activity are frequently used as biomarkers of lipid peroxidation and neurotoxicity, respectively (Domingues et al. 2009, Nikinmaa 2014, Almeida et al. 2019). In addition, carboxylesterase (CES) activity has also been proposed as a useful biomarker of toxicity for several pollutants such as carbamates and organophosphates (Cacciatore et al. 2018), some pharmaceuticals and personal care products (Solé and Sanchez-Hernandez 2018) or polycyclic aromatic hydrocarbons (Mrdaković et al. 2023).

For several decades, various species of molluscs have been used as bioindicators in metal toxicity assessment tests (Elder and Collins 1991, Aisemberg et al. 2005, Ruiz et al. 2018). In particular, de Freitas Tallarico (2015) has proposed the use of the freshwater gastropods of the genus Biomphalaria, as bioindicator species of relevant importance in Latin American countries, where they are widely distributed. The gastropods B. glabrata belong to the Planorbidae Family, and are of medical importance because they can be intermediate hosts of Schistosoma mansoni, the parasite that causes schistosomiasis (Cavalcanti et al. 2012). These snails have a relatively short life cycle and are highly sensitive to toxic substances (de Freitas Tallarico et al. 2014, 2016). This species has already been widely used as an experimental model in classical toxicology tests, and more recently, it has also been selected for nanotoxicological studies (Verrengia Guerrero et al. 2000, Aisemberg et al. 2005, Cochón et al. 2007, Oliveira-Filho et al. 2017, 2019, de Vasconcelos Lima et al. 2019, Caixeta et al. 2020, Garate et al. 2020, De-Carvalho et al. 2022).

The aims of the present study were: 1) to investigate the bioconcentration potential of ZnO NPs or its bulk analogous in B. glabrata by measuring the Zn content, and 2) to determine the responses elicited by the exposed snails through the analysis of recognized biomarkers of toxicity at the subcellular level.

MATERIALS AND METHODS

Materials

ZnO NPs of commercial origin (Sigma-Aldrich, USA; CAS No. 1314-13-2; lot number, MKBT6312V), average size less than 35 nm, were used. Initially, a stock suspension was prepared in bi-distilled water, containing 700 mg NPs/L. To investigate the possible differential behavior of the nanoparticulate material with that of the same composition, but on a macro scale, ZnO (Mallinckrodt J.T. Baker, USA; CAS No. 1314-13-2) of analytical purity quality was used. Initially, a stock suspension was prepared in bi-distilled water, containing 200 mg non-nano ZnO/L. Both suspensions were prepared according to the NPs suspensions preparation guide (OECD 2012) in order to ensure homogeneity and minimize particle aggregation.

To perform the bioassays, and before being diluted in dechlorinated water, the stock suspensions of ZnO NPs and bulk ZnO were sonicated for 30 min at a frequency of 40 kHz and 160 W of ultrasonic power (ultrasonic bath; Testlab ®, Argentina) at room temperature so as to break up large aggregates.

Potable tap water was left to rest for at least 24 h to dechlorinate and then it was filtered through a carbon column to eliminate traces of dissolved organic matter and ensure the complete elimination of chlorine prior to use (USEPA 2002). The following physical and chemical parameters were recorded: total hardness = 48 ± 3 mg CaCO3/L; alkalinity = 29 ± 2 mg CaCO3/L; pH = 7.0 ± 0.2, conductivity = 250 ± 17 µS/cm and dissolved oxygen = 8.1 ± 0.4 mg O2/L.

Reduced glutathione (GSH, CAS No. 70-18-8); glutathione reductase (CAS No. 9001-48-3), NADPH (CAS No. 2646-71-1) and 5,5´-dithio-bis (2-nitrobenzoic acid) (DTNB, CAS No. 69-78-3) were all of maximum purity (> 98%; Sigma-Aldrich, USA). All other chemicals and reagents used were of analytical grade.

Zinc oxide nanoparticles characterization

Particle size was determined by scanning electron microscopy (SEM), using a Carl Zeiss NTS SUPRA 40 operating at 5 kV. In order to perform stability studies, the stock suspension was characterized after being prepared (t = 0 day) and after 15 days. At each time, the suspension was sonicated at a frequency of 40 kHz and 160 W of ultrasonic power for 30 min, before characterization.

According to SEM analyses, a 20 µL drop was deposited on a copper grid with carbon film and dried next to an oven (T = 100 ± 3 ºC), before being analyzed.

Bioassays

Cultures of B. glabrata were maintained in our laboratory under standard conditions in 17-20 L tanks, at T = 22 ± 2 ºC, with a 14:10 h light/dark cycle and constant aeration. The aqueous medium consisted of dechlorinated water. The organisms were fed three times a week with lettuce leaves ad libitum.

Bioassays were performed acutely (48 h of exposure) under static conditions (without medium renewal) at 22 ± 2 ºC in plastic containers with a capacity of 500 mL containing 300 mL of solution and a photoperiod of 14:10 h light/darkness. An adult snail with an average body weight of approximately 0.111 ± 0.050 g was placed in each container without food or aeration. The exposure solutions were prepared by adding the corresponding aliquots of the stock suspensions of NPs or non-nano ZnO to dechlorinated water. Depending on the experiment, three to six replicates were made for each exposure group, and in all cases, controls with dechlorinated water were performed.

Zn bioconcentration

According to Fahmy et al. (2014), the LC10 and LC50 in B. alexandrina, a freshwater snail of the same genus of B. glabrata, were 7 and 145 mg ZnO NPs/L, respectively. Based on those results, a preliminary experiment was performed to set the exposure concentration, and so the gastropods were exposed to 5 and 7.5 mg ZnO/L, as NPs or non-nano ZnO, for 48 h. At 5 mg ZnO/L, no changes in snail appearance or behavior with respect to untreated snails could be observed. In contrast, visceral mass retraction was observed in snails exposed to 7.5 mg/L ZnO NPs for 48 h. Therefore, a concentration of 5 mg ZnO/L was established for further experiments.

To study the comparative potential bioconcentration, gastropods were exposed to 5 mg ZnO/L, as NPs or non-nano ZnO, for 48 h. The incorporation of the NPs and the non-nano equivalent was estimated by Zn analysis performed on the total soft tissue of each organism. To do this, snails were placed on a Petri dish in contact with ice until there was no response to external stimulus (approximately 5 min). After this time, and with the help of a slide and tweezers, the valve was discarded and the total soft tissue was removed. Then, the excess water was removed with filter paper and the mass (wet weight) was determined. The soft tissue was transferred to 25 mL borosilicate glass tubes and HNO3 (c) was added to each tube in a 5:1 (volume:tissue) ratio. In order to verify the absence of contamination during the process, a digestion blank was prepared by placing HNO3 (c) in an extra tube, without animals. The samples were then heated in a water bath at 100 ºC for 6-8 h until the complete destruction of the organic matter. The determination of Zn was carried out using an atomic absorption spectrophotometer (AAS) (Varian Assoc. Inc., USA; model AA-575) by direct aspiration of the samples in an air-acetylene flame according to the conditions recommended by the manufacturer. In all cases, a deuterium lamp was used for background noise correction. For Zn, a hollow cathode lamp was used, and the readings were made at one of the characteristic wavelengths of the element (λ = 213.8 nm). To determine the linearity range, standards were used (0.5 mg Zn/L - 2 mg Zn/L), prepared in HNO3 (1% v/v) from a commercial standard solution of Zn containing 1000 mg/L (Titrisol ®; ZnCl2 in 0.06% HCl; Sigma-Aldrich, USA; CAS No. 7646-85-7). The detection limit was equal to 0.1 mg Zn/L.

NPs and bulk ZnO exposure concentrations were checked by AAS. In all cases, they were within 95% of nominal concentrations.

Biomarker parameters

Gastropods were exposed to ZnO NPs or bulk ZnO for 48 h to evaluate AChE, CES, CAT, GSH, and TBARS. Then, the snails were placed on a Petri dish in contact with ice for 5 min, and the valves were removed. The head-foot region was separated from the other tissues (pulmonary region, digestive gland, and gonads), which were weighed and processed together. This criterion was adopted to avoid excessive variability in the results since the tissue that makes up the head-foot region is very dense, and its degree of homogenization is highly variable (Garate et al., 2020).

All the results were standardized by protein content measured according to the method of Lowry et al. (1951), using bovine serum albumin as a standard.

AChE and CES

The soft tissues were homogenized on ice in a 1:5 ratio (tissue:volume) in 20 mM Tris-HCl buffer at pH = 7.5 with 0.5 mM ethylenediaminetetraacetic acid (EDTA) and then centrifuged at 11 000 x g for 20 min at 4 ºC. AChE was measured following the protocol described in Garate et al. (2020), in which the activity is measured at 412 nm, in a 100 mM sodium phosphate buffer solution pH = 8.0 containing 0.2 mM of DTNB, as chromogenic agent and 0.75 mM of acetylthiocholine iodide as substrate. CES was measured following the protocol described in Cacciatore et al. (2018) in which the activity is measured at 400 nm using 1 mM p-nitrophenyl butyrate as substrate.

CAT

The methodology (with minor modifications) described by Cochón et al. (2007) was followed. The soft tissues were homogenized on ice in a 1:5 ratio (tissue:volume) with 20 mM Tris-HCl buffer at pH = 7.5 containing 0.5 mM EDTA. They were then centrifuged at 11 000 x g for 20 min at 4 ºC, and the supernatants were diluted (1:2) with 50 mM sodium phosphate buffer at pH = 7.0, containing 0.1% Triton ® X-100 (Sigma-Aldrich, USA; CAS No. 9036-19-5). Finally, they were sonicated for 5 min at a frequency of 40 kHz and a power of 160 W and used as enzyme source. To determine the activity of the enzyme, H2O2 was used as a substrate, recording the drop in absorbance at 240 nm due to its decomposition into H2O and O2 (Cochón et al. 2007).

GSH

The soft tissues were homogenized on ice in a 1:5 ratio (tissue:volume) with a 125 mM sodium phosphate buffer, 6.3 mM EDTA, at pH = 7.5. Then, 100 μL of 30% (v/v) trichloroacetic acid were added to 900 μL of homogenate, incubated on ice for 15 min in the dark, and centrifuged at 11 000 x g for 5 min at room temperature. Total GSH levels (GSHt) were determined following the protocol of Tietze (1969) which is based on the sequential oxidation of GSH by DTNB and the reduction by NADPH in the presence of the enzyme GSH reductase. The formation of 2-nitro-5- thiobenzoic acid (TNB) was monitored spectrophotometrically at λ = 412 nm.

TBARS

Lipid peroxidation was estimated as malondialdehyde (MDA) equivalents, using the assay of TBARS (Iummato et al. 2018). The soft tissues were homogenized on ice in a 1:5 ratio (tissue:volume) in 20 mM Tris-HCl buffer at pH = 7.5 with 0.5 mM EDTA and then centrifuged at 11 000 x g for 20 min at 4 ºC. The reaction mixture contained 175 µL of sample and 25 mM thiobarbituric acid, 250 mM HCl, 0.92 M trichloroacetic acid and 0.7 mM butylhydroxytoluene in a final volume of 1.175 mL. The mixture was boiled for 1 h, cooled in ice, centrifuged at 8000 x g for 10 min and the absorbance of supernatant was measured at 535 nm.

Statistical analysis

Results were expressed as mean ± S.D. Data were submitted to one-way ANOVA followed by Tukey post-test by using Origin (Pro) 9 (OriginLab©, MA, USA). The level of significance used was 0.05. Prior to ANOVA, data were tested for normality and homogeneity of variance using the Shapiro-Wilk and Levene’s tests, respectively.

RESULTS

Zinc oxide NPs characterization

SEM images obtained of the freshly prepared NPs suspension showed free particles that had an average size of 30 ± 8 nm, while agglomerates/aggregates were within the size range 200 to 1600 nm (Fig. 1a). After 15 days of being prepared, the average particle size was similar to the size in the freshly prepared stock solution (34 ± 7 nm) (Fig. 1b).

Fig. 1 Scanning electron microscopy images of a) a freshly prepared (magnification: 400000X) and b) 15 days aged (magnification: 400000X) ZnO nanoparticles suspension.

The results confirmed that NPs average size in diluted dechlorinated water suspensions coincide with the size reported by the manufacturer, and that it was not modified after 15 days of being prepared.

Zn levels in B. glabrata exposed to ZnO NPs or bulk ZnO

We investigated the potential bioconcentration of ZnO in snails exposed to ZnO NPs or bulk ZnO for 48 h. Treated animals showed significant higher soft tissue Zn levels than control animals (Fig. 2). However, no significant differences (p > 0.05) were found between NPs-and bulk-treated snails.

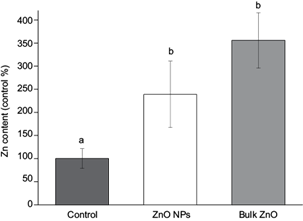

Fig. 2 Zn levels (expressed as control%) in B. glabrata exposed to ZnO nanoparticles (NPs) or bulk ZnO for 48 h. Each data represents the mean value ± SD (n = 3). Different letters indicate significant differences (p < 0.05). Control levels: ZnO nanoparticles (39 ± 8) µg Zn/g (wet weight); bulk ZnO (19 ± 3) µg Zn/g (wet weight).

Biomarker parameters

B-esterases

No significant differences were observed in AChE (Fig. 3a) or CES (Fig. 3b) activity by exposure to ZnO NPs or bulk ZnO with respect to control organisms (p > 0.05).

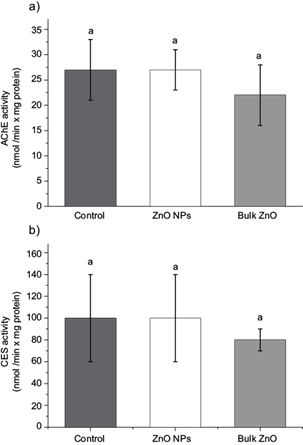

Fig. 3 (a) Acetylcholinesterase (AChE) and (b) carboxylesterase (CES) activity in B. glabrata exposed to ZnO nanoparticles (NPs) or bulk ZnO for 48 h. Data are expressed as the mean value ± SD (n = 6 for AChE and n = 4 for CES). Different letters indicate significant differences (p < 0.05).

Oxidative stress parameters

Comparing with controls, a significant decrease in GSHt levels (Fig. 4a) could be observed by exposure to ZnO NPs and bulk ZnO (p < 0.05). However, no significant differences were found between nano and non-nano ZnO. This decrease in GSH levels was neither reflected by an alteration of CAT activity (Fig. 4b) nor in the increase of lipid peroxidation levels (Fig. 4c).

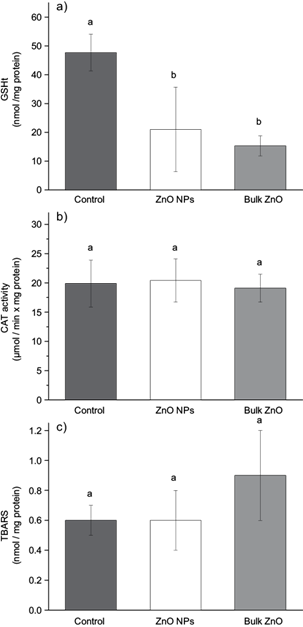

Fig. 4 (a) Total glutathione content (GSHt, n = 3), (b) catalase (CAT, n = 6) activity and (c) lipid peroxidation (TBARS, n = 3) in B. glabrata exposed to ZnO nanoparticles (NPs) or bulk ZnO for 48 h. Data are expressed as the mean value ± SD. Different letters indicate significant differences (p < 0.05).

DISCUSSION

The chemical form of substances contributes to the interaction with biological molecules. Subcellular, cellular, or environmental factors can lead to a chemical element being reactive, having positive or adverse results in Zn homeostasis (Griscom et al. 2004). This comparative study shows that the freshwater gastropod B. glabrata can incorporate Zn from acute exposure to both NPs and bulk ZnO in a similar degree. Incorporation of Zn from acute exposure to ZnO NPs has also been reported in marine molluscs such as the oyster Crassostrea gigas (Ostreidae, Mollusca) and the mussel Mytilus galloprovincialis (Mytilidae, Mollusca), which can incorporate the NPs through the gills and the digestive gland (Montes et al. 2012, Trevisan et al. 2014). Since B. glabrata are lung-bearing organisms, the possible routes of incorporation are limited to surface adsorption and ingestion (Kuehr et al. 2021).

Previous studies have suggested that under in vitro conditions, Zn can act as an inhibitor of AChE enzyme activity (Frasco et al. 2005). In addition, other metal oxide NPs (SiO2 or Al2O3) have a low capacity to inhibit the activity of this enzyme (Wang et al. 2009). However, through in vivo studies with ZnO NPs, no significant modifications of AChE activity were reported in the aquatic polychaete Hediste diversicolor (Nereididae, Annelida), neither in the clam Scrobicularia plana (Semelidae, Mollusca) due to exposure to sediments contaminated with 3 g NPs/kg for 16 days (Buffet et al. 2012) nor in the clam Ruditapes philippinarum (Veneridae, Mollusca) exposed to 1 or 10 µg/L for three or seven days (Marisa et al. 2016). Similarly, no modifications in AChE activity, which could trigger a process of neurotoxicity, were found in ZnO (NPs or bulk) exposed B. glabrata. CES were proposed as toxicity markers in aquatic animals for several xenobiotics (Cacciatore et al. 2018, Solé and Sanchez-Hernandez 2018, Mrdaković et al. 2023). Nevertheless, no changes in CES activity were observed in B. glabrata under present assay conditions.

Regarding the oxidative stress biomarker parameters studied, no changes in CAT activity or in the levels of lipid peroxidation were observed, revealing a lack of damage to macromolecules due to acute exposition to the nano and non-nano forms of ZnO. However, it has to be considered that biomarker parameters, especially those related to oxidative stress processes, may undergo temporary changes. Therefore, it is important to consider the time in which they are determined (Ali 2015, Rocco et al. 2022). According to the literature, in the case of ZnO NPs, dissimilar results have been found, since CAT activity may or may not undergo changes, depending on the exposure concentration, time and the selected species (Buffet et al. 2012, Marisa et al. 2016, Fahmy and Sayed 2017). Noteworthy, total GSH levels decreased in exposed snails when compared to controls, without a nano-specific effect. Reduction of GSH levels after exposure to ZnO NPs have already been reported in other mollusc species (Ali et al. 2012, Fahmy et al. 2014, Fahmy and Sayed 2017). Taking into account that: a) In natural habits, NPs coexist with a wide variety of both natural and anthropogenic compounds, which may also alter the redox cellular status and b) GSH is implicated in the cellular antioxidant defense system, the maintenance of the intracellular redox environment, cellular signalling, and regulation of transcription factors (Circu and Aw 2012), the decrease in GSH levels observed in B. glabrata suggests that exposure to ZnO compounds could generate a higher susceptibility to co-exposure to prooxidants xenobiotics.

Our results, using a relevant mollusc from an ecological point of view due to its role in freshwater ecosystems, contribute to deepen the knowledge of the still incipient topic of the effects of NPs in invertebrates. Knowledge of the possible toxicity of different NPs allows the development of predictive models to determine which ones may pose a greater probability of risk and those that are expected to have little impact on human health and the environment.

CONCLUSIONS

The results show that B. glabrata gastropods could incorporate ZnO after exposure to a sublethal concentration for 48 h. Interestingly, Zn levels augmented in both ZnO NPs and bulk ZnO exposed B. glabrata snails similarly. After acute exposure, NPs and bulk ZnO did not induce neurotoxicity or macromolecular damage. However, they significantly decreased GSH tissue content without a nano-specific effect. The results encourage further studies to better understand engineered NPs’ impact on freshwater invertebrate species.

ACKNOWLEDGMENTS

Authors would like to thank Julián Gigena and Julio Fuchs for their helpful collaboration in Zn analysis.

REFERENCES

Aisemberg J., Nahabedian D.E., Wider E.A. and Verrengia Guerrero N. R. (2005). Comparative study on two freshwater invertebrates for monitoring environmental lead exposure. Toxicology 210 (1), 45-53. https://doi.org/10.1016/j.tox.2005.01.005 [ Links ]

Ali D., Alarifi S., Kumar S., Ahamed M. and Siddiqui M.A. (2012). Oxidative stress and genotoxic effect of zinc oxide nanoparticles in freshwater snail Lymnaea luteola L. Aquatic Toxicology 124-125 (1), 83-90. https://doi.org/10.1016/j.aquatox.2012.07.012 [ Links ]

Ali D. (2015). Evaluation of environmental stress by comet assay on freshwater snail Lymnea luteola L. exposed to titanium dioxide nanoparticles. Toxicological and Environmental Chemistry 96 (8), 1185-1194. https://doi.org/10.1080/02772248.2015.1014195 [ Links ]

Almeida J.C., Cardoso C.E.D., Pereira E. and Freitas R. (2019). Toxic effects of metal nanoparticles in marine invertebrates. In: Nanostructured materials for treating aquatic pollution, engineering materials. (G.A. Batista Gonçalves and P. Marques, Eds.). Springer, Cham, Switzerland, pp. 175-224. https://doi.org/10.1007/978-3-030-33745-2_7 [ Links ]

Bhagat J., Ingole B.S. and Singh N. (2016). Glutathione S-transferase, catalase, superoxide dismutase, glutathione peroxidase, and lipid peroxidation as biomarkers of oxidative stress in snails: A review. Invertebrate Survival Journal 13 (1), 336-349. https://doi.org/10.25431/1824-307X/isj.v13i1.336-349 [ Links ]

Buffet P.E., Amiard-Triquet C., Dybowska A., Risso-de Faverney C., Guibbolini M., Valsami-Jones E. and Mouneyrac C. (2012). Fate of isotopically labeled zinc oxide nanoparticles in sediment and effects on two endobenthic species, the clam Scrobicularia plana and the ragworm Hediste diversicolor. Ecotoxicology and Environmental Safety 84 (1), 191-198. https://doi.org/10.1016/j.ecoenv.2012.07.010 [ Links ]

Bundschuh M., Filser J., Lüderwald S., McKee M.S., Metreveli G., Schaumann G.E., Schulz R. and Wagner S. (2018). Nanoparticles in the environment: Where do we come from, where do we go to?. Environmental Sciences Europe 30 (1), 1-17. https://doi.org/10.1186/s12302-018-0132-6 [ Links ]

Cacciatore L.C., Verrengia Guerrero N.R. and Cochón A.C. (2018). Toxicokinetic and toxicodynamic studies of carbaryl alone or in binary mixtures with azinphos methyl in the freshwater gastropod Planorbarius corneus. Aquatic Toxicology 199 (1), 276-284. https://doi.org/10.1016/j.aquatox.2018.04.005 [ Links ]

Caixeta M.B., Araújo P.S., Gonçalves B.B., Silva L.D., Grano-Maldonado M.I. and Rocha T.L. (2020). Toxicity of engineered nanomaterials to aquatic and land snails: A scientometric and systematic review. Chemosphere 260 (1), 127654. https://doi.org/10.1016/j.chemosphere.2020.127654 [ Links ]

Canesi L., Auguste M. and Bebianno M.J. (2019). Sublethal effects of nanoparticles on aquatic invertebrates, from molecular to organism level. In: Ecotoxicology of nanoparticles in aquatic systems. (J. Blasco and I. Corsi, Eds.). CRC Press, Boca Raton, USA, pp. 38-61. https://doi.org/10.1201/9781315158761 [ Links ]

Cavalcanti M.G.S., Mendonça A.M.B., Duarte G.R., Barbosa C.C.G.S., de Castro C.M. M.B., Alves L.C. and Brayner F.A. (2012). Morphological characterization of hemocytes from Biomphalaria glabrata and Biomphalaria straminea. Micron 43 (2-3), 285-291. https://doi.org/10.1016/j.micron.2011.09.002 [ Links ]

Chen G.H., Song C.C., Zhao T., Hogstrand C., Wei X.L., Lv W.H., Song Y.F. and Luo Z. (2022). Mitochondria-dependent oxidative stress mediates ZnO nanoparticle (ZnO NP)-induced mitophagy and lipotoxicity in freshwater teleost fish. Environmental Science and Technology 56 (4), 2407-2420. https://doi.org/10.1021/acs.est.1c07198 [ Links ]

Circu M.L. and Aw T.Y. (2012). Glutathione and modulation of cell apoptosis. Biochimica et Biophysica Acta 1823 (10), 1767-1777. https://doi.org/10.1016/j.bbamcr.2012.06.019 [ Links ]

Cochón A.C., della Penna A.B., Kristoff G., Piol M.N., San Martín de Viale L.C. and Verrengia Guerrero N.R. (2007). Differential effects of paraquat on oxidative stress parameters and polyamine levels in two freshwater invertebrates. Ecotoxicology and Environmental Safety 68 (2), 286-292. https://doi.org/10.1016/j.ecoenv.2006.11.010 [ Links ]

de-Carvalho R.R, Gomes-Carneiro M.R., Geraldino B.R., Lopes G.D.S. and Paumgartten F.J.R. (2022). Evaluation of the developmental toxicity of solvents, metals, drugs, and industrial chemicals using a freshwater snail (Biomphalaria glabrata) assay. Journal of Toxicology and Environmental Health, Part A 85 (19), 798-814. https://doi.org/10.1080/15287394.2022.2089413 [ Links ]

de Freitas Tallarico L., Borrely S.I., Hamada N., Grazeffe V.S., Ohlweiler F.P., Okazaki K., Granatelli A.T., Pereira I.W., de Bragança Pereira C.A. and Nakano E. (2014). Developmental toxicity, acute toxicity and mutagenicity testing in freshwater snails Biomphalaria glabrata (Mollusca: Gastropoda) exposed to chromium and water samples. Ecotoxicology and Environmental Safety 110 (1), 208-215. https://doi.org/10.1016/j.ecoenv.2014.09.005 [ Links ]

de Freitas Tallarico L. (2015). Freshwater gastropods as a tool for ecotoxicology assessments in Latin America. American Malacological Bulletin 33 (2), 330-336. https://doi.org/10.4003/006.033.0220 [ Links ]

de Freitas Tallarico L., Miyasato P.A. and Nakano E. (2016). Rearing and maintenance of Biomphalaria glabrata (Say, 1818): Adults and embryos under laboratory conditions. Annals of Aquaculture and Research, 3(1), 1013. https://www.jscimedcentral.com/Aquaculture/aquaculture-3-1013.pdfLinks ]

de Vasconcelos Lima M., de Andrade Pereira M.I., Cabral Filho P.E., Nascimento de Siqueira W., Milca Fagundes Silva H.A., de França E.J., Saegesser Santos B., Mendonça de Albuquerque Melo A.M. and Fontes A. (2019). Studies on toxicity of suspensions of CdTe quantum dots to Biomphalaria glabrata mollusks. Environmental Toxicology and Chemistry 38 (10), 2128-2136. https://doi.org/10.1002/etc.4525 [ Links ]

Domingues I., Agra A.R., Monaghan K., Soares A.M.V.M. and Nogueira A.J.A. (2009). Cholinesterase and glutathione-S-transferase activities in freshwater invertebrates as biomarkers to assess pesticide contamination. Environmental Toxicology and Chemistry 29 (1), 5-18. https://doi.org/10.1002/etc.23 [ Links ]

Elder J.F. and Collins J.J. (1991). Freshwater molluscs as indicators of bioavailability and toxicity of metals in surface-water systems. In: Reviews of environmental contamination and toxicology. (G.W. Ware, Ed.). Springer, New York, USA, vol. 122, pp. 37-79. https://doi.org/10.1007/978-1-4612-3198-1_2 [ Links ]

Espitia P.J.P., Soares N.D.F.F., Coimbra J.S.D.R., de Andrade N.J., Cruz R.S. and Medeiros E.A.A. (2012). Zinc oxide nanoparticles: Synthesis, antimicrobial activity and food packaging applications. Food and Bioprocess Technology 5 (1), 1447-1464. https://doi.org/10.1007/s11947-012-0797-6 [ Links ]

Fahmy S.R., Abdel-Ghaffar F., Bakry F.A. and Sayed D.A. (2014). Ecotoxicological effect of sublethal exposure to zinc oxide nanoparticles on freshwater snail Biomphalaria alexandrina. Archives of Environmental Contamination and Toxicology 67 (1), 192-202. https://doi.org/10.1007/s00244-014-0020-z [ Links ]

Fahmy S.R. and Sayed D.A. (2017). Toxicological perturbations of zinc oxide nanoparticles in the Coelatura aegyptiaca mussel. Toxicology and Industrial Health 33 (7), 564-575. https://doi.org/10.1177/0748233716687927 [ Links ]

Frasco M.F., Fournier D., Carvalho F. and Guilhermino L. (2005). Do metals inhibit acetylcholinesterase (AChE)?. Implementation of assay conditions for the use of AChE activity as a biomarker of metal toxicity. Biomarkers 10 (5), 360-375. https://doi.org/10.1080/13547500500264660 [ Links ]

Gagné F., Auclair J., Turcotte P., Gagnon C., Peyrot C. and Wilkinson K. (2019). The influence of surface waters on the bioavailability and toxicity of zinc oxide nanoparticles in freshwater mussels. Comparative Biochemistry and Physiology Part C: Toxicology and Pharmacology 219 (1), 1-11. https://doi.org/10.1016/j.cbpc.2019.01.005 [ Links ]

Garate O.F., Gazzaniga S. and Cochón A.C. (2020). A comparative study of enzymatic and immunological parameters in Planorbarius corneus and Biomphalaria glabrata exposed to the organophosphate chlorpyrifos. Aquatic Toxicology 225 (1), 105544. https://doi.org/10.1016/j.aquatox.2020.105544 [ Links ]

Gottschalk F., Sun T. and Nowack B. (2013). Environmental concentrations of engineered nanomaterials: Review of modeling and analytical studies. Environmental Pollution 181 (1), 287-300. https://doi.org/10.1016/j.envpol.2013.06.003 [ Links ]

Griscom S.B. and Fisher N.S. (2004). Bioavailability of sediment-bound metals to marine bivalve molluscs: An overview. Estuaries 27 (1), 826-838. https://doi.org/10.1007/BF02912044 [ Links ]

Heinlaan M., Ivask A., Blinova I., Dubourguier H.C. and Kahru A. (2008). Toxicity of nanosized and bulk ZnO, CuO and TiO2 to bacteria Vibrio fischeri and crustaceans Daphnia magna and Thamnocephalus platyurus. Chemosphere 71 (7), 1308-1316. https://doi.org/10.1016/j.chemosphere.2007.11.047 [ Links ]

Iummato M.M., Sabatini S.E., Cacciatore L.C., Cochón A.C., Cataldo D., de Molina M.D.C.R. and Juárez Á.B. (2018). Biochemical responses of the golden mussel Limnoperna fortunei under dietary glyphosate exposure. Ecotoxicology and Environmental Safety 163 (1), 69-75. https://doi.org/10.1016/j.ecoenv.2018.07.046 [ Links ]

Ju-Nam Y. and Lead J. (2016). Properties, sources, pathways, and fate of nanoparticles in the environment. In: Engineered nanoparticles and the environment: Biophysicochemical processes and toxicity. (B. Xing, C.D. Vecitis and N. Senesi, Eds.). John Wiley and Sons, Hoboken, USA, vol. 4, pp. 95-117. https://doi.org/10.1002/9781119275855.ch6 [ Links ]

Juan C.A., Pérez de la Lastra J.M., Plou F.J. and Pérez-Lebeña E. (2021). The chemistry of reactive oxygen species (ROS) revisited: Outlining their role in biological macromolecules (DNA, lipids and proteins) and induced pathologies. International Journal of Molecular Sciences 22 (9), 4642. https://doi.org/10.3390/ijms22094642 [ Links ]

Khan F.R., Laycock A., Dybowska A., Larner F., Smith B.D., Rainbow P.S., Luoma S. N., Rehkämper M. and Valsami-Jones E. (2013). Stable isotope tracer to determine uptake and efflux dynamics of ZnO nano-and bulk particles and dissolved Zn to an estuarine snail. Environmental Science and Technology 47 (15), 8532-8539. https://doi.org/10.1021/es4011465 [ Links ]

Khan I., Saeed K. and Khan I. (2019). Nanoparticles: Properties, applications and toxicities. Arabian Journal of Chemistry 12 (7), 908-931. https://doi.org/10.1016/j.arabjc.2017.05.011 [ Links ]

Król A., Pomastowski P., Ra K. and Buszewski B. (2017). Zinc oxide nanoparticles: Synthesis, antiseptic activity and toxicity mechanism. Advances in Colloid and Interface Science 249 (1), 37-52. https://doi.org/10.1016/j.cis.2017.07.033 [ Links ]

Kuehr S., Kosfeld V. and Schlechtriem C. (2021). Bioaccumulation assessment of nanomaterials using freshwater invertebrate species. Environmental Sciences Europe 33 (9), 1-36. https://doi.org/10.1186/s12302-020-00442-2 [ Links ]

Lowry O.H., Rosebrough N.J., Farr A.L. and Randall R.J. (1951). Protein measurement with the Folin phenol reagent. Journal of Biological Chemistry 193 (1), 265-275. https://doi.org/10.1016/S0021-9258(19)52451-6 [ Links ]

Ma S. and Lin D. (2013). The biophysicochemical interactions at the interfaces between nanoparticles and aquatic organisms: adsorption and internalization. Environmental Sciences: Processes and Impacts 15 (1), 145-160. https://doi.org/10.1039/C2EM30637A [ Links ]

Marisa I., Matozzo V., Munari M., Binelli A., Parolini M., Martucci A., Franceschinis E., Brianese N. and Marin M.G. (2016). In vivo exposure of the marine clam Ruditapes philippinarum to zinc oxide nanoparticles: Responses in gills, digestive gland and haemolymph. Environmental Science and Pollution Research 23 (1), 15275-15293. https://doi.org/10.1007/s11356-016-6690-5 [ Links ]

Montes M.O., Hanna S.K., Lenihan H.S. and Keller A.A. (2012). Uptake, accumulation, and biotransformation of metal oxide nanoparticles by a marine suspension-feeder. Journal of Hazardous Materials 225-226 (1), 139-145. https://doi.org/10.1016/j.jhazmat.2012.05.009 [ Links ]

Mrdaković M., Filipović A., Ilijin L., Grčić A., Matić D., Vlahović M., Todorović D. and Perić-Mataruga V. (2023). Ecotoxicology and Environmental Safety effects of dietary fluoranthene on tissue-specific responses of carboxylesterases, acetylcholinesterase and heat shock protein 70 in two forest lepidopteran species. Ecotoxicology and Environmental Safety 257 (1), 114937. https://doi.org/10.1016/j.ecoenv.2023.114937 [ Links ]

Nikinmaa M. (2014). Bioindicators and biomarkers. In: An introduction to aquatic toxicology (M. Nikinmaa, Ed.). Academic Press, Waltham, USA, pp. 147-155. https://doi.org/10.1016/B978-0-12-411574-3.00012-8 [ Links ]

Oliveira-Filho E.C., Nakano E. and Tallarico L.D.F. (2017). Bioassays with freshwater snails Biomphalaria sp.: From control of hosts in public health to alternative tools in ecotoxicology. Invertebrate Reproduction and Development 61 (1), 49-57. https://doi.org/10.1080/07924259.2016.1276484 [ Links ]

Oliveira-Filho E.C., Muniz D.H.F., Carvalho E.L., Cáceres-Velez P.R., Fascineli M.L., Azevedo R.B. and Grisolia C.K. (2019). Effects of AgNPs on the snail Biomphalaria glabrata: Survival, reproduction and silver accumulation. Toxics 7 (1), 1-8. https://doi.org/10.3390/toxics7010012 [ Links ]

OECD (2012). Test Nº. 36: Guidance on sample preparation and dosimetry for the safety testing of manufactured nanomaterials. Organisation for Economic Co-operation and Development. Report. Paris, France, 93 pp. [ Links ]

Rocco R., Cambindo Botto A.E., Muñoz M.J., Reingruber H., Wainstok R., Cochón A. and Gazzaniga S. (2022). Early redox homeostasis disruption contributes to the differential cytotoxicity of imiquimod on transformed and normal endothelial cells. Experimental Dermatology 31 (4), 608-614. https://doi.org/10.1111/exd.14499 [ Links ]

Ruiz M.D., Iriel A., Yusseppone M.S., Ortiz N., Di Salvatore P., Fernández Cirelli A., Ríos de Molina M.C., Calcagno J.A. and Sabatini S.E. (2018). Trace metals and oxidative status in soft tissues of caged mussels (Aulacomya atra) on the North patagonian coastline. Ecotoxicology and Environmental Safety 155 (1), 152-161. https://doi.org/10.1016/j.ecoenv.2018.02.064 [ Links ]

Solé M. and Sanchez-Hernandez J.C. (2018). Elucidating the importance of mussel carboxylesterase activity as exposure biomarker of environmental contaminants of current concern: An in vitro study. Ecological Indicators 85 (1), 432-439. https://doi.org/10.1016/j.ecolind.2017.10.046 [ Links ]

Tietze F. (1969). Enzymic method for quantitative determination of nanogram amounts of total and oxidized glutathione: Applications to mammalian blood and other tissues. Analytical Biochemistry 27 (3), 502-522. https://doi.org/10.1016/0003-2697(69)90064-5 [ Links ]

Trevisan R., Delapedra G., Mello D.F., Arl M., Schmidt É.C., Meder F., Monopoli M., Cargnin-Ferreira E., Bouzon Z.L., Fisher A.S., Sheehan D. and Dafre A.L. (2014). Gills are an initial target of zinc oxide nanoparticles in oysters Crassostrea gigas, leading to mitochondrial disruption and oxidative stress. Aquatic Toxicology 153 (1), 27-38. https://doi.org/10.1016/j.aquatox.2014.03.018 [ Links ]

USEPA (2002). EPA-821-R-02-012. Methods for measuring the acute toxicity of effluents and receiving waters to freshwater and marine organisms. United States Environmental Protection Agency. Washington, D.C., USA, 275 pp. [ Links ]

Verrengia Guerrero N.R., Nahabedian D.E. and Wider E.A. (2000). Analysis of some factors that may modify the bioavailability of cadmium and lead by Biomphalaria glabrata. Environmental Toxicology and Chemistry 19 (11), 2762-2768. https://doi.org/10.1002/etc.5620191122 [ Links ]

Wang Z., Zhao J., Li F., Gao D. and Xing B. (2009). Adsorption and inhibition of acetylcholinesterase by different nanoparticles. Chemosphere 77 (1), 67-73. https://doi.org/10.1016/j.chemosphere.2009.05.015 [ Links ]

Wong S.W., Leung P.T., Djurišić A.B. and Leung K.M. (2010). Toxicities of nano zinc oxide to five marine organisms: Influences of aggregate size and ion solubility. Analytical and bioanalytical chemistry 396 (1), 609-618. https://doi.org/10.1007/s00216-009-3249-z [ Links ]

Yusefi-Tanha E., Fallah S., Rostamnejadi A. and Pokhrel L.R. (2020). Zinc oxide nanoparticles (ZnO NPs) as a novel nanofertilizer: Influence on seed yield and antioxidant defense system in soil grown soybean (Glycine max cv. Kowsar). Science of the Total Environment 738 (1), 140240. https://doi.org/10.1016/j.scitotenv.2020.140240 [ Links ]

Received: March 01, 2023; Accepted: October 01, 2023

*Author for correspondence: oghiglione@qb.fcen.uba.ar

Creative Commons License This is an open-access article distributed under the terms of the Creative Commons Attribution License
