Geofísica internacional
versión On-line ISSN 2954-436Xversión impresa ISSN 0016-7169
Geofís. Intl vol.48 no.1 Ciudad de México ene./mar. 2009
Article
Nonmethane Volatile Organic Compounds (VOCs) at El Chichón volcano (Chiapas, México): Geochemical features, origin and behavior
F. Tassi1*, B. Capaccioni2, F. Capecchiacci1 and O. Vaselli1,3
1 Department of Earth Sciences, University of Florence, Via G. La Pira, 4, 50121, Florence, Italy * Corresponding author: franco.tassi@unifi.it
2 Department of Earth and EnvironmentalGeological Sciences, University of Bologna Porta S. Donato, 1, Bologna, Italy
3 CNR IGG, Institute of Geosciences and Georesources, Via G. La Pira, 4, 50121 Florence, Italy
Received: January 28, 2008
Accepted: April 10, 2008
Resumen
Se presenta un estudio de las características geoquímicas de la fracción orgánica en las fumarolas del volcán Chichón (Estado de Chiapas, México) para obtener información sobre el origen de los compuestos orgánicos volátiles exceptuando el metano (VOCs) y los procesos que rigen su comportamiento. Los VOCs en fumarolas y pozas burbujeantes consisten principalmente de alcanos (C2C5) cuya abundancia total tiene un orden de magnitud menor que el metano, y concentraciones altas de aromáticos (benceno y tolueno) y C2C3 alquenos (principalmente propano e isobutano). Se encontraron también concentraciones significativas de compuestos de azufre substituidos que en su mayoría pertenecen al grupo de los heterocíclicos. Esta composición, similar a la de las emisiones gaseosas relacionadas a sistemas geotérmicos, sugiere que la producción de gases orgánicos en el volcán El Chichón es principalmente debida a procesos termogénicos. La abundancia total de VOCs es relativamente baja en comparación con la composición típica de fluidos hidrotermales, lo que podría estar relacionado a una contribución importante de fluidos de origen magmático al reservorio que alimenta las emisiones termales del cráter. Sin embargo, la ausencia de compuestos de Osubstituidos parece indicar que la composición de los fluidos hidrotermales no es afectada por el aporte de especies orgánicas producidas en profundidades someras por la descomposición de material vegetal reciente, como aquél sepultado por los productos de la erupción de 1982.
Palabras clave: VOC, El Chichón, fluidos termales, química orgánica.
Abstract
Geochemical features of the organic gas fraction in fumarolic fluids at El Chichón volcano (Chiapas State, Mexico) are studied to investigate the origin of nonmethane volatile organic compounds (VOCs) and the processes governing their behavior. VOCs from fumaroles and bubbling pools mainly consist of C2C5 alkanes, with total abundance one order of magnitude less than that of methane, and relatively high concentrations of aromatics (benzene and toluene) and C2C3 alkenes (mainly propene and isobutene). Significant concentrations of Sbearing compounds, mostly of the heterocyclic group, are also detected. This composition is similar to that of gas emissions of geothermal systems. The production of organic gases at El Chichón may be due to thermogenic processes. Total VOC abundance is relatively low when compared with typical hydrothermal gas discharges, and may be attributed to magmaticrelated fluids in the main reservoir feeding the thermal manifestations of the crater. As absence of Obearing compounds seems to indicate that the hydrothermal fluids are not significantly affected by organic species produced at shallow depth by decomposing vegetation, such as that buried by the volcanic products of the 1982 eruption.
Key words: VOC, El Chichón volcano, thermal fluid, organic chemistry.
Introduction
Nonmethane volatile organic compounds (VOCs) are frequently released in gas emissions of geothermal and volcanic systems (e.g. Capaccioni et al., 1993; Darling,1998; Tassi, 2004). Hydrocarbon gas compounds are generally produced in these environments by degradation of organic material, mainly buried in sedimentary formations, by bacteriadriven (biogenic) reactions at low temperature (<150 °C) or by thermogenic processes at 150350 °C, such as catalytic reforming and/or thermal cracking (e.g. Des Marais et al., 1981; Mango, 2000; Taran and Giggenbach, 2003). Under hydrothermal conditions the relative concentration of light (C2C3) alkenealkane pairs is regulated by chemical reactions able to approach a metastable equilibrium (e.g. Seewald, 1994; Capaccioni and Mangani, 2001; Tassi et al., 2005a). Thus such compounds may be used as geoindicators for geothermal prospection and volcano monitoring (Capaccioni et al., 2005; Tassi et al., 2005b; 2007). Despite these encouraging results, the composition of the organic gas fraction in thermal fluid discharges is rarely determined and, consequently, the systematics and the behavior of organic compounds from volcanic and geothermal environments may not be appropriately constrained.
In this paper the composition of C2C15 organic compounds of gases from low temperature (<100 °C) discharges is discussed in order to provide new insights into the geochemical processes and the thermodynamic conditions at El Chichón volcano, Chiapas, Mexico (Fig. 1a).
Volcanological setting and geochemical features

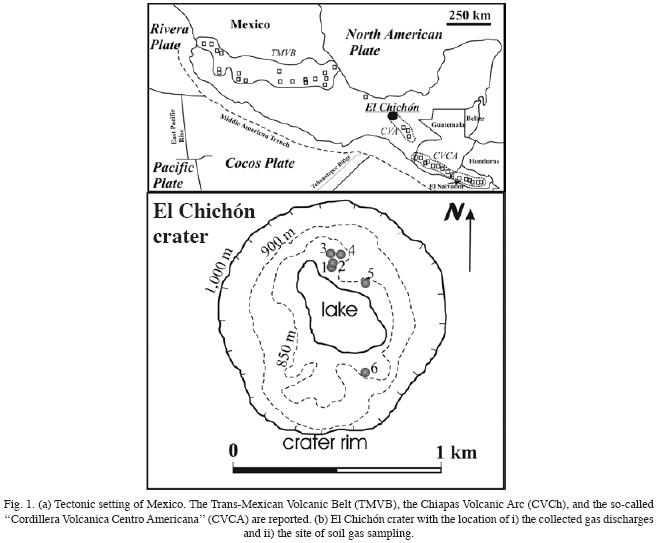

El Chichón volcano (17'22°N, 93'14°W; 1,100 m a.s.l.) is the youngest volcano in the Chiapanecan Volcanic Arc (CVA; Fig. 1) between the eastern end of the TransMexican Volcanic Belt (TMVB) and the northwestern end of the Central American Volcanic Arc (CVCA; Fig. 1) (Damos and Montesinos, 1978; Duffield et al., 1984; Luhr et al., 1984; GarcíaPalomo et al., 2004; Mora et al., 2007; Layer et al., this issue) (Fig. 1a). El Chichón Volcano produced potassic alkaline magmas (e.g. Luhr et al., 1984), whose genesis was likely related to extensional tectonism associated with the triple junction between the North American, Caribbean and Cocos plates (Nixon, 1982). The most recent eruption occurred in 1982 (e.g. Sigurdsson et al., 1984; Carey and Sigurdsson, 1986) after a quiescence time of at most 550 years (Tilling et al., 1984; Espíndola et al., 2000). The eruption left a subcircular crater partly covered by an acidic crater lake with a maximum diameter of 1.1 km, featuring intense current hydrothermal activity (Taran et al., 1998; Rouwet et al., 2004; 2008). Fluid discharges have relatively low temperatures (< 100 °C) and include hot mud, boiling and bubbling pools, thermal springs, fumaroles and areas of diffuse degassing (Fig. 1b).
The dry gas phase of fumaroles and boiling pools in El Chichón crater contains mainly CO2 (up to 99 % by vol.) plus relatively high concentrations of H2, N2 and H2S, (up to 5.9, 5 and 3.1 % by vol., respectively), and minor concentrations (<0.5 % by vol.) of CO, He and atmosphericrelated compounds. Highly acidic gas species (HF, HCl and SO2) are present as traces (Taran et al., 1998; Tassi et al., 2003). This composition was interpreted as the result of strong inputs of magmarelated fluids, as shown by the values of helium and carbon (in CO2) isotope ratios, in a hydrothermal reservoir that scrubs the typical highly soluble gas compounds (Taran et al., 1998; Tassi, et al., 2003). An important role may also be played by interaction processes of deep fluids with volcanic and sedimentary rocks (limestone and evaporite) basement (Tassi et al., 2003; Taran et al., 2008; Rouwet et al., this issue). S in sulfur species of water and gas discharges and C in CO2 isotopic composition suggest that the deep system is dominated by highly reducing conditions and by the presence of organic material (Taran et al., 1998).
Sampling and analytical methods
Gas samples were collected from a fumarole (# 1 and 2; Table 1), corresponding to the discharging site of the Soap Pool (Taran et al., 1998), and three boiling pools (# 3, 4 and 5) in the northeastern sector of the crater (Fig. 1b). We follow the procedure described in Montegrossi et al. (2001). One soil gas sample (# 6) was collected in the southern inner part of the crater (Fig. 1b) with a Stitz probe at a depth of 70 cm in the soil. Inorganic compounds and methane were analyzed by gas chromatography and ion chromatography (Montegrossi et al., 2001). Gas samples for the determination of VOC composition were stored into preevacuated 12 mL glass vials equipped with pierceable rubber septum (Labco Exetainer®). During the first phase of the analytical procedure, the organic volátiles were preconcentrated and transferred from the sampling vials into a Thermo Trace GC Ultra gas chromatograph by using a manual SPME (solidphase microextraction) device introduced through the silicon membrane of the glass vial to expose the gas mixtures to a divinylbenzene (DVB)Carboxenpolydimethylsiloxane (PDMS), 50/30 µm, 2 cm long fibre assembly (Supelco; Bellefonte, PA, USA) for 15 min (Arthur and Pawliszyn, 1990). The GC system was coupled with a Thermo DSQ Quadrupole Mass Spectrometer for analytical separation and detection of VOCs in the mass range 40400 m/z. The transferline temperature was 230 °C. The mass detector was equipped with an EI (Electron Impact) ionization system with an ionization energy of 70 eV. The source temperature was 250 °C. The analyses were desorbed from the SPME fibre through direct exposure for 2 min in the GC injection port, heated at 230 °C. The chromatographic column was a 30 m x 0.25 mm i.d. 0.25 urn film thickness TR5MS fused silica capillary column (Thermo). The carrier gas was helium at 1.3 mL/min flowrate in constant flow mode. The column oven temperature was programmed, as follows: 35 °C (hold 10 min), rate 5.5 °C/min to 180 °C (hold 3 min), rate 20 °C/min to 230 °C (hold 6 min). Compounds were identified by comparison of the mass spectra with those of the NIST05 library.
Concentrations of C2C5 alkanes and C3C4 alkenes (Table 1) were determined by a Shimadzu 14a gaschromatograph equipped with a Flame Ionization Detector (FID) using a 10 m long stainless steel column ( = 2 mm) packed with Chromosorb PAW 80/100 mesh coated with 23% SP 1700 with helium as carrier gas (Tassi et al., 2004). Analytical precision was <5 %. VOC quantification was performed using an external standard calibration procedure based on a 13 components gas standard mixture. Alkanes were determined with reference to hexane, heptane and decane; alcohols to phenol; cyclics to cyclohexane; Clbearing compounds to dichloromethane; aromatics to benzene and pxylene; ketones to acetone; aromatic aldehydes to benzaldehyde; aliphatic aldehydes and esters to butanal; Sbearing compounds to dimethylsulphoxide; heterocycles to furan. The analytical error was <10%. The detection limit was determined by linear extrapolation from the lowest standard in the calibration curve using the area of a peak having a signal/noise ratio equal to 5.
VOC composition

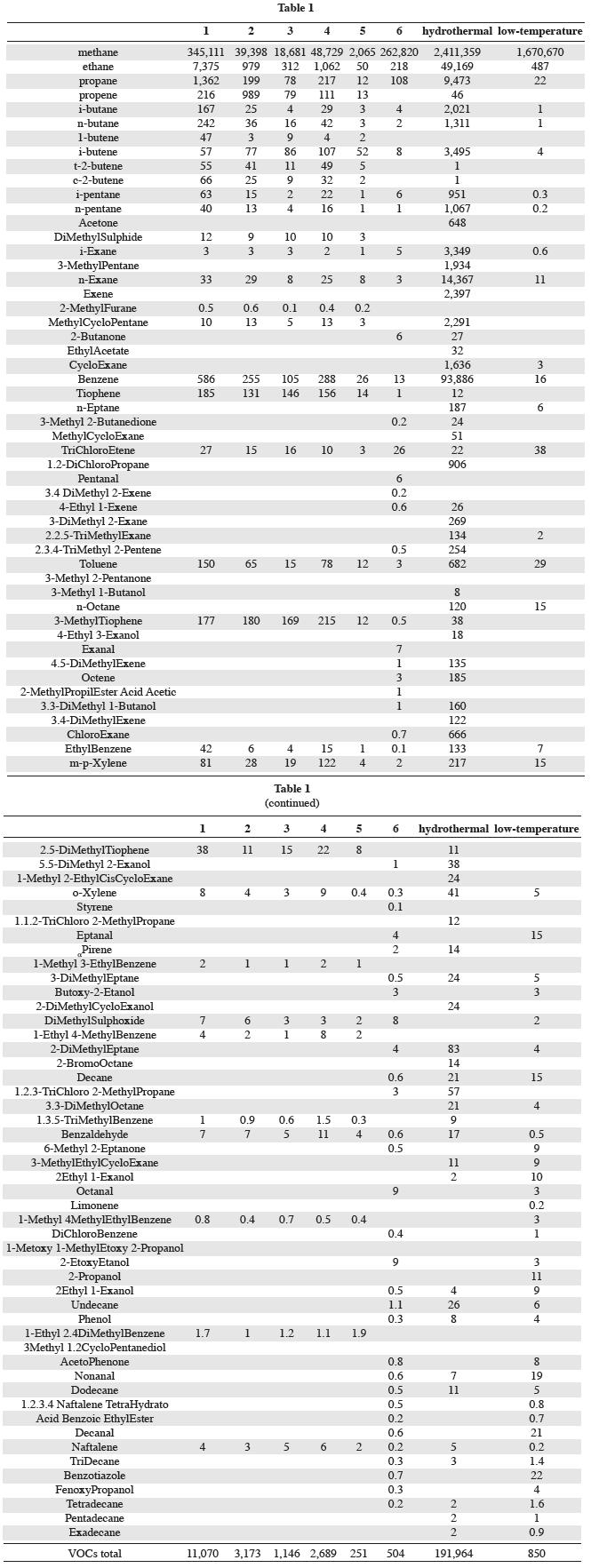

The concentration of methane and VOCs expressed as ppb by vol. in the dry gas phase of the hydrothermal fluid discharges and in the soil gas of El Chichón crater is reported in Table 1. For comparison, we also show the VOC composition of i) "hydrothermal" fluids, based on the mean composition of gas discharges collected at three hydrothermal systems (Yellowstone, USA; Tendaho, Ethiopia; Tatun, Taiwan), and ii) "lowtemperature" fluids, based on the mean composition of gas discharges related to lowenthalpy systems in Tuscany, Italy (e.g. Fournier, 1989; D'Amore etal., 1997; Minissale etal., 1997; Lee et al., 2005) (Table 1). A total of 33 and 57 different species were identified in the El Chichón fluid discharges and the soil gas, respectively (Table 1). VOC concentrations vary over a wide range (from 0.1 to 7,375 ppbv) but the fluid discharges (# 15) are characterized by the presence of the same organic species. Their composition can be considered relatively homogeneous. Generally speaking, C2C5 alkanes largely represent the most abundant group of VOCs in El Chichón gas samples (Table 1). However, as shown in Fig. 2ab, the mean composition of the 5 gas discharges is significantly different from that of the soil gas. El Chichón hydrothermal fluids are contained by relatively high concentrations of alkenes (11.7 % of the total VOC composition), aromatics (10.7 %) and Sbearing compounds (8.4 %), while the O and Clbearing organic species found in the soil gas (15.7 and 5.9 %, respectively; Fig. 2b), are present in very small amounts (<0.4 %). The VOC composition of El Chichón fluid discharges shows striking differences when compared with typical fluids of hydrothermal systems (Fig. 2c), as the latter are significantly rich in aromatics (49.5 %) (e.g. Capaccioni et al., 1993; 1995; 2005). Notice that the pie charts of relative proportions of the main group of VOCs clearly show compositional features of soil gas resembling those of gases produced at relatively low temperature (Fig. 2b,d). The distribution of alkanes in the organics of El Chichón gas discharges, is poor in C6+ species that are present in significant amounts in soil gas, as in hydrothermal and lowtemperature fluids (Fig. 3). On the other hand, the distribution of aromatics shows no significant differences among the four types of fluids considered, especially those produced by analogous reaction series (Tassi, 2004), i.e. benzene, toluene and xylenes (Fig. 4). Thus the VOC composition of El Chichón fluid discharges, though partly resembling that found in other hydrothermal fluids also presents distinctive features as follows:
1) total VOC concentration is two orders of magnitude lower than in typical hydrothermal fluids;
2) several light VOCs (<C5) were detected;
3) heavy VOCs (C6+) are present only as aromatics and aromaticderived species (i.e. benzaldehyde and 2,5dimethylthiophene).
VOC origin
VOCs in the natural environment are almost exclusively produced by degradation of organic matter ( "kerogen") (e.g., Gunter, 1978; Des Marais et al., 1981; Mango, 2000). Abiotic synthesis of organic species can originate from inorganic constituents (e.g., Berndt et al., 1996; Horita and Berndt, 1999), but may be regarded as negligible (e.g., Welhan, 1988; Darling, 1998; Mango, 2000; Taran and Giggenbach, 2003).

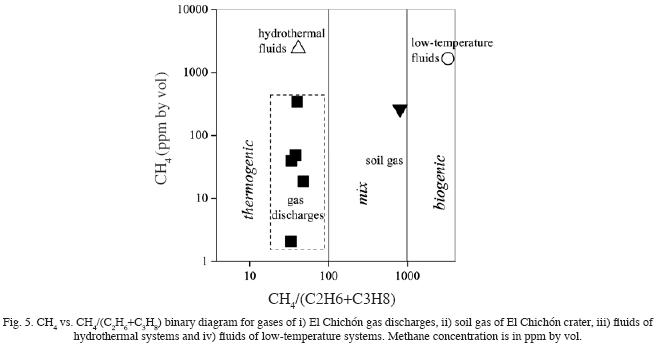

The ratio of CH4 to light hydrocarbons may provide insights into the thermodynamic conditions controlling the genetic process of these organic compounds (Mango, 2000, Mango, 2001). The CH4/(C2H6+C3H8) ratio in El Chichón gas discharges, as in other hydrothermal systems used for comparison, are <100 (Fig. 5), suggesting that these compounds are thermogenic (T > 150°C) (e.g. Oremland et al., 1987; Whiticar and Suess, 1990). By contrast, El Chichón soil gas shows a relatively high CH4/ (C2H6+C3Hg) ratio (806), which suggests a significant contribution of organics from bacterial activity, as in shallow environments at T <50 °C (Hunt, 1984). Thus the light alkenealkane pair in the El Chichón crater fluid discharges may be utilized to evaluate equilibrium temperature and redox conditions in the main hydrothermal reservoir (Capaccioni et al., 2004), where the aromatics, which together with the alkanes and alkenes constitute almost the 90 % of VOCs (Fig. 2a), may also be produced. Similarly, the Sbearing compounds, up to 10 % of the total VOC composition (Fig. 2a), can be considered a common feature in fluids equilibrated at mediumtohigh temperature in the presence of H2S (e.g. Mangani et al., 2004). Obearing compounds (aldehydes, ketones, organic acids, alcohols and esters), are very rare in fluid discharges (Table 1), they may be due to bacterial metabolism at relatively high oxidizing conditions (Jones, 1968). This explains the relatively high concentrations of these compounds in soil gas and in fluids from lowtemperature systems (Fig. 2b,d), where genetic processes for organics can take place under oxidizing condition and in presence of fresh organic matter, typically containing O and Nbearing compounds. Clsubstitutes may be produced at depth by interaction of organics with Clrich fluids in the deep aquifer (Taran et al., 1998). They show similar concentrations in gases from thermal discharges and soil (Table 1), possibly because of the high stability of these compounds at various redox conditions (Scheutz et al., 2000).
Concluding remarks
The VOC composition in fluids of the fumaroles and the boiling pools of El Chichón volcano have a composition that is related to thermogenic processes. Accordingly, the lack of Obearing compounds in the hydrothermal discharges indicates that the production processes of the organic gas fraction essentially proceed at depth, likely within the main hydrothermal reservoir. Consequently, contribution of VOCs from degradation of fresh vegetation buried in the soil, such as that related to the volcanic products of the 1982 eruption, can be considered negligible. It is important to notice that the total VOC abundance measured in El Chichón fluids is relatively low when compared with those characterizing the typical hydrothermal systems (Table 1), but it is to be considered high with respect to the VOC abundances found in gas emissions of hightemperature fumaroles of active volcanic systems (Tassi, 2004; Schwandner et al., 2004 and references therein). This is in agreement with the chemical and isotopic features of the main gas constituents that were interpreted (Taran et al., 1998; Tassi et al., 2003) as related to a hydrothermal system whose temperature and redox conditions were strongly affected by magmatic inputs.
Acknowledgements
This work was financially supported by a CNRCONACYT bilateral project (resp. B. Capaccioni). J. L. Macias and J. C. Mora Chaparro are warmly thanked for their assistance during the sampling campaigns. We wish to express our thanks to T. Fischer and W. G. Darling for their useful suggestions and comments on an early version of the manuscript.
Bibliography
Arthur, C. L. and J. Pawliszyn, 1990. Solid phase microextraction with thermal desorption using fused silica optical fibers. Anal. Chem., 62, 21452148. [ Links ]
Berndt, M. E., D. E. Allen and W. E. Seyfried, 1996. Reduction of CO2 during serpentinization of olivine at 300°C and 500 bar. Geology, 24, 351354. [ Links ]
Capaccioni, B., M. Martini, F. Mangani, L. Giannini, G. Nappi and F. Prati, 1993. Light hydrocarbons in gasemissions from volcanic areas and geothermal fields. Geochem. J., 27, 717. [ Links ]
Capaccioni, B., M. Martini and F. Mangani, 1995. Light hydrocarbons in hydrothermal and magmatic fumaroles: hints of catalytic and thermal reactions. Bull. Volcanol., 56, 593600. [ Links ]
Capaccioni, B. and F. Mangani, 2001. Monitoring of active but quiescent volcanoes using light hydrocarbon distribution in volcanic gases: The results of 4 years of discontinuous monitoring in the Campi Flegrei (Italy). Earth Planet. Sci. Lett., 188, 543555. [ Links ]
Capaccioni, B., Y. Taran, F. Tassi, O. Vaselli, F. Mangani and J. L. Macias, 2004. Source conditions and degradation processes of light hydrocarbons in volcanic gases: An example from the Chichon Volcano (Chiapas State, Mexico). Chem. Geol., 206, 8196. [ Links ]
Capaccioni, B., F. Tassi, M. Maione, F. Mangani and O. Vaselli, 2005. Organics In volcanic gases: A review on their distribution and applications to volcanic surveillance. Eos Trans. AGU, 86(52), Fall Meet. Suppl., Abstract B23D03. [ Links ]
Carey, S. N. and H. Sigurdsson, 1986. The 1982 eruptions of El Chichón volcano, Mexico: 2. Observations and numerical modeling of tephra fall distribution. Bull. Volcanol., 48, 127141. [ Links ]
D'Amore, F., D. Giusti and B. Gizaw, 1997. Tendaho, Ethiopia. Geothermal Project: a Geochemical Assessment. Proceedings 22nd Workshop Geothermal Reservoir Engineering, Stanford, January 2729, pp. 435445. [ Links ]
Damon, P. E. and E. Montesinos, 1978. Late Cenozoic volcanism and metallogenesis over an active Benioff zone in Chiapas, Mexico. Ariz. Geol. Soc. Dig., 11, 155168. [ Links ]
Darling, W. G., 1998. Hydrothermal hydrocarbons gases: 1. Genesis and geothermometry. Appl. Geochem., 13, 815824. [ Links ]
Des Marais, D. J., J. H. Donchin, A. H. Truesdell and N. L. Nehring, 1981. Molecular carbon isotopic evidence for the origin of geothermal hydrocarbons. Nature, 292, 826828. [ Links ]
Duffield, W. A., R. I. Tilling and R. Canul, 1984. Geology of El Chichón volcano Chiapas, Mexico. J. Volcanol. Geotherm. Res., 20, 117132. [ Links ]
Espíndola, J. M., J. L. Macías, R. I. Tilling and M. F. Sheridan, 2000. Volcanic history of El Chichón Volcano (Chiapas, Mexico) during the Holocene, and its impact on human activity. Bull. Volcanol., 62, 90104. [ Links ]
Fournier, R. O., 1989. Geochemistry and dynamics of the Yellowstone National Park hydrothermal system. Annu. Rev. Earth Planet. Sci., 17, 1353. [ Links ]
GarcíaPalomo, A., J. L. Macías and J. M. Espíndola, 2004. Strikeslip faults and KAlkaline volcanism at El Chichón volcano, southeastern Mexico. J. Volcano. Geotherm. Res., 136, 247268. [ Links ]
Gunter, B. D., 1978. C1C4 hydrocarbons in hydrothermal gases. Geochim. Cosmochim. Acta, 42, 137139. [ Links ]
Horita, J. and M. E. Berndt, 1999. Abiogenic methane formation and isotopic fractionation under hydrothermal conditions. Science, 285, 1,0551,057. [ Links ]
Hunt, J. M., 1984. Generation and migration of light hydrocarbons. Science, 226, 12651270. [ Links ]
Jones, D. F., 1968. Microbiological oxidation of longchain aliphatic compounds. Part V. Mechanism of hydroxylation. J. Chem. Soc. C, 28272833. [ Links ]
Layer, P. W., A. GarcíaPalomo, D. Jones, J. L. Macías, J. L. Arce and J. C. Mora, 2008. El Chichón Volcanic Complex, Chiapas, Mexico: stages of evolution based on field mapping and 40Ar/39Ar geochronology. Geofís. Int., 48, 1, 3355. [ Links ]
Lee, H. F., T. F. Yang, T. F. Lan, S. R. Song and S. Tsao, 2005. Fumarolic gas composition of the Tatun Volcano Group, northern Taiwan. Terrestrial. Atmospheric and Oceanic Sciences 16, 843864. [ Links ]
Luhr, J. F., E. S. E. Carmichael and J. C. Varekamp, 1984. The 1982 eruption of El Chichón Volcano, Chiapas, Mexico: mineralogy and petrology of the anhydritebearing pumices. J. Volcanol. Geotherm. Res., 23, 69108. [ Links ]
Mangani, G., A. Berlani, B. Capaccioni, F. Tassi and M. Maione, 2004. Gas chromatographicmass spectrometric analysis of hydrocarbons and other neutral organic compounds in volcanic gases using SPME for sample preparation. Chromatographia, 58, 15. [ Links ]
Mango, F. D., 2000. The origin of light hydrocarbons. Geochim. Cosmochim. Acta, 64, 12651277. [ Links ]
Mango, F. D., 2001. Methane concentrations in natural gas: the genetic implication. Org. Geochem., 32, 12831287. [ Links ]
Minissale, A., W. C. Evans, G. Magro and O. Vaselli, 1997. Multiple source components in gas manifestations from northcentral Italy. Chem. Geol., 142, 175192. [ Links ]
Montegrossi, G., F. Tassi, O. Vaselli, A. Buccianti and K. Garofalo, 2001. Sulfur species in volcanic gases. Anal. Chem., 73, 37093715. [ Links ]
Mora, J. C., M. C. JaimesViera, V. H. Garduñomonroy, P. W. Layer, V. PompaMera and M. L. Godinez, 2007. Geology and geochemistry characteristics of the Chiapanecan Volcanic Arc (Central Area), Chiapas Mexico. J. Volcanol. Geotherm. Res., 162, 4372. [ Links ]
Nixon, G. T., 1982. The relationship between Quaternary volcanism and the seismicity and structure of the subducted ocean lithosphere. Bull. Geol. Soc. Am., 93, 51452. [ Links ]
Oremland, R. S., L. G. Miller and M. J. Whiticar, 1987. Sources and flux of natural gases from Mono Lake, California. Geochim. Cosmochim. Acta, 51, 29152929. [ Links ]
Rouwet, D., Y. A. Taran and N. R. Varley, 2004. Dynamics and mass balance of El Chichón crater lake, Mexico. Geofis. Int., 43, 427434. [ Links ]
Rouwet, D., Y. A. Taran, S. Inguaggiato, N. R. Varley And J. A. Santiago, 2008. Hydrochemical dynamics of the "lakespring" system in the crater of El Chichón volcano (Chiapas, Mexico). J. Volcanol. Geotherm. Res., Special volume on Crater Lakes ed. J. Varekamp and M. van Bergen, in press. [ Links ]
Rouwet, D., S. Bellomo, L. Brusca, S. Inguaggiato, M. Jutzeler, R. Mora, A. Mazot, R. Bernard, M. Cassidy and Y. A. Taran, 2008. Major and trace element geochemistry of El Chichón volcanohydrothermal system (Chiapas, Mexico) in 20062007: implications for future geochemical monitoring. Geofis. Int., 48, 1, 5572. [ Links ]
Scheutz, C., K. Winther and P. Kjeldsen, 2000. Removal of halogenated organic compounds in landfill gas by top covers containing zero valent iron. Environ. Sci. Technol., 34, 25572563. [ Links ]
Schwandner, F. M., T. M. Seeward, A. P. Gize, P. A. Hall and V. J. Dietrich, 2004. Diffuse emission of organic trace gases from the flank and crater of a quiescent active volcano (Vulcano, Aeolian Islands, Italy). J. Geophys. Res., 109, D04301, doi:10.1029/2003JD003890. [ Links ]
Seewald, J. S., 1994. Evidence for metastable equilibrium between hydrocarbons under hydrothermal conditions. Nature, 370, 285287. [ Links ]
Sigurdsson, H., S. N. Carey and J. M. Espindola, 1984. The 1982 eruptions of El Chichón volcano, Mexico: stratigraphy of pyroclastic deposits. J. Volcanol. Geotherm. Res., 23, 1137. [ Links ]
Taran, Y., T. P. Fischer, B. Pokrovsky, Y. Sano, M. A. Armienta and J. L. Macias, 1998. Geochemistry of the volcanohydrothermal system of El Chichón Volcano Chiapas, Mexico. Bull. Volcanol., 59, 436449. [ Links ]
Taran, Y. A. and W. F. Giggenbach, 2003. Geochemistry of light hydrocarbons in subductionrelated volcanic and hydrothermal fluids. In: Volcanic, Geothermal, and OreForming Fluids: Rulers and Witnesses of Processes Within the Earth, Spec. Publ., 10, S. F. Simmons and I. J. Graham (Eds.), Soc. of Econ. Geol., Littleton, Colorado, 6174. [ Links ]
Taran, Y. A., D. Rouwet, S. Inguaggiato and A. Aiuppa, 2008. Major and trace element geochemistry of neutral and acidic thermal springs at El Chichón volcano, Mexico. Implications for monitoring of the volcanic activity. J. Volcanol. Geotherm. Res., Special volume on Crater Lakes ed. J. Varekamp and M. van Bergen. [ Links ]
Tassi, F., 2004. Fluidi in ambiente vulcanico: Evoluzione temporale dei parametri composizionali e distribuzione degli idrocarburi leggeri in fase gassosa. Ph.D. thesis, Univ. of Florence, Florence, Italy, pp. 292 (in Italian). [ Links ]
Tassi, F., O. Vaselli, B. Capaccioni, J. L. Macias, A. Nencetti, G. Montegrossi and G. Magro, 2003. Chemical composition of fumarolic gases and spring discharges from El Chichón volcano, Mexico: causes and implications of the changes detected over the period 19982000. J. Volcanol. Geotherm. Res., 123, 105121. [ Links ]
Tassi, F., G. Montegrossi and O. Vaselli, 2004. Metodologie di campionamento ed analisi di fasi gassose. Internal Report CNRIGG, Florence, no. 1/2004, pp. 15 (in Italian). [ Links ]
Tassi, F., C. Martinez, O. Vaselli, B. Capaccioni and J. Viramonte, 2005a. The light hydrocarbons as new geoindicators of equilibrium temperatures and redox conditions of geothermal fields: Evidence from El Tatio (northern Chile). Appl. Geochem., 20, 20492062. [ Links ]
Tassi, F., O. Vaselli, B. Capaccioni, C. Giolito, E. Duarte, E. Fernandez, A. Minissale and G. Magro, 2005b. The hydrothermalvolcanic system of Rincon de la Vieja volcano (Costa Rica): A combined (inorganic and organic) geochemical approach to understanding the origin of the fluid discharges and its possible application to volcanic surveillance. J. Volcanol. Geotherm. Res., 148, 315333. [ Links ]
Tassi, F., O. Vaselli, B. Capaccioni, G. Montegrossi, F. Barahona and A. Caprai, 2007. Scrubbing process and chemical equilibria controlling the composition of light hydrocarbons in natural gas discharges: An example from the geothermal fields of El Salvador. Geochem. Geophys. Geosys., 8, Q05008, doi:10.1029/ 2006GC001487. [ Links ]
Tilling, R. I., M. Rubin, H. Sigurdsson, S. Carey and W. A. Duffield, 1984. Prehistoric eruptive activity of El Chichón volcano Mexico. Science, 224, 747749. [ Links ]
Welhan, J. A., 1988. Origin of methane in hydrothermal systems. Chem. Geol., 71, 183198. [ Links ]
Whiticar, M. J. and E. Suess, 1990. Hydrothermal hydrocarbon gases in the sediments of the King George Basin, Bransfield Strait, Antarctica. Appl. Geochem., 5, 135147. [ Links ]
