Soliton solutions for space-time fractional Heisenberg ferromagnetic spin chain equation by generalized Kudryashov method and modified exp(-Ω(η))-expansion function method

Tuluce Demiray, S.; Bayrakci, U.; Tuluce Demiray, S.; Bayrakci, U.

doi:10.31349/revmexfis.67.393

Servicios Personalizados

Revista

Articulo

Indicadores

Links relacionados

Otros
Otros

Permalink

Revista mexicana de física

versión impresa ISSN 0035-001X

Rev. mex. fis. vol.67 no.3 México may./jun. 2021 Epub 21-Feb-2022

https://doi.org/10.31349/revmexfis.67.393

Research

Gravitation, Mathematical Physics and Field Theory

Soliton solutions for space-time fractional Heisenberg ferromagnetic spin chain equation by generalized Kudryashov method and modified exp(-Ω(η))-expansion function method

S. Tuluce Demiray¹

U. Bayrakci¹

^¹Department of Mathematics, Osmaniye Korkut Ata University, Osmaniye, Turkey. e-mail: seymatuluce@gmail.com; ubayrakci42@gmail.com

Abstract

This paper addresses the Heisenberg ferromagnetic spin chain equation with beta derivative. Initially, beta derivatives and their features are presented. Then, by submitting the generalized Kudryashov method and modified exp(-Ω(η))-expansion function method, dark, bright, and dark-bright soliton solutions of this equation, which can be explained with beta derivative, are procured. Thus, it seems that these methods can supply significant outcomes in finding the exact solutions fractional differential equations with beta time derivative.

Keywords: Heisenberg ferromagnetic spin chain equation; generalized Kudryashov method; modified exp(-Ω(η))-expansion function method; dark soliton; bright soliton; dark-bright soliton; beta time derivative

PACS: 35C08-35N05-68N15

1.Introduction

In recent years, fractional differential equations (FDEs) shed light on the science environment because of their important position in many areas of complicated physical events, from fluid dynamics and optical fiber to quantum field theory. In fact, the soliton solutions of such equations have been one of the most remarkable solutions due to their more clear view of the nonlinear physical properties and then guide to the next aims. As a result, several methods have been used by many authors to calculate such solutions for better insight into the main properties of physical constructions in different media ¹^-⁵.

A lot of kinds of fractional derivative operators have been described by scientists. Some of them are Caputo derivative, Riemann-Liouville derivative, Caputo-Fabrizio, Jumarie’s modified Riemann-Liouville derivative, Atangana-Baleanu derivative ⁶^-⁹. By using these derivative operators, many methods have been submitted to provide solutions of FDEs ¹⁰^-¹⁵.

Then, the conformable derivative has been identified by Khalil et al.¹⁶. Also, exact solutions of the FDE have been found by using this derivative ¹⁷. Then, some theorems, definitions, and properties related to conformable derivative have been presented by Atangana et al. ¹⁸. Consequently, a new fractional derivative called beta-derivative has been given by Atangana et al. ¹⁹. Then, solutions of FDEs with conformable derivatives have been considered by a lot of authors ²⁰^-²⁵.

Heisenberg’s ferromagnetic spin chain equation has been highly considered for its significance from different aspects ²⁶^-²⁹. This paper will address Heisenberg ferromagnetic spin chain equation to get its soliton solutions by a strong algorithm that was lately submitted. The methods are the generalized Kudryashov method (GKM) ³⁰^-³³ and modified -expansion function method (MEFM) ³⁴^-³⁷. The algorithms supply optical solitons such as dark, bright, and dark-bright. The results are thus found after the extensive experience of the algorithmic operation.

2.Beta Derivatives and its features

Definition 1. The conformable derivative has been identified by Khalil et al. ¹⁶. Let $w:[0,∞)$ be a function β-th order, the conformable derivative of w(t) for all is given as follows:

$Fβ(w(t))=dβw(t)dtβ=lime→0w(t+et1-β)-w(t)e,0<β≤1.$

Also, if w is β-differentiable in (0,a), $a>0$ , and $lime→0+w(β)(t)$ exists, then it can be written as $w(β)(0)=lime→0+(t)$ .

Definition 2. Let w(t) be a function qualified for all non-negative t. Then, the beta derivative of w(t) is defined by ¹⁹

$Fβ(w(t))=dβw(t)dtβ=lime→0wt+et+1Γ(β)1-β-w(t)e,0<β≤1.$

Although the conformable fractional derivative presented by Khalil et al. supplies some basic properties such as the chain rule, Atangana’s fractional derivative is presented because it can yield the maximum features of the basic derivatives.

Such derivatives can not only be assumed as fractional derivatives but also considered as a natural extension of the classical derivative. There is a significant theorem for beta-derivatives ¹⁹:

Theorem. Let w(t) and v(t) be β-differentiable functions for all $t>0$ and $β∈(0,1[$ . Then

$Fβ(mw(t)+nv(t))=mFβ(w(t))+nFβ(v(t)),∀m,n∈R.Fβ(w(t)v(t))=v(t)Fβ(w(t))+w(t)Fβ(v(t)),Fβw(t)v(t)=v(t)Fβ(w(t))-w(t)Fβ(v(t))(v(t))2,Fβ(w(t))=t+1Γ(β)1-βdw(t)dt.$

3.General structure of GKM

We survey the following FDE with beta derivative for a function of two real variables, space x, and time t:

$P(k,Fβk,kt,kx,kxx,⋯)=0$ (1)

Step 1. Initially, we should perform the traveling wave solution of Eq.(1) as follows;

$k(x,y,t)=H(η)eiλ(x,y,t),$ (2)

Where

$η=cos⁡ϕβx+1Γ(β)β+sin⁡ϕβy+1Γ(β)β+pβt+1Γ(β)β,$ (3)

$λ(x,y,t)=-(cos⁡ϕβx+1Γ(β)β+sin⁡ϕβy+1Γ(β)β)+σβt+1Γ(β)β,$ (4)

where p and σ arbitrary constants. Then, by substituting Eqs.(2-4) to Eq.(1), a nonlinear ordinary differential equation can be obtained as:

$N(H,H',H″,H‴,⋯)=0,$ (5)

where the prime displays differentiation about η.

Step 2. Assume that the exact solutions of Eq. (5) can be considered in the form

$k(η)=∑i=0Naiγi(η)∑j=0Mbjγj(η)=A(γ[η])B(γ[η]),$ (6)

where $γ(η)=1/1±eη$ . We highlight that the function γ is the solution of the equation:

$γη=γ'=γ2-γ.$ (7)

Taking account of Eq. (6), we supply

$k'(η)=A'γ'B-AB'γ'B2=γ'A'B-AB'B2=(γ2-γ)A'B-AB'B2,$ (8)

$k″(η)=γ2-γB2([2γ-1][A'B-AB']+γ2-γB×[B{A″B-AB″}-2B'A'B+2A{B'}2]),$ (9)

Step 3. The solution of Eq.(5) can be defined as follows:

$k(η)=a0+a1γ+a2γ2+⋯+aNγN+⋯b0+b1γ+b2γ2+⋯+bMγM+⋯.$ (10)

To compute the values M and N in Eq. (10) that is the pole order for the general solution of Eq. (5), we procure comparably as in the classical Kudryashov method on balancing the highest-order nonlinear terms in Eq. (5), and we can find a relation of M and N. We can get values of M and N.

Step 4. Substituting Eq. (6) into Eq. (5) ensures a polynomial R(γ) of γ. Extracting the coefficients of R(γ) to zero, we get a system of algebraic equations. Solving this system, we can identify p and the variable coefficients of a ₀, a ₁, a ₂, …a _N, b₀, b₁, b₂,…b_M. Thus, we get the exact solutions to Eq. (5).

4.Soliton solutions for Heisenberg ferromagnetic spin chain equation by GKM

In this section, we look for exact solutions of the Heisenberg ferromagnetic spin chain equation with beta time derivative by using GKM.

It is helpful to use the spin to lie in a planet right angles to the chain axis. Thus, we consider Heisenberg ferromagnetic spin chain equation with beta time derivative ³⁸

$i∂βk∂tβ-i∂βk∂xβ+∂2βk∂x2β+∂2βk∂y2β-2∂2βk∂xβ∂yβ+2|k|2k=0.$ (11)

Firstly, we take wave variable transformations as follows

$k(x,y,t)=H(η)eiλ(x,y,t),$ (12)

where

$η=cos⁡ϕβx+1Γ(β)β+sin⁡ϕβy+1Γ(β)β+pβt+1Γ(β)β,$ (13)

$λ(x,y,t)=-cos⁡ϕβx+1Γ(β)β+sin⁡ϕβy+1Γ(β)β+σβt+1Γ(β)β.$ (14)

Putting (12-14) into (11) provides

$(cos⁡ϕ-sin⁡ϕ)2H″(η)-[(cos⁡ϕ-sin⁡ϕ)2+cos⁡ϕ+σ]H(η)+2H3(η)=0,$ (15)

where $p=2sin2ϕ-cosϕ-2.$

For the balance principle between higher-order derivative H´´ and highest power nonlinear terms H³ in Eq. (15), one can be procured

$N-M+2=3N-3M⇒N=M+1.$ (16)

By using GKM, the solution of Eq. (11) can be given as

$H(η)=a0+a1γ+a2γ2b0+b1γ$ (17)

where a ₀, a ₁, and a ₂ are found later and $γ(η)=(1/1±eη).$ The function $γ(η)$ provides as

$γη=γ'=γ2-γ.$ (18)

Thus, the exact solutions of Eq. (11) are accessed as the following;

Case 1.

$a0=12i(cos⁡ϕ-sin⁡ϕ)b0, a1=-a22-i(cos⁡ϕ-sin⁡ϕ)b0, b1=-a2i(cos⁡ϕ-sin⁡ϕ), σ=-12cos⁡ϕ(2+3cos⁡ϕ)+3cos⁡ϕsin⁡ϕ-3sin2ϕ2.$ (19)

Replacing Eq. (19) into Eq. (17), dark soliton solutions of Eq. (11) can reached as

$κ1(x,y,t)=12i cos⁡ϕ-sin⁡φtanh⁡(12[cos⁡ϕβ{x+1Γ(β)}β+sin⁡ϕβ{y+1Γ(β)}β+pβ{t+1Γ(β)}β])× exp⁡(i[-{cos⁡ϕβx+1Γ(β)β+y+1Γ(β)2}+{-12βcos⁡ϕ(2+3cos⁡ϕ)+3βcos⁡ϕsin⁡ϕ-3sin2⁡ϕ2β}{t+1Γ(β)}β])$ (20)

$k2(x,y,t)=12i cos⁡ϕ-sin⁡ϕcoth⁡(12[cos⁡ϕβ{x+1Γβ}β+sin⁡ϕβy+1Γβ}β+pβt+1Γβ}β×exp⁡(i[-{cos⁡ϕβx+1Γ(β)β+sin⁡ϕβy+1Γ(β)β}+{-12βcos⁡ϕ(2+3cos⁡ϕ)+3βcos⁡ϕsin⁡ϕ-3sin2⁡ϕ2β}{t+\gab}β])$ (21)

Case 2.

$a0=0,a1=-i(cos⁡ϕ-sin⁡ϕ)b1,a2=i(cos⁡ϕ-sin⁡ϕ)b1,b0=-b12,σ=-cos⁡ϕ.$ (22)

Replacing Eq. (22) into Eq. (17), bright soliton solutions of Eq. (11) can be determined as

$κ3(x,y,t)=i(cos⁡ϕ-sin⁡ϕ)csc⁡h(cos⁡ϕβ[x+1Γβ]β+sin⁡ϕβ[y+1Γβ]β+pβ[t+1Γβ]β)× exp⁡(i[-{cos⁡ϕβx+1Γβb+sin⁡ϕβy+1Γββ}-cos⁡ϕβ{t+1Γ(β)}β])$ (23)

$κ4(x,y,t)=i(cos⁡ϕ-sin⁡ϕ)sec⁡h(cos⁡ϕβ[x+1Γβ]β+sin⁡ϕβ[y+1Γβ]β+pβ[t+1Γβ]β)× exp⁡(i[-{cos⁡ϕβx+1Γββ+1Γβy+1Γββ}-cos⁡ϕβ{t+1Γβ}β])$ (24)

Case 3.

$a0=12icos⁡ϕ-sin⁡ϕb1,a1=-icos⁡ϕ-sin⁡ϕb1,a2=icos⁡ϕ-sin⁡ϕb1,b0=-b12, σ=-cos⁡ϕ1+3cos⁡ϕ+6cos⁡ϕsin⁡ϕ-3sin2⁡ϕ.$ (25)

Replacing Eq. (25) into Eq. (17), dark soliton solutions of Eq. (11) can be ascertained as

$κ5(x,y,t)=-icos⁡ϕ-sin⁡ϕcoth⁡(cos⁡ϕβ[x+1Γβ]β+sin⁡ϕβ[y+1Γβ]β+pβ[t+1Γβ]β)×exp⁡(i[-{cos⁡ϕβx+1Γββ+sin⁡ϕβy+1Γββ}+{-cos⁡ϕ(1+3cos⁡ϕ)+6cos⁡ϕsin⁡ϕ-3sin2⁡ϕβ}{t+1Γβ}β])$ (26)

$κ6(x,y,t)=icos⁡ϕ-sin⁡ϕtanh⁡(cos⁡ϕβ[x+1Γβ]β+sin⁡ϕβ[y+1Γβ]β+pβ[t+1Γβ]β)×exp⁡(i[-{cos⁡ϕβx+1Γββ+sin⁡ϕβy+1Γβ}+{-cos⁡ϕ(1+3cos⁡ϕ)+6cos⁡ϕsin⁡ϕ-3sin2⁡ϕβ}{t+1Γβ}β])$ (27)

Case 4.

$a0=-14icos⁡ϕ-sin⁡ϕb1,a1=icos⁡ϕ-sin⁡ϕb1,a2=-icos⁡ϕ-sin⁡ϕb1,b0=-b12, σ=-12cos⁡ϕ(2+3cos⁡ϕ)+3cos⁡ϕsin⁡ϕ-3sin2⁡ϕ2.$ (28)

Putting Eq. (28) into Eq. (17), dark-bright soliton solutions of Eq. (11) can be provided as

$κ7(x,y,t)=12icos⁡ϕ-sin⁡ϕ([-2+3coth⁡{cos⁡ϕβx+1Γββ+sin⁡ϕβy+1Γββ+pβt+1Γββ}+3csch{cos⁡ϕβx+1Γββ+sin⁡ϕβy+1Γββ+pβt+1Γββ}]-a1b1[-1+coth⁡{12(cos⁡ϕβ×\bracix+1Γβ+sin⁡ϕβy+1Γββ+pβt+1Γββ)}])exp⁡(i[-{cos⁡ϕβx+1Γββ+sin⁡ϕβy+1Γββ}+{-12βcos⁡ϕ(2+3cos⁡ϕ)+3βcos⁡ϕ-3sin2ϕ2β}{t+1Γβ}β])$ (29)

$κ8(x,y,t)=12icos⁡ϕ-sin⁡ϕ([-2+3tanh⁡{cos⁡ϕβx+1Γββ+sin⁡ϕβy+1Γββ+pβt+1Γββ}+3 sech{cos⁡ϕβx+1Γββ+sin⁡ϕβy+1Γββ+pβt+1Γββ}]-a1b1[-1+tanh⁡{12(cos⁡ϕβ×x+1Γββ+sin⁡ϕβy+1Γββ+pβt+1Γββ)}])exp⁡(i[-{cos⁡ϕβx+1Γββ+sin⁡ϕβy+1Γββ}+{-12βcos⁡ϕ(2+3cos⁡ϕ)+3βcos⁡ϕsin⁡ϕ-3sin2⁡ϕ2β}{t+1Γβ}β])$ (30)

In Fig. 1, 3D and 2D graphs are investigated to illustrate the influence of the parameter β on the dynamics of the first dark soliton solution. Clearly, the physical behavior of the dark soliton solution is altered when the parameter β gets different values.

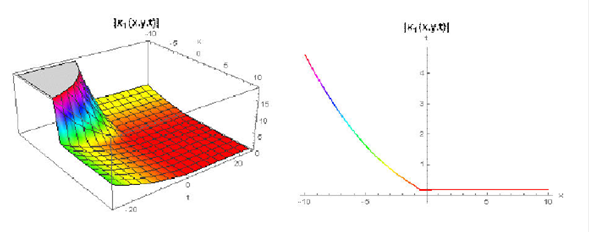

Figure 1 3D image of |κ₁(x; y; t)| for φ = 60^o , β = 0:5, y = 1 and 2D image of |κ₁(x; y; t)| for these values and t = 0:2.

In Fig. 2, 3D and 2D graphs are examined to show the influence of the parameter β on the dynamics of the bright soliton solution. Unquestionably, the physical behavior of the bright soliton solution is changed when the parameter β takes different values.

Figure 2 3D image of |κ₃(x; y; t)| for φ = 30^o, β = 1:5, y = 2 and 2D image of |κ₃(x; y; t)| for these values and t = 0:4.

5.General structure of MEFM

We survey the following FDE with beta derivative for a function of two real variables, space x, and time t:

$P(κ,Fβκ,κt,κx,κxx,⋯)=0.$ (31)

Step 1. Initially, we should perform the traveling wave solution of Eq. (31) as follows;

$κ(x,y,t)=H(η)eiλ(x,y,t),$ (32)

Where

$η=cos⁡ϕβx+1Γββ+sin⁡ϕβy+1Γββ+pβt+1Γββ,$ (33)

$λ(x,y,t)=-(cos⁡ϕβx+1Γββ+sin⁡ϕβy+1Γββ+σβt+1Γββ),$ (34)

where p and σ arbitrary constants. Then, by substituting Eqs. (32-34) to Eq.(31), a nonlinear ordinary differential equation can be obtained as:

$N(H,H',H″,H‴,⋯)=0,$ (35)

where the prime displays differentiation about η.

Step 2: Presume the traveling wave solution of (4) can be indicated as follows:

$κ(η)=∑i=0NFi(exp⁡[-Ω{η}])i∑j=0MGj(exp⁡[-Ω{η}])j=F0+F1exp⁡(-Ω)+⋯+FNexp⁡(N(-Ω))G0+G1exp⁡(-Ω)+⋯+GMexp⁡(M(-Ω)),$ (36)

where F _i, G _j, $(0≤i≤N, 0≤j≤M)$ are constants to be described later, such that $FN≠0$ , $GM≠0$ , and $Ω=Ω(η)$ is the solution of the following ordinary differential equation:

$Ω'(η)=exp(-Ω[η])+nexp(Ω[η])+m.$ (37)

The solution families of (37) can be shown as follows:

Family1: If $n≠0$ , $m2-4n>0$ ,

$Ω(η)=ln⁡(-m2-4n2ntanh)×[m2-4n2n{η+E}]-m2n).$ (38)

Family 2: If $n≠0$ , $m2-4n<0$ ,

$Ω(η)=ln⁡(-m2+4n2ntan)×[-m2+4n2{η+E}]-m2n).$ (39)

Family 3: If n = 0, $m≠0$ , and $m2-4n>0$ ,

$Ω(η)=-ln⁡mexp⁡[m{η+E}]-1.$ (40)

Family 4: If $n≠0$ , $m≠0$ , and $m2-4n=0$ ,

$Ω(η)=ln⁡-2m[η+E]+4m2[η+E].$ (41)

Family5: If n = 0, m = 0, and $m2-4n=0$ ,

$Ω(η)=ln(η+E).$ (42)

The positive integers M and M can be determined attending the homogeneous balance principle in Eq. (36).

Step 3: Replacing Eqs. (37) and (38-42) into Eq.(36), we ascertain a polynomial of exp(-Ω(η)). We stabilize all the coefficients of same power of exp(-Ω(η)) to zero. This operation determines a system of equations that can be unfastened to reach F ₀, F ₁, F ₂,…F _N, G ₀, G ₁, G ₂,…G _M, E, m, n by the way of Wolfram Mathematica 12. Inserting the values of these constants into Eq. (36), the general solutions of (36) supplies the determination of the solution of Eq.(31).

6.Soliton solutions for Heisenberg ferromagnetic spin chain equation by MEFM

In this section, we seek exact solutions of the Heisenberg ferromagnetic spin chain equation with beta time derivative by using MEFM.

For the balance principle between higher-order derivative H´´ and highest power nonlinear terms H³ in Eq. (15), one can procure

$N=M+1.$ (43)

By using MEFM, the solution of Eq. (11) can be given as

$H=F0+F1exp(-Ω)+F2exp(2[-Ω])+G0+G1exp(-Ω)=Zτ,$ (44)

And

$H'=Z'τ-τ'Zτ2,$ (45)

$H″=Z″τ3-τ2Z'τ'-(τ″Z+τ'Z')τ2+2(τ')2Zττ4,$ (46)

where $F2≠0$ and $G1≠0$ . The function $Ω=Ω(η)$ provides as

$Ω'(η)=exp(-Ω[η])+nexp(Ω[η])+m.$ (47)

Thus, the exact solutions of (11) are accessed as the following;

Case 1:

$F0=12icos⁡ϕ-sin⁡ϕmG0, F1=12icos⁡ϕ-sin⁡ϕ(2G0+mG1), F2=icos⁡ϕ-sin⁡ϕG1, bσ=cos⁡ϕ-1+sin⁡ϕ2+m2-4n-12(2+m2-4n).$ (48)

Replacing (48) into (44), dark soliton solutions of (11) can be reached as

$κ9=12icos⁡ϕ-sin⁡ϕJ+mJtanh⁡J\lefccos⁡ϕx+1Γββ+sin⁡ϕy+1Γββ+pt+1Γββ+Eβ2βm+Jtanh⁡Jcos⁡ϕx+1Γββ+sin⁡ϕy+1Γββ+pt+1Γββ+Eβ2β×exp⁡(i[-cos⁡ϕβx+1Γββ+sin⁡ϕβy+1Γββ+cos⁡ϕβ-1+sin⁡ϕ[2+m2-4n ]-12β[2+m2-4n]t+1Γββ]),$ (49)

where $n≠0$ , and $J=m2-4n>0$ .

In 3, 3D and 2D graphs are considered to indicate the influence of the parameter on the dynamics of the dark soliton solution. Explicitly, the physical behavior of the dark soliton solution is shifted when the parameter β receives different values.

Case 2:

$G0=r-s2F12-2F0F2-F1F12-4F0F2, G1=F1-F12-4F0F222F0F12-2F0F2-F1F12-4F0F2r-s R=F1-F12-4F0F2F2,r=cos⁡ϕ,s=sin⁡ϕ, σ=-(r-s)2F12+2(r-s)2F0F2+(-r-r2+2rs-s2+2(r-s)2S)F22+(r-s)2F1F12-4F0F2F22.$ (50)

Replacing (50) into (44), dark soliton solutions of (11) can be reached as

$κ10(x,y,t)=A(F2+12n-F1-F12-4F0F2F2-χtanh⁡f(x,y,t)F1+F0-F1-F12-4F0F2F2-χtanh⁡[f{x,y,t}]2nB(C-Dtanh⁡[f{x,y,t}])F1-F12-4F0F2F2+χtanh⁡[f{x,y,t}]$ (51)

where,

$A=4i2(r-s)2n2F0F1F2,B=F1F12-4F0F2+(F12-2F0F2)(r-s)2,C=-(r-s)2F12(F0-nF2)+(F0-SF2)(r-s)2F1F12-4F0F2,D=-2(r-s)2F0F1F2F12-2F2(F0+nF2)-F1F12-4F0F2F22f(x,y,t)=χcos⁡ϕx+1Γββ+sin⁡ϕy+1Γββ+pt+1ΓβB+Eβ2βχ=-4n+(F12-F1F12-4F0F2)2F12F12,$

and

$-4n+(F12-F1F12-4F0F2)2F12F12>0.$

7.Conclusion

In this work, the soliton characters of the Heisenberg ferromagnetic spin chain equation with beta time derivative were investigated by using GKM and MEFM. Dark, bright, and dark-bright soliton solutions of this equation have been accomplished found. Then, 3D and 2D images were presented for some solutions, which display the vitality of the solutions with proper values. Numerical results, together with the graphical demonstrations, have exhibited the reliability of these methods. Also, these solutions have been reported to the literature with novel substantial physical properties. These methods can be applied to other FDEs with beta time derivatives.

References

1. B. Cuahutenango-Barro, M. A. Taneco-Hernandez and J. F. Gomez-Aguilar, On the solutions of fractional time wave equation with memory effect involving operators with regular kernel, Chaos. Solitons Fractals. 115 (2018) 283, https://doi.org/10.1016/j.chaos.2018.09.002. [ Links ]

2. I. Podlubny, Fractional Differential equations: an introduction to fractional derivatives, fractional differential equations, to methods of their solution and some of their applications, New York(NY), Academic Press, 1998, p. 198. [ Links ]

3. K. B. Oldham, J. Spanier, The fractional calculus, New York (NY), Academic Press, 1974. [ Links ]

4. J. Singh, D. Kumar, M. Al Qurashi and D. Baleanu, A new fractional model for giving up smoking Dynamics, Adv. Differ. Equ. 88 (2017) 1, https://doi.org/10.1186/s13662-017-1139-9. [ Links ]

5. M. Caputo and F. Mainardi, A new dissipation model based on memory mechanism, Pure Appl. Geophys. 91 (1971) 134, https://doi.org/10.1007/BF00879562. [ Links ]

6. R. Metzler and J. Klafter, The random walk’s guide to anomalous diffusion: a fractional dynamics approach, Phys. Rep. 339 (2000) 1, https://doi.org/10.1016/S0370-1573(00)00070-3. [ Links ]

7. M. Caputo and M. Fabrizio, A new definition of fractional derivative without singular kernel. Progr. Fract. Differ.Appl., 1 (2015) 73, http://doi.org/10.12785/pfda/010201. [ Links ]

8. G. Jumarie, Modified Riemann-Liouville derivative and fractional Taylor series of nondifferentiable functions further results, Comput. Math. Appl., 51 (2006) 1367, https://doi.org/10.1016/j.camwa.2006.02.001. [ Links ]

9. A. Atangana and D. Baleanu, New fractional derivatives with nonlocal and non-singular kernel: theory and application to heat transfer model. Therm. Sci., 20 (2016) 763, https://doi.org/10.2298/TSCI160111018A. [ Links ]

10. S. Zhang and H.Q. Zhang, Fractional sub-equation method and its applications to nonlinear fractional PDEs. Phys. Lett. A, 375 (2011) 1069, https://doi.org/10.1016/j.physleta.2011.01.029. [ Links ]

11. B. Lu, The first integral method for some time fractional differential equations. J. Math. Anal. Appl., 395 (2012) 684, https://doi.org/10.1016/j.jmaa.2012.05.066. [ Links ]

12. N. Das, R. Singh, A.M. Wazwaz and J. Kumar, An algorithm based on the variational iteration technique for the Bratu-type and the Lane-Emden problems. J. Math. Chem., 54 (2016) 527, https://doi.org/10.1007/s10910-015-0575-6. [ Links ]

13. X. J. Yang and Y.D. Zhang, A new Adomian decomposition procedure scheme for solving local fractional Volterra integral equation. Adv. Inf. Tech. Manag., 1 (2012) 158. [ Links ]

14. H. Jafari and H.K. Jassim, Numerical solutions of telegraph and Laplace equations on cantor sets using local fractional Laplace decomposition method. Int. J. Adv. Appl. Math. Mech., 2 (2015) 144. [ Links ]

15. M.S. Hu, R.P. Agarwal and X.J. Yang, Local fractional Fourier series with application to wave equation in fractal vibrating string. Abstract. Appl. Anal., 2012 (2012) 567401, https://doi.org/10.1155/2012/567401. [ Links ]

16. R. Khalil, M. Al Horani, A. Yousef and M. Sababheh, A new definition of fractional derivative. J. Comput. Appl. Math., 264 (2014) 65, https://doi.org/10.1016/j.cam.2014.01.002. [ Links ]

17. Y. Cenesiz and A. Kurt, The solution of time fractional heat equation with new fractional derivative definition. Recent Advances in Applied Mathematics, Modelling and Simulation, ISBN: 978-960-474-398-8, 195. [ Links ]

18. A. Atangana, D. Baleanu and A. Alsaedi, New properties of conformable derivative. Open Math., 13 (2015) 889, https://doi.org/10.1515/math-2015-0081. [ Links ]

19. A. Atangana, D. Baleanu and A. Alsaedi, Analysis of time fractional Hunter-Saxton equation: a model of neumatic liquid crystal. Open Phys., 14 (2016) 145, https://doi.org/10.1515/phys-2016-0010. [ Links ]

20. W.S. Chung, Fractional Newton mechanics with conformable fractional derivative. J. Comput. Appl. Math., 290 (2015) 150, https://doi.org/10.1016/j.cam.2015.04.049. [ Links ]

21. H. Yepez-Martinez, J.F. Gomez-Aguilar and A. Atangana, First integral method for non-linear differential equations with conformable derivative. Math. Model. Nat. Phenom., 13 (2018) 1, https://doi.org/10.1051/mmnp/2018012 [ Links ]

22. H. Yepez-Martinez and J.F. Gomez-Aguilar, Fractional sub-equation method for Hirota-Satsuma-coupled KdV equation and coupled mKdV equation using the Atangana’s conformable derivative. Waves Random Complex Media, 29 (2019) 678, https://doi.org/10.1080/17455030.2018.1464233. [ Links ]

23. H. Yepez-Martinez and J.F. Gomez-Aguilar, Optical solitons solution of resonance nonlinear Schrödinger type equation with Atangana’s-conformable derivative using sub-equation method. Waves Random Complex Media, (2019) 1, https://doi.org/10.1080/17455030.2019.1603413. [ Links ]

24. S. Tuluce Demiray, New Soliton Solutions of Optical Pulse Envelope E(Z, τ) with Beta Time Derivative, Optik, 223 (2020) 1, https://doi.org/10.1016/j.ijleo.2020.165453. [ Links ]

25. S. Tuluce Demiray, New solutions of Biswas-Arshed equation with beta time derivative, Optik, 222 (2020) 1, https://doi.org/10.1016/j.ijleo.2020.165405. [ Links ]

26. M. M. Latha and C. C. Vasanthi, An integrable model of (2+1)-dimensional Heisenberg ferromagnetic spin chain and soliton excitations, Phys. Scr. 89 (2014) 1, https://doi.org/10.1088/0031-8949/89/6/065204. [ Links ]

27. X. H. Zhao, B. Tian, D. Y. Liu, X. Y. Wu, J. Chai and Y. J. Guo, Dark solitons interaction for a (2+1)-dimensional nonlinear Schrödinger equation in the Heisenberg ferromagnetic spin chain, Superlattice Microst. 100 (2016) 587, https://doi.org/10.1016/j.spmi.2016.10.014. [ Links ]

28. B. Q. Li and Y. L. Ma, Lax pair, Darboux transformation and Nth-order rogue wave solutions for a (2+1)-dimensional Heisenberg ferromagnetic spin chain equation, Comput Math Appl. 77 (2019) 514, https://doi.org/10.1016/j.camwa.2018.09.054. [ Links ]

29. M. S. Hashemi, Some new exact solutions of (2+1)-dimensional nonlinear Heisenberg ferromagnetic spin chain with the conformable time fractional derivative, Opt Quant Electron. 50 (2018) 1, https://doi.org/10.1007/s11082-018-1343-1. [ Links ]

30. S. Tuluce Demiray and H. Bulut, Soliton solutions of some nonlinear evolution problems by GKM, Neural Comput & Applic, 31 (2019) 287, https://doi.org/10.1007/s00521-017-2999-3. [ Links ]

31. S. Tuluce Demiray, Y. Pandir and H. Bulut, New Soliton Solutions for Sasa-Satsuma Equation, Waves Random Complex Media. 25 (2015) 417, https://doi.org/10.1080/17455030.2015.1042945. [ Links ]

32. S. Tuluce Demiray, Y. Pandir and H. Bulut, New Solitary Wave Solutions of Maccari System, Ocean Eng. 103 (2015) 153, https://doi.org/10.1016/j.oceaneng.2015.04.037. [ Links ]

33. S. Tuluce Demiray, Y. Pandir and H. Bulut, All Exact Travelling Wave Solutions of Hirota Equation and Hirota-Maccari System, Optik, 127 (2016) 1848, https://doi.org/10.1016/j.ijleo.2015.10.235. [ Links ]

34. S. Tuluce Demiray and H. Bulut, Analytical Solutions of Phi-four equations, Int. J. Optim. Control, Theor. Appl. 7 (2017) 275, https://doi.org/10.11121/ijocta.01.2017.00493. [ Links ]

35. S. Tuluce Demiray and H. Bulut, A New Method for (4+1) Dimensional Fokas Equation, ITM Web of Conf. 22 (2018) 1, https://doi.org/10.1051/itmconf/20182201065. [ Links ]

36. S. Tuluce Demiray and H. Bulut, Hyperbolic Function Solutions for Positive Gardner-KP Equation, J. Adv. Math. Stud. 12 (2019) 101. [ Links ]

37. S. Tuluce Demiray, H. Bulut, A New Approach for Nizhnik-Novikov-Veselov System, Advanced Mathematical Models & Applications, 4 (2019) 79. [ Links ]

38. M. F. Uddin, M. G. Hafez, Z. Hammouch and D. Baleanu, Periodic and rogue waves for Heisenberg models of ferromagnetic spin chains with fractional beta derivative evolution and obliqueness, Waves Random Complex Media, (2020) 1, https://doi.org/10.1080/17455030.2020.1722331. [ Links ]

Received: November 12, 2020; Accepted: December 17, 2020

This is an open-access article distributed under the terms of the Creative Commons Attribution License
