Revista mexicana de fitopatología

versión On-line ISSN 2007-8080versión impresa ISSN 0185-3309

Rev. mex. fitopatol vol.39 no.1 Texcoco ene. 2021  Epub 07-Mayo-2021

https://doi.org/10.18781/r.mex.fit.2006-6

Phytopathological notes

Chitosan-induced production of secondary metabolites in plant extracts of Piper auritum, and the in vitro fungicidal activity against Fusarium oxysporum f. sp. vanillae

María del Socorro Fernández1

Flavio Hernández-Ochoa1

Oscar Carmona-Hernández2

Mauricio Luna-Rodríguez3

Carolina Barrientos-Salcedo4

Hugo Asselin5

José Armando Lozada-García1  *

1Facultad de Biología, Facultad de Ciencias Agrícolas, Universidad Veracruzana, Circuito Gonzalo Aguirre Beltrán s/n, Zona Universitaria, C. P. 91090, Xalapa, Veracruz, México;

2Posgrado en Ciencias Agropecuarias. Facultad de Ciencias Agrícolas, Universidad Veracruzana, Circuito Gonzalo Aguirre Beltrán s/n, Zona Universitaria, C. P. 91090, Xalapa, Veracruz, México;

3Laboratorio de Genética e Interacciones Planta Microorganismos, Facultad de Ciencias Agrícolas, Universidad Veracruzana, Circuito Gonzalo Aguirre Beltrán s/n, Zona Universitaria, C. P. 91090, Xalapa, Veracruz, México;

4 Facultad de Bioanálisis Veracruz, Universidad Veracruzana, Iturbide s/n, Centro, C. P. 91700. Veracruz, Veracruz, México;

5 School of Indigenous Studies, Université du Québec en Abitibi-Témiscamingue, Rouyn-Noranda, Canada;


Abstract.

The effect of chitosan addition on the production of secondary metabolites of Piper auritum ethanolic extracts was tested, as well as the in vitro fungicidal activity against Fusarium oxysporum f. sp. vanillae. Piper auritum plants were divided into six parcels and commercial chitosan was added to half of them. The concentrations of flavonoids, phenols, terpenes, alkaloids and salicylic acid were measured in P. auritum ethanolic extracts and the antifungal activity was measured with the median effective concentration (EC50). The concentrations of total flavonoids, phenols and terpenes were higher with chitosan treatment (respectively 12.8 vs 12.4 μg quercetin equivalent per mg, 12.6 vs. 2.3 μg tannic acid equivalent per 10 mg, and 16.3 vs. 11.6 mg menthol equivalent per 100 mg). However, the alkaloid concentration was reduced by chitosan addition (from 148.2 to 84.5 μg piperine equivalent per mg). Chitosan addition increased the concentration of salicylic acid (from 1.3 to 2.2 μg salicylic acid equivalent per mg). A 4 mg mL-1 ethanolic extract of P. auritum treated with chitosan inhibited 100% of mycelial growth. The EC50 of P. auritum against F. oxysporum f. sp. vanillae was lower with chitosan treatment (1.5 mg mL-1) compared to control (5.1 mg mL-1). Chitosan addition increased secondary metabolite production and in vitro antifungal activity in P. auritum extracts.

Key words: ethanolic extracts; Mexican pepperleaf; hoja santa

Resumen.

Se probó el efecto del quitosano sobre la producción de metabolitos secundarios de extractos etanólicos de Piper auritum, así como la actividad fungicida in vitro contra Fusarium oxysporum f. sp. vanillae. Las plantas de P. auritum se dividieron en seis parcelas y se añadió quitosano comercial a la mitad de ellas. Se midieron las concentraciones de flavonoides, fenoles, terpenos, alcaloides y ácido salicílico en extractos etanólicos de P. auritum y la actividad antifúngica se midió con la concentración efectiva media (CE50). Las concentraciones totales de flavonoides, fenoles y terpenos fueron más altas con el tratamiento con quitosano (sin quitosano 12.8 versus con quitosano 12.4 μg equivalente de quercetina por mg, 12.6 versus 2.3 μg equivalente de ácido tánico por 10 mg y 16.3 versus 11.6 mg equivalente de mentol por 100 mg). Mientras que la concentración de alcaloides disminuyó mediante la adición de quitosano (de 148.2 a 84.5 μg de equivalente de piperina por mg). La adición de quitosano aumentó la concentración de ácido salicílico (de 1.3 a 2.2 μg de equivalente de ácido salicílico por mg). La concentración de 4 mg mL-1 de extracto etanólico de P. auritum tratado con quitosano inhibió el 100% del crecimiento micelial. El tratamiento con quitosano generó que la CE50 de P. auritum contra F. oxysporum f. sp. vanillae fuera menor (1.5 mg mL-1) respecto al control (5.1 mg mL-1). Se concluye que la adición de quitosano aumentó la producción de metabolitos secundarios y la actividad antifúngica in vitro en extractos de P. auritum.

Palabras clave: extractos etanólicos; pimienta mexicana; hoja santa

Secondary metabolites, such as alkaloids, flavonoids, terpenes and phenols, are molecules synthetized by plants as defense mechanisms against pathogen attacks (Scott et al., 2008). Other molecules, such as chitosan, can be used to elicit secondary metabolite production in plants (López-Moya et al. 2019). Plant-produced secondary metabolites can be used as bioplaguicides (Báez-Valdez et al., 2010), providing environmentally friendly alternatives to the chemical control of pathogens such as Fusarium, a fungus that attacks the vascular system of plants and causes diseases in several vegetable and fruit species (Dweba et al., 2017; McGovern, 2015) leading to serious economic loss. Biological control of Fusarium can be achieved with natural compounds synthetized by some plant species of the genus Piper (Scott et al., 2008), which have been shown to have fungicidal effects on F. solani f. sp. piperis and F. oxysporum f. sp. vanillae (da Luz et al., 2017; Suprapta and Ohsawa, 2007). The fungicidal activity of Piper can be attributed to resistance genes such as those developed by some black pepper (P. nigrum) cultivars that produce secondary metabolites when attacked by F. solani f. sp. piperis (da Luz et al., 2017). Similarly, at least three American Piper taxa were reported being resistant to Fusarium: low mortality of P. divaricatum exposed to Fusarium was attributed to secondary metabolite production, especially phenols (Erisléia-Meireles et al., 2016), the seeds and seedlings of P. aduncum are protected by essential oils (Potzernheim et al., 2012), and P. tuberculatum expresses gene resistance when are treated with F. solani f. sp. piperis, which involves some of the same genes related to the systemic acquired resistance (SAR) in P. nigrum (Nascimento et al., 2009).

SAR is a generalized defense mechanism of plants against a broad range of pathogens generated by different proteins regulating interactions at the interface of the cellular membranes (Ádám et al., 2018). For example, the recognition of fungal chitin triggers a cascade of chemical signals, activating response genes that synthetize proteins such as phenylalanine ammonia-lyase (PAL) responsible for flavonoid and phenol production through a biosynthesis pathway involving the phytohormone salicylic acid as a signal molecule (López-Moya et al., 2019). Salicylic acid and chitosan are used together to induce plant resistance against pathogens. They provide an alternative to fungicides by modulating SAR and by stimulating the production of phenols, terpenes and flavonoids in response to infection by fungi such as Fusarium (Golkar et al., 2019). Therefore, the objectives of this study were to evaluate the production of secondary metabolites of chitosan-treated plant extracts of P. auritum and to determine their in vitro fungicidal activity against F. oxysporum f. sp. vanillae

A wild population of P. auritum was selected in the locality of San Andrés Tlalnelhuayocan, Veracruz, Mexico (-96.9776678 W; 19.29358 N; 1450 m asl), within a cloud forest on an andosol, subject to a wet temperate climate. The population included 72 mature plants with reproductive structures, which were divided into 6 parcels with 4 individuals each. Three parcels were treated with commercial chitosan (trademark VEPINSA, Sinaloa, Mexico) [low molecular weight (22,000 to 33,000 g mol-1), 27 % chitosan in product, deacetylation 80 %, humidity 10 %, cinder 1.8%, viscosity (10g L-1, 25 °C) 30 to 200 cps] dissolved to 1 mg mL-1 concentration and pH 5.5 (Treatment A). The other three parcels were the control, treated with a Tween 80 solution at 0.01 % (v/v) with pH 5.5 (Treatment B). The treatments were applied every week for one month, following the methodology of Benhamou and Thériault (1992). After the treatments, 3 kg of fresh P. auritum (leaves, inflorescences, and stems) were collected and oven dried at 45 ± 5 °C before maceration, separating the treated and control samples by 1.5 m in the drier.

The phytochemical extraction was carried out with a Soxhlet, using 10 g of plant material mixed with ethanol and concentrated with a rotavapor (250 rpm at 45 °C) (Carmona-Hernández et al., 2014). Total alkaloids were measured by spectrophotometry with 544 nm absorbance using the bromocresol green method and the results were expressed in µg of piperine equivalent (PE) per mg of extract (Tiwari et al., 2017). For total flavonoids, the aluminum reduction method was used with 420 nm absorbance and the results were expressed as µg quercetin equivalent (QE) per 10 mg of extract (Blainski et al., 2013). For the total phenols, the Folin-Ciocalteu reagent was used with 760 nm absorbance and the results were expressed as µg tannic acid equivalent (TAE) per 10 mg of extract (Blainski et al., 2013). The total terpenes were obtained following the methodology of Ghorai et al. (2012) and the results were expressed as mg menthol equivalent (ME) per 100 mg of extract. The salicylic acid response hormone was measured using the methodology of Rahman et al. (2016): 1000 µL of ethanolic extract (1 mg mL-1) was added to 50 µL ClFe3 and 950 µL bidistilled water and the absorbance measured at 540 nm. The results were expressed as µg salicylic acid equivalent (SAE) per mg of extract. Five replicas of each analysis were carried out.

The in vitro inhibitory activity of P. auritum extracts was tested using fungal cultures of F. oxysporum f. sp. vanillae in Petri dishes (90 mm diameter) for three replicas with five concentrations of extracts (0.8, 1.6, 2.4, 3.2, 4.0 mg mL-1) and a control (EtOH), added to potato dextrose agar (PDA). The tests were performed by placing 5 mm of mycelium in the center of the Petri dishes. Diameter growth was measured after five days incubation at 27 °C (Rongai et al., 2015). Percentage of inhibition was calculated with the following formula: % growth inhibition = ((control growth - treatment growth) / control growth) *100.

The STATISTICA 10 software was used to perform ANOVAs with post hoc Tukey tests. The median effective concentration (EC50) was estimated with a probit model using the Biostat 6.0 software (Amini and Sidovich, 2010).

Table 1 Mean concentration (with standard deviation and coefficient of variation) of secondary metabolites and salicylic acid in Piper auritum extracts with and without chitosan treatment.

Metabolite Treatment Mean concentration Standard deviation Coefficient of variation
Alkaloids A 84.5a 1.1 0.8
B 148.2b 0.8 0.9
Flavonoids A 12.8b 0.1 1.0
B 12.4a 0.1 0.5
Phenols A 12.6b 0.0 1.7
B 2.3a 0.2 1.9
Terpenes A 16.3b 0.3 2.7
B 11.6a 0.4 2.7
Salicylic acid A 2.2b 0.1 7.5
B 1.3a 0.0 1.2

A: with chitosan, B: without chitosan.

Alkaloids: μg EP mg-1, Flavonoids: μg EQ mg-1, Phenols: μg Eat 10 mg-1, Terpenes mg EM/100 mg, Salicylic acid: μg ESA mg-1.

Different superscript letters indicate significant differences (p<0.05) in mean metabolite concentration.

There were significant differences in the secondary metabolite production between the P. auritum plant extracts with and without chitosan treatment (Table 1). In line with previous studies with other plant species, the concentrations of flavonoids, terpenes and phenols were significantly higher (P<0.05) in the chitosan-treated plant extracts. For example, the application of chitosan (200 mg) to Hypericum perforatum induced flavonoid production (Brasili et al., 2014), terpene production increased with chitosan addition (1 g) in Mentha piperita (Chang et al., 1998), and phenol concentrations were higher with chitosan treatment (200, 500 and 1000 ppm) in extracts of Origanum vulgare spp. hirtum (Yin et al., 2012). According to López-Moya et al. (2019), the chitosan treatment increased the production of salicylic acid in plants; which can trigger the production of phenylalanine ammonia-lyase (PAL), in turn exacerbating the production of flavonoids, terpenes, and phenols, which might contribute to generate the SAR (Wiesel et al., 2014). Contrary to the positive effect on flavonoids, terpenes and phenols, the chitosan treatment significantly decreased the concentration of alkaloids (P < 0.05). Such an effect has previously been reported in Stemona curtisii (Pitta-Alvarez et al., 1999) at concentrations of chitosan higher than 0.1 mg mL-1, in less than 4 weeks.

The median effective concentration (EC50) of P. auritum extracts against F. oxysporum f. sp. vanillae was significantly lower with chitosan treatment (EC50 = 1.473 mg mL-1; standard error = 0.288) than in the control (EC50 = 5.123 mg mL-1; standard error = 0.646) (P<0.001). The inhibition curve shows that the highest concentration P. auritum ethanolic extract (4 mg/mL) caused 100 % inhibition of Fusarium growth with chitosan treatment, compared to 41% without chitosan (Figure 1). Fungicidal activity of P. auritum against F. oxysporum and other phytopathogenic fungi has previously been reported by Pineda et al., 2012), which could be attributed to high concentrations of phenols, flavonoids and terpenes. The American Piper species are known to possess resistance genes associated with the production of phenylpropanoids (Erisléia-Meireles et al., 2016; Nascimento et al., 2009; Potzernheim et al., 2012). The results presented here show that chitosan has an eliciting effect on the production of phenols, flavonoids, terpenes and salicylic acid in the plant extracts of P. auritum, but an antagonistic effect on alkaloid production. The fungicidal activity of P. auritum ethanolic extracts against F. oxysporum f. sp. vanillae was markedly improved by chitosan addition.

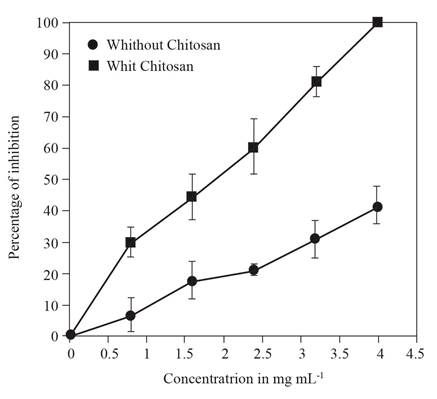

Figure 1 Fungicidal activity ethanolic extracts of Piper auritum against F. oxysporum f. sp. vanillae previously treated with chitosan (mean and standard error).

LITERATURE CITATED

Ádám AL, Nagy ZÁ, Kátay G, Mergenthaler E and Viczián O. 2018. Signals of systemic immunity in plants: Progress and open questions. International Journal of Molecular Sciences 19(4): 1146. https://doi.org/10.3390/ijms19041146Links ]

Amini J and Sidovich D. 2010. The effects of fungicides on Fusarium oxysporum f. sp. lycopersici associated with Fusarium wilt of tomato. Journal of Plant Protection Research 50: 172−178. https://doi.org/10.2478/v10045-010-0029-x [ Links ]

Báez-Valdez EP, Carrillo-Fasio JA, Báez-Sañudo MA, García-Estrada RS, Valdez-Torres JB and Contreras-Martínez R. 2010. Uso de portainjertos resistentes para el control de la fusariosis (Fusarium oxysporum f. sp. lycopersici Snyder & Hansen raza 3) del tomate (Lycopersicon esculentum Mill) en condiciones de malla sombra. Revista Mexicana de Fitopatología 28: 111−123. http://www.scielo.org.mx/pdf/rmfi/v28n2/v28n2a4.pdfLinks ]

Benhamou N and Thériault G. 1992. Treatment with chitosan enhances resistance of tomato plants to the crown and root rot pathogen Fusarium oxysporum f. sp. lycopersici. Physiological and Molecular Plant Pathology 41: 33−52. https://doi.org/10.1016/0885-5765(92)90047-Y [ Links ]

Blainski A, Lopes GC and De Mello JCP. 2013. Application and analysis of the Folin Ciocalteu method for the determination of the total phenolic content from Limonium brasiliense L. Molecules 18: 6852−6865. https://doi.org/10.3390/molecules18066852 [ Links ]

Brasili E, Pratico G, Marini F, Valletta A, Capuani G, Sciubba F, Miccheli A and Pasqua G. 2014. A non-targeted metabolomics approach to evaluate the effects of biomass growth and chitosan elicitation on primary and secondary metabolism of Hypericum perforatum in vitro roots. Metabolomics 10: 1186−1196. https://doi.org/10.1007/s11306-014-0660-z [ Links ]

Carmona-Hernández O, Fernández MS, Palmeros-Sánchez B and Lozada-García JA. 2014. Actividad insecticida de extractos etanólicos foliares de nueve piperaceas (Piper spp.) en Drosophila melanogaster. Revista Internacional de Contaminación Ambiental 30: 67−73. https://www.redalyc.org/pdf/370/37033725008.pdfLinks ]

Chang JH, Shin JH, Chung IS and Lee HJ. 1998. Improved menthol production from chitosan-elicited suspension culture of Mentha piperita. Biotechnology Letters 20: 1097−1099. https://doi.org/10.1023/A:1005396924568 [ Links ]

da Luz SFM, Yamaguchi LF, Kato MJ, de Lemos OF, Xavier LP, Maia JGS, Ramos AR, Setzer WN and da Silva JKR. 2017. Secondary metabolic profiles of two cultivars of Piper nigrum (black pepper) resulting from infection by Fusarium solani f. sp. piperis. International Journal of Molecular Sciences 18: 2434. https://doi.org/10.3390/ijms18122434 [ Links ]

Dweba CC, Figlan S, Shimelis HA, Motaung TE, Sydenham S, Mwadzingeni L and Tsilo TJ. 2017. Fusarium head blight of wheat: Pathogenesis and control strategies. Crop Protection 91: 114−122. https://doi.org/10.1016/j.cropro.2016.10.002 [ Links ]

Erisléia-Meireles N, Luciana-Xavier P, Alessandra-Ramos R, José-Guilherme MS, William-Setzer N and da Silva JRK. 2016. Phenylpropanoids produced by Piper divaricatum, a resistant species to infection by Fusarium solani f. sp. piperis, the pathogenic agent of fusariosis in black pepper. Journal of Plant Pathology and Microbiology 7: 333. https://doi.org/10.4172/2157-7471.1000333 [ Links ]

Ghorai N, Ghorai N, Chakraborty S, Gucchait S, Saha SK and Biswas S. 2012. Estimation of total terpenoids concentration in plant tissues using a monoterpene, Linalool as standard reagent. Protocol Exchange. November. https://dx.doi.org/10.1038/protex.2012.055 [ Links ]

Golkar P, Taghizadeh M and Yousefian Z. 2019. The effects of chitosan and salicylic acid on elicitation of secondary metabolites and antioxidant activity of safflower under in vitro salinity stress. Plant Cell, Tissue and Organ Culture 137(3): 575−585. [ Links ]

López-Moya F, Suarez-Fernández M and López-Llorca LV. 2019. Molecular mechanisms of chitosan interactions with fungi and plants. International Journal of Molecular Sciences 20: 332. https://doi.org/10.3390/ijms20020332 [ Links ]

McGovern RJ. 2015. Management of tomato diseases caused by Fusarium oxysporum. Crop Protection 73: 78−92. https://doi.org/10.1016/j.cropro.2015.02.021 [ Links ]

Nascimento SB, de Mattos C, Cezar J, de Menezes IC, Reis Duarte MDL, Darnet S, Harada ML and de Souza CRB. 2009. Identifying sequences potentially related to resistance response of Piper tuberculatum to Fusarium solani f. sp. piperis by suppression subtractive hybridization. Protein and Peptide Letters 16: 1429−1434. https://doi.org/10.2174/092986609789839368 [ Links ]

Pineda RM, Vizcaíno SP, García CM, Gil JH, Durango DL. 2012. Chemical composition and antifungal activity of Piper auritum Kunth and Piper holtonii C. DC. against phytopathogenic fungi. Chilean Journal of Agricultural Research 72: 507−515. http://www.chileanjar.cl/files/V72I4Y2012CJAR120090.pdfLinks ]

Pitta-Alvarez SI and Giulietti AM. 1999. Influence of chitosan, acetic acid and citric acid on growth and tropane alkaloid production in transformed roots of Brugmansia candida. Effect of medium pH and growth phase. Plant Cell, Tissue and Organ Culture 59: 31−38. https://doi.org/10.1023/A:1006359429830 [ Links ]

Potzernheim MCL, Bizzo HR, Silva JP and Vieira RF. 2012. Chemical characterization of essential oil constituents of four populations of Piper aduncum L. from Distrito Federal, Brazil. Biochemical Systematics and Ecology 42: 25−31. https://doi.org/10.1016/j.bse.2011.12.025 [ Links ]

Rahman A, Sultana V, Ara J and Ehteshamul-Haque S. 2016. Induction of systemic resistance in cotton by the neem cake and Pseudomonas aeruginosa under salinity stress and Macrophomina phaseolina infection. Pakistan Journal of Botany 48: 1681−1689. http://www.pakbs.org/pjbot/PDFs/48(4)/45.pdfLinks ]

Rongai D, Pulcini P, Pesce B and Milano F. 2015. Antifungal activity of some botanical extracts on Fusarium oxysporum. Open Life Science 10: 409−416. https://doi.org/10.1515/biol-2015-0040 [ Links ]

Scott IM, Jensen HR, Philogène BJ and Arnason JT. 2008. A review of Piper spp. (Piperaceae) phytochemistry, insecticidal activity and mode of action. Phytochemistry Reviews 7: 65−75. https://doi.org/10.1007/s11101-006-9058-5 [ Links ]

Suprapta DN and Ohsawa K. 2007. Fungicidal activity of Piper betle extract against Fusarium oxysporum f. sp. vanillae. Journal of the International Society for Southeast Asian Agricultural Sciences 13: 40−46. http://issaasphil.org/wp-content/uploads/2020/02/J-Issaas-v13n2-December-2007-Full-Journal.pdfLinks ]

Tiwari RK, Udayabhanu M. and Chanda S 2016. Quantitative analysis of secondary metabolites in aqueous extract of Clerodendrum serratum. International Research Journal of Pharmacy 7: 61−65. https://doi.org/10.7897/2230-8407.0712148 [ Links ]

Wiesel L, Newton AC, Elliott I, Booty D, Gilroy EM, Birch PR and Hein I. 2014. Molecular effects of resistance elicitors from biological origin and their potential for crop protection. Frontiers in Plant Science 5: 1-13. https://doi.org/10.3389/fpls.2014.00655 [ Links ]

Yin H, Fretté XC, Christensen LP and Grevsen K. 2012. Chitosan oligosaccharides promote the content of polyphenols in Greek oregano (Origanum vulgare ssp. hirtum) Journal of Agricultural and Food Chemistry 60(1): 136−143. https://doi.org/10.1021/jf204376j [ Links ]

Received: June 22, 2020; Accepted: September 02, 2020

* Corresponding author: alozada@uv.mx

Creative Commons License This is an open-access article distributed under the terms of the Creative Commons Attribution License
