Association between longwave radiation and planetary albedo



M. ABDEL WAHAB and H. M. HASANEAN

Department of Astronomy and Meteorology, Faculty of Science, Cairo University, Giza, Egypt.



(Manuscript received May 13, 1999; accepted in final form Nov. 4, 1999)



RESUMEN

Hemos establecido una relación entre la radiación de onda larga neta y el albedo planetario en la superficie y en la alta atmósfera. Se encontró que hay una relación inversa entre la radiación de onda larga y el albedo planeterio, tanto en la superficie como en la alta atmósfera. Cambios latitudinales también fueron encontrados como un factor significativo, en adición al estacional en el comportamiento de esta relación. Este tipo de relación puede ayudar a entender los ciclos climáticos y explicar muchos problemas de balance de radiación.



ABSTRACT

We have established a relationship between net longwave radiation and planetary albedo at the surface and at the top of the atmosphere. It was found that there is an inverse relationship between the longwave radiation and the planetary albedo at both the surface and the top of the atmosphere. Latitudinal changes were also found to be a significant factor in addition to the seasonal one in the behavior of this relationship. This type of relationship can be helpful in understanding the climate cycle and explain many radiation budget problems.



1. Introduction

The regional variability of the net radiation flux of the Earth's surface is the major agent in the available energy redistribution. Over land the net radiation controls the input of latent heat and sensible heat to the atmosphere and over the ocean its control is responsible for oceanic heating associated with climate fluctuations. Outgoing longwave radiation and planetary albedo are fundamentally important climatic variables. In a pioneering paper Adem (1967) used satellite data to establish the relationship between both planetary albedo and longwave radiation at the surface. While this treatment is not implicitly included the cloud cover so the planetary albedo was used to express the status of sky condition.

Wu et al. (1991) have shown that surface radiation parameters can be derived using some physical approaches. Schmetz (1993) has given an improved linear relationship between the energy reflected at the top of the atmosphere (TOA) and the one absorbed at the bottom of the atmosphere (BOA) based on radiative flux calculations. This parameterization is independent of cloud and surface status. Ramanathan (1986), Cess and Vulis (1989), Cess et al. (1991) have also shown a simple relationship between the net solar radiation flux at both the top and base of the atmosphere.



1.1. Data used

The data used in this paper are the International Satellite Cloud Climatology Project ISCCP archived at Langley DAAC Center and the Nimbus -7 Earth Radiation Budget ERB Matrix Summary Tape EMST archived at National Space Science Data Center NASA. The ISCCP data product has been reported by Rossow et al. (1994), while the ERB Matrix Summary Tape (EMST) data product has been reported by Kyle (1991). The area under study in our work lies between 5° to 70°N latitude along 35°W to 70°E longitudes.

The cloud analysis products of ISCCP called C1 and C2 data are constructed from the combination of the original B3 radiance and the results of the three parts of the cloud algorithm and the correlative data used in the analysis. Stage C data represent the global merged results reported every 3 hr with a spatial resolution of 250 km (nominal). These results provide a complete column description of the atmospheric temperature structure and composition and the cloud surface properties present at each location. The stage C2 data is the monthly averages and summary statistics of the Stage C quantities.

Earth Radiation Budget ERB Matrix Summary Tape (EMST) data product has been reported by Kyle (1991). The spatial format of the radiation budget parameters is designed around a 2070 equal area grid yielding a spatial resolution of 500 km or approximately 5° × 5° at low and mid latitudes. The principal products are nine years of global albedo outgoing longwave and net radiation plus continuing solar irradiance measurements.



1.2. Quality assessment

Comparisons of parameters retrieved from the ISCCP analysis to other measurements of the same or related parameters show that the cloud amounts are generally accurate to within 5-10% random and < 5% bias except in polar regions (where the ISCCP cloud amounts are lower limits) over land areas in winter and at night (where ISCCP values are biased low by about 5-7%), cloud top temperatures are accurate to within 2 K, with the exception of optical thin cirrus clouds where the error is about 5-8 K. Cloud optical thickness is accurate to about 10% except for optically thin cirrus where errors are about 25-40%. Surface temperatures are accurate to about 2 K over oceans and about 1 K over land. Surface visible reflectance is accurate to about 2-4%.

Kyle et al. (1984) and Kyle (1991) have disccussed the quality of the derived Earth Radiation Budget products in detail. Defects in the ERB Earth Radiation Budget products arise both from the calibration problem and from approximations in the processing algorithms. For a great many studies the stability of the measurements is the most important factor. Stable sensors and processing algorithm allow accurate interannual comparison and reasonable comparisons with experiments. Uncertainties in absolute values are much harder to quantify than are relative changes Kyle et al. (1985).

This paper is organized as follows: in Sectiorn 2 the theoretical relationship between surface longwave flux and planetary albedo is proved, in Section 3 the relation between observed surface longwave flux and planetary albedo is discussed. The fluxes at the base and top of the atmosphere and their results and analysis are presented in Section 4. Finally concluding remarks are presented in Section 5.



2. Surface longwave flux and planetary albedo

The main goal here is to prove that all existing relationship of surface longwave relation L_BOA can be represented by to a form: L_BOA = —Aα + B where A and B are constant and α is the planetary albedo.

Adem (1967) proposed a multi linear relationship between net longwave at surface and planetary albedo. He proposed the following presentation for net longwave radiation at surface L_BOA and planetary albedo α that:

Where T'_s is the deviation from mean surface temperature, T' is the deviation from mean effective temperature, A_c is the cloud cover and a₁, a₃, a₄ and a₅ are constant. After some simplification the formula can be rearranged as:

where

k is a constant that depends on latitude, (Q − q)₀ is the total radiation received by the surface with clear sky, S is the insolation on a horizontal surface, α is the surface albedo and a₂, a₃, a₅, b₃, k (depend upon latitude) are constants.

Now we have analyzed a method to derive L_BOA similar to equation (2) for different parameters in each method to compare the behavior of L_BOA and α.

Brunt (1932) and Berliand and Berliand (1952) represent the L_BOA as:

where γ = σT⁴, σ is the Stefan Boltzman constant, e_s is the surface emissivity, T_s is the surface temperature and T_w is the wet bulb temperature. If we introduce equation (4) with convenient planetary albedo which represent as

Where A_c, α_c are cloud and surface albedo. One can get the same formula similar to equation (3) with different A and B constants, which can be written as

Also we imply the Adem albedo equation (2) and eliminating the cloud cover A_c, one can get the same linear relation between net longwave radiation L_BOA, and planetary albedo α with different A and B variables

A = γ₀c'/c'(1 − α_s)(Q + q)₀/S - b₃

and

B = γ₀ + 4σe_sT⁴(T_w − T_s) − A(α₂ + α'₂ − 1 + (1 − α_s)(Q + q)₀/S

Bultot et al. (1988) evaluated net radiation as follows:

where T is air temperature e is vapor pressure in mb and A_c is cloud covering decimals. They used coefficients a = 0.39, b = 0.05 and c = 0.1777 in equation (6). They also introduced water vapor emissivity e_s with constant value, as in surface energy balance GCM models, in equation (6). Then equation (6) can be simply rewritten in the form:

Eliminating A_c from equation (5 and 7) one can obtain the relation between albedo and net longwave radiation from formula (2) but with different A and B constants in the form:

Also if we useplug α in Adem's equation (3) with L_BOA based on equation (7) after eliminating the cloud cover, the results lead to constants A and B as follows:

and

Recently Dogniaux (1994) evaluated upward and downward longwave radiation (L_u and L_d) and his expression is:

where T is air temperature, SS is the effective duration of sunshine and G is the global radiation, then net longwave radiation can be written as:

Due to the relation between cloud cover and sunshine duration we have introduced the cloud cover sunshine conversion as SS = 1 − A_c and using a and b from Brunt (1932), and also by eliminating A_c from equations (8 and 5) one can get an explicit relation between planetary albedo and net longwave radiation similar to equation (2) with different A and B as follows:

Also using implicit equation (3) for Adem planetary albedo with L_BOA from Dogniaux (1994), we can get similar equation (2) with A and B variables as:

and

B = L_u − σT⁴ − σT⁴[0.904 − (a + b√e) − 0.005√e] − A[a₂ + a'₂ − 1 + (1 − α_s)(Q + q)₀]/S

We may end up with the conclusion that all methods for estimating net longwave radiation at surface L_BOA seems to behave in the form L_BOA = − Aα + B where A and B depend on the type of L_BOA formulation.



3. Relationship between net longwave radiation albedo and cloudiness

It was assumed that the temporal variability in net longwave radiation at surface L_BOA and planetary albedo α quantities result primarily from variations in cloudiness and the resulting patterns of variability appear to be consistent with this interpretation.

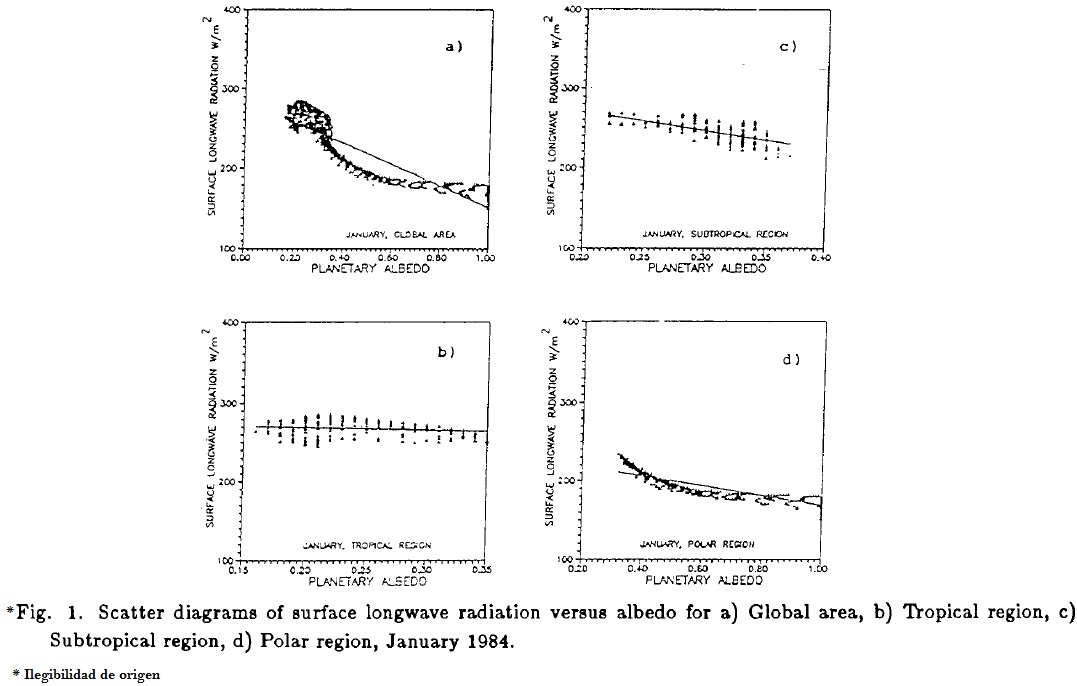

Figures 1 and 2 show scatter diagrams of net longwave radiation L_BOA versus planetary albedo a for various latitudinal belts and months. The solid line represents the least square fitting. It can be seen that in most cases the data have a characteristic slope . Fluctuations in the type of cloud and the temperature and humidity in the field of view may cause a scatter about the regression line.

It can also be seen from Figure 1 for January 1984 that the slope is negative over all belts, while it is positive over both tropical and subtropical zones for August 1984 Figures 2b and 2c. This means that in general, there is a negative relationship between L_BOA and α. The difference in the slope between January Figures 1b and 1c and August Figures 2b and 2c in tropical and subtropical belts, respectively, may be due to seasonal variations of cloud amount as shown in Figure (3a) or surface temperature as in Figure (3b). This is due to changes in monthly mean albedo as well as to changes in monthly mean cloud amount. There is a possibility that random variations in monthly mean cloud albedo exist. We have also interpreted changes in monthly mean longwave radiation as being due to changes in mean cloud amount. This result is in agreement with other previous studies. For example Heddinghaus and Krueger (1981) concluded that L_BOA over the tropics is largely modulated by cloudiness. Slingo (1982) stated that clouds play an important role in the hemispheric L_BOA and α particularly in the tropics. Liebmann and Hartmann (1982) concluded that the infrared flux anomalies are closely related to the change in convective clouds patterns. Lau and Chan (1983a and b) have seen that the L_BOA variation in the tropics is closely related to cloud and precipitation. Smith and Rutan (1984) came to the conclusion that the regions of greatest variability of L_BOA are in the tropics and subtropics.

From Figures 1 and 2 a straightforward L_BOA = −Aα + B can be found in both January and August months. But in January the behavior has some nonlinearity. On the other hand for each of the tropical and mid latitudinal belts the behavior is sensitive to the seasons while for high latitude belts it agrees well with the global observations.

With cloud cover the measured and calculated planetary albedo agree on domain of partial cloudy to overcast conditions. In the case of clear sky conditions the calculated and observed albedo work in opposite directions.

As indicated in tables for the values of correlation between α and both L_BOA and T_s la, we found the important following remark: the correlation between α and both L_BOA and T_s are negative correlations in all months and over all latitudes, with the exception of subtropical belts for August (1984); see Tables 1c, 1d. In the summer subtropical belt α is more dependent on T_s than L_BOA with a positive relation.



4. Fluxes at top and base of the atmosphere

The existence of a simple relationship between the net solar radiation flux at the top of the atmosphere NS_TOA and base of it NS_BOA has been formulated by Schmetz (1993) on the following pattern for single column model:

where Q₀ is the surface insolation and α_s, S_ABS are the surface albedo and energy absorved in the atmosphere. In a similar manner the longwave radiation budget at both top and base of the atmosphere can be either derived from instantaneous temperature humidity and cloud data or from monthly means the difference ranging from 0.4 to 6.4 W/m². The net radiation at the top of the atmosphere N_TOA can be expressed as:

where L_TOA and S are the net longwave radiation and solar insolation at top of the atmosphere and a is planetary albedo.

The system of equations (9 and 10) describe the balance of flux first one clear the solar radiative flux while second one deals with net flux with planetary albedo α having on upper and lower limits. In the represent work net longwave radiation at the base and top of the atmosphere is discussed and sensitivity to planetary albedo is presented.



4.1 Radiation flux estimates

The emission of specific area at the Earth's surface can be computed from the contributions of different constituents of the emitting system. If A_ci denotes the type of cloud fraction as seen from the ground and τ_i, is the atmospheric transmittance for flux at level Z_i then:

where ɸ(T) = σT⁴, e_s and e_ci are surface and cloud emissivities respectively. The first term on the right hand side represents the flux from cloud free area (1 — A_c); the third and fourth terms stand for top of the atmosphere cloudless part and cloudy one respectively. The contribution of water vapor and aerosol are mainly involved in the L_BOA as an portion of equation (11), including the first and second terms.

The radiation budget at the surface consists of four components, the downward short and long fluxes. Where the reflected short and the emitted longwave are expressed by

where L_BOA = (L_d − L_u)_BOA and Q is the global solar radiation at the surface and L_d and L_u are downward and upward longwave radiation respectively. Then

ΔLW = L_TOA − L_BOA

and

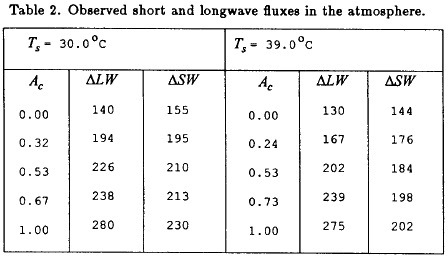

For single column cases for ΔSW and ΔLW are given on Table 2, has been derived from single column model, following Krishnamurti (1986). Two different cases: one with surface temperature 30°C and the other with 39°C are given for sake of comparison. The observed short and long wave flux in the atmosphere as given by equation (13) under different cloud conditions are recorded on Table 2.

For ΔSW radiative short wave absorbed in the atmosphere Schmetz (1993) introduced the following:

where S_abs is the fractional solar absorption, S₀ is the solar constant and 6 is the solar zenith angle S_abs = .

One can see from Table 2 the effect of surface temperature variation on heat absorbed and emitted through ΔSW and ΔLW. It is quite remarkable that the flux increases with cloud cover. These values are on average for different cloud conditions for different locations in mid latitude regions are: ∂SW/∂A_c = 64Wm² and ∂LW/∂A_c = 143Wm².

Let us propose the basic sensitivity characteristics of the climate model this parameter will be defined:

This parameter is different from Budyko's (1974) which define as ΔQ/Q_sp where Q_sp is the planetary incoming solar radiation. When the heat inflow decreases from some initial value considerably larger than the solar constant ice-free conditions are first observed (ɸ = 90°). The behavior of the ratio via latitude shows an increase in latitude when decreases (and vice versa) which may represent unstable glaciation regimes that convert into regimes of full glaciation or none with small heat income fluctuations. This sensitivity parameter has a critical value with clear conditions of value 0.4 and it is doubled approximately with overcast condition. By parameter given in (15) where SW_TOA and SW_BOA variables rather than defined sensitivity ratio by Budyko.



4.2. The Earth's radiation budget sensitivity to cloud variation

One can study correlation between fluctuations in cloud amount and Earth radiation budget to estimate the effect of cloudiness redistribution on the net radiation at the top of the atmosphere.

By differentiating equation (2) with respect to α

where S is the incident solar flux at the top of the atmosphere, which is a 7a periodic function due to eccentricity of the Earth's orbit, tends to zero. Then:

The change of the net flux at top of the atmosphere is given with cloud cover A_c and planetary albedo a on Table 3, which it has also been derived from the single column model.

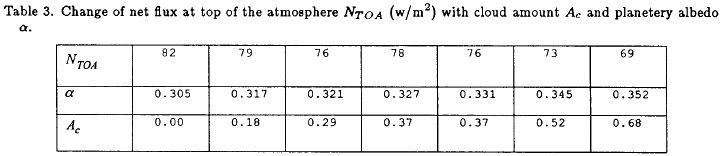

From Table 3 one can see that the changes of dN_TOA/dα could be approximated as very small, while changes with respect to cloud are more significant. Therefore, approximately

where k, the constant of integration, can be calculated from initial conditions Karner (1993).

Budyko (1969, 1974) used an expression of the form

where A, B, C, and D are constants of small seasonal variability.

Substituting cloud cover fraction by planetary albedo as:

Introducing A_c in equation (18) then:

where

Therefore under a balanced budget of net flux at the top of the atmosphere N_TOA with variable planetary albedo, the net longwave radiation can be estimated. The remarkable difference between equation (19) and the measured L_TOA could indicate a deviation of about zero. This equation is identical to the same parameterization presented in Section 2 for net longwave radiation at surface L_BOA.

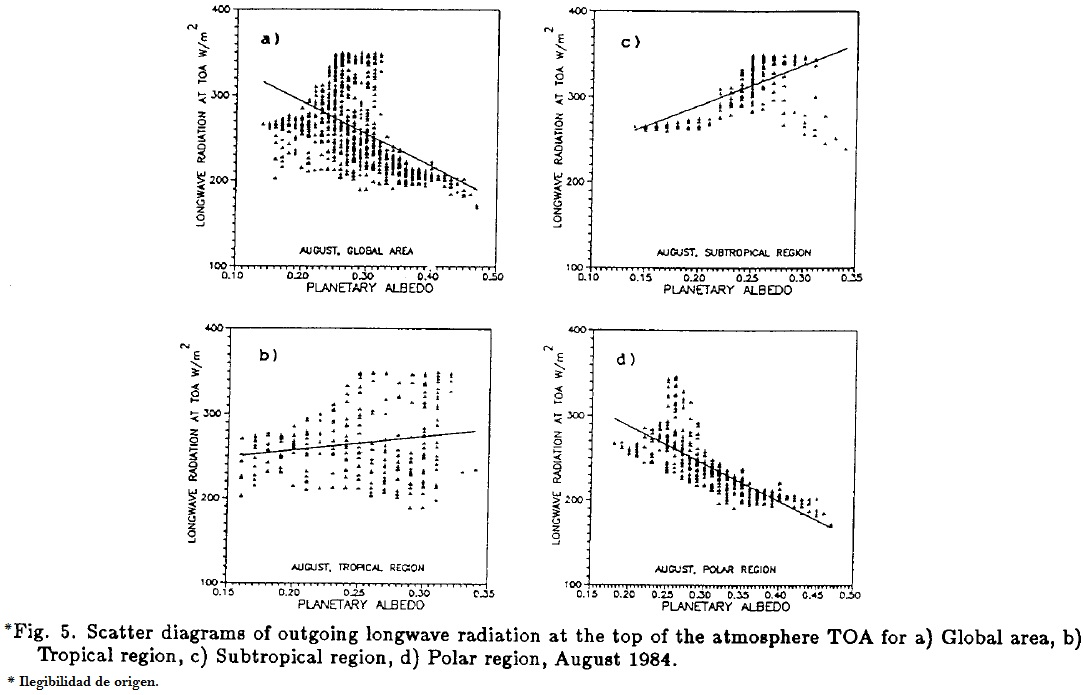

Also scatter diagrams of net longwave radiation at the top of the atmosphere L_TOA versus planetary albedo for the sub-regions and global area under study for January and August (1984) is shown in Figures (4 and 5) respectively. The solid lines in each of the global areas and sub-regions represent a linear fit to the data points. The net longwave radiation at the top of the atmosphere estimated by the formula of Blanchet (1990) due to the absence of a measured value and the planetary albedo observed data. His formula for net longwave radiation at the top of the atmosphere can be written as:

where σ is the Stefan Boltzman constant, T_s and T_c are the surface and cloud temperature respectively, e_c is the cloud emisivity and A_c is the cloud amount.

From Figures 4 and 5, some of the major remarks can be extracted as follows:

1. There is more scatter in L_TOA and α for August than January, which can be attributed to cloud cover in both seasons.

2. Relationship between L_TOA and α for tropical belt has different behavior rather than a global one where any increase in planetary albedo induces ah increase in L_TOA at the top of the atmosphere.

3. Subtropical regions are greatly sensitive to seasonal variability where the behavior of L_TOA and α change with season. In January the behavior agrees with the global pattern and vise versa in August for the Northern Hemisphere.

4. The polar profile is likely to be more stably insensitive to season and agrees with global pattern.

We can also conclude that the global area agrees with the theoretical formula, which indicates the inverse relation between outgoing longwave radiation at the top of the atmosphere and planetary albedo. This result is similar to the net longwave radiation at surface one with planetary albedo. The seasonal variability of this relationship; stronger in tropical and subtropical regions may be due to the variations of cloud amount in both season Cess et al. (1982).



5. Concluding remarks

1. All methods such as (Adem (1967), Bultot et al. (1988) and Dogniaux (1994)) are tested theoretically to provide an inverse relationship between net longwave radiation at the surface L_BOA and planetary albedo α in the form L_BOA = A — Bα with different A and B parameterization depending upon each method.

2. It was assumed that the temporal variability in net longwave radiation L_BOA and planetary albedo α quantities results primarily from variations in cloudiness and the resulting patterns of variability appear to be consistent with this interpretation.

3. Also the same relationship between net longwave at surface L_BOA and planetary albedo α was found for observed data with exception of tropical and subtropical regions in August (1994). This may be due to the closed association between L_BOA and cloudiness in the tropics and subtropics as presented by Smith and Rutan (1994).

4. A straightforward L_BOA = A — Bα can be found in both seasons. But in January the behavior is much more nonlinear, on one hand. On the other for each for tropical and mid latitudinal belts the behavior is sensitive to season while for high latitude belts it agrees well with the global observations.

5. The effect of surface temperature on heat absorbed and emitted through ΔSW and ΔLW, indicates a remarkable flux increase with cloud cover. These values on average vary at different locations in mid latitude regions having the values: ∂SW/∂A_c = 64W m² and ∂LW/∂A_c = 143W m².

6. Changes of net radiation at the top of the atmosphere with planetary albedo could be considered as a very small one while changes with respect to cloud is more significant. Therefore L_TOA = —Sα + k where k is a constant of integration that can be calculated from initial conditions.

7. Numerical and regression fitting between estimated longwave radiation at the top of the atmosphere L_TOA and observed planetary albedo α has an inverse relationship and it is identical to the same formulation of net longwave radiation at the surface L_BOA.

8. Relationship between L_TOA and α for the tropical belt has a different behavior rather than the global one, where increases in planetary albedo induce increases in L_TOA. Also subtropical regions are the most sensitive to seasonal variability where the behavior of outgoing longwave radiation at the top of the atmosphere L_TOA and planetary albedo a change with seasons.
