3.2.1 WRF model configuration

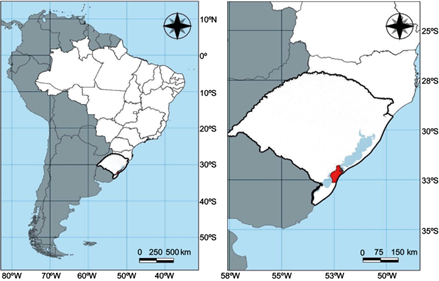

In this work, WRF v. 4.1 was used to perform simulations. The domain adopted is presented in Figure 3, which consists of three grids, with domains 02 and 03 nested from domain 01, using the one-way nesting method. It is noteworthy that domains 01 and 03 are centered in the coordinates of the Rio Grande pilotage control tower, where the main meteorological station used in this study is located. The horizontal resolution for domains 01, 02, and 03 is 9, 3, and 1 km, respectively.

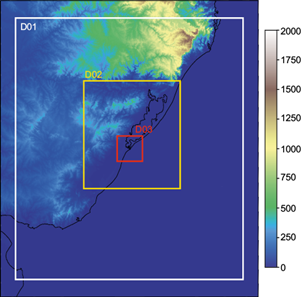

Fig. 3 Domains layout used in the WRF simulations. The color shade refers to topography (in meters).

The vertical configuration of the model is very important to study phenomena in the boundary layer, such as fog. There are two relevant parameters in this configuration: the vertical resolution, and the height of the first level of the model (^{Tardif, 2007}; ^{Philip et al., 2016}).

The lowest vertical level of the model (z1) is part of the configuration of vertical resolution in the lower part of the atmosphere. It plays a very important role in the resolution of processes near the surface (^{Yang et al., 2019}). The definition of a thin layer near the surface requires a higher vertical resolution in the lower model layers, which will allow a better solution for the physical processes inherent to the interactions between the surface and atmosphere (^{Shin et al., 2012}).

In this study, we assess the impact of changing the number of vertical levels and the altitude of the first model level, simulating a fog event in Rio Grande, with three different configurations. In the first configuration, we used 33 vertical levels, and the first level height was 50 m. In the second one, we configured the WRF model with 50 vertical levels, and the altitude of the first level was 20 m. In the last one configuration, we changed the first level’s model to 10 m, keeping 50 vertical levels. The Lambert Conformal Conic projection was used, due to its better suitability for the study area. The initial and lateral conditions are obtained from the analyses of the NCEP/Global Data Assimilation System (GDAS/FNL), with a horizontal resolution of 0.25º, since our objective is evaluating the ability of the WRF model to simulate dense fogs. Therefore, we chose to use analysis data instead of operational predictions from the global atmospheric model. Additionally, it is noteworthy that the model was initialized with a spin-up time of 24 h and configured with a time step of 45 s for domain 1. The physics parametrization schemes selected are shown in Table II.

According to ^{Steeneveld et al. (2015)}, the boundary layer physics parameterization proved to be crucial for a better prediction of fog formation. Moreover, the microphysics scheme presented itself as an important element in the prediction of the phenomenon’s dissipation. These authors found that the dual-momentum microphysical scheme (WDM6) showed a better performance compared to the single-momentum scheme. The WDM6 scheme has as prognostic variables, besides the water mass content in its various phases, the concentrations of cloud and rain drops. This scheme is sensitive to the concentration of condensation nuclei, including their advection processes (^{Skamarock et al., 2019}).

The YSU planetary boundary layer scheme has, among its specifics, a term of vertical mixing driven by radiative processes that is important for the life cycle of stratiform clouds, including fogs (^{Skamarock et al., 2019}). ^{Yang et al. (2019)} evaluated previous studies and highlighted that the modeling of the formation and evolution of advective fogs is more sensitive to planetary boundary layer schemes than microphysics schemes. These authors pointed out the YSU scheme as one of the most skillful for fog prediction.

3.2.2 Horizontal visibility estimates

Horizontal visibility is the main parameter to assess fog occurrence. In addition to observation, there are some empirical methods for estimating this parameter, and, consequently, indicate the presence of fog. The visibility estimation methods evaluated in this study will be described as follows.

^{Kunkel (1984)} proposed an estimate of visibility, in kilometers, based on the liquid water content (LWC), from the empirical relationship presented in Eq. (1).

where LWC is the liquid water content in g m^-3. In this work, we use the same adaptation indicated by ^{Fita et al. (2019)} to estimate the visibility from the WRF model by using Kunkel’s method.

There are also methods that consider simpler observational parameters to compute horizontal visibility, such as the one developed by the Forecast Systems Laboratory (FSL) (^{Doran et al., 1999}). The FSL visibility method (Eq. [2]) uses air and dew point temperatures, and relative humidity to estimate the horizontal visibility in miles.

where T and Td are the air and dew point temperatures in ºC, respectively, and RH is the relative humidity in %.

Another parameter used in this study to evaluate fog occurrence is the empirical method named Fog Stability Index (FSI). This method was developed in Germany in the 1970s and indicates the probability of radiation fog occurrence (^{Freeman and Perkins, 1998}). Thus, different from the other methods, it is not a visibility estimation. The index is computed by using Eq. (3).

where T _sfc and Td _sfc are the air and dew point temperatures near the surface (usually replaced by 2 m temperature above the surface) in ºC, T ₈₅₀ is the air temperature at 850 hPa in ºC, and U ₈₅₀ is the wind speed at 850 hPa in kt.

FSI values greater than 55 indicate a low probability of fog occurrence. Values between 55 and 31 indicate moderate probability, and values lower than 31 indicate a high probability of radiation fog occurrence in a locality. ^{Holtslag et al. (2010)} show that the FSI highlights the conditions favorable to radiation fog formation: high humidity, stability, and low wind speed.

4.2.1 Observational assessment

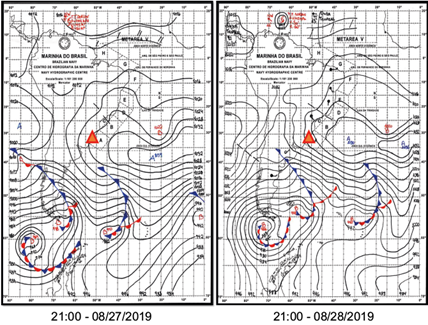

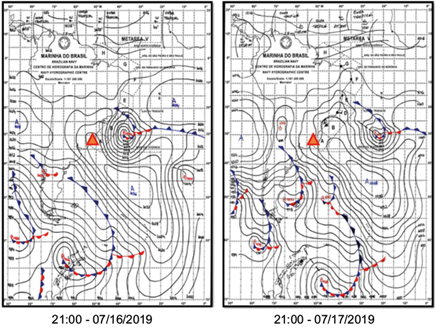

The synoptic chart analysis shows that the study region was close to the edge of a high-pressure system during the case study time interval (Fig. S1 in the supplementary material). This configuration favors the occurrence of northeasterly (NE) winds in the region. Moreover, it is worth mentioning that the influence of high-pressure systems, especially in its most central area, is a favorable factor for fog formation by radiative cooling since this synoptic system is associated with clear sky conditions and calm or weak winds. This synoptic pattern also favors the upwelling of cooler water along the coast, which can contribute to fog occurrence.

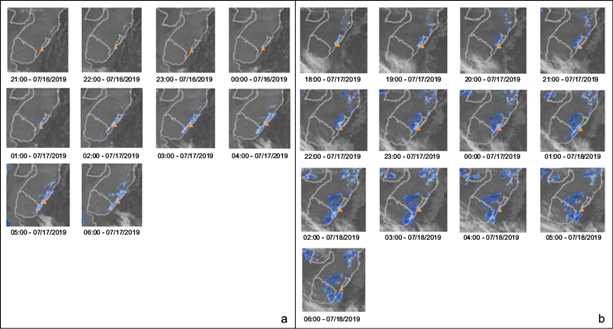

Satellite images indicated the presence of low clouds over the region of interest for this study since the early morning of July 17 (Fig. S2). Advancing in time, it is possible to verify the phenomenon evolution through the increase in low cloud cover near the estuarine area of the Patos Lagoon on the night of the 17th. From the first hours of the early morning of July 18, there are indications that the phenomenon has acquired a dynamic aspect, moving towards the south/southeast (S/SE) to the extreme south of the Rio Grande do Sul state.

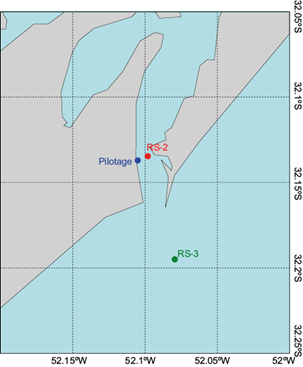

The data observed during the occurrence of the phenomenon at the pilotage station and at the RS-2 buoy, from the SiMCosta project, are shown in Figure 4, where the time intervals highlighted in gray refer to the times in which the “Impracticability” condition was reported, i.e., in the period corresponding to the dense fog occurrence.

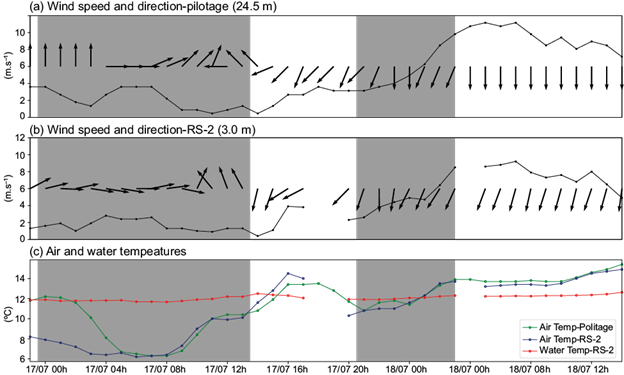

Fig. 4 Time series of wind direction and intensity at (a) the pilotage station, and (b) the RS-2 buoy. (c) Time series (local time) of air and sea surface temperatures observed during the fog event that occurred between July 16 and 18, 2019. The intervals highlighted in gray correspond to the times when the “Impracticability” condition was reported.

At the beginning of the visibility restriction, the occurrence of light winds from the south quadrant was observed. This condition may have contributed to a moisture inflow from the ocean towards the pilotage station and RS-2 buoy, favoring the formation of fog. From the afternoon of July 17, the wind changes to a northerly component, which could have initially contributed to a momentary weakening of the fog density together with the increasing air temperatures. However, the impracticable conditions returned on the evening of July 17, at the same time in which an increase in wind speed and a decrease in air temperatures were observed. Thus, the fog intensification coincides with the moment where the air temperatures recorded became lower than the sea water temperature, which suggests a transport of colder continental air over the region, providing an increase in relative humidity within the study area and re-intensifying the fog. It is noteworthy that the northeasterly winds in the study region can also contribute to channeling moisture from the Patos Lagoon towards Rio Grande city. Finally, it is observed that a few hours after the air temperatures became higher than the sea water temperature in the early morning of July 18, together with the wind intensification, there was a return to the practicable condition, which implies a better visibility condition.

An important aspect to be highlighted is that the wind direction observed at the pilotage station matches the evidenced displacement of clouds detected by the satellite product, indicating that the fog moved according to the predominant wind direction in the region. This aspect, together with the observed moderate winds, is indicative of the advective character of the phenomenon at that stage of its development.

All these factors pointed to the possibility that the fog event evaluated in this study case was a radiation-advection fog formed from a cooling process by radiative loss (radiation fog), and acquiring a dynamic aspect at a certain stage of its life cycle. From this moment onwards, the fog/low cloud was advected over a liquid surface cooler than the overlying air, following the direction of the local wind.

4.2.2 Numerical modeling assessment

4.2.2.1 Vertical resolution

Considering the importance of the WRF model’s vertical configuration to simulate fog events, we assess three vertical configurations for the study case A: (i) test 1, 33 vertical levels, and the first model level height at 50 m; (ii) test 2, 50 vertical levels, and the first model level height at 20 m; (iii) test 3, 50 vertical levels, and the first model level height at 10 m. Figure 5 shows the simulated time series of meteorological variables for each vertical configuration. For this analysis, the grid point from domain 3 (closest to the Pilotage meteorological station) is used. The blue lines represent the variables simulated by the WRF with the configuration of test 1, the green ones refer to test 2 and the red ones correspond to test 3. The time intervals highlighted in gray correspond to the times when the “Impracticability” condition was reported.

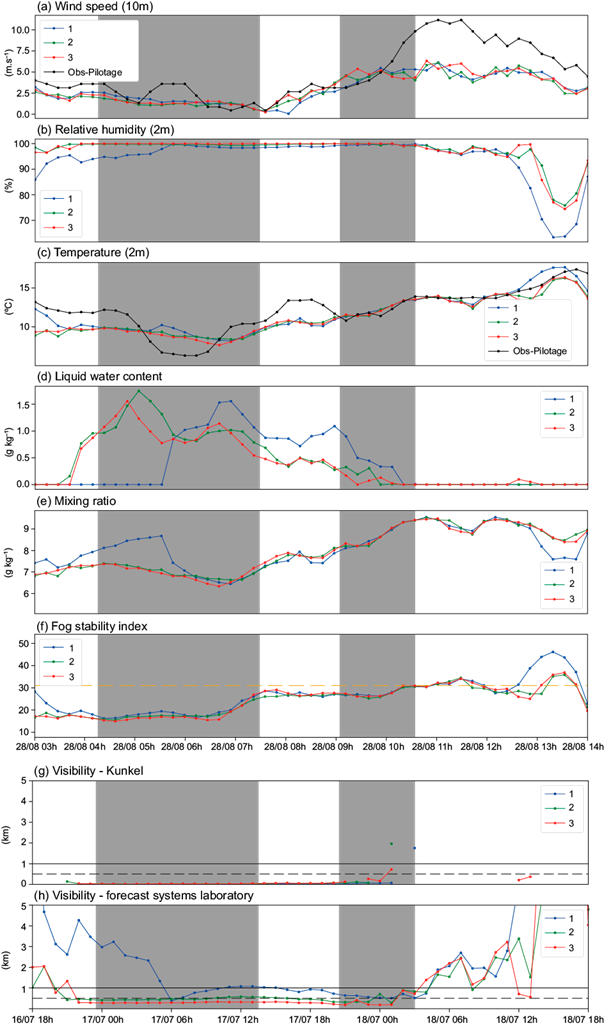

Fig. 5 Time series of (a) wind at 10 m, (b) relative humidity at 2 m, (c) air temperature, (d) liquid water content, (e) mixing ratio, (f) FSI simulated by the WRF model for the grid point closest to the pilotage control tower from test 1 (in blue), 2 (in green), and 3 (in red) configurations, (g and h) visibility estimates simulated by the WRF model for the grid point closest to the pilotage control tower from test 1 (in blue), 2 (in green) and 3 (in red) configurations. The interval highlighted in gray corresponds to the times when the “Impracticability” condition was reported.

In general, WRF model simulations using the three vertical resolution configurations are in accordance with observed data of wind speed (Fig. 5a) and temperature (Fig. 5c). Although a few differences between the curves of the simulations and observed data of these variables can be noted, all simulations indicate well the behavior of wind speed and temperature, with an increase of wind speed from the afternoon of July 17, as well as higher temperatures on July 18, as compared with the 17th. The observed data of other meteorological variables are not available, however, they are used to characterize and indicate the dense fog occurrence.

The relative humidity simulated in test 1 delays to arrive at 100% when compared with the results of tests 2 and 3 (Fig. 5b). This delay, together with lower values of LWC during the early morning of July 17 (Fig. 5d) can impact the dense fog detection using a smaller vertical resolution of the model. The simulated time series of LWC and water vapor mixing ratio (Fig. 5d, e) analyzed together illustrate well the process of converting water vapor into liquid water. A process of increasing liquid water content was initiated, accompanied by a subtle downward trend in the mixing ratio variable across all tests. However, as observed for relative humidity, test 1 shows a tendency to lag this conversion compared to the other tests.

Between the parameters used to indicate dense fog occurrence, the FSI (Fig. 5f) showed promising results from the point of view of fog forecast in Rio Grande. The index was sensitive to the presence of the phenomenon, indicating a high probability (FSI < 31, dashed orange line) of fog formation in the region throughout practically the entire duration of the event, and the three vertical resolution configurations presented equivalent results for this parameter. Kunkel and FSL horizontal visibility estimates were evaluated (Fig. 5g, h, respectively). The 1 km threshold was evidenced in the time series of such parameters (solid black line) in order to perceive the time intervals that the model identified in its simulations of fog presence in the region of interest. In addition, it is noteworthy that the generated black line denotes the 500 m visibility threshold, perceiving the periods in which the WRF simulated more intense visibility restrictions, as recorded by the navigation condition data. The horizontal visibility estimated by using Kunkel’s method presented failures due to its computation being dependent on the LWC, which has values very close to 0. Taking the period in which it was possible to calculate this parameter, a relative sensitivity to what was described by the navigation conditions is noted. In all tests, this parameter pointed to visibility values below 500 m and showed a tendency towards increased visibility during the studied event. On the other hand, the FSL estimate does not depend on the LWC data. This variable showed relevant results (Fig. 5h). As previously verified, test 1 showed a delay in the characterization of the dense fog event. That is, tests 2 and 3 identified visibility values lower than 1 km from the night of July 16, while test 1 only in the early morning of July 17. All vertical configurations evaluated in this study were able to identify the presence of fog from this estimate. However, tests 2 and 3 performed better than test 1, both in characterizing the intensity of the event and in relation to formation time. Test 2 showed values close to 500 m during almost the entire interval between the night of July 16 and tthe he dawn of July 18, while test 3 was the only one that showed visibility below this threshold. All the tests were able to coherently represent the return to “Practicability”, since they indicated an increase in visibility from the early hours of July 18.

The analysis of these results showed that the increase in vertical resolution, combined with a reduction in the height of the first level of the model, produced an early formation of fog at the evaluated point. This aspect represents an improvement in the characterization of the study phenomenon since it is more consistent with the observational record. Additionally, the height of the first level of the model had a potential influence on the assessment of the intensity of the visibility restriction associated with the phenomenon, with lower values of this parameter associated with a more restricted visibility simulation. From this analysis, we adopted the vertical resolution configuration from test 3 to all other simulations performed with the WRF model. This configuration resulted in a considerable vertical discretization of the atmosphere in its lower portion, with 13 levels below 1000 m, being five below 100 m (10.0, 23.0, 39.7, 61.4, and 89.4 m). Considering that, by definition, fogs are stratiform clouds that form on the surface and have vertical extensions from a few meters up to hundreds of meters (^{WMO, 2017}). The vertical resolution proposed in this study includes three vertical levels in the first 50 m of height, which allows a better representation of the vertical structure even in cases of shallow fogs (^{Román-Cascón et al., 2015}).

4.2.2.2 Meteorological fields

In this subsection some variables predicted by the WRF model will be shown. The physics parameterizations used in the simulation are those presented in Table II. Only variables/fields from domain 3, which has a horizontal resolution of 1 km, will be presented in this work since they are considered more significant in terms of the results. Additionally, representative times of the fog formation and dissipation stages were selected to be discussed. The selected times are based on the pilotage station records: 23:00 LT on July 16, and 03:00 LT on July 18, 2019. Figures 6 and 7 show the fields of liquid water content (a), and water vapor mixing ratio (b) at the first vertical level of the model (located at a height of 10 m), relative humidity at 2 m, and wind at 10 m (c), air temperature at 2 m (d), and the horizontal visibility estimates by the FSL (e) and Kunkel’s (f) methods. The red dot highlighted in all figures represents the location of the pilotage weather station.

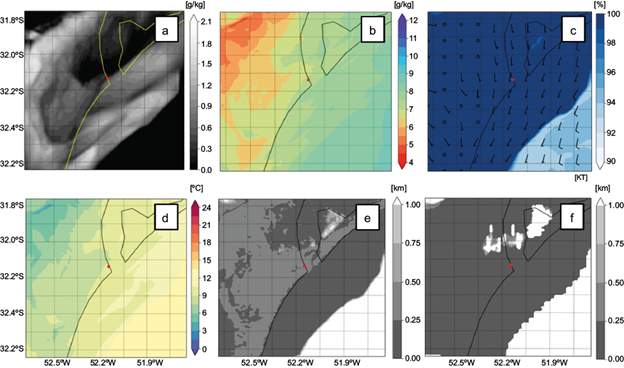

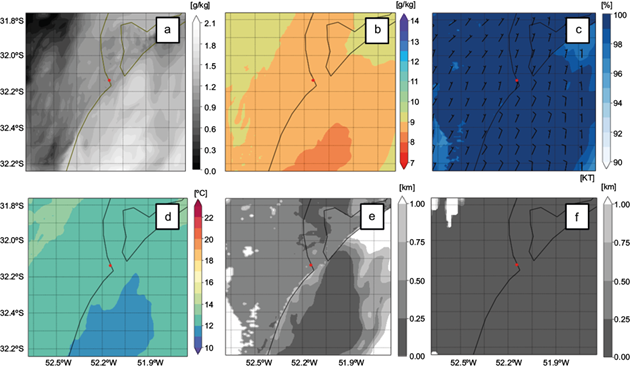

Fig. 6 Fields of (a) liquid water content, (b) water vapor mixing ratio, (c) relative humidity at 2 m together with 10-m wind, (d) air temperature at 2 meters, and (e, f) visibility estimate computed from FSL and Kunkel methods, respectively, simulated by the WRF model for July 16, 2019 at 23:00 LT.

The simulation indicates that at the closest time to the initial record of intense visibility restriction (23:00 LT on July 16, 2019), the WRF model was able to detect the presence of liquid water and high humidity values near the surface (Fig. 6), pointing out a configuration favorable to fog occurrence in the study region. In addition, the cooling process that possibly gave rise to the studied fog was evidenced. This process can be verified through the detection of a region on the continent with minimum values of water vapor mixing ratio coinciding with higher values in the field of liquid water content, which represents a conversion from water vapor to liquid water occurring in the study area, as discussed in section 4.2.2.1. The predominance of the simulated low-intensity winds, from the south quadrant, is in agreement with the observed data. Moreover, the model represents well the relative humidity with values between 99 and 100% in the fog occurrence region.

The visibility fields calculated with the variables simulated by the WRF model identify the presence of fog in the study region at the same time at which the event begins (Fig. 6). Both the FSL and Kunkel visibility estimates (Fig. 6e, f, respectively) characterized the occurrence of dense fog with visibility restriction below 500 m, in agreement with the pilotage observational record. It is noteworthy that the visibility restriction simulated by using the Kunkel method (Fig. 6f) was even more intense than that computed from the FSL method (Fig. 6e) in most areas of domain 3, at this analyzed time.

On July 18 at 03:00 LT the navigation condition returned to “Total practicability”. At this time, the WRF model was able to simulate meteorological conditions favorable to dissipate the phenomenon, as can be evaluated in Figure 7. There are no high values for liquid water content over the pilotage area, although values above 1g kg^-1 were still identified over the ocean, farther from the coast (Fig. 7a). An intensification of the wind could also be observed during the early morning (Fig. 7c), which is consistent with what was observed in the meteorological station. The elevation of temperatures was also well indicated by the simulation (Fig. 7d), while no significant changes in the water vapor mixing ratio were observed over the pilotage area.

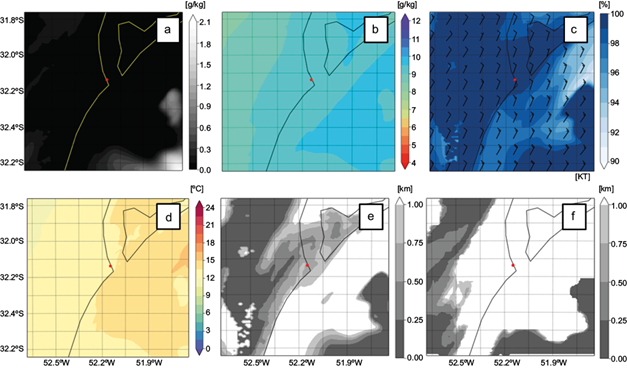

Fig. 7 Same as in Figure 6, but for July 18, 2019 at 03:00 LT.

The horizontal visibility, computed by using both Kunkel and FSL parametrizations, increased over the pilotage area. Values higher than 500 m show that the model captured correctly the practicability condition at 03:00 LT on July 18 (Fig. 7e, f). The visibility fields are similar for the oceanic area; however, they present some divergences in the continental portion and in the access channel to the Patos Lagoon. The horizontal visibility estimate using the FSL method identified the presence of fog over an area larger than that derived from the Kunkel method. On the pilotage point, the FSL field still shows visibility between 500 and 750 m, while the Kunkel field no longer represents fog in the region.

The suitability of the WRF model in simulating the fog from this study case is also confirmed by its ability to simulate the dissipation of the phenomena. Both the meteorological variable fields and the visibility estimates in times after 03:00 LT (figures not shown), when the “Practicability” condition was already well characterized, are well represented, confirming the fog dissipation.

4.3.1 Observational assessment

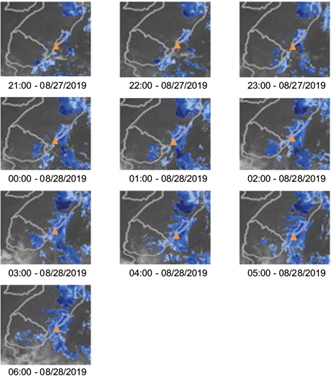

Between the night of August 27 and the morning of August 28, 2019, the region of interest was under the influence of a high-pressure system (Fig. S3). This configuration is promising for fog formation by the cooling mechanism since it is related to light winds and clear sky conditions. It is also noteworthy that the city of Rio Grande was located near the edge of this system. Such positioning may favor northeast winds in the region. As of early morning on August 28, 2019, the evaluated satellite product identified the presence of low clouds in the estuarine region of Patos Lagoon (Fig. S4).

The data observed at the pilotage meteorological station and at the RS-2 meteoceanographic buoy highlighted the occurrence of light to moderate winds and throughout the interval between dawn and early afternoon on August 28, 2019 (Fig. 8). The predominance of winds from the north quadrant was evidenced in this area. In general, less intense winds were verified on the buoy in relation to the pilotage meteorological station. This characteristic may be associated with the difference in height between the two wind sensors. Another point to be characterized is the observation of air temperature lower than the water temperature during the visibility restriction. After the end of the event, this behavior reverses.

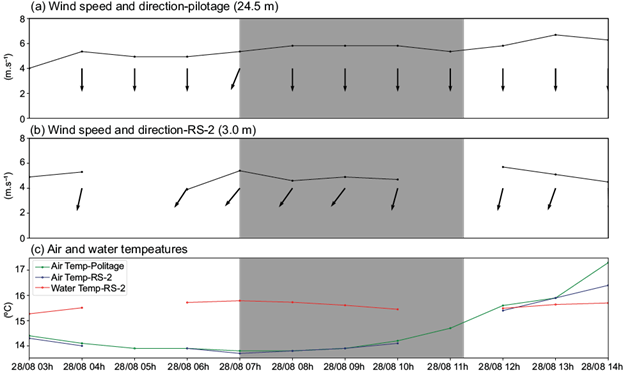

Fig. 8 Same as in Figure 4, but for August 28, 2019.

The fog event that occurred during period B presents additional information obtained from the local observations and photographic records in this interval. Noteworthy is the record of fog in the central area of the city of Rio Grande since the early morning of August 28 and the information that the maneuver prevented from taking place due to the presence of the phenomenon consisted of the entry of a ship into the access channel to the port of Rio Grande.

4.3.2 Numerical modeling assessment

Figure 9 shows the temporal evolution of the meteorological variables simulated by the WRF model at the closest grid point to the location of the pilotage meteorological station. Compared to the observed data (black lines in Fig. 9a, c), the WRF performed well in representing the meteorological variables within the study region.

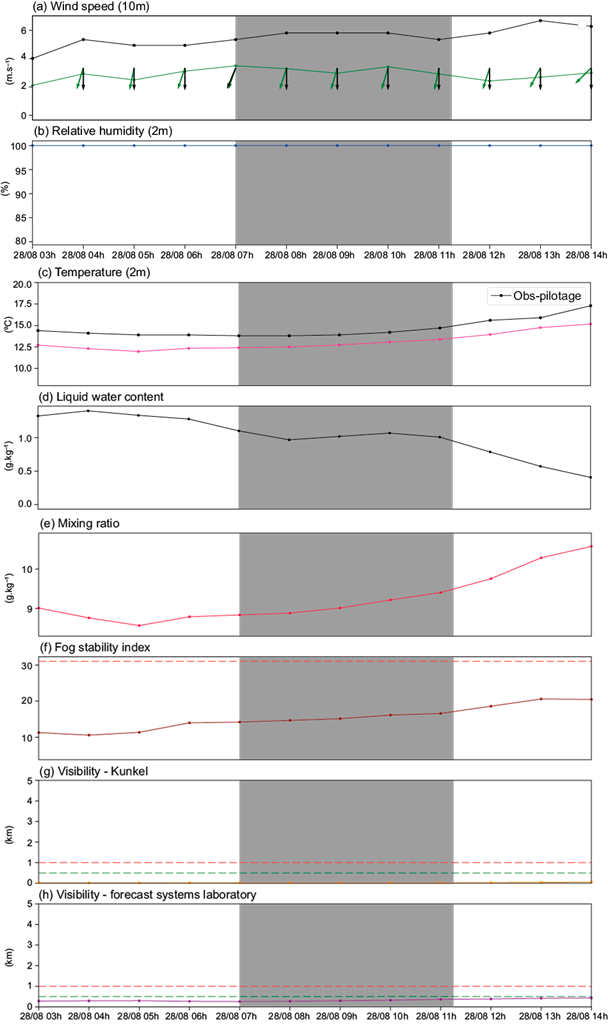

Fig. 9 (a) Time evolution of wind direction and intensity at 10 m, (b) relative humidity at 2 m, (c) air and dew point temperatures at 2 m, (d) liquid water content, (e) water vapor mixing ratio (e), (f) Fog Stability Index (FSI), and (g, h) visibility estimates from Kunkel and FSL methods, respectively. Parameters are simulated by using the WRF model for the fog event that occurred on August 28, 2019. The interval highlighted in gray corresponds to the times when the “Impracticability” condition was reported and the red and green dashed lines in (g) and (h) highlight the visibility thresholds of 1 km and 500 m, respectively.

According to what was observed in the study area, the fog began its formation in the early morning of August 28, 2019. It is noteworthy that the WRF simulated favorable conditions for the presence of fog in the region from the first hours of the same day, such as the presence of light winds and relative humidity equal to or very close to 100% (Fig. 9a, b). In addition, the FSI and the visibility estimates also characterized the presence of dense fog at the evaluated point throughout the analyzed interval (Fig. 9f, g, h).

The time series of LWC and mixing ratio analyzed together indicate a dissipative process of the fog, where the variables presented opposite trends at the end of the “Impracticability” period (Fig. 9d, e). Thus, a reduction in LWC associated with increases in mixing ratio in the study region indicates a conversion of liquid water into water vapor. This characteristic may be associated with the fog dissipation process and was well represented by the WRF model.

At 01:00 LT on August 28, 2019 (the time closest to the first observational record of the fog event), the meteorological fields indicated the presence of the phenomenon (Fig. S5). The “Impracticality” interval recorded during period B occurred between 07:00 and 11:15 LT on the same day. Thus, the following fields are representative of the WRF model simulations for the start time of the intense visibility restriction event (Fig. 10).

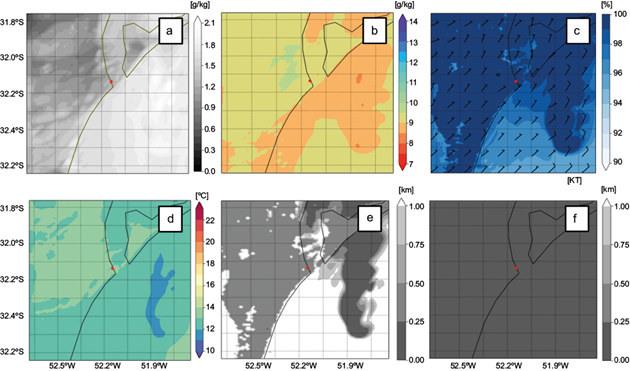

Fig. 10 Fields of (a) liquid water content, (b) water vapor mixing ratio, (c) relative humidity at 2 m together with 10 m wind, (d) air temperature at 2 m, and (e, f) visibility estimate computed from FSL and Kunkel methods, respectively, simulated by the WRF model for August 28, 2019, at 07:00 LT.

At 07:00 LT, the processes of cooling and converting water vapor into liquid water close to the surface remained highlighted by the simulations (Fig. 10a, b, d). High values of relative humidity and light and northerly winds were also evidenced (Fig. 10c).

The fields of visibility also characterized the “Impracticability” condition, showing horizontal visibility restrictions for 500 m or less in the study area (Fig. 10e, f). A relevant aspect to highlight is the evolution characterized by the FSL visibility estimate (Fig. 10e), which identified visibility values of 250 m or less over the ocean, very close to the entrance of the access channel to Patos Lagoon. This characteristic was shown in accordance with the report of visibility conditions by the ship unable to access the channel and which was waiting on the high seas for favorable navigation conditions. The fog characterized by the Kunkel method (Fig. 10f) showed greater spatial extension and was more intense than that described by the FSL methodology (Fig. 10e).

At 11:00 LT on August 28 (the moment closest to the return to the “Practicability” condition), the WRF model pointed to indications of the beginning of the dissipative process of the fog evaluated in the study area. From Figure 11 it is possible to perceive a slight acceleration of the winds in the region, as well as a reduction in the area of maximum relative humidity. Furthermore, the cooling process and the mechanism for converting water vapor into liquid water (Fig. 11a, b, d), characteristic of the formation and development of some types of fog, were not evident.

Fig. 11 Same as in Figure 10, but for August 28, 2019, at 11:00 LT.

Both visibility estimates pointed to a reduction in the area covered by fog at this stage of its life cycle, despite still featuring visibility conditions equal to or less than 500 m in the vicinity of the estuarine region of Patos Lagoon (Fig. 11e, f). In this way, the WRF showed the ability to detect the beginning of the dissipative process of this phenomenon.

It is noteworthy that, from the field of visibility FSL (Fig. 11e), it was possible to perceive the absence or dissipation of fog over the ocean, indicating better navigation conditions at the entrance of the access channel to the port region of Rio Grande. Based on the knowledge of the type of maneuver to be carried out immediately after returning to “Practicability” (ship entry), it was possible to assess that the WRF model performed well in this characterization.
