Introduction

Water management in agriculture is crucial to poverty reduction, food security, and environmental protection. Over the last 30 years the global boom in groundwater use for irrigation in regions subjected to extended dry seasons has led to water shortages for agriculture. This is particularly true for arid and semiarid regions where apples (Malus domestica Borkh) trees are grown and their irrigation is essential for meeting high yields and adequate fruit quality standards (^{Behboudian et al., 2011}). Partial root zone drying (PRD) is an irrigation strategy developed for saving water (^{Loveys et al., 2000}). PRD has been successfully applied to apples without compromising yield while saving water (e.g. ^{Einhorn and Caspari, 2004}). However, PRD's effect on apple fruit quality has not been consistent (Behboudian et al., 2011). For example, ^{Caspari et al. (2004)} showed that for Fuji apple fruit quality was the same between fully irrigated and PRD treatments. But for the same cultivar ^{Leib et al. (2005)} observed higher total soluble solids concentration (TSSC) in PRD fruit than in fully-irrigated fruit. ^{Fallahi et al. (2008)} reported advanced fruit maturity, in terms of lower flesh firmness and higher starch degradation index, in PRD fruit compared to fully-irrigated fruit. Both advanced maturity and higher TSSC have important implications for fruit marketing and consumer preference.

This experiment was set up in a commercial orchard in Hawke's Bay, which is the main apple producing region of New Zealand. The objective was to study the effect of PRD on FMA of Royal Gala apples grown in a commercial orchard, to test the hypothesis that PRD would induce FMA in Royal Gala apples grown in a dry area of New Zealand.

Materials and methods

The experiment was conducted in a commercial orchard in Havelock North (latitude 39° 39' S, longitude 176° 53' E, elevation 5 m), New Zealand, during the 2001-02 growing season. The area has a temperate climate with average annual values of 565 mm for rainfall and 781 mm for potential evapotranspiration. The orchard soil was sandy silt loam. The experimental block consisted of four rows of 25-year-old Royal Gala on MM-106 rootstocks. The trees were spaced at 5 m between rows and 4 m within rows and trained as a central leader. Trees received standard cultural practices used for local commercial production including fertilisation, fruit thinning, drip irrigation, and pest control as needed.

A total of 32 experimental trees were divided into four blocks. Each block had two plots of four trees each. At least two guard trees at each end surrounded the experimental plots. There was a guard tree row between experimental blocks. Two treatments were randomly allocated within each block. Treatments were: 1) commercial irrigation (CI) as control and partial rootzone drying (PRD). In controls, irrigation was applied by the grower following commercial practice based on meteorological data collected from a local weather station. The PRD irrigation was applied by alternating the irrigation from the wetted side to the dry side when the volumetric soil water content (θ) decreased to between 0.12 and 0.18 m³ m^-3. The CI and PRD trees were drip irrigated to field capacity (0.27 m³ m^-3) using one irrigation pipe placed on each side of the tree row. Four emitters per tree, two on each pipe line, were placed 50 cm away from the tree trunk. The discharge from each emitter was 4 L h^-1. During the entire growing season and after seven irrigation episodes, PRD and CI trees received a total of 175 mm and 363 mm of applied water, respectively. The soil was covered with clear polyethylene to keep the rain out. This was done starting from 36 days after full bloom (DAFB), which occurred on 30 September 2001.

The θ was measured twice a month by time domain reflectometry (TDR, model 1502C®, Tektronix Inc.; Beaverton, OR, USA). One pair of TDR probes on each side of the PRD trees and one pair on CI trees per experimental plot were set up permanently as detailed by ^{Zegbe and Behboudian (2008)} (Figure 1). On 93 DAFB, at fruit expansion, midday leaf water potential (Ψ_leaf) was measured once on four leaves per plot between 12:00 and 13:30 hours with a pressure bomb (Soil Moisture Equipment Corp.; Santa Barbara, CA, USA). The photosynthetic photon flux for this occasion was 669 ± 26 mmol m^-2 s^-1 ± standard deviation.

Figure 1: Field layout of the experiment orchard, experimental plot distribution, irrigation lines, time domain reflectometry (TDR) probes, and other experimental details.

Fruit equatorial diameter from ten fruits randomly selected at the outer and middle part of each tree canopy was measured twice a month with a digital hand-held calliper (Digimatic, model 50-321®; Mitutoyo Co., Japan). Readings were taken from 55 DAFB to 135 DAFB. At harvest (149 DAFB), from the two central trees, 10 fruit per plot were hand-picked randomly for fruit quality assessment. Fruit were individually weighed with an analytical balance (Mettler Instrument AG CH-8606®; Greifensee-Zurich, Switzerland). Equatorial diameter from each fruit was measured with the same device described previously. Fruit density (g cm^-3) was determined as fruit mass per unit of volume. Fruit volume was obtained by water displacement. Fruit skin colour was measured on two opposite sides in the equatorial part of each fruit with a portable tristimulus colorimeter (Minolta CR-200®; Osaka, Japan) previously calibrated with a green plate (CR-A47 G).

After removing the fruit skin, two flesh firmness determinations were done on the same spots used for skin colour measurements. A press-mounted Effegi penetrometer (model FT 327®; Alfonsine, Italy) was used for measuring flesh firmness. A hand-held refractometer with automatic temperature compensation (ATC-1 Atago®; Tokyo, Japan) was used for determining the total soluble solids concentration. Starch pattern index was determined according to ^{Reid et al. (1982)}; therefore the hydrolysis of starch was ranked on a scale of 0 (100 % starch) to 6 (no starch). Dry mass concentration was measured by taking 25 g of fresh cortical tissue samples from each fruit. Samples were oven-dried at 65 °C for one week to constant mass.

The data were analysed by complete randomised block model using the GLM procedure of SAS software (SAS Institute, Cary, NC, USA). The variables expressed in discrete unit were square-root transformed. Means were reported after back transforming. Treatment means were separated by least significant difference (LSD) test at P ≤ 0.05. Fruit weight was used as covariate to assess fruit quality attributes. Data were also examined using canonical discriminant analysis (CDA) to have an overview of the fruit quality attributes collectively and to identify the major sources for the differences between irrigation treatments. For this, the CANDISC procedure of SAS was used.

Results and discussion

The difference in θ between CI and non-irrigated side of PRD was significant on 50, 64, and 121 DAFB (Figure 2). Values of θ in irrigated side of PRD were similar than those of CI. The leaf xylem water potential (Ψ_leaf) was measured at midday in one occasion on 93 DAFB. The Ψ_leaf was statistically similar (LSD = 0.2) between CI (Ψ_leaf = -1.0) and PRD (Ψ_leaf = -1.1). Research in this laboratory has shown that reduced irrigation (deficit irrigation and PRD) will affect apple fruit quality if a medium to severe water stress develops.

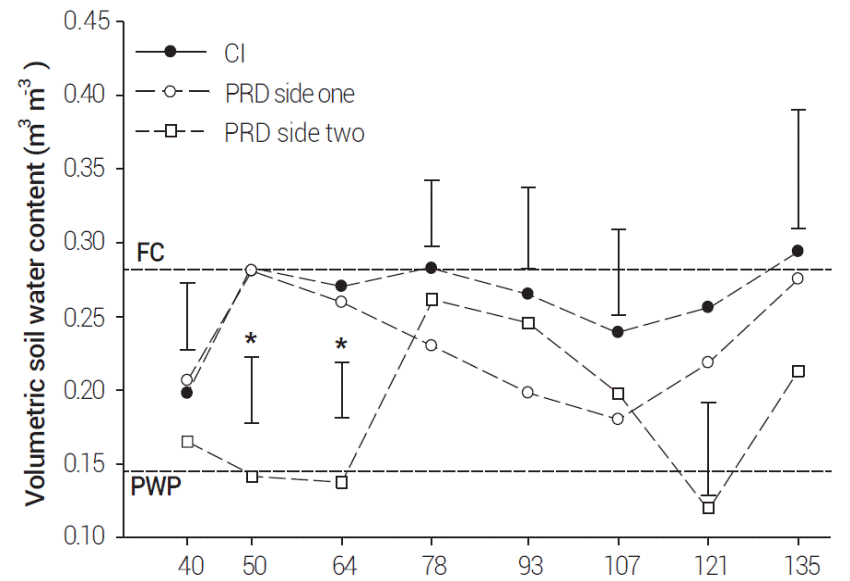

Figure 2: Changes in soil water content (θ in the text) in commercially irrigated (CI) trees and in both sides of partial root zone drying (PRD) trees. The horizontal dashed lines indicate field capacity (FC) and permanent wilting point (PWP) for the orchard's soil. Vertical bars represent the least significant difference and the asterisks indicate significant differences among means at P ≤ 0.05.

This corresponds to a midday Ψ_leaf of -2.1 to -1.8 MPa (^{Mills et al., 1996}; ^{Mpelasoka et al., 2001}). However, as indicated previously, this water stress intensity was not developed in this experiment; which indicates that the wetted part of the root system of PRD trees can equilibrate Ψ_leaf even during fruit expansion stage (^{Zegbe and Serna-Pérez, 2012}).

Fruit growth pattern was the same between the two treatments because no water stress was developed in PRD trees as previously argued by ^{Zegbe and Serna-Pérez (2012)} (Figure 3). Therefore, mean fresh mass, diameter, volume, and dry mass concentration were statistically similar between irrigation treatments (Table 1). In contrast, firmness and total soluble solids concentration tended to be the highest in PRD fruits, which also tended to be redder by having a lower hue angle (Table 1). The only significant difference was observed on the starch pattern index (SPI), which was high in PRD fruits (Table 1). This indicated that PRD fruit reached an early maturity. Under PRD root-toshoot and shoot-to-fruit signalling takes place (^{Davies et al., 2000}), hence root-shoot-fruit signalling process may trigger production of ethylene in the fruit leading to an increase in starch hydrolysis into sugar (^{Thammawong and Arakawa, 2010}). The underlying mechanisms notwithstanding, earlier fruit maturity would have important implications for early fruit marketing.

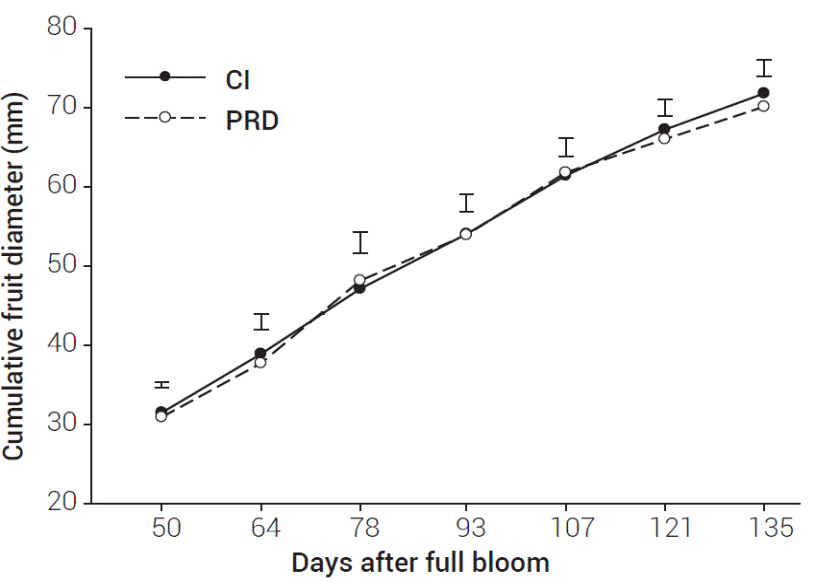

Figure 3: Cumulative fruit growth of Royal Gala apples under commercial irrigation (CI) and partial rootzone drying (PRD). Vertical bars represent the least significant difference at P ≤ 0.05.

Table 1: Effects of irrigation treatments (ITs) on mean fresh mass of fruit (MFMF), fruit diameter (FD), fruit volume (FV), fruit density (Fden), flesh firmness (FF), dry mass concentration of fruit (DMCF) on a fresh weight (FW) basis, total soluble solids concentration (TSSC), starch pattern index (SPI), and fruit skin colour in terms of hue angle (HAº). The SPI ranked from 0 (100 % starch) to 6 (no starch).

†Within columns, means separation between commercial irrigation (CI) and partial rootzone drying (PRD) treatments were by the least significant difference (LSD) test at P ≤ 0.05. P > F = significance; CV = coefficient of variation.

The CDA suggested a significant difference (P ≤ 0.0001) between treatments. This was further corroborated submitting the standardised canonical scores (SCS) from the first canonical variate (CVI) to an analysis of variance. Collectively, fruit quality attributes were significantly different between CI and PRD treatments. Mean values (SCS ± LSD = 0.87) from the CVI were -1.0 for CI and 0.9 for PRD fruit. The standardised canonical coefficients were weighed only toward mean fruit fresh mass and SPI, as indicative of advancement in PRD fruit ripening (^{Szalay et al., 2013}). The former was moderately correlated and the latter highly correlated with CVI (Table 2). Discrimination between CI and PRD fruits may be based on higher SPI and lower mean fruit fresh mass. The application of CDA was therefore a further confirmation for the FMA in PRD fruit. Findings in cvs. Autumn Rose Fuji (^{Fallahi et al., 2008}) and Pacific Rose^TM apples (^{Zegbe and Behboudian, 2008}) support our results. Also, one week advancement in fruit maturity for cv. Petropride processing tomato under PRD was observed without measurable changes in Ψ_leafs (^{Zegbe et al., 2003}).

Table 2: Standardised canonical coefficients (SCC) and correlation coefficients (r) for the first canonical variate (CVI) and six fruit quality attributes of Royal Gala apples.

We showed that fruit growth rate and mean fresh mass of fruit were unaffected by PRD. However, PRD advanced fruit maturity in terms of high SPI and a tendency for the improvement of TSSC and firmness. Multivariate analysis confirmed that separation between CI and PRD fruit was due to higher SPI in PRD fruit when quality attributes were considered collectively. The study was conducted in a commercial orchard where the application of PRD saved water by 52 %. We therefore recommend PRD for apple in similar agro-ecological areas.
