Molecules

A most perplexing misconception, in a pedagogical sense, is the application of HAO to all aspects of molecular structure. It is completely unacceptable to apply hybridization to an entire molecule, but in one survey several students responded positively to a query that “methane is a sp ³ hybridization state” (^{Salah & Dumon, 2011}). Once hybridization is applied to molecules, it becomes a slippery slope to confuse what the term means; this trend is unfortunately increasing. For example, for a recent research article “An sp-Hybridized Molecular Carbon Allotrope” (^{Kaiser et al., 2019}), the title gains brevity only with the sacrifice of comprehension. Confusion arises because that designation sp for hybridized orbitals is simply an artefact of orbitals from the solution of the Schroedinger equation in spherical polar coordinates; the same shape and extent of orbitals arises from an analogous solution in paraboloidal coordinates (^{Ogilvie, 2016}), completely undermining the postulate of HAO.

‘Atoms in Molecules’

One common query in evaluations is to identify the hybridization of the selected atoms in a particular molecule. This query is nonsensical within the framework of hybridization for two reasons. First, ‘atoms in molecules’ cannot ‘have hybridization’. In fact, there is no atom in a molecule in quantum mechanics; any attempt to define an atom within a molecule involves an arbitrary criterion. One can speak of atomic centers (associated with atomic nuclei) in a molecule, which, except for hydrogen, might resemble the distribution of electronic charge density of isolated or free atoms, but the only objectively recognizable constituents of a molecule are atomic nuclei and their associated environment of electronic charge density. “When atoms form ions or interact to form molecules, the number and/or the specific structural arrangement of these electrons is destroyed. Indeed, this electronic rearrangement is the very essence of chemical change, and it follows as a necessary corollary of this fact that neutral atoms cannot serve as structural units within polyatomic molecules and ions. As Mulliken and other proponents of molecular-orbital theory have repeatedly emphasized over the last 60 years, molecules are made of nuclei and electrons and not of neutral atoms” (^{Jensen, 1998}).

Second, in a process of preparing for calculations to describe the formation of molecules, atomic orbitals of each atom become collected in combinations to form molecular orbitals; there should be no trace of the previous states in the final state. A most common confusion among students is the inability to distinguish among atomic, hybrid and molecular orbitals (^{Taber, 2002}). This confusion extends also to most textbooks. HAO do not exist in molecules - they have no physical existence anywhere - they are merely artefacts, in the form of algebraic formulae, within calculations according to one particular method of quantum mechanics, even though almost all textbooks indicate HAO in molecules with arrows pointing to atomic centers. Only one textbook that we could find clearly disparages this usage of hybridization: “The common practice of referring to a molecule or an atom as ‘rehybridising’ is not good usage - the rehybridisation in question is in our picture, not in the molecule. It is likewise poor (but unfortunately common) practice to refer to atoms as being sp ³ , sp ² or sp hybridised. Again, the atoms themselves are not hybridised; it is we who have chosen to picture them that way. It is better in such circumstances to refer to the atoms as being tetrahedral, trigonal or digonal” (^{Fleming, 2011}). It is better still to state that the atomic centers in molecule have a tetrahedral, or trigonal, or digonal, disposition of adjacent atomic centers and to eliminate hybridization completely.

Bonds

An equally poor practice is to assign a hybridization to bonds in molecules. “It is also strictly incorrect to define a bond as being formed by the overlap of atomic or hybrid orbitals. This is simply a convenient description of a hypothetical process.” (^{Gillespie et al., 2001}). Covalent bonds are defined by the participation of electrons shared among nuclei, although the extent of such sharing might be slight as we have noted above. There is no HAO present in a bond, by definition. A recent quantum-chemical study using the spin-coupled general valence-bond (SCGVB) method tried to answer this question: How are atoms changed on formation of a molecule? (^{Dunning et al., 2016}). Only a trace of s-p orbital hybridization could be identified in the retro-analysis of the bonding of molecules ethyne, ethene or methane (^{Xu & Dunning, 2020}). These authors concluded that “These findings imply that, in modern valence-bond theories, other factors are responsible for the structures and properties of molecules that are traditionally attributed to orbital hybridization” (^{Xu & Dunning, 2020}). They summarized the results in a 2021 paper: “However, the VBSCF and SCGVB orbitals are not the sp ³ , sp ² and sp hybrid orbitals of traditional VB theory…But, what about the use of sp ³ orbitals to define the tetravalence of carbon and the tetrahedral geometry of methane? The energy lowering associated with 2s−2p hybridization combined with Pauli repulsion between the resulting bond pairs leads, instead, to the observed tetrahedral structure of methane with four equivalent bonds” (^{Dunning et al., 2021}). One must thus not rationalize structures based only upon a traditional bond hybridization. Please, if you value critical thinking, remove all questions asking about the ‘hybridization of bonds’ because the situation is not simple and all structures depend on many energetic factors.

Lone pairs

What battles have been raged over the trivial matter of lone-pair hybridization! Based on the argument presented above, there should be no lingering trace of hybridization for lone pairs in molecules, but this fact has not prevented the attempt. We first clarify the limitations on the hybridization of lone pairs - recall that the justification of hybridization depends on the bond angle among nuclei. Diatomic species (such as CO, CN− etc.) are trivial cases in which there can never be evidence to discuss hybridization because bond angles are defined for exactly three adjacent nuclei. Furthermore, for any terminal atomic center with nominal lone pairs (e.g. -F, -Cl, -Br, -I, -O−, =O, =S, ≡N) it is an exercise in futility to ‘assign’ a hybridization to the lone-pair electrons; how would one confirm or deny the existence of any hybrid without evidence of bond angle?

This first limitation might come as a shock to organic chemists who are accustomed, for example, to draw ‘rabbit ears’ separated by 120° on a carbonyl oxygen: there is neither experimental nor calculational evidence for this geometry. Experimentally, one can measure only the molecular electron density; one cannot assign unique geometrical spaces to four electrons on oxygen into ‘lone pairs’ (^{Truhlar et al., 2019}). Studies of hydrogen bonds to carbonyl compounds show almost random directionality of X-H•••O=C; there is no evidence of highly selective geometry at 120° (^{Anslyn & Dougherty, 2006}). Quantum-chemical calculations can show canonical (delocalized) electrons or the electrons can be localized with several schemes, each providing a different ‘orbital picture’, that are mathematically equivalent (^{Truhlar et al., 2019}). This fact is consistent with a discussion of hybridization schemes of the various types: if no hybridization is applied for oxygen in a carbonyl group, the lone-pair electrons might be considered as derived from pure s and p atomic orbitals; if the tau hybridization model is used, a sp ³ geometry (interorbital angle ~109.5°) of the lone pairs is expected; if the common sp ² model is used, an interorbital angle 120° is assumed (Figure 1). The assignment becomes even more complicated when a resonance structure (with three purported lone pairs!) is comparatively analyzed. It is the pinnacle of illogic to accept that electron density in a molecule is fluxional, as justified using resonance structures, and then to claim that a lone pair is fixed in space, of a certain size and shape that can be distinguished from all other electrons.

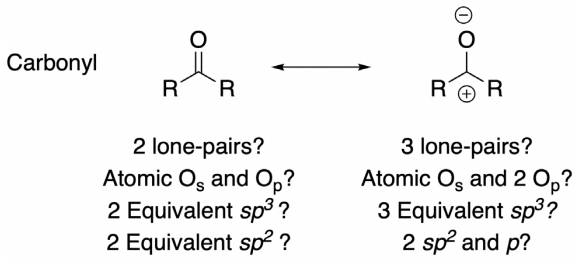

Figure 1: Lewis’s structure of a general carbonyl compound with its corresponding resonance structure and possible hybridization schemes for the purported lone pairs on oxygen in each case.

We proceed to examine the most common case in which hybridization of lone pairs is attempted: dicoordinate oxygen (e.g., water). One should note that ^{Pauling, in his epochal 1931} paper, (^{Pauling, 1931}) favored a no-hybridized model for oxygen. One perspective over 30 years ago, titled ‘No Rabbit Ears on Water’, discussed how to teach hybridization of lone pairs (^{Laing, 1987}). This flawed paper advised the rejection of sp ³ hybridization to describe the bonding in water and suggested use of the no-hybridized model (unfortunately including the statement that this model has experimental evidence - there is none!). This paper was countered by another article recommending teaching the equally flawed ‘squirrel-ear’ model for water (^{Martin, 1988}).

In 2014, several authors combined forces to critique both the VSEPR model and the related sp ³ hybridized lone pairs in water. They applied a quantum-chemical method described as natural bond order (NBO) to present the n(s)-n(p) model of inequivalent lone pairs on oxygen, for not only water but also methanol, formic acid, and furan. They referred to the ‘rabbit-ear’ equivalent lone pairs as anachronisms and not even “proper lone pairs” (^{Clauss et al., 2014}).

This paper by Clauss et al. was refuted the next year in a counter-argument that concluded “It follows from what precedes that one must give up the belief that there exists a unique set of supposedly ‘real’, or ‘best’, orbitals for a given molecule, e.g. the lone pairs of H₂O…Thus, each set of lone-pair orbitals has its own preferred domain of application, but they all lead to the same molecular properties and to the same unique electron-density distribution in 3D space” (^{Hiberty et al., 2015}). These authors did not reflect on the teaching of lone pairs, but rather invalidated the assertion that there was only one legitimate lone-pair model. This assertion has strong recent scientific support (^{Truhlar et al., 2019}), but the pedagogical implications have not caught up in recent textbooks.

Subsequently, the comment of Hiberty et al. above was criticized; once again the opinion was stated that the n(s)-n(p) model is considered a better investment of pedagogical effort than that currently devoted to superficial rabbit ears and VSEPR-type rationalizations (^{Clauss et al., 2015}). A plan to teach lone pairs exclusively as the n(s)-n(p) model was then presented in a following article (^{Esselman & Block, 2018}). Unfortunately, the labeling of tetrahedral oxygen electrons in water as “the wrong lone pairs” and the n(s)-n(p) model as the “observable structure” eliminated any scientific respectability of this article, as also the inclusion of this questionable statement: “The incorrect assumption that a divalent oxygen atom with two lone pairs has a tetrahedral electron geometry is one of the more problematic assumptions of VSEPR with respect to its impact on the understanding of organic molecules” (^{Esselman & Block, 2018}).

Beyond the simple cases such as water, the sleight of hand in reassigning hybrids has serious consequences in consistent pedagogy. In the case of cyclic ethers tetrahydrofuran and furan (Figure 2), the Lewis structures are similar; the C-O-C bond angles in these two molecules are almost identical, and VSEPR rules are the same: the oxygen should be AX₂E₂ (tetrahedral). It is not unexpected, therefore, for students to assign the lone pairs due to the use of sp ³ HAO, with an interorbital angle ~109.5° for both molecules. The situation in the case of cyclic amines pyrrolidine and pyrrole (Figure 2) is similar: analogous Lewis structures and C-N-C angles approximately equal. The N should be AX₃E (trigonal pyramidal); the lone pair is expected to show the same sp ³ hybridization for both amines. In both cases, diligent students who apply the memorized rules and who follow logical assumptions are rewarded with a zero in an examination; they are told that these pairs of molecules are not alike and do not share the same hybridization model. Furan and pyrrole are aromatic, which changes the rules. “Often we will see an atom adopt a nonstandard hybridization in order to maximize resonance. This most commonly arises when an atom has a lone pair of electrons that is in conjugation with (directly bonded to) a π system…Such resonance effects on hybridization are common and should be routinely looked for when assigning hybridization to various atoms [sic]” (^{Anslyn & Dougherty, 2006})..

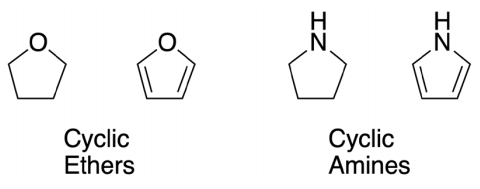

Figure 2: Structures (left to right) of tetrahydrofuran, furan, pyrrolidine, and pyrrole.

We summarize where one should not use HAO: for entire molecules, for ‘atoms in molecules’, for bonds or for lone pairs. One can always extend the definition to try to encompass these items (e.g. which hybridization on atomic carbon can be used to overlap with atomic hydrogen s orbitals to form ethyne?) but a question of this type in practice is rarely used and lacks pedagogical value. Note that, with our recommendation about the removal of lone pairs on halogens, oxygen and nitrogen, carbon is the only element left that might be considered to need hybridization.

Hybridization and VSEPR

From its initial development, VSEPR was never considered to be compatible with HAO. It is interesting that in the same article titled the “VSEPR model”, Gillespie then redefined it to be a “VSEPR theory” that is based on quantum mechanics but is somehow separate from it. Gillespie confusingly claimed “[VSEPR] does attempt to provide a simple model for the prediction of molecular geometry which is soundly based on quantum mechanics…It should be noted that the VSEPR theory makes no use of atomic orbitals or of hybrid orbitals formed from these atomic orbitals, and it thus avoids the possibility of misleading a student into thinking that hybrid orbitals give an explanation for molecular geometry when, in fact, they provide nothing more than an approximate description of the bonding when one already knows the geometry” (^{Gillespie, 1974}).

VSEPR is typically taught before HAO and the two models are subsequently linked, but hybridization is later used in a cyclic argument: “The description of the bonds around each carbon atom [in ethene] in terms of sp ² hybrid orbitals forming σ bonds plus a p orbital forming a π bond is based on the known geometry of the ethene molecule so this description of the bonding cannot be used to predict the molecular geometry.” (^{Gillespie, 1992}).

Resonance and VSEPR

In a preceding section we wrote that even simple molecules such as water have been accorded various mutually exclusive teaching models. How can students assimilate knowledge with many models, especially on exposure to conflicting models from separate textbooks, instructors or courses? We propose that a major logical impediment is the incompatibility of the model of hybridization with the models of VSEPR and resonance. The three systems are incongruous and can cause cognitive dissonance among students.

The following case study of isonitriles is an interesting example wherein a conflict among resonance, VSEPR and hybridization is highlighted. The structure (carbene-like) on the left in Figure 3 has a nitrogen atom with VSEPR assignment AX₂E (trigonal planar) and might be described as using sp ² HAO. The zwitter-ionic resonance structure on the right (which, recall, is another representation of the same molecule) requires VSEPR assignment AX₂ (digonal) for nitrogen that is associated with sp hybridization. A difference 60° exists in the predicted R-N-C bond angles between structures. Each separate Lewis structure would have a distinct VSEPR assignment, hybridization and predicted geometry! Of the two assignments which is the correct one? Or does the truth lie somewhere between? Isonitriles are known to be linear (^{Ramozzi et al., 2012}); only by previous knowledge of the three-dimensional structure can one then justify post hoc the preferred selection.

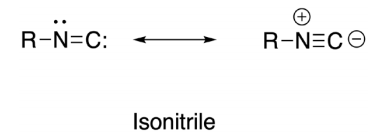

Figure 3: Possible Lewis structures of a general isonitrile

A Tale of Two Molecules

As another instance of the incompatibility of hybridization, VSEPR and resonance in teaching organic chemistry, we show two molecules of which the structure is well known, but one cannot logically use the same models to provide information about them. In Figure 4 are shown the Lewis structures of an amide and an aniline, with possible corresponding resonance structures for comparison. An astute student might ask ‘Is there evidence of the delocalization of the electrons illustrated by the resonance structures?’ Based on recent research, chemists should be skeptical. “Another example is the hybridization of N in an amide, which should be classified as sp ² . The validity of resonance in an amide has recently come into question.” (^{Anslyn & Dougherty, 2006}). Data from Hammett-Swain parameters (σp = -0.66, R = -0.74) (^{Hansch et al., 1991}) indicate that -NH₂ as substituent donates strongly into the π system of the aromatic ring in aniline, but other experimental facts are inconclusive: “Evidence concerning geometries of anilines derived from aqueous basicities can be misleading. Also, the other type of evidence from dipole moments, derived from vector addition of bond dipoles, requires location of electron densities” (^{Sudlow & Woolf, 1998}).

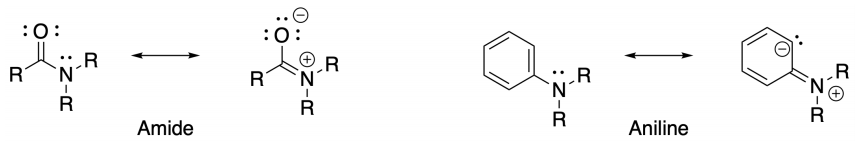

Figure 4: Possible Lewis structures of a general amide (left) and general aniline (right)

If one accepts the resonance picture, at first glance these structures would appear to have the same influences. Consider nitrogen in both structures: N has three bonds and one lone pair (AX₃E in VSEPR vernacular) in the left resonance structure and three electron-pair domains and no lone pair (AX₃) in the right resonance structure. There is obviously a logical problem in assigning one geometry according to VSEPR rules. Perhaps the assigned geometry should be intermediate between trigonal pyramidal (AX₃E) and trigonal planar (AX₃) in both cases? Should one use the same model for both molecules if the Lewis structures appear similar?

The actual geometrical structures are well known. For example, for acetamide, the environment about N is almost planar with N-C=O bond angle 122.0±0.1°; most amides are considered to be planar (^{Szostak & Aube, 2013}). For aniline, N is pyramidal with H-N-H bond angle 113.9±0.3° - in fact it is well known that the calculated and X-ray structures of aniline and substituted anilines are pyramidal (^{Sudlow & Woolf, 1998}). On application of the hybridization model to the known structures, one would assign the N hybrid orbitals as corresponding to sp2 for amides and sp3 for anilines. The similarity in Lewis structures (including resonance) fails to correspond to similarity in the models.

Not all amide nitrogens have a planar environment (^{Li et al., 2020}). Not all aniline nitrogens have a pyramidal environment (^{Sudlow & Woolf, 1998}). The experimental geometry of similar molecules might vary according to the method of determination, phase (solid, liquid or gas), presence of hydrogen bonds or other interactions, or varying substituents (^{Sudlow & Woolf, 1998}). Both student A who memorizes the rules for VSEPR and hybridization to predict sp3 hybridization in amides and student B who memorizes that there is sp ² hybridization in amides lack knowledge. Only astute student C, who shuns both VSEPR and hybridization and searches for the three-dimensional structure beforehand, authentically constructs knowledge about amides.
