Provenance of sands from Cazones, Acapulco, and Bahía Kino beaches, Mexico



Proveniencia de arenas de las playas de Cazones, Acapulco y Bahía Kino, México



John S. Armstrong–Altrin ^*



Instituto de Ciencias del Mar y Limnología, Geología Marina y Ambiental, Universidad Nacional Autónoma de México, Circuito Exterior s/n, 04510, México D.F., México.^* armstrong@cmarl.unam.mx; john_arms@yahoo.com



Manuscript received: June 28, 2009
Corrected manuscript received: August 2, 2009
Manuscript accepted: August 7, 2009



ABSTRACT

Petrographic, major, trace, and rare–earth element geochemistry of sands from three beaches of México (Cazones, Acapulco, and Bahía Kino) were studied to determine their provenance. The textural study reveals that the proportion of quartz is higher in Bahía Kino (~48–83 %) than in Cazones (~22–48 %) and Acapuclo (~20–48 %) sands. Most of the sand samples are classified as felsic sands using SiO₂ content. The variations in SiO₂, Fe₂O₃, MgO, TiO₂ contents and Al₂O₃ / TiO₂, K₂O/ Na₂O, SiO₂/ Al₂O₃ ratios among the three study areas reflect differences in source rock characteristics. The low Chemical Index of Alteration values (CIA: ~38–58) suggest the prevalence of week weathering conditions in the source regions. A steady weathering trend identified in the A–CN–K diagram for Acapulco and Cazones sands is indicative of uplift along the source region and indicates that sands were derived from diverse sources. A major variation in ∑REE content is observed in Acapulco sands (~22–390 ppm) than in Cazones (~49–83 ppm) and Bahía Kino sands (~50–89 ppm), and is likely due to differences in fractionation of minerals. However, all the sand samples show similar REE patterns with enriched LREE, depleted HREE and a negative Eu anomaly. The comparison of REE data of sands with those of source rocks located relatively close to the study areas suggest that Cazones and Acapulco sands were derived from felsic and intermediate rocks, whereas Bahía Kino sands were derived from felsic rocks.

Key words: beach sand, provenance, weathering, geochemistry, hydraulic sorting, tectonic settings, zircon, ilmenite, rare–earth elements, Bahía Kino, Cazones, Acapulco, Mexico.



RESUMEN

La petrografía y geoquímica de elementos mayores, traza y de tierras raras de arenas de tres playas de México (Cazones, Acapulco y Bahía Kino) fueron estudiadas para determinar su procedencia. El estudio textural revela que la proporción del cuarzo en las arenas es mayor en Bahía Kino (~48–83 %) que en Cazones (~22–48 %) y en Acapulco (~20–48 %). La mayoría de las muestras de arenas son clasificadas como arenas félsicas de acuerdo con su contenido de SiO₂. Las variaciones en el contenido de SiO₂, Fe₂O₃, MgO, TiO₂ y las relaciones Al₂O₃ / TiO₂, K₂O/ Na₂O, SiO₂/ Al₂O₃ determinadas en las tres áreas de estudio reflejan diferencias en las características de la roca fuente. Los bajos valores en el Índice de Alteración Química (CIA: ~38–58) sugieren la prevalencia de condiciones de bajo intemperismo en las regiones de las rocas fuente. La estable tendencia de intemperismo identificada en el diagrama A–CN–K para las arenas de Acapulco y Cazones indica un levantamiento de la región de la fuente, por lo que se deduce que las arenas se derivaron de diversas fuentes. Una mayor variación en los contenidos de ∑REE es observada en las arenas de Acapulco (~22–390 ppm) que en Cazones (~49–83 ppm) y que en las arenas de Bahía Kino (~50–89 ppm), lo que se debe probablemente a diferencias en el fraccionamiento de minerales. Sin embargo, todas las muestras de arena presentan patrones similares REE con enriquecimiento de LREE, empobrecimiento de HREE y una anomalía negativa de Eu. La comparación de los datos de REE de las muestras con los obtenidos para la roca fuente, localizada relativamente cerca del área de estudio, sugiere que las arenas de Cazones y Acapulco fueron derivadas de rocas félsicas e intermedias, mientras que las arenas de Bahía Kino se derivaron sólo de rocas félsicas.

Palabras clave: arena de playa, procedencia, intemperismo, geoquímica, clasificación hidráulica, ambientes tectónicos, circón, ilmenita, elementos de las Tierras Raras, Bahía Kino, Cazones, Acapulco, México.



INTRODUCTION

It is well known that the tectonic, climatic and magmatic history of continents is partly retained in clastic sediments. Important in extracting this information are lithologic association, detrital mineralogy, and chemical composition (e.g., Condie et al., 2001; Zimmermann and Spalletti, 2009). In general, the original composition of weathered source rocks exerts a dominant control on the formation of clastic sediments. Therefore, geographic and stratigraphic variations in provenance can provide important constraints on the tectonic evolution of a region (e.g., McLennan et al., 1993; Condie et al., 2001; LaMaskin et al., 2008). To evaluate the provenance and tectonic setting of clastic sediments, geochemical approaches are more suitable than petrographic analyses based on framework modes (Liu et al., 2007). The relations between provenance and basins are also governed by plate tectonics, which thus ultimately control the different types of sediments (Dickinson and Suczek, 1979). However, in recent years, tectonic discrimination based on major elements has received considerable criticism (Zimmermann, 2005; Armstrong–Altrin and Verma, 2005; Weltje, 2006; Ryan and Williams, 2007; Jafarzadeh and Hosseini–Barzi, 2008; Borges et al., 2008; Achurra et al., 2009; Gosen et al., 2009), whereas schemes that depend on trace elements have been considered relatively reliable (Cingolani et al., 2003; Campo and Guevara, 2005; LaMaskin, et al., 2008). Considering the previous studies on beach sands of Mexico, Armstrong–Altrin and Verma (2005) used geochemical data of Neogene sediments from the Gulf of Mexico and the Pacific coast of Mexico to evaluate the previously proposed tectonic setting discrimination diagrams, which resulted in poor discrimination. Therefore, in the present work it is not recommended to use this kind of tectonic discrimination; besides, there are other problems in its use (see below).

Some authors have analyzed the textural characteristics of beach sands along the coastal regions of Mexico (Marsaglia, 1991; Carranza–Edwards and Rosales–Hoz, 1995; Carranza–Edwards et al., 1998, 2009; Carranza–Edwards, 2001; Kasper–Zubillaga and Dickinson, 2001; Okazaki et al., 2001; Kasper–Zubillaga and Carranza–Edwards, 2005; Madhavaraju et al., 2009). These studies described clearly the grain size and textural differences among different depositional environments. Other studies on geochemistry of beach sands of Mexico are focused on heavy metals (Rosales–Hoz and Carranza–Edwards, 1998; Rosales–Hoz et al., 1999, 2003). On the basis of geochemistry of beach sands in the western Gulf of Mexico, Kasper–Zubillaga et al. (1999) suggested that the geochemistry of beach sands are highly useful to identify the tectonic setting of a sedimentary basin. Carranza–Edwards et al. (2001) concluded that the REE, Th, Sc, and Hf concentrations in beach sands of western Mexico are associated with source rock composition than to heavy minerals. Recent studies by Kasper–Zubillaga et al. (2008a, 2008b) discussed about the textural and geochemical discriminations between desert and coastal dune sands of northwestern Mexico.

The purpose of this study is to evaluate the geochemical discriminations among the three beach areas and to investigate their source rocks. To identify the probable source rocks, the geochemical data of these sands are compared with dacite, rhyolite, granite, granodiorite, andesite, basaltic andesite, and basalts from areas located relatively close to the study areas (see Figure 1 for locations, rock types, and sources). The comparison was made individually for the three study areas (Cazones, Acapulco, and Bahía Kino), because they are supposed to receive sediments from totally different sources (Armstrong–Altrin and Verma, 2005; Rosales–Hoz and Carranza–Edwards, 1995; Marsaglia, 1991). In addition, the role played by accessory heavy minerals on the control of trace and rare earth elements (REE) will be also addressed in this paper.

At first sight, it may appear that, because Cazones represents a passive margin setting, Acapulco an active margin setting, and Bahía Kino a rifted margin setting, it might be worthwhile to evaluate the geochemical data through discrimination diagrams. However, the provenance of Cazones sands resides in the eastern part of the Mexican Volcanic Belt (MVB) and the Eastern Alkaline province, both of which seem to contain rocks of an extensional setting (Verma, 2004, 2006; Robin, 1982a). The same is the case of Bahía Kino where rocks of the rifted margin are extensively exposed (Spencer and Normark, 1979; Paz–Moreno and Demant, 1999; Conly et al., 2005). For the Acapulco area, generally characterized as an active margin, the provenance of beach sands could be as far as the MVB (Sierra Chichinautzin in Figure 1). However, there has been a controversy regarding the origin of the volcanism in the MVB, whether it is related to the same active subduction process (Robin, 1982b; Wallace and Carmichael, 1999; Gómez–Tuena et al., 2007), or it owes its origin to other tectonic mechanisms such as plume influence (Márquez et al., 1999) or extensional setting (Sheth et al., 2000; Verma, 2002). Given the complexity of the on–land geology in Mexico, the application of conventional tectonic discrimination diagrams is a difficult task. Furthermore, the available discrimination diagrams for sediments and sedimentary rocks are not based on the correct statistical methodology as recently done by workers in the field of igneous rock discrimination (Agrawal et al., 2004, 2008; Agrawal and Verma, 2007; Verma, in press). Besides, the use of discrimination diagrams in the field of sedimentary geology has been discouraged by Ryan and Williams (2007), although Verma (in press) has shown that the new discrimination diagrams based on log–ratio transformation work well for tectonic discrimination of igneous rocks. Therefore, the use of this kind of tools in the study of sediments and sedimentary rocks should wait for new discrimination diagrams.



STUDY AREAS

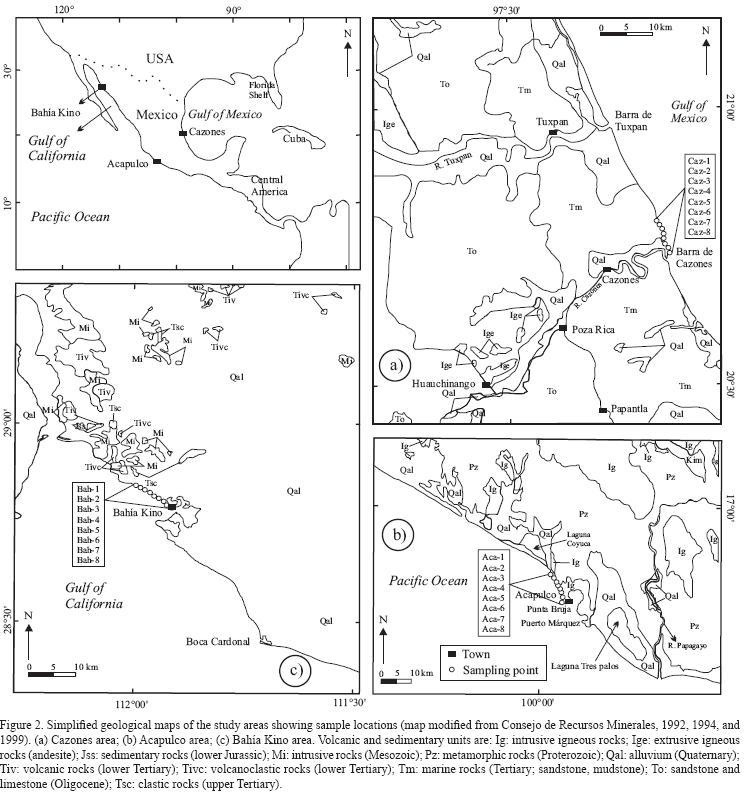

The study area Cazones (Figure 2a), is located in the western part of the Gulf of Mexico (Lat 20°44'N and Long 97°11'W). Sedimentary rocks of the study area are dominated by Tertiary and Quaternary sandstones, and alluvial deposits (Padilla y Sanchez and Aceves–Quesada, 1990). Volcanic rocks are dominated by Miocene–Pliocene andesites of sub–alkaline composition (e.g., Cantagrel and Robin, 1979; Negendank et al., 1985; Verma 2001a, 2001b). The volcanic units of the study area belong to the overlap region of the MVB and the Eastern Alkaline Province (e.g., Verma, 2006). The major river shed near to the study area is Cazones (Figure 2a).

The study area Acapulco (Figure 2b) is located in southern part of Mexico (Lat 16°50'N and Long 99°56'W). Rocks are dominated by: (1) granites and granitoids of Early Paleocene age; (2) volcanic rocks of intermediate to acid composition, mostly of early Tertiary age (andesite to rhyolite); (3) sedimentary rocks of Mesozoic to Tertiary ages; and (4) Quaternary alluvium. The beach sands of Acapulco receive sediments derived from central part of the MVB (Velasco–Tapia and Verma, 2001a, 2001b; Verma, 2002, 2009a) as well as largely from Guerrero state (Meza–Figueroa et al., 2003; Freydier et al., 2000). In the MVB, igneous rocks from basaltic to rhyolitic compositions have erupted, which may also contribute to the beach sands of Acapulco. The Gerrero terrane (Campa, 1985; Coney, 1989) is composed of Late Jurassic to Early Cretaceous igneous and sedimentary rocks considered to be developed in an intra–oceanic setting (Centeno–Garcia et al., 1993; Tardy et al., 1994). The major river that discharges relatively near to Acapulco beach is Papagayo (Figure 2b).

The study area Bahía Kino (Figure 2c) is located in the Gulf of California, northwestern part of Mexico, and is a semi–closed basin (Lat 28°50'N and Long 111°57'W). The coastal Sonora batholith, located in this part is characterized by continuous exposures of granitic rocks along the NW–SE oriented belt (Valencia–Moreno et al., 2003). The exposed sedimentary rocks are Quaternary alluvium, Early Jurassic quartz arenites, and Tertiary sandstones. The volcanic rocks are andesite and rhyolite types (Desonie, 1992; Vidal–Solano et al., 2007) of early Tertiary age. Among intrusive rocks, granites and granodiorites of Mesozoic age are dominant (Valencia–Moreno et al., 2001, 2003). River San Ignacio is the small river that drains near to the study area Bahía Kino, and major rivers are practically absent.



METHODS

Twenty–four surface sand samples (eight samples from Cazones; eight from Acapulco; eight from Bahía Kino) were collected from the uppermost part (20 mm) of the beach, where the waves end. Grain–size analysis was carried out using a Ro–Tap sieve shaker with American Society for Testing and Material (ASTM) sieves ranging from ~1.5 to 4.25 at 0.50 intervals for 20 minutes (Folk, 1966). Modal mineralogical determinations were carried out by counting 200 hundred grains per thin–sections. The point counts were done using both Gazzi–Dickinson (Gazzi, 1966; Dickinson, 1970) and standard methods. Heavy minerals were separated by the gravitational method and the compositions of different heavy minerals were counted and estimated under a binocular microscope.

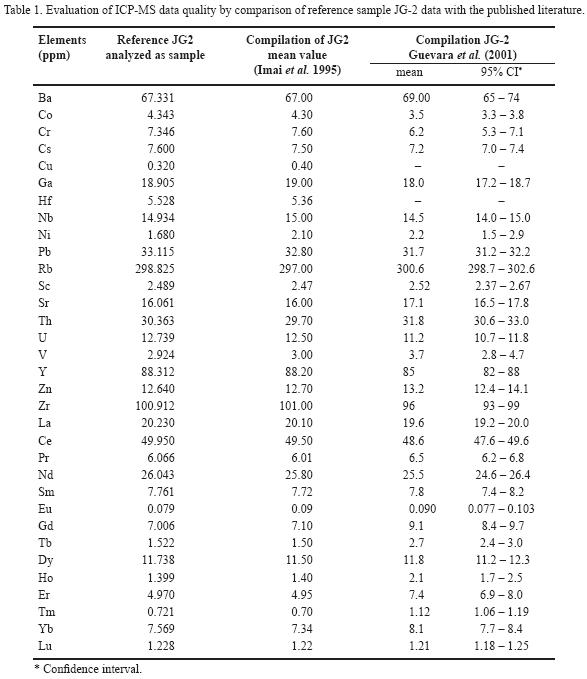

All the twenty–four samples were analyzed for major, trace and rare–earth element geochemistry. Major elements were analyzed with a X–ray Fluorescence Spectrometer. The powdered samples, after drying at 110°C for 6 hours, were calcinated in a muffle at 1000°C for a couple of hours, for loss on ignition (LOI) determination. For X–ray fluorescence analyses, fused bead was prepared from each calcinated sample using lithium tetraborate flux. These analyses were performed with a Rigaku unit model RIX–3000 equipped with Rh tube, by using the calibration curve method and international reference materials. The chemical analyses have precisions better than 5 % for all major elements. The major–element data were recalculated on an anhydrous (LOI–free) basis and adjusted to 100 % before using them in various diagrams. For the determination of CaO in the silicate fraction, samples were separately treated with cold HCl 1M before digestion and were analysed separately.

Trace elements, including fourteen rare–earth elements (REE), were determined using a Finningan MAT ELEMENT high resolution inductively coupled plasma mass spectrometer (ICP–MS) at the National Geophysical Research Institute, India, following the methods of Balaram et al. (1995), Wu et al. (1996), and Yoshida et al. (1996). Precision and accuracy for analysis of reference material JG–2, as determined by ICP are compared with data published by Imai et al. (1995), are better than ± 1% for Ba, Co, Cu, Ga, Nb, Pb, Rb, Sc, Sr, Y, Zn, Zr, La, Pr, Nd, Sm, Ho, Er, and Lu. The analytical precision for other elements such as Cr, Cs, Hf, Ni, Th, U, V, Eu, Gd, Tb, Dy, and Yb are better than ± 3%, whereas it is better than ± 5% for Tm (Table 1). Similarly, the values are within the 95% confidence interval given in Guevara et al. (2001), except for the elements Co, Cr, Cs, Ga, Pb, Sr, Y, Zr, La, Ce, Pr, Gd, Tb, Ho, Er, and Tm (Table 1).

The sand samples were classified according to their adjusted SiO₂ contents [(SiO₂)_adj], using measured Fe₂O₃ concentrations (computer program SINCLAS by Verma et al., 2002), into three categories: mafic (equivalent to basic for igneous rocks); intermediate; and felsic (equivalent to acidic for igneous rocks). The geochemical data were statistically evaluated through the methodology of outlier–based methods (Barnett and Lewis, 1994; Verma, 2005) using the option of single–outlier tests in software DODESYS (S.P. Verma and L. Díaz–González, unpublished), which is based on new precise and accurate critical values recently simulated by Verma and Quiroz–Ruiz (2006a, 2006b, 2008) and Verma et al. (2008).

For interpreting the geochemical data from these three areas, a database for source rock geochemistry was constructed from the numerous references (see Figure 1 for locations and more details). Besides, significance t and F tests were used to compare the data from different areas (Jensen et al., 1997; Verma, 2005, 2009b).



RESULTS

Texture and mineralogical composition

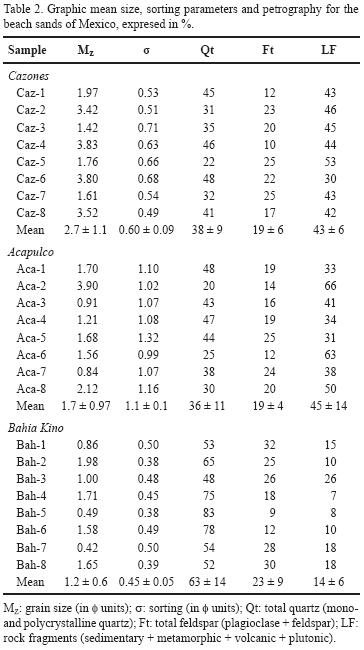

Grain size parameters for the three study areas were calculated according to the equation of Folk and Ward (1957) and are given in Table 2. The mean grain size ranges from ~1.42 to 3.83 for Cazones sands, suggesting that sand grains are medium to very fine in size. The Acapulco sands are coarse to very fine (~0.84–3.90 ) and Bahía Kino sands are coarse to medium sizes (~0.42–2.00 ). Distinct differences in standard deviation (in units) values are also observed among the three study areas. The standard deviation values of Cazones vary from 0.49 (well sorted) to 0.71 (moderately well sorted). The Acapulco sands range between moderately sorted (0.99 ) and poorly sorted (1.32 ). However, a homogeneous trend is observed in the Bahía Kino sands, which are well sorted (~0.38–0.50 ).

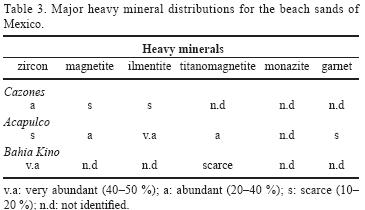

For the Bahía Kino sands, quartz is the major constituent (~48–83 %), followed by feldspar (~9–32 %) and lithic fragments (~7–24 %). However, sands from Cazones and Acapulco are slightly higher in lithic fragments than in quartz (Table 2). The average quartz–feldspar–lithic fragment (QtFtL) ratios are Qt₃₈:Ft₁₉:LF₄₃, Qt₃₆:Ft₁₉:LF₄₅, Qt₆₃:Ft₂₃:LF₁₄ for Cazones, Acapulco, and Bahía Kino sands, respectively. The common accessory heavy minerals identified are zircon, ilmenite, titanomagnetite, and magnetite (Table 3). Among them, zircon is the most abundant mineral identified in Bahía Kino and Cazones sands. On the other hand, ilmenite and titanomagnetite are the dominant minerals in Acapulco sands.

Major element geochemistry

Table 4 lists the major element concentrations of analyzed beach sands and are arranged according to increasing (SiO₂)_adj content. Although Le Bas et al. (1986) did not recommend the use of (SiO₂)_adj for the classification of sands, it may be worthwhile to use this parameter to classify these sand samples into mafic, intermediate, and felsic compositions (Figure 3). This kind of classification has been used by Hayashi et al. (1997).

All sand samples analyzed in this study generally have intermediate to felsic composition, mostly between 53 and 83% in (SiO₂)_adj content, except one mafic sample from Acapulco (Aca–2, 48.8%; Figure 3). The (SiO₂)_adj content for Cazones sands are also quite variable from ~54% to 83%. Among these samples, three sands (Caz–7, Caz–5, Caz–2) are intermediate in composition (Table 4). Similarly, there is a wide scatter in (SiO₂)_adj content for the Acapulco sands ranging from ~49 to 80%. However, except two samples (Aca–2, Aca–6), others are felsic in composition (Figure 3; Table 4). On the other hand, the variations in (SiO₂)_adj content among Bahía Kino sands are much less (~73 to 81%); these samples are felsic in composition (Figure 3), except sample Bah–3 (62.4%).

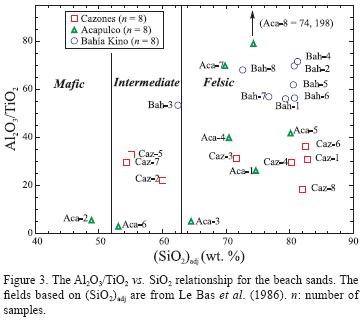

The variation in Al₂O₃/ TiO₂ ratio is larger for Acapulco sands (~3–198; Table 4; Figure 3) than for Bahía Kino (~53–72), and Cazones sands (~18–36). Similarly, Al₂O₃ contents in Acapulco sands range from ~8% to 16%; for comparison, in Bahía Kino sands they vary from ~8% to 11% and in Cazones sands from ~5% to 9%. The TiO₂ concentration is also higher in the three Acapulco sands (Aca–2, Aca–3, and Aca–6; Table 4) than all other sand samples, at 99% confidence level as determined from f and t tests (Verma, 2005).

It is generally considered that Al and Ti are not fractionated relative to each other during weathering, transportation and diagenesis (Garcia et al., 1994). However, the measured correlation between TiO₂ and Al₂O₃ for all sand samples is statistically not significant (r = 0.14, n = 24; critical t value for 99% confidence level is 0.487; Verma, 2005), which may be partly due to the variation in Al₂O₃/TiO₂ ratios among individual study areas (Sugitani et al., 2006). Furthermore, the similar enrichment in TiO₂, Fe₂O₃, and MgO contents (Table 4) in the three Acapulco sands (Aca–2, Aca–3, and Aca–6) probably reflect the abundance of Ti–bearing heavy minerals like ilmenite (Table 3).

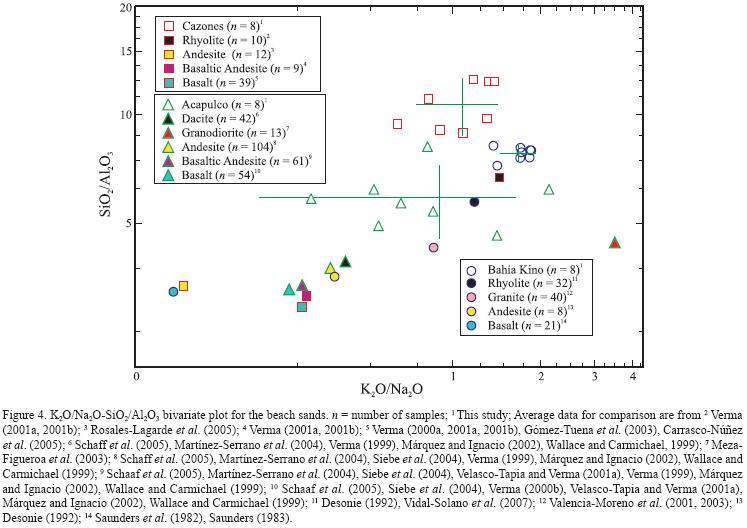

Figure 4 shows the K₂O/Na₂O–SiO₂/Al₂O₃ relationship for all sands as well as probable source rocks. The average geochemical data used in this plot for comparison are from the source areas located relatively close to the study areas (see Figure 1 for more details). The mean values of SiO₂/Al₂O₃ for felsic sands of all three areas (Cazones, Acapulco and Bahía Kino) are slightly higher as compared to their respective source rocks (Figure 4).

Trace element geochemistry

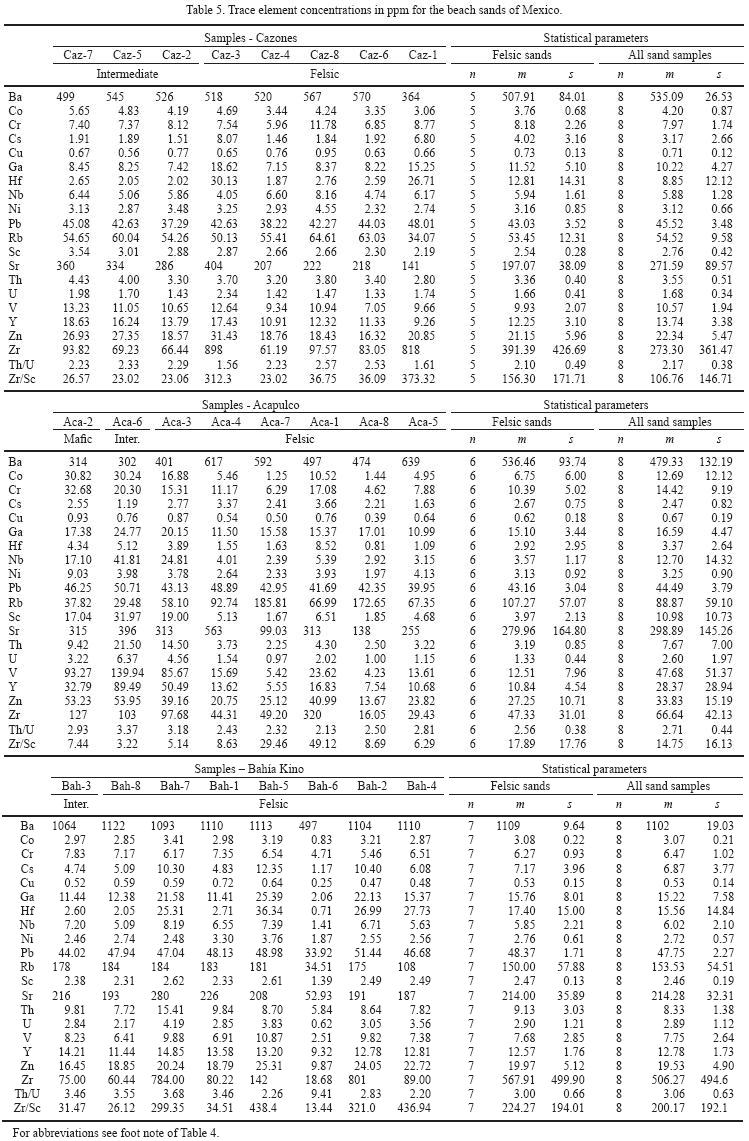

Trace element concentrations are reported in Table 5. The Bahía Kino sands are higher in Ba, Rb, Th, U, Zr, and Hf than Acapulco and Cazones sands. However, other trace elements like Co, Cr, Sc, and V are higher in Acapulco than in Cazones and Bahía Kino sands. Two samples from Cazones (Caz–1 and Caz–3) and four from Bahía Kino (Bah–2, Bah–4, Bah–5, and Bah–7) are higher in Zr and Hf. The differences in trace element contents among the three study areas are probably due to the sorting effect of sands or differences in source rocks.

Rare–earth element geochemistry

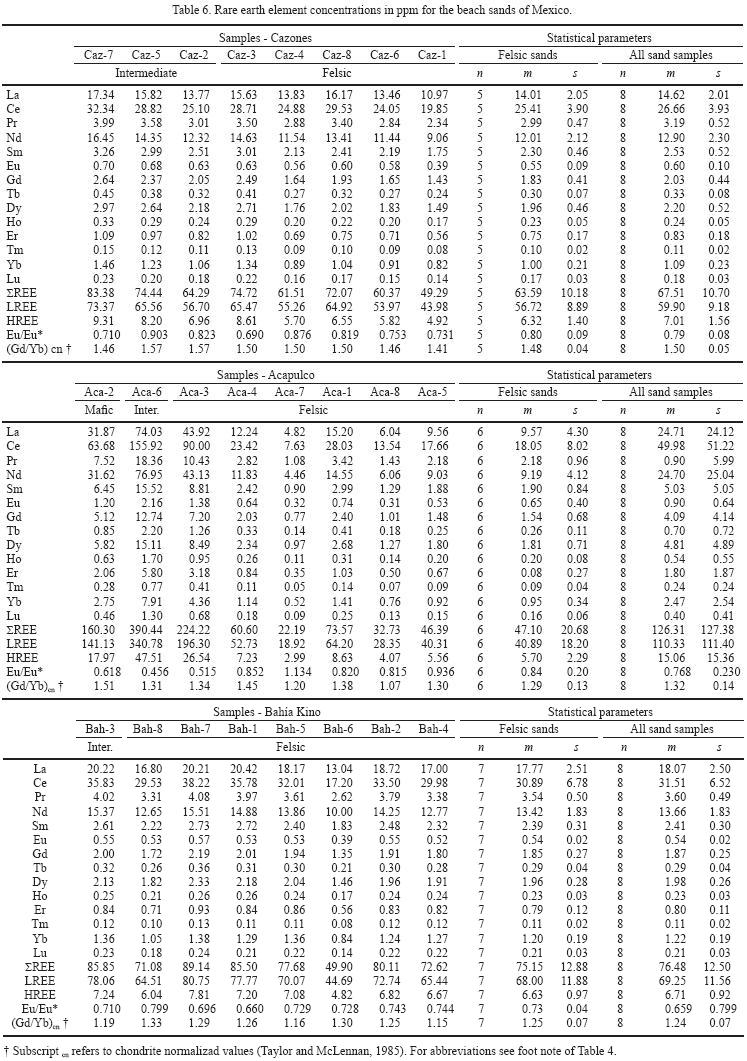

The results of REE analysis for Cazones, Acapulco, and Bahía Kino sands are presented in Table 6. The ∑REE contents are higher in Acapulco sands (~22–390 ppm) than in Cazones (~49–83 ppm) and Bahía Kino sands (~50–89 ppm) at 99% confidence level as determined from F and t tests. However, for felsic sands the ∑REE contents of Bahía Kino are slightly higher than in Cazones and Acapulco sands (Table 6). On the other hand, the ∑REE contents in three intermediate Cazones sands (Caz–7, Caz–5, and Caz–2) are higher than in felsic sands (Table 6). Similarly, an intermediate sand from Acapulco (Aca–6) has the highest ∑REE content. A larger variation in HREE content is observed in Acapulco sands (~3–47 ppm) than in Cazones (~5–9 ppm) and in Bahía Kino sands (~5–8 ppm), and is likely due to the result of the differences in fractionation of minerals (Lee, 2009). Among felsic sands, the LREE and HREE contents are slightly higher in Bahía Kino sands than in Cazones and Acapulco sands (Table 6).

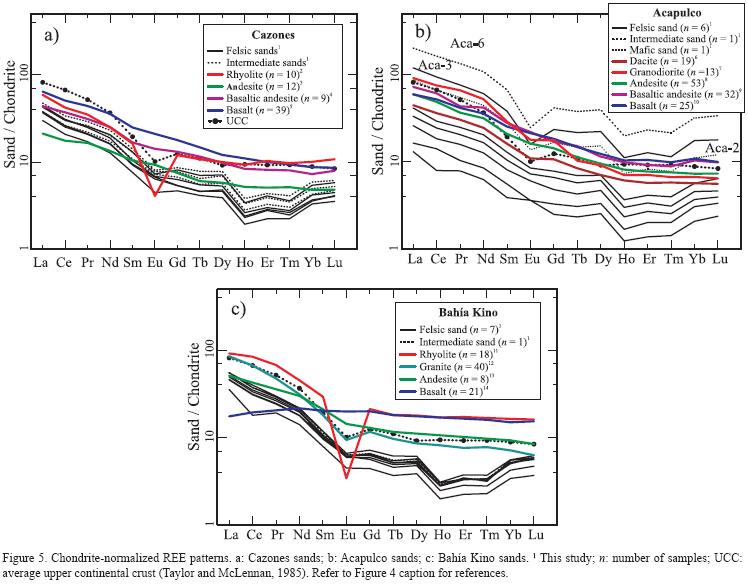

All the sand samples show similar REE patterns (Figure 5a, b, c), with enriched LREE (La_cn/Sm_cn = 4.0 ± 0.70; n = 24), depleted HREE (Gd_cn/Yb_cn = 1.35 ± 0.14) and a negative Eu anomaly (Eu/Eu* = 0.76 ± 0.14). Considering the individual study areas, the variations in Eu anomalies are higher in Acapulco sands (~0.46–1.13) than in Cazones (~0.69–0.90) and Bahía Kino sands (~0.66–0.80). However, the variations in average Eu/Eu* ratio within felsic sands for the three study areas are less. In addition, small positive Eu anomaly is identified in the felsic sand Aca–7 (Eu/Eu* = 1.13).



DISCUSSION

Weathering conditions

The degree of alteration of feldspars to clays indicates both the degree of weathering of the source rocks and that of the diagenesis experienced by the sediments since deposition (Nesbitt et al., 1997; Selvaraj and Chen, 2006). Various weathering indexes have been developed and are extensively used (e.g., Price and Velbel, 2003; Armstrong–Altrin et al., 2004; Borges and Huh, 2007; Varga et al., 2007; Nagarajan et al., 2007a, 2007b; Pe–Piper et al., 2008; Viers et al., 2008; Lee, 2009) to identify the chemical weathering intensity of source area. Some examples are weathering index of Parker (WIP; Parker, 1970), chemical index of weathering (CIW; Harnois, 1988), chemical index of alteration (CIA; Nesbitt and Young, 1982) and Plagioclase index of alteration (PIA; Fedo et al., 1995). Among these weathering indices, a chemical index widely used to determine the degree of source area weathering is the chemical index of alteration (Nesbitt and Young, 1982). This can be calculated using the formula (molecular proportions) CIA = [Al₂O₃/(Al₂O₃ + CaO* + Na₂O + K₂O)] × 100, where CaO* is the amount of CaO incorporated in the silicate fraction of the rock.

The calculated CIA values are presented in Table 4. The average CIA value is lower in Bahía Kino sands (46 ± 5, ~40–52, n = 8) than in Acapulco (~51 ± 8, ~38–58) and Cazones sands (50 ± 4, ~42–57). However, the differences in average CIA values for the three study areas are not statistically significant at 99% confidence level as determined from f and t tests (Verma, 2005). These values indicate a low intensity of chemical weathering in the source area. The differences in CIA values within felsic sands are smaller (Table 4).

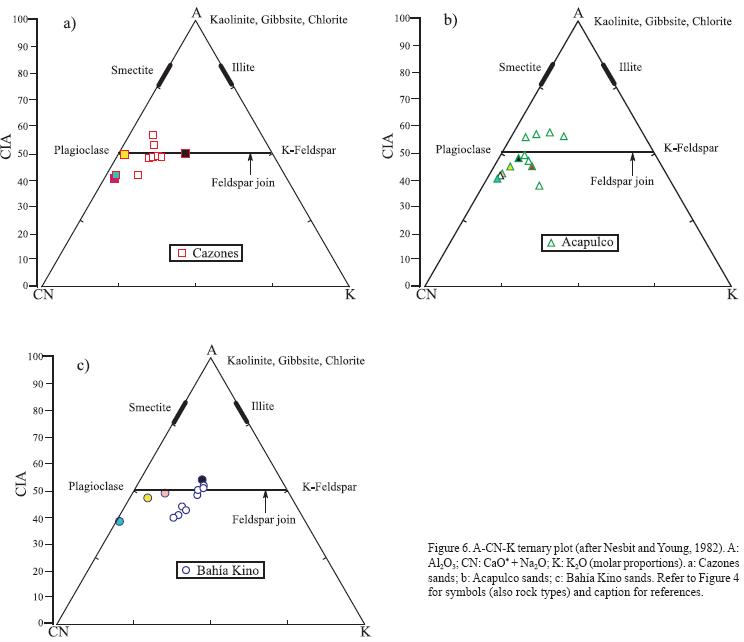

The CIA values of all sand samples are plotted in Al₂O₃–(CaO* + Na₂O)–K₂O (A–CN–K) compositional space (molecular proportions) in Figure 6a, b, c, for Cazones, Acapulco, and Bahía Kino sands, respectively. The degree of weathering is quite variable for Cazones and Acapulco sands, which are scattered near the feldspar join line (Figure 6a, b). This scatter reveals steady state weathering conditions, which occur where climate and tectonism vary greatly, altering the rates of chemical weathering and erosion, and resulting in the production of chemically diverse sediments (Nesbitt et al., 1997; Selvaraj and Chen, 2006). The Bahía Kino sands plot parallel to the A–CN line (Figure 6c) and define a non–steady state weathering trend towards the "A" join. This non–steady state weathering indicates balanced rates of chemical weathering and erosion, which produces compositionally similar sediments over a long period (Nesbitt et al., 1997; Selvaraj and Chen, 2006). For comparison, the average geochemical data are also used in these plots, which are from the source areas located relatively close to the study areas (see Figure 1 for more details). This comparison reveals that the studied sand samples are weakly affected by chemical weathering.

Mineral fractionation

Hydraulic sorting of detrital mineral grains can significantly influence the chemical composition of bulk sediments and control the distribution of some trace elements (e.g., REE, Th, U, Zr, Hf, Nb). Therefore, these conservative elements may not be representative of provenance if heavy mineral concentrations affect the elemental distribution (e.g., Morton and Hallsworth, 1999; Hughes et al., 2000; Campos–Alvarez and Roser, 2007; Ohta, 2008). It is also widely accepted that mineral fractionation can lead to variation in ∑REE concentrations in terrigenous sediments with different grain–size fractions and heavy mineral contents (Armstrong–Altrin et al., 2004; López et al., 2005; Caja et al., 2007; Kasper–Zubillaga et al., 2008b; Fanti, 2009).

The wide variation in ∑REE within the Acapulco sands (~22–390 ppm) are chiefly due to the higher concentration of ∑REE in three samples (Aca–2, Aca–6, and Aca–3) of the Acapulco sands, which are classified as mafic, intermediate, and felsic, respectively (Figure 3). It is identified that the enrichment of ∑REE are approximatly four times higher in these three samples than in others (Table 6). Generally, the differences in ∑REE content among beach sands may occur as result of physical processes such as grain size, weathering, and/or addition of heavy minerals. However, the relationship between grain size 7(Mz; Table 2) and ∑REE are not significant (Table 6). In order to interpret the effect of weathering in the studied samples, the Th/U ratio is considered since weathering causes an elevation of Th/U ratio above upper crustal igneous values from 3.5 to 4.0 (McLennan et al., 1993). The average Th/U ratio for the three study areas are less than ~4 (Table 5), which reveals moderate weathering and are consistent with the CIA values (Table 4). Another possibility for the variations in ∑REE may be the addition of heavy minerals, and many studies showed that the addition of zircon, and/or ilmenite may cause the differences in the ∑REE content (e.g., López et al., 2005; Pe–Piper et al., 2008). The petrography study reveals the presence of zircon grains in two felsic sands of Cazones (Caz–1, Caz–3) and in four felsic sands of Bahía Kino (Bah–2, Bah–4, Bah–5, and Bah–7), but not in the Acapulco sands. Also, these six felsic sands have higher Zr and Hf contents and Zr/Sc ratio at 99% confidence level as determined from f and t tests (Table 5); these elements are commonly used to identify the presence of zircon in sands (e.g., Roddaz et al., 2005, 2006). The concentration of zircon in these six felsic sands is also supported by the depletion in Cr/Zr ratio (Ishiga and Dozen, 1997). However, the average ∑REE concentration in these six felsic sands (Caz–1, Caz–3, Bah–2, Bah–4, Bah–5, and Bah–7) are lower (~49–89 ppm; Table 6) than in the three Acapulco sands (Aca–2, Aca–3, and Aca–6) at 99% confidence level as determined from f and t tests (Verma, 2005). This suggests that the enrichment of ∑REE content is not influenced by zircon.

Furthermore, concentration of Ti–bearing minerals like ilmenite during recycling would lead to an increase in TiO₂ abundances in the respective samples (Garcia et al., 1994, 2004; Mongelli et al., 1996; Condie et al., 2001; Campo and Guevara, 2005; Cai et al., 2008; Pe–Piper et al., 2008). In this study, the higher abundances of TiO₂, Ta, Nb, and Nd contents, particularly in the three Acapulco sands (Aca–2, Aca–3, and Aca–6; Tables 4 and 5), are consistent with the observed presence of the Ti–bearing mineral ilmenite (Moore et al., 1992; Das et al., 2006; Bernstein et al., 2008; Kasper–Zubillaga et al., 2008a). Occurrence of ilmenite mineral along the southwestern Mexican Pacific coast was also documented by Carranza–Edwards et al. (2009). For the Acapulco sands, there is a statistically significant positive correlation between TiO₂ and ∑REE content (r = 0.9967; n = 8; critical t value for 99% confidence level is 0.834; Verma, 2005). Hence, it is interpreted that the higher ∑REE content in the three samples might be due to ilmenite, which probably is an indicator of the source rocks. Some ilmenite minerals from felsic igneous rocks show relatively high values of the partition coefficients, especially for LREE (Torres–Alvarado et al., 2003). However, the presence of negative Eu anomaly in these three samples from Acapulco point to a more complex nature of the processes leading to the REE enrichment.

The above arguments suggest that special care should be taken when identifying provenance using geochemistry of beach sands (Marsaglia, 1992; Zhang et al., 1998; Kasper–Zubillaga et al., 1999), especially on Ti and Zr, which are largely influenced by the abundances of heavy minerals (Garcia et al., 1994; Pe–Piper et al., 2008). It is also observed that the zircon geochemistry did not affect the REE distribution and the patterns in the six felsic sands (Caz–1, Caz–3, Bah–2, Bah–4, Bah–5, and Bah–7) from Cazones and Bahía Kino. This is consistent with the study by Hoskin and Ireland (2000), which showed that zircon grains from different rock types have very similar chondrite–normalized REE patterns and abundances, and the zircon REE patterns and abundances are generally not useful as indicators of provenance (also see Poller et al., 2001). Although the importance of alongshore transport processes on the provenance and composition of beach sand is observed along the coasts of several countries (e.g., Pandarinath and Narayana, 1991; Narayana and Pandarinath, 1991; Narayana et al., 1991; Hegde et al., 2006; Kasper–Zubillaga et al., 2007; Khalifa et al., 2009), their influence in the provenance and composition of beach sands of the present work appears negligible.

Provenance

In order to identify the provenance, the REE data of the source rocks, located relatively close to the study areas are compared to the present study (refer Figure 1, for locations and other details). The chondrite–normalized REE patterns for Cazones, Acapulco, and Bahía Kino sands together with the source rocks are given in the Figure 5a, b, and c, respectively.

The REE patterns observed for Cazones sands in Figure 5a are comparable to the average rhyolite (North–Central and Eastern MVB; no. 1, 3, and 4 in Figure 1) and andesite (part of Sierra Madre Oriental; no. 2 in Figure 1). It is observed that three felsic (Caz–1, Caz–3, and Caz–8) and three intermediate sands (Caz–7, Caz–5, and Caz–2) are with high negative Eu anomaly similar to rhyolite. The other two felsic sands (Caz–4 and caz–6) are showing low negative Eu anomaly (Table 6), which are comparable to andesite source rock. Hence, the REE patterns and Eu anomalies indicate that the Cazones sands were probably derived from the mixing of rhyolite (75%) and andesite (25%) source rocks. In many studies, it has been shown that the Eu anomaly in clastic sediments is commonly regarded as inherited from the source rocks (e.g., Roddaz et al., 2006; Kasanzu et al., 2008).

Similarly, the REE patterns of Acapulco (Figure 5b) also support a mixing of source rocks like granodiorite (Guerrero State, no. 15 in Figure 1), dacite and andesite (both are from Sierra de Chichinautzin volcanic field, no. 7–14 in Figure 1). However, the differences in ∑REE contents within Acapulco sands are wider, as discussed in the previous section. The intermediate sand (Aca–6) is higher in ∑REE content than the other sand samples. Two felsic sands (Aca–7 and Aca–5) have Eu/Eu* ratio of 1.137 and 0.939, respectively. A large negative Eu anomaly is observed in the samples Aca–2 (mafic sand), Aca–3 (felsic sand), and Aca–6 (intermediate sand), and their REE patterns are comparable to average granodiorite. The REE patterns for the remaining felsic sands are comparable to the average dacite and andesite. These differences indicate that the granodiorite (40%), dacite (40%), and andesite (20%) contributed sediments to the Acapulco sands.

The differences in REE patterns between felsic and intermediate sand samples are lesser in Bahía Kino sands than in Cazones and Acapulco sands. The Bahía Kino sands (Figure 5c) are comparable to the average rhyolites (Central Sonora and Isla San Esteban; Vidal–Solano et al., 2007 and Desonie, 1992, respectively; no. 18 and 19 in Figure 1) and granites (Laramide and coastal Sonora granites; Valencia–Moreno et al., 2001, 2003; no. 17 and 16 in Figure 1), with clear negative Eu anomaly (Eu/Eu* = 0.726 ± 0.040, n = 8). However, considering the ∑REE content and the size of the negative Eu anomaly, these sands are very similar to the Laramide and coastal Sonora granites. This implies that the beach sands of Bahía Kino received a major contribution from felsic (100%) parent rocks.



CONCLUSIONS

Geochemical investigations on the beach sands for the three study areas (Cazones, Acapulco, and Bahía Kino) indicate broad differences among them. The percentage of quartz is higher in Bahía Kino sands (~48–83%) than in Cazones (~22–48%) and Acapuclo (~20–48%) sands. The differences in source rocks for the three study areas are also traced by (SiO₂)_adj content, K₂O/Na₂O and SiO₂/Al₂O₃ ratios. The average CIA values (~38–58) indicate a weak weathering in the source area. A steady state weathering trend identified in AC–N–K plot for the Cazones and Acapulco sands occurs where climate and tectonism vary greatly and results in the production of chemically diverse sediments. On the other hand, the non–steady state weathering interpreted for Bahía Kino sands indicates balanced rates of chemical weathering and erosion, which produce compositionally similar sediments over a long period. The zircon geochemistry did not affect the REE distribution and its patterns in the studied sand samples, although the presence of ilmenite minerals might explain the REE geochemistry of some Acapulco sands. The comparison of REE patterns and its Eu anomalies to the source rocks reveal that the sand samples were derived more from felsic rather than from intermediate source rocks: (1) Cazones sands composed of detrital components derived from rhyolite (75%) and andesite (25%); (2) Acapulco sands derived from granodiorite (40%) dacite (40%) and andesite (20%); (3) Bahía Kino received a major contribution from granites (100%). This suggests that REE patterns and Eu anomalies are well preserved in the beach sands and are highly reliable indicator of source rocks, even though the geochemical composition can be affected by processes such as hydraulic sorting during transportation.



ACKNOWLEDGEMENTS

I would like to thank Ing. Norma Liliana Cruz Ortiz and Dr. Kinardo Flores–Castro for their help during field work. I am also indebted to Dr. Nagarajan Ramasamy, School of Engineering and Science, Curtin University of Technology, for his help in heavy mineral analysis. Instructive ideas on statistical parameters and geology of Mexico, provided by Dr. Surendra P. Verma during the course of this study, are highly appreciated. This manuscript has greatly benefited from reviews by Kailasa Pandarinath, Yong Il Lee, and an anonymous reviewer. This research was supported financially by the Instituto de Ciencias del Mar y Limnología, UNAM, Institutional Project (No. 616).



REFERENCES

Achurra, L.E., Lacassie, J.P., Roux, J.P.L., Marquardt, C., Belmar, M., Ruiz–del–Solar, J., Ishman, S.E., 2009, Manganese nodules in the Miocene Bahía Inglesa Formation, north–central Chile: Petrography, geochemistry, genesis and palaeoceanographic significance: Sedimentary Geology, 217(1–4), 128–139.        [ Links ]

Agrawal, S., Verma, S. P., 2007, Comment on "Tectonic classification of basalts with classification trees" by Pieter Vermeesch (2006): Geochimica et Cosmochimica Acta, 71(13), 3388–3390.        [ Links ]

Agrawal, S., Guevara, M., Verma, S. P., 2004, Discriminant analysis applied to establish major–element field boundaries for tectonic varieties of basic rocks: International Geology Review, 46(7), 575–594.        [ Links ]

Agrawal, S., Guevara, M, Verma, S. P., 2008, Tectonic discrimination of basic and ultrabasic rocks through log–transformed ratios of immobile trace elements: International Geology Review, 50(12), 1057–1079.        [ Links ]

Armstrong–Altrin, J.S., Verma, S.P., 2005, Critical evaluation of six tectonic setting discrimination diagrams using geochemical data of Neogene sediments from known tectonic setting: Sedimentary Geology, 177(1–2), 115–129.        [ Links ]

Armstrong–Altrin, J.S., Lee, Y.I., Verma, S.P., Ramasamy, S., 2004, Geochemistry of sandstones from the upper Miocene Kudankulam Formation, southern India: Implications for provenance, weathering, and tectonic setting: Journal of Sedimentary Research, 74(2), 285–297.        [ Links ]

Balaram, V., Anjaiah, K.V., Reddy, M.R.P., 1995, Comparative study on the trace and rare earth element analysis of an Indian polymetallic nodule reference sample by inductively coupled plasma atomic emission spectrometry and inductively coupled plasma mass spectrometry: Analyst, 120, 1401–1406.        [ Links ]

Barnett, V., Lewis, T., 1994, Outliers in statistical data: John Wiley & Sons, Chichester, 584 p.        [ Links ]

Bernstein, S., Frei, D., McLimans, R.K., Knudsen, C., Vasudev, V.N., 2008, Application of CCSEM to heavy mineral deposits: Source of high–Ti ilmenite sand deposits of South Kerala beaches, SW India: Journal of Geochemical Exploration, 96(1), 25–42.        [ Links ]

Borges, J., Huh, Y., 2007, Petrography and chemistry of the bed sediments of the Red River in China and Vietnam: provenance and chemical weathering: Sedimentary Geology, 194(3–4), 155–168.        [ Links ]

Borges, J.B., Huh, Y., Moon, S., Noh, H., 2008, Provenance and weathering control on river bed sediments of the eastern Tibetan Plateau and the Russian Far East: Chemical Geology, 254(1–2), 52–72.        [ Links ]

Cai, G., Guo, F., Liu, X., Sui, S., Li, C., Zhao, L., 2008, Geochemistry of Neogene sedimentary rocks from the Jiyang basin, North China Block: The roles of grain size and clay minerals: Geochemical Journal, 42(5), 381–402.        [ Links ]

Caja, M.A., Marfil, R., Lago, M., Salas, R., Ramseyer, K., 2007, Provenance discrimination of Lower Cretaceous synrift sandstones (eastern Iberian Chain, Spain): Constraints from detrital modes, heavy minerals, and geochemistry, in Arribas, J., Critelli, S., Johnsson, M.J. (eds.), Sedimentary Provenance and Petrogenesis: Perspectives from Petrography and Geochemistry. Geological Society of America Special Paper, 140, 181–197.        [ Links ]

Campa, M.F., 1985, The Mexican Thrust Belt, in Howell, D.G. (ed.), Tectanostratigraphic Terranes of the Circum–Pacific Region. Circum Pacific Council Energy Mineral Resources: Earth Sciences Series, 1, 299–313.        [ Links ]

Campo, M.D., Guevara, S.R., 2005, Provenance analysis and tectonic setting of late Neoproterozoic metasedimentary successions in NW Argentina: Journal of South American Earth Sciences, 19(2), 143–153.        [ Links ]

Campos–Alvarez, N.O., Roser, B.P., 2007, Geochemistry of black shales from the Lower Cretaceous Paja Formation, Eastern Cordillera, Colombia: Source weathering, provenance, and tectonic setting: Journal of South American Earth Sciences, 23(4), 271–289.        [ Links ]

Cantagrel, J.M., Robin, C., 1979, K–Ar dating on eastern Mexican volcanic rocks – relations between the andesitic and the alkaline provinces: Journal of Volcanology and Geothermal Research, 5(1–2), 99–114.        [ Links ]

Carranza–Edwards, A., 2001, Grain size and sorting in Modern beach sands: Journal of Coastal Research, 17 (1), 38–52.        [ Links ]

Carranza–Edwards, A., Rosales–Hoz, L., 1995, Grain–size trends and provenance of southwestern Gulf of Mexico beach sands: Canadian Journal of Earth Sciences, 32(12), 2009–2014.        [ Links ]

Carranza–Edwards, A., Bocanegra–García, G., Rosales–Hoz, L., Galán, L.P., 1998, Beach sands from Baja California Peninsula, Mexico: Sedimentary Geology, 119(3–4), 263–274.        [ Links ]

Carranza–Edwards, A., Centeno–García, E., Rosales–Hoz, L., Cruz, R. L–S., 2001, Provenance of beach gray sands from western México: Journal of South American Earth Sciences, 14(3), 291–305.        [ Links ]

Carranza–Edwards, A., Kasper–Zubillaga, J.J., Rosales–Hoz, L., Alfredo–Morales, E., Santa–Cruz, R.L., 2009, Beach sand composition and provenance in a sector of the southwestern Mexican Pacific: Revista Mexicana de Ciencias Geológicas, 26(2), 433–447.        [ Links ]

Carrasco–Núñez, G., Righter, K., Chesley, J., Siebert, L., Aranda–Gómez, J.J., 2005, Contemporaneous eruption of calc–alkaline and alkaline lavas in a continental arc (Eastern Mexican Volcanic Belt): chemically heterogeneous but isotopically homogeneous source: Contributions to Mineralogy and Petrology, 150(4), 423–440.        [ Links ]

Centeno–Garcia, E., Ruiz, J., Coney, P.J., Patchett, P.J., Ortega–Gutiérrez, F., 1993, Guerrero terrane of Mexico: its role in the Southern Cordillera from new geochemical data: Geology, 21(6), 419–422.        [ Links ]

Cingolani, C.A., Manassero, M., Abre, P., 2003, Composition, provenance, and tectonic setting of Ordovician siliciclastic rocks in the San Rafael block: Southern extension of the Precordillera crustal fragment, Argentina: Journal of South American Earth Sciences, 16(1), 91–106.        [ Links ]

Condie, K.C., Lee, D., Farmer, G. L., 2001, Tectonic setting and provenance of the Neoproterozoic Uinta Mountain and Big Cottonwood groups, northern Utah: constraints from geochemistry, Nd isotopes, and detrital modes: Sedimentary Geology, 141–142(1), 443–464.        [ Links ]

Coney, P.J., 1989, The North American Cordillera, in Ben–Avraham, Z. (ed.), Evolution of the Pacific Ocean Margins: Oxford University Press, Oxford, pp. 43–52.        [ Links ]

Conly, A.G., Brenan, J.M., Bellon, H., Scott, S.D., 2005, Arc to rift transitional volcanism in the Santa Rosalía Region, Baja California Sur, Mexico: Journal of Volcanology and Geothermal Research, 142(3–4), 303–341.        [ Links ]

Consejo de Recursos Minerales, 1992, Monografía Geológico–Minera del Estado de Sonora, México. 220 pp.        [ Links ]

Consejo de Recursos Minerales, 1994, Monografía Geológico–Minera del Estado de Veracruz, México. 123 pp.        [ Links ]

Consejo de Recursos Minerales, 1999, Monografía Geológico–Minera del Estado de Guerrero, México. 262 pp.        [ Links ]

Das, B.K., Al–Mikhlafi, A.S., Kaur, P., 2006, Geochemistry of Mansar lake sediments, Jammu, India: Implication for source–area weathering, provenance, and tectonic setting: Journal of Asian Earth Sciences, 26(6), 649–668.        [ Links ]

Desonie, D.L., 1992, Geologic and geochemical reconnaissance of Isla San Esteban: post–subduction orogenic volcanism in the Gulf of California: Journal of Volcanology and Geothermal Research, 52(1–3), 123–140.        [ Links ]

Dickinson, W.R., 1970, Interpreting detrital modes of graywacke and arkose: Journal of Sedimentary Petrology, 40(2), 695–707.        [ Links ]

Dickinson, W.R., Suczek, C.A., 1979, Plate tectonics and sandstone compositions: American Association of Petroleum Geologists Bulletin, 63(12), 2164–2182.        [ Links ]

Fanti, F., 2009, Bentonite chemical features as proxy of late Cretaceous provenance changes: A case study from the Western Interior Basin of Canada: Sedimentary Geology 217(1–4), 112–127.        [ Links ]

Fedo, C.M., Nesbitt, H.W., Young, G.M., 1995, Unraveling the effects of potassium metasomatism in sedimentary rocks and paleosols, with implications for paleoweathering conditions and provenance: Geology, 23(10), 921–924.        [ Links ]

Folk, R.L., 1966, A review of grain–size parameters: Sedimentology, 6(2), 73–93.        [ Links ]

Folk, R.L., Ward, W.C., 1957, Brazos River bar (Texas): a study in the significance of grain size parameters: Journal of Sedimentary Petrology, 27(1), 3–26.        [ Links ]

Freydier, C., Lapierre, H., Ruiz, J., Tardy, M., Martinez–R. J., Coulon, C., 2000, The Early Cretaceous Arperos basin: an oceanic domain dividing the Guerrero arc from nuclear Mexico evidenced by the geochemistry of the lavas and sediments: Journal of South American Earth Sciences, 13(4–5), 325–336.        [ Links ]

Garcia, D., Fonteilles, M., Moutte, J., 1994, Sedimentary fractionations between Al, Ti, and Zr and the genesis of strongly peraluminous granites: The Journal of Geology, 102(4), 411–422.        [ Links ]

Garcia, D., Ravenne, C., Maréchal, B., Moutte, J., 2004, Geochemical variability induced by entrainment sorting: quantified signals for provenance analysis: Sedimentary Geology, 171(1–4), 113–128.        [ Links ]

Gazzi, P., 1966, Le arenarie del flysch sopracretaceo dell'Appennino modensese: Correlazioni con il flysch di Monghidoro: Mineralogica et Petrographica Acta, 12, 69–97.        [ Links ]

Gómez–Tuena, A., LaGatta, A.B., Langmuir, C.H., Goldstein, S.L., Ortega–Gutiérrez, F., Carrasco–Núñez, G., 2003, Temporal control of subduction magmatism in the eastern Trans–Mexican Volcanic Belt: mantle sources, slab contributions, and crustal contamination: Geochemistry Geophysics Geosystems, 4 (8), paper number 2003GC000524.        [ Links ]

Gómez–Tuena, A., Orozco–Esquivel, M. T., Ferrari, L., 2007, Igneous petrogenesis of the Trans–Mexican volcanic belt. Geology of Mexico: celebrating the centenary of the Geological Society of Mexico: The Geological Society of America Special Paper, 422, 129–181.        [ Links ]

Von Gosen, W., Buggisch, W., Prozzi, C., 2009, Provenance and geotectonic setting of Late Proterozoic – Early Cambrian metasediments in the Sierras de Córdoba and Guasayán (western Argentina): a geochemical approach: Neues Jahrbuch für Geologie und Paläontologie – Abhandlungen, 251(3), 257–284.        [ Links ]

Guevara, M., Verma, S.P., Velasco–Tapia, F., 2001, Evaluation of GSJ intrusive rocks JG1, JG2, JG3, JG1a, and JGb1 by an objective outlier rejection statistical procedure: Revista Mexicana de Ciencias Geológicas, 18(1), 2001, 74–88.        [ Links ]

Harnois, L., 1988, The CIW index: A new chemical index of weathering: Sedimentary Geology, 55(3–4), 319–322.        [ Links ]

Hayashi, K–I., Fujisawa, H., Holland, H.D., Ohmoto, H., 1997, Geochemistry of ~1.9 Ga sedimentary rocks from northeastern Labrador, Canada: Geochimica et Cosmochimica Acta, 16(19), 4115–4137.        [ Links ]

Hegde, V.S., Shalini, G., Kanchanagouri, D.G., 2006, Provenance of heavy minerals with special reference to ilmenite of the Honnavar beach, central west coast of India: Current Science, 91(5), 644–648.        [ Links ]

Hoskin, P.W.O., Ireland, T.R., 2000, Rare earth element geochemistry of zircon and its use as a provenance indicator: Geology, 28(7), 627–630.        [ Links ]

Hughes, M.G., Keene, J.B., Joseph, R.C., 2000, Hydraulic sorting of heavy–mineral grains by swash on a medium–sand beach: Journal of Sedimentary Research, 70(5), 994–1004.        [ Links ]

Imai, N., Terashima, S., Itoh, S., Ando, A., 1995, 1994 compilation values for GSJ reference samples, "Igneous rock series": Geochemical Journal, 29(1), 91–95.        [ Links ]

Ishiga, H., Dozen, K., 1997, Geochemical indications of provenance change as recorded in Miocene shales: opening of the Japan Sea, San'in region, southwest Japan: Marine Geology, 144 (1–3), 211–228.        [ Links ]

Jafarzadeh, M., Hosseini–Barzi, M., 2008, Petrography and geochemistry of Ahwaz sandstone member of Asmari Formation, Zagros, Iran: implications on provenance and tectonic setting: Revista Mexicana de Ciencias Geológicas, 25(2), 247–260.        [ Links ]

Jensen, J.L., Lake, L.W., Corbett, P.W.M., Goggin, D.J., 1997, Statistics for petroleum engineers and geoscientists: Prentice–Hall, Upper Saddle River, 390 p.        [ Links ]

Kasanzu, C., Maboko, M.A.H., Manya, S., 2008, Geochemistry of fine–grained clastic sedimentary rocks of the Neoproterozoic Ikorongo Group, NE Tanzania: Implications for provenance and source rock weathering: Precambrian Research, 164(3–4), 201–213.        [ Links ]

Kasper–Zubillaga, J.J., Dickinson, W.W., 2001, Discriminating depositional environments of sands from modern source terranes using modal analysis: Sedimentary Geology, 143(1–2), 149–167.        [ Links ]

Kasper–Zubillaga, J.J., Carranza–Edwards, A., 2005, Grain size discrimination between sands of desert and coastal dunes from northwestern Mexico: Revista Mexicana de Ciencias Geológicas, 22(3), 383–390.        [ Links ]

Kasper–Zubillaga, J.J., Carranza–Edwards, A., Rosales–Hoz, L., 1999, Petrography and geochemistry of Holocene sands in the western Gulf of Mexico: implications for provenance and tectonic setting: Journal of Sedimentary Research, 69(5), 1003–1010.        [ Links ]

Kasper–Zubillaga, J.J., Ortiz–Zamora, G., Dickinson, W.W., Urrutia–Fucugauchi, J., Soler–Arechalde, A.M., 2007, Textural and compositional controls on modern beach and dune sands, New Zealand: Earth Surface Processes and Landforms, 32(3), 366–389.        [ Links ]

Kasper–Zubillaga, J.J., Acevedo–Vargas, B., Morton–Bermea, O.M., Ortiz–Zamora, G., 2008a, Rare earth elements of the Altar Desert dune and coastal sands, Northwestern Mexico: Chemie der Erde, 68(1), 45–59.        [ Links ]

Kasper–Zubillaga, J.J., Carranza–Edwards, A., Morton–Bermea, O., 2008b, Heavy minerals and rare earth elements in coastal and inland dune sands of El Vizcaino desert, Baja California Peninsula, Mexico: Marine Georesources and Geotechnology, 26(3), 172–188.        [ Links ]

Keppie, J.D., 2004, Terranes of Mexico Revisited: A 1.3 Billion Year Odyssey: International Geology Review, 46(9), 765–794.        [ Links ]

Khalifa, M.A., Ganainy, M.A.E., Nasr, R.I., 2009, Statistical and uncertainty analysis of longshore sediment transport evaluations for the Egyptian northern coast: A case study application: Journal of Coastal Research, 25(4), 1002–1014.        [ Links ]

LaMaskin, T.A., Dorsey, R., Vervoort, J.D., 2008, Tectonic controls on mudrock geochemistry, Mesozoic rocks of eastern Oregon and western Idaho, U.S.A.: Implications for Cordilleran tectonics: Journal of Sedimentary Research, 78(12), 765–783.        [ Links ]

Le Bas, M.J., Le Maitre, R.W., Streckeisen, A., Zanettin, B., 1986, A chemical classification of volcanic rocks based on the total alkali–silica diagram: Journal of Petrology, 27(3), 745–750.        [ Links ]

Lee, Y.I., 2009, Geochemistry of shales of the Upper Cretaceous Hayang Group, SE Korea: Implications for provenance and source weathering at an active continental margin: Sedimentary Geology, 215(1–4), 1–12.        [ Links ]

Liu, S., Lin, G., Liu, Y., Zhou, Y., Gong, F., Yan, Y., 2007, Geochemistry of Middle Oligocene–Pliocene sandstones from the Nanpu Sag, Bohai Bay Basin (Eastern China): Implications for provenance, weathering, and tectonic setting: Geochemical Journal, 41(5), 359–378.        [ Links ]

López, J.M.G., Bauluz, B., Fernández–Nieto, C., Oliete, A.Y., 2005, Factors controlling the trace–element distribution in fine–grained rocks: the Albian Kaolinite–rich deposits of the Oliete Basin (NE Spain): Chemical Geology, 214(1–2), 1–19.        [ Links ]

Madhavaraju, J., García y Barragán, J.C., Hussain, S.M., Mohan, S.P., 2009, Microtexturas on quartz grains in the beach sediments of Puerto–Peñasco and Bahía Kino, Gulf of Califronia, Sonora, Mexico: Revista Mexicana de Ciencias Geológicas, 26(2), 367–379.        [ Links ]

Márquez, A., Ignacio, C.D., 2002, Mineralogical and geochemical constraints for the origin and evolution of magmas in Sierra Chichinautzin, Central Mexican Volcanic Belt: Lithos, 62(1–2), 35–62.        [ Links ]

Márquez, A., Oyarzun, R., Doblas, M., Verma, S. P. 1999, Alkalic (ocean–island basalt type) and calc–alkalic volcanism in the Mexican Volcanic Belt: a case for plume–related magmatism and propagating rifting at an active margin?: Geology, 27(1), 51–54.        [ Links ]

Marsaglia, K.M., 1991, Provenance of sands and sandstones from a rifted continental arc, Gulf of California, Mexico, in Sedimentation in Volcanic Settings: SEPM Special Publications, 45, 237–248.        [ Links ]

Marsaglia, K.M., 1992, Basaltic island provenance, in Johnsson, M.J., Basu, A. (eds.), Processes Controlling the Composition of Clastic Sediments: Geological Society of America Special Paper, 284, 41–65.        [ Links ]

Martínez–Serrano, R.G., Schaaf, P., Solís–Pichardo, Hernández–Bernal, M.S., Hernández–Treviño, T., Morales–Contreras, J.J., Macías, J.L., 2004, Sr, Nd and Pb isotope and geochemical data from the Quaternary Nevado de Toluca volcano, a source of recent adakitic magmatism, and the Tenango Volcanic Field, Mexico: Journal of Volcanology and Geothermal Research, 138(1–2), 77–110.        [ Links ]

McLennan, S.M., Hemming, S., McDaniel, D.K., Hanson, G.N., 1993, Geochemical approaches to sedimentation, provenance, and tectonics, in Johnsson, M.J., Basu, A. (eds.), Processes controlling the composition of clastic sediments: Geological Society of America, Special Paper, 284, 21–40.        [ Links ]

Meza–Figueroa, D., Valencia–Moreno, M., Valencia, V.A., Ochoa–Landín, L., Pérez–Segura, E., Díaz–Salgado, C., 2003, Major and trace element geochemistry and ⁴⁰Ar/ ³⁹Ar geochronology of Laramide plutonic rocks associated with gold–bearing Fe skarn deposits in Guerrero state, southern Mexico: Journal of South American Earth Sciences, 16(4), 205–217.        [ Links ]

Mongelli, G., Cullers, R.L., Muelheisen, S., 1996, Geochemistry of late Cretaceous–Oligocenic shales from the Varicolori Formation, southern Apennines, Italy: implications for mineralogical, grain–size control and provenance: European Journal of Mineralogy, 8(4), 733–754.        [ Links ]

Moore, R.O., Griffin, W.L., Gurney, J.J., Ryan, C.G., Cousens, D.R., Sie, S.H., Suter, G.F., 1992, Trace element geochemistry of ilmenite megacrysts from the Monastery kimberlite, South Africa: Lithos, 29(1–2), 1–18.        [ Links ]

Morton, A.C., Hallsworth, C.R., 1999, Processes controlling the composition of heavy mineral assemblages in sandstones: Sedimentary Geology, 124(1–4), 3–29.        [ Links ]

Nagarajan, R., Armstrong–Altrin, J.S., Nagendra, R., Madhavaraju, J., Moutte, J., 2007a, Petrography and Geochemistry of terrigenous sedimentary rocks in the Neoproterozoic Rabanpalli Formation, Bhima Basin, Southern India: Implications for Paleoweathering condition, Provenance, and Source Rock Composition: Journal of the Geological Society of India, 70(2), 297–312.        [ Links ]

Nagarajan, R., Madhavaraju, J., Nagendra, R., Armstrong–Altrin, J.S., Moutte, J., 2007b, Geochemistry of Neoproterozoic shales of Rabanpalli formation, Bhima basin, northern Karnataka, southern India: implications for provenance and paleoredox conditions: Revista Mexicana de Ciencias Geológicas, 24(2), 150–160.        [ Links ]

Narayana, A.C., Pandarinath, K., 1991, Sediment transport direction derived from grain–size statistics on the continental shelf of Mangalore, west coast of India: Journal of the Geological Society of India, 38(3), 293–298.        [ Links ]

Narayana, A.C., Pandarinath, K., Karbassi, A.R., Raghavan, B.R., 1991, A note on silica sands of South Kanara coast, Karnataka, India: Journal of the Geological Society of India, 37(2), 164–171.        [ Links ]

Negendank, J.F., Emmermann, R., Krawczyk, R., Mooser, F., Tobschall, H., Werle, D., 1985, Geologic and geochemical investigation on the eastern Trans–Mexican Volcanic Belt: Geofisica Internacional, 24, 477–575.        [ Links ]

Nesbitt, H.W., Young, G.M., 1982, Early Proterozoic climate and plate motions inferred from major element chemistry of lutites: Nature, 299, 715–717.        [ Links ]

Nesbitt, H.W., Fedo, C.M., Young, G.M., 1997, Quartz and feldspar stability, steady and non–steady–state weathering, and petrogenesis of siliciclastic sands and muds: Journal of Geology, 105(2), 173–192.        [ Links ]

Ohta, T., 2008, Measuring and adjusting the weathering and hydraulic sorting effects for rigorous provenance analysis of sedimentary rocks: a case study from the Jurassic Ashikita Group, south–west Japan: Sedimentology, 55(6), 1687–1701.        [ Links ]

Okazaki, H., Stanley, J–D., Wright, E.E., 2001, Tecolutla and Nautla Deltas, Veracruz, Mexico: Texture to evaluate sediment environment on deltaic plains and bypassing onto the Gulf of Mexico margin: Journal of Coastal Research, 17(3), 755–761.        [ Links ]

Padilla y Sánchez, R.J., Aceves–Quesada, J.F., 1990, IV.1.1. Geología, Atlas Nacional de México, Tomo II, IV. Naturaleza, 1. Geología: México, D.F., Universidad Nacional Autónoma de México, Instituto de Geografía, 1 map.        [ Links ]

Pandarinath, K., Narayana, A.C., 1991, Textural and physico–chemical studies of the innershelf sediments off Gangolli, west coast of India: Indian Journal of Marine Sciences, 20(2), 118–122.        [ Links ]

Parker, A., 1970, An index of weathering for silicate rocks: Geological Magazine, 107, 501–504.        [ Links ]

Paz–Moreno, F.A., Demant, A., 1999, The Recent Isla San Luis volcanic centre: petrology of a rift–related volcanic suite in the northern Gulf of California, Mexico: Journal of Volcanology and Geothermal Research, 93(1–2), 31–52.        [ Links ]

Pe–Piper, G., Triantafyllidis, S., Piper, D.J.E., 2008, Geochemical identification of clastic sediment provenance from known sources of similar geology: The Cretaceous Scotian Basin, Canada: Journal of Sedimentary Research, 78(9), 595–607.        [ Links ]

Poller, U., Huth, J., Hoppe, P., Williams, I.S., 2001, REE, U, Th, and Hf distribution in zircon from western Carpathian Variscan Granitoids: A combined cathodoluminescence and ion microprobe study: American Journal of Science, 301(10), 858–867.        [ Links ]

Price, J.R., Velbel, M.A., 2003, Chemical weathering indices applied to weathering profiles developed on heterogeneous felsic metamorphic parent rocks: Chemical Geology, 202(3–4), 397–416.        [ Links ]

Robin, C., 1982a, Relations volcanologie–magmatologie–géodynamique: application au passage entre volcanismes alcalin et andésitique dans le sud Mexicain (Axe Trans–mexicain et Province Alcaline Oriental): Annales Scientifiques de l'Université de Clermont–Ferrand II France. Ph.D. Thesis, 503 pp.        [ Links ]

Robin, C., 1982b, Mexico, in Thorpe, R. S. (ed.), Andesites: Chichester, John Wiley & Sons, 137–147.        [ Links ]

Roddaz, M., Viers, J., Brusset, S., Baby, P., Hérail, G., 2005, Sediment provenances and drainage evolution of the Neogene Amazonian Foreland Basin: Earth and Planetary Science Letters, 239(1–2), 57–78.        [ Links ]

Roddaz, M., Viers, J., Brusset, S., Baby, P., Boucayrand, C., Hérail, G., 2006, Controls on weathering and provenance in the Amazonian foreland basin: Insights from major and trace element geochemistry of Neogene Amazonian sediments: Chemical Geology, 226(1–2), 31–65.        [ Links ]

Rosales–Hoz, L., Carranza–Edwards, A., 1995, Geochemistry of two Mexican tropical basins in an active margin and their influence on littoral sediments: Journal of South American Earth Sciences, 8 (2), 221–228.        [ Links ]

Rosales–Hoz, L., Carranza–Edwards, A., 1998, Heavy metals in sediments from Coatzacoalcos River, Mexico: Bulletin of Environmental Contamination and Toxicology, 60(4), 553–561.        [ Links ]

Rosales–Hoz, L., Carranza–Edwards, A., Mendez–Jaime, C., Monreal–Gómez, M.A., 1999, Metals in shelf sediments and their association with continental discharges in a tropical zone: Marine Freshwater Research, 50(3), 189–196.        [ Links ]

Rosales–Hoz, L., Cundy, A.B., Bahena–Manjarrez, J.L., 2003, Heavy metals in sediment cores from a tropical estuary affected by anthropogenic discharges: Coatzacoalcos estuary, Mexico: Estuarine, Coastal and Shelf Research, 58(1), 117–126.        [ Links ]

Rosales–Lagarde, L., Centeno–García, E., Dostal, J., Sour–Tovar, F., Ochoa–Camarillo, H., Quiroz–Barroso, S., 2005, The Tuzancoa Formation: Evidence of an Early Permian submarine continental Arc in East–Central Mexico: International Geology Review, 47(9), 901–919.        [ Links ]

Ryan, K.M., Williams, D.M., 2007, Testing the reliability of discrimination diagrams for determining the tectonic depositional environment of ancient sedimentary basins: Chemical Geology, 242(1–2), 103–125.        [ Links ]

Saunders, A.D., 1983, Geochemistry of basalts recovered from the Gulf of California during Leg 65 of the Deep Sea Drilling Project, in Lewis, B.T.R., Robinson, P., et al., Initial Reports of the Deep Sea Drilling Project, 65, 591–621.        [ Links ]

Saunders, A.D., Fornari, D.J., Joron, J–L., Tarney, J., Treuil, M., 1982, Geochemistry of basic igneous rocks, Gulf of California, Initial Reports of the Deep Sea Drilling Project Leg 64, in Curray, J.R., Moore, D.G., et al., Initial Reports of the Deep Sea Drilling Project, 64, 595–642.        [ Links ]

Schaaf, P., Stimag, J., Siebe, C., Macías, J.L., 2005, Geochemical evidence for mantle origin and crustal processes in volcanic rocks from Popocatépetl and surrounding monogenetic volcanoes, Central Mexico: Journal of Petrology, 46(6), 1243–1282.        [ Links ]

Selvaraj, K., Chen, C.–T. A., 2006, Moderate chemical weathering of subtropical Taiwan: Constraints from solid–phase geochemistry of sediments and sedimentary rocks. The Journal of Geology, 114(1), 101–116.        [ Links ]

Sheth, H. C., Torres–Alvarado, I. S., Verma, S. P., 2000, Beyond subduction and plumes: a unified tectonic–petrogenetic model for the Mexican Volcanic Belt: International Geology Review, 42(12), 1116–1132.        [ Links ]

Siebe, C., Rodríguez–Lara, V., Schaaf, P., Abrams, M., 2004, Geochemistry, Sr–Nd isotope composition, and tectonic setting of Holocene Pelado, Guespalapa and Chichinautzin scoria cones, south of Mexico City: Journal of Volcanology and Geothermal Research, 130(3–4), 197–226.        [ Links ]

Spencer, J.E., Normark, W.R., 1979, Tosco–Abreojos fault zone: a Neogene transform plate boundary within the Pacific margin of southern Baja California, Mexico: Geology, 7, 554–557.        [ Links ]

Sugitani, K., Yamashita, F., Nagaoka, T., Yamamoto, K., Minami, M., Mimura, K., Suzuki, K., 2006, Geochemistry and sedimentary petrology of Archean clastic sedimentary rocks at Mt. Goldsworthy, Pilbara Craton, Western Australia: Evidence for the early evolution of continental crust and hydrothermal alteration: Precambrian Research, 147(1–2), 124–147.        [ Links ]

Tardy, M., Lapierre, H., Freydier, C., Coulon, C., Gill, J., Mercier de Lépinay, B., Beck, C., Martinez–Reyes, J., Talavera–Mendoza, O., Ortiz–Hernandez, E., Stein, G., Bourdier, J.–L., Yta, M., 1994, The Guerrero suspect terrane (western Mexico) and coeval arc terranes (the Greater Antilles and the Western Cordillera of Colombia): A late Mesozoic intra–oceanic arc accreted to cratonal America during the Cretaceous: Tectonophysics, 230, 49–73.        [ Links ]

Taylor, S.R., McLennan, S.M., 1985, The Continental Crust: Its Composition and Evolution: Blackwell Scientific Publications, Oxford, 312 p.        [ Links ]

Torres–Alvarado, I. S., Verma, S. P., Palacios–Berruete, H., Guevara, M., González–Castillo, O. Y., 2003, DC_Base: a database system to manage Nernst distribution coefficients and its application to partial melting modeling: Computers & Geosciences, 29(9), 1191–1198.        [ Links ]

Valencia–Moreno, M., Ruiz, J., Barton, M.D., Patchett, P.J., Zuürcher, L., Hodkinson, D.G., Roldán–Quintana, J., 2001, A chemical and isotopic study of the Laramide granitic belt of northwestern Mexico: Identification of the southern edge of the North American Precambrian basement: Geological Society of America Bulletin, 113(11), 1409–1422.        [ Links ]

Valencia–Moreno, M., Ruiz, J., Ochoa–Landín, L., Martínez–Serrano, R., Vargas–Navarro, P., 2003, Geochemistry of the coastal Sonora batholith, northwestern Mexico: Canadian Journal of Earth Sciences, 40(6), 819–831.        [ Links ]

Varga, A., Raucsik, B., Hartyáni, Z., Szakmány, G., 2007, Paleoweathering conditions of Upper Carboniferous siliciclastic rocks of SW Hungary: Central European Geology, 50/1, 3–18.        [ Links ]

Velasco–Tapia, F., Verma, S.P., 2001a, First partial melting inversion model for a Rift–Related Origin of the Sierra de Chichinautzin Volcanic Field, Central Mexican Volcanic Belt: International Geology Review, 43, 788–817.        [ Links ]

Velasco–Tapia, F., Verma, S.P., 2001b, Estado actual de la investigación geoquímica en el campo monogenético de la Sierra de Chichinautzin: análisis de información y perspectivas: Revista Mexicana de Ciencias Geológicas, 18(1), 1–36.        [ Links ]

Verma, S.P., 1999. Geochemistry of evolved magmas and their relationship to subduction–unrelated mafic volcanism at the volcanic front of the central Mexican Volcanic Belt: Journal of Volcanology and Geothermal Research, 93(1–2), 151–171.        [ Links ]

Verma, S.P., 2000a, Geochemical evidence for a lithospheric source for magmas from Los Humeros caldera, Puebla, Mexico: Chemical Geology, 164(1–2), 35–60.        [ Links ]

Verma, S.P., 2000b, Geochemistry of the subducting Cocos plate and the origin of subduction–unrelated mafic volcanism at the volcanic front of the central Mexican Volcanic Belt, in Delgado–Granados, H., Aquirre–Díaz, G. and Stock, J.M. (eds.), Cenozic Tectonics and Volcanism of Mexico, Boulder, Colorado: Geological Society of America, Special Paper, 334, 195–222.        [ Links ]

Verma, S.P., 2001a, Geochemical evidence for a Rift–Related Origin of bimodal volcanism at Meseta Río San Juan, North–Central Mexican Volcanic Belt: International Geology Review, 43, 475–493.        [ Links ]

Verma, S.P., 2001b, Geochemical evidence for a Lithospheric source for magmas from Acoculco Caldera, Eastern Mexican Volcanic Belt: International Geology Review, 43, 31–51.        [ Links ]

Verma, S.P., 2002, Absence of Cocos plate subduction–related basic volcanism in southern Mexico: a unique case on Earth?: Geology, 30(12), 1095–1098.        [ Links ]

Verma, S. P., 2004, Solely extension–related origin of the eastern to west–central Mexican Volcanic Belt (Mexico) from partial melting inversion model: Current Science, 86(5), 713–719.        [ Links ]

Verma, S.P., 2005, Estadística básica para el manejo de datos experimentales: Aplicación en la geoquímica (geoquimiometría): Universidad Nacional Autónoma de México, Mexico, D.F., 186 p.        [ Links ]

Verma, S.P., 2006, Extensión–related origin of magmas from a garnet–bearing source in the Los Tuxtlas volcanic field, Mexico: International Journal of Earth Sciences (Geol Rundsch), 95(5), 871–901.        [ Links ]

Verma, S.P., 2009a, Continental rift setting for the central part of the Mexican Volcanic Belt: A statistical approach: Open Geology Journal, 3, 8–29.        [ Links ]

Verma, S.P., 2009b, Evaluation of polynomial regression models for the Student t and Fisher F critical values, the best interpolation equations from double and triple natural logarithm transformation of degrees of freedom up to 1000, and their applications to quality control in science and engineering: Revista Mexicana de Ciencias Geológicas, 26 (1): 79–92.        [ Links ]

Verma, S. P., in press, Statistical evaluation of bivariate, ternary and discriminant function tectonomagmatic discrimination diagrams: Turkish Journal of Earth Sciences.        [ Links ]

Verma, S.P., Quiroz–Ruiz, A., 2006a, Critical values for six Dixon tests for outliers in normal samples up to sizes 100, and applications in science and engineering: Revista Mexicana de Ciencias Geológicas, 23(2), 133–161.        [ Links ]

Verma, S.P., Quiroz–Ruiz, A., 2006b, Critical values for 22 discordancy test variants for outliers in normal samples up to sizes 100, and applications in science and engineering: Revista Mexicana de Ciencias Geológicas, 23(3), 302–319.        [ Links ]

Verma, S.P., Quiroz–Ruiz, A., 2008, Critical values for 33 discordancy test variants for outliers in normal samples of very large sizes from 1,000 to 30,000 and evaluation of different regression models for the interpolation and extrapolation of critical values: Revista Mexicana de Ciencias Geológicas 25(3), 369–381.        [ Links ]

Verma, S.P., Torres–Alvarado, I.S., Sotelo–Rodríguez, Z.T., 2002, SINCLAS: standard igneous norm and volcanic rock classification system: Computers & Geosciences, 28(5), 711–715.        [ Links ]

Verma, S.P., Quiroz–Ruiz, A., Díaz–González, L., 2008, Critical values for 33 discordancy test variants for outliers in normal samples up to sizes 1000, and applications in quality control in Earth Sciences: Revista Mexicana de Ciencias Geológicas, 25(1), 82–96.        [ Links ]

Vidal–Solano, J.R., Paz–Moreno, F.A., Demant, A., López–Martínez, M., 2007, Ignimbritas hiperalcalinas del Mioceno medio en Sonora Central: revaluación de la estratigrafía y significado del volcanismo terciario: Revista Mexicana de Ciencias Geológicas, 24(1), 47–67.        [ Links ]

Viers, J., Roddaz, M., Filizola, N., Guyot, J–L., Sondag, F., Brunet, P., Zouiten, C., Boucayrand, C., Martin, F., Boaventura, G.R., 2008, Seasonal and provenance controls on Nd–Sr isotopic compositions of Amazon rivers suspended sediments and implications for Nd and Sr fluxes exported to the Atlantic Ocean: Earth and Planetary Science Letters, 274(3–4), 511–523.        [ Links ]

Wallace, P.J., Carmichael, I.S.E., 1999, Quaternary volcanism near the Valley of Mexico: implications for subduction zone magmatism and the effects of crustal thickness variations on primitive magma compositions: Contributions to Mineralogy and Petrology, 135, 291–314.        [ Links ]

Weltje, G.J., 2006, Ternary sandstone composition and provenance: an evaluation of the Dickinson Model, in Buccianti, A., Mateu–Figueras, G., Pawlowsky–Glahn, V. (eds.), Compositional Data Analysis in the Geosciences: From Theory to Practice: Geological Society, London, Special Publications, 264, 79–99.        [ Links ]

Wu, S.L., Zhao, Y.H., Feng, X.B., 1996, Application of inductively coupled plasma mass spectrometry for total metal determination in silicon–containing solid samples using the microwave–assisted nitric acid–hydrofluoric acid–hydrogen peroxide–boric acid digesten system: Journal of Analytical Atomic Spectrometry, 11(4), 287–296.        [ Links ]

Yoshida, S., Muramatsu, Y., Tagami, K., Uchida, S., 1996, Determination of major and trace elements in Japanese rock reference samples by ICP–MS: International Journal of Environmental Analytical Chemistry, 63(3), 195–206.        [ Links ]

Zhang, L., Sun, M., Wang, S., Yu, X., 1998, The composition of shales from the Ordos basin, China: effects of source weathering and diagenesis: Sedimentary Geology, 116(1–2), 129–141.        [ Links ]

Zimmermann, U., 2005, Provenance studies of very low– to low–grade metasedimentary rocks of the Puncoviscana Formation in Northwest Argentina, in Vaughan, A.P.M., Leat, P.T., Pankhurst, R.J. (eds.), Terrane Processes at the Margins of Gondwana: Geological Society, London, Special Publications, 246, 381–416.        [ Links ]

Zimmermann, U., Spalletti, L.A., 2009, Provenance of the Lower Paleozoic Balcarce Formation (Tandilia System, Buenos Aires Province, Argentina): Implications for paleogeographic reconstructions of SW Gondwana: Sedimentary Geology, 219(1–4), 7–23.        [ Links ]
