1. Introduction

Fe-Ti oxide-apatite rocks (nelsonites) are relatively scarce worldwide, and their occurrence is commonly associated with anorthosite massifs (e.g. ^{Charlier et al., 2015}; ^{Chen et al., 2013}; ^{Duchesne, 1999}; ^{Dymek and Owens, 2001}). In the broader Circum-Caribbean region they have been reported mainly in Mexico (e.g. ^{Cisneros de León et al., 2017}; ^{Solari et al., 2003}; ^{Ortega-Gutiérrez, 1978}) associated with Massif-type anorthosites that are part of Grenvillian granulite terrains, and that are considered important for the paleogeographic reconstructions of Rodinia (^{Ortega-Gutiérrez et al., 2018} and references therein).

Fe-Ti oxide ores in northern Colombia were first described by ^{Tschanz et al. (1969)} in the Sierra Nevada de Santa Marta (SNSM), where they are associated with isotropic and gneissic anorthosites (^{Alfonso et al., 1990}; ^{Tschanz, 1970}). These Fe-Ti oxide ores have been generally poorly described, and their petrogenetic significance remains to be studied (^{Alfonso et al., 1990}; ^{Cortes Castillo, 2013}; ^{Tschanz, 1970}). On one hand, dense vegetation and weathering conditions represent an obstacle to find appropriate outcrops and, on the other hand, indigenous cultures who currently live and govern the region, grant researchers a restricted access in order to protect the natural resources of the area. The aim of the present contribution is to study the mineralogy and geochemistry of the Fe-Ti(-V) oxide mineralizations of SNSM.

2. Geological setting

The Sierra Nevada de Santa Marta (SNSM) mountain range is a complex massif isolated and completely independent from the Andean chain. It is located in northern Colombia and covers a range of altitudes from the sea level to close to 5,700 m.

The SNSM is composed of a series of geological units surrounded by Mesozoic and Cenozoic sedimentary basins and intruded by plutons of different ages (^{Piraquive, 2017}; ^{Cardona et al., 2010a}, ^2010b; ^{Tschanz et al., 1969}; ¹⁹⁷⁴). The current configuration of the SNSM is the result of the Late Meso-Cenozoic east-northeast migration of the Caribbean plate, and the movement of the northern Andean block associated with the subduction of the Pacific plate (^{Montes et al., 2010}; ^{Bayona et al., 2010}; ^{Cardona et al., 2010a}; ^{Pindell et al.,1998}). It is limited by three large regional fault systems: the Santa Marta-Bucaramanga Fault System trending SE-NW, the Media Luna Fault trending SW-NE, and the Oca Fault trending WE (^{Tschanz et al., 1969}). These three fault systems shape the range to the final triangle-like outline (Figure 1, ^{Tschanz et al., 1969}). The basement of the SNSM comprises a series of Precambrian rocks older than ~1 Ga, subsequent complex Paleozoic metamorphic belts and several Mesozoic to Neogene intrusions (^{Tschanz et al., 1969}).

The SNSM has been divided into four different provinces in terms of their age, petrology and structures (Figure 1; ^{Tschanz et al., 1969}; ¹⁹⁷⁴; ^{Piraquive, 2017}). From northwest to southeast they are: 1) the Eocene Santa Marta Province, or Santa Marta Orogenic Belt, 2) the polymetamorphic Sevilla Arch Province or Sevilla Metamorphic Belt, 3) the Precambrian Granulite Province or Sierra Nevada Province, and 4) the Perijá Province, across the Cesar valley.

Figure 1 Geological map of the SNSM. I- Eocene Santa Marta Orogenic Belt. II- The Sevilla Metamorphic Belt. III- Precambrian granulite province (Modified after ^{Tschanz et al., 1969}).

The Eocene Santa Marta Orogenic Belt consists in turn of two metamorphic units separated by the Eocene Santa Marta Batholith (Figure 1): 1) the Santa Marta Schists (also the Outer Santa Marta Metamorphic Belt), which lie to the west of the batholith and include greenschists, epidote-amphibolite facies rocks and metavolcanics; and 2) The Santa Marta Metamorphic Belt (also Inner Santa Marta Metamorphic Belt), which comprises the San Lorenzo and the Gaira Schists. These rocks are possible allochthonous fragments formed during accretionary events of the Mesozoic and Cenozoic (^{Bustamante et al., 2009}; ^{Tschanz et al., 1969}).

The Sevilla Metamorphic Belt controls the current configuration of the SNSM. It is constrained by the Sevilla Lineament, a first order structure whose features limit the surface of a subduction zone during the Upper Permian and Triassic (^{Piraquive, 2017}; ^{Cardona et al., 2010a}, ^2010b; ^{Tschanz et al., 1969}). Along this structure, mafic and anorthositic gneisses, schists and allochthonous blocks of granulites crop out, the latter making part of a Neoproterozoic arc that existed during Rodinia break-up and was later metamorphosed in Permian-Triassic times, possibly during the Laurentia-Gondwana collision (^{Piraquive, 2017}). Different magmatic events are found to intrude the Sevilla lineament causing the formation of several parallel structures, among these, the Eocene Buritaca pluton, in contact with the Precambrian anorthosites and other Permian, Cretaceous and Paleogene magmatic bodies (^{Tschanz et al., 1969}).

Finally, the Precambrian Granulite Province (^{Bustamante et al., 2009}; ^{Tschanz et al., 1969}) is the largest and oldest province in the massif. A Grenvillian oceanic crust makes up the basement of this province along with a series of gneisses, amphibolites, garnet-rich granulites and anorthosites (^{Tschanz et al., 1969}). It is intruded by Jurassic plutons and it is mostly covered by volcanosedimentary rocks of Jurassic age. The granulites are affected by a set of transcurrent faults and show wide fragmentation by the intrusion of younger igneous bodies, such as the Jurassic Central Batholith and the Eocene Buritaca Pluton. This province can be associated to the Sunsas-Putumayo province (^{Ibáñez-Mejía et al., 2011}), and represents one of the exposed Grenvillian inliers in Colombia (see review in ^{Kroonenberg, 2018}).

2.1. Local geology

The study area is located in El Hierro creek, a medium-sized tributary of the Don Dieguito river, at the northern slope of the SNSM, near the Don Diego river (Figure 2). In this location, ^{Tschanz (1969)} reported the occurrence of minor ilmenite-apatite mineralization related to the Precambrian Don Dieguito Anorthosites. The main units that outcrop along the studied area are: 1) Los Mangos granulite, 2) Don Dieguito Anorthosite, 3) Santa Marta batholith and the Buritaca pluton, covered by alluvial terraces.

Figure 2 Geological map of the Don Dieguito river area (red area). Note the El Hierro creek in the central part of the map flowing towards the Don Dieguito river, which cuts the Los Mangos Granulite (Pem) and the Don Dieguito Anorthosite (Ped). Modified after the Colombian Geological Survey (^{SGC, 2019}).

2.1.1. Los Mangos granulite

This unit forms the metamorphic basement of the major part of the SNSM with an approximate extension of 1150 km². The granulites are overlain by sedimentary and volcanic rocks and are intruded by different batholiths. The Los Mangos granulite comprises a series of parallel layers of alternating metamorphosed dark and light granulite facies gneisses, often migmatitic. They include 1) light-colored granitic granulites which include calcsilicate rocks and diopside marbles, 2) dark-colored, dense mafic and ultramafic granulites (e.g. peridotites), and 3) granulites of intermediate composition (^{Ordóñez-Carmona et al., 2002}; ^{Alfonso et al., 1990}; ^{Tschanz et al., 1969}).

Light grey quartz-feldspathic gneisses with a massive appearance and granoblastic texture, medium to coarse grained, make up the first of the three groups mentioned above. They are mainly composed of plagioclase (oligoclase), quartz, biotite, with sericite and chlorite as alteration minerals. The second group consists of layers of dark grey hornblende-biotite gneisses up to 50 cm in width inside the quartz-feldspathic gneisses; and are medium to coarse-grained and with a granoblastic texture. The primary minerals are hornblende, biotite, quartz and plagioclase (oligoclase), with epidote, magnetite and sericite as accessory minerals (^{Tschanz et al., 1969}). Finally, the intermediate granulites vary in composition from quartz diorite to trondjemite. Minerals of the granulite facies are scarce and secondary minerals are abundant, such as biotite and amphibole. Plagioclase is commonly oligoclase, present with green clinopyroxene, microcline and quartz (^{Tschanz et al., 1969}). The unit is in contact with the Don Dieguito Anorthosite and the Buritaca pluton (^{Tschanz et al., 1969}).

2.1.2. Don Dieguito anorthosite

The Don Dieguito Anorthosite was first recognized by ^{Tschanz et al. (1969)} in the El Hierro creek. Together with the other anorthosites of the SNSM, it is the third occurrence of anorthosites described in South America, after the Capivarito Anorthosite in Rio Grande do Sul, Brasil (^{Chemale et al., 2011}) and the ones in Sierras Pampeanas, Argentina (^{Casquet et al., 2005}), all of them yielding Precambrian ages. The Don Dieguito anorthosite is a beige, locally light pink to brownish rock, with isotropic to foliated structure and massive appearance. Within these rocks, the ilmenite-apatite-magnetite mineralization can be observed, both layered and podiform, which gives the rock a spotted aspect. According to ^{Tschanz et al. (1969)}, at least 80% of the rock is composed mainly of coarse-grained twinned plagioclase that ranges from labradorite to oligoclase with a protoclastic texture and locally fractured; the remaining 20% is made up of augen-like mafic minerals such as hornblende and biotite displaying granoblastic texture (^{Alfonso et al., 1990}; ^{Tschanz et al., 1969}). The gneissic anorthosite and accessory magnetite are considered to be plagioclase gneisses that form lenses or concordant layers within the Precambrian granulites (^{Alfonso et al., 1990}). The primary mafic minerals are completely replaced by secondary pale green actinolitic amphibole, low iron chlorite and low iron epidote. Biotite and muscovite are also common secondary minerals. Traces of quartz and calcite are locally present (^{Alfonso et al., 1990}; ^{Tschanz et al., 1969}). The Don Dieguito Anorthosite is associated to a coarse-grained equigranular rock, composed mainly of oligoclase.

^{Tschanz et al. (1969)}) described two types of magnetite or apatite-ilmenite mineralizations in the Don Dieguito river area: 1) mafic dykes, very rich in apatite and ilmenite, and ilmenite veins with accessory magnetite; 2) a bimineralic banded apatite-ilmenite rock closely associated with the Don Diego Anorthosite. Although it is difficult to accurately locate the ilmenite-apatite mineralized zones, great amounts of boulders and cobbles of these rocks are found along the El Hierro creek.

Gabbroid rocks (mineralized norites), amphibole rich rocks, diorites and plagioclase (oligoclase) dykes locally crosscut the anorthosite. The genetic relationship between these rocks and the Don Dieguito Anorthosite is still uncertain (^{Alfonso et al., 1990}; ^{Tschanz et al., 1969}). The contact between the Don Dieguito Anorthosite and the Los Mangos Granulite has not been well established yet (^{Tschanz et al., 1969}).

2.1.3. Santa Marta Batholith and The Buritaca pluton

This unit comprises two Eocene igneous bodies (^{Colmenares et al., 2007}; ^{Tschanz et al., 1969}; ¹⁹⁷⁴). The Buritaca pluton intrudes the Los Mangos Granulites and the Don Dieguito Anorthosite. The composition is biotite and hornblende tonalite, but also diorite, granodiorite and granite.

3. Materials and methods

4. Results

In general terms, two distinct mineralization styles were identified, each with characteristic mineralogy and textures. On one hand, the oxide-apatite norite is characterized by having a dark greenish color, and contains ilmenite, apatite, and minor silicates and other oxides (represented by sample NEL-002J). On the other hand, the banded nelsonite presents a banded fabric, the bands consisting of alternating massive black ilmenite grains, and apatite grains embedded in ilmenite (represented by sample NEL-002I).

4.1. Mineralogy and textures

From PXRD, the oxide-apatite norite mineralization consists mainly of amphibole (38 %), apatite (26 %), chlorite (12 %), ilmenite (9 %) and magnetite (4 %) (Figure 3a). In contrast, the banded nelsonite is characterized by the presence of predominantly ilmenite and hematite, magnetite and apatite, and minor chlorite was detected in the apatite separate (Figure 3b and 3c). Moreover, for the banded style, separated analyses where done to obtain the mineral expression of both the ore (Figure 3b) and the rest of the minerals (Figure 3c), yielding a simple composition of ilmenite and apatite.

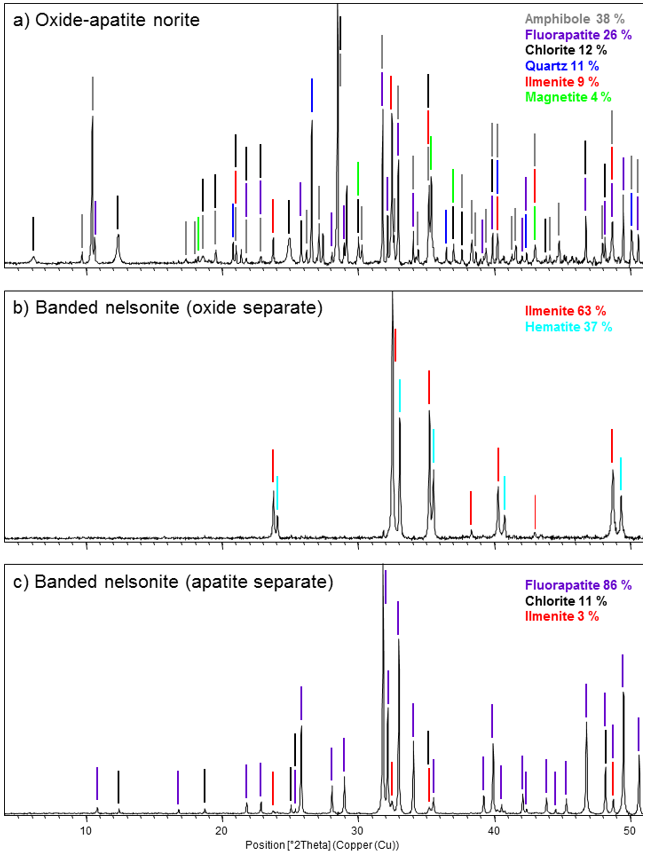

Figure 3 X-ray diffractograms (blue) with semiquantitative mineralogy of samples NEL-002-J (a: whole rock) and NEL-002- (b: Fe-Ti oxide; c: apatite grains), including the percentage of each mineral identified. Note the presence of amphibole and the abundance of chlorite in the oxide-apatite norite ore. The background is displayed in green lines.

4.1.1. Oxide-apatite norite ore

In general terms, the oxide-apatite norite displays an isotropic fabric, it is holocrystalline and fine-grained (most of the grains are smaller than 1 mm). The presence of amphibole and chlorite gives it a greenish color. In descending order of abundance, amphibole retrograded to chlorite is present in the sample in contact with apatite, ilmenite, sericitized plagioclase and pyrite (Figure 4). Granoblastic microstructures can be recognized between ilmenite and apatite grains displaying straight edges and triple points, therefore suggesting evidences of textural equilibrium (Figure 4a and 4b). Minor, scattered pyrite relicts are present as inclusions within some apatite grains, and are less than ̴ 20 µm in size (Figure 4a, upper right). Altered, subhedral amphibole are found across the sample with light green tones and sizes ranging from a few hundreds of micrometers to some millimeters (Figure 4c). Stubby grains of apatite smaller than ̴ 300 µm appear across the sample, both as inclusions within the amphibole, and as individual grains (Figure 4d). In contrast, minor plagioclase crystals range from sub- to euhedral and display polysynthetic twinning and alteration to sericite (Figure 4d).

Large, anhedral grains of magnetite make up no more than 5 vol % of the sample and tend to have serrated edges close to the ilmenite grains (Figure 4e), and no exsolved phases are observed within the magnetite grains. Ilmenite displays different titaniferous hematite exsolutions, including both a high lamellae density (Figure 4f) and the absence or fewer lamellae (Figure 4g). The very narrow needle-like titaniferous hematite lamellae are characteristic of this mineralization style, and are systematically aligned following the {0001} ilmenite planes. These lamellae display a mildly constant width ranging between 5 and 10 µm; however, thicker lamellae, as the ones observed in Figure 4h (center right of the image), might form when narrow lamellae weld or are in contact with each other. In some cases, external grain exsolutions can be observed (Figure 4g; NW ilmenite border).

Figure 4 Optical (a, reflected, plane polarized light; b, reflected, crossed polars; c, d, transmitted, plane polarized light) and backscattered electron (BSE) micrographs (e,f,g,h,i: CCiT-UB) showing the most representative textures of the Fe-Ti(-V) oxide-apatite norite ore from the Sierra Nevada de Santa Marta (SNSM), Colombia: (a) apatite grains with pyrite inclusions, in textural equilibrium with ilmenite in a granoblastic microstructure; (b) ilmenite grains surrounded by apatite and chlorite; (c) altered greenish euhedral amphibole with stubby grains of apatite; (d) sericitized plagioclase in contact with apatite, chlorite and amphibole; (e,f) anhedral grains of magnetite with serrated edges in contact with ilmenite grains with needle-like titaniferous hematite lamellae; (g) large ilmenite grains with hematite lamellae, surrounded by amphibole and magnetite (note the spinel rim in the SE ilmenite border with magnetite, and the external grain exsolutions in the NW ilmenite border with the amphibole); (h) thicker lamellae produced by agglomeration of contiguous lamellae (center, right. Mineral abbreviations are after ^{Whitney and Evans (2010)}.

4.1.2. Banded nelsonite ore

The banded nelsonite presents an equidimensional grain size (<1 mm) and an ilmenite/apatite ratio close to 50/50 (Figure 5a). The rock has a banded fabric with an alternating arrangement of apatite-rich bands and ilmenite-rich bands. Large, well-developed grains ranging between 0.5 and 1 mm in diameter of both ilmenite and apatite are recognizable on polished surfaces of the hand specimen. The banded nelsonite ore presents a granoblastic microstructure, more evident than in the oxide-apatite norite, with triple points and sharp contacts between grains (Figure 5b). Ilmenite is characterized by the ubiquitous presence of two generations of titaniferous hematite exsolutions, parallel to {0001} ilmenite crystallization planes (Figure 5c). The first generation (hemo-ilmenite), coarser and patchy, or irregular-shaped, contains in turn later ilmenite lamellae. The second generation (ilmeno-hematite) consists of abundant minute lamellae scattered around the first generation exsolutions (Figure 5c). These exsolution features were first described by ^{Hargraves (1959)} and ^{Carmichael (1961)}, and have also been reported by ^{McEnroe et al. (2002}, ²⁰⁰⁷⁾, ^{Hebert et al. (2005)}, and ^{Charlier et al. (2010)}, among others, in Canadian and Norwegian Fe-Ti oxide ores associated with anorthosite intrusives.

Figure 5 Optical (a, transmitted, plane-parallel light; b, reflected, plane parallel light) and backscattered electron (BSE) micrographs (c,d,e,f,g,h,i: CCiT-UB) showing the most representative textures of the banded nelsonite from the Sierra Nevada de Santa Marta (SNSM), Colombia: (a) nelsonite exhibiting rounded grains of apatite with a greenish alteration within ilmenite; (b) equilibrium textures between apatite and exsolved ilmenite grains; (c) patchy and minute exsolution lamellae exsolving from the ilmenite grains; (d) halo of a lamellae-free zone in the border of the ilmenite grain (outlined by the dashed line); (e) magnetite grains containing spindle-like grains of spinel and rutile needles in the contact with ilmenite; (f) presence of pyrite altered to iron oxides; (g) presence of srilankite (Slk) along with a baddeleyite (Bdy) lath in the border between magnetite and ilmenite; (h) symplectitic texture between magnetite and rutile; (i) possible presence of Zn-bearing spinel (dark grey) and spinel/hercynite (black) in ilmenite. Mineral abbreviations are after ^{Whitney and Evans (2010)}.

Some magnetite grains display nanometric spindle-like exsolutions of possibly spinel (too small to be analyzed) following the {100} directions of magnetite (Figure 5d, upper right). Lamellae-free halos may develop along the border of ilmenite when it is in contact with magnetite, as shown with the dashed line in Figure 5d. The decrease of hematite component towards the ilmenite rim was pointed out by ^{Charlier et al. (2015)} and references therein (Figure 5e). Hematite-rich areas within ilmenite grains may show ilmenite exsolutions, in some sort of inverse exsolution relationship. In this case, an exsolution-free border is locally found near the boundary with magnetite, where parallel rutile needles may grow on the magnetite-ilmenite boundary and inside the ilmenite grain (Figure 5e). Even though the banded nelsonite comprises primarily ilmenite and apatite, some isolated grains of pyrite are recognizable, generally altered to iron oxyhydroxides to the edges (Figure 5f).

In addition, a Y-shaped baddeleyite lath has been observed between two grains of magnetite and ilmenite. Around and inside this lath, small grains of possibly srilankite (Ti₂ZrO₆) are found (identified from SEM-EDS), along with minute spinel grains surrounding baddeleyite (Figure 5g).

Furthermore, a symplectitic texture is observed between rutile and magnetite grains (Figure 5h), with two different grain size groups and their location in relation with magnetite, possibly indicating different rutile formation stages: rutile I is embedded in the magnetite while rutile II is present along its margins. Finally, it must be noted that small amounts of a Zn-bearing minerals are present as small grains in contact with magnetite and ilmenite, possibly belonging to the högbomite group (Figure 5i), with 1.7-11.8 wt.% ZnO and 5.06-6.75 wt.% TiO₂ (7 analyses). Högbomite group minerals have been reported in other Fe-Ti oxide deposits (e.g., ^{Devaraju et al., 1981}; ^{Mohanty et al., 2000}).

4.2. Bulk-rock geochemistry

The two mineralization styles identified differ from each other mainly in the TiO₂ content, which as expected, is higher in the banded nelsonite ore because of higher Fe-Ti oxide content (Table 1). The oxide-apatite norite ore contains 11 wt % TiO₂ and 33 wt % total Fe (as Fe₂O₃), whereas the banded nelsonite yields 31 wt % TiO₂ and 52 wt % Fe₂O₃, because of the differences in ilmenite, magnetite and hematite contents. Si content is much higher in the oxide-apatite norite ore (28 wt % SiO₂) than in the banded nelsonite (0.6 wt % SiO₂), because of the presence of silicates. For the same reason, the values of CaO and MgO are higher in the oxide-apatite norite ore in comparison to the banded nelsonite, reaching 12 and 7 wt % respectively. Finally, both the oxide-apatite norite ore and the banded nelsonite contain similar P₂O₃ (6 wt % and 7 wt %, respectively). It is noteworthy that significant values of V and Cr are present in the banded mineralization style: 1857 ppm V and 280 ppm Cr.

Table 1 Whole-rock chemical data for the Fe-Ti ore deposits in the SNSM.

Whole-rock chemical data for the Fe-Ti ore deposits in the SNSM
Locality	Quebrada El Hierro
Type	Banded nelsonite	Oxide-apatite norite
Coord. N	11°10'23.47''
Coord. W	73°39'57.51''
Sample	NEL002I	NEL002J
SiO2 (wt. %)	0.6	27.95
TiO2	30.27	11.04
Al2O3	0.92	2.8
Fe2O3	51.87	32.63
MgO	1.71	6.68
MnO	0.165	0.401
CaO	8.72	11.6
Na2O	0.01	0.22
K2O	0.01	0.07
P2O5	6.76	6.25
LOI	-2.17	0.69
Sum	98.865	100.331
Sc (ppm)	42	44
Be	< 1	< 1
V	1857	569
Cr	280	< 20
Co	60	71
Ni	< 20	< 20
Cu	< 10	50
Zn	100	250
Ga	10	11
Ge	< 1	1
As	< 5	< 5
Rb	< 2	2
Sr	160	106
Y	48	81
Zr	79	257
Nb	23	14
Mo	< 2	< 2
Ag	< 0.5	0.7
In	< 0.2	< 0.2
Sn	25	4
Sb	< 0.5	< 0.5
Cs	< 0.5	< 0.5
Ba	12	6
Bi	< 0.4	< 0.4
La	29.8	40
Ce	80	114
Pr	12.6	18.3
Nd	67.4	98.6
Sm	16.3	24.1
Eu	3.72	5.17
Gd	16.3	24
Tb	2.1	3.1
Dy	10.6	16.6
Ho	1.8	3
Er	4.3	7.2
Tm	0.52	0.88
Yb	2.7	5.1
Lu	0.35	0.71
Hf	3.6	5.8
Ta	1.6	0.8
W	6	1
Tl	< 0.1	< 0.1
Pb	< 5	< 5
Th	0.4	0.1
U	0.2	0.1

Both the oxide-apatite norite and the banded nelsonite REE patterns depict a negative slope (Figure 6, Table 1). Additionally, both show a negative Eu anomaly. A comparison between the REE data in the studied nelsonites and other Fe-Ti(-V) oxide mineralizations around the world is displayed in Figure 6. Similarities in the spider diagrams of nelsonites found in Chiapas (^{Cisneros de León et al., 2017}), Hestnes (^{Duchesne and Liégeois, 2015}) and Kunene (^{Villanova-de-Benavent et al., 2017}) indicate that the origin of the SNSM nelsonites could be similar. The Nelsonites in the Hestnes deposit are cumulates in an immiscible Fe-rich, Si-poor melt in oxidizing conditions (^{Duchesne and Liégeois, 2015}).

Figure 6 Spider diagram depicting the chondrite-normalized REE composition of the oxide-apatite norite and banded nelsonite oxide ores studied in the Sierra Nevada de Santa Marta, compared to values of other Fe-Ti(-V) oxide ores worldwide. Chondrite values are after McDonough and Sun (1994).

4.3. Mineral chemistry

4.3.1. Ilmenite

The chemical composition of ilmenite in the two mineralization types identified is very similar in terms of Ti and Fe (Figure 7, Table 2). In general, ilmenite from the SNSM has a TiO₂ content ranging from 41.6 to 50.4 wt % (0.78-0.95 apfu Ti, 37 analyses) in the banded nelsonite, and from 49.2 to 50.1 wt % (0.93-0.94 apfu Ti, 3 analyses) in the oxide-apatite norite. No relation between the amount of Ti and the location of the measured point has been observed when measuring ilmenite points close or away from the lamellae. Note that, in the element maps of Figure 8, there is no significant compositional variation between the portion of ilmenite in contact with the lamellae and the parts away from them (Figure 8a). V content is low, ranging from 0.3 to 0.6 wt % V₂O₃ in the banded nelsonite, and of 0.4 wt % V₂O₃ in the oxide-apatite norite.

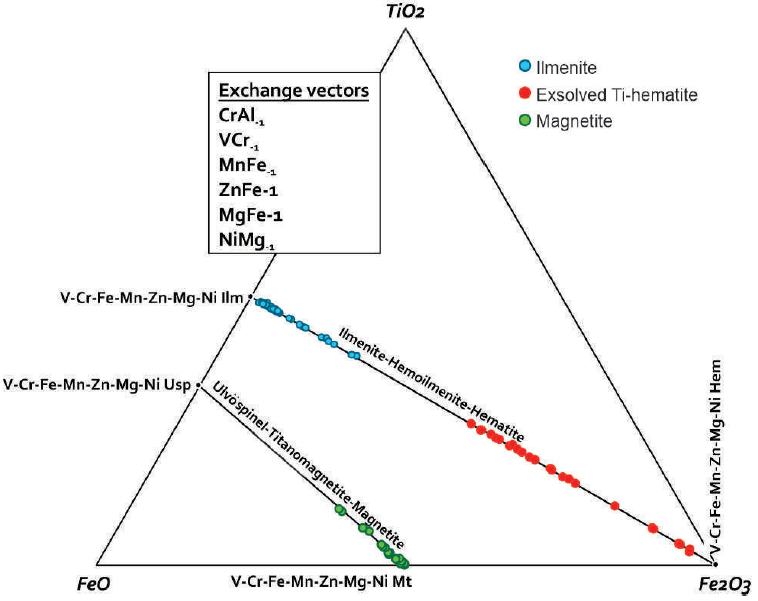

Figure 7 Ternary plot representing the composition of ilmenite, magnetite and hematite within the ilmenite-hematite and ulvöspinel-magnetite solid solutions in the SNSM. Ilm = ilmenite (Fe²+TiO₃), Hem = hematite (Fe³⁺ ₂O₃), Usp = ulvöspinel (Fe²⁺ ₂TiO₄), Mt = magnetite (Fe²⁺Fe³⁺ ₂O₄), Rt = rutile (TiO₂). Diagram build using CSpace software from ^{Torres-Roldán et al. (2000)}.

Figure 8 BSE images (left) and Fe, Al, Ti and Mn X-ray maps displaying hematite exsolutions in ilmenite, and magnetite in the banded nelsonite. (a) ilmenite with hematite lamellae; (b) halo of inverse exsolution around a magnetite grain (light gray) where titaniferous hematite contains ilmenite lamellae. Note the intermediate colors in the Fe and Ti maps for the titaniferous hematite exsolved area around magnetite. (c) Micrometer sized, rounded magnetite grains (light gray) within ilmenite-hematite, exsolutions.

Table 2 Representative EMP analyses of ilmenite from the SNSM.

Locality	Quebrada El Hierrro
Type	Banded neslsonite									Oxide-apatite norite
No.	NEL0021									NEL002J
Label	8-3	8-4	8-5	8-6	8-9	10-17	9-49	9-50	9-55	5-91	5-92	5-93
SiO2 (wt. %)	0.02	0.01	0	0.01	0.04	0	0	0.03	0	0	0	0
Al2O3	0.01	0	0.02	0.05	0.03	0.02	0.04	0	0.03	0	0	0.02
Cr2O3	0.08	0	0	0.05	0.01	0.06	0.02	0.07	0.02	0	0	0.02
TiO2	47.12	47.03	42.1	41.56	48.26	47.87	48.21	48.1	47.38	49.24	50.14	49.62
MgO	1.83	1.83	1.56	1.72	1.8	1.86	1.8	1.82	1.86	0.02	0.09	0.04
Na2O	0	0	0	0	0	0	0	0	0.03	0.02	0	0
F	0.08	0	0.02	0.24	0	0	0.08	0	0	0.14	0.14	0.04
V2O3	0.48	0.46	0.49	0.49	0.47	0.53	0.46	0.41	0.47	0.39	0.44	0.4
MnO	0.27	0.25	0.22	0.23	0.25	0.18	0.25	0.25	0.25	1.44	1.49	1.55
FeO *	38.86	38.72	34.8	34.06	39.94	39.5	39.86	39.72	38.82	42.63	43.4	42.89
Fe2O3 *	11.82	12.24	21.34	22.42	9.49	10.65	10.18	10.13	11.81	6.76	6.29	6.1
NiO	0	0.02	0.01	0.02	0	0.04	0.02	0.02	0	0	0	0
ZnO	0	0.03	0.02	0.01	0.04	0.01	0.02	0.05	0.04	0.07	0	0.07
CaO	0	0	0	0	0	0	0	0	0.01	0	0.02	0
K2O	0	0	0.01	0	0	0	0	0	0.01	0	0	0.01
Cl	0	0	0.01	0	0	0.01	0	0.01	0	0.01	0	0
Sum	100.57	100.61	100.59	100.87	100.33	100.73	100.94	100.61	100.74	100.71	102.01	100.76
Si (a.p.f.u.)	0	0	0	0	0	0	0	0	0	0	0	0
Al	0	0	0	0	0	0	0	0	0	0	0	0
Cr	0	0	0	0	0	0	0	0	0	0	0	0
Ti	0.88	0.88	0.79	0.78	0.9	0.89	0.9	0.9	0.89	0.93	0.94	0.94
Mg	0.07	0.07	0.06	0.06	0.07	0.07	0.07	0.07	0.07	0	0	0
Na	0	0	0	0	0	0	0	0	0	0	0	0
V	0.01	0.01	0.01	0.01	0.01	0.01	0.01	0.01	0.01	0.01	0.01	0.01
Mn	0.01	0.01	0	0	0.01	0	0.01	0.01	0.01	0.03	0.03	0.03
Ni	0	0	0	0	0	0	0	0	0	0	0	0
Zn	0	0	0	0	0	0	0	0	0	0	0	0
Ca	0	0	0	0	0	0	0	0	0	0	0	0
K	0	0	0	0	0	0	0	0	0	0	0	0
Fe2+	0.81	0.81	0.73	0.71	0.83	0.82	0.83	0.83	0.81	0.9	0.9	0.9
Fe3+	0.222	0.229	0.402	0.422	0.178	0.199	0.19	0.19	0.221	0.128	0.118	0.115
Ilm**	81.4	81.1	73.4	71.8	83.8	82.7	83.2	83.1	81.4	90.4	90.6	90.7
Hem**	11.1	11.5	20.2	21.3	9	10	9.6	9.5	11.1	6.4	5.9	5.8
Gk**	6.8	6.8	5.9	6.5	6.7	6.9	6.7	6.8	7	0.1	0.3	0.2
Pph**	0.6	0.5	0.5	0.5	0.5	0.4	0.5	0.5	0.5	3.1	3.2	3.3

However, the hematite component varies from 4.5 to 21.3 mol % (average of 10.4 mol %) in the banded nelsonite, and from 5.8 to 6.5 (average of 6.1 mol %) in the oxide-apatite norite.

In addition, ilmenite from the banded mineralization style contains between 0.2 and 6.6 wt % MnO which gives the mineral an important pyrophanite component (up to 14.9 mol % Pph, 5.2 mol % Pph on average), and up to 5.1 wt % MgO which translates into a remarkable geikielite component (up to 18.2 mol % Gk, 4.7 mol % Gk on average). In contrast, ilmenite from the oxide-apatite norite shows much lower pyrophanite and geikielite components (3.2 and 0.2 mol %, on average, respectively), since very low values of MnO (1.5 wt % on average) and MgO (below 0.1 wt % on average) were obtained (Figure 9).

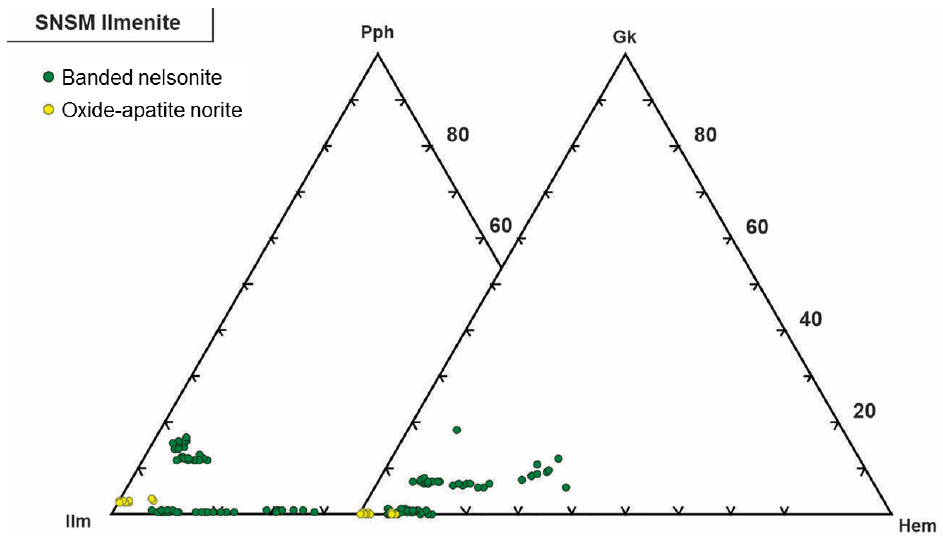

Figure 9 Triangular plots showing the ilmenite (Ilm)-pyrophanite (Pph)-hematite (Hem) (left) and ilmenite (Ilm)-geikielite (Gk)-hematite (Hem) (right) components of ilmenite in the SNSM.

Finally, measured points within the titaniferous hematite lamellae exsolved from ilmenite give highly variable Ti (Table 3, Figure 7). TiO₂ in the banded nelsonite varies from 2 to 18.1 wt %, but possible contamination from the ilmenite host cannot be discarded; and V ranges from 0.17 to 0.88 wt % V₂O₃.

Table 3 Representative EMP analyses of Ti-hematite lamellae from the SNSM.

Representative EMP analyses of Ti-hematite lamellae from the SNSM
Locality	Quebrada El Hierro
Type	Banded nelsonite
No.	NEL002I
Label	1-38	10-15	10-20	10-21	9-44	9-47	9-48
SiO2 (wt. %)	0.00	0.06	0.06	0.02	0.00	0.00	0.04
Al2O3	0.13	0.05	0.55	0.09	0.03	0.04	0.08
Cr2O3	0.01	0.23	0.11	0.21	0.12	0.19	0.17
TiO2	9.69	13.70	15.58	15.16	12.76	15.59	17.24
MgO	0.00	0.36	0.54	0.35	0.22	0.35	0.51
Na2O	0.03	0.00	0.00	0.00	0.00	0.01	0.01
F	0.07	0.00	0.00	0.00	0.03	0.00	0.00
V2O3	0.25	0.97	0.81	0.88	0.80	0.80	0.80
MnO	1.09	0.04	0.04	0.06	0.06	0.06	0.05
FeO *	38.14	42.65	44.28	44.14	41.91	44.33	45.72
Fe2O3*	48.55	40.02	36.47	37.65	42.24	36.87	33.65
NiO	0.01	0.01	0.08	0.01	0.00	0.00	0.00
ZnO	0.03	0.05	0.06	0.00	0.05	0.01	0.04
CaO	0.01	0.01	0.00	0.00	0.00	0.00	0.01
K2O	0.01	0.00	0.00	0.00	0.00	0.00	0.00
Cl	0.00	0.00	0.00	0.00	0.00	0.00	0.01
Sum	98.01	98.15	98.59	98.57	98.22	98.27	98.34
Si (a.p.f.u.)	0.00	0.00	0.00	0.00	0.00	0.00	0.00
Al	0.00	0.00	0.02	0.00	0.00	0.00	0.00
Cr	0.00	0.01	0.00	0.00	0.00	0.00	0.00
Ti	0.21	0.30	0.34	0.33	0.28	0.34	0.37
Mg	0.00	0.02	0.02	0.02	0.01	0.02	0.02
Na	0.00	0.00	0.00	0.00	0.00	0.00	0.00
V	0.01	0.02	0.02	0.02	0.02	0.02	0.02
Mn	0.03	0.00	0.00	0.00	0.00	0.00	0.00
Ni	0.00	0.00	0.00	0.00	0.00	0.00	0.00
Zn	0.00	0.00	0.00	0.00	0.00	0.00	0.00
Ca	0.00	0.00	0.00	0.00	0.00	0.00	0.00
K	0.00	0.00	0.00	0.00	0.00	0.00	0.00
Fe2+	0.93	1.03	1.06	1.06	1.02	1.07	1.10
Fe3+	1.07	0.87	0.79	0.81	0.92	0.80	0.73

a.p.f.u. = atoms per formula unit

* Calculated

Valid analyses of the patchy exsolutions in the banded nelsonite, and of the lamellae oxide-apatite norite mineralization style could not be obtained.

4.3.2. Magnetite

Magnetite grains in both mineralization styles do not differ significantly from each other in terms of chemical composition (Figure 7, Table 4). In the oxide-apatite norite, Ti content is too low to account for a titaniferous magnetite, with an average of 0.4 wt % TiO₂ (0.01 apfu Ti). In contrast, in the banded nelsonite it has an average of 0.5 wt % TiO₂ (0.01 apfu Ti), but it can reach up to 3.8 wt % TiO₂. Also in the banded nelsonite, the amount of Cr is relatively high with an average of 0.25 and a maximum of 3.4 wt % Cr₂O₃, while V content is 0.4 wt % on average, but reaching 0.78 wt % V₂O₃. Magnetite in the oxide-apatite norite mineralization contains 0.02 wt % Cr₂O₃ and 0.5 wt % V₂O₃ on average. The presence of magnetite is outlined by the Fe predominance in the qualitative element maps in Figure 8b and 8c.

Table 4 Representative EMP analyses of magnetite from the SNMS.

Locality	Quebrada El Hierro
Type	Banded nelsonite								Oxide-apatite norite
Sample	NEL002I								NEL002J
Label	1-1	1-5	1-8	1-45	1-46	10-38	10-40	9-42	5-88	5-89	5-90
SiO2 (wt. %)	0.03	0.01	0.05	0.01	0.04	0.01	0.03	0.00	0.03	0.03	0.00
Al2O3	0.26	0.21	0.19	0.28	0.33	0.10	0.95	0.07	0.45	0.28	0.18
Cr2O3	0.04	0.03	0.07	0.01	0.00	0.37	0.31	3.39	0.00	0.04	0.02
TiO2	0.06	0.06	0.15	0.13	0.11	1.58	3.76	0.09	0.63	0.14	0.29
MgO	0.00	0.02	0.04	0.03	0.00	0.00	0.35	0.02	0.00	0.05	0.00
Na2O	0.00	0.05	0.00	0.00	0.06	0.04	0.00	0.00	0.00	0.00	0.06
F	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00
V2O3	0.23	0.22	0.20	0.21	0.22	0.63	0.63	0.78	0.50	0.55	0.45
MnO	0.04	0.09	0.08	0.06	0.05	0.00	0.03	0.01	0.04	0.00	0.02
FeO*	30.80	30.47	30.75	31.25	31.08	32.42	34.17	31.10	32.04	31.56	31.52
Fe2O3*	67.61	67.89	67.45	68.79	68.78	65.40	60.30	64.59	67.56	68.86	69.18
NiO	0.0341	0.01	0.00	0.00	0.04	0.12	0.12	0.12	0.03	0.04	0.01
ZnO	0.0115	0.00	0.07	0.07	0.00	0.04	0.14	0.00	0.05	0.09	0.06
CaO	0.0216	0.00	0.02	0.02	0.05	0.00	0.00	0.00	0.00	0.01	0.02
K2O	0.0000	0.00	0.00	0.01	0.00	0.00	0.00	0.00	0.00	0.00	0.00
Cl	0.0000	0.00	0.01	0.00	0.01	0.01	0.00	0.00	0.00	0.00	0.01
Sum	99.13	99.07	99.07	100.88	100.78	100.73	100.80	100.17	101.34	101.66	101.82
Si (a.p.f.u.)	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00
Al	0.01	0.01	0.01	0.01	0.01	0.00	0.04	0.00	0.02	0.01	0.01
Cr	0.00	0.00	0.00	0.00	0.00	0.01	0.01	0.10	0.00	0.00	0.00
Ti	0.00	0.00	0.00	0.00	0.00	0.05	0.11	0.00	0.02	0.00	0.01
Mg	0.00	0.00	0.00	0.00	0.00	0.00	0.02	0.00	0.00	0.00	0.00
Na	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00
V	0.01	0.01	0.01	0.01	0.01	0.02	0.02	0.02	0.02	0.02	0.01
Mn	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00
Ni	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00
Zn	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00
Ca	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00
K	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00
Fe2+	1.00	0.99	1.00	1.00	0.99	1.03	1.08	1.00	1.02	1.00	1.00
Fe3+	1.97	1.98	1.97	1.97	1.97	1.88	1.71	1.86	1.93	1.96	1.97
Usp**	0.58	0.52	1.30	1.14	1.00	12.94	27.99	0.95	5.43	1.19	2.51

a.p.f.u. = atoms per formula unit

* Calculated

**Percent, calculated following ^{Stormer (1983)}

5. Discussion

The mineralogy and textures observed in the Fe-Ti(-V) oxides record the magmatic evolution, the cooling history and later modifications (e.g., metamorphism) of the ores. Textures observed in both ilmenite and magnetite are the response of changes in the physical conditions and chemical composition during and after crystallization from a melt (^{Craig, 2001}).

Firstly, according to ^{Alfonso et al. (1990)} and ^{Tschanz et al. (1969)}, the mineralization in SNSM is associated with magmatic segregation processes that formed both banded nelsonite and oxide-apatite norite ores with little or no continuity. Many hypotheses explain the formation of Fe-Ti(-V) oxide deposits. One hypothesis involves fractional crystallization. Anorthosite parent magmas and their residual liquids are Ti-rich, which may enable the early saturation and crystallization of ilmenite.

However, the calculated cotectic proportion of ilmenite in a ferrobasaltic liquid is not enough to produce an ore deposit, so ilmenite enrichment processes are required (^{Charlier et al., 2015}; and references therein). Another hypothesis is magma immiscibility, which leads to the formation of cumulates, by segregation from a Fe-rich immiscible melt. Ilmenite and apatite could form before ferromagnesian silicates, while plagioclase, with lower density, could be separated by flotation. However, this hypothesis cannot be applied to the formation of deposits with only ilmenite, and enrichment processes are also necessary. Finally, variations of Cr in ilmenite along the ilmenite deposit of Lac Tio (Canada) suggest the possibility of various magma pulses, and alternating fractional crystallization and magma mixing stages (^{Charlier et al., 2015}; and references therein).

On one hand, the origin of nelsonites in the Grader layered intrusion (including nelsonites, massive oxides and oxide-apatite gabbronorites), near the Tio Mine, has been interpreted as successive liquidus phases from a continuous fractional crystallization process, with ilmenite and plagioclase followed by apatite, orthopyroxene+magnetite, and finally clinopyroxene, with possible gravitational segregation of ilmenite and apatite from plagioclase (^{Charlier et al., 2008}). On the other hand, the oxide-apatite norite would develop dykes and sheets, formed by filter pressing of magmas successively depleted in Si, Al, alkali, and enriched in Fe, Ti and P. These would represent late stages of the evolution of these magmas, comagmatic with the anorthositic rocks, as suggested by ^{McLelland et al. (1994)}. However, the limited availability of data regarding the spatial distribution and chemical variations in a larger scale of SNSM, and their relationships with the anorthosite host do not allow further constraining of the formation of the studied Fe-Ti(-V) oxide ores.

The liquid temperature at which the Fe-Ti(-V) oxide cumulates might have formed was experimentally established between 1100 to 1200°C in a jotunite parental magma for the associated anorthosites in the Rogaland ilmenite deposit (^{Duchesne and Liégeois, 2015}). Nevertheless, according to ^{Charlier et al. (2015)}, the emplacement of ilmenite deposits as a melt is highly questionable due to its high melting point, at least 1365°C, too high for a melt in the crust. ^{Carmichael (1966)} concluded that ilmenite, magnetite or both are the first minerals to crystallize. The SNSM oxide ores are characterized by dominant ilmenite coexisting with minor magnetite. According to ^{McEnroe et al. (2004)}, the first oxide to crystallize from the magma is ilmenite, followed by magnetite, as a result of a later reduction of the magma. However, this can also be explained by the observation that the presence of magnetite is controlled by f O₂, whereas the saturation of ilmenite is determined by TiO₂ (^{Toplis and Carroll, 1995}). Hence, a melt in oxidizing conditions but a high TiO₂ can reach ilmenite saturation before magnetite (^{Charlier et al., 2015}; and references therein). Secondly, both ilmenite and magnetite in SNSM display subsolvus features and symplectites, which reflect isochemical processes during cooling (e.g., ^{Craig, 2001}; ^{Sauerzapf et al., 2008}; ^{Duchesne et al., 2015}). It is worth mentioning that size and spatial arrangement of the exsolution features are a function of the cooling history (^{McEnroe et al., 2002}). Once crystallized and upon cooling, ilmenite developed hematite exsolutions along the {0001} planes of the host (e.g., Duchesne, 1970), and the process is isochemical (^{Arguin et al., 2018}; and references therein). ^{McEnroe et al. (2002)} pointed out that the equilibrium recrystallization occurred prior to the low temperature exsolution process, since every ilmenite grain has its own set of {0001} planes in different directions, and is interrupted by grain boundaries, as the textures observed in the SNSM banded nelsonite (Figures 5a and 5b). ^{Carmichael (1961)} established that the temperature of the hemo-ilmenite Precambrian deposits of Allard Lake (Québec) was between 575-600°C when the hematite lamellae exsolved, and that these conditions were maintained during a long period of time. Alternatively, in studies combining mineral chemistry and magnetism, thermodynamic models indicate that there is a miscibility gap below 700-800°C between a paramagnetic hematite-rich phase and a paramagnetic ilmenite-rich phase (^{McEnroe et al., 2007}). As temperature decreases, canted ferromagnetism in hematite appears at lower temperatures (^{McEnroe et al., 2007}).

^{Balsley and Buddington (1958)} already stated that the number and size of hematite lamellae are related to the hematite component in ilmenite: exsolutions are not visible for Hem below 7 mol %; exsolutions appear when Hem exceeds 7-9 mol %; and when Hem is above 18 mol%, two generations may appear. This is coherent with the textures and mineral chemistry obtained in the banded nelsonite of the SNSM (4.4-22.4 wt% Fe₂O₃, 4.5-21.3 mol % Hem in the banded nelsonite, with two generations of exsolutions; and 6.1-6.8 wt% Fe₂O₃, 5.8-6.5 mol % Hem in the oxide-apatite norite , with smaller and fewer exsolutions). According to X-ray diffraction and Curie point studies in Allard Lake by ^{Carmichael (1961)}, the small hematite lamellae exsolved at a lower temperature and later than the larger lamellae. In particular, ^{Carmichael (1961)} suggested that the smaller lamellae might have formed during erosion that enabled the Allard Lake deposits to outcrop. ^{McEnroe et al. (2002)} were able to analyze both sets of lamellae by EMP and transmission electron microscopy, and determined that the original ilmenite, Ti-poor (Ilm84) would exsolve at high temperature to form Ilm94 host and micrometer-sized Ilm23 lamellae. Further cooling would produce nanometer-sized Ilm15 surrounded by Ilm98 hosts. The fact that the smaller lamellae would be richer in hematite, if exsolution was so quick that the larger lamellae would not have reached equilibrium, was also predicted by ^{Carmichael (1961)}.

Extensive diffusion of Fe²⁺, Fe³⁺ and Tiּּּ+Fe³⁺ from the Ilm-Hemss not only yields the formation of the exsolved lamellae but also generates relatively large areas of exsolution-free haloes (^{Arguin et al., 2018}), as the ones seen in Figure 5d In any case, it should be noted that most thermodynamic and experimental approaches to the Fe-Ti oxide system do not take into account the effect of components other than Ti, Fe²⁺ and Fe³⁺ (e.g., Mg and Mn) and only apply to certain pressure ranges (^{Robinson et al., 2004}). In parallel, a similar process takes place within the magnetite grains where spinel exsolves in the form of minute needles along the {100} planes of magnetite, like the ones observed in Figure 5e. ^{Turnock and Eugster (1962)} found that the magnetite-hercynite solvus lies at 860 ± 15 °C. In any case, there are very few aluminous spinel exsolutions (observed only in the banded nelsonite, Figure 5d), indicating that magnetite originally contained a very small amount of Al₂O₃. These aluminous spinel exsolutions may also occur in ilmenite, as seen in Figure 5i and in Charlier et al. (2006), but are less frequent. The fact that magnetite in the SNSM does not display ulvöspinel-magnetite exsolutions, and that it contains very low Ti, implies that Ti was mostly spent on the crystallization of ilmenite.

Apart from that, symplectitic textures involving rutile and magnetite, similar to those observed in Figure 5h, were also described by ^{Tan et al. (2015)} in the Xinjie mafic-ultramafic Fe-Ti oxide deposit (China). These textures could be explained by a local low temperature alteration of hemo-ilmenite to magnetite + rutile under oxidizing conditions. The subsolidus oxidation of the original Ilm-Hemss would lead to a more Fe-rich Ilm-Hemss, in turn producing a heterogeneous nucleation of rutile. The rutile growth would consume Ti⁴⁺, generating an excess of Fe²⁺ along the Ilm-Hemss boundary. This process enhances the diffusion of the Fe³⁺ from the Ilm-Hemss towards the boundary, and together with Fe²⁺, leads to the nucleation of magnetite between ilmenite and rutile. This process ends below ~650°C, and hematite exsolutions would start forming after.

Finally, there are mineralogical evidences that the oxide-apatite norite and the nelsonite underwent metamorphism to some extent, as exemplified for example, by the presence of amphibole and chlorite instead of pyroxene in the oxide-apatite norite (Figure 4d). Likewise, högbomite group minerals have been reported in high grade metamorphosed peraluminous or mafic rock, together with other Al (e.g., spinel) and Ti (e.g., ilmenite) minerals (^{Petersen et al., 1989}). Furthermore, the assemblage of baddeleyite, zircon and srilankite (Ti₂ZrO₆), associated whith ilmenite, has also been reported in a Proterozoic anorthosite-mangerite-charnokite-granite suite which underwent granulite facies metamorphism (^{Bingen et al., 2001}). According to these authors, ilmenite (with tens of ppm Zr) can exsolve baddeleyite during subsolidus cooling of the intrusion; and srilankite could be produced after a reaction between ilmenite and baddeleyite. Ultimately, during granulite facies metamorphism, zircon could form after the reaction of baddeleyite with silica (^{Bingen et al., 2001}). However, in SNSM baddeleyite, with inclusions of srilankite and a spinel rim, is included in ilmenite, whereas in ^{Bingen et al. (2001)} baddeleyite and srilankite are mostly in the contacts with, and rarely included in, ilmenite (also coexisting with spinels, of gahnitic composition). Since the zircon coronas described in ^{Bingen et al. (2001)} and ^{Charlier et al. (2015}) do not have any systematic spatial relationship with hematite lamellae in ilmenite, these authors determined that Zr exsolution happened before hematite exsolution. In contrast, baddeleyite in SNSM seems to crosscut hematite, although more data are needed to obtain a solid conclusion.

6. Conclusions

The Fe-Ti(-V) oxide ores in the Proterozoic massif type anorthosite in SNSM display slightly differentiated REE patterns and negative Eu anomalies. According to the mineralogy, textures and mineral chemistry, two ore types were distinguished: i) oxide-apatite norite (fine grained ilmenite and magnetite disseminated in an assemblage of apatite, amphibole, chlorite, rutile and plagioclase); and ii) massive, banded nelsonite, with alternating layers of coarse grained ilmenite and magnetite, and apatite, with minor baddeleyite, srilankite and högbomite. In both, ilmenite displays different hematite exsolution features: needle-like in the oxide-apatite norite ore, and two generations of exsolutions in the banded ore (an earlier, coarser grained; and a later, finer grained). The composition of magnetite in terms of Ti and V is quite homogeneous in both ore types, whereas ilmenite has higher Fe³⁺, Mn and Mg contents in the banded ore.

The mineral assemblages and textures observed are similar to those of other major ilmenite deposits in the world, such as Lake Allard in Canada, and Tellnes in Norway. However, more information is needed concerning the spatial location of the different ore types in order to extend the knowledge on the formation of these ores.
