1. Introduction
The volcanic origin of the area surrounding El Pinacate and Santa Clara mountains, in preset day Sonora, northwestern Mexico, has been known for more than 300 yrs (Ives, 1942). Modern research on El Pinacate before the 1990’s has been summarized by Gutmann (2007) who also provides remarks of personal experiences that capture the difficulties faced when conducting field work on this area characterized by an arid climate, lack of roads and settlements, and some terrains of a hazardous nature. Most of those studies focused on a few specific craters such as El Tecolote, Elegante, or Cerro Colorado, or the voluminous Ives lava flow (estimated volume between 0.25 to 0.5 km3 according to Lynch, 1991), from where most estimates of age, chemical and mineral compositions and paleomagnetic signature of the entire volcanic field have been inferred (Alva Valdivia et al., 2019; Gutmann, 2002; Lynch, 1991; Lynch et al., 1993; Lynch, 1981; Martin and Nemeth, 2004; Rodríguez-Trejo et al., 2019; Turrin et al., 2008; Zawacki et al., 2019). Occasionally, El Pinacate has been mentioned as part of a much broader research that compares some attributes of this field with other volcanic fields elsewhere on Earth or even in other planets (e.g., Jacobo-Bojórquez and Cañón-Tapia, 2020; Le Corvec et al., 2013), or in the context of regional gravity and aeromagnetic data used to constrain crustal structure and to determine Curie temperatures (Campos-Enriquez et al., 2019; Sumner, 1972). Such information has been interpreted as indicating the presence of a large subsurface body beneath the northern half of the volcanic field and of a smaller one beneath the southern half (García-Abdeslem and Calmus, 2015). The exact nature of both subsurface bodies, however, remains enigmatic.
The spatial distribution of volcanic vents in El Pinacate has been studied through several methods aimed to identify vent alignments (García-Abdeslem, 2020; Lutz and Gutmann, 1995; Wadge and Cross, 1989). In all cases a N20°W alignment has been identified, but its nature remains controversial. Other orientations have been reported, depending on the method used for the analysis. The degree of clustering of vents also has been described (Jacobo-Bojórquez and Cañón-Tapia, 2020; Le Corvec et al., 2013), but no interpretation concerning the underlying plumbing system has been drawn from such studies.
In this work we reexamine the spatial distribution of volcanic vents in El Pinacate by combining several methods of analysis aiming to identify patterns that include, but are not limited to, the identification of alignments. This approach has provided glimpses of the sub-volcanic system in other places on Earth and the Moon (Cañón-Tapia, 2021a; Cañón-Tapia, 2021b; Cañón-Tapia and Jacobo-Bojorquez, 2022).
2. Geologic setting
Morphologically, the southern part of the field is dominated by the Santa Clara volcano (Lynch, 1981). The northern half of the field is topographically lower, and has no prominent structures, although two small topographic heights can be barely identified north of Santa Clara (Figure 1). Based on the geometric characteristics and the geographic distribution of flows, Donnelly (1974) proposed the presence of three shield volcanoes in the region, but the lack of a clear topographic expression for those shields (except Santa Clara), casts doubts concerning the existence of those edifices.

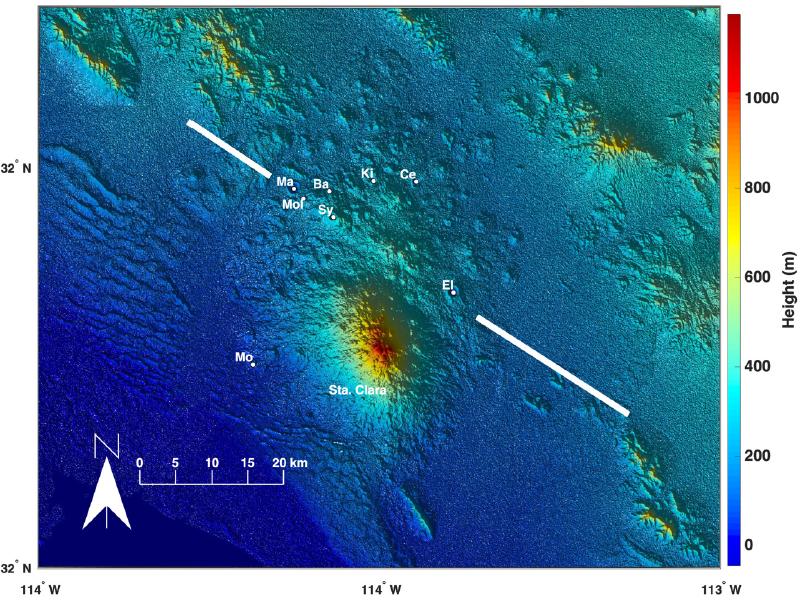

Figure 1 Digital Elevation Model of El Pinacate region. The eight maars in the volcanic field are shown for reference: Ba - Badillo Crater, Ce - Celaya Crater, El - Crater Elegante, Ki - Kino Crater, Ma - MacDougal Crater, Mo - Moon Crater, Mol - Molina Crater, Sy - Sykes Crater. The diagonal line marks the approximate location of the inferred listric fault mentioned by Lutz and Gutmann (1995).
Volcanism has occurred since at least 1.7 Ma (Lynch, 1981), with the youngest activity probably occurring no more than a few thousand years ago (Alva Valdivia et al., 2019). Such activity has been responsible for the formation of a trachytic shield known as the Santa Clara volcano, and later for the formation of the 416 basaltic vents identified by Lutz and Gutmann (1995), all of which are thought to be monogenetic. Those monogenetic vents cover the surface of El Pinacate defining the volcanic field that is observed at present.
An hypothetical component of El Pinacate is a listric fault that may cut the field diagonally in a NW-SE direction, but geophysical studies fail to provide concrete evidence. Lutz and Gutmann (1995) discuss such a fault based on evidence obtained outside the boundaries of the Pinacate field, associating it with the opening of the Gulf of California, therefore implying its formation ~ 5 Ma before the present. According to them, the orientation of this inferred fault presents problems concerning the orientation of N-S vent alignments that are associated with shear along the San Andreas transform fault system west of the volcanic field. Thus, they invoked three different mechanisms to explain the formation of the listric fault and some of the vent alignments documented during their analysis: an increase in Pinacate magma pressure, a decrease in the magnitude of the tectonic horizontal stresses, and a combination of both factors.
3. Methods
We analyzed the distribution of volcanism using the coordinates of 416 vents identified in El Pinacate by Lutz and Gutmann (1995). Examination of satellite images from this area allows the identification of a slightly larger number of vents (433), but the database of Lutz and Gutmann (1995) provides an associated age division for their vents, which is advantageous. Their age division is based on the degree of erosional modification as well as on stratigraphic relations observed both in stereo pairs and in the field. Due to the lack of more precise isotopic results for the majority of the vents in the field, that age division constitutes the best available information at present. Even if the broad age assignment is somewhat uncertain, it may capture general trends by focusing on the young (120 vents) vs. old (204 vents) classes, ignoring the intermediate / indeterminate age group (92 vents).
Aiming to overcome some of the biases and limitations of previous studies of the spatial distribution of vents in El Pinacate, we combined four methods: 1) a Gaussian kernel to generate a sequence of Probability Density Functions (PDFs), 2) the combination of several clustering methods to form the so called core-groups (Cañón-Tapia, 2020), 3) two-point azimuth analysis with a restriction of vent distance (Cebriá et al., 2011), and 4) a hierarchical classification based on a general definition of a cluster (Cañón-Tapia, 2021a). All four methods were implemented using MATLAB codes. Brief descriptions of each method are as follows:
3.1. SEQUENCE OF PDFS USING A GAUSSIAN KERNEL
This method was used to some extent by Lutz and Gutmann (1995). Nevertheless, the PDFs that they showed were not systematically presented for the different age groups, nor were they presented in direct combination with the results of the other methods of analysis. The PDFs associated by a Gaussian kernel are defined by:
where di is the distance between the point where the function is being determined and the ith observation, N is the total number of observations (vents), and Cn is the smoothing factor. In this work, the distance between two points was calculated from the latitude- longitude coordinates assuming a sphere with radius equal to 6371 km. Several PDFs were calculated using values of Cn in the range 0.9 to 10 km. All the PDFs were normalized, so that contour lines were drawn at 10% intervals relative to the maximum probability-density of each function (fmax). The general location of the local maxima on the sequence of PDFs was used later as a guide to constrain the probable number of clusters to be expected when completing the identification of core-groups.
3.2. CORE GROUPS
The basis for the identification of core groups is the use of more than one method of analysis leading to a more robust result than the identification of a given partition through the use of a single clustering method. This approach has been shown to yield partitions that are more compatible with geology-based classifications in an area where clusters of different characteristics (shape and size of outline, number of total observations, density structure of the membership, etc.) co-exist (Cañón-Tapia, 2020). In essence, this part of the analysis consists of the identification of vents that belong to the same group according to more than one clustering algorithm (or their variants). To standardize the analysis, Cañón-Tapia (2020) used the following clustering methods: Hierarchical agglomerative with average, centroid, median and complete linking criteria; Partitioning k-means, Partitioning k-medoids, and a Gaussian mixture model that relies on the Expectation-Maximization algorithm. Details of each of those methods can be found on either the MATLAB documentation or more extensively on Everitt et al. (2011) and McLachlan and Peel (2000). In this work we used the same list of methods.
To implement the automatized search of core-groups it is necessary to have a previous estimate of the number of clusters to be expected. As is often the case, the number of clusters to be identified is ill-determined at the beginning of any study. To avoid as much as possible biases introduced by any pre-conceptions about the spatial structure of the data (or about the number of clusters), in this work we analyzed the core-groups defined by a range on the number of expected clusters. The range was determined by counting the number of local maxima identified in the previously obtained PDF sequence, as described in the previous section. Once the specified number of core-groups had been identified, comparison between the location of the kernel-associated maxima and the core-groups allowed the identification of the most stable groups. Regardless of such stability, a final decision concerning which groups should be considered as more likely to be geologically significant was postponed until two additional methods of analysis were completed.
3.3. A HIERARCHICAL DEFINITION OF POSSIBLE CLUSTERS
The approach adopted here relies on the comparison of two distances that can be used to define a cluster. One of those distances is the largest distance between one arbitrary object belonging to one cluster and its nearest neighbor within that cluster (hereafter referred to as the maximum within cluster distance, or MWCD). The other distance to be calculated is the shortest distance between one arbitrary object belonging to the cluster and any one object outside of that cluster (hereafter referred as the between cluster distance, or BCD). It is remarked that the BCD only requires members of one cluster to be identified because the observations outside that cluster may or may not belong to a second cluster. MWCD allows us to separate a tentative membership related with a zone of interest (as for example a zone with large number of vents/area). Another advantage is that the search for clusters can be made hierarchically (for example, the cluster with the largest local density is defined first, regardless of the total number of clusters or the characteristics of any other possible cluster in the entire population) allowing identification of overlapping and subclustering structures after all the observations have been assigned to their corresponding groups. A third advantage is that it is possible to leave some observations without an associated group, which is useful in cases of chaining effects or extreme overlapping.
To make the search in a systematic form, we adopted the same protocol as described in Cañón-Tapia, E. (2021a).
3.4. SHORT-DISTANCE VENT ALIGNMENTS
Interpretation of patterns of vent distribution commonly assume that magma reaches the surface through vertical conduits having horizontal dimensions not much larger than the lateral extension of the vent at the surface in at least one direction (Valentine and Perry, 2006). The extension of the conduit in a perpendicular direction may be much larger than one single vent, potentially feeding more than one eruption along a line of vents that may extend for tens of kilometers like the Skaftár Fires eruption, Iceland, in 1783-1785 (Thordarson and Self, 1993). Regardless of the extension of the feeding conduit, the separation of vents that have been fed by the same dyke has been documented to be less than 1.5 km (Tibaldi, 1995). Consequently, we adapted the two-point azimuth method used to find vent alignments with a separation limit (Cebriá et al., 2011) to search for those vents more likely to have been fed by a common intrusion in El Pinacate region. The idea is that drawing in a map those segments that separate adjacent vents by a specified distance (always smaller or equal to 1.5 km) might reveal underlying structures such as rift zones in shield volcanoes, or interconnections with a central conduit in a very straightforward manner. The information provided by the location of plexus defined by a large number of short-distance vent segments is therefore probably linked to the presence of conduits of magma that are more important within a volcanic system than the location of individual vents.
4. Results
Figure 2 allows visual comparison of the results of methods 1 to 3, and the results of the fourth method are reported in Table 1. The first three methods support the identification of eight groups of vents, although their boundaries are not well established. Attempts to identify independent clusters that could be separated from their neighbors by a distinctive Between Cluster Distance (BCD) almost invariably led to the merging of two or more of the adjacent core-groups, therefore indicating that in most cases the separation between groups is ill-defined. Allowing for the isolation of intermediate vents that promote chaining effects that result in the union of adjacent clusters, the Mean Within Cluster Distance (MWCD) and BCD of the updated core-groups was calculated (Table1). In this form, the boundaries of the groups is easier to define.
Table 1 Maximum Within Cluster Distances (MWCD) - diagonal, and Between Cluster Distances (BCD) - off-diagonal of the 8 groups identified in El Pinacate region. All distances are in km.
| G1 | G2 | G3 | G4 | G5 | G6 | G7 | G8 | |
|---|---|---|---|---|---|---|---|---|
| G1 | 2.1 | 2.2 | 1.6 | 5.0 | 14.1 | 12.0 | 21.5 | 17.3 |
| G2 | 3.0 | 1.7 | 12.7 | 5.5 | 9.2 | 14.9 | 15.7 | |
| G3 | 1.1 | 1.6 | 7.9 | 3.3 | 13.4 | 8.3 | ||
| G4 | 2.8 | 8.9 | 2.0 | 9.6 | 2.2 | |||
| G5 | 2.9 | 1.7 | 4.3 | 9.3 | ||||
| G6 | 1.3 | 1.8 | 1.5 | |||||
| G7 | 4.2 | 3.3 | ||||||
| G8 | 1.4 |

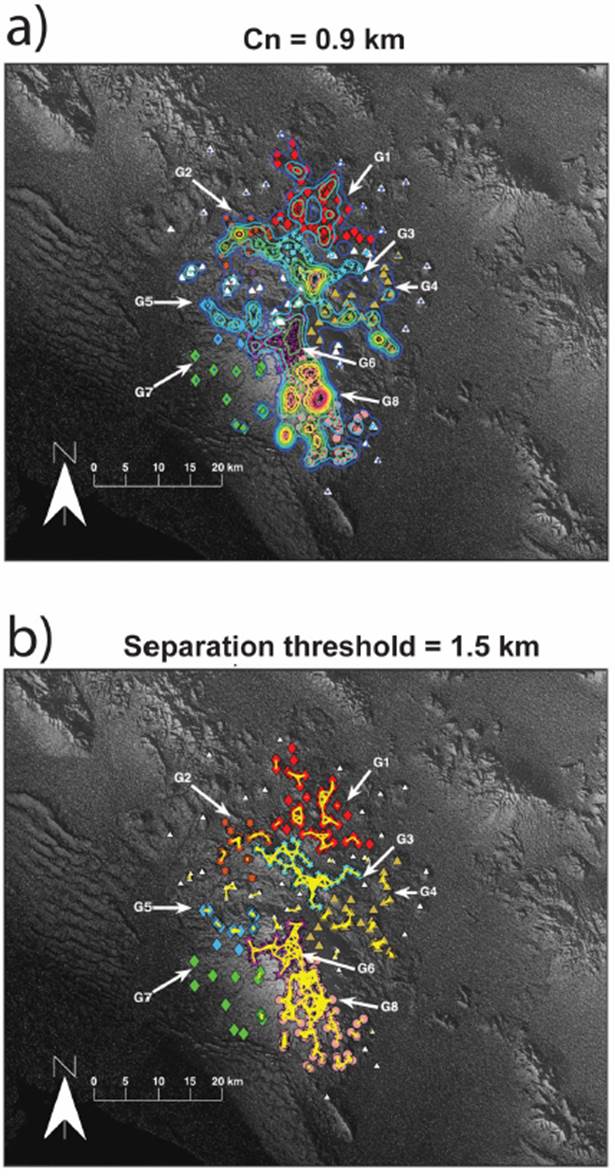

Figure 2 Method comparison. a) 8 core-groups superimposed to PDF obtained with Cn=0.9 km. b) 8 core-groups and lines joining vents that are separated by less than 1.5 km. Vents belonging to each of the 8 main core-groups are identified by a different symbol and color; those not associated with any of the core-groups are shown as white triangles. The arrows and labels allow the identification of those groups with the distances presented in Table 1.
In both panels of Figure 2 the north half of El Pinacate field is divided in two dominant groups (G1 and G3), G3 having a marked NW-SE elongation. The southern half of the field is dominated by groups G6 and G8, although the separation between them is not straightforward. The other four groups seem to be peripheral and have a subordinate character. Focusing attention of the four dominant groups, Figure 3 shows their position and associated vents divided by age.
5. Discussion
5.1. AGE CONSTRAINTS

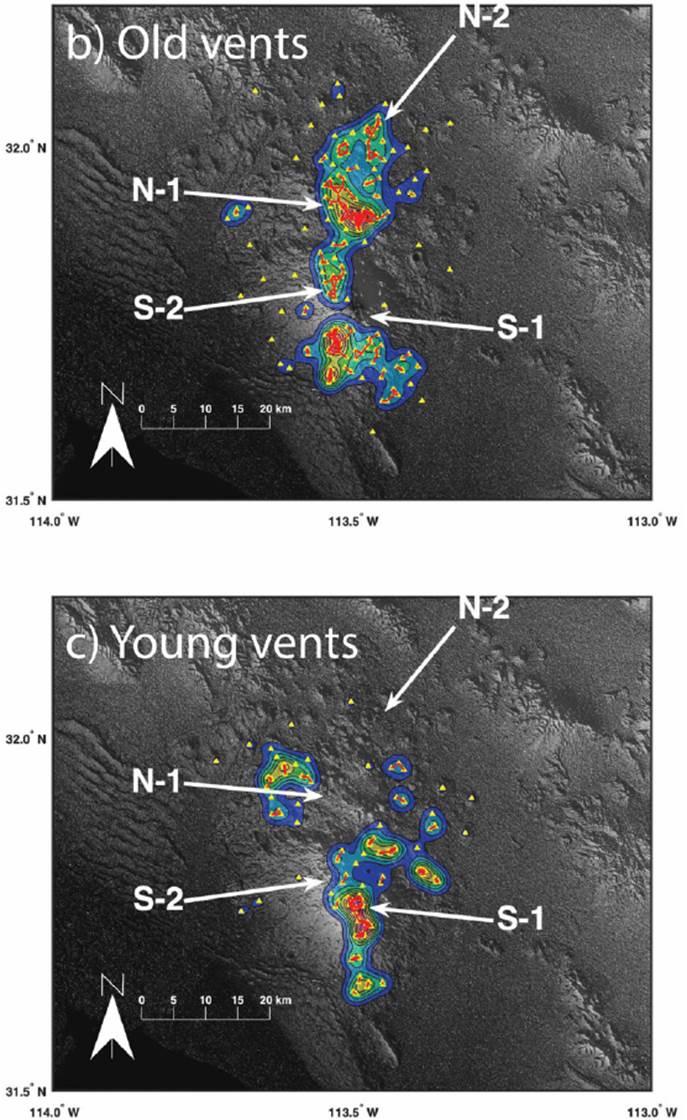

In terms of age, each of the eight groups includes both young and old vents, therefore precluding an interpretation involving a systematic migration of volcanic activity. Nevertheless, the distribution of volcanic vents over the entire area seems to have experienced some changes with age. Older vents tended to be arranged in a North-South band (Figure 3b) whereas more recent volcanism took place parallel to the inferred listric fault that crosses the field at its middle section, especially within the boundaries of G2, G4 and G5. In terms of the four dominant groups, the plexuses of vents can be tentatively associated to central systems arranged along a N-S line across the entire field. Nevertheless, N-1 is the only having an orientation parallel to the trend of the inferred fault. Considering the ages of volcanism (< 1.7 Ma) and the most probable age of the listric fault (~ 5 Ma), a change in the orientation of the tectonic stress after volcanism had started is an unlikely explanation for the shape of N-1. If such a reorientation of stress had occurred, it would had affected all younger vents, and not only those at the boundaries of the groups of vents that are spatially closer to the inferred listric fault.
5.2. DEPTH OF MAGMA SOURCE

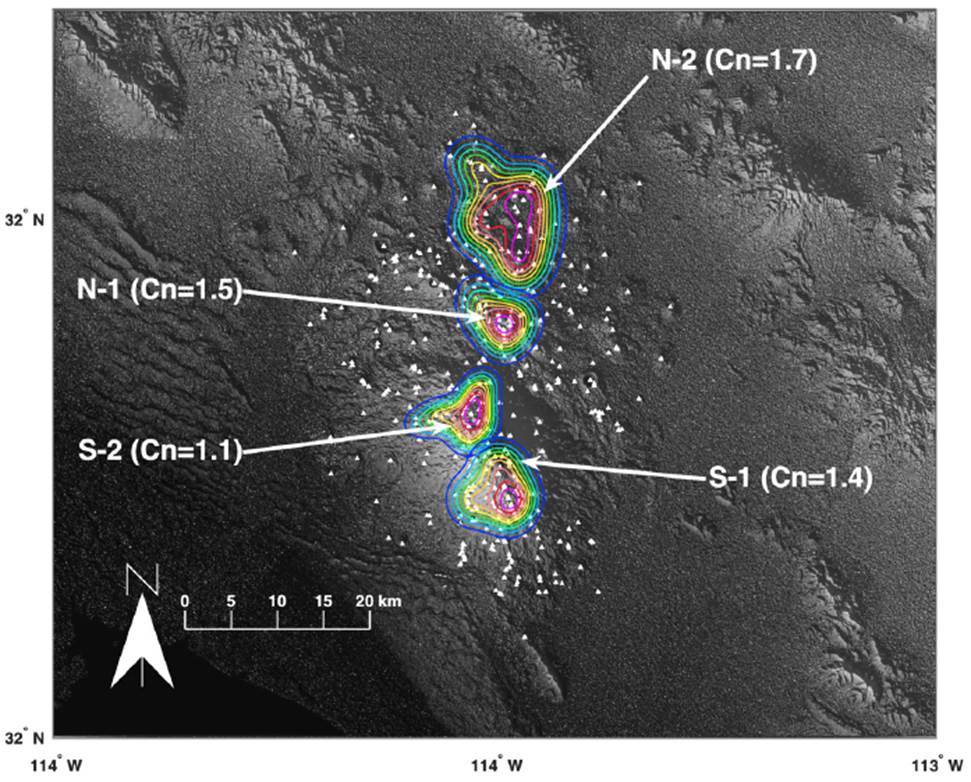

Following Cañón-Tapia (2021a) and Cañón-Tapia (2021b) we calculate independent PDF contours for each of the four dominant groups to constraint minimum depths of magma for each group. Results are shown in Figure 4, implying a minimum magma depth between 7 and 14 km. This depth agrees well with estimates to the regional depth to the Curie isotherm (Campos-Enriquez et al., 2019), and with the presence of mafic rocks of gabbroic composition (García-Abdeslem, 2020). It must be noted that the range in depth obtained with this method in Kamchatcka range between 3 and 8 km (Cañón-Tapia, 2021b) and on Jeju island range between 5 and 35 km (Cañón-Tapia, 2021a). Consequently, even when many volcanoes may have reservoirs on the range 7-14 km, the result obtained here is specific for El Pinacate and not a generic assertion valid for any volcano around the world.
5.3. EL PINACATE FOUR SHIELD VOLCANOES
Our four dominant groups coincide remarkably well with the three shield volcanoes proposed by Donnelly (1974). Donnelly’s southern shield coincides with the Santa Clara edifice (S-1 and S-2), his central shield coincides with our N-1 structure, and his north shield roughly corresponds with our N-2 structure (although according to Donnelly, this shield includes only the north part of structure N-2 and extends much farther to the north of the field). The extent of the main part of the four shields proposed here is shown in Figure 5. Each shield is characterized by having its own centralized system from which other vents emanate, while remaining identifiable as independent edifices regardless of their relative topographical expression. This description is reminiscent of the description of a “volcanic-shield cluster” proposed by Wentworth and Macdonald (1953).

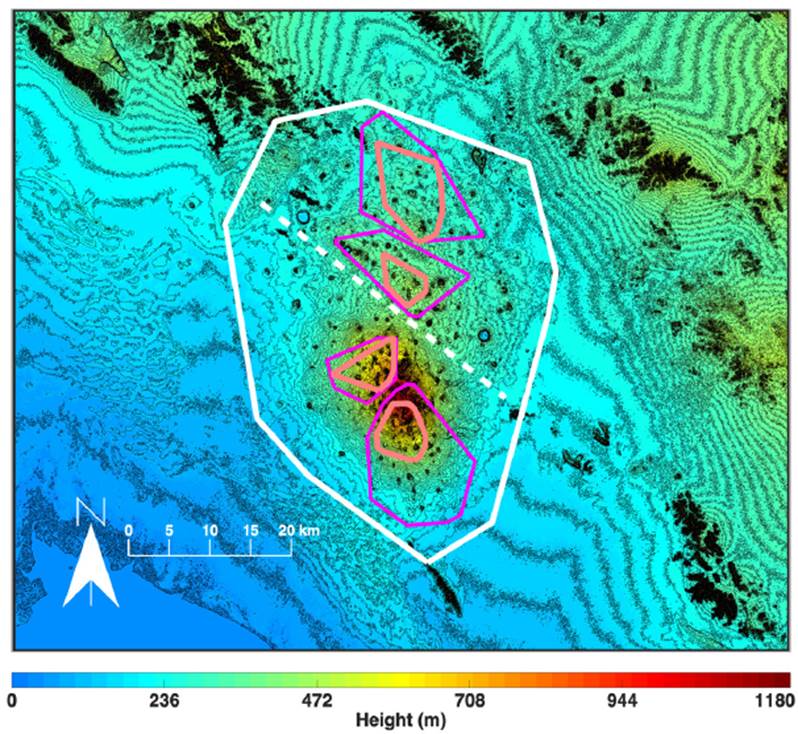

Figure 5 Topographic map of El Pinacate region. The envelope of the vents (convex-hull) is shown for all the field (white line), each of the four main structures (magenta line) and the vents associated to a possible central conduit (orange lines). The dashed white line marks the approximate position of the trace of the listric fault.
From a broader perspective, the distribution of vents on S-1 and N-2 resemble the overall vent distribution observed at Olympus Mons if each is regarded independently. Also, the general distribution of vents in El Pinacate has some broad similarities with the distribution of vents observed in two lunar shields (Marius Hills and Mons Rumker) (Jacobo-Bojórquez and Cañón-Tapia, 2020). For these reasons, we consider that El Pinacate can be visualized as a variant of a shield-cluster in which the topographic expression of each shield is not as clear as in Hawai’i, an in which crustal structures have influenced mainly the development of one of those shields.
5.4. TECTONIC SIGNIFICANCE
The location of El Pinacate volcanic field in the vicinity of a tectonically controlled rifted basin is somewhat reminiscent of the relationship that exists between the Al Haruj volcanic province and the Sirt basin in central Lybia (Elshaafi and Gudmundsson, 2016; Elshaafi and Gudmundsson, 2017). Nevertheless, it is not clear whether El Pinacate can be considered to be within the limits of the tectonically controlled basin or not, whereas at the Al Haruj Province the volcanic field is clearly within the limits of the Sirt basin. This would explain the differences in vent distribution at both sites. Vent distribution at the Al Haruj Province is markedly controlled by underlying fissures leading to very prominent vent alignments, whereas at El Pinacate such alignments are not dominant at all. Also, even when it can be considered that there is a clear morphological distinction between the north and south halves of the El Pinacate region, this is related to the presence of a larger structure on the south (Sta. Clara large-shield volcano) whereas at the Al Haruj Province the difference between north and south is related to the size and general characteristics of individual vents (larger lava shields on the north vs. smaller cones in the south).
Despite those differences, in both places it is possible to identify more than one independent volcanic system, each probably related to its own set of magma reservoirs from which the magma feeding the vents at the surface is temporarily stored.
Our interpretation explains the N-S elongation and vent alignment noted by Lutz and Gutmann (1995), as well as the dominant N20W° vent alignment. Unlike previous interpretations, ours indicate that the overall N-S shape of El Pinacate volcanic field is due to an elongated integrated magma source that includes a combination of reservoirs at various depths, but that is controlled by the regional gradient of temperatures, whereas the N20°W vent alignment is due to the influence of the listric fault on just one of the main shields. The distribution of vents surrounding those main shields results from the combined effect of the independent magma reservoirs and the crustal structures.
Identification of the main groups is a useful guide for future research on El Pinacate because they justify focusing future field work on one of those structures at a time. Adoption of such a work plan is likely to yield results that could be used to assess the geologic significance of the proposed structures in more efficiently than until now.
