1. Introduction
Iran was created up of several microcontinents and part of the Cimmerian plate located between the Laurasia margin and the Tethys Ocean during the Late Triassic to Middle Jurassic. Iranian Microplate was under the impression of Cimmerian orogeny which caused the closure of the Paleo-Tethys Ocean and opening of the Neo-Tethys Ocean. Shemshak Group is the term given to all terrigenous and carbonates successions that formed in Iran between the Early and Middle Cimmerian orogeny. The formations in this group are the Nayband Formation (Carnian-Rhaetian, carbonate), Ab-e-Haji Formation (Hettangian-Pliensbachian, shale and sandstone), Badamu Formation (Toarcian- Aalenian, sandstone and limestone) Hojedk Formation (Bajocian- Bathonian, shale and sandstone).
The Jurassic deposits in Iran can be divided into two sub-basins based on coal facies: Kerman and Tabas coal sub-basin (Central Iran with Bajocian-Bathonian age) and Alborz coal sub-basin (northern Iran with Aalenian-Bajocian age) (Ameri, 2018). In the Center Iran, there is a widespread distribution of the Ab-e-Haji and Hojedk formations. There are several coal horizons in these shale and sandstone layers. The Jurassic Cimmerian plate’s most diverse and important paleobotanical vegetation was found in the northern Kerman region.
The Jurassic succession and plant fossils described in this paper are situated about 2 km east of the Hossein Abad village and 49 km north of Kerman city (Figures 1, 2).

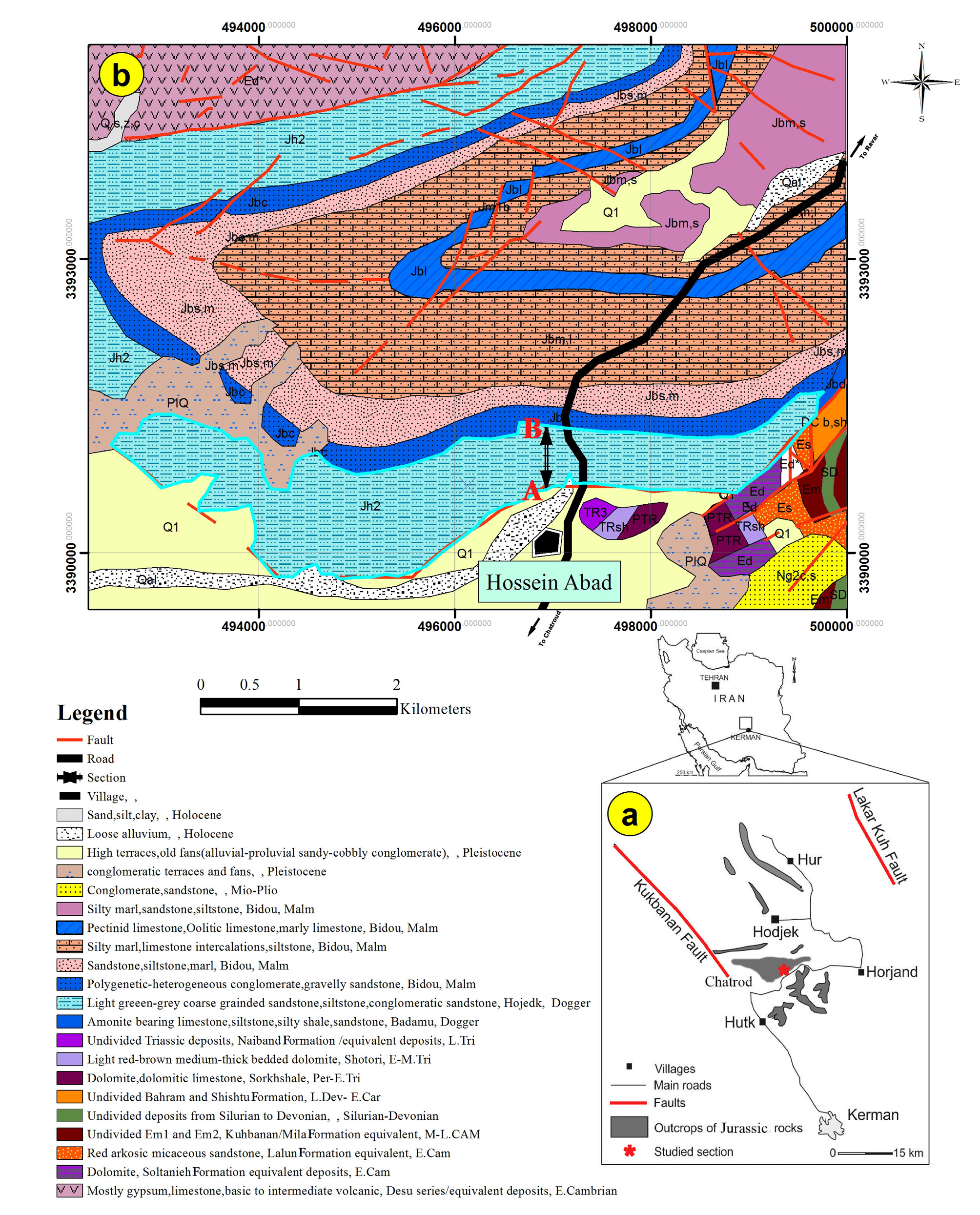

Figure 1 Shows the location of the studied section on a geological and road map of the Chatroud region.
Figure 2 Stratigraphic correlation chart of Iran’s Jurassic rock units, adapted slightly from Aghanabati (1998).
Compression fossils make up the majority of the vegetation, however trace and pith casts can also be found, including: Nilssonia, Pterophyllum, Podozamites, Elatocladus, Elatides, Cladophlebis, Klukia, Anomozamites, Ptilophyllum, Beania, Neocalamites, Geinitzia, Pagiophyllum, Ginkgoites.
The oldest known report of the Kerman coal beds was done by Houtum-Schindler (1881) which studied several coal horizons in the Triassic and Jurassic of the Kerman area. Several studies have been done on the biostratigraphy of Jurassic in Central Iran (Poole, 2005; Schweitzer, 1995, 1998, 2003, 2000, 1996). Huckride (1962) listed flora of the Jurassic sediments in this area. Seyed Emami (1971) subdivided the Jurassic succession based on ammonites’ remains. More recent studies by Ameri (2018) and Ameri et al. (2014a) indicated that the Kerman area is also rich in plant fossils. Ameri et al. (2014b) identified some new species of the Equisetales in the Kerman area.
In order to provide information on systematics and biostratigraphy, this study aims to describe 14 genera and 18 species of plant fossils from the Hettangian-Bajocian flora in the Chatroud region.
2. Geological Background
In southern of Hossein Abad gorge, between the villages of Hossein Abad and Deh Sib, 15 km northeast of the Chatroud town, and 49 km of the Kerman city, at geographic coordinates 56°58’ E and 30°38’ N, uplift in the southern flank of the Hossein Abad syncline exposes the thickest and complete succession of the Jurassic. This section is mapped in the Zarand geology Map of 1/100.000 (Vahdati Daneshmand, 1995). These highlands are limited by the Chatroud fault at the West and Dehu fault at the East. In Hossein Abad syncline is exposed the Upper Triassic to Lower Cretaceous sediments. The oldest rock unit exposed in Chatroud section is black and green shale and sandstones of Shemshak Group (Lower to Middle Jurassic. Numerous faults have interrupted the geological sequences in this region’s southeast, causing Jurassic sediments to be found next to Paleozoic deposits (Figure 1).
More than 770 meters of Jurassic sediments are exposed in this area, which contained Ab-eHaji, Hojedk and Bidu formations (Lower-Upper Jurassic). The Badamu Formation are not exposed in this section, accordingly the Ab-e-Haji and Hojedk formations with similar lithology cannot separable. The Ab-e-Haji and Hojedk formations are composed of layers of gray quartzite with several coal horizons that alternate with sandstone and sandy to argillaceous shale with dark green-gray to brown-green colors. This succession has a 210 m thickness. The Ab-e-Haji and Hojedk formations lithological makeup differs greatly between regions.
The Ab-e-Haji and Hojedk formations in the studied area can be divided into six members, including:
Member 1: which is composed of more than 60 meters of yellow to grey calcareous shale, olivaceous to black shale deposits with intercalations of cross-bedded sandstone, containing Anomozamites marginatus, Nilssonia polymorpha and Elatocladus zamioides.
Membre 2: involves 35 m gray siltstone, shaly sandstone, coal horizons and sandstone, containing Nilssonia polymorpha, Elatocladus zamioides and Pterophyllum schenki remains.
Member 3: consists of 30 m calcareous shale, sandy limestone, without fossils.
Member 4: composed of 37 m calcareous shale, with intercalations of sandstone, calcareous shale beds and contain Klukia exilis, Cladophlebis denticulate, Nilssonia feriziensis, Nilssonia herriesi and Beania sp.
Member 5: involves 27 m of calcareous shale, shale limestone, with Equisetites stems.
Member 6: includes 21 m of coal, carbonaceous shale, and olivaceous shale with stem fragments and contain Klukia exilis, Cladophlebis denticulate, Nilssonia feriziensis, Nilssonia herriesi, and Beania sp. remains.
This succession is disconformably overlies by the Bidu Formation. The Bidu Formation consists of 560 m heterogeneous succession of conglomerate, red to green sandstone and marl, limestone, marly limestone, red marl and sandstone. (Figure 3).
3. Materials and Methods
The Ab-e-Haji and Hojedk formations of Iran’s Kerman Province provided the resources for the current paper’s research. There are several plant fossils in the coal-bearing. Based on the plant fossil, the Lower to Middle Jurassic is where it belongs (Ameri et al., 2014a).
All investigated specimens have been stored in the Graduate University of Advanced Technology’s Ecology Laboratory in Kerman, Iran. The abbreviation EDG stand for these deposited specimens. The material that was deposited contains 120 specimens with the labels EDG1100EDG1220 which were collected in the Chatroud section. In the Ab-e-Haji and Hojedk formations, samples were taken from the coal layers, dense gray fine-grained sandstone layers, and rock layers. In this study, the flora from this location is described for the first time. The samples were captured using a Nikon D90 with a Nikon 105 mm macro lens. To improve the contrast, polarized light sources and a corresponding analyzing filter were employed. With the help of common graphics software (Adobe Photoshop CC), digital photographs were edited.
4. Systematic Palaeobotany
Class Coniferopsida
Order Coniferales
Family Podozamitaceae
Genus Podozamites (Braun, 1843)
Podozamites distans (Braun, 1843)

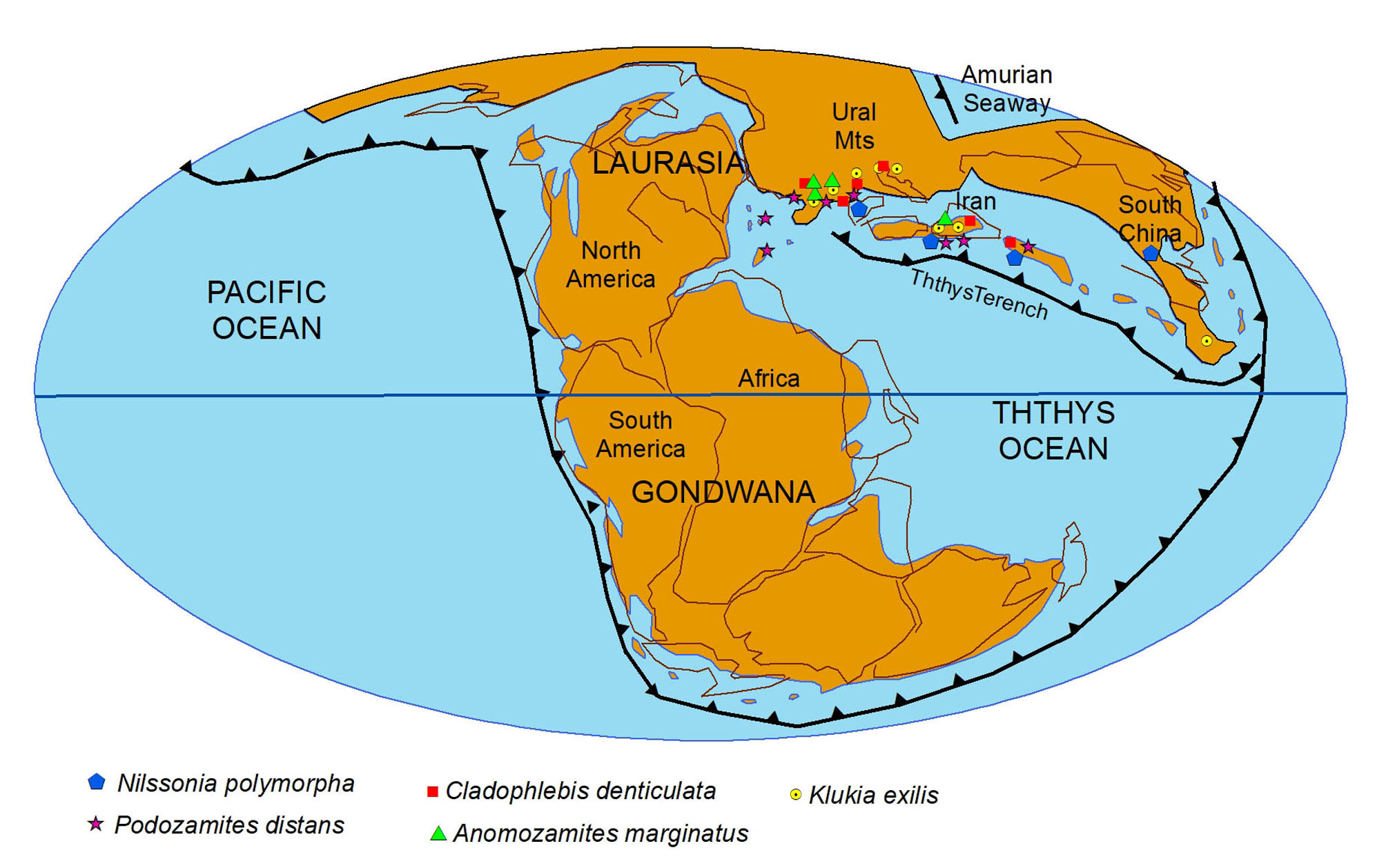

Figure 4 Paleogeographical reconstructions for the early Jurassic show the geographical distribution of plant fossils. The position of major continents is mainly after (Scotese, 2011).

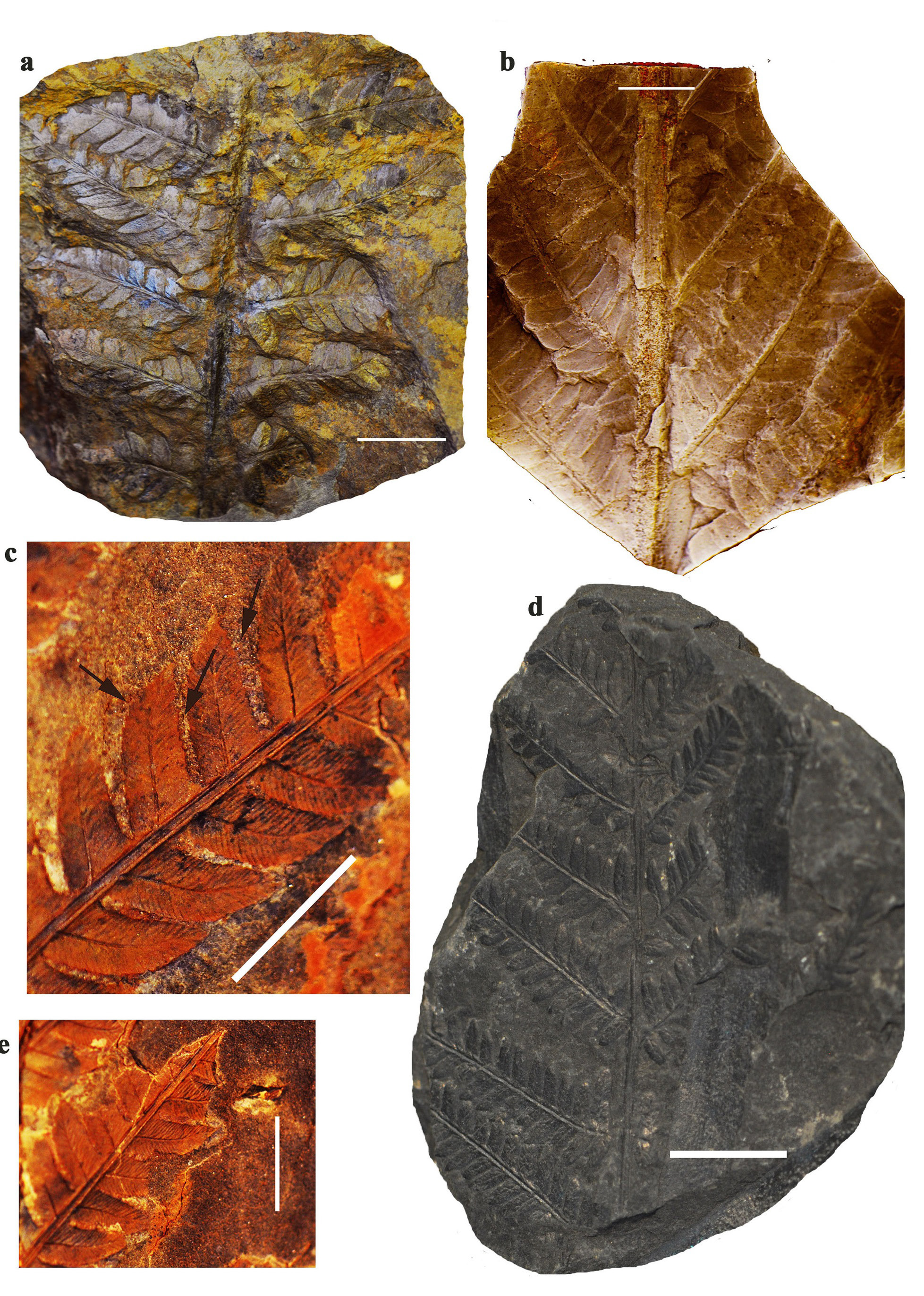

Figure 5 a-d) Cladophlebis denticulata (Brongniart, 1828; Fontaine, 1889) a, b) Fragments of sterile fronds c) Fragment of pinnae showing details of the margin (teeth indicated by arrows). d) Details of pinnule venation e) Klukia exilis (Philips, 1829; Raciborski, 1890; Harris, 1961). Fragment of sterile frond (Scale bars represent 1 cm in all figures).
Figure 6 a, b) Klukia exilis (Philips, 1829; Raciborski, 1890; emend Harris, 1961) a) Fragment of fertile frond b) Distribution of sporangia c) Pterophyllum schenki (Zeiller, 1886, 1903), Part of the leaf fragment. d) Pterophyllum sp. Leaf fragment. e) Pterophyllum nathorsti (Schenk, 1883; emend Barnard, 1967) showing bifurcated vein (indicated by arrow). f) Anomozamites marginatus (Unger, 1850; Nathorst, 1878) leaf fragment. (Scale bars represent 1 cm in all figures).

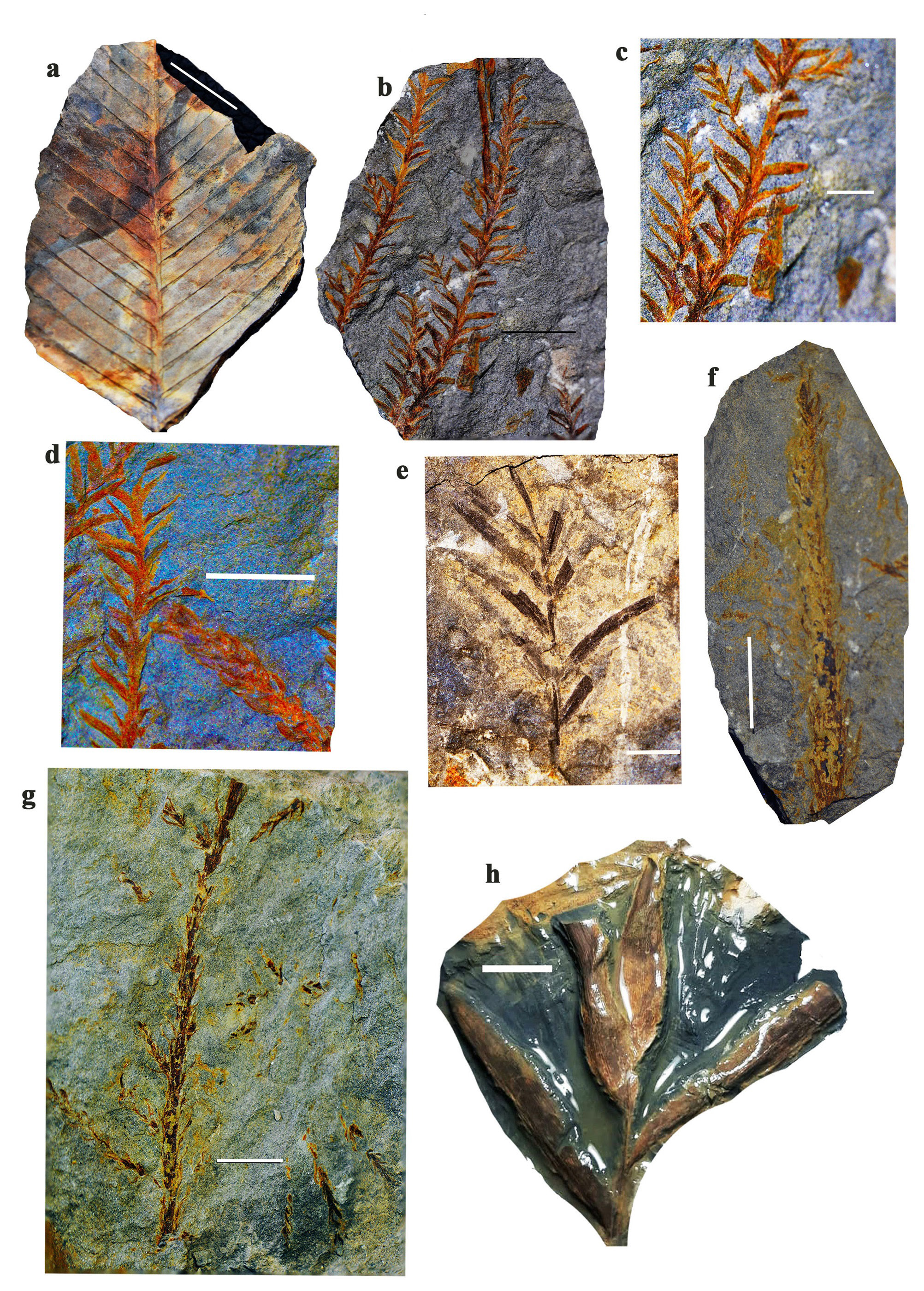

Figure 7 a) Ptilophyllum sp. Part of leaf showing rachis with pinnae. b-d) Pagiophyllum sp. leafy twigs. e) Elatocladus zamioides (Leckenby, 1864; Seward, 1919) leafy shoot with terminal leaflet. f) Elatides thomasii (Harris, 1979), fragment of foliated twig. g) Geinitzia sp. brunched foliated twig. h) Podozamites distans (Presl, 1838; Braun, 1843) leafy axis. (Scale bars represent 1 cm in all figures).
Figure 4 Paleogeographical reconstructions for the early Jurassic show the geographical distribution of plant fossils. The position of major continents is mainly after (Scotese, 2011).
1838 Zamites distans Presl in Sternberg; p. 196, plate 4, figure 1.
1967 Podozamites distans: Barnard; pp. 572-573, text-figure 5A.
1977 Podozamites distans: Fakhr; p. 141, plate XLVIII, figures 1-2.
2018 Podozamites distans: Vaez-Javadi and Mirzaie- Ataabadi; plate 4, figure 3a.
Material: Three specimens of frond fragments.
Description: Leaves inserted helically on a slim axis but arranged distichously in one plane due to twisting of the leaf bases. Leaves are ovate-lanceolate in shape. 36-up to 44 mm long (maximum length unavailable), 5.6-10 mm wide at their maximum wide, which is in the proximal third of the base. Base contracted, apex obtusely pointed. Veins are delicate, simple, or forking once near the leaf base but not elsewhere, running parallel through the middle part of the lamina, converging towards the apex. There are 14-18 veins per leaf width (22-28 veins per cm).
Remarks: Podozamites distans is very similar to P. lanceolatus, so their diagnosis is much confusing. P. distans leaves are wider than of P. lanceolatus. P. distans leaves are rather wider in proportion to their length than those of P. lanceolatus. Apex in P. distans less than pointed rather P. lanceolatus. In addition, the P. distans is a Rhaetian index and extensively extends in the Rhaetian to early Jurassic (eventually to middle Jurassic) whereas the P. lanceolatus is developed from the Middle Jurassic to the Early Cretaceous.
Podozamites schenki from the Rhaetian of Sweden, Persia and Siberia, are similar to P. distans, but has smaller stems and the more acuminate pinnules that differ with the P. distans.
Class Coniferopsida
Order Coniferales
Family Taxodiaceae
Genus Geinitzia (Endlicher, 1847)
Geinitzia sp.
1851 Criptomerites divaricatus - Bunbury, p. 190, plate 13, figure 4.
1911 Cheirolepis setosus (Phillips) Seward - Krasser, p. 18.
2012? Geinitzia sp. - Scanu et al., p. 82, plate 3, figure 4.
2016 Geinitzia divaricata (Bunbury) Harris - Giovanni et al., figure 3a.
Material: A single moderately preserved branched leafy axis.
Description: Present specimen is fragment of sterile twig with helically arranged leaves. This is 68 mm long the leaves are needle shape, with 3.5-4.5 mm long and 0.2 mm wide. Branches arise at up to 45°. The leaves are relatively uniform throughout their length, the base of leaves is slightly decurrent and the apex of leaves is acute.
Remarks: The described specimens belong to the genus Geinitzia on account of their quadrangular subdecurrent leaves. Among the species of this genus they are most similar to G. reichenbachii in form and size of the leaves. Those of G. formosa are smaller than in the studied material. Geinitzia- like shoots is the genus of the Araucarites in the Permian and those of genus of Voltzia at the Triassic. They differ from Araucarites in that the apprised needles are more scale like and smaller, and differ from the modern Araucariaceae in missing flat bases to the needles, although the fossils simulate the modern species Araucaria heterophylla (Burger and Ward, 2016). However, deficiency of cuticular characters and remarkable stratigraphic distance between the analyses specimen (Bajocian to Bathonian) and the type level of Araucarites (Permian) demonstrate that our identification should be treated with some precaution.
Class Coniferopsida
Order Coniferales
Family Araucariaceae
Genus Pagiophyllum (Heer, 1881)
Pagiophyllum sp.
Material: Three branched and unbranched shoot fragments.
Description: Branched and unbranched leafy twigs 27 to 58 mm long and 1-1.5 mm wide (excluding divergent leaves) Leaves are spirally arranged with 40 to 50 angles, 2-5.3 mm long and about 1 mm wide. In shape leaves are arising from rhomboidal leaf base cushion, decurrent, apex pointed or acute and entire margins. This leave is commonly found on isolated shoots.
Remarks: Pagiophyllum sp. from Kerman differs from the known taxa of Pagiophyllum in having fine twigs with narrow rhomboidal - shaped leaves. In generic shape of the leaves it is closely comparable with specimens of P. mamillare Brongniart illustrated by Sahni (1928), although the leaves in P. mamillare are broader and do not spread outwards from the shoot. In leaf shape Pagiophyllum sp. also resembles some of the leaves of Allocladus bansaensis (Sukh-Dev and Zeba-Bano, 1979), although these have much wider leaves. The leaves of the Pagiophyllum sp. are resembles with the leaves of Sphenolopidium? argonense Fontaine illustrated by Halle (1913), but the specimens from Kerman are different by being narrower and longer.
Class Cycadopsida
Order Bennettitales
Family Williamsoniaceae
Pterophyllum (Brongniart, 1825)
Pterophyllum schenki (Zeiller, 1886, 1903)
1984 Pterophyllum schenki: Sadovnikov; plate 30, figure 8.
2003 Pterophyllum schenki: Schweitzer and Kirchner; pp. 71-74, plate 15, figures 1-3; text-figure 25 a-c.
Material: One fragment of incomplete monopinnate leaf, base and apex are absent.
Description: Incomplete leaves fragment; frond is pinnate, leaf 36 mm length and 11 mm width. The rachis is 1.2 mm width, secondary leaf let (pinnules) are alternate arrangement and arise from the rachis at about angles 90°. The pinnae are rectangular-oblong in shape, truncate apex, and without expanding at base. The adjacent pinnae are close together. Venation system not good preserved 6-8 veins in each pinna, or 33-44 per cm, pinnae length ca. 5 mm and 1.8 mm width.
Remarks: These leaves may be compared with Pterophyllum kalawchiensis (Barnard, 1967), which are the species which they most closely resemble P. kalawchiensis is distinguished leaves up to 10 cm wide adaxial attached pinnae on a smooth rachis. In P. schenki the leaves are narrow up to only 5 cm wide with pinnae attached laterally to the rachis which shown well developed transverse wrinkles.
Pterophyllum nathorsti (Schenk, 1883; Barnard, 1967)
1967 Pterophyllum nathorsti Schenk emend Barnard; pp. 561-563, plate 48, figure 5; text-figure 3F. 2003 Pterophyllum nathorsti: Schweitzer & Kirchner; pp.68-70, plate 14, figures 2-7; text-figures 23a, b, 24.
Material: Two fragments of monopinnate leaves.
Description: Leaf once pinnate, linear. Entire leaf length unknown, preserved fragment 128 mm long and 32 mm wide. Its longitudinally striated rachis is 2.4 mm wide. Pinnae set closely. The pinnae are oppositely inserted at an angle of 65°-75° with the whole base, rounded apices, 14-16 mm long and 3.2-4.4 mm wide. The venation is poorly preserved, just in two pinnules available which are parallel, simple or forking once near the pinnae base, 5-7 per pinnae.
Remarks: Pterophyllum contiguum (Schenk, 1883) resemble P. nathorsti (Schenk, 1883) but it differs in having fine and dichotomous veins (Vaez javadi, 2006).
Genus Pterophyllum (Brongniar, 1828)
Pterophyllum sp.
Material: several fragment of incomplete monopinnate leaf.
Description: Incomplete leaves fragment, frond is pinnate. The leaf base and apex are absent, length estimated at 106 mm and up to 31.6 mm widths. Petiole is present, 11.5 mm length and 1.5 mm width. The rachis is 1.4 mm width with longitudinally delicate ribs. Pinnae attached to the rachis with whole of base width laterally, at angles 45°, semi-opposite. The adjacent pinnae are close together. Pinnae margin are straight and parallel. Pinnae are oblong in shape, maximum length 26.6 mm and 2.5 mm width which pinnae length reduced in near the petiole (8.3 mm) and usually rectangular in shape, acute apex, Venation system is delicate and simple, 8-10 vein in each pinna.
Remarks: These leaves may be most closely resembled with Pterophyllum aequale (Brongniart, 1825; Nathorst, 1878) but in Pterophyllum sp. the pinnae are narrower than pinnae in Pterophyllum aequale.
Class Cycadopsida
Order Bennettitales
Family Williamsoniaceae
Genus Ptilophyllum (Morris, 1840)
Ptilophyllum sp.
Material: Partly preserved of monopinnate leaf.
Description: Leaf pinnate (base and apex are not preserved), 48 mm long and 32 mm width. The rachis is 1.2 mm width, connected by pinnae base. Pinnae attached whole of base width at upper surface of rachis emerge at an angle of 45° and alternative arrangement on both sides of the riches. Pinnae liner-lanceolate in outline, 21 mm length and 2.7 mm wide at the base of pinnae, pinnae base in acroscopic margin slightly rounded or straight but in basiscopic margin are markedly decurrent, entire margin, almost parallel. The basiscopic margin slightly curved upwards in at the one-third of end the pinnae length. the margins converged upwards apex, apex sub-acute, venation system not well preserved ,8-10 veins per each pinna, veins without margin cut and parallel, continue until the near apex, only mid veins continue to apex and the edge veins cut the margin.
Class Ginkgoopsida
Order Ginkgoales
Family Ginkgoaceae
Genus Ginkgoites (Seward, 1911)
Ginkgoites sp.
Material: A single specimen of a fan-shaped leaf.
Description: Leaf fan shaped, 46 mm length and 43.6 mm width, with a long and slender petiole, that up to 20 mm length and 1.8 mm width the basal angle of leaf 75°, lamina at the base divided to two branches, left branch is not subdivide, and truncate apex, however right branch subdivided to two lobes, lobes oblong in shape, with 38-46 mm length and 7.2 -8.1 mm width, another lobe is shallowly notched apex. Veins are indistinct.
Class Cycadopsida (Barnard and Long, 1975)
Order Cycadales (Engler, 1829)
Family Nilssoniaceae
Genus Nilssonia (Brongniart, 1825)
Nilssonia polymorpha (Schenk, 1867)

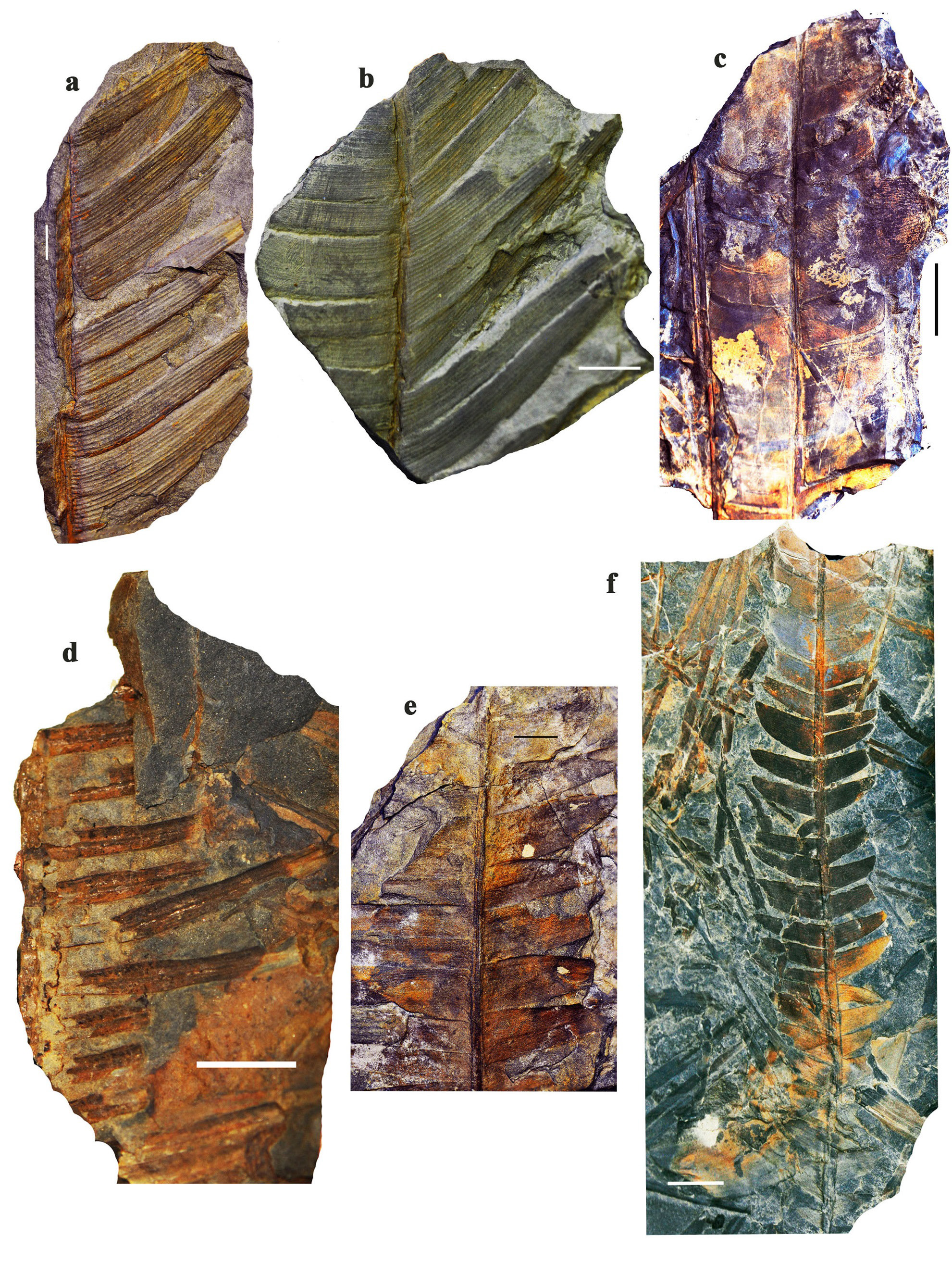

Figure 8 a, b) Nilssonia feriziensis (Fakhr, 1975) leaf fragments. c) Nilssonia polymorpha (Schenk, 1867) leaf fragment. d) Nilssonia herriesi (Harris, 1946; Schweitzer et al., 2000) fragment of leaf, broken on the left side. e) Nilssonia sp. C part of leaf. f) Nilssonia sp. D linear leaf fragment. (Scale bars represent 1 cm in all figures).
1867 Nilssonia polymorpha Schenk; p. 127, plate 29, figs 1-9; P1. 30, figure I.
2000 Nilssonia cf. polymorpha Schweitzer et al.; p. 20, plate 3, figs 3-5.
2001 Nilssonia polymorpha Barbacka; p.526, plate 1, figure 1; plate 2, figs 4-6; plate 3, figures 1, 2.
Material: Several poorly preserved specimens of various part of lamina. One species is more distinct than the other.
Description: Several incomplete leaves fragment of N. polymorpha occurring Chatroud section. The leaves in this species have 111 mm length and 41.6 mm width, the leaf basal and apex not preserved. The rachis is 2 mm width and very slightly sunken. The margin is entire, but sometimes slightly incised or deeply torn. Veins are parallel and arise from the rachis at angles of 80º. The vein concentration is 22-24 per cm. veins were parallel and simple slightly curved towards to apex, and outage the margin.
Remarks: The name of N. polymorpha shows a wide variability in leaf morphology. This species was first described by Schenk (1867). Other authors (Nathorst, 1878, 1886, 1909; Harris, 1926, 1932) have also mentioned different lamina shapes in this specimen. Harris (1932) gave the list of a number of revised specimens published by different authors under the name N. polymorpha, but in his opinion they were hardly determinate and probably belonging to different species. N. polymorpha is somewhat similar to N. schaumbergensis (Dunker) (Nathorst, 1880), N. sarakhs (Barnard and Miller, 1976) and N. serratus (Prynada) (Schweitzer et al., 2000) but the N. schaumbergensis with narrower frond (less than 10 mm width) and dancer veins (30 per cm) is differ to N. polymorpha. N. polymorpha is more vein concentrations (24 per cm) but N. sarakhs has 18 veins per cm. N. serratus is differ to N. polymorpha by its more triangular- falcate shape of the pinnae and more veins each pinna.
Nilssonia feriziensis (Fakhr, 1975)
1975 Nilssonia feriziensis Fakhr, p. 219, plate 28, figures 3-5.
2000 Nilssonia feriziensis; Schweitzer et al., p. 35, plate 9, figure 3; plate 10, figure 1; text-figure 10 (fold-out 3).
Material: Two fragments of monopinnate leaves.
Description: Incomplete leaf fragments, 60-110 mm long and 50-55.2 mm wide. The leaf base and apex not preserved. The rachises are 2.1-2.8 mm width with longitudinally striated and sunken on the upper surface of leaf as a 1.2 mm deep furrow. Pinnae are weakly falcate in shape, arise from the rachis at angles of 55°-86°. The pinnae are 33.660 mm leaf arrangement is more or less alternate (whole length unknown) and 4-8 mm wide. The pinnae base is slightly curved, and narrow towards to apex pinnae apex were not clear (maybe acute). Veins are clear, parallel and slowly convergent towards to apex. 7-18 veins in each pinna.
Remarks: The Nilssonia feriziensis is very similar to Nilssonia pterophylloides but the main difference is that the pinnae bases are expanded in N. pterophylloides the pseudovenation is present in this specimen and a greater number of veins in N. pterophylloides comparison whit the N. feriziensis. N. feriziensis is quite similar to N. riegeri (Stur ex Krasser, 1909) from the upper Triassic of Lunz (lower Austria) (Pott et al., 2007), but pinnae basally slightly expanded, and apex rounded in N. riegeri.
Nilssonia herriesi (Harris, 1946; Schweitzer et al., 2000)
1911 Nilssonia mediana (Leck. ex Bean MS)-Seward; p. 29; plate 3, figures 45, 45a
1980 Nilssonia mediana (Leck. ex Bean) - Sadovnikov; p.86
2000 Nilssonia herriesi Schweitzer et al., p. 46, plate17, figure18; plate14, figures 1,2; text-figures 20a, b (fold-out 7).
Material: A single badly preserved of monopinnate leaf.
Description: Incomplete leaves fragment; 43.3 mm length and 36.5 mm widen (semi right of leaf and only semi parts of basal of pinnae in the left side preserved). Rachis not preserved. It can be seen that left and right pinnae meet in the middle of rachis. Pinnae arranged alternative- opposite up on the rachis. Pinnae arise from the rachis at angle of 90°; equal extend in the basiscopic and acroscopic pinnae. Straight margin slightly curved towards apex, rounded apex. Pinnae narrowed gradually towards apex and mostly band shaped. Pinnae have 36 mm length and 5-7 mm wide. Venation system is not clear. Similar veins, narrow, often parallel along the pinnae and converged towards the apex, 12-16 veins in each pinna.
Remarks: N. herriesi is similar to the N. yabei (Tateiwa, 1929), but its pinnae taper less quickly causing a more or less band shape. N. macrophylla (Jacob and Shukla, 1955) agrees in this larger leaf form. The pinnae base in the latter species is, however, not expanded.
Nilssonia sp. A

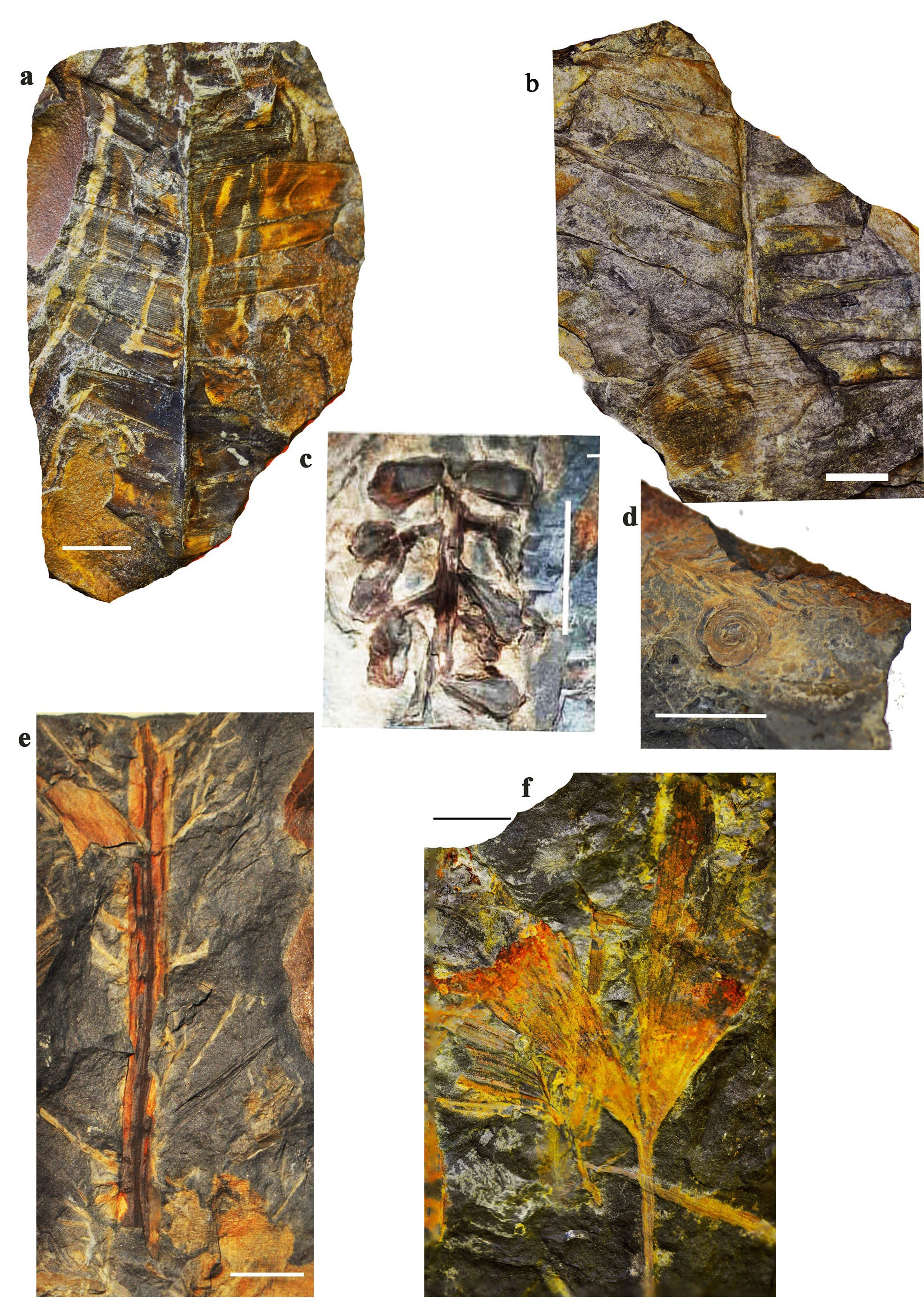

Figure 9 a) Nilssonia sp. B, leaf fragment without base and apex. b) Nilssonia sp. a fragment of leaf. c) Beania sp. axis with Sporangiophores. d) Spiropteris sp. coiled young fern. e) Neocalamites sp. stem fragment. f) Ginkgoites sp. fan-shaped leaf. (Scale bars represent 1 cm in all figures).
Material: A single fragment of leaf, base and apex not preserved.
Description: One incomplete leaf fragment of Nilssonia sp. an occurring Chatroud section. Therefore, we cannot completely measure of characteristic of this sample. The lamina in this species has 55.5 mm length and 61 mm width, the leaf basal and apex not preserved. The rachis is 2 mm width the rachis surface is weakly longitudinally striated. The alternate or sub opposite pinnae arise from the rachis at angles of 60º-85. Pinnae are 23-33.3 mm length and 6.1-11.3 mm width. The pinnae baes are expanded at their basiscopic margin (lower margin), neighboring pinnae are separated by a sinus- shaped curve. The distance of between the pinnae is about 1.7 mm the more or less straight pinnae margin is almost parallel in the acroscopic margin. The venation system has weak preserved, parallel. The vein concentrations are 30/cm. the lateral veins cut the pinnae margin so that probably the mid veins continue to apex.
Nilssonia sp. B
Material: One fragment of once pinnate leaf.
Description: Incomplete leaves fragment, 84 mm length and 43.3 mm width. The leaf base and apex not preserved. This species is characterized by pinnae with different width, that with a random process, the narrow pinnae are located between the width pinnae. The width of the pinnae at the base variable, 2.9 mm to 9 mm. the arrangement of the connection of the pinnae to rachis is form alternating to opposite due to the difference in width of pinnae. The shape of the pinnae is narrow isosceles triangle. The acroscopic and basiscopic margins are more or less symmetrically. Pinnae base without expended or very slightly pinnae apex is acute. Veins are arising from the middle of the rachis at angle 50º and immediately curve outwards. The veins almost parallel and converge near the apex.
Remarks: Nilssonia sp. B is comparable in shape with N. ingens (Schweitzer et al., 2000) but differ in its narrower pinnae with their not (or nearly not) expanded bases. Macroscopically our leaves are most close to those of N. macrophylla (Jacob and Shukla, 1955) but differ in size of pinnae are 200 mm length and 9-28 mm in N. macrophylla, whereas, in the N. sp. B very smaller (21 mm length and 2.9-9 mm width).
Nilssonia sp. C
Material: One specimen preserved, base and apex are absent.
Description: Incomplete leaves fragment, 91 mm length and 60 mm width. The leaf base and apex not preserved. Rachis is 2.5 mm width and delicate longitudinal ribs. Pinnae arrangement are alternative to semi opposite and arise from the rachis at angles 85º-90º, adjacent pinnae are close together, triangular shape. The basiscopic and acroscopic margins are almost straight the most of preserved pinnae length is 32.5 mm. Apex is not clear, pinnae width variable between 6.7-11.2 mm at the base. Not expanded the basiscopic and acroscopic margins. Venation system rear preserved veins parallel and delicate. There are 18-36 thin veins depending on the pinnae width, concentrations 34 veins/cm in the middle of the pinnae, it seems, the veins converge near apex.
Nilssonia sp. D
Material: A single leaf fragments, entire leaf length unknown.
Description: In this specimen the base and apex are absent. Length estimated at 106 mm, width ca.23.2 mm. The rachis is longitudinally striated, in proximal part 2.1 mm thick and in distal part narrowing to 1.4 mm. Pinnae with variable width and therefore partly alternately, partly oppositely attached; arising at an angle between 65°-75°. The pinnae lengths are equal about 11.5 mm and variable width between 2.8-5.3 mm the pinnae shape is triangular-falcate, some of them are rhomboidal. The pinnae margins are more or less entirely. Acroscopic margins are straight to weakly concave, basiscopic margins are strongly convex. The pinnae apex is usually rounded, rarely acute.
Neighboring pinnae are separated up to the rachis by a taper sinus-shaped curve. The venation system is, simple and almost parallel; basiscopic veins are more curved than acroscopic veins and they converge slightly towards the apex. There are ca.12-30 veins in each pinna.
Order Incertae sedis
Family Incertae sedis
Morphogenus Spiropteris (Schimper, 1869)
Type species Spiropteris miltonii (Brongniart)
Spiropteris sp.
Material: Imprint of a single coiled young fern.
Description: One incomplete fragment of Spinopteris sp. is occurring Chatroud section. Therefore, we cannot completely measure of characteristic of this sample. This species has up to 2.6 mm length and 3.2 mm width, smooth, without foliar appendage. Axis is involute.
Beania sp.
Material: One specimen preserved which showing the female cones of the Nilssoniaceae.
Description: A small fragment is preserved, longitudinally striated axis, 20.3 mm length and 2.1 mm width, 9 Sporangiophores which they are connected to the axis, with spiral form, and an angle of 90º-110º. The stalk is 1.7-3.5 mm length, 1.2 mm width and expanded in the basal part. Each stalk has one or two ovules (or seeds) in the end of stalk with ellipsoidal or rhomboidal in shapes, 2.1-5 mm 2.1-3.5 mm. Ovules are distinguished striped.
Neocalamites sp.
Material: A single specimen of a stem fragment. Only two nodes are visible which are separated by a 7.8 mm long internode.
Description: Incomplete secondary shoot fragment was, up to 60 mm length with node and internode, 6.4 mm width in the internode. Shoot have eminences in the node. The outer surface of the internode is characterized by broad longitudinal striae. In the top of each nodes have microphylls which curved towards up. The arrangement of the connection of the microphylls to shoot is whorled form. Maximum length of microphylls is 15 mm and between 0.7-1 mm widths. Microphylls were entirely free from base to up and vascularized by a single bundle.
Class Filicopsida
Order: Filicales
Family Schizaeaceae
Genus: Klukia (Raciborski, 1890) emend (Harris, 1961)
Klukia exilis (Philips, 1829) (Raciborski, 1890) emend
1975 Klukia exilis Fakhr, p. 54, plate 9, figures 1-3;
2009 Klukia exilis H.-J. Schweitzer et al., p. 27-31, Text-figure 2, plate 1, figures 1, 2, plate 2, figures 1-3, plate 3, figures 1-5.
2010 Klukia exilis Saadat-Nejad, et al., p. 181-182, plate 1, figures 5-7.
Material: Two specimens of sterile and fertile bipinnate frond fragments.
Description: Incomplete leaf fragments, 53.6-75 mm long and, 41.8-67.6 mm width. The primary rachises are straight and the outer surface characterized by longitudinal grooves which is 53.6-73.5 mm long and 0.9-2 mm wide. The secondary rachises are straight and channeled along adaxial surface, with 22.7-25.8 mm long. The arrangement of the connection of the secondary rachis to primary rachis is suboppositely form an angle of 45º-50º. The pinnae are 22.7-40 mm long and 6.8-8 mm wide at the base, strongly elongated in outline. Pinnules are elongated, 2.5-6.3 mm long and 1.8-2.2 mm wide, with a decurrent base (although the fertile pinnules are narrower than sterile pinnules), entire margin and rounded apex the first pinnules in the acroscopic part longer than another pinnules in same pinna and parallel with the primary rachis. Frond is katadromic. In the basiscopic margin the first pinnules is connected to secondary rachis with an angle 45º and compared to the other pinnules is shorter. The arrangement of the connection of the pinnules to rachis is form imparipinnate (odd pinnate) so in each pinna there is a terminal leaflet. Venation system is not good preserved, with a midrib which continued to top of pinnules. Lateral veins placed in both side of mid rib with angle 45º. In fertile pinnules are 4-6 ellipsoidal impressions distributed symmetrically along each side of midrib with 0.30.7 mm diameter.
Class Cycadopsida
Order: Bennettitales (Engler, 1892)
Family Unknown
Genus: Anomozamites (Schimper, 1870)
Anomozamites marginatus (Unger, 1850; Nathorst, 1878)
1850 Pterophyllum marginatum, Unger, p. 289
1991 Anomozamites minor (Brongniart) Nathorst; Barbacka, p. 18, plate 1 figs 6-7; plate 2 figs 1-3, Text figure 5.
2000 Anomozamites marginatus Barbacka; plate 1 figure 3, plate 2 figs 5-6, plate 3 figs 1-2, Figure 2.
Material: One fragment of monopinnate leaf with poorly preserved venation.
Description: Incomplete leave fragment, frond is pinnate, 35.5 mm length and 10 mm width. Frond is variable in shape. Pinnae attached to the rachis with whole of base width and laterally rachis with 0.6 mm width and wrinkled. Pinnae are 4-5 mm length and 2-3 mm width. Venation system weak preserved and only show on some pinnae, with simple and parallel veins trace that continue towards apex, rounded apex and sometimes truncate.
Order Filicales
Family Osmundaceae?
Genus Cladophlebis (Brongniart, 1849)
Cladophlebis denticulata (Brongniart, 1828; Fontaine, 1889)
2004 Cladophlebis denticulata (Brongniart) Harris: Rees and Cleal, pp. 26-28, text-figure 3D, plate 6, figure 4, plate 7, figs 1, 2.
2004 Cladophlebis antarctica Halle: Rees and Cleal, p. 25, text-figure 3C, plate 25, figure 2, plate7, figure 3.
2008 Cladophlebis denticulata (Brongniart) Harris: Ociepa in Birkenmajer and Ociepa, p. 34, figs 15A, 17F-G.
2008 Cladophlebis antarctica Halle: Ociepa in Birkenmajer and Ociepa, p. 32, figs 15B, 16, 17B. 2008 Cladophlebis denticulata (Brongniart) Fontaine: Barbacka and Bodor, pp. 135-138, plate 2, figure 5-9.
Material: The material consists of 7 sterile frond fragments were preserved mainly in sandstone and carbonaceous shale. Four of them are bipinnate fragments, not larger than 68.5 mm. The remaining specimens are fragments of separated pinnae reaching about 37 mm.
Description: Sterile fronds, bipinnate, Fragments 25-68.5 mm long and 22-62.8 mm wide. Rachis usually slightly ribbed 2.2-2.5 mm width. Pinnae fragment 21-37 mm length and 10.5-14 mm width and alternative arrangement. Pinnae axes attached to rachis with angle 45º-70º. Pinnae are oblong, entire margin, sometimes dentate in the end of pinnae. Pinnules have 5-7 mm length and 2-3.5 mm width, length to width ratio 1.4-2.5. Pinnae are sub-oppositely and oppositely emerge at angle about 45º, straight base, sometimes, acroscopic margin extended. Acute or sub-acute apex, midrib reaches pinnules apex, secondary veins dichotomies once, usually near midrib the lateral veins separated from midrib at angle 30º-45º the veins concentration is 6-12/0.5 cm in the near the margin of pinnae.
Order Coniferopsida Class Coniferales
Family Podocarpaceae
Genus Elatocladus (Halle, 1913)
Elatocladus zamioides (Leckenby, 1864)
Material: Single leafy axis.
Description: Shoot without branched, shoot base unknown but axillary buds present, shoot up to 34.3 mm length, shoot is narrow with 0.6 mm width. Leaves arrangement in a spirally on shoot, attached whole base, emerging at an angle 30º-50º, leaves linear-lanceolate in shape, 9.3-15 mm length and 0.9-1.8 mm width, entire margin, subacute apex, midrib prominent, running from base to apex. Folioles are without a petiole, base oblique, and decurrent.
Remarks: Elatocladus zamioides (Leckenby, 1864) from the middle Jurassic of Yorkshire was described as Cycadites zamioides and subsequently transferred to taxa its E. zamioides is very similar to some specimens from Jurassic beds as Compsostrobus brevirostratus, E. confertus (Morris, 1863), E. plana (Seward, 1911) and E. persica. E. confertus differs from E. zamioides in the shorter, a relatively broader leaves with an obtuse apex, with petiole and, elliptical in shape. The Indian species E. plana agrees closely with E. zamioides but differs in acuminate apex; lamina is slightly contracted at the base and longer leaves. E. zamioides differs from E. persica in the shorter and wider leaves and without petiole. The E. zamioides is very similar to Compsostrobus brevirostratus but C. brevirostratus differs from E. zamioides in the longer and narrower leaf, acuminate apex and acute base.
Class Coniferopsida
Order Coniferales
Family Cupressaceae sensu lato
Genus Elatides (Heer, 1876)
Elatides thomasii (Harris, 1979)
1979 Elatides thomasii Harris; pp. 74-77, plate 2, figures 8-13; text, figures 33E, J, 35 K, L.
1996 Elatides thomasii: Schweitzer and Kirchner.; pp. 103-113, plate 5, figures 1-5; plate 6, figures 1-8; plate 7, figures 1-10; plate 8, figures 1-7; text-figures 11, 12a, b, 13- 17, 18a-b, 19a-c, 20.
Material: One fragment of foliated twig preserved.
Description: Fragmentary twig with helically arranged leaves, leaves are narrow and falcate in shape, 3-6 mm long and ca.1mm wide basally, margins entire and tapering to acute apices, the free part of leaf forming half to one third of the whole length of the leaf.
5. Geographic and Stratigraphic Distribution of Taxa
Floristic association described here is widespread in Iran (Central Iran (Kerman, Tabas)) Alborz Basin) in the Lower-Middle Jurassic. Similar plant fossils assemblages have been distributed from the Asia at, Afghanistan (Schweitzer and Kirchner, 1996; Schweitzer et al., 2000; Seward, 1911; Benda, 1964), Japan (Kawasaki, 1925; Endo, 1952; Ôishi, 1938), Korea (Tatsuaki-Kimura and BongKyun Kim, 1982), Russia (Thomas, 1911; Stanislavski, 1957; Vakhrameev, 1980), China (Yang, et al., 2010; Zhou, 1995; Deng and Shang, 2000) and Transcaucasia (Prynada, 1933; Farinacci, 1967). From the Europe at Hungary (Barbacka, 2011; Barbacka and Bodor, 2008; Vozenin-Serra and Franceschi, 2000; Barbacka, 2000), Germany (Van Konijnenburg et al., 2021; Barbacka et al., 2015; Berger, 1812; Braun, 1843), Sardinia (Fontaine, 1889; Krasser, 1912, 1913, 1920), Yorkshire (Brongniart, 1828; van Konijnenburg-van Cittert, 2008), Poland (Raciborski, 1890, 1894), Greenland (Harris, 1926, 1932; Ôishi, 1938), Romania (Czier, 2016), Sweden (Nathorst, 1886, 1878; Antevs, 1919), and New South Wales (White, 1981) (Table 1 and Figure 4).
Table 1 The worldwide distribution of Lower to Middle Jurassic plant fossils.
| Location | Asia | Europe | |||||||||||||||||||||
| Iran | Transcaucasia | Afghanistan | Japan | Korea | Russia | China | |||||||||||||||||
| Central Iran | Alborz | ||||||||||||||||||||||
| Kerman | Tabas | ||||||||||||||||||||||
| Pabdana | Babnizou | Hojedk | Lenjan | Kamozd | Tazareh | Ahansar | Hungary | Germany | Sardania | Yorkshire | Poland | Greenland | Romania | Sweden | New South Wales | ||||||||
| Species/Authors | 1, 2, 20 | 3, 4, 18 | 16 | 41-42 | 5, 20 | 6-8, 15, 19 | 4, 7-12, 18, 21 | 13 | 41-42 | 43-46, 4, 3 | 34-36, 47 | 62 | 37-39, 53 | 65 66 | 22, 51, 54, 64 | 23, 49, 55-57 | 25, 24 | 26-33 | 40 | 48, 52 | 50, 63 | 58-60 | 61 |
| Nilssonia polymorpha | * | * | * | * | |||||||||||||||||||
| Pterophyllum nathorsti | * | * | * | * | * | ||||||||||||||||||
| Podo:¿amites distans | * | * | * | * | * | * | * | * | * | * | * | ||||||||||||
| Elatides thomasii | * | * | * | ||||||||||||||||||||
| Cladophlebis denticulata | * | * | * | * | * | * | * | ||||||||||||||||
| Nilssonia Jeri:¿iensis | * | * | * | * | |||||||||||||||||||
| Nilssonia herriesi | * | * | * | ||||||||||||||||||||
| Anomo:¿amites marginatus | * | * | * | * | |||||||||||||||||||
| Pterophyllum schenki | * | * | * | * | * | ||||||||||||||||||
| Klukia exilis | * | * | * | * | * | * | * | * | * | * | * | * | * | * | |||||||||
Note: 1- (Schweitzer and Kirchner, 1995), 2- (Ameri et al., 2014b), 3- (Schweitzer and Kirchner, 1996), 4- (Schweitzer et al., 2000), 5- (Vaez Javadi, 2014), 6- (Kipper, 1964), 7- (Sadovnikov, 1976), 8- (Schweitzer et al., 2009), 9- (Kipper, 1971), 10- (Sadovnikov, 1984), 11- (Sadovnikov, 1991), 12- (Schweitzer and Kirchner, 1998), 13- (Popa et al., 2012), 14- (Barnard and Miller, 1976), 15- (Corsin et al., 1977), 16- (Ameri et al., 2014a), 17- (Ameri, 2018), 18- (Schweitzer et al., 1997), 19- (Fakhr, 1975), 20- (Schweitzer et al., 2003), 21- (Vaez Javadi, 2006), 22- (Barbacka, 2011), 23- (Van Konijnenburg et al., 2021), 24- (Fontaine, 1889), 25- (Krasser, 1912, 1913, 1920), 26- (Brongniart, 1982), 27- (Bunbury, 1851), 28-(Zigno, 1856), 29- (Phillips, 1829), 30- (Seward, 1898, 1900), 31- (Thomas, 1911), 32- (Harris, 1946, 1961, 1964, 1969, 1979), 33- (van Konijnenburg-van Cittert, 2008), 34- (Kawasaki, 1925), 35- (Ôishi, 1940), 36- (Endo, 1952), 37- (Thomas, 1911), 38- (Prynada, 1938), 39- (Stanislavski, 1957), 40- (Raciborski, 1890, 1894) 41- (Prynada, 1933), 42- (Farinacci, 1967), 43- (Seward, 1911), 44- (Sitholey, 1940), 45- (Jacob and Shukla, 1955), 46- (Benda, 1964), 47- (Ôishi, 1938), 48- (Harris, 1926, 1932), 49- (Barbacka et al., 2015), 50- (Czier, 2016), 51- (Barbacka and Bodor, 2008), 52- (Ôishi, 1938), 53- (Vakhrameev, 1980), 54- (Vozenin-Serra and Franceschi, 2000), 55- (Berger, 1812), 56- (Presl, 1838), 57- (Braun, 1843), 58- (Nathorst, 1886, 1878), 59- (Halle, 1908), 60- (Antevs, 1919), 61- (White, 1981), 62- (Tatsuaki Kimura and Bong-Kyun Kim, 1982), 63- (Popa et al., (2012), 64- (Barbacka, 2001), 65- (Yang, et al., 2010), 66- (Zhou, 1995; Deng and Shang, 2000).
Two plants fossil Biozones can be identified from the Ab-e-Haji and Hojedk formations in Chatrod section.
Anomozamites marginatus-Pterophyllum schenki zone and Anomozamites marginatus zone are found 7 meters from the base of the section, marking the lower boundary of this range. The first occurrence of Anomozamites marginatus is at the base of the Liassic Thaumatopteris zone (Harris, 1932; Barbacka, 2000). The last time Pterophyllum schenki was present can be used to determine the upper limit. The last occurrence of Pterophyllum schenki is within the upper part of the Liassic (Schweitzer and Kirchner, 2003; Vaez-Javadi, 2006). Other associated species are Nilssonia polymorpha, N. sp., Pterophyllum nathorsti, Podozamites distans, Elatocladus zamioides, and Elatides thomasii.
Klukia exilis zone: The first and last appearances of Klukia exilis, which are between 125 and 200 meters from the section’s base, define the boundaries of this interstitial zone. There have been reports of and descriptions of Klukia exilis from all over the world, and its stratigraphic range is significant for the Middle Jurassic period. But according to Schweitzer et al. (2009), this species is regarded as a typical, marker taxon for the lower Middle Jurassic (Aalenian-Bajocian) in Iran and Afghanistan. Nilssonia sp., Pterophyllum nathorsti, Podozamites distans, Elatocladus zamioides, Elatides thomasii, Cladophlebis denticulate, Nilssonia feriziensis, Nilssonia herriesi, and Beania sp. are some of the other species that are associated.
6. Conclusion
In particular, the Ab-e-Haji and Hojedk formations succession of the Shemshak Group are widely cropped out in the Kerman basin. There are numerous, well-preserved fossilized plant remains from 18 species spread throughout 14 genera, in the Ab-e-Haji and Hojedk formations of the Chatroud region. Nilssonia Pterophyllum, Podozamites, Elatocladus, Elatides, Cladophlebis, Klukia, Anomozamites, Ptilophyllum, Beania, Neocalamites, Geinitzia, Pagiophyllum, and Ginkgoites, which is described for the first time in this study. Two plant assemblages’ zones are identified in this area; Anomozamites marginatus-Pterophyllum schenki zone, that characteristic by the first appearance of Anomozamites marginatus and in upper limited by the last presence of Pterophyllum schenki. The Liassic is thought to include this time period. Klukia exilis zone this interval zone limited by the first and last appearance of Klukia exilis. In Iran and Afghanistan, this species is regarded as a representative, marker taxon for the lower Middle Jurassic (Aalenian-Bajocian). A humid-warm temperate climate can be deduced for the Lower-Middle Jurassic in the Kerman region based on the presence of Taxodiaceae family Taxodiaceae (Geinitzia), Equisetacea family (Neocalamites), Araucariaceae family (Pagiophyllum), and Williamsoniaceae family (Pterophyllum).
