Computación y Sistemas

versión On-line ISSN 2007-9737versión impresa ISSN 1405-5546

Comp. y Sist. vol.26 no.1 Ciudad de México ene./mar. 2022  Epub 08-Ago-2022

https://doi.org/10.13053/cys-26-1-4159

Articles of the Thematic Issue

Methodology to Develop a Home Energy Management System Architecture

Blanca Nydia Pérez-Camacho1

Juan Manuel González-Calleros1  *

Gustavo Rodríguez-Gómez2

1 Benemérita Universidad Autónoma de Puebla, Computer Science, Mexico. nydia.perez@alumno.buap.mx.

2 Instituto Nacional de Astrofísica, Óptica y Electrónica, Computer Science, México.


Abstract:

This paper is concerned in to propose a complete methodological architecture that is used to develop a complete demand system. The general methodology could be subdivided into three modules. The first module is focused on data consumption emulation, in it is implemented Monte Carlo method to generate data behavior of household appliances set over time getting a user profile. The second module is about developing a user interface that lets the user interact with the system, through the interface is possible that the user feeds the system with the features that describe the context. The interface gives feedback to the user with graphical information about consumption and a possible household appliances behavior which decrease the consumption, with that the user could get more conscious about his consumption behavior. In the third module is implemented a metaheuristic that analyzes the data consumption and searches the optimum using an objective function which is obtained from a mathematical model. The mathematical model contemplates how household appliances consume.

Keywords: Demand system; data simulator; methodology architecture

1 Introduction

Accordingly, with the International Energy Agency (IEA), the global energy demand is 2% to 2.3% higher than in the year 2000. The global electricity demand is going to grow at 2.1% per year till 2040.

One-fifth part of the global demand is destined to satisfy heating and cooling needs. 30% of the total global energy produced is destined for domestic use.

House consumption depends on six factors: climate, infrastructure, service system and use of electricity, the inner design, house´s maintenance and uses, and occupant behavior [1].

Every each of the first five factors has been significant progress using different strategies like using renewable energies, house designing, implementing home energy management systems, and others, the last factor is an open research area.

Home energy management systems have been developed from different approaches focusing on an interface, the implementation and development of search techniques for optimal use and consumption, the detection of patterns behavior device use, obtaining user needs, usage rules, and sensor architecture design with the main goal of reducing domestic consumption.

To the knowledge of the author, there is not a development methodology that involves all of them. Following the data flow in this kind of project makes sense to propose a methodology focusing on it.

Dataflow by itself defines the modules that conform to the methodology that we are developing: Home Energy Management System Architecture (HEMSA).

1.1 Home Energy Management System

A methodological HEMSA proposition was obtained from reviewing papers about what is a demand system [2], which are its components, and what are the variables that are necessary to consider in the development. In the review, there are two main topics: demand system architecture (components, data kind, and characteristics) and conscious systems (it is about data flow in projects) [3].

From an architectural perspective, a demand system consists of five parts: sensors array, three modules (programming, monitor, and prediction), and one logical control unit [4]. In conscious system dataflows passes through five layers: sensor, physic, conscious of behavior, digital, and meta; between physics and conscious of behavior layers there is a fusion of information module. So, the data flow itself determines how the data is acquired, its processing, and how the results are displayed.

From architectural demand system and the conscious system has conceptualized a methodology that embeds three main parts: sensor layer (SL), intelligent ambient (IA), and prediction module (PM).

To design SL which considers the occupant behavior (action when the occupant turns on/off household appliances and time-consumption of household appliances). How the devices are used affects the consumption that is being generated and allows us to predict how this consumption is carried out. SL is made by implementing a simulator that generates consumption and uses profiles of household appliances. These profiles allow emulating household appliances (room air conditioner, heater, washing clothes and furnace fan) On/Off behavior.

IA is the user interface through which the user feeds the system with de context features and gets feedback with graphical information about data consumption.

PM is the part where data consumption is analyzed and is obtained an optimal consumption, in this module is implemented a bioinspired metaheuristic (Particle Swarm Optimization (PSO)).

This paper is organized as follows. Section 2 presents the related work. Section 3 the topics that conform to the parts of the home energy system architecture methodology. In section 4 is presented the case study. The experimental results and validations are presented in section 5. Finally, conclusions and further work are presented in section 6.

2 Related Work

From the literature review, the general objectives for the implementation of an electricity consumption analysis system are identified, these can be focused to maintain a comfortable environment for the user, reduce the consumption that is made in the implementation environment, helping to reduce consumption costs, and voltage peaks [5], the most referenced is the one that focuses on meeting the needs of the user, followed by the reduction of cost and consumption (which are directly related to each other) and finally reduce voltage peaks when turning on a device.

For a demand system, it is necessary to have a consumption database, and for the construction of this, the characteristics of the devices must be identified, these are average consumption, frequent use time, and type of device to which it belongs (interruptible, uninterruptible, flexible and not flexible) [6].

Consumption data is obtained from a sensor architecture; but, when one does not have one, then a simulator is used to generate usage and consumption profiles. Vectors are used in the simulator to store consumption data for each of the devices being simulated. Each of the vectors that are constructed corresponds to a specific time in the range from 0 to 23 (the hours that make up a day) [7].

An important part of the design of a demand system is the mathematical modeling of the consumption is carried out by the devices that characterize the context to obtain the objective function [8].

The implementation of an interactive system [9] as part of an energy management system for the home, encourages the user to make changes in consumption behavior, as this makes them act efficiently and conscious, thus generating a transparent, dynamic, controllable, and intelligent environment, it provides comfort by simplifying the control and management of electrical devices [10]. The interactive system is a means that serves to make a virtual representation [11] creating objects [12] of the identified context [10], the interactive system groups the data concerning the implementation objective [13]. The system interface must have the characteristic of being flexible, accessible, and intuitive[14] as a SCADA system [15] by allowing the inclusion of more virtual objects to the system. Presenting consumption data through the interface [16] reduces consumption by between 3% and 13% [13].

In the system, there is a module in which the procedure uses the implementation objective to propose an optimized consumption [17]. In the literature, four types of linear programming procedure, genetic algorithms, metaheuristics, and game theory are identified [6]. Being one of the most implemented metaheuristics [17].

In the reviewed works, it is observed how the development approach focuses only on one of the parts that make up a demand system, that is, only some of the parts are improved and the others are only approached in a shallow way or are not developed.

3 System Architecture Topics

3.1 Energy Consumption Model

A mathematical representation of electric consumption in a house is made by a mathematical model. The sort of devices and their characterization are used to model them. The device's description is done by every kind of household appliance, the minimum, and maximum consumption, and they frequently use time. The on/off household appliances´ states are represented by 1 and 0 respectively.

3.2 Household Appliances

According to the way which the household appliances work, they can be sorted into flexible (𝐹), not flexible (𝑁𝐹), interruptible (𝐼), and uninterruptible (𝑁𝐼) devices. The flexible devices are the devices of electric consumption whose function can be interrupted and continue at another moment [18]. Flexible devices can be put on standby. The not-flexible appliances are devices of electric consumption that cannot be turned off, this type of appliance has a constant operation [17]. Interruptible appliances are electrical consumption devices that can be used at any time, the time of use varies according to the user´s needs [17]. Uninterruptible appliances are electrical devices that stop to function has finished; the electric consumption can be constant or variable [18].

3.3 Household Appliances Consumption

The set of devices in a context is represented by 𝐴, and 𝑖 −device is represented by 𝑎𝑖. Set 𝐴 have four subsets 𝐴𝐼, 𝐴𝑁𝐼, 𝐴𝐹, and 𝐴𝑁𝐹. Set 𝐴 = 𝐴𝐼 ∪ 𝐴𝑁𝐼 ∪ 𝐴𝐹 ∪ 𝐴𝑁𝐹, every subset represents a kind of device, 𝑎𝐼 ∈ 𝐴𝐼, 𝑎𝑁𝐼 ∈ 𝐴𝑁𝐼, 𝑎𝐹 ∈ 𝐴𝐹, 𝑎𝑁𝐹 ∈ 𝐴𝑁𝐹.

The on/off devices state in the 𝜏 moment is represented by 𝜏(𝑡) ∈ {0,1}, 1 represents 𝑂𝑁 and 0 represents 𝑂𝐹𝐹. There are considered 24 moments in the modeling, 𝜏 ∈ 𝑇, 𝑇 = {𝜏1, 𝜏2, … , 𝜏24}.

The cardinality of set 𝐴 and its subsets are represented as |𝐴| = 𝑚, |𝐴𝐼| = 𝑛, |𝐴𝑁| = 𝑝, |𝐴𝐹| = 𝑞, |𝐴𝑁𝐹| = 𝑟. So, 𝑛 + 𝑝 + 𝑞 + 𝑟 = 𝑚, and 𝐴 = {𝑎1, 𝑎2, … , 𝑎𝑚}.

Set 𝐴 can have devices belonging to the same type of device with different identifiers. The household appliances consumption function takes the elements of the set 𝐴 in every moment in set 𝑇 and generates the consumption measured in watts. The kind of values is ε: A × T → R+, the hourly consumption of a device at a specific time is:

ε(ai,τi)=ϒaiτ. (1)

The total consumption of the set is represented as the sum of daily devices consumption (where ε𝐼 represents the daily total consumption of interruptible devices group and is the same for the others ε𝑖), it is represented as:

ε=εI+εNI+εF+εNF. (2)

The hourly consumption is the sum of the consumption that is carried out at a specific moment by every device group (here ϒIτ represents the total hour-consumption interruptible group in 𝜏 moment, it is the same for the other groups), it is:

ϒτ=ϒIτ+ϒNIτ+ϒFτ+ϒNFτ. (3)

The minimum consumptions per day is:

εmin=εNF=aNFANFτ=1TϒaNFτ. (4)

And per hour consumption is:

ϒminτ=aNFANFNFττ,τT. (5)

The maximum consumptions per day is:

εmax=εI+εNI+εF+εNF=aiAτ=1Tϒaiτ,αai(τ)=1. (6)

And per hour, are represented as:

ϒmaxτ=ϒIτ+ϒNIτ+ϒFτ+ϒNFτ=aiAϒaiττ,τT. (7)

For the model, it is identified that ε𝑚í𝑛 < ε𝑜𝑝𝑡 < ε𝑚𝑎𝑥, where ε𝑜𝑝𝑡t it meets the needs of the user minimizes consumption and reduces the peak average ratio.

𝐴𝐼 = {𝑎𝐼1, 𝑎𝐼2, … , 𝑎𝐼𝑛}, |𝐴𝐼| = 𝑛 < 𝑚, and ∃ 𝑎𝐼𝑖, 𝑎𝐼𝑗 ∈ 𝐴𝐼, 𝑖 ≠ 𝑗 → 𝑎𝐼𝑖 = 𝑎𝐼𝑗.

The total consumption of the subset AI is obtained from (8) and represents the sum of the total consumption of every device belonging to this subset and whose consideration depends on the state of the device (on / off) for each moment. The partial consumption is obtained in (9) (consumption per hour), which is the sum of the consumption made by all the devices that are on in the moment 𝑇.

εI=aIiAIi[τ=1T(ϒaIiτxαaIi(τ))], (8)

ϒIτ=aIiAI(ϒaIiτxαaIi(τ))τ,τT. (9)

To define the subsets 𝐴𝑁𝐼, 𝐴𝐹, and 𝐴𝑁𝐹 are used similar expressions to those exposed for the subset 𝐴𝐼. For 𝐴𝑁𝐹, 𝛼(𝜏) =1, because they are turned on all time.

A window represents the range of hours between which a device can operate, [σaI,ψaI], To define the window device, are identified four parameters: the device on time σaIi, the time for which the device will no longer turn on ψaIi, the frequent operating time ξaIi, and the time ζaIi at which the device 𝑎𝐼𝑖 has been turned on.

These four parameters fulfill the following constraints: σaIiψaIi,ζaIσaIyζaIψaIξaI,ζaIσaIyζaIψaIξaI,ζaI[σaI,ψaIξaI].

The objective function is defined to minimize the daily consumption, it is:

minτ=1T(aiAϒaiτ). (10)

3.4 Monte Carlo Method

A strategy to approximate an unknown quantity μ is using random sampling, referred to as Monte Carlo Methods. This method is based on finding a sequence 𝑋1, 𝑋2, … ,  𝑋𝑛 of mutually independent, identically distributed random variables, such that the expectation E𝑋𝑖 = 𝜇 exits for i = 1,2, … , n. Let be 𝑆𝑛 = 𝑋1 + 𝑋2 + ⋯ + 𝑋𝑛, the Weak Law of Large Numbers states that, for every ε>0,limnpr(|Snnμ|>ε)=0.

Besides, when the expectation 𝜎2 = 𝐸(𝑋𝑖 − 𝜇)2 exits the Central Limit theorem asserts that pr(|Snnμ|<3σn)0.997.

Then the mean of 𝑆𝑛/𝑛 will be approximately equal to 𝜇.

3.5 Methodology to Implement a Simulator

The simulator was programmed in MATLAB R2018a following the Monte Carlo method with the Acceptance-Rejection technique to generate the fins. This technique supposes that there is a method for simulating a random variable from the probability mass function. First is simulated a random variable “𝑌” from the mass function “𝑞𝑗” and then accepting this simulated value with a probability of 𝑝𝑗/𝑞𝑗. The constant 𝑐 is defined as getting the maximum of 𝑝𝑗/𝑞𝑗, where 𝑝𝑗 > 0. So, the simulated value 𝑌 with the probability mass function 𝑞𝑗 generates a random number 𝑈, if 𝑈 > 𝑝𝑗/𝑐𝑞𝑗 set 𝑋 = 𝑌 and stop, otherwise generating a new 𝑌.

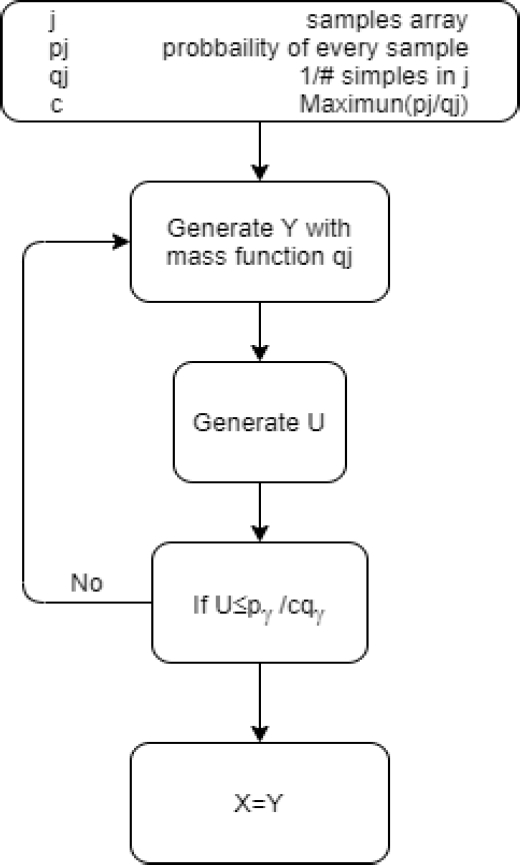

The diagram of the Acceptance-Rejection technique is shown in Figure 1.

Fig. 1 Acceptance-Rejection technique diagram

3.6 Model-Driven

The benefit of developing software with a rational ser of principles includes reproducibility. The task model describes each task in a system workflow like enable access, user functions, device functions, scenario functions, report functions. Enable access refers to validation when a user is in the system. The user´s needs include CRUDs for the user, devices, scenarios, reports, and special comments on data visualization. Scenario specification refers to creating scenarios tasks (see Figure 2) and adding devices to them. Report functions convey data to the user.

Fig. 2 Task Model of the definition of demanding Home Energy Management System

To get a class model, first, the scenarios to be characterized are identified. Second, the frequent devices. Third, the list of devices and devices’ characteristics. Fourth, for every device the most common data of minimum, maximum and standby power, and the frequently daily time use. Fifth, the devices are categorized into the group to which they belong.

The user interface design was introducing sources of data and introducing an aspect of social computing to reinforce the current perspective of the framework and gamification strategies. Finally, the prototyping is created by considering User Interface (UI) design patterns. To exemplify the challenges that the potential users may face is using storytelling with which is possible to see different situations from a general point of view as designers of the project.

3.7 Particle Swarm Optimization Algorithm

Particle Swarm Optimization (PSO) is a social behavior metaphor of birds and fishes. PSO is a stochastic search that uses swarm particles, everyone particle moves through the cluster adjusting its trajectories to find the best solution using the objective function. The position of every particle, xi, is determined by the velocity vi, the acceleration coefficient, inertia, and the size of the cluster of particles. The velocity and position equations [19] are:

vij(t+1)=wvij(t)+φ1j(t)(yij(t)xij(t))+φ2j(t)(y^ij(t)xij(t)), (11)

xij(t+1)=xij(t)+v1j(t+1). (12)

Table 1 describes the components of (11) and (12).

Table 1 Velocity and position equations components

Variable Description
𝑖 1…, s
𝑗 1…, n
𝑤 Inertia factor
𝜑1𝑗(𝑡) 𝑐1𝑟1𝑗(𝑡)
𝜑2𝑗(𝑡) 𝑐2𝑟2𝑗(𝑡)
𝑠 Number of swarm particles
𝑛 Number of parameters
𝑐1, 𝑐2 Acceleration coefficient 0<c1, c2<1, c1 cognitive weight and c2 social weight
𝑟1𝑗(𝑡), 𝑟2𝑗(𝑡) U (0,1), uniform distribution in (0,1)
𝑥𝑖(𝑡) Particle i-position in t-moment
𝑣𝑖(𝑡) Particle i-velocity in t-moment
𝑦𝑖(𝑡) The best particular solution found by particle I in t-moment
ŷ𝑖(𝑡) Best global position found I in t-moment

To warranty the PSO algorithm convergence is needed to satisfy that 0 < 𝑐1, 𝑐2 < 1, and aleatory 𝑟1, 𝑟2 evenly distributed in (0,1) [20]. The particle velocity is defined by the components which are described in Table 2.

Table 2 Particle velocity components

Components Description
𝑣𝑖(𝑡) To prevent oscillation in the direction research
𝜑1(𝑡)(𝑦𝑖(𝑡) − 𝑥𝑖(𝑡)) Cognitive component
𝜑2(𝑡)(𝑦𝑖(𝑡) − 𝑥𝑖(𝑡)) Social component
𝑦𝑖(𝑡) Best global solution found by i-particle

4 Case Study

4.1 Simulation phases

Problem definition: the implementation objective of a demand system is defined accordingly with the context, geographical area, and variables that define the electricity consumption. The devices, the moments in which each of the devices is on, and their consumptions features are identified in Table 3, the features were obtained from their datasheet’s device.

Table 3 Household appliances features

Device Power (kW) Daily Freq. use time Kind of Device
Furnace fan 1000- 2000 3 I
Space heater 763-1500 4 I
Room air conditioner 1000-2950 4 I
Clothes washer 550- 2850 0.57 F

System´s conceptualization: identify devices that characterize the context of use, and then classify them according to the type of device to which they belong see Table 3. Once the devices are identified, the associations and correlations that exist between the devices concern the moments of use.

Model representation: the relationships between devices are formalized by equations that identify the states of devices at specific and daily moments and consumption.

Behavior model: behavior representation and devices consumption over time are represented in the behavior matrix and consumption matrix.

Model´s evaluation: it is observed the behavior of devices’ probability distribution function (PDF) [21], the devices are furnace fan, space heater, room air conditioner, and clothes washer. For every device PDF, the (𝑥, 𝑦) coordinates obtained from their graphs [21] are shown in Table 4, the coordinates were obtained by manual and visual graph analysis.

Table 4 Table Fan coordinates

Furnace Fan
Coord x y
1 0 0.7879
2 1 0.6069
3 2.0482 0.5620
4 3.0120 0.5620
5 3.9759 0.5517
6 5.0602 0.5207
7 6.1446 0.5620
8 6.9879 0.6828
9 7.8313 0.7569
10 10 0.5207
11 10.8434 0.5517
12 11.9277 0.5517
13 13.0120 0.5207
14 15.7831 0.6069
15 18.1928 0.8689
16 19.1566 0.9379
17 20.9639 1
18 22.1687 0.9724
19 24 0.7879
20 - -

4.2 Validating Simulator

The simulator is validated generating almost 1000 data. The data were graphed in a histogram, the waves between the histogram and Probability Distribution Function’s (PDF) furnace fan histogram [21] are similar (Figure 3). The same procedure is followed with room air conditioner, heater, and washing clothes in [21].

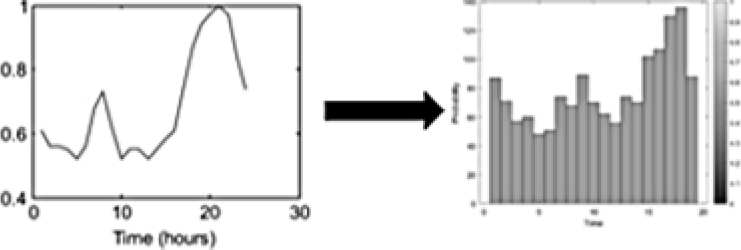

Fig. 3 Furnace fan histogram

The simulation of the trial was carried out for furnace fan, space heater, air conditions, and clothes washer. Four arrays were made per device, every array has #number_of_experiments rows by 24 columns, each array corresponds to schedules, turn on device, usage profile, and consumption profile. From the arrays were generated two more, in the first one is storage the total consumption and in the second one the total use time per experiment per device.

The number of experiments by each simulation is defined:

  • - Choose an acceptable value for 𝑑 = 10−3 to estimate the standard estimation.

  • - Generate 100 experiments.

  • - Generate more experiments, when has been generated 𝑘 values and sk<d, where 𝑆 is the standard deviation of 𝑘 test sampling.

  • - To estimate 𝜃 is from X¯=i=1kXi/k.

The margin of error of the system is calculated using the standard deviation, and considering that the experiment is non-sensitive, it was established at 5%. When the standard deviation is no longer significant then the simulation is stopped, the number of experiments necessary per device is almost 189 for a furnace fan, 388 for a space heater, 419 for a room air conditioner, and 100 for a clothes washer.

4.3 Model-Driven Map

To build and share customer knowledge across the organization about what they need at each point in their day and how these requirements are being met and provide insight into customer paint points were used Card Sorting technique and Journey Map. An empathy map (see Figure 7) is used too to model the user´s care about his electricity consumption and environment.

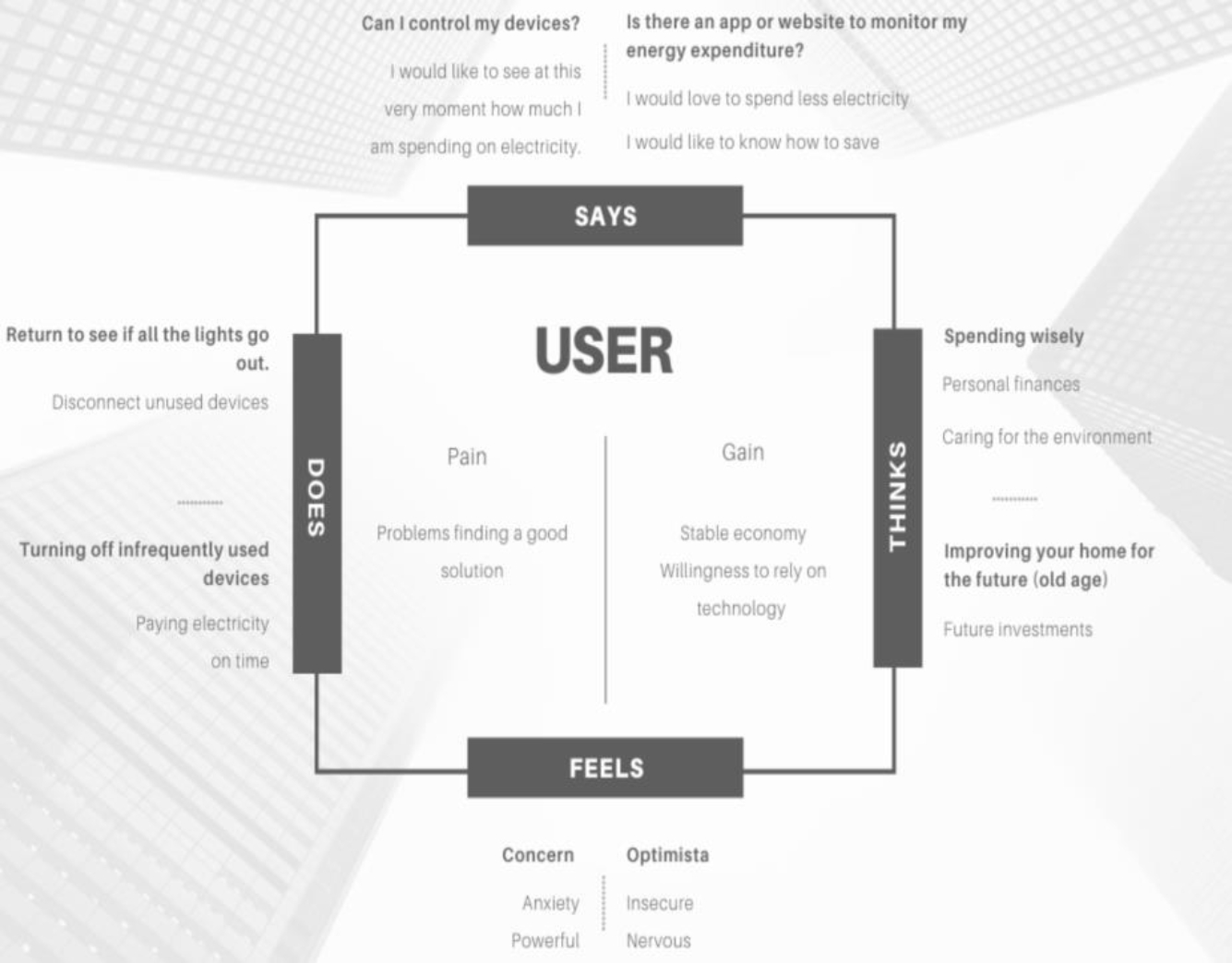

Fig. 7 Empathy maps of the user of a demanding HEMS

Finally, the codesign Framework focuses on Social Computing to achieve a perfect balance between social behavior and computational systems. it seeks to create new practices that allow socialization through technology. The demand home management system includes certain actions that family members or acquaintances, in the case of shared floors, can perform, since the application will be used by any member of a community using the same devices. For instance, share a limit of energy expenditure, an alert will be sent to each of the participants warning the current consumption and to know a little more in-depth the electrical activity, can be complemented with smart connected devices to the current in which through Siri or Alexa, you can identify the devices that consume more energy, and in this way the different members can see the consumption of other participants and send messages warning of excessive consumption in some area of the house or even emojis, allowing interaction between participants of the same family, plus if the monthly goal of maximum energy consumption is achieved, it can be shared on social networks like Facebook. User stories are written once the co-design is finished.

4.4 PSO Constraints

The space research is formed by consumption arrays of ten devices and swarm with 1000 particles. For the experiments, the inertia is 0.8, cognitive weight is 1, social weight is 1.

To stop criteria is 50 cycles or when the minimum value is repeated five times. The code was written in Python using Jupyter in a Dell laptop with an Intel Core i7 processor, 8.0 Gb ram, Windows 10, the PSO program uses the objective function (11).

5 Results

As an example of simulated behavior, Figure 8 shows the simulated behavior of the furnace fan. Extracts of the time of use and consumption profiles are shown in Figure 9 and Figure 10, respectively.

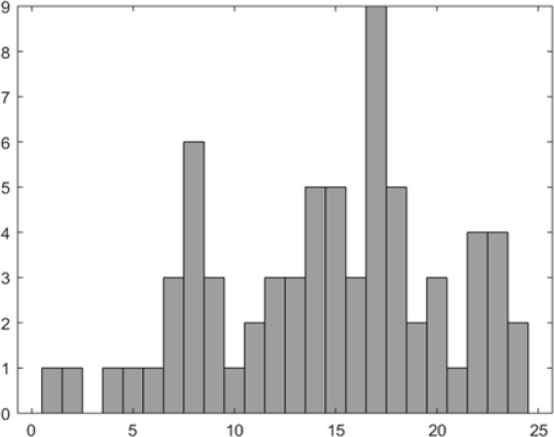

Fig. 8 Furnace fan simulated behavior

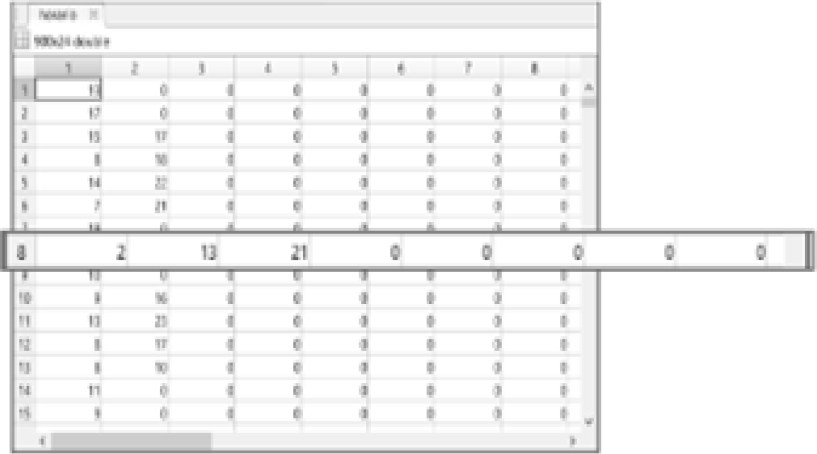

Fig. 9 Time the device is turned on per trial

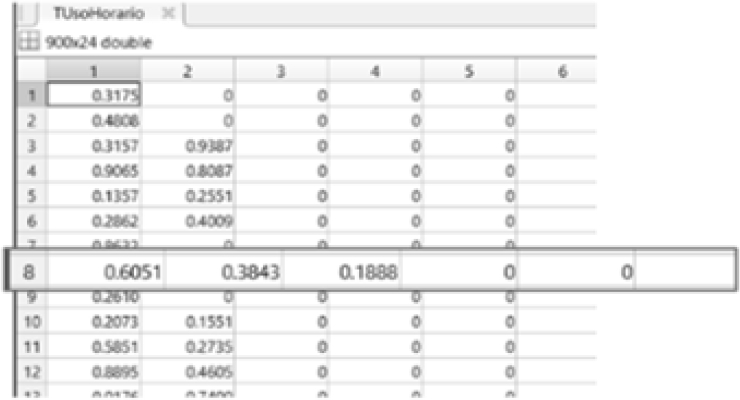

Fig. 10 Consumption per on time – schedule 8

Parts of the results of time and average consumption are also shown in Figure 11 and Figure 12, respectively. The percentage of On/Off time household appliances (furnace fan space heater room air conditioner, and washing clothes) are reported in Table 5.

Fig. 11 Average consumption per trial

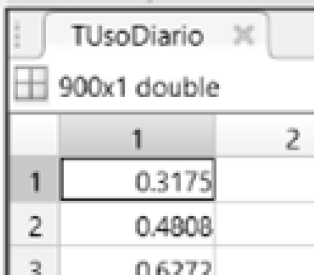

Fig. 12 Average time-use in each trial

Table 5 Household appliances percentage status time

Device % time is turn On % time is Turn Off
Furnace fan 6-7 94-93
Space heater 15-14 85-86
Room air conditioner 13-14 87-86
Clothes washer 6-7 94-93

5.1 Intelligent Ambient Evaluation

At the beginning design of the interface, the participants were required to design a user interface in which they could define the electrical devices they have at home. The interface used architectural plans of their houses to represent the physical spaces. In this work, we compared preferences vs performance during the experiment. To this work were compared preferences vs performance during the experiment, a vignette study was conducted. Collecting prospective users was a problem due to the pandemic, so a sample for convenience around the family and acquaintances is used. Ten Participants were presented our graphical mock-ups for the scenario specification, In Figure 13, the two alternatives are shown, the rationale behind each option is described as follows:

  • - The solution is alike to commercial tools, a look and feel like the Apple Home app was designed, depicted in Figure 13-A.

  • - A blueprint solution. Trying to deal with the workload problem of commercial solutions to handle multiple rooms and devices, selecting proper devices and their locations is time-consuming as you base everything just on icons. The blueprint-like selector to design scenarios was the first approach to do something different from existing solutions, this option is shown in Figure 13-B.

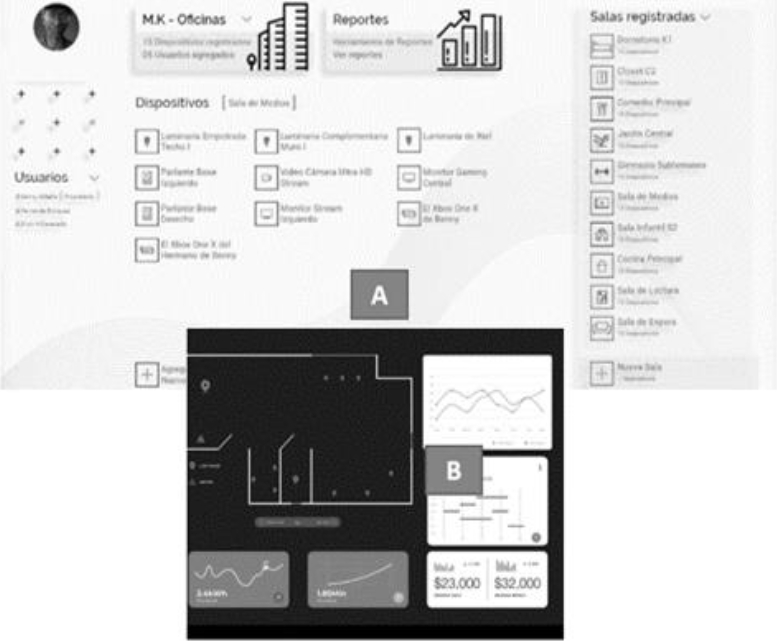

Fig. 13 User interface alternatives to create scenarios

To control the presentation of multiple pairs, we employed the A/B testing method, apart from being popular it is well accepted in research to elicit preferences. Although preference and performance are sometimes indirectly related, not as expected, it frequently happens that you might prefer the tool that is not necessarily the one in which you are performant. On the contrary, it could happen exactly the opposite. In the end, you learn to use the tool even if you have poor performance. In our case, we can confirm this scenario. Our user performs better in the blueprint scenario but prefers the solution that is similar to existing solutions in the A/B testing and IBM CSUQ as usability measurements. A web page was used for collecting preferences of A/B testing. Figure 13 shows two alternatives to create scenarios, in A) the preferred solution, a list of scenarios is listed to the right and the object in each scenario are listed in the middle with representative icons. In B) a blueprint of a house.

The application design and its process are carried out with the co-design technique, supported by known techniques of analysis and user experience design. The prototype proposal was evaluated with a convenience sample and the final decision gives us a clue of what the interactive system should look like that helps people make decisions regarding their electricity consumption, how they can design spaces or scenarios of houses room. The application design uses icons that allow the user to interact intuitively, the characterization of the rooms (Figure 14) choosing the device

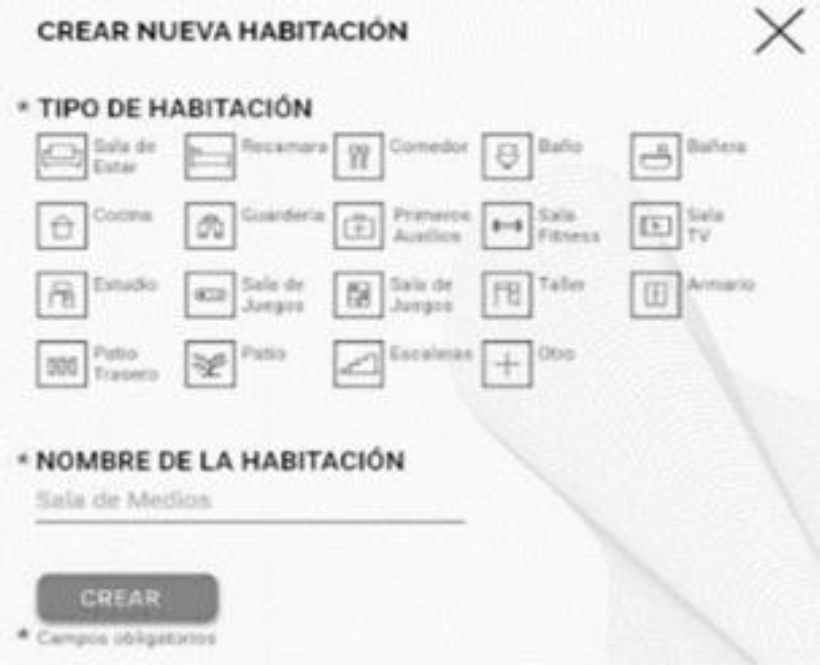

Fig. 14 Selection and identify the type of room

The consumption of all devices is plotted and showed it through application to the user (Figure 15).

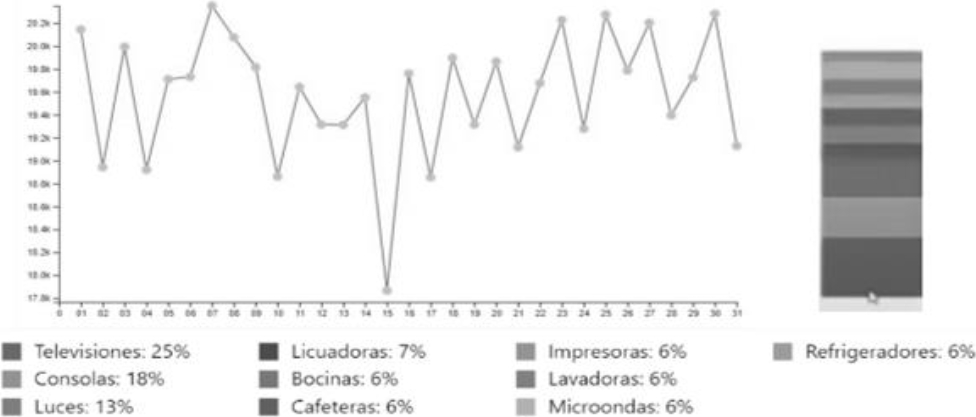

Fig. 15 Graph of the month- consumption

5.2 PSO Implemented

PSO was implemented in a database with 24 by 365 records. Each record is used to make a comparison with the vector found by PSO. 100 repetitions for the experiment were made for each record. The Analysis was made with the data obtaining the average for the 100 experiments for every device. The device-experiment average and standard deviation are calculated. The results are shown in Table 6.

Table 6 Household appliance average and standard deviation

Household appliance Average(kW/h) Standard Deviation
Room Air conditioner 1496.341 9.0e-05
Space Heater 808.00005 5.760072e-02
Furnace fan 1425.0 0
Clothes washer 895.5 0

The PSO implementation lets to propose consumption that each device should have to lower the total consumption without having to turn off any device that is in an inactive state. The proposal generated is displayed in the application transposing the real consumption graph (graph above) with the proposed by PSO (graph below) (Figure 16).

Fig. 16 Real consumption – proposed PSO consumption

6 Conclusions and Further Work

Current solutions around the development of software for an electrical demand system are focused on data processing, but little on the interactive application that, regardless of the user, can use it. The design of the application and its process is carried out with the co-design technique, supported by analysis techniques and user experience design. The prototype proposal was evaluated with a convenience sample and the final decision indicates how the interactive system should be that helps people make decisions about their electricity consumption, how they can design spaces or room scenarios of the houses. Much has been discussed on how to communicate this information and, in the end, we found that the solution must go beyond the sketches; But without a doubt, a device list, a common solution in most device applications, is far from an adequate solution. The implementation of this prototype has many technological challenges that undoubtedly leave open the debate on the interoperability of the devices currently available in the technological context.

An architecture for data analysis in a home energy management system is presented. The concept takes into account the characteristics of the data, considers how consumption data flows from its origin, processing, and use for the proposal of the regulation of consumption. The factors that involve the development of an architecture for the design of a demand system require an analysis of the data flow.

The electricity consumption analysis methodology serves to define a strategy for solving problems and can be replicated in other contexts.

Further work, to develop a flexible and scalable sensor architecture that allows generating consumption data in real-time. Develop an interface that detects the devices that make up the context, and that the interface can be installed on a server so that it can be used remotely.

References

1. Yan, D., O´Brien, W., Hong, T., Feng, X., Gunay, H., Tahmasebi, F. (2015). Occupant behaviour modeling for building performance simulation: Current state and future challenges. Energy and Buildings, Vol. 107, pp. 264–278. [ Links ]

2. Yao, L., Shen, J.Y., Lim, W.H. (2017). Real-time energy management optimization for smart household. Proceedings IEEE International Conference on Internet of Things, pp. 20–26. [ Links ]

3. Chen, S., Liu, T., Gao, F. (2017). Butler, Not Servant: A human-centric smart home energy management system. IEEE Communications Magazine, Vol. 55, pp. 27–33. [ Links ]

4. Huang, Y., Tian, H., Wang, L. (2015). Demand response for home energy management system. International Journal of Electrical Power and Energy Systems, Vol. 73, pp. 448–455. [ Links ]

5. Nadeem, Z., Javaid, N., Malik, A.W., Iqbal, S. (2018). Scheduling appliances with GA, TLBO, FA, OSR and their hybrids using chance constrained optimization for smart homes. Energies, Vol. 11, pp. 1–30. [ Links ]

6. Kakran, S., Chanana, S. (2018). Energy scheduling of smart appliances at home under the effect of dynamic pricing schemes and small renewable energy source. International Journal of Emerging Electric Power Systems, pp. 1–12. [ Links ]

7. Silva, B.N., Khan, M., Han, K. (2018). Load balancing integrated least slack time-based appliance scheduling for smart home energy management. Sensors, Vol. 18 [ Links ]

8. Sun, X., Ji, S., Wen, C. (2017). An optimized scheduling strategy for smart home users under the limitation of daily electric charge. Chinese Automation Congress (CAC´17), pp. 6898–6901. [ Links ]

9. Almusaylim, Z.A., Zaman, N. (2019). A review on smart home present state and challenges : Linked to context-awareness internet of things (IoT). Wireless Networks, Vol. 25, pp. 3193–3204. [ Links ]

10. Song, I., Cho, S. (2013). Expert systems with applications bayesian and behavior networks for context-adaptive user interface in a ubiquitous home environment. Expert Systems with Applications, Vol. 40, No. 5, pp. 1827–1838. [ Links ]

11. Li, S., Xu, L., Zhao, S. (2015). The internet of things: a survey. Information Systems Frontiers, Vol. 17, No. 2, pp. 243–259. [ Links ]

12. Madakam, S., Ramaswamy, R., Tripathi, S. (2015). Internet of Things (IoT): A Literature Review. Journal of Computer and Communications, Vol. 3, pp. 164–173. [ Links ]

13. Faruqui, A., Sergici, S., Sharif, A. (2010). The impact of informational feedback on energy consumption: A survey of the experimental evidence. Energy, Vol. 35, No. 4, pp. 1598–1608. [ Links ]

14. Buzzi, M., Leporini, B., Meattini, C. (2019). Design guidelines for web interfaces of home automation systems accessible via screen reader. Web Engineering, Vol. 18, pp. 477–512. [ Links ]

15. Bonino, D., De Russis, L., Corno, F., Ferrero, G. (2013). Jeerp: Energy-aware enterprise resource planning. IT Professional, pp. 50–56. [ Links ]

16. Mshali, H., Lemlouma, T., Moloney, M., Magoni, D. (2018). A survey on health monitoring systems for health smart homes. International Journal of Industrial Ergonomics, Vol. 66, pp. 26–56. [ Links ]

17. Mohsin, SM., Javaid, N., Madani, SA., Abbas, SK. (2018). Appliance scheduling in smart homes with harmony search algorithm for different operation time intervals appliance scheduling in smart homes with harmony search algorithm for different operation time intervals. 32nd International Conference on Advanced Information Networking and Applications Workshops (WAINA), pp. 51–60. [ Links ]

18. Yao, L., Damiran, Z., Lim, W.H. (2017). Energy management optimization scheme for smart home considering different types of appliances. IEEE International Conference on Environment and Electrical Engineering and IEEE Industrial and Commercial Power Systems Europe (EEEIC /I&CPS Europe), pp. 1–6. [ Links ]

19. Trelea, IC. (2003). The particle swarm optimization algorithm: Convergence analysis and parameter selection. Information Processing Letters, Vol. 85, pp. 317–325. [ Links ]

20. Van Den Bergh, F., & Engelbrecht, AP. (2006). A study of particle swarm optimization particle trajectories. Information Sciences, 176, 937–971. [ Links ]

21. Adika, C., Wang, L. (2014). Autonomous apliance scheduling for household energy management. Smart Grid, IEEE Transactions on, Vol. 5, pp. 673–682. [ Links ]

Received: July 29, 2021; Accepted: September 30, 2021

* Corresponding author: Juan Manuel González-Calleros, e-mail: juanmanuel.gonzalez@correo.buap.mx

Creative Commons License This is an open-access article distributed under the terms of the Creative Commons Attribution License
