Introduction

Pimenta dioica L. Merrill (Myrtaceae) is a perennial tree native to Mexico and Central America traditionally named Xocoxochitl (from Nahuatl). Nowadays it is known as “Pimienta de Tabasco” or “Pimienta Gorda” due to the fruit morphology [¹]. Currently Jamaica is the largest producer of this spice thus eventually named Jamaica pepper. Xocoxochitl is also named as allspice due to the aroma and flavor of its fruits: a combination of nutmeg, clove, cinnamon, and black pepper [²]. The main demand of the extracted essential oil is to satisfy the perfumery industry. Leaves are locally used only in a small scale for flavoring food and traditional medicine [²].

P. dioica is a dioecious species: the flowers present sexual dimorphism. They are structurally hermaphrodites but functionally dioecious [³,⁴,⁵]. This means that the trees have complete flowers but with specific characteristics for female or male trees (Fig. 1) . Female flowers have about 30 stamens and the pistil is larger than the stamens (Fig. 1(a), (b)). The fruiting trees are the female, for this reason considered more important. On the other hand, male flowers have around 80 stamens, the pistil is shorter and covered by the stamens. These flowers are not fertile (Fig. 1(c), (d)). Tree differentiation can be achieved only after five years of age, when the first flowering and fructification occurs. Observations in Jamaica indicate that male trees rarely produce fruits, these containing only one seed [³], nonetheless our observations in the harvest period, fruits from female trees have 1 to 4 seeds and male trees do not produce any fruits. To date, there is not protocol to distinguish the tree sex before the flowering. It is worth to mention that all flowers produce pollen regardless the tree type, so the female tree can pollinate by itself. In this way, male trees are just strictly necessary on field to assurance an effective pollination. For the above, the male trees probably are not needed in a fruit production system.

Fig. 1 Flowering of Pimenta dioica. (a) Female open flower (anthesis), (b) female inflorescence, (c) male open flower (anthesis) and (d) male inflorescence.

Allspice fruits are worldwide used for different purposes. Nevertheless, in the Totonacapan region, state of Veracruz, Mexico, the leaves are used instead. Some traditional Meso American corn dishes are prepared with a special sauce of chilis and P. dioica leaves. Also, leaf infusions are used to calm abdominal pains. Studies related to the composition of P. dioica leaf oil reported about 30 compounds depending on the extraction method and analytical tools. The techniques to obtain the oil involving high temperatures can alter the final composition since most volatile compounds can be lost.

The crushed fresh leaf aroma evidences the diversity of compounds contained in this tissue. Even when the leaf completes its life cycle, falls down on the soil and gets dry, it keeps its aroma. The aim of this study is to evaluate the VOCs profile in leaves of Pimenta dioica at different developmental stages from either 2-years-old undifferentiated trees, as well as fruiting and no-fruiting trees to provide information about the richness of compounds in leaves.

From the above, it is interesting to study the VOCs present in P. dioica leaves using Solid Phase Micro Extraction (SPME) technique and determined with Gas Chromatography coupled to Mass Spectrometry (GC/MS) since it is a fast, solvent free and highly reproducible technique. With this method, it is possible to obtain a better overview of the VOCs richness in leaves. The published information about P. dioica leaves lack important information about leaves development, tree phenology and the type of tree, female or male. In this study, the VOCs profile of leaves from either young undifferentiating trees, female and male trees was examined to calculate the relative concentration of VOCs using SPME-GC/MS. Also, three different stages of development: young, medium and mature were compared. This is the first report of VOCs profile from allspice leaves using SPME-GC-MS where 90 compounds were detected. The data show the richness of VOCs at all the development stages regardless the type of tree. Although the essential oil from dried fruits is appreciated for its richness in aroma and flavors industry, leaves as such, have a potential to offer a valuable essential oil product.

Experimental

Plant material

Leaves from three different developmental stages: young, medium and mature were analyzed. These can be distinguished by the leaf size and color mostly related to the chlorophyll content (Fig. 2). The leaves were collected from the medium part of the tree canopy, they were cut individually and kept in bags to maintain their humidity in a cooler box. Leaves were collected in October 2018, when the trees were in their fruit ripening season. From differentiating trees, leaves were collected from three female and three male trees in the community of Tilzapota, Atzalan, state of Veracruz, Mexico from a commercial production grove (19°53´11´´N, 97°10´57´´W, 627 m above sea level). These trees were 14-years-old and were propagated from seeds. Leaves from three 2-years-old sexually undifferentiated plants were also collected. These plants were propagated from seeds obtained from “La Garita” nursery in Tlapacoyan, Veracruz, Mexico and then cultivated in Tilzapota, Veracruz, from which leaves were collected.

Fig. 2 Developmental stages of leaves from Pimenta dioica: i) young leaf; ii) medium leaf and iii) mature leaf. Scale bar: 2 cm.

Experimental analysis

Leaves were washed with distillated water and weighted individually, then were chopped and placed into a 50 mL Erlenmeyer flask sealed with an aluminum cap maintaining the flask at 24 °C room temperature. The SPME fiber (50/30 μm DVB/CAR/PDMS; SUPELCO, Sigma Aldrich, Bellefonte, PA, USA) was previously conditioned and activated at the GC injection port for 15 min at 230 °C and maintained in a desiccator. The fiber was exposed for five minutes at room temperature to the flask head space containing the leaves sample. The exposed SPME was placed into the liner in the injector chamber of the GC and the oven run program started. After 15 min the clean and reactivated fiber was retracted from the injector and kept it in a desiccator.

Results and discussion

A total of ninety compounds were detected among the samples. From these 90 compounds, fifty -five were identified and analyzed in this study since they were present in all the repetitions (Table 1). The compounds analyzed belong to oxylipins, monoterpenes hydrocarbons and oxygenated, sesquiterpenes hydrocarbons, amino acids derivate and phenylpropanoids. Sesquiterpene hydrocarbons were the group with most compounds giving twenty-five total. Identified compounds and their relative abundance at different developmental stage of leaves from undifferentiated plants, female and male trees as well are listed in Table 1. It was possible to obtain and identify more compounds using SPME-GC-MS compared to distillation techniques. Bajer et al. [⁶] used this technique to analyze VOCs from allspice dried fruits. They identified 50 compounds using a similar SPME fiber (50/30 mm DVB/CAR/PDMS). It is important to note that the number of compounds identified from dried fruits and fresh leaves are similar, nonetheless certain compounds were identified at both kind of organs.

The SPME-GC-MS analysis of the VOCs in leaves from two-years-old trees revealed the identification of 49 compounds. α-Pinene, β-pinene, β-linalool, terpinen-4-ol, α-terpineol, eucalyptol, α-cubebene, copaene, β-caryophyllene, α-caryophyllene, α-selinene, β-selinene and eugenol showed an increase during leaf development. Only eucalyptol and α-terpineol showed a significative difference regarding their relative abundance at different leaf ages (P<0.01) since the mature leaves showed two-fold abundance compared to young and medium leaves. These compounds are connected during the monoterpene synthesis since α-terpineol is the precursor of eucalyptol, thus probably being the reason for a possible correlation of their abundance in the leaf.

Six compounds were identified exclusively in 2-years-old trees. 1-Butanol 2-methyl-acetate was the only derivate from amino acid biosynthesis which is frequently found in different fruits such banana and apple. β-Myrcene and D-limonene are monoterpenes characteristic from citric fruits; as a result, the young plants and young leaves have a fresh and soft aroma similar to lemon. 3-Hexen-1- ol, cis-4-decenal and decanal were identified only in these young trees. These compounds are oxylipins with action against herbivory. In fact, 2-years-old trees appear to be more susceptible to herbivory because they have a height of 90 cm and their matures leaves are less coriaceous and with less chlorophyll than the mature leaves of differentiated trees. This could be the reason for the presence of more oxylipin compounds as a defense mechanism in younger trees.

Forty-seven compounds were identified from leaves of female trees. From those, γ- cadinene and α-amorphene showed significant differences (P<0.05) and were more abundant in young leaves than in médium and mature leaves. Relative amounts of terpinen-4-ol were statistically higher in mature leaves than in the other leaves (P<0.0001). In the case of male trees, forty-three compounds were identified from leaves. Fifteen of the nineteen sesquiterpene-type compounds identified were more abundant in young leaves than in the other leaves (P<0.05). These compounds were: 1,2,3,4,4a,7-hexahydro-1,6-dimethyl-4-1 -methylethyl-naphthalene; bicycle [5. 2.0] 4-methylene-2,8,8-trimethyl-2-vinil-nonane; γ-cadinene; γ-murolene; α-cubebene; copaene; germacrene D; δ-cadinene; α-amorphene; β-selinene; β-elemene; elixene; α-caryophyllene; β-caryophyllene and aromadendrene. This suggests that sesquiterpenes biosynthesis in the young leaves of male trees probably had turnover activity that could be related to the tree phenology, specifically the ripening fruit period, as the female trees presented fructification but not the male trees.

Groups of VOCs identified in the leaves from each type of tree

Relative abundance of the distinct groups of VOCs was analyzed in the leaves from the different trees. Significant differences (P<0.05) were only observed in male trees leaves, since sesquiterpenes had a higher relative amount in young leaves than in medium and mature leaves (Fig. 3).

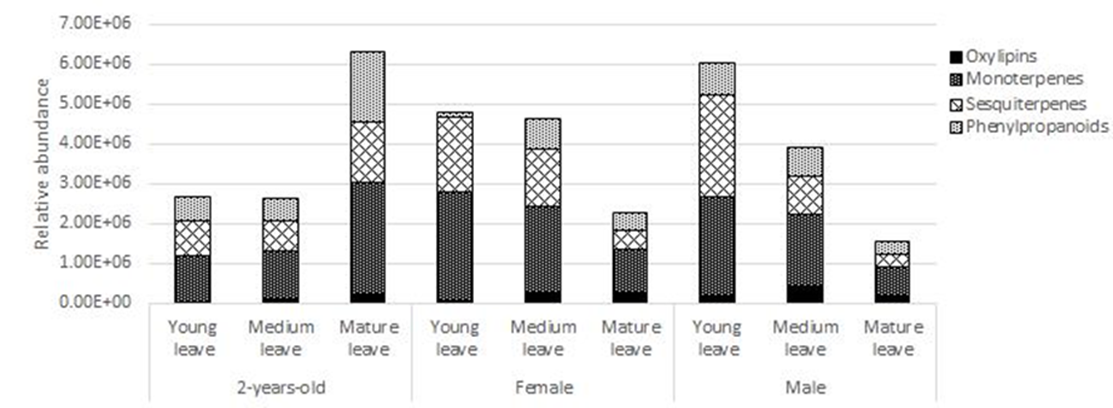

Fig. 3 Relative abundance of VOCs groups in leaves of Pimenta dioica at different developmental stages from 2-years-old trees, as well as female and male trees of 14-years-old.

Comparison of female and male profile

In the present study, the compounds identified in female and male trees were analyzed by PLS-DA (Partial Least Squares-Discriminant Analysis) to discern the differences between trees and to identify a discriminated model (Fig. 4). The first two components, which are denoted in the axes of Fig. 4, explain the 48.1% of variance. PLS-DA shows that the leaves from same developmental stage can be discriminated between female and male trees, thus VOCs of their leaves are different. However, the confidence region of male young leaves is overlapping with that of female medium leaves. A similar case is observed when comparing male medium leaves with female mature leaves. Contrary, there are regions which showed no overlapping, thus indicating compounds without differences between each type of tree.

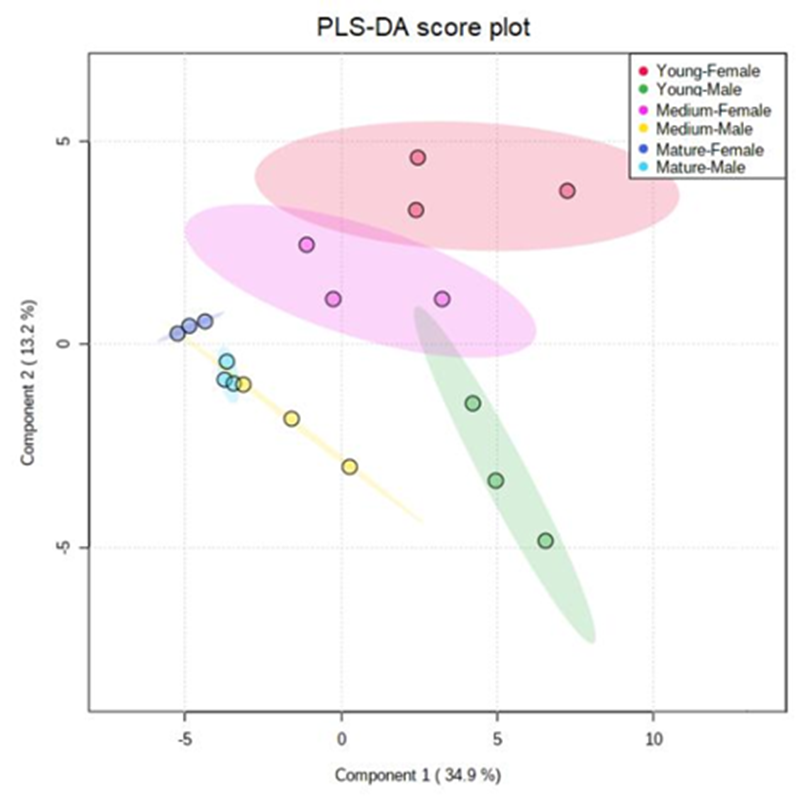

Fig. 4 Partial least squares discriminant analysis (PLS-DA) corresponding to VOCs identified in Pimenta dioica leaves at different developmental stages from female and male trees.

A multivariate analysis was performed obtaining a heatmap to provide an overview of volatile profiles from female and male leaves at different developmental stage (Fig. 5). A higher relative amount of sesquiterpenes was observed in young leaves than medium and mature leaves from female and male trees. From the heatmap, the monoterpenes γ-terpinene and cis-β-ocimene, had a higher relative amount in leaves of female trees than leaves of male trees. Minott and Brown [⁸] observed that γ-terpinene was detected with a higher percent in female leaf oil (P<0.005) than in male leaf oil.

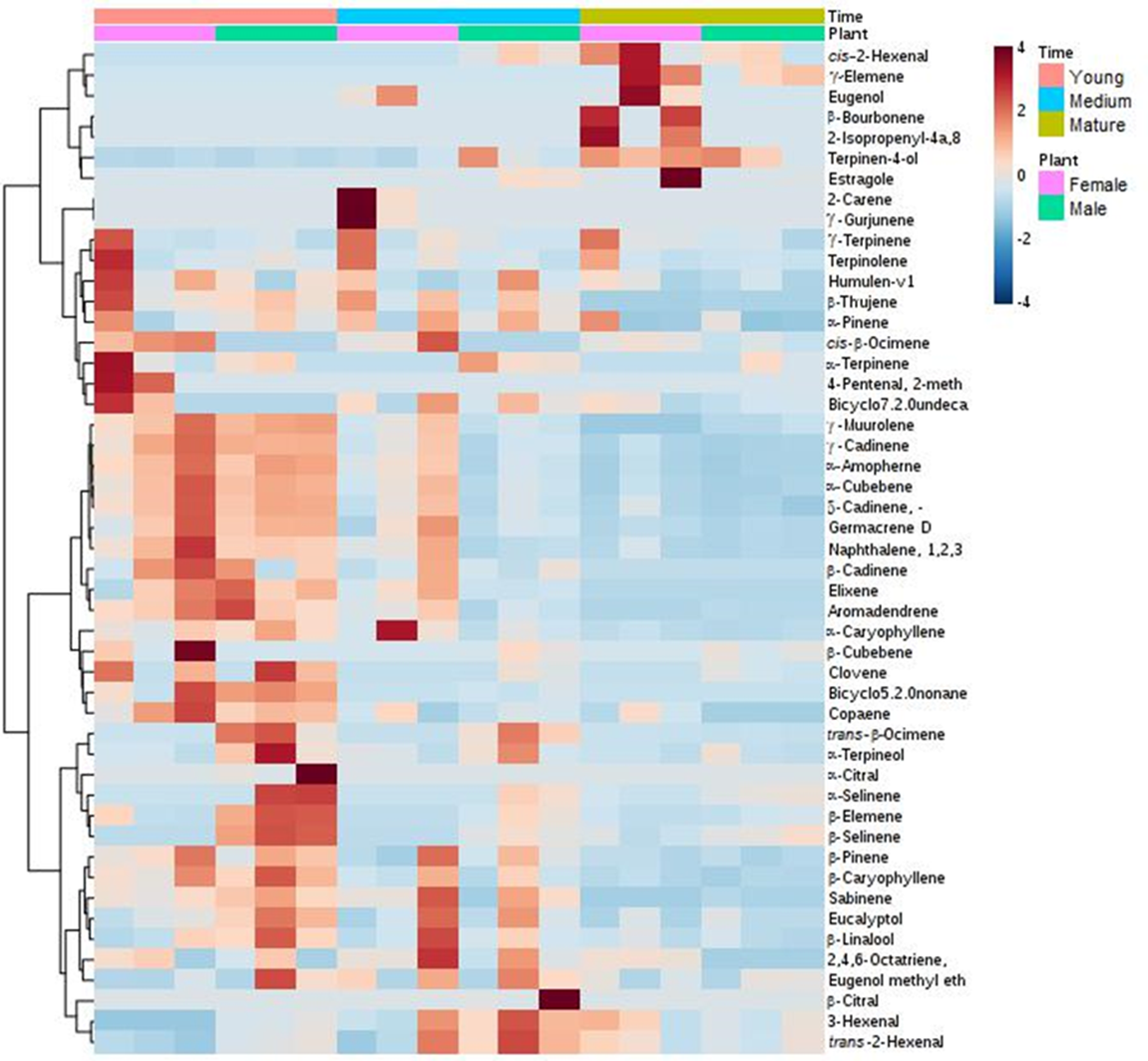

Fig. 5 Heatmap of the 49 compounds identified in leaves of Pimenta dioica at different developmental stages from female and male trees.

Compounds β- bourbonene; 2-isopropenyl-4a, 8-dimethyl-1,2,3,4,4a,5,6,7-octahydronaphthalene; γ-gurjunene; 2-carene and 2 -methyl- 4-pentenal were detected exclusively in female trees, while α-citral and β-citral were detected only in male trees. These compounds could be used as potential biomarkers for sex determination, though more analysis must be done to have an acceptable assurance.

For the information above, it would be interesting to identify the potential biomarkers for the 2-years-old tree profiles. Surprisingly, the possible biomarkers of female and male trees were both detected in two out of three undifferentiating trees. On the other hand, 2 -isopropenyl-4a, 8-dimethyl-1,2,3,4,4a,5,6,7-octahydro naphthalene was detected in the third undifferentiating tree. This compound appears to be exclusive of female medium and mature leaves.

Conclusion

SPME -GC-MS was a powerful technique to evaluate the VOCs profile from P. dioica leaves. Data provide a great diversity of VOCs regardless of the leaf and tree analyzed. Our results highlight the importance of the sites of biosynthesis in leaves that must be characterized in this species and analyze through the tree phenology to obtain a better outlook of P. dioica metabolism. In resume, in 2-years-old trees, mature leaves have a higher relative amounts of VOCs than medium and young leaves, even when these trees do not produce fruits, thus the leaves offer a potential economic use. On the other hand, relative amounts of VOCs in leaves for female and male trees trend to be lower with the leaf development. In this case, young and medium branches are pruned to maintain the height of the trees for the fruit harvest so they can be commercialized to obtain essential oil or to be used as condiment. In this manner, there could be a contribution to the regional development of the small producers and a preservation and motivation of the crop of this valuable tree species. Even P. dioica dried fruits are commercialized worldwide, the leaves offer an alternative for the market of spices. Both present similar VOCs and their major compounds are comparable. We consider that leaves, regardless of the tree type, offer a potential source of essential oil that could be used in a wide variety of applications, such as in cosmetics, food preservatives, perfumes and pharmaceuticals.
