Mating system analyses of tropical populations of the black mangrove, Avicennia germinans (L.) L. (Avicenniaceae)



Análisis del sistema de apareamiento de poblaciones tropicales del mangle negro, Avicemia germinans (L.) L. (Avicenniaceae)



Alejandro Nettel-Hernanz^1,3,4,5, Richard S.Dodd², Maried Ochoa-Zavala³, Cristian Tovilla-Hernández ⁴ and José Reyes Días-Gallegos¹



¹ Universidad de Ciencias y Artes de Chiapas (UNICACH), Campus del Mar, Chiapas, México.

² University of California, Berkeley, Department of Environmental Science, Policy and Management, California, United States of America.

³ Universidad de Ciencias y Artes de Chiapas (UNICACH), Facultad de Ciencias Biológicas, Chiapas, Mexico.

⁴ El Colegio de la Frontera Sur (ECOSUR), Unidad Tapachula, Chiapas, Mexico.

⁵ Corresponding author: a.nettel.h@gmail.com



Received: September 10, 2012
Accepted: October 30, 2012



Mating patterns in plant populations have a crucial role in establishing spatio-temporal patterns of genetic diversity within populations as well as in their evolutionary dynamics (Barrett, 2003, Glémin et al., 2006). Mating system and pollen dispersal patterns have a direct influence on individual reproductive ability, effective population size, and degree of population subdivision; affecting the levels of inbreeding, genetic variation, genetic structure, and speciation (Barrett, 2003, Charlesworth, 2003). Mating system is a complex trait that reflects the interaction between floral traits, demography, genetics, population structure, and a number of environmental factors that affect pollination (Barrett and Eckert, 1990, Ritland 2002). Understanding a species' mating system is crucial for a meaningful analysis of the genetic diversity among its natural populations and for successful long term conservation efforts (Charlesworth, 2003).

Mangrove swamps are highly productive ecosystems that provide numerous environmental services, including protection from flood and coastal erosion, habitat for reproduction, and nurseries for a variety of organisms - many of which are critical for fisheries maintenance and biodiversity conservation (Polidoro et al., 2010). Because of their high productivity, mangrove swamps are a nutrient source for other coastal and marine ecosystems such as marine prairies and coral reefs (Duke et al., 2007). The black mangrove, Avicennia germinans (L.) L. (Avicenniaceae), is one of the most important mangrove tree species in the western hemisphere; this species is distributed extensively along tropical and subtropical coasts of the eastern Pacific and the Atlantic coasts of the American Continent and West Africa (Tomlinson, 1986). Avicennia germinans is a cryptoviviparous species with buoyant propagules, permitting effective long distance dispersal (Rabinowitz, 1976; Nettel and Dodd, 2007). The perfect flowers of A. germinans are bee pollinated; self-fertilization is probably avoided in individual flowers by the early development of male organs and late development of female organs (Tomlinson, 1986). Studies on floral biology and pollination system in Avicennia marina (Forssk.) Vierh.- the main representative of the genus in East Africa, Australia, and Asia - found indications of partial self-incompatibility (Clarke and Myerscough, 1991). Furthermore, genetic studies on A. germinans and A. marina suggest that tropical populations tend to be out-crossed (Arnaud-Haond et al., 2006; Giang et al., 2003; Cerón-Souza et al., 2005). However, direct evidence of the proportion of outcrossing and self-pollination are lacking for the genus. Moreover, little is known about the effect of population substructure and inbreeding caused by mating with relatives (biparental inbreeding). The present study aims to analyze the mating system of A. germinans populations using progeny arrays and microsatellite genetic markers.

Haga clic para agrandar



During Fall 2005, we collected fruiting bodies (one propagule per fruiting body) and leaves from mother trees at three localities along the Chiapas, Mexico tropical coastline: (1) La Cigüeña [CIG] (14° 37' 00" N, 92° 19' 00" W), close to the border with Guatemala, in an area highly impacted by population expansion, road constructions, and agricultural activity; (2) Santa Catalina [CAT] (15° 18' 00" N, 92° 52' 00" W), found within the Biosphere Reserve of La Encrucijada, this area presents the best developed mangrove forests in Mexico with trees reaching 30 meters in height; and (3) Paraíso [PAR] (15° 57' 00" N, 93° 49' 00" W), located in the extreme northwest of Chiapas, this location has a drier regime and mangroves are less developed, reaching just five to eight meters tall. At each locality, we collected leaves from around 30 potential parental trees and leaves and fruiting bodies from five to nine mother trees; selected trees were located at least 30 m apart. The number of fruiting bodies per mother tree analyzed ranged from 14 to 20 at CIG, from 7 to 20 at CAT, and from 13 to 14 at PAR; average number of fruiting bodies analyzed per mother tree was 18, 16, and 14, respectively. Plant material was dried using silica gel and a herbarium oven. Genomic DNA from leaves was extracted using the CTAB method (Cullings, 1992); genomic DNA from cotyledons was extracted using the method described by Thangjam et al. (2003). We PCR amplified six microsatellites designed for the black mangrove (Nettel et al., 2005) in three groups: (a) Te1, (b) Di13, Te8, Te9, and (c) Di6t, Te4t. PCR cocktail included 1X PCR buffer, 2.0 mm MgCl₂, 0.2 mm of each dNTP, 25 mg/ mL BSA, 250 nm del each forward and reverse primer (forward primers were fluorescently labeled), 1U of Taq Gold Polymerase (Applied Biosystems), and 5 ng of template DNA for a final 20 μL volume. Amplification and electrophoresis conditions followed Nettel et al. (2005), performing an annealing temperature of 58 °C for group (a) and 50 °C for groups (b) and (c). Results were analyzed with GENESCAN 3.7 and GENOTYPER 3.7 software (Applied Biosystems).

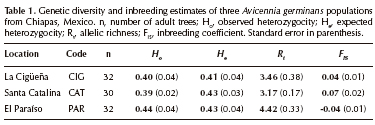

Genetic diversity of parental trees was evaluated at each location by estimating expected heterozygosity (H_E), observed heterozygosity (H_O), and allelic richness (R_t) using the FSTAT ver 2.9.3.2 (Goudet et al., 2002) software. We also estimated the inbreeding coefficient and tested for deviations from Hardy-Weinberg expectations with FSTAT. Mating system analyses were performed with MLTR ver 3.2 (Ritland, 2002). MLTR takes advantage of multilocus information to infer levels of true selfing, of biparental inbreeding, and the effects of intrapopulation genetic substructure on population mating patterns. We estimated the following parameters: multilocus population outcrossing rate (tm); inbreeding coefficient of mother trees (F); minimum estimate of the apparent selfing due to biparental inbreeding (t_m - t_s); the proportion of siblings that share the same father (r_p); and the effect of population substructure on outcrossing events [r_p (s)-r_p (m)]. Default values were used for initial conditions (tm = 0.9, F = 0.1, and r_p = 0.1). Standard errors were calculated by 100 bootstrap repetitions, re-sampling individuals within families.

Estimated levels of genetic diversity were intermediate in Avicennia germinans sampled populations compared to those detected with microsatellite markers for A. marina (Arnaud-Haond et al. 2006); allelic richness ranged from 3.17 (CAT) to 4.42 (PAR) and observed and expected heterozygocity ranged from 0.39 (CAT) to 0.44 (PAR) and 0.41 (CIG) to 0.43 (CAT and PAR), respectively. Estimates of inbreeding coefficients were close to zero, ranging from -0.04 (PAR) to 0.07 (CAT); none of the studied populations presented significant deviations from Hardy-Weinberg equilibrium.

The estimated outcrossing rate (t_m) ranged from 0.583 (Standard Error, SE = 0.09) in CIG to 0.774 (SE = 0.09) in CAT (Table 2). The detected level of biparental inbreeding was very low, ranging from 0.062 (SE = 0.03) in CAT to 0.013 (SE = 0.04) in PAR. The proportion of siblings that share the same father was low but present in CIG and CAT (0.18 [SE = 0.05] and 0.23 [SE = 0.08], respectively). Estimates for the effect of population substructure on outcrossing events were negative for all localities, indicating that outcrossing events were not influenced significantly by genetic sub-structuring among pollen donors. Our results confirm with direct evidence that Avicennia germinans populations are predominantly outcrossing but that they can support moderate levels of self-fertilization; up to almost 50% in the impacted population CIG and about 30% in the preserved population CAT. Our results are consistent with previous inferences regarding the mating system of Avicennia; a mixture of outbreeding and selfing in tropical populations, where outcrossing events predominate but are mostly at random with very little effect of population substructure and biparental inbreeding.



Acknowledgments

This work was funded by a grant from the University of California Institute for Mexico and the United States (UC MEXUS). It was also sponsored by the U.S. Department of State under the Fulbright program; the Consejo Nacional de la Ciencia y Tecnología (CONACYT) and UC MEXUS; and the Programa de Mejoramiento del Profesorado (PROMEP) of the Secretaría de Educación Pública (SEP), México. We thank Wasima Mayer, Luis Roberto Pérez Marcelín, Juan Carlos de la Presa Pérez for technical help. A collection and export permit issued by the Dirección General de Vida Silvestre, Mexico (permit no. SGPA/DGVS/10862) was used for this project.



Literature cited

Arnaud-Haond S., Teixeira S., Massa S.I., Billot C., Saenger P, Coupland G., Duarte C.M. and Serrão E.A. 2006. Genetic structure at range edge: low diversity and high inbreeding in Southeast Asian mangrove (Avicennia marina) populations. Molecular Ecology 15:3515-3525.         [ Links ]

Barrett S.C.H. 2003. Mating strategies in flowering plants: the outcrossing-selfing paradigm and beyond. Philosophical Transactions of the Royal Society of London, Series B 358:991-1004.         [ Links ]

Barrett S.C.H. and Eckert C.G. 1990. Variation and evolution of mating systems in seed plants. In: Kawano S. Ed. Biological Approaches and Evolutionary Trends in Plants, pp. 229-254, Academic Press, London.         [ Links ]

Cerón-Souza I., Toro-Perea N. and Cárdenas-Henao H. 2005. Population genetic structure of neotropical mangrove species on the colombian Pacific Coast: Avicennia germinans (Avicenniaceae). Biotropica 37:258-265.         [ Links ]

Charlesworth D. 2003. Effects of inbreeding on the genetic diversity of populations. Philosophical Transactions of the Royal Society of London, Series B 358:1051-1070.         [ Links ]

Clarke P.J. and Myerscough P.J. 1991. Floral biology and reproductive phenology of Avicennia marina in South Eastern Australia. Australian Journal of Botany 39:238-239.         [ Links ]

Cullings K.W. 1992. Design and testing of a plant-specific PCR primer for ecological and evolutionary studies. Molecular Ecology 1:233-240.         [ Links ]

Duke N.C., Meynecke J.O., Dittmann S., Ellison A.M., Anger K., Berger U., Cannicci S., Diele K., Ewel K.C., Field C.D., Koedam N., Lee S. Y., Marchand C. , Nordhaus I. and Dahdouh-Guebas F. 2007. A world without mangroves? Science 317:41-42.         [ Links ]

Giang L.H., Nguyen H.P., Sy T.M. and Ko H. Genetic variation of Avicennia marina (Forsk.) Viert. (Avicenniaceae) in Vietnam revealed by microsatellite and AFLP markers. 2003. Genes and Genetic Systems 78:399-407.         [ Links ]

Glémin S., Bazin E. and Charlesworth D. 2006. Impact of mating systems on patterns of sequence polymorphism in flowering plants. Proceedings of the Royal Society B 273:3011-3019.         [ Links ]

Goudet J., Perrin N. and Waser P. 2002. Tests for sex-biased dispersal using biparentally inherited genetic markers. Molecular Ecology 11:1103-1114.         [ Links ]

Nettel A. and Dodd R.S. 2007. Drifting propagules and receding swamps: Genetic footprints of mangrove recolonization and dispersal along tropical coasts. Evolution 61:958-971.         [ Links ]

Nettel A., Rafii F. and Dodd R.S. 2005. Characterization of microsatellite markers for the mangrove tree Avicennia germinans L. (Avicenniaceae). Molecular Ecology Notes 5:103-105.         [ Links ]

Polidoro A.B., Carpenter K.E., Collins L., Duke N.C., Ellison A.M., Ellison J.C., Farnsworth E.J., Fernando E.S., Kathiresan K., Koedam N.E., Livingstone S.R., Miyagi T., Moore G.E., Ngoc Nam V., Eong ong J., Primavera J.H., Salmo III S.G., Sanciangco J.C., Sukardjo S., Wang Y. and Hong-Yong J.W. 2010. The loss of species: Mangrove extinction risk and geographic areas of global concern. Plos One 5:e10095.         [ Links ]

Ritland K. 2002. Extensions of models for the estimation of mating systems using n independent loci. Heredity 88:221228.         [ Links ]

Tomlinson P.B. 1986. The Botany of Mangroves. Cambridge University Press, Cambridge.         [ Links ]

Rabinowitz, D. 1978. Dispersal properties of mangrove propagules. Biotropica 10:47-57.         [ Links ]

Thangjam, R., Maibam, D. and Sharma, J. 2003. A simple and rapid method for isolation of DNA from Imbibed Embryos of Parkia timoriana (DC.) Merr. for PCR analysis. Food, Agriculture and Environment 1:36-38.         [ Links ]
