Materials and methods

Pollen samples were taken from specimens deposited at XAL, MEXU, XALUV, and from living plants of the National Collection of Cycads held at the Fco. J. Clavijero Botanical Garden, of the Instituto de Ecología, A.C. In the case of samples taken from living plants a herbarium specimen was deposited at XAL (Table 1). The pollen sample of each species was divided into two treatments. In the first treatment, recently collected live pollen from the National Cycad Collection held in the Clavijero Botanic Garden, the grains were not acetolyzed but critical dried and observed and photographed using SEM. In the second treatment, the grains were acetolyzed, critical dried and then observed and measured under LM. The pollen processing for observations under SEM was modified from ^{Ludlow-Wiechers & Ayala-Nieto (1983)} where acetolysis was reduced to one minute to prevent collapse of the pollen grains giving them a boat-shaped appearance according to ^{Marshall et al. (1986)}. The acetolyzed pollen grains were mounted according to ^{Moore & Webb (1978)} for the reference collection. To contrast the hyaline property of the grains, differential interference techniques with Nomarski optics (DIC) were used at the LM level. For observations under LM and measurements the pollen grains were mounted in 20 % glycerine and measured immediately. The measurements were made on 25 acetolyzed grains of pollen taken at random on the thickest portion of the exine. Ten non-acetolyzed grains were also measured since cycad pollen swells when placed in contact with aqueous solutions. For the reference preparations the grains were mounted in gelatine-glycerine. Photomicrographs were taken with a Zeiss Fomi III photomicroscope fitted with Plan-Neofluar and Plan-Apochromatic objectives and a digital camera. The terminology used is based on ^{Halbritter et al. (2018)}. Exine measurements are expressed as range in µm with mean in brackets.

We used a discriminant analysis as well as a Random Forest (RF) method to test the potential of pollen traits to discriminate between either genera or species. In the RF two datasets, the first only including the four measurements from acetolyzed grains (Major axis, Polar axis, Polar view: Equatorial axis, Exine thickness; n = 10 per species) and the second including a categorical trait indicating the presence of notable alveoli were used, for a total of four separate analyses (the two datasets used for both the genus-level classification and the species level classification). For each dataset, the data was separated into a training set (composed of 80 % of the data) and a test set (containing 20 % of the data), with 100-fold cross-validation repeated 100 times. Random Forest classification was conducted using the function train in the package caret (^{Kuhn 2008}).

Results

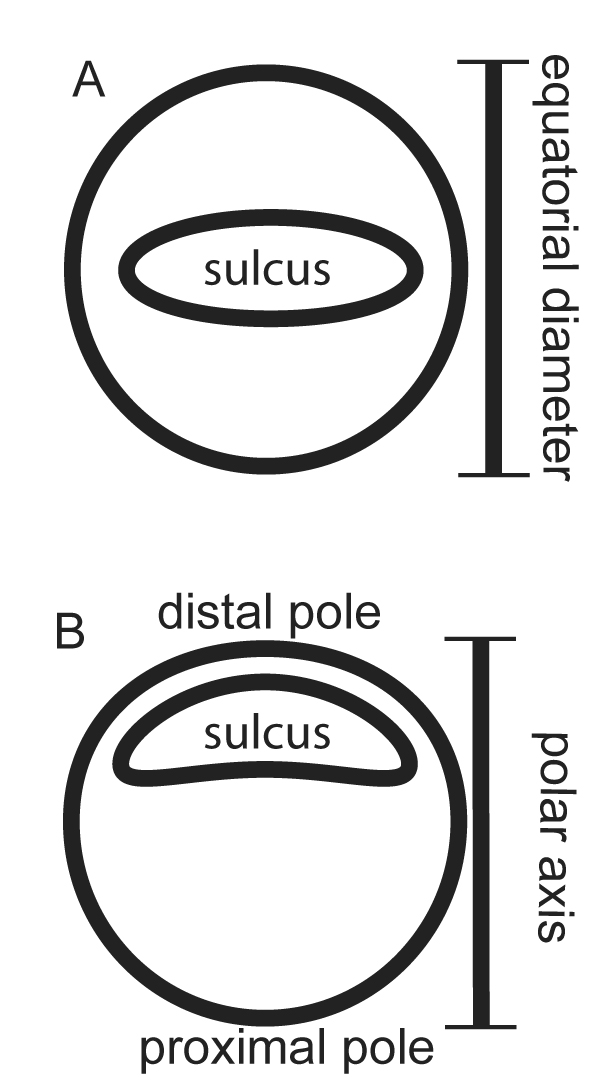

Acetolyzed pollen grain measurements of three dimensions, equatorial view, major axis, polar axis and polar view (equatorial axis) are given in Table 2. Non-acetolyzed pollen grain measurements of polar view, major equatorial axis, and minor equatorial axis are given in Table 3. The surface sculpturing under LM was observed to be psilate (smooth) in most cases and rugulate to granulate-rugulate under SEM observation (Figures 1-3). The pollen grains when hydrated appear spherical (Figure 4) and when dehydrated they are boat shaped (Figure 5). Under LM the exine is observed to be barely tectate in Ceratozamia, with a tectum 0.8-2.5 µm thick, and Zamia, with a tectum 0.9-2.5 µm thick. On the other hand, pollen grains of Dioon have a 1.4-3.5 µm thick tectum, probably linked with a generally thicker exine (Figure 6F-J). Discriminant analyses showing 95 % confidence ellipsoids for the observation of 15 cycad species done for all species together and separately for those with thinner (< 1.85 µm) and thicker (>1.85 µm) exine can be seen between Ceratozamia alvarezii, C. euryphyllidia, Dioon edule, D. mejiae and D. merolae (Figure 7).

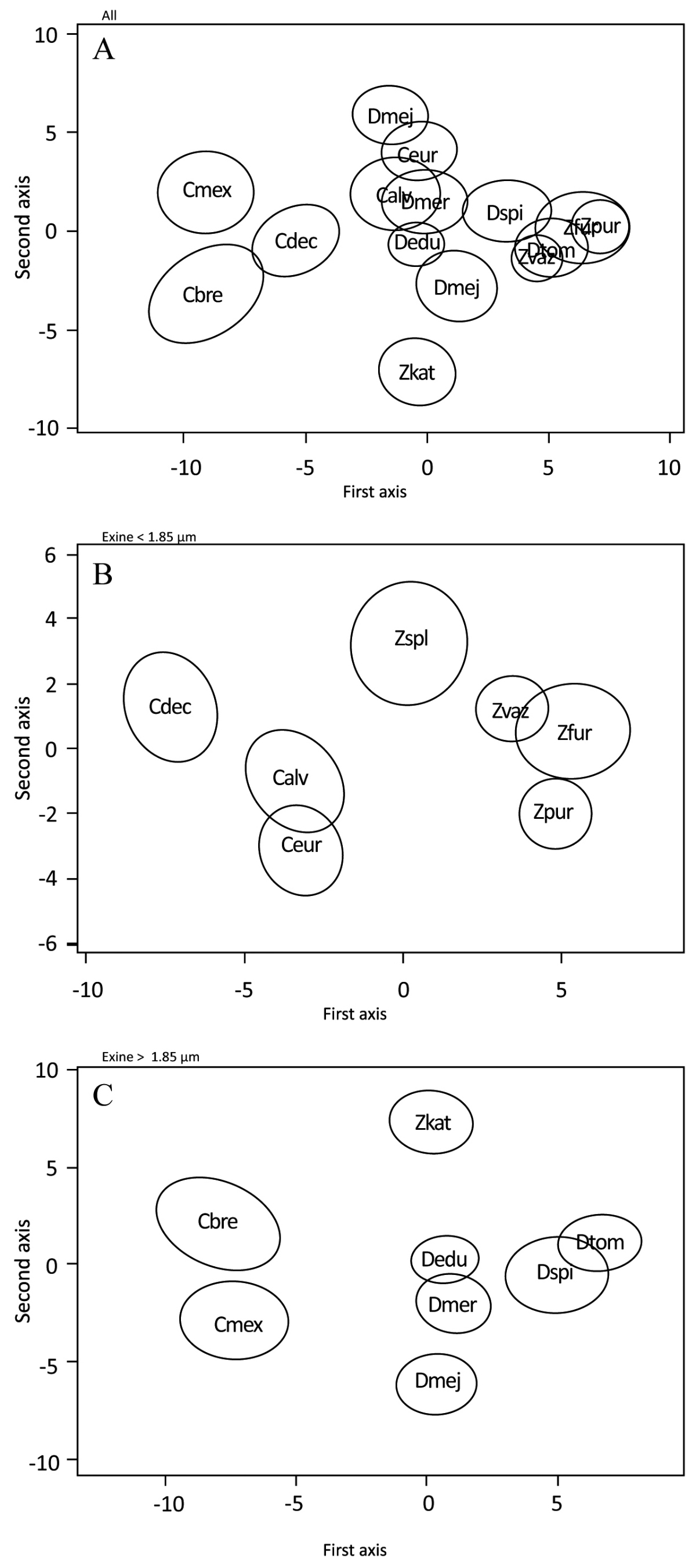

Using a Random Forest method, the pollen grains can be identified to the correct genus with relatively good accuracy (0.93, 95 % CI: 0.78-0.99, Cohen’s Kappa: 0.9) using the four measurements. Adding the presence or absence of visible alveoli does not improve the predictions (accuracy 0.9, 95 % CI: 0.73-0.98, Cohen’s Kappa: 0.85). On the other hand, identification at the species level is much less accurate either without (0.6, 95 % CI: 0.4-0.77, Cohen’s Kappa: 0.57) or with the alveoli trait (0.4, 95 % CI: 0.25-0.65, Cohen’s Kappa: 0.39).

The genera Ceratozamoa, Dioon and Zamia as well as their species are described below:

Genus Ceratozamia Brongn. (Figure 1). Pollen grains of all species examined are shed as heteropolar, bilaterally symmetrical monads. Grains are sulcate, with the sulcus 3/4 the length of the major equatorial axis. Exine is tectate. The sculpture is rugulate or granulate-rugulate, with the sulcus region being irregularly perforate. The dry, non-acetolyzed pollen grain is oblate elliptical with a slightly depressed sulcus region.

Perimeter in polar view is circular to sub-spheroidal when acetolyzed and mounted in 20 % glycerine and irregularly oblate to collapsed (boat-shaped) when mounted in gelatine-glycerol or silicon oil.

Ceratozamia alvarezii Pérez-Farr. Vovides & Iglesias (Figure 1A).- ^{Pérez-Farrera et al. (1999)}.

Exine structure. 1.5 (2.0) 2.5 µm thick. In optical section under DIC the exine appears tectate with barely visible alveoli. There is no clear distinction between sexine and nexine.

Sculpture. Under SEM, non-acetolyzed grains are rugulate ornamentation is homogenous. Under LM the exine surface of acetolyzed grains appears psilate.

Polar axis/equatorial axis ratio (P/E). 0.50(0.62)0.93 when acetolyzed, 0.84(0.90)0.96 when not acetolyzed.

Habit. Small plants with branching sub-globose stems becoming cylindrical with age, up to 50cm long and 17.5 cm diameter. Leaves are up to 18 forming a terminal crown, up to 109 cm long and 61 cm wide, dark green. Leaflets up to 31 pairs, linear-lanceolate, plane up to 32.5 cm long, and 0.9 cm wide, dark green sharp tipped; petiole and rachis, armed with prickles. Female cones erect, cylindrical to barrel shaped, ochre, when mature up to 19 cm long and 10.5 cm diameter; peduncle up to 6.5 cm long, differences in vegetative morphology and cones distinguishes C. alvarezii species from its congeners.

Habitat. Oak forests.

Elevation. 950 m.

Phenology. Cones appear from June to October.

Distribution. México; Endemic to Chiapas.

Reference specimen. M.A. Farrera 889 (MEXU).

Ceratozamia brevifrons Miq. (Figure 1B).- ^{Vovides et al. (2012)}.

Exine structure. 1(1.6)2 µm thick. In optical section under DIC the exine is observed to be tectate with barely visible alveoli, there is no definition between sexine and nexine.

Sculpture. Under SEM the exine surface of non-acetolyzed is observed to be lightly rugulate and homogenous with the exception of the sulcus region that is observed to be irregularly perforate. Under LM the exine surface of acetolyzed grains appears psilate.

Polar/equatorial axis ratio (P/E). 0.33(0.57)0.77 when acetolyzed, 0.64(0.69)0.72 when not acetolyzed.

Habit. Short plants with erect to decumbent stems, up to 50 cm long, and 19 cm in diameter, bearing short leaves, 3-17, erect, keeled, up to 120 cm long, and 69 cm wide with spear-shaped, pointed leaflets, reaching 34.5 cm long, and 3.7 cm wide. This species is distinguished from its congeners by having short leaflets and keeled leaves.

Habitat. Transition between cloud forest and oak forest, generally on steep or rocky slopes.

Elevation. 800-1,200 m.

Phenology. Cones appear from February to July.

Distribution. Mexico; Endemic to central Veracruz.

Reference specimen. A. Vázquez-Blanco 191 (XAL).

Ceratozamia decumbens Vovides, Avendaño, Pérez-Farr. & Gonz.-Astorga (Figure 1C).- ^{Vovides et al. (2008)} .

Exine structure. 2(2.2)2.5 µm in optical section under DIC the exine is observed to be tectate with barely visible alveoli there is no distinction between sexine and nexine.

Sculpture. Under SEM the exine surface of non-acetolyzed grains appears to be rugulate. Exine ornamentation is homogenous with the exception of the sulcus region that is observed to be irregularly perforate. Under LM the exine surface of acetolyzed grains appears psilate.

Polar/equatorial axis ratio (P/E). - 0.5(0.75)0.89 when acetolyzed, 0.81(0.89)0.93 when not acetolyzed.

Habit. Plants with globose to cylindrical branched stems up to 20 cm long, growing on steep rocky substrates. Leaves usually decumbent on old plants, emerging reddish-brown, dark green or olive green when mature, up to 150 cm long, and 78 cm wide, leaflets 7-19 pairs, lanceolate plane, acuminate, up to 38 cm long and 4 cm wide. This species is easily distinguished from its congeners by its descending leaves and decumbent stems, leaflet articulations wide, reddish-brown female strobili with clear indument at the margins of the fertile scales.

Habitat. On Steep karstic slopes in sub-evergreen tropical forest.

Elevation. Approximately 700 m.

Phenology. March to December.

Distribution. México; Endemic to central Veracruz.

Reference specimen. J. Rees 1690 (XAL).

Ceratozamia euryphyllidia Vázq.Torres, Sabato & D.W.Stev. (Figure 1D-E).- ^{Stevenson et al. (1986)}.

Exine structure. 1.0(1.4)2.0 µm thick in optical section under DIC the exine is observed to be tectate with barely visible columellae; there is no definition between sexine and nexine. The surface of acetolyzed grains appears slightly rugulate to psilate.

Ornamentation. Under SEM the exine surface of non-acetolyzed grains appears slightly rugulate. Ornamentation appears homogenous except in the sulcus region where in acetolyzed grains appears irregularly perforate.

Polar/equatorial axis ratio (P/E). 0.5(0.7)0.8 µm thick when acetolyzed, 0.65(0.7)0.7 µm when not acetolyzed.

Habit. Short stemmed plants globose to cylindrical, leaves erect less than ten, 2-3.2 m long, leaflets subopposite to alternate, 12-26 pairs widely spaced, oblanceolate to widely obovate, inequilateral, 18-31 cm long, 9-16 cm wide, membranaceous to translucent, thin, 0.3-0.4 mm thick, sessile, attenuate at base (articulation 5-10 mm wide) and abruptly acuminate at the strongly asymmetric apex (2-4 cm long); male cone greenish-red when young, light gray when mature, usually solitary, long-cylindrical to elongate-conical, 28 cm long, 3 cm diameter; female cone wine red when young, brown to dark brown when mature, usually solitary, cylindrical or slightly conical, 20 cm long including the peduncle, 5 cm in diam. (^{Stevenson 1986}).

Habitat. Evergreen tropical rain forest on karstic topography.

Elevation. Approximately 300 m.

Phenology. March to December.

Distribution. México; Endemic to southern Veracruz and northern Oaxaca.

Reference specimen. M.A. Pérez-Farrera s/n (XAL).

Ceratozamia mexicana Brongn. (Figure 1F).- ^{Brongniart (1846)}.

Exine structure. 0.8(1.3)1.8 µm thick. In optical section under DIC the exine is observed to be tectate with barely visible columellae, there is no definition between sexine and nexine.

Sculpture. In SEM observation the exine surface of non-acetolyzed grains is granulo-rugulate. Ornamentation is homogenous with the exception of the sulcus region that is observed in acetolyzed grains to be irregularly perforate. In LM observation the exine surface of acetolyzed grains is rugulate to psilate.

Polar/equatorial axis ratio (P/E). 0.43(0.54)0.67 when acetolyzed, 0.59(0.66)0.73 when not acetolyzed.

Habit. Robust plants with unbranched erect globose stems becoming cylindrical with age, up to one meter tall, or more and 35 cm in diameter in old specimens. Leaves up to 16 or more, arched forming a terminal crown, up to 300 cm long and 90 cm wide, dark green. Leaflets up to 50 pairs or more, oblong-lanceolate, sub-falcate, apex acuminate up to 45.5 cm long, and 3.4 cm wide; petiole and rachis armed with stout prickles. Female cones large, erect, olive-green, and leaning when mature, up to 47 cm long or more and 15 cm in diameter; peduncle up to 10 cm long. Male cones erect, cylindrical or narrowly conical up to 25 cm long or more and 4.5 cm in diameter. This species is distinguished from its congeners by being relatively large with large female strobili (^{Vovides et al. 2016}).

Habitat. Sub deciduous tropical forest under tree shade generally on steep stony slopes.

Elevation. 800 m.

Phenology. Cones appear from February to July.

Distribution. México; Central Veracruz and Puebla.

Reference specimen. A.P. Vovides 730 (XAL).

Genus Dioon Lindley (Figure 2).- Pollen from the species studied is shed as a monad. Grains are heteropolar, bilateral and sulcate. Exine is tectate, with well-defined alveoli that are notable in optical section. Sculpture is rugulate to psilate, with the sulcus region being irregularly perforate. Pollen grains are subspheroid with a depressed sulcus region when not acetolyzed and mounted in 20 % glycerine, while appearing irregularly circular to oval or elliptic and collapsed when mounted in gelatine-glycerine or silicon oil.

Fourteen species of Dioon are known in Mexico with a range along the Gulf of Mexico seaboard from Nuevo León and Tamaulipas to Veracruz and northern Oaxaca. Along the Pacific seaboard the range is from Sonora to Chiapas with a concentration of species in Oaxaca. There is one species endemic to Honduras, D. mejiae.

Dioon edule Lindl. (Figure 2A).- ^{Lindley (1843)}.

Exine structure. 2(2.6)4 µm thick. The exine is tectate clearly visible alveoli, but no clear differentiation between sexine and nexine.

Sculpture. Non-acetolyzed pollen is slightly rugulate and homogenous and the sulcus irregularly perforated. Under LM the exine surface appears psilate.

Polar/equatorial axis ratio (P/E). 0.54(0.61)0.69 when acetolyzed, 0.67(0.85)0.92 when not acetolyzed.

Habit. Arborescent up to 6 m tall, branched in old specimens with a terminal crown of rigid pinnate leaves.

Habitat. Ecotone between deciduous tropical forest and oak forest, on steep rocky slopes, karstic topography and canyon walls.

Elevation. 500-1,500 m.

Phenology. February to October

Distribution. Mexico State, Guanajuato, Hidalgo, Nuevo León, Querétaro, San Luis Potosí,

Tamaulipas and Veracruz.

Reference specimen. J. Rees 1674 (XAL).

Dioon mejiae Standl. & L.O. Wiliams (Figs 2BC).- ^{Standley & Williams (1951)}.

Exine structure. 2.5(2.95)3.0 µm thick, tectate in optical section under DIC with clearly visible alveoli, but no clear differentiation between sexine and nexine.

Sculpture. Under SEM the exine surface is slightly rugulate to psilate when not acetolyzed, with sulcus region that being irregularly perforate. Under LM acetolyzed pollen the exine surface appears psilate.

Polar/equatorial axis ratio (P/E). 0.36(0.44)0.56 when acetolyzed, 0.70(0.77)0.83 when not acetolyzed.

Habit. Arborescent up to 10 m tall with a terminal crown of pinnate leaves up to 2 m long.

Habitat. Tropical forest in canyons and calcareous slopes in the Olancho region, Honduras.

Elevation. 50-300 m.

Phenology. August to March.

Distribution. Endemic to Honduras.

Reference specimen. A.P. Vovides 1554 (XAL).

Dioon merolae De Luca, Sabato & Vázq.Torres (Figure 2D).- ^{De Luca et al. (1981)}.

Exine structure. 2.0(2.8)3.5 µm thick, tectate in optical section under DIC with well-defined alveoli, but no clear differentiation between sexine and nexine.

Sculpture. Under SEM the exine surface of non-acetolyzed grains is rugulate. Ornamentation appears homogenous except in the sulcus region that appears reticulate.

Polar/equatorial axis ratio. (P/E) 0.39(0.54)0.69 when acetolyzed, 0.82(0.88)0.96 when not acetolyzed.

Habit. Arborescent reaching up to 6 m tall with pinnate leaves up to 1 m long forming and erect crown.

Habitat. Semi deciduous tropical forest, mostly on metamorphic rocks on hills and slopes.

Elevation. 50-300 m.

Phenology. August to March.

Distribution. Endemic to Southern Mexico in Chiapas and Oaxaca.

Reference specimen. A.P. Vovides 1240 (XAL).

Dioon spinulosum Dyer (Figure 2E).- ^{Dyer (1882-1886)}.

Exine structure. 1.8(2.18)3 µm thick, tectate in optical section under DIC with well-defined alveoli but no definition between sexine and nexine.

Sculpture. Rugulate and homogenous except the sulcus that is irregularly perforate under SEM. Under LM the exine surface appears psilate.

Polar/equatorial axis ratio. (P/E) 0.4(0.55)0.68 when acetolyzed, 0.64(0.76)0.87 when not acetolyzed.

Habit. Arborescent, reaching 15 m tall with pinnate leaves up to 2 m long forming an apical crown.

Habitat. Semi deciduous tropical forest, on karst topography and calcareous slopes.

Elevation. 50-300 m.

Phenology. Form August to March.

Distribution. Northern Oaxaca and southern Veracruz.

Reference specimen. A.P. Vovides 547 (XAL).

Dioon tomasellii De Luca, Sabato & Vázq.Torres (Figure 2F).- ^{De Luca et al. (1984)}.

Exine structure. 2.0(2.5)3.0 µm thick, tectate in optical section under DIC with well-defined alveoli but no definition between sexine and nexine.

Sculpture. Under SEM the exine surface of non-acetolyzed pollen is slightly rugulate with an irregularly perforate sulcus. Under LM the exine surfaces appears psilate.

Polar/equatorial axis ratio (P/E). 0.44(0.56)0.88 when acetolyzed, 0.70(0.84)0.95 when not acetolyzed.

Habit. Short-stemmed plants up to 100 cm tall bearing pinnate leaves up to 2 m long with falcate leaflets forming an open crown.

Habitat. Oak and pine-oak forests on stony substrate.

Elevation. 600-1,800 m.

Phenology. February to September.

Distribution. Pacific seaboard from Sinaloa to Jalisco.

Reference specimen. A.P. Vovides 1498 (XAL).

Genus Zamia L. (Figure 3).- Pollen from the species studied is a heteropolar, bilateral, sulcate monad. Exine is tectate. The sulcus region covers three quarters or more the length of the major equatorial axis and is irregularly perforated. The exine surface is also observed to be rugulate under SEM and under LM rugulate to psilate. In optical section the alveoli are not well defined. Grains are sub-spheroidal with a depressed sulcus when not acetolyzed, and mounted in 20 % glycerine, while being irregularly circular to oval or elliptic and collapsed when mounted in gelatine-glycerine or silicon oil. There are 81 known species in the genus that ranges from Florida and Georgia in the USA, Bahamas, Greater Antilles, Mexico, Central and South America.

Zamia furfuracea L.f. (Figure 3A).- ^{Linneus f. (1789)}.

Exine structure. 0.9(1.1)1.4 µm thick, tectate in optical section under DIC with barely visible alveoli and no definition between sexine and nexine.

Sculpture. Non-acetolyzed grains, under SEM exine surface appears rugulate and homogenous with the exception of the sulcus region that appears slightly perforate and under LM the exine appears rugulate to psilate.

Polar/equatorial axis ratio. (P/E) 0.36(0.54)0.7 when acetolyzed, 0.8(0.88)0.95 when not acetolyzed.

Habit. Robust plants with generally subterranean stem 30 to 90 cm long, branching with age and becoming epigeous. Short pinnate leaves with imbricate oblanceolate to lanceolate, and heavily furfuraceous coriaceous leaflets with a light-brown orange indument.

Habiat. Stable coastal dunes and cliffs.

Elevation. Sea level to 50 m.

Phenology. June to November.

Distribution. Endemic to Mexico along coastal southern Veracruz.

Reference specimen. A.P. Vovides 037 (XAL).

Zamia katzeriana (Regel) E.Rettig (Figure 3BE).- ^{Rettig (1896)}.

Exine. 2.0(2.3)2.5 µm thick, tectate in optical section under DIC with barely visible alveoli and no clear definition between sexine and nexine.

Sculpture. Under SEM the exine surface non-acetolyzed pollen appears finely rugulate and homogenous with the exception of the sulcus zone that is irregularly perforate. Under LM the exine surface of acetolyzed pollen appears psilate.

Polar/equatorial axis ratio (P/E). 0.77(0.85)1.0 when acetolyzed, 0.8(0.88)1.0 when not acetolyzed.

Habit. Small plants up to 1 m tall with subterranean stem rarely branching bearing pinnate leaves from 40 to 100 cm long forming an erect to extended terminal crown with lanceolate dentate leaflets.

Habitat. Semi evergreen and deciduous tropical forests and derived secondary vegetation derived from these habitats.

Elevation. Sea level to 1,000 m.

Phenology. May to December.

Distribution. Endemic to Mexico in southern Veracruz, Tabasco, Chiapas and Oaxaca.

Reference specimen. A.P. Vovides 312 (XAL).

Zamia purpurea Vovides, Rees & Vázq.Torres (Figure 3C).- ^{Vovides et al. (1983)}.

Exine. 1.0(1.6)2.0 µm thick, tectate in optical section under DIC with barely visible alveoli with no clear definition between sexine and nexine.

Sculpture. Under SEM with non-acetolyzed pollen the exine surface appears rugulate and homogenous with the sulcus region irregularly perforate. Under LM the exine surface of acetolyzed pollen appears slightly rugulate.

Polar/equatorial axis ratio (P/E). 0.36(0.54)0.66 when acetolyzed, 0.65(0.74)0.82 when not acetolyzed.

Habit. Small plants up to 50 cm tall with non-branched subterranean stem bearing a terminal crown of pinnate leaves from 10 to 90 cm long with 3 to 4 pairs of elliptic, lanceolate to widely oblanceolate, dentate leaflets, sometimes but rarely 5 to 6 pairs of leaflets.

Habitat. Evergreen and semi evergreen tropical rain forests.

Elevation. 100 to 150 m.

Phenology. April to September.

Distribution. Rain forests of southern Veracruz and Oaxaca.

Reference specimen. A.P. Vovides 743 (XAL).

Zamia splendens Schutzman (Figure 3D).- ^{Schutzman (1984)}.

Exine. 1.2(1.6)2 µm thick, tectate in optical section under DIC with barely visible alveoli and no clear definition between sexine and nexine.

Sculpture. Under SEM the exine surface in non-acetolyzed pollen appears rugulate, homogenous with the sulcus region irregularly perforate. Under LM the exine surface of acetolyzed grains appears psilate to slightly rugulate.

Polar/equatorial axis ratio. (P/E) 0.5(0.58)0.67 when acetolyzed, 0.76(0.86)0.94 when not acetolyzed.

Habit. Medium sized plant up to 70 cm tall with an unbranched subterranean stem up to 30 cm long bearing a terminal crown of pinnate leaves up to 70 cm long with 3 to 10 pairs of elliptic, oblong to oblanceolate leaflets that are serrulate to dentate in the apical portion.

Habitat.Evergreen and semi deciduous tropical rainforests.

Elevation. 100 to 800 m.

Phenology. April to September.

Distribution. Endemic to Mexico in tropical rainforests of southern Veracruz, Tabasco and Chiapas.

Reference specimen. AV-1052 (XAL).

Zamia vazquezii D.W.Stev, Sabato & De Luca (Figure 3E).- ^{Stevenson et al. (1995-96)}.

Exine structure. 1(1.5)2.0 µm thick, tectate in optical section under DIC and barely visible alveoli with no clear definition between the sexine and nexine.

Sculpture. Under SEM the exine surface in non-acetolyzed pollen appears rugulate, homogenous with the sulcus region irregularly perforate. Under LM the exine surface appears psilate to finely rugulate.

Polar/equatorial axis ratio (P/E). 0.55(0.67)0.83 when acetolyzed, 0.69(0.84)0.92 when not acetolyzed.

Habit. Small delicate fern-like plants with a subterranean stem bearing a terminal crown of pinnate leaves from 30 to 100 cm tall with papyraceous ovate to obpyriform dentate leaflets.

Habitat. Oak forests and semi-deciduous tropical rainforest.

Elevation. From 180 to 900 m.

Phenology. April to December.

Distribution. Endemic to Veracruz.

Reference specimen. M. Vázquez Torres s/n (XALUV).

Discussion

Our investigation confirms some of the patterns previously reported for cycad pollen grains, with little differentiation in general pollen morphology (^{Chamberlain 1912}, ^{Audran 1970a}, ^b, ^{Audran & Masure 1976}, ¹⁹⁷⁷, ¹⁹⁷⁸, ^{Dehgan & Dehgan 1988}). The dry, non-acetolyzed grains are boat shaped, agreeing with previous reports (^{Audran & Masure 1977}). As soon as the grains come in contact with water (during the acetolysis and washing process) they swell until a spheroidal state is reached [see photomicrographs Figure 6 (LM) and compare with SEM images], sometimes to such a degree that the sulcus is hard to identify. When mounting in gelatine-glycerine or silicone oil most of the grains collapse or distort, thus making it difficult to take measurements. For this reason, measurements were taken in both their hydrated acetolyzed and non-acetolyzed states mounted in 20 % glycerine, and the differences in measurements and pollen shape between acetolyzed and non-acetolyzed state are notable. Such changes in pollen dimensions according to the mounting medium and thickness of the microscopic preparations have been previously reported and discussed by ^{Whitehead & Langham (1965)} and ^{Whitehead & Sheehan (1971)}.

The great similarity in morphology of the pollen grains within the Megamexican Zamiaceae is striking. Only the genus Dioon can be easily distinguished from Ceratozamia and Zamia by its considerable thicker exine. These differences seem to reflect the phylogenetic relationship between these genera, with Ceratozamia and Zamia being more closely related (sister) to each other than to Dioon (^{Salas-Leiva et al. 2013}).

The morphometric analysis indicates that grains are rather uniform within genera, while differing between genera. This finding seems to validate the idea that cycad genera, while diverging deeper in time, underwent a more recent species-level diversification (^{Nagalingum et al. 2011}).

Even though there is no major sculptural difference between the grains of the three genera investigated, especially when observed using LM, our morphometric analysis indicates that it could be possible to identify cycadalean pollen grains in the fossil record based on LM observation at least at genus level. The pollen grains of the Cycadales are usually hard to distinguish from the pollen grains of Ginkgoales and other fossil taxa, although some differences do exist in their ultrastructure (^{Tekleva et al. 2007}). This makes it particularly hard to test hypotheses on the paleoecology and diversification of the cycads in deep time even though cycad pollen should be readily preserved in the fossil record (^{Frederiksen 1978}) it is difficult for identification at species level. The high accuracy of our Random Forest classification based on acetolyzed grain measurements opens the possibility of using these methods to identify pollen grains produced by the extant cycad genera in the fossil record. A wider morphometric study of pollen grains across the Cycadales (living and fossil) with particular attention to pollen grain treatment might represent another avenue to improve our understanding of the pollen record of the cycads.

Conclusions

Pollen morphology alone is not useful for the delimitation of cycad species since the grains are extremely similar. At genus level Dioon pollen grains show a much thicker exine than that of Ceratozamia and Zamia however, polar axis, major axis and polar view dimensions were found to be of significance between these two genera. From a paleoecological point of view cycad pollen should be easily identified to genus level and it is hoped that the information provided here will be of use to cycad taxonomists and paleoecologists.
