1.1 Materials

The materials used in this study were portland cement, classified type III or CPC 30R as is established in standards (ASTM C150, 2017; ^{NMX C414, 2004}, respectively) which density = 3.11 g/cm³. Sugar cane bagasse ash obtained from sugar factory “Mahuixtlan” in Coatepec, Veracruz Mexico. The SCBA was obtained from one boiler where the combustion temperature was around to 700 ºC. The ash collected was cooled and grinding to 1500 rpm for 1 hour, getting the material passing the sieve No 200. The density of SCBA was 2.1 g/cm³.

The grinding process was used to decrease the particle size under 75 microns in order to increase the specific surface area, which is related to the increase of pozzolanic reactivity of SCBA as several authors have described (^{Cordeiro G. C., Toledo Filho, Tavares, & Rego Fairbairn, 2009}; ^{Cordeiro & Kurtis, 2017}).

The soil used in this study was obtained from material bank el Castillo in Xalapa, Veracruz Mexico. The sampling, identification, conditioning of samples and test it was carried out as is established in the procedures to analyses and assessment of embankments conformation (ASTM D 2217, 1998; ASTM D 421, 2007; ASTM D 2216, 2010; ASTM D 698, 2012; ASTM D 4318, 2017).

1.2 Materials characterization.

Chemical composition of SCBA was obtained by x ray fluorescence analysis (XRF), the ash phases was determinate by x ray diffraction (XRD), morphology and surface characteristics were observed by scanning electron microscopy (SEM), particle size distribution (PSD) was obtained as well by laser diffraction granulometric analyze, in order to know the average size of ash particles.

1.3 Soil mixing design

In the mixing design three percentages of portland cement were used according to the material classification, in this case for granular materials as sand used in this study the addition percentages must be less of 10% in order to do not have cracking due to high stiffening, as are established in several technical prescriptions (^{Jofre et al., 2008}; ^{Juarez Gutierrez & Inzunza Ortiz, 2011}). The percentages used were 3%, 5% y 7% with respect to dry soil weigh. The partial substitution on each percentage mentioned 0%, 25%, 50% y 100%, having 12 mixes in total.

1.4 Compacting characteristics.

Compaction is a mechanical process that improves the strength characteristics of materials which constitute structural sections in roads, for it, the impact energy is transferred by unitary volume of soil, obtaining a compaction curve which shows the dry unit weight and water content parameters of material. For this work, the ratio between dry unit weight and water content were determinate on each mix, in order to analyze the variation due to the additions and as data for making the specimens soil-cement. The tests were carried out following the procedure to granular materials using molds 944 cm³, and dynamic compacting with rammer 2.5 kg weight and 30.48 cm height of drop (ASTM D558, 2011).

1.5 CBR test

CBR is penetration strength test that compares support capacity of material in the study to crushed stone well graduate as a reference (100% CBR). For it, the load is applied through one piston with strain of 1.3 mm per minute recovering loads from 0.64 mm to 7.62 mm; In this work the CBR test was determinate on each mix in study, for it, three specimens for mix was dynamically compacted to optimum water content followed by to place surcharge weights and place it in immersion period for 24 h simulating the critical conditions followed of test on the loading machine to deformation velocity described (ASTM D1883, 2016).

1.6 Unconfined compressive strength

For assessment compressive strength of mixes, soil-cement and soil-cement-SCBA specimens were made to 100% compacting degree. These specimens were prepared as established the procedure for soil stabilized with cement (ASTM D558, 2011), using the values of compacting characteristics obtained previously. Dimension of specimens was 101.6 mm diameter and 116.4 mm high, with a high-diameter ratio of 1.15.

Samples were extracted of the mold by mechanical extractor and curing in water during 7 days. The specimens tests were made following the procedure compressive strength on soil-cement specimens (ASTM D1633, 2017), for it, previously to test, they were submerged in water for a period of 4 h in order to obtain the critical conditions followed by the test in an automatically loading machine.

2.1 Physicochemical characterization of materials.

Table 1 shows the characterization results of soil in study. This table shows the geotechnical parameters, it can observe that the predominate material is sand with 89.5% passing sieve No 4 and 20.7% passing sieve No 200, according to plasticity results there is not interval between liquid limit and plastic limit, concluding that fine material present in sample is not plastics, that means that it has a material with granular characteristics with specific gravity 2.0, according to unified soil classification system it is SM silty sand (ASTM D 2487, 2011). The compacting characteristics show that the optimal water content to produce a dry unit weigh of 1311 kg/m³ was 21.7%, and CBR value was 24% with 0 % expansion, satisfy the characteristics to use in subgrade layer as the Mexican rules established (^{Rico Rodríguez, Orozco y Orozco, Telles Gutierrez, & Perez García, 1990})

Table 2 shows chemical composition of SCBA, it can be observed that sum of main oxides (SiO₂+Al₂O₃+Fe₂O₃) were 73.069%, being up to 70% the minimum, as established the pozzolanic standard, furthermore it has loss of ignition 1.5% having classification of class N (ASTM C 618, 2017).

These results has been contrasted with different researchers that have used SCBA as supplementary material to portland cement, having consistency with them (^{Frias, Villar, & Savastano, 2011}; ^{Ganesan, Rajagopal, & Thangavel, 2007}).

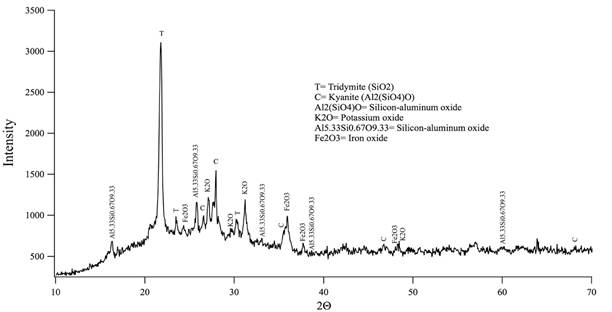

Figure 1 shows phases present in SCBA by diffraction patron, it can be observed amorphous particles presents in halo localized between 10 - 40º, 2( region, it is observed that on SCBA the main compounds are tridymite, kyanite, potassium oxide, iron oxide and silicon-aluminum oxide as crystalline materials. Similar diffractograms has been obtained of several authors, coinciding to mark off the region describing before (^{Jagadesh, Ramachandramurthy, Murugesan, & Sarayu, 2015}; ^{Torres Rivas, Gaitan Arevalo, Espinoza Perez, & Escalante Garcia, 2014}).

Figure 1 DRX results of sugar cane bagasse ash in study.

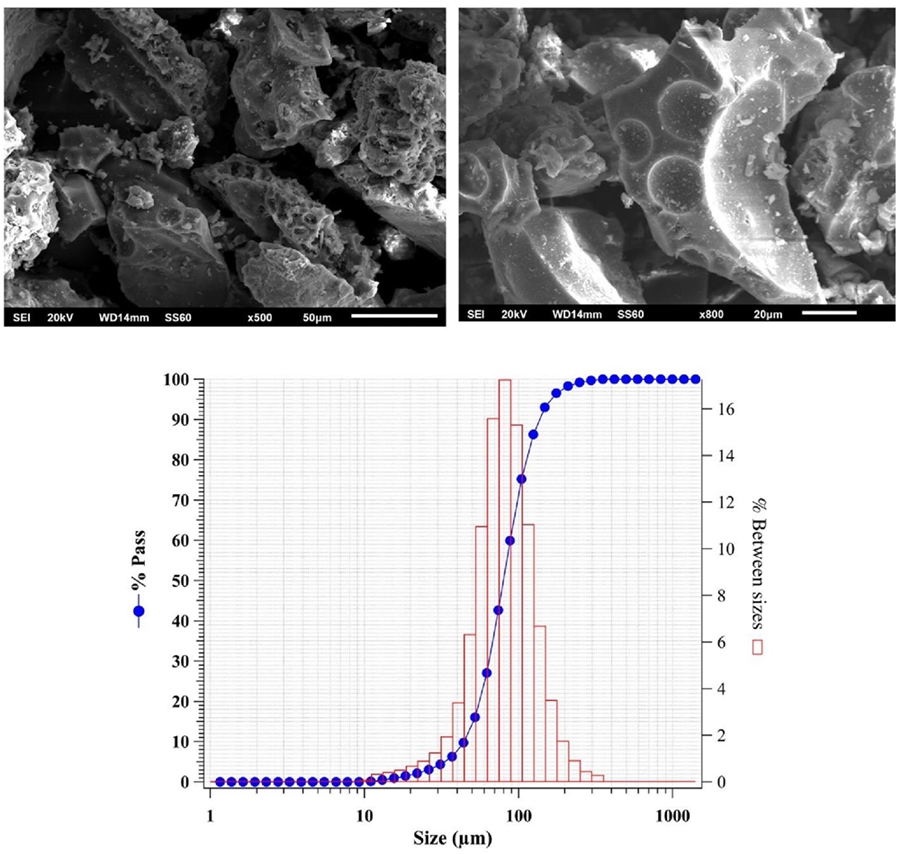

Figure 2 shows the SEM analysis on SCBA particles, it can be observed irregular and elongated shapes particles of tridymite (SiO₂) mix, and porous particles of ash also is observed to 500x, the several sizes can be observed taking as reference 50 (m scale on micrograph. On the other hand, at 800x is observed tridymite particles with grains of less size between 20 (m y 40 (m. The morphology found is associate to process and temperature of burned of bagasse as it has been reported by several researchers. Additionally, the same figure shows particle size distribution of SCBA particles, observing a uniform size distribution, namely, the SCBA is compound to particles from 10 (m until 200 (m, having an average size 86.62 (m according to laser diffraction granulometric analysis. The appropriate symmetry of the ash reflect the uniform distribution of SCBA. The morphology and composition is according to several microphotographs obtained from other researcher. (^{Alavez Ramirez, Montes Garcia, Martinez Reyes, Altamirano Juarez, & Gochi Ponce, 2012}; ^{Jimenez Quero, Leon Martinez, Montes Garcia, Gaona Tiburcio, & Chacon Nava, 2013})

Figure 2 SEM microphotographs and particle size distribution curves of SCBA.

2.2 Characteristics compaction effects

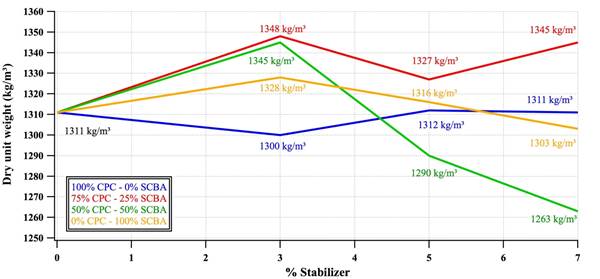

Figure 3 shows the effect on dry unit weigh (DUW) as consequence of CPC and SCBA addition in 3%, 5%, and 7% as well as the effect of combination CPC-SCBA on the same percentages (3%, 5%, 7%) but 75%CPC - 25%SCBA and 50%CPC-50%SCBA blended. It can be observed when the CPC is added the DUW does not present significate variations, it have values of -0.84% with 3% addition, 0.07% with 5% and don’t present variation in 7% addition, because the DUW value was 1311 kg/m³, this results are according with prescription in literature (^{imcyc, 2017}), where is established that on soil stabilized with cement, except in exceptional cases, DUW and water content does not present wide variety of values with respect to soil without cement, being a rewarding characteristic on soil stabilization, since the effect of cement will be the improved durability and strength.

The soils with combinations 75%CPC-25%SCBA present the highest increments in DUW, when 3% was added of combination CPC-SCBA having to increase of 2.8% reach 1348 kg/m³; The soils of 5% with combination 75%CPC-25%SCBA present increasing on DUW of 1.22% and soil of 7% with 75%CPC-25%SCBA combination the DUW was 1345 kg/m³ representing 2.6 % of increase. The increase is associated with three mechanims: 1) A greater compaction due to suitable particle distribution and size of SCBA, 2) Due to tension for water suction inside of pores, producing an adherence phenomena between particles due to negative press or capillary forces called apparent cohesion (^{Suarez, 2009}) , 3) A probably poozolanic reaction of Ca(OH)₂ by hydration of CPC with amorphous components of SCBA to early ages due to change of kinetics reaction produced for ash presence (^{Cordeiro & Kurtis, 2017}). The soils with combination 50% CPC - 50% SCBA, in 3% increased their DUW 2.6%, this is associate to the good compaction process due to SCBA characteristics, in 5% addition with combination 50%CPC- 50% SCBA the DUW decreasing 1.6%, and in 7% showed 3.66% being the least DUW in all soil blended studied, this decreasing is associate to the less compaction energy to reach its DUW, as it has been demonstrated in sand materials free of clay the permeability is high enough to do not develop pressures inside during compaction process, and at low water contents the capillary forces are development, obstructing the arrangement of soil particles, having inefficient compaction but not permanent, and if the water content is increasing those forces disappear and the process becomes efficiently again (^{Rico-Rodriguez & Del Castillo, 2006}). Of the above, is observed the inefficient compaction on 50% SCBA combination due to capillary forces, but if the SCBA content is increase to 100% the water content required as a consequence of absorption causes the disappearance forces becomes it in efficiently process, impacting on lower cost constructions as several works have demonstrated (^{Muntohar & Hantoro, 2016}).

The soil with 100% SCBA show increase in DUW as well, getting values of 1.3% in 3% addition, 0.4% in 5% addition and on 7% of additions was observed a decrease of 0.6%, these performances on DUW in SCBA addition without cement are associate to efficiently compaction process and filler effect due to uniform particle distribution of SCBA, which is corroborated in CBR test.

Figure 3 Effects of partial substitution of CPC for SCBA on dry unit weight of soil in study.

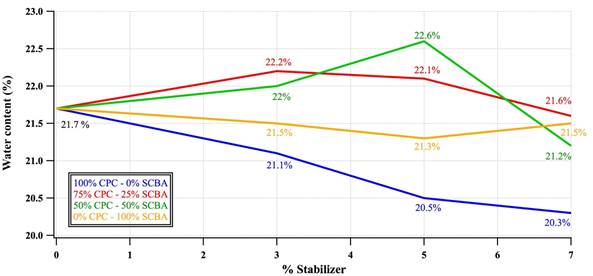

With respect to water contents Figure 4 shows the influence of CPC additions and the substitution to SCBA. In general water contents on mixes with SCBA increased as a consequence of high water absorption from particles, observing 2% of increase in 50% substitution which was associate to reduction of DUW because this had water content to generate the capillary force and the compacting process was not successful as is observed on figure 3.

On mixes with substitutions of 25% and 100% the water content was found inside of range that allowed an adequate compaction process, the variability of results of water contents are similar to results reported in another research (^{Onyelowe, 2012})

Figure 4 Effects of partial substitution of CPC for SCBA on water content of soil in study.

2.3 Effects on compressive strength

Figure 5 shows the behavior of compressive strength with the three different additions of CPC and SCBA as well as 75%CPC-25%CBCA and 50%CPC-50%CBCA, being this percentage 3%, 5% y 7% with respect to dry soil. It can be observed that soil with CPC addition increase compressive strength according to cement content is increased, observing strengths of 9.89 kg/cm² , 12.78 kg/cm² y 30.85 kg/cm² , in additions of 3%, 5% y 7% respectively, being soil with 7% of CPC highest strength, however the blended with combination 75%CPC-25%CBCA presented best performance in additions of 3% and 5%, having values 10.29 kg/cm² and de 14.25 kg/cm², which was highest that the soil with CPC; The soil 7% and 75%CPC-25%CBCA combination had 29.19 kg/cm² strength, 1.66 kg/cm² less that soil-CPC. The blend with combination 50%CPC-50%CBCA presented in 3% have 5.44 kg/cm² strength, 5% have 13.26 kg/cm² and 7% have 19.69 kg/cm² strength, observing the strength linear increase as function of increase of cement in 3%, 5% y 7%, this is showed in figure 5, on the other hand, soils with 100% SCBA, presented compressive strength smaller that the soil in study, with 2.26 kg/cm² in 3%, and 1.5 kg/cm² in 5% of SCBA respectively, and is observed a very smaller strength on 7% addition having a linear decrease as respect the SCBA content, Thus when the SCBA content increase without some quantity of CPC the compressive strength decreasing. In soils stabilized with portland cement the compressive strength is function of portland cement addition and specific energy give to soil per volume unit, if there are not cement contents the strength is some units per square meter and when the content of cement is increased is possible to reach the highest strength due to hydration products network, but the consumption quantity of cement will be of ton because the construction of roads is in km. Of above in agreement with the results of strength the blended 75%CPC-25%CBCA, can reduce until 25% consumption of CPC with similar strength, doing efficiently the compaction process to use SCBA as were discusses in 3.2 apart besides taking advantage of the use an agro-industrial waste whose storage generate a pollution problem.

Figure 5 Effects of partial substitution of CPC for SCBA on compressive strength of soil in study.

2.4 Effects on CBR

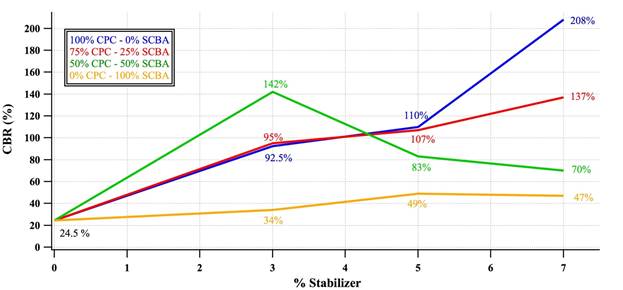

Figure 6 shows CBR behavior of different mixes tested. It can be observed that the behavior is similar to compressive strength, the soil with 100% CPC showed increases more than three times respect to natural soil that was 24.5%; The soil with 3% of CPC showed 92.50% of CBR, 110% to soil with 5% and 208% in soil with 7%. On the other hand, the soil of 3%, 5% and 7% with 75%CPC-25%SCBA presented an excellent behavior on CBR test with values of 95% in 3%, 107% in 5%, this values are similarly to 3% and 5% only with CPC, while the soil of 7% and the 75%CPC-25%CBCA combination was 137% CBR being below 71% with respect to soil with CPC but above 112% with respect to soil without additions. This increases of CBR are associate to hydration process reaction and the compaction energy on the soil. The soils with additions in 75%CPC-25%SCBA combination, the increase of CBR values is associate to hydration process plus kinetics reaction between Ca(OH)₂ and amorphous silica presented in SCBA that change from first hours of mix as has been reported in some researchers (^{Cordeiro & Kurtis, 2017}), besides the filler effect of SCBA particles that did not reaction, comparing this conjectures with several researches as Basha et. al, in this work the residual soil stabilization with CPC and rice husk ash (RHA) was assessment, found the maximum CBR with 4% CPC - 5%RHA combination, showed a change in microstructure observed through SEM and DRX techniques due to pozzolanic reaction. (^{Basha, Hashim, Mahmud, & Muntohar, 2005})In another study stabilization on soil type CH was assessment with additions of CPC and RHA, where was demonstrated that optimal addition was 10% RHA - 6% CPC obtained the highest increase in CBR and strength.

Figure 6 Effects of partial substitution of CPC for SCBA on CBR of soil in study.

On the other hand, 50%CPC-50%CBCA combination in 3% was 142% CBR associated this performance to hydration reaction, one initial puzzolanic reaction and a very important filler effect on pores, this performance was decreasing when the 50%CPC-50%CBCA combinations contents was increasing, so that in 5% the CBR was 83% and in 7% was 70%, this is associated to discussion of part 3.2 referenced to compacting process on the blended.

All CBR values with CPC, CPC-SCBA additions satisfy requirements for this material can be used to subgrade on roads in agreement with manual of quality of SCT Mexico which establish 40% of CBR, and on soils with 100% can be used on base layer, or above the blend of CPC-SCBA are workable on subgrade and base layers being a substantial saving and ecological support on roads construction (^{Rico Rodriguez, Orozco y Orozco, Telles Gutierrez, & Perez Garcia, 1990}).

For the soils with only SCBA additions in 3%, 5%, and 7% it was observed that the values increase with respect to the reference. From 24% CBR to 34% of CBR with 3% of SCBA, 49% with 5% and 47% with 7%. This result complements the discussion in part 3.2, which suggest the compaction process increase mechanical strength of soils, and although this project has one soil and one compaction mechanics the results changed from one case to another, because the condition of sample, and the SCBA added to soil in 25% substitution of CPC on CBR characteristics is a alternative technique, environmental and economic for embankments conformation.
