1. INTRODUCTION

The corrosion of the reinforcement is currently one of the subjects in which more resources are invested to investigate and it is also recognized as the main problem for the durability of concrete. I have lived the development of the concrete corrosion research since the beginning. First I make a very brief account of some research milestones in a sequential historical way before developing the subject with which I contributed to this special issue.

2. RESEARCH TO 1980

When I began my research by suggestion of José Calleja at the "Eduardo Torroja" Institute of Construction and Cement, there were no more than 30 citations in all the bibliography that I consulted (^{Gouda and Monfore, 1965}; ^{Stratfull, 1964}; ^{Cigna et al, 1966}). His suggestion came because they had detected corrosion due to the use of CaCl₂ to accelerate the setting. of concrete. The corrosion of armors was a matter of completely marginal interest in the decade of 1960-70, when the constructed park was still very limited. In my bachelors and in my thesis (^{Hausmann, 1964}) I studied a total of 8 cements with additions of CaCl₂ and NaNO₂, the latter as a possible corrosion inhibitor, manufacturing pre-stressed joists 2 m long with 6 embedded wires. The results clearly showed the corrosive effect of CaCl₂ and the inhibitory capacity of Nitrite. To measure corrosion, the non-destructive measuring technique called Polarization Resistance was applied for the first time in concrete, which would later be recognized along with other novel results by the RILEM when the author was awarded the Robert L'Hermite Medal.

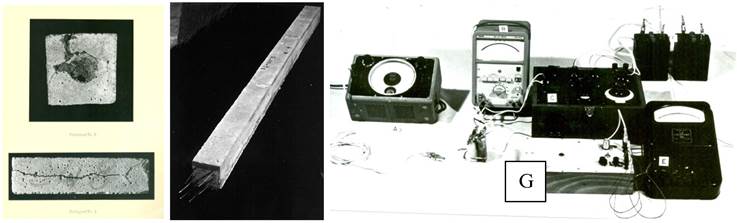

Figure 1 shows the specimens and joists used in the thesis of the author, as a curiosity, on the right side the devices used for measurements during the thesis are shown, one of which had already been used in the dissertation and another , the galvanostatic indicated with a G in the photograph, was manufactured by Jose Mª Tobio of the IETcc with the drawings yielded by Sebastián Feliú of the CENIM who is the one who had suggested using the Rp that was a very novel measurement technique.

Figure 1 Used corroded probes during the thesis of the author and the beam made in the Doctoral thesis (^{Hausmann, 1964}) presented the year 1973 in the Complutense University of Madrid. Apparatus used in the doctoral thesis (^{Andrade, 1973})

The techniques that had been applied up to that moment to study the corrosion of the armor were of an accelerated type, mainly polarization curves (^{Gouda and Monfore, 1965}) that were embodied in a potentiation test proposed by Kaesche and Baümel (^{Andrade, 1970}; ^{Andrade, 1978}) later standardized by DIN and by CEN for the detection of corrosive substances in concrete additives.

Also outstanding in those years are Hausmann's works (^{Andrade, 1978}) which establishes the critical relation of chlorides with respect to the pH of concrete at a value of Cl / OH = 0.6. Value that has remained valid to this day. Also, the works of ^{Gouda (Gouda and Monfore, 1965)} and Treadaway (^{Kaesche, 1959}) all on electrochemical techniques to detect the corrosiveness of the additives and the protection of the inhibitors.

3. DECADES OF 1980-2000

The use of electrochemical techniques was a fundamental milestone that allowed (^{Baumel, 1959}) from 1970 to approach the studies with much more rigor on the effect of each variable. This is how they began to study the effects of carbonation (^{González, Algaba and Andrade, 1980}) and the possible methods to avoid corrosion, mainly hot galvanizing, inhibitors, epoxy coatings for reinforcements and cathodic protection.

It is however in the 1980s when the calculation of useful life was addressed, which was not the subject of general attention until 1990. Thus K. Tuutti publishes his doctoral thesis (^{González, Algaba and Andrade, 1980}) in 1982 with the diagram shown in figure 3 and that has articulated all subsequent studies. Figure 3 also shows K. Tuutti during a meeting of the Rilem Committee 60-CSC- "Corrosion of Steel in concrete" (^{Tuutti, 1982}). Both this committee and subsequent ones, as well as the Subprogram "Durar" of CYTED (^{Schiessl, 1988}) and the publication of Page and Treadaway in Nature (^{Page and Treadaway, 1982}) supposed a disclosure of the problem in its basic aspects that contributed significantly to the multiplication of congresses and publications.

Figure 3 Left: Tuutti's life-time diagram. Right: from left to right Rob Bakker (Holland), O. Gjorv (Norway), K. Tuutti (Sweden) and P. Schiessl (Germany).

During the 1990s, enormous advances were made in basic knowledge, among which the possibility of in situ measurement (GECOR corrosion meter that allows measuring on site through confinement of the current (^{Page and Treadaway, 1982})) can be mentioned (Figure 4): the practice of cathodic protection both in new structures (^{Feliú et al, 1990}) and already deteriorated, and the detection of problems with epoxy coatings (^{Lazzari and Pedeferri, 2006}).

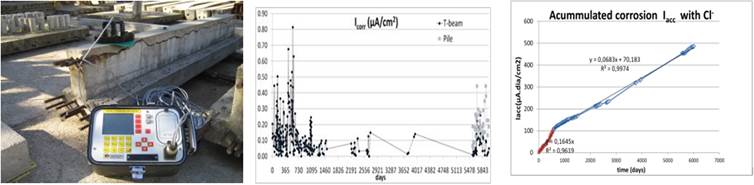

Figure 4 Aspect of the Gecor 08 portable corrosime0ter and measurements of instantaneous corrosion rate taken on the beam of the figure as well as the calculation of corrosion penetration (accumulated corrosion) from the integration in time of these measurements.

In those years RILEM established several committees, both on measurement techniques (TC-154), and on the models based on the diffusion of chlorides and carbonation (TC-178 and TC-213). In this regard, it is worth mentioning the contribution of D. Whiting proposing in the 1980s to reduce the duration of the chloride resistance test (^{Sagüés et al, 2001}) by applying a potential difference to the concrete. These works led to an intense debate that led to the work (^{Whiting, 1981}) that allowed to lay the theoretical basis for the diffusion of chlorides and their migration through electric fields, which have led to the profusion of numerical models on concrete life.

4. FROM 2000 TO THE PRESENT DAY

The most remarkable thing in these years can be summarized in the work done in the DURAR project (^{Andrade, 1993}) in terms of the disclosure of basic principles. The CONTECVET Manual (^{CONTECVET IN30902I, 2001}) which considers how to calculate the residual structural capacity when the structures are corroded and the probabilistic treatment of the models and calculation of the useful life, of which we can mention as a summary all the work carried out in the DURACRETE project (^{DURACRETE, 2000}) that has led to the incorporation of the fib Model Code of the probabilistic durability treatment.

One area in which a lot of technology has been developed is related to repair methods, given the growing number of structures that have had to be repaired. However, in the 21st century, the corrosion of armor is one of the areas that constantly attracts research interest, there are many aspects to be clarified, especially in the effectiveness of repairs and in the calibration of life models.
