2.1 Identification of the object of study

The structure is located on the upper floor of the first cloister, towards block A (Figure 1). It is based on a wood and plank slab made up of 98 beams of 9 cm x 13 cm (base x height), spaced between 43 cm and 45 cm with an inclination of 17 degrees from the wall towards the wood studs, supported on the 3^rd axis on the rammed earth wall that forms the church, and along the axis 4 on a sliding beam that rests on 13 wood studs. The slide beam is made up of 12 beams joined by scarf joint, which rest on the right feet (Table 1). The roof is made up of red ceramic tiles.

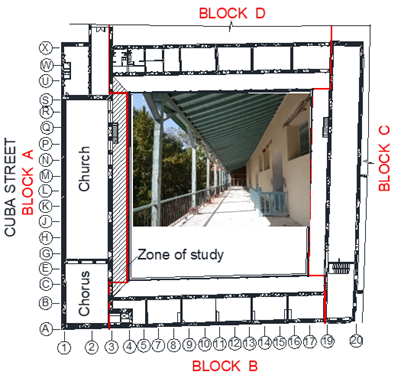

Figure 1 Floor plan sketch of the first cloister, signs and photograph of the gallery studied

2.2 Analysis and selection of non-destructive tests

The purpose of the NDT is to determine the quality and completeness of the material and its component parts without affecting their properties, functions and usefulness through inspection, measurement or evaluation (^{Helal et al., 2015}; ^{Workman and Moore, 2012}). The application of this type of techniques to study the state of conservation of historic buildings has gained validity, mainly due to the advantage of not requiring additional deterioration in the structural elements of the building, to know its state of conservation (^{Binda and Saisi, 2009}; ^{Liñán et al., 2011}; ^{Ortega and Ripani, 2007}). Due to the fact that wood is an organic material, it is susceptible to degradation processes caused by xylophagous insects, mechanical actions, exposure to weathering, rotting by fungi or the action of fire.

In heritage buildings, the use of NDT adds a high value to the diagnostic study, because the structural elements of wood are not affected or receive a negligible impact. As a result, it is possible to obtain technical information with sufficient precision to estimate the state of conservation, quality and durability of the work or work object studied (^{Hasníková and Kuklík, 2014}; ^{Morales-Conde et al., 2013}; ^{Palaia et al., 2008}).

The techniques applied were:

2.2.4 Identification of timber species

The test was carried out to know the timber species present in the elements that make up the forging of the gallery and the uprights that support it. Samples of 1 cm³ volume were taken from the wood elements present in the analysis area. Histological sections were made in the three directions (transversal, tangential and radial), to observe the disposition of the constituent elements by species and they were compared with the reference anatomical descriptions and the identification keys reported and classified within a xylotheque. The macroscopic anatomical characters evaluated were color, texture, smell (in those that possessed it), luster and the presence of growth rings. Microphotographs were taken with a Nikon digital camera model SMZ745 attached to a microscope. The images were processed using the program IC Capture version 2.4. The wood species were graphically identified using the following symbols (Table 1).

Table 1 Graphical representation of the wood species identified in the slab studied

Icon/Name
Ácana	Pine	Caguairán
Cedar	Baría	/ Najesí

2.2.6 Generation of 3D models and extraction of orthoimages

For the different types of analysis (geometric, structural, etc.), which can be done on a finite element, it is necessary to obtain a 3D model that can be easily manipulated and measurable by existing conventional programs. The information obtained from a 3D survey provides an almost continuous description of the scanned surface, which makes it possible to identify and quantify anomalies in the elements such as asymmetries, deformations, discontinuities, among other injuries that may be difficult or impossible to identify with the naked eye (^{Tucci and Bonora, 2017}). Orthoimages can be extracted from the 3D models, which makes it possible to obtain an orthogonal projection of the point model, which has the same metric validity as a traditional scale drawing (Figure 2). Commercial software based on CAD allows the import of the orthoimage, making it possible to make precise drawings that can later be viewed and analyzed in other digital environments.

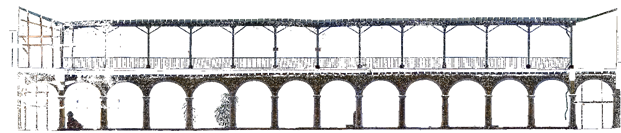

Figure 2 Orthoimage obtained from the gallery of block A

3.1 Results of visual inspection

From beam 1 to 17, the floor is supported by a shoring system due to the risk of collapse caused by advance deterioration as a result of decay, as well as the absence of several boards and flashings. This situation has caused a drop in the rest of the slab and the failure of some elements.

The roof is affected by the proliferation of invasive plants throughout the gallery, which leads to an increase in the moisture content in the wood, mainly in rainy seasons, as well as the additional weight that compromises the durability of the roof. The result of the diagnosis identified rotting as the most recurrent lesions, mainly in the head of the timber due to colonization by fungi, dismemberment as a result of the attack of subterranean termites of the genus Coptotermes, and bending failures in beams associated with the loss of the bearing capacity of the element. The wood studs that support the slab have a concrete base as support, which responds to an intervention carried out in the 1980s. In most of these, the base is cracked as a result of the increase in volume suffered by the section of embedded wood, as a consequence of the accumulation of moisture inside of it. The concrete is not capable of absorbing the stresses generated within the material due to the volume changes suffered by the wood, which causes them to fracture. Some wood studs are more deteriorated than others due to the fact that woods of a different nature were used, which is why their absorption capacities and the stresses exerted vary in each case.

3.2 Sizing and deformation obtained from TLS data

The high precision of the data obtained by the laser scanner from the union of the point clouds and the obtaining of the 3D model, allows the measurements of the slab elements to be carried out without the need to intervene on them. To work with representative sections and the wood studs, regions were established and the views were adjusted to obtain measurable images. In the case of the wooden ceiling, a section between beams 35 to 49 was extracted, while for the support elements, a section from studs 5 and 6 was selected. The results are shown in figure 3. Summary of the sizing is indicated in table 2.

Figure 3 Dimensioning and deformation (in mm) of the wooden elements from the 3D models

For the structural analysis of the slab beams, orthoimages were extracted using the Reconstructor software, and cuts were made using the Autodesk Recap software from beam number 17 to 98. All the beams that make up the slab present deformations to a greater or lesser extent, and some show flexural failures due to a decrease in their bearing capacity. The Cuban standard (^{NC 53-179:88, 1988}), establishes that the maximum admissible deflection is 1 240 of length for full load. This indicates that the admissible deflection for the wood beams is approximately 1.5 cm, but the values obtained on site are 2 cm to 4 cm higher than those acceptable by calculation. The standard establishes that the deflection of the beams will increase for load periods of more than 10 years by 50% for dry wood, and 100% for wet wood. Considering this, the allowable deflection would increase by 2.25 cm and 3.0 cm, respectively, for which there are still differences between allowable and actual values (Figure 4). It is important to note that not all the maximum deformations found are located in the center of the span, for the reason that there are areas where the element is more deteriorated than others; that is why the beams deform and fail in the most vulnerable area. It was identified that not all the beams are of the same wood species, which is why their hardness and resistance to bending also vary. In the right feet 1 and 7, the deterioration in the joints has caused the displacement of the same and of all the elements that adjoin it. These vertical movements that the right feet have suffered vary between 3.5 cm - 20 cm approximately, and the separation in the scarf joint between the beams that make up the sliding beam ranges between 1 cm to 2 cm, which represents considerable displacements.

To evaluate the deformation of the beams and the density they present, the identification of the timber species was carried out, from the taking of samples directly from the beams and uprights. The wood species were identified in a biological laboratory and the densities obtained with a penetrometer were compared with the reference values reported by the National Institute of Agro-Forest Research (INAF).

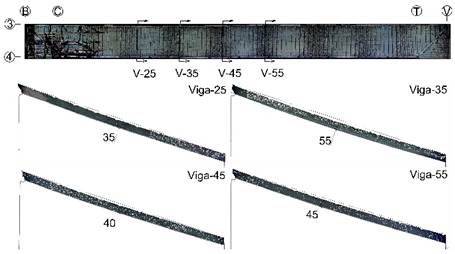

Figure 4 Deformations (in mm) of some wood beams

3.3 Identified timber species

Through the application of the comparative anatomy method from the histological sections made in transverse, tangential and radial directions, it was obtained as a result that the species of wood that form the structure of the roofing and the support system of the wood stud are: cedar (Cedrela odorata), pine (Pinus sp.), baría (Cordia gerascantus), caguairán (Guibourtia hymenifolia) and ácana (Manilkara grisebachii). Figure 5 shows the histological sections made to identify the existing wood species.

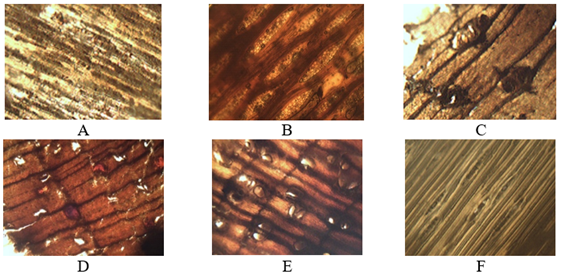

Figure 5 Histological sections at 40x of the identified wood species: A- ácana (longitudinal cut), B- baría (longitudinal cut), C- caguairán (cross-section), D- cedar (longitudinal cut), E- najesí (cross cut), F- pine (lengthwise cut)

3.4 Analysis of diagnostic results

The moisture content measured in the floor beams is between 9%-19%, in the wood studs between 11%-17% and the sliding beam between 11%-12%. The thermographic images obtained reflected how the support wall presents areas of high humidity, which favors the absorption of water in the wood as it is a hygroscopic material.

In the case of the uprights and the sliding beam, the elements were partially wet because they are exposed to sunlight and their drying and ventilation conditions are more favorable than those of the wood beams. However, in times of rain and extreme weather events, this same exposure causes deterioration to be more accelerated and favors the proliferation and attack of wood-degrading organisms.

In the analysis with the thermographic camera, temperature changes of ±2ºC were identified at different points of the same element, which leads to thermal deformations of the roof. In the case of the beams, the coldest values ​​are found near the boards and in the wall of axis 3, where the most considerable differences appear in the propped area and close to the floor. When it rains, the water infiltrates mainly through the areas where the waterproofing system is least preserved and where there is a greater presence of invasive plants, which causes the accumulation of water, both in the roof and in the wall. The degree of saturation of the wood elements varies depending on the species, the level of exposure and the environmental conditions, which leads to the triggering of pathological processes that weaken their mechanical properties. Other injuries identified with the thermography were temperature variations on the floor, associated with unevenness or damage that favor the accumulation of rainwater, and favor absorption by capillarity in the right feet of the gallery. Being embedded in a concrete base that works as a waterproof layer, drying inside the base is very inefficient and accelerates the decaying of the wood.

The analysis carried out with the resistograph allowed us to identify that of the 98 beams that make up the roof, 64 of them present different pathological manifestations associated with decay due to exposure to wetting and drying cycles. The resistography began in the area of the junction because it is the most vulnerable area, and depending on the damage detected, measurements were also made in the center of the span or near the supports (Figures 6 and 7).

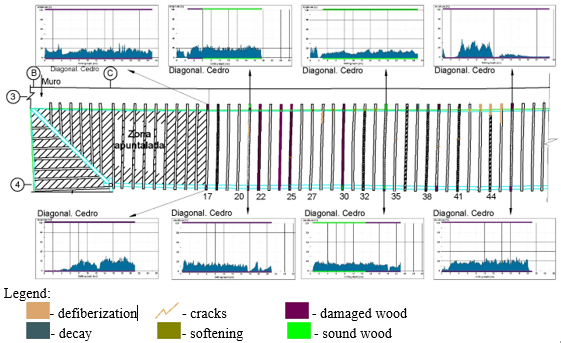

Figure 6 Results of resistography tests and damages in wooden elements between beams 1-49

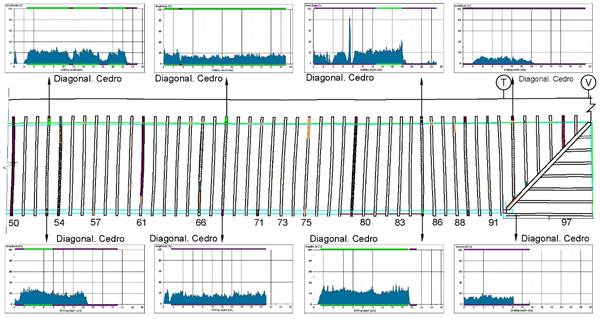

Figure 7 Results of resistography tests and damages in wooden elements between beams 50-98

In the case of the wood studs, the resistography showed low penetration resistance values ​​for all of them, and anomalies similar to those detected in the wooden beams. The extension of the lesions is between 150 mm and 750 mm from the concrete base upwards, and in more than 50% of the wood studs, it is located in the first 150 mm of height.

The sliding beam, with an extension of 45.5 m, is made up of sections, and each section of beams of different wood species. Due to the fact that the most vulnerable area is the exterior side, the resistography was carried out from the interior side (gallery) to the exterior (patio), with the purpose of identifying the progress in the deterioration based on the width of the beam. In the section between the wood studs 8 and 9, the resistography shows areas with defibration due to the attack of termites. These xylophagous organisms feed on the wood and leave tunnels inside it, consequently, the resistographic curve suddenly changes as a result of the lack of resistance during their advance (Figures 8 and 9). When carrying out the penetrometer tests and the corresponding adjustment calculations, it was evaluated that the wooden elements have a hardness lower than the tabulated values ​​for Cuban woods. These results are in correspondence with the low resistances obtained in the resistography tests. Table 3 presents a sample of some of the elements studied.

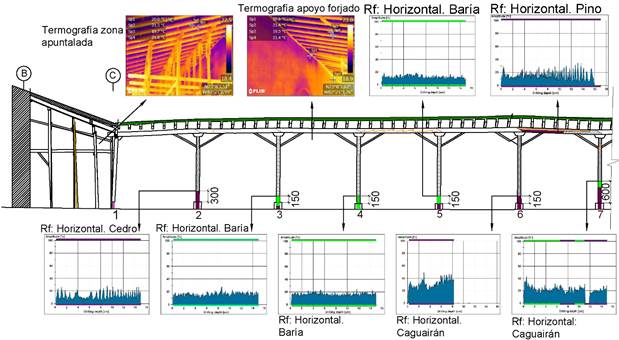

Figure 8 Results of tests on elements of the slab between wood studs 1-7, where the thermography reflects the humidity present in the wall of axis 3 in the support area of the beams, and the resistography in the wood stud and sliding beam of the axis 4

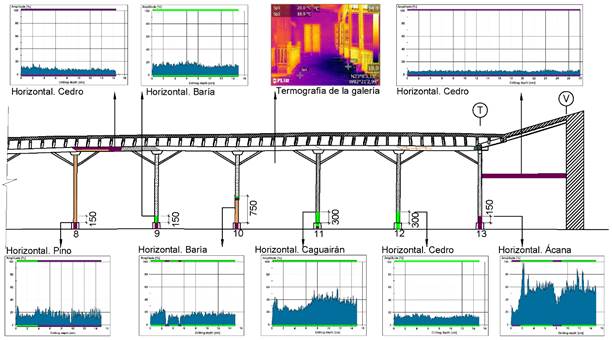

Figure 9 Results of tests on elements of the slab between wood stud 8-13, showing the thermography of the gallery with a high level of humidity in the supports of the wood stud, and the resistography in the wood stud and slide beam at axis 4.

3.5 Solution proposals

In the floor beams, it was determined that 17 of them need to be replaced as a result of their advanced deterioration. Additionally, another 45 beams must be structurally reinforced in different areas, depending on the pathologies developed in each one. Of the remaining 34 beams for which no significant injuries were identified, it will be necessary to disassemble and strip 2 of them due to superficial damages, in order to subsequently recalculate the load for the new beam section (Figures 10 and 11). All the wood studs showed deterioration that required structural reinforcement actions, as well as in the sliding beams, where it will be necessary to replace two sections and reinforce another 3 sections (Figures 12 and 13). The significant decrease in the density of the wood is the result of exposure to wetting and drying cycles, mainly in the rainy months, with the consequent proliferation of fungi and termite infestation. The deformations present in the beams are not only the result of the increase in weight due to excess water and the growth of higher plants, but also due to the loss of their timber properties, which increases the risk of structural failure.

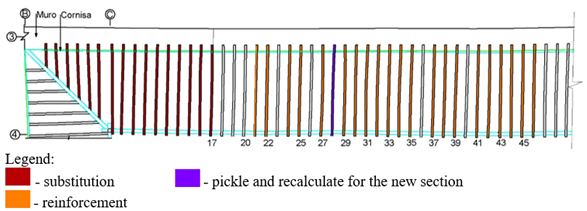

Figure 10 Proposal for a solution to the ceiling between beams 1-49

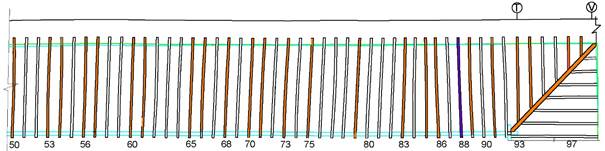

Figure 11 Proposal for a solution to the ceiling between beams 50-98

Figure 12 Proposal for a solution to the wood stud 1-7 and section of the sliding beam

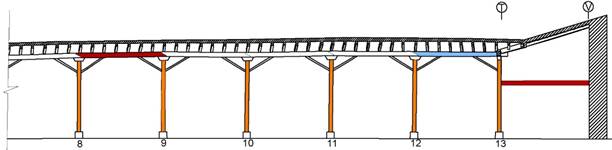

Figure 13 Proposal for a solution to the wood stud 8-13 and section of the sliding beam
