Samples preparation

Ovaries (n = 20) from crossbred female cattle (Bos taurus×B. indicus; 3-5 years old) were collected immediately after slaughter at a local abattoir. Ovaries were assigned to one of the following treatments: (1) the ovaries (n = 10) were washed once with 70 % ethanol for 10 s (J.T. Baker®, MEX), rinsed twice with normal saline solution (OH + NSS; PISA®, MEX), and then placed in a transport medium based on NSS + 0.05 % gentamicin sulphate (Gentalex®Fuerte, PISA, MEX); or (2) the ovaries (n = 10) were washed three times with phosphate buffered saline (PBS; Bioniche®, USA), and transported in a medium containing PBS + 0.05 % gentamicin sulphate.

The ovaries were transported to the laboratory in sealed containers at 4 °C within 1-3 h after collection. At the laboratory, each ovary was immediately placed in a sterile Petri dish (Falcon® 100 × 15 mm) containing modified human tubal fluid medium (HTF HEPES®; In Vitro Care®; USA), supplemented with foetal bovine serum (FBS; BioWest®; USA). With the aid of dissection tweezers and a scalpel blade (Num. 12), each ovary was divided to obtain six small cortex samples (2 mm × 1 mm × 1 cm). Three samples of cortex from each ovary were fixed in buffered formalin, embedded in paraffin squares, cut at 7 µm and stained with hematoxylin & eosin (H&E) to evaluate the follicular morphology and development stage under a light microscope (B150DB-R, Optika®, Italia). The follicles were classified as primordial (a single layer of flat cells surrounding the oocyte), primary (a single layer of cuboidal granulosa cells), or secondary (two or more layers of cuboidal granulosa cells surrounding the oocyte).¹⁸ Based on their morphology, the follicles were also classified as normal or atretic, according to the presence or absence of pyknotic nucleus, oocyte retraction, and/or disorganization of the granulosa cells and separation from the basal membrane.¹⁹

The remaining three samples of ovarian cortex from each ovary were used to conduct a more detailed evaluation through an ultrastructural analysis of the immature follicles. The tissue fragments were fixed in Karnovsky solution (2 % paraformaldehyde and 2.5 % glutaraldehyde in 0.1 M sodium cacodylate buffer pH 7.2) for 24 h at 4 °C. After fixation, the tissue fragments were washed in 0.1 M sodium cacodylate buffer and mechanically isolated with a scalpel due to the non-homogeneous degree of follicular density and distribution in the ovarian tissue, which affects interpretation.^20,21 Then, the tissue fragments were post-fixated in 1 % osmium tetroxide in Zetterqvist buffer for 1 h. Subsequently, the samples were dehydrated in gradually doses of ethanol (50, 70, 80, 90 and 100 %) for 15 min each one, moved to acetonitrile for 20 min, and then embedded in proportions 1:1, 2:1 of EPON 812 resin:acetonitrile, for 1 h each, and finally in only EPON 812 resin for 24 h. The semi-fine cuts (1-2 µm) were stained with toluidine blue. The fine cuts (60-70 nm) were contrasted with uranyl acetate and lead citrate and examined by transmission electron microscopy (Jeol JEM 100C).²²

Statistical analysis

The follicles in different development stages with normal morphology in each treatment group were counted and expressed as a percentage ± one standard deviation (SD). Data were analysed by ANOVA and the Tukey’s test to determine the differences between treatments. The main morphological abnormalities observed (categorical variables) by light microscopy are presented as a percentage, and the data were analysed using χ² to determine the homogeneity of proportions. For all the tests, Statistica v. 10.0 software was used and values of P< 0.05 were considered statistically significant.

Histological analysis

In total, 626 immature follicles were evaluated. The overall percentages of follicles in the primordial, primary and secondary development stages were 71.4 %, 21.0 %, and 7.6 %, respectively. The percentage of high quality follicles (classified as normal follicles) obtained from the PBS and OH + NSS treated groups, was 88.6 % and 36.9 %, respectively. The histological results between the PBS and OH + NSS treatments showed differences in the number of normal follicles in the evaluated samples of ovarian cortex (Figure 1), with a higher number and quality in those treated with PBS (F _1,12= 99.64, P= 0.0001). Statistical analysis also showed differences between development stages within each of the treatments groups (F _{2,12 =}262.67, P= 0.0001; Table 1). Light microscopy was used to evaluate atretic abnormalities in the ovarian tissue samples from each treatment group, and the proportion of alterations to immature follicles was not different between the two treatments (χ² 1,7 = 7.72, P= 0.358; Table 2).

Figure 1 Images A, C, and E were observed in the samples of ovarian tissue corresponding to OH + NSS treatment; images B, D, and F correspond to PBS treatment. Good-quality primordial (A and B, viewed at 40X), primary (C and D, viewed at 40X), and secondary (E and F, viewed at 10X) immature follicles presents in the samples of bovine ovarian cortex.

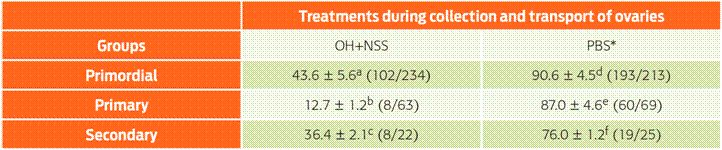

Table 1 The percentage of normal bovine follicles at each stage of development obtained from ovaries retrieved from a slaughterhouse, using two aseptic methods during collection and transport to the laboratory.

Data are expressed as percentage ± 1 SD. The values in parenthesis are the observed number of follicles with good morphology divided by the total number analysed for each group during histological evaluation. *Statistically different from those treated with OH+NSS (F _1,12 = 99.64, P = 0.0001). ^a,b,c,d,e,f Different superscripts indicate significant difference in each stage of follicular development (F _2,12 = 262.67, P = 0.0001).

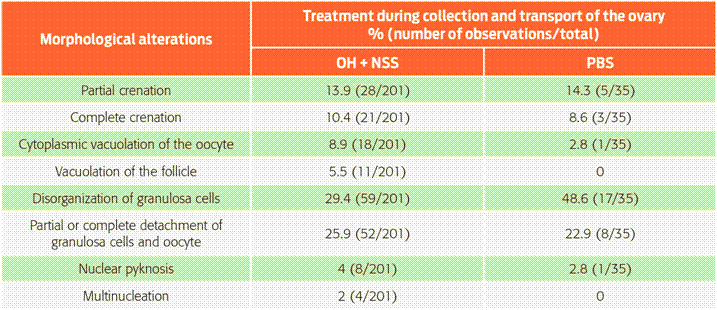

Table 2 Main morphological alterations found in atretic immature follicles in samples of ovarian cortex treated with OH + NSS or PBS during collection.

Data are expressed as percentage of the total of each column for the main alterations found among follicles for each treatment. The proportions of morphological alterations between treatments did not show significant difference (χ² _1,7 = 7.72, P = 0.3581).

Ultrastructural analysis

The semi-fine cuts stained with toluidine blue revealed diverse structural alterations among the follicles of each treatment group (10 follicles for treatment; Figure 2). Ultrastructural evaluation confirmed that the oocytes from immature follicles present in the samples of the ovarian cortex treated with OH + NSS were completely damaged, as only detritus and a high number of vesicles in the space that corresponds to the immature follicle was observed (Figures 3A-3E). However, at least 64 % of granulosa cells within the ten analysed follicles retained their integrity (Figures 3E-3F). This result suggests that granulosa cells may have unique characteristics rendering them more resistant to the effects of dehydration and oxidative stress induced by the alcohol applied during the asepsis process.

Figure 2 Semi-fine cuts of immature follicles present in bovine ovarian cortex treated with PBS (A, B, C; viewed at 40X) or OH+NSS (D, E, F; viewed at 40X).

Figure 3 Ultrastructure of bovine immature follicles present in the ovarian cortex treated with OH + NSS immediately after ovary collection at the slaughterhouse. The ovaries were rinsed with 70 % ethanol (OH) and then transported to the laboratory in normal saline solution (NSS) according to an established protocol. A) Degenerated primary immature follicle. Detritus is present (D) in the space corresponding to the oocyte. The granulosa cells are separated and cytoplasmic residue is evident in each cell. Inside the cytoplasm, mitochondrial remains are present (arrows). B) The empty space with cell detritus (D) left by the disintegrated oocyte is shown. The electron dense cytoplasm of the granulosa cells has some irregular extensions towards the hollow space (thin arrows). Some mitochondrial remnants are evident in autophagic areas (asterisks). A lipid droplets can be observed (L) C) A secondary follicle with a large number of vesicles (V). The remaining organelles are part of the immature follicle. Marked autophagic areas in the cytoplasm of the granulosa cells are indicated (arrows). D) An abundant quantity of vesicles containing residues of organelles from the death oocyte (arrowheads). Abundant elongated mitochondria are present in the well conserved cytoplasm of the granulosa cells (arrows). A lipid droplet (L) and the nucleus (NG) are shown. E) Granulosa cell included within a primary follicle with a complete nucleus (NG) in which heterochromatin and euchromatin can be observed. One lipid droplet (L) surrounded by polysaccharides and the presence of autophagy residual bodies (arrows) can be observed in the cytoplasm. Note the presence of the mitochondria and endoplasmic reticulum (arrowheads) in the proximity of the autophagy area (asterisk). F) The intercellular space between granulosa cells (thin arrows), and abundant mitochondria are shown.

A large amount of lipid droplets surrounded by polysaccharides was present in all the observed granulosa cells (Figures 3D-3F). Likewise, abundant mitochondria with well delimited cristae were evenly distributed throughout the cytoplasm of the granulosa cells (Figures 3D-3F). Other abundant cytoplasmic organelles were the rough and smooth endoplasmic reticulum and the ribosomes. The nuclei of the granulosa cells were pleomorphic and showed abundant heterochromatin and euchromatin, and this level of evaluation did not reveal significant damage. Consequently, the tight union of the granulosa cells membranes was also observed (Figure 3F).

On the other hand, the evaluation of the immature follicles present in the cortex of ovaries treated with PBS confirmed that those follicles were not affected compared with those treated with OH + NSS. The ultrastructure of the immature follicles revealed basal membranes formed by a basal lamina and collagen fibers which provide support and firmness to the follicle within the ovary (Figures 4A and 4B). The nuclei of the granulosa cells of the primary and secondary follicles were mostly pleomorphic and had abundant heterochromatin. The cytoplasmic organelles, such as the mitochondria, Golgi apparatus, smooth and rough endoplasmic reticulum, and lysosomes were distributed throughout the cytoplasm and had a normal appearance. Occasional small vesicles with lipids inside were also found in the cytoplasm (Figure 4A).

Figure 4 Ultrastructure of bovine immature follicles present in the ovarian cortex, treated with PBS immediately after ovary collection. Ovaries were washed and transported to the laboratory in phosphate buffered saline (PBS) to preserve per an established protocol. Images are presented as follows: A) An intact primary follicle with an intact basal membrane (arrows). Note the integrity of the granulosa cells and the oocyte. NO: oocyte nucleus; CO: oocyte cytoplasm; V: vesicles; NG: granulosa cell nucleus; CG: granulosa cell cytoplasm. B) Granulosa cells from different follicles, previously separated. Note the presence of mitochondria (M) with no alterations, as well as the tight union of the cell membranes of the granulosa cells. The basal membrane is complete, without damage as observed at this level of detection. M: mitochondria; NG: granulosa cell nucleus; CG: granulosa cell cytoplasm; basal membrane (arrows); collagen fibres (asterisks). C) An intact secondary follicle in which both unaltered granulosa cells and immature oocyte as observed at this level of detection. NO: oocyte nucleus; RE: endoplasmic reticulum; M: globular mitochondria; L: lipid droplet. D) Oocytes from primary and secondary follicles with well-defined cristae (asterisks), mitochondria in process of globular formation (arrowheads), and globular mitochondria (arrows). This morphology dynamic was observed in all of the immature oocytes; however, no signs of autolysis or immature oocyte degeneration are shown. N: nucleus; n: nucleolus; EN: nuclear envelope.

In the oocytes from primary and secondary follicles, the Golgi apparatus was well developed and occupied a large part of the cytoplasm. The amount of smooth and rough endoplasmic reticulum was diminished and the presence of lipid droplets was scarce compared to the granulosa cells. The size, shape and ultrastructure of the mitochondria in the oocyte differed greatly from those of the granulosa cells. Most of the mitochondrial groups in the oocytes were globular, with the presence of lipid droplets; the cristae remained in some of the mitochondria while others were just spherical with their double membranes intact. Areas in which mitochondrial groups in different morphological stages or in the process of globular formation were also evident (Figures 4C and 4D), while the typical mitochondria with oval or rounded rod-like shape, as seen in the granulosa cells, were not present. Importantly, no signs of autolysis or degenerative processes, such as those found in the immature follicles treated with OH + NSS, were found.

Only the preantral follicles were evaluated because the objective of the study was to describe the quality of the follicles that are part of the quiescent pool in the ovarian cortex of female cattle. Proper functioning of the ovary is critical to maintain fertility and overall health, and ovarian function depends on the maintenance and normal development of ovarian follicles. The potential impact of oxidative stress induced for 70 % ethanol during ovary collection on the immature follicles was evident, and the comparison of the percentage of morphologically normal follicles obtained in this study using OH + NSS and PBS (36.9 % vs 88.6 %) revealed this degenerative process. Rodrigues et al.¹⁷ reported a lower percentage of follicle normalcy with PBS treatment than that obtained in the present study (88.6 % vs 77 %). Similar results were reported when the percentages obtained in this study were compared with those from other studies using ethanol for ovary asepsis, of 75 %, 76 % and 68.1 %, respectively.^9,15,16

Alterations in morphology result from complex mechanisms that signal the start or degree of advancement of the atresia process at cellular level, and a wide variety of such alterations have been evaluated to demonstrate their correlation with the atresia signs at histological or ultrastructural level.^23,24 Among histological variables, some that stand out are follicle crenation, the presence of vacuoles, organization of follicular cells around the immature oocyte, and nuclear integrity, all of which were found more frequently in this study. However, the number of morphological alterations increased in follicles treated with OH + NSS. Borges et al.¹⁰ reported this type of alterations in sow atretic immature follicles treated with an aseptic protocol similar to the OH+NSS treatment in the present study. Even though the atresia signs can accumulate during folliculogenesis, the existence of incomplete development of the metabolic functions, mainly in the immature oocyte mitochondria, has been reported.²⁴ This prevents the oocyte from adequately dealing with the damage caused by the oxygen reactive species induced by ethanol at the ultrastructural level during asepsis. Additionally, damage becomes more evident with the acceleration of the atresia process.²³

Evaluation at ultrastructural level confirmed the damage caused by ethanol included in the OH + NSS treatment for ovary asepsis, mainly in both primary and secondary oocytes from immature follicles, in which only detritus and a great number of vesicles with organelles remains were observed. The combination of all these signs of degenerative changes indicates the occurrence of progressive atresia²³ at the immature oocyte level, unlike the immature follicles treated with PBS, which had no signs of atresia. One study showed that oocyte degeneration is the type of atresia more frequently observed in preantral follicles of this kind.²⁵ Nonetheless, in the granulosa cells of most of the follicles treated with OH + NSS no signs of atresia were observed. This observation agrees with other studies^10,25 reporting that in some preantral follicles, oocyte can degenerate or disappear completely, while the granulosa cells remain healthy and even continue to proliferate, indicating that the oocyte is more susceptible to degeneration than its own granulosa cells.
