1. Introduction
Hydrometeorological disasters number in Costa Rica have been growing during the last decades (Campos-Durán and Quesada-Román, 2017a); especially annual floods and landslides in both, urban and rural areas (Quesada-Román & Calderón, 2018). This trend is consistent in Central America, a region commonly affected by tropical cyclones due to its position and high vulnerability (Campos-Durán and Quesada-Román, 2017b). Recent disaster impacts in Costa Rica, due to the tropical cyclones, are clear examples of the increasing vulnerability. The cost of recovery from Hurricane Otto (2016) signified 0.3% of the national Gross Domestic Product (GDP), while tropical storm Nate (2017) summed 1.2% of the GDP (Quesada-Román et al., 2019).
The impacts of natural disasters are mainly in road infrastructure (bridges and roads) where Costa Rica has a clear progress delay, but sometimes with casualties (Brenes and Girot 2018; Quesada-Román et al., 2020a). Furthermore, an increase of heavy rains is predicted for future decades in the Caribbean of Costa Rica (Imbach et al., 2018), and a greater number of tropical cyclone occurrence in the Atlantic catchment have been forecast (Lavender et al., 2018), as well as more major hurricanes recurrence (Bender et al., 2010). Concordantly, global tendencies indicate that disaster risk have been exacerbated by climate change increasing its frequency and intensity (UNDRR, 2019). Developing countries and smaller economies, challenge a more difficult economic situation after a comparable disaster than do developed countries or bigger economies (Klomp and Valckx, 2014).
Baseline information in order to reduce disasters in Costa Rica should be enhanced and the cartography of natural hazards must be improved (Quesada-Román, 2017). However, the number of investigations on vulnerability and risk in the country should increase in order to reduce disasters (Quesada-Román et al., 2018). The increasing vulnerability conditions in Costa Rica due to the inefficient territorial management leads to the occurrence of cascading disasters (Quesada-Román, 2015; Quesada-Román et al., 2020d). Therefore, this study aim to (i) generate a geomorphometric analysis, (ii) a morphogenetic mapping, and (iii) a hazard zonation mapping for landslides and floods for the Upper General River Catchment in southeast Costa Rica, as a study case of detailed geomorphological mapping in tropical dynamic catchments.
2. Geographical setting

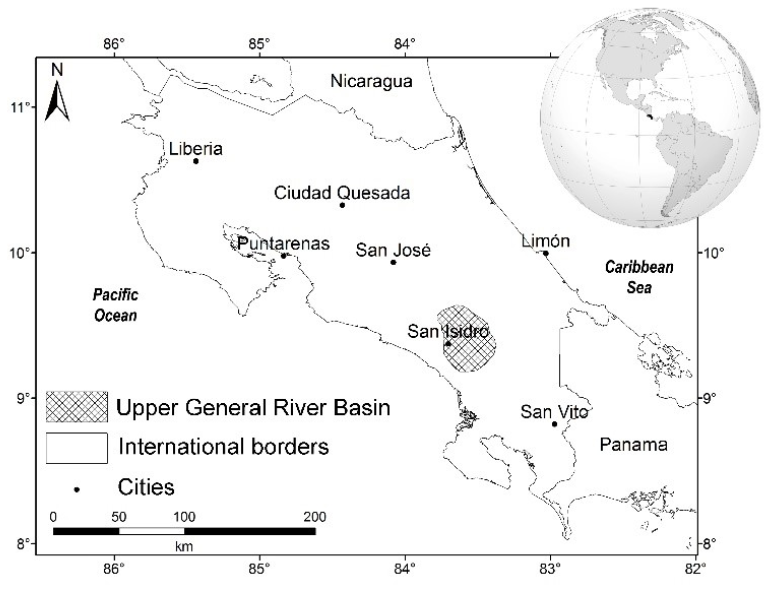

The UGRC is located 80 km southeast of the capital of Costa Rica, San José, where the city of San Isidro del General is the most important town. This is where the Cordillera de Talamanca, the General River valley, and the Fila Brunqueña merge in an area of 1,560 km2 (Figure 1). The topography and geomorphology of the UGRC results from a complex tectonic interaction between the Cocos, Caribbean, Panama, and Nazca plates, as well as the subduction of the submarine volcanic cordillera of Cocos, also known as the Coco’s Ridge, which stopped the volcanism and provoked an intense uplift of Cordillera de Talamanca (DeMets et al., 2010). The study area is divided into two morphotectonic sectors, the fore arc (sedimentary catchments of the General River and Fila Brunqueña) and the inner arc (Cordillera de Talamanca) (Marshall, 2007). The Cordillera de Talamanca is composed of volcanic rocks of the Miocene, while the Fila Brunqueña are made up of sedimentary Oligocene-Miocene rocks (Denyer and Alvarado, 2007).
The latitudinal migration of the Intertropical Convergence Zone (ITCZ), the El Niño Southern Oscillation (ENSO), northeast trade winds, cold fronts, and tropical cyclones influence the local climate and precipitation patterns (Quesada-Román, 2016). Annual rainfall totals typically reach 3000-5000 mm in the region with two distinct rainfall maxima, one in May and a second, more distinct rainfall peak in October. In July and August, rainfall decreases during two to four weeks, known as the Mid-Summer Drought (Quesada-Román, 2017). About 85% of the annual rainfall occurs between May and November (rainy season) with a distinct dry season from December to April. Annual average temperatures range between 18 and 22°C at the study site. Vegetation is composed mostly of páramo over 3000 m (Esquivel-Hernández et al., 2019; Quesada-Román et al., 2020b), tropical premontane, and tropical basal rainforests (Kappelle, 2016). The UGRC have been impacted by earthquakes such Buenavista earthquake (1983), and different tropical cyclones such as Hurricanes Joan (1988), César (1996), Tropical Storm Alma (2008), Hurricane Nate (2017), and Hurricane Eta (2020).
3. Materials and methods
This study was conducted in three phases: pre-mapping, fieldwork and post-mapping (Smith et al., 2011). During the pre-mapping the geomorphometry and the morphogenetic maps were generated based upon Aerial Photo Interpretation at 1:25,000 scale (CARTA, 2005). These aerial photographs were georeferenced and processed to accomplish the geomorphological mapping (Smith et al., 2011). These aerial photographs were the best input available covering the whole study area, and the morphogenetic do not change during the time. A morphometric analysis calculated and analyzed seven variables (altimetry, slopes, dissection density, dissection profundity, relief energy, potential erosion, and total erosion). These variables were merged in order to produce the flood and landslides susceptibility maps, grouped into three ranges (high, medium and low), which allowed a cross analysis with the DesInventar disaster database (LA RED, 2016). This study used the most recent flood and landslide records based on the Des-Inventar disaster database to provide an updated view of the problem.
The fieldwork was conducted during several fieldworks between 2011 and 2013 to check the different landform dynamics and limits using a preliminary morphogenetic map and morphometric cartography at 1:25,000 scale. Due to the geomorphology principal landforms slow change, this study has focused on dynamic landslides and floods prone areas changes. During the post-mapping, the legend for the geomorphological map of the UGRC was prepared, dividing the landforms genetically into endogenic (tectonic) and exogenic (fluvial, gravitational, and glacial), as well as depositional and erosional. Finally, the geomorphometric and morphogenetic maps were created within a Geographic Information System (ArcGIS 10.3). Once morphogenetic and geomorphometry maps are done, a merge of both cartographies is necessary to produce the geomorphological hazards map for landslides and floods zonation. These hazard zones were visited and identified in the field. Due to the large dimensions of the morphogenetic map (2.6 x 2.6 m) and the geomorphological hazards maps, these documents can be displayed in high definition in Quesada-Román (2016) and Quesada-Román and Zamorano-Orozco (2019a).
4. Results and discussion
4.1. Geomorphometry analysis
Five morphological regions were determined: mountain zone (Cordillera de Talamanca), floodplain, accumulative ramp (alluvial fans), minor mountain ranges (Fila Brunqueña), and mountain foothills covered by proluvial sediments (Quesada-Román and Zamorano-Orozco, 2019b). The mountain zone is intensely modeled with the presence of extensive weathering crusts on inclined and fractured slopes, which favors fluvial-gravitational processes. The minor mountain ranges serve as limit to the alluvial plain of the Pacuar and General River, that due to its sedimentary lithology, steep slopes, the rainfall regime and land use changes have trigger its slope instability. The mountain foothills have a plateau morphology with alluvial covers on the base of the slopes. The accumulative proluvial ramp is the transition between the mountain zone and the floodplain, its morphology is defined by the presence of an alluvial fans sequence. Finally, the floodplain is well-defined by the seasonal and extraordinary flooding areas.
The slopes map was the first approximation of the gravitational dynamics. It helped to identify landforms associated with the fluvial erosive-accumulative action. The dissection density showed zones of greater/lesser erosion, where the channels concentration are linked to rainy zones, unconsolidated and altered sediments, disjunctive structures, large areas without significant lithological changes, and heterogeneous morphology. Otherwise, the dissection profundity made evident the influence of the disjunctive structures in the erosive and accumulative relief dynamics. The relief energy integrated fluvial action (dissection density and dissection profundity) and slopes in its analysis. These three elements are closely linked to mass wasting. It also considers lithology, the influence of weathering, the faults activity, earthquakes, and precipitation. Else, potential erosion located indirectly areas with denudation susceptibility, linked to factors such as specific lithological characteristics, topographic contrasts, morphological variety, hydroclimatic conditions, vegetation cover, and land use changes. In the case of total erosion, areas with greater erodibility and with older morphologies were distinguished through the terrain roughness, and the role played by variables such as lithology age, disjunctive structures, the past climate (glaciations), the current rainfall patterns, and slopes.

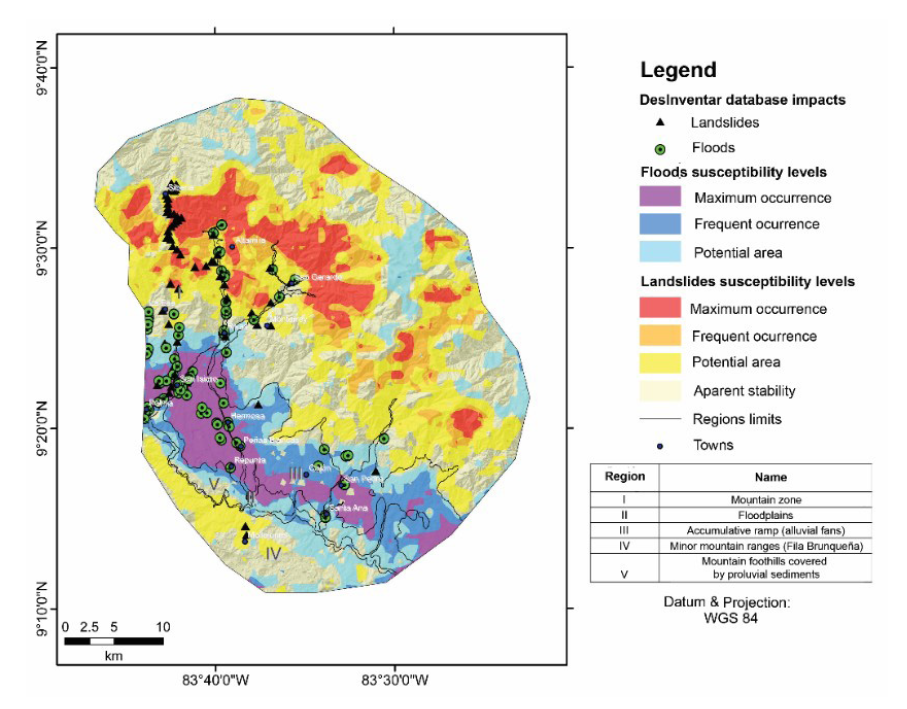

The territories where up to two morphometric indicators coincided, were considered as potential areas; the areas where three indexes were overcome, were classified as frequent occurrence areas, and the spaces classified as maximum occurrence were those where four or five variables matched. These criteria were applied for landslides and floods. These maps are spatially compared with the disaster database DesInventar (LA RED, 2016), where 85.15% of the reports coincide with the zones identified as prone to flooding and 76.54% with susceptible areas to landslides (Figure 2).
4.2. Morphogenetic mapping
According to Quesada-Román (2016) and Quesada-Román and Zamorano (2019a), the morphogenetic classification presented 46 landforms, organized in endogenic landforms (tectonic) and exogenic (fluvial, gravitational, and glacial). The endogenic landforms comprise uniquely tectonic landforms associated with a strike-slip fault identified in the SE of the study area that comprise the spatial distribution, arrangement, variety, and morphology of escarpments, fluvial deflections, shutter ridges, and sag ponds (Quesada-Román and Zamorano, 2019a).
The exogenic landforms are divided in fluvial, gravitational and glacial genesis. The erosive fluvial landforms are the result of the action of the rivers, which when acting in conjunction with the gravitational movements form valleys, which are not isolated structures, are linked with other fluvial forms, both erosive and accumulative such as cirques, headwaters, ravines and gullies. The depositional fluvial landforms begin to appear at the moment in which the longitudinal profile of the river decreases its slope and is associated with alluvial fans, floodplains, flood terraces, and alluvial cones.
Alluvial fans origin and evolution are directly conditioned by tectonics and climate. The first variant is linked to the rise of the source area, the Cordillera de Talamanca. Its lift has been calculated at 1.1 mm per year and has been constant in the last 2 Ma (Gardner et al., 2013). This condition added to the wide and dense channel network has favored intense erosion and with it, the transport and accumulation of important detrital deposits south of the most important mountain chain in the country. Otherwise, the influence of the climate is evident from 3000 m asl, the region was under colder conditions from 100 to 10 ka ago (Orvis & Horn, 2000). The existence of landforms of glacial origin (geomorphological inheritances) made up of debris, left at the disposal of river erosion and transport the sediments mobilization through the glacial and fluvial valleys. Most of these materials became part of extensive fans on the periphery of the mountain. In general, they maintain an inclination <10 °, and the orientation of the longest distance, to the SW, and were classified according to their relative height in late, intermediate, and early (Camacho et al., 2020).
The floodplains occupy the bottom of wide valleys, which in most cases are flooded areas during the rainy season or in extraordinary rainfall periods (tropical cyclones) that were classified as intermountain, transitional (between alluvial fans) and wide areas: Pacuar and General rivers. The floodplains alternate with flood terraces that are characterized by being symmetrical and asymmetric, three levels of terraces are recognized: seasonal, extraordinary and exceptional. These characteristics reveal a lateral and vertical erosive dynamic associated with intense neotectonics movements (Quesada-Román, 2017). The gravitational landforms are located on slopes greater than 15° and where the substrate is poorly consolidated (fractured and weathered rocks, debris or soil), the presence of disjunctive struc-tures favors its development, and the precipitation magnifies its dynamic (> 2,500 mm annually). The mass movements cirques are associated with landslides, rockfalls, and mudflows with step and lobular morphologies (Quesada-Román et al., 2018).
Glacial morphologies are landforms originated during the Last Glacial Maximum (Quesada-Román et al., 2019b). These paleoforms were formed as a result of the accumulation of snow and ice, resulting in processes of abrasion and polishing due to the downslope movement of the glacial ice masses. Among the erosional glacial landforms, volcanic slopes modified by glacial action, cirques, arêtes, riegels, glacial lakes, and rôches moutonnées. The volcanic slopes modified by glacial action are located over 3000 m in altitude, they were shaped by the colder conditions during the LGM (Quesada-Román et al., 2020c). Here, straight and concave geometries predominate among the exhumation of polished, predominantly granodiorite rocks. The most representative depositional glacial landforms are the lateral and ground moraines which show the extent of glacial advances during the LGM. On these landforms rely 963 palustrine and lacustrine wetlands with a para-mount hydrological and ecological importance (Veas et al., 2018; Esquivel-Hernández et al., 2018).
4.2.1.1. Landslides susceptible territories

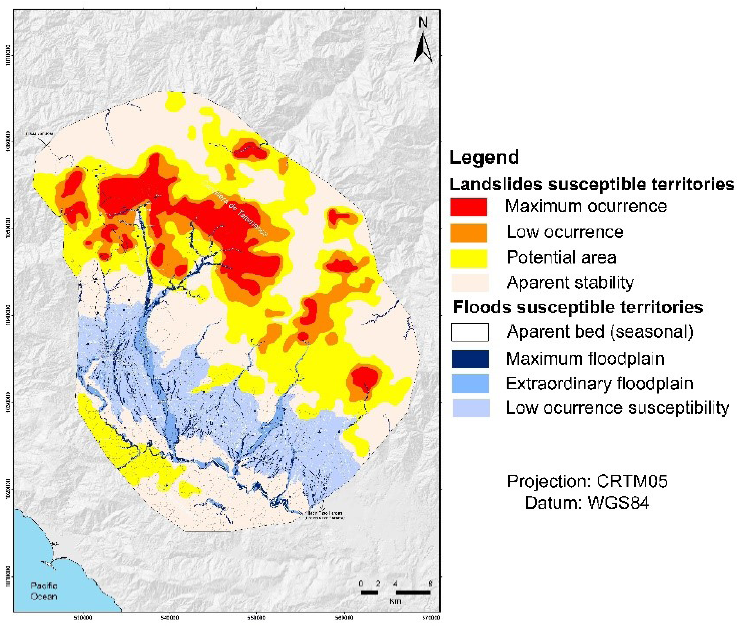

The maximum occurrence sites for landslides are located on slopes greater than 25° where the typical geological outcrops are from Miocene volcanic and plutonic rocks in concave and straight slopes (Figure 3 a). The highest values recorded in dissection density, relief energy, depth of dissection, potential and total erosion morphometric variables showed regions of strong slope instability (Quesada-Román et al., 2018). Maximum occurrence to landslides are activated by well-identified triggering agents such as highly weathered substrates, seasonal (> 2500 mm annually) and cyclonic rains (between August and November), and the seismic-tectonic influence (Figure 4). The low-occurrence landslides territories are defined as extensive areas that encapsulate the regions of maximum occurrence with intense instability on mountain slopes where concave and straight morphologies predominate with inclinations between 16 and 63°, located on Miocene granite rock substrates. The potential areas for landslides are located on straight and concave mountain slopes less than 25°, on Miocene volcanic, plutonic and sedimentary substrates. The territories with apparent stability to landslides are located in middle or low ranges (less than 25°) with a dense forest coverage.
4.2.1.2. Floods susceptible territories
The apparent (seasonal) beds are located in the lower sections of rivers such as the Buenavista, Chirripó Pacífico, Pacuar, San Pedro, Convento and General, where flooding and overflow processes occur each year during the rainy season between May and November (Figure 3b). Maximum floodplains are terrains with low inclinations (<15 °) and subhorizontal morphology (Quesada-Román and Zamorano-Orozco, 2018). To this condition is added that in rainy seasons the soils are saturated, which helps the overflow of channels. Floods occur once the rainy seasons exceed the annual average, or are influenced by low pressure systems, temporary or both direct and indirect effects of tropical cyclones with a recurrence of less than 5 years. The maximum floodplains are associated with subhorizontal morphologies with inclinations less than 15° that are within the floodplains (Figure 4). These regions are activated during extraordinary rainy seasons in conjunction with extreme events such as the La Niña phenomenon, the atmospheric anomalies associated with the Intertropical Convergence Zone and the tropical cyclones of the Caribbean Sea and the Pacific Ocean (Alfaro & Quesada-Román, 2010). The areas with floods low occurrence are made up of sections that do not belong to the flood plains with slopes below 15° and a significant fluvial density (Figure 4).
5. Conclusions
Geomorphometry is a practical tool for disaster risk mitigation to determine susceptible floods and landslides areas. However, it requires a correction with the landforms to specify the areas to be affected from a more accurate mapping. These procedures can be baseline assessments for the territorial management of hydrographic catchments and political-administrative units at local and regional scales.
The conditions that favor the physical vulnerability of the study area are recognized in the floodplains of the General River where floods are frequent and are associated with intense rains, both seasonal like tropical cyclones. Landslides are frequent in the mountain area where the slope of the terrain exceeds 25°. The most important disasters were the Buenavista earthquake (1983), Hurricanes Joan (1988), César (1996), Tropical Storm Alma (2008), Tropical Storm Nate (2017) and Hurricane Eta (2020). These disasters brought deaths and serious economic losses on vital lines (communication routes, electrical wiring and aqueducts) as well as in the agricultural sector.
From morphometric and morphogenetic cartography integration, a geomorphological hazard map was made, which allowed determining areas with different levels of susceptibility to landslides and floods. The landslides presented the following susceptibility classes: maximum occurrence, low occurrence, and potential area. While, for floods: apparent bed (seasonal), maximum floodplain, extraordinary floodplain, and low susceptibility to occurrence. These territories help to delimit, with a very detailed scale, the regions exposed to these common natural risks that could generate economic losses in the UGRC. This methodology can also be used for other areas of Costa Rica as well as other tropical and developing countries for different purposes, including the landscape evolution, morphogenetic detailed maps, disaster risk reduction, and land use planning.
