Introduction

The Valsalva aneurysm was described in 1839¹,² all presented in Valsalva sinuses of the aortic valve and not in the pulmonary artery. It is a rare entity, with an incidence between 0.14 and 3.5% in open heart surgeries.¹

They are dilatations of the sinus due to a weakness of the middle layer of the aortic wall.³ This fragility of the aortic wall is explained due to a defective union of the exit tract, valvular ring and anterior wall of the aorta.⁴ They may be congenital or acquired. Those of acquired type are due to degenerative, infectious, traumatic causes, connective tissue diseases such as Marfan syndrome or Ehlers-Danlos syndrome, although in these pathologies rupture is extremely rare.⁵ These aneurysms progressively dilate until they rupture towards the 4 cavities of the heart,⁶ less frequently they break into the pulmonary artery, pericardium, vena cava, pleural cavity. They are associated with other congenital anomalies such as the interatrial or interventricular septum defect, bicuspid aortic valve, aortic insufficiency, coarctation of the aorta, patent ductus arteriosus, quadricuspid pulmonary valve, pulmonary stenosis, anomalies of the origin of the coronary arteries.

The factors that contribute to the formation and rupture of the Valsalva sinus aneurysms are: low implantation of the valvular annulus, defective development of the conal septum or of the endocardial bearings of the aortic and pulmonary valves and the high pressure of the aorta.

Clinical spectrum is very wide. We can find asymptomatic patients in the case that the aneurysm is intact and the Valsalva sinus aneurysm is an incidental diagnosis, or symptomatic patients with mechanical complications such as fistulized Valsalva sinus aneurysm, heart failure, infectious endocarditis, open rupture to pericardium, acute myocardial infarction and electrical complications such as complete atrioventricular block, these last three causes can lead to sudden death.¹,²

We report a case of a patient with a right sinus of Valsalva aneurysm that fistulized to the right atrium with surgical repair being the treatment of choice.

The clinical history of our patient that denies data such as cardiac surgery, fever or sudden episode of chest pain inclines us to think that it is a problem acquired with a gradual and progressive perforation with surgical repair being the treatment of choice.

Clinical case

We present the case of a 44-year-old male patient, resident in Manta-Ecuador, tobacco user, without past cardiovascular diseases. Past medical history: hepatic cirrhosis diagnosed 8 years ago without treatment and non-dialytic chronic renal failure (6 months). He entered our institution due to a history of 6 months characterized by dyspnea of medium to minimal efforts, ascites, oedema in the lower extremities and palpitations. He had symptomatic right heart failure due to dyspnea, ascites and oedema in the lower extremities. Blood pressure at admission was 90/60 mmHg, tachyarrhythmic, with a heart rate of 100 beats per minute, and a respiratory rate of 24 breaths per minute. Physical examination revealed elevated jugular venous pressure, jugular vein III/III (Figure 1), bilateral rales, continuous pansystolic murmur in the base and mesocardium, painful hepatomegaly, hepatojugular reflux, ascites, and oedema in the lower extremities 5/6. A chest X-ray was performed that showed an increase in cardiac silhouette at the expense of right cavities. Hemogram, anemia, impaired renal, hepatic and ionogram function, natriuretic peptide and elevated C-reactive protein. An electrocardiogram was performed showing atrial fibrillation of moderate ventricular response, hypertrophy of the right ventricle with disorders of ventricular repolarization (Figure 2). A transthoracic echocardiogram showed a left ventricle with increased ventricular volumes, with moderate systolic dysfunction, a dilated and hypokinetic right ventricle with a TAPSE of 12 mm and a tissue S wave of 4 cm, flattening of the interventricular septum (SIV), overload to right ventricle due to left-to-right shunt with a pulmonary artery systolic pressure (PSAP) of 48mmHg, acceleration time (TAC) 65 m. In the short axis at the level of the great vessels an annular, very well defined image was observed floating inside the right atrium (AD) (Figures 3 and 4). With the transesophageal echocardiogram a right sinus of Valsalva aneurysm that fistulized to the right atrium (Sakakibara type IIIa classification) was observed. With color Doppler and continuous Doppler it was observed a continuous, turbulent, high-velocity flow between the fistulized aneurysm and right atrium (Figure 5) with a gradient of 60 mmHg. This flow begins in the systole and extends until the diastole, differentiating itself from the tricuspid regurgitation flow. Left and right cardiac catheterization was performed observing normal coronary arteries and without significant lesions, passage of contrast from the aorta to the right atrium through what looks like a fistula between the right Vasalva sinus and the right atrium (Figure 6), with a broad trajectory of about 6-8 mm, severely dilated right atrium, increased right cavity pressures, right atrial pressure (DBP): 25 mmHg, right ventricular pressure (PVD): 49/0-6, moderate pulmonary hypertension PSAP 52/30, PAMP 40, pulmonary vascular resistance (PVR): 82 dynes, systemic vascular resistance (SVR): 648 dynes, pulmonary vascular resistances are slightly increased, with a cardiac output (CO) of 6.7 L/min/m² and a cardiac index (CI): 4.7 L/min/m², increased by the great hyperflow caused by the left-right fistula.

Figure 1: Jugular Ingurgitation III/III.

Figure 2: EKG: Atrial fibrillation of moderate ventricular response (FAMRV).

Figure 3: Color Doppler echocardiogram: Short axis: Valsalva sinus aneurysm that communicates with the right atrium.

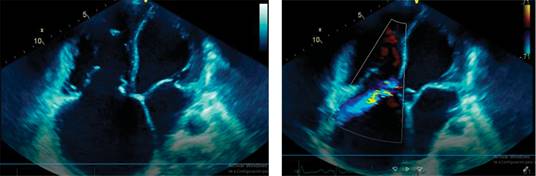

Figure 4: Color Doppler echocardiogram: Apical 4 chambers: Dilation of right cavities. With color Doppler, a communication is observed between the ruptured right Valsalva sinus aneurysm and the right atrium.

Figure 5: Ecotransesophageal: Short axis. With color Doppler, a communication is observed between the ruptured right Valsalva sinus aneurysm and the right atrium.

Figure 6: Catheter: Contrast step from the sinus of Vasalva right fistulized towards the right atrium.

Discussion

Vasalva sinus aneurysms can develop in any of the 3 sinuses, being the most frequent in the right one (67.5-93.4%), then the non-coronary (25-29%) and the last place the left (1-8%).⁷ Aneurysms of the right sinus rupture more frequently to the right ventricle (60%), right atrium (29%), left atrium (6%), left ventricle (4%) or pericardium (1%).⁸

It is known to be five times more frequent in Asian countries than in Western countries.⁹ The male gender is the most affected with 65% to 80% of cases and a male / female ratio of 4: 1.¹⁰

According to the study group of De Bakey et al., the anomalies of the sinus of Valsalva can be classified into three groups:¹¹

In our case, the presence of an aneurysm with a fistula was documented to the right atrium, belonging to group 2.

The diagnosis can be made by color-Doppler echocardiography and transesophageal echocardiogram. Those studies give sufficient information to make the diagnosis.¹² It is also necessary to perform the catheterization because they have other cardiac anomalies. In our case, the transthoracic echocardiogram allowed us to observe the rupture of the sinus of Valsalva in the first instance, so it was necessary to complete the approach with a transesophageal echocardiogram and aortogram.

If there is a rupture, the supraventricular arrhythmias can be found on the electrocardiogram, especially atrial fibrillation, electrical axis displaced to the right, right ventricular hypertrophy. When aneurysm ocurs without rupture, the electrocardiogram is usually normal unless the atrioventricular node or any of its branches is compressed, and we can find complete atrioventricular block or other atrioventricular conduction abnormalities.¹³ In the case of our patient, we found by electrocardiogram, atrial fibrillation rhythm, right ventricular hypertrophy data and ventricular repolarization disorders.

The natural evolution of the aneurysm may be rupture to a cavity, usually right, causing a left-to-right shunt. The physiopathological and clinical consequences will depend on how fast the rupture occurs, the magnitude of the shunt and the receiving cavity. When the rupture occurs abruptly and the shunt is important, it generates rapid onset of pulmonary congestion, severe and progressive heart failure,¹² of poor prognosis if left to its evolution. If the rupture is slow and the shunt is small, it can go unnoticed for a long time, with bacterial endocarditis being the complication of greatest risk in this phase. When a ruptured or intact aneurysm penetrates the base of the interventricular septum, a complete heart block occurs and causes syncope or death.

Our patient presented signs of hemodynamic overload of the right cavities from a clinical, electrocardiographic and echocardiographic point of view.

In 1962, Sakakibara and Konno established the classification of the Valsalva aneurysms, which is still valid. They classified them into 4 types according to the coronary sinus affected and the area where they fistulized, with 3 subdivisions being type III (Table 1).¹³

The case corresponds to a Vasalva type IIIa aneurysm of this classification

The absolute indications for surgery in unruptured aneurysms are obstruction of the outflow of the right ventricle, infection, arrhythmias or obstruction of a coronary artery.¹⁴ The closure of the fistula is recommended even in asymptomatic patient, due to relatively few complications related to the procedure and the risk of complications such as heart failure, bacterial endocarditis, pulmonary vascular disease, formation of other aneurysms and spontaneous rupture, are greater if such surgery is not performed.¹⁴

In addition, repair surgery entails immediate results and reduces the risk of the aforementioned complications, improving the life expectative of patients.¹⁵

Open surgery is the most used technique, although there are successful reports of percutaneous closure.¹⁶ Surgical correction is usually simple, and it can be done almost always through an aortic approach, with a mortality lower than 1% and with a survival at 5 and 10 years of 97 and 90%, respectively.¹⁵ It has been suggested that perioperative mortality increases from 4 to 5 times in cases of infection or endocarditis.¹⁰,¹⁷ Special mention is made of patients with large fistulas in whom the function of the aortic valve has been compromised or fistulas that are located near the coronary ostium which the procedure is more difficult, since coronary or valvular surgery techniques should be associated.

Recurrence of a fistula, after corrective surgery, is rare, reporting around 3% according to the series of Van JA and collaborators.¹⁸

Conclusion

The present case allows us to observe the clinical evolution and the importance of an early diagnosis in a patient with aneurysm of the right sinus that is perforated to the right atrium presenting heart failure and intense continuous heart murmur.

The final diagnosis is heart failure due to overload of the right atrium secondary a left to right shunt. The transthoracic and the transesophageal echocardiograms are decisive in the diagnosis. The treatment for Valsalva sinus aneurysms that fistulize to another receiving chamber is surgical correction because it has excellents results and low mortality.
