1. Introduction

South America is affected by teleconnections, both east-west and south-north, which have an impact on the continental climate (^{Cavalcanti and Ambrizzi, 2009}). However, the influences of these patterns are different over the continent, and they are not clear in some areas, especially over regions of transition between tropics and extra-tropics. Southeastern Brazil (SEB), which includes the states of Sao Paulo, Rio de Janeiro, Minas Gerais, and Espirito Santo, is one of these regions, being cut by the Tropic of Capricorn to the north of Sao Paulo state. SEB is the most populated region of Brazil, concentrating 42.1% of the country’s population (^{IBGE, 2011}), and also has the highest gross domestic product of the country (^{IPEA, 2020}). This region is affected by synoptic phenomena such as frontal systems and the South Atlantic Convergence Zone (SACZ) during the austral summer, which can produce intense precipitation with floods and landslides near the coastal regions (^{Vasconcellos and Cavalcanti, 2010}). The climate variability modes can impact the occurrence and intensity of these main summer precipitation systems.

Pacific sea surface temperature (SST) anomalies impact the South American climate on different scales. These anomalies can, for example, trigger wave trains from the Pacific, generating anomalous circulations at high level over the continent and consequently inducing convection (e.g., ^{Cunningham and Cavalcanti, 2006}; ^{Vasconcellos and Cavalcanti, 2010}; ^{Coelho et al., 2016a}; ^{Bernardino et al., 2018}). ^{Carvalho et al. (2004)} found a relationship between El Niño-Southern Oscillation (ENSO) and SACZ, in which there is more occurrence of oceanic SACZ during El Niño years (warmer SST over Niño 3.4 region), whereas in La Niña (colder SST over Niño 3.4 region) and neutral years, the continental SACZ would be more frequent. Particularly about SEB, several studies have suggested that impacts of ENSO over this region are different, depending on the area, time of year, phase, and type of ENSO (e.g., ^{Tedeschi et al., 2013}, ²⁰¹⁶).

SST anomalies in the South Atlantic also influence the climate in South America, including SEB. Studies have shown that negative SST anomalies over the subtropical South Atlantic, near SEB coast, enhance the SACZ (^{Doyle and Barros, 2002}; ^{Bombardi et al., 2014a}, ^b; ^{Jorgetti et al., 2014}). ^{Doyle and Barros (2002)} showed that negative SST anomalies in the subtropical South Atlantic during the midsummer favor the SACZ activity. Analyzing the period from November to March, ^{Bombardi et al. (2014a)} showed that negative SST anomalies over the tropics are associated with the increase of cyclogenesis in the ocean near SEB, as well as the migration of extratropical cyclones further north. However, their tropical SST results include the SEB coast. Thus, these studies have suggested that negative SST anomalies near SEB would lead to an increase in precipitation over this region during the rainy season.

The Southern Annular Mode (SAM) is the leading mode of extratropical variability in the Southern Hemisphere, characterized by north-south seesaws of atmospheric masses between high latitudes and parts of the mid-latitudes (^{Thompson and Wallace, 2000}). Some studies indicate that SAM has impacts in the South American climate (^{Carvalho et al., 2005}; ^{Gillett et al., 2006}; ^{Vasconcellos and Cavalcanti, 2010}; ^{Rosso et al., 2018}; ^{Vasconcellos et al., 2019}). ^{Rosso et al. (2018)} found that frequency, persistence, and total precipitation in SACZ events are higher in the positive SAM phase, compared to the negative phase. ^{Vasconcellos et al. (2019)} studied the month-by-month impacts of SAM phases on precipitation and air temperature in South America (in years of neutral ENSO). Their results showed that SAM has different impacts depending on the month and the phase of the pattern. For precipitation, the authors revealed that the impacts in SEB are irregular. However, for January-March, the positive (negative) SAM promotes rainy (dry) months over the northern parts of SEB.

Although some studies indicate the influence of low-frequency modes on SEB climate, the predictability of climate precipitation over this region has proven to be difficult due to the lack of knowledge on the combined effects of climate variability modes on large-scale circulations, which impact precipitation variability over the area (^{Koster et al., 2000}; ^{Nobre et al., 2006}). Therefore, the advance of knowledge regarding the mechanisms of precipitation variability might provide the basis for better climate predictability, particularly in the warm and rainy seasons of SEB. Due to its importance on economy, population and low climate predictability, an increase on the learning of climate variability over this region is essential.

SEB has been experiencing consecutive drought years, including the extreme drought of the 2014 austral summer (e.g., ^{Coelho et al., 2016a}, ^b). However, unlike past years, the austral summer of 2020 was unusually rainy. The object of this paper is to characterize SEB precipitation during this season and to investigate possible causes for this anomalous pattern, analyzing the circulation and the influence of variability modes. With the aim of improving the knowledge on the causes of wet anomalies on the 2020 austral summer over SEB, this paper will:

This paper is outlined as follows. Section 2 introduces the datasets and describes the methods used to characterize the 2019 and 2020 austral summers over SEB and investigate possible causes of these anomalous seasons. Section 3 puts the rainy 2020 austral summer over SEB in an historical context. Section 4 discusses the potential mechanisms associated with the wet 2020 austral summer over SEB. Section 5 shows a comparison of the 2019 (dry) and the 2020 (rainy) austral summers. Summary and conclusions are presented in section 6.

2. Dataset and methods

Monthly outputs of the Global Precipitation Climatology Project (GPCP) have been used in this paper. The GPCP product combines sun-synchronous low-orbit satellite microwave data, geosynchronous-orbit satellite infrared data, and observations from rain gauges, after quality control to produce precipitation estimates. The product has 2.5º × 2.5º resolution (^{Adler et al., 2003}). The advantage of using GPCP is its global coverage, including oceanic areas. Furthermore, ^{Muza et al. (2009)} have shown that GPCP has a satisfactory correspondence with gridded precipitation from stations (^{Liebmann and Allured, 2005}) in areas over tropical and subtropical Brazil.

The Extended Reconstructed Sea Surface Temperature (ERSST) V5 product from the National Oceanic and Atmospheric Administration (NOAA) has been adopted for SST-related analysis. The ERSST uses the new International Comprehensive Ocean-Atmosphere Dataset (ICOADS) release 3.0 SST, which comes from Argo floats above 5 m and Hadley Centre Ice-SST v. 2 (HadISST2) ice concentration. This dataset has improved SST spatial and temporal variability by: (1) reducing spatial filtering in training the reconstruction functions Empirical Orthogonal Teleconnections (EOTs), (2) removing high-latitude damping in EOTs, and (3) adding 10 more EOTs in the Arctic. The ERSSTv5 also uses unadjusted first guess instead of adjusted first guess. More information about this dataset can be found in ^{Huang et al. (2017)}.

The monthly outputs of ERA5 Reanalysis were used to compute the circulation and divergences. ERA5 is the fifth generation of atmospheric reanalysis from the European Centre for Medium-Range Weather Forecasts (ECMWF), replacing ERA-Interim, with a higher spatial and temporal resolution. This reanalysis provides estimates of a large number of atmospheric, terrestrial, and oceanic variables. The data covers the entire globe with 0.25° × 0.25° horizontal resolution, or approximately 30 km, using 137 levels from the surface up to a height of 80 km. The data assimilation system was also renewed, and a large number of historical observations (satellite or in situ) were assimilated. More details about this reanalysis can be found in ^{Hersbach et al. (2020)}.

This study evaluated the 2019 and 2020 austral summer seasons (JFM mean) over SEB area. The analysis is presented through computations of anomalies relative to the climatologic period from 1981 to 2020. To validate the GPCP dataset, the time series was compared to the precipitation products from the Centro de Previsão de Tempo e Estudos Climáticos/Instituto Nacional de Pesquisas Espaciais (CPTEC/INPE), available at: http://clima1.cptec.inpe.br/evolucao/pt. Results had a good agreement when compared to the time series displayed at the site (not shown). We also compared monthly precipitation anomalies maps (January, February, and March 2019 and 2020) from GPCP to the precipitation products from CPTEC/INPE (available at http://clima1.cptec.inpe.br/monitoramentobrasil/pt). The GPCP and CPTEC/INPE precipitation maps have, in general, a good correspondence, including over SEB (not shown). After these validations of the GPCP dataset, a map of the austral summer 2020 anomalous precipitation over Brazil (40º S-5º N, 75º-30º W) was created to analyze the spatial distribution of anomalies.

Maps of geopotential height anomalies at 700 hPa and SST for austral summer 2020 were examined with the goal of identifying possible influences of teleconnection patterns. High-level circulation analyses were evaluated through velocity potential anomalies, divergent wind anomalies, and wind anomalies streamlines at 200 hPa. The SAM index was also obtained from the Climate Prediction Center (CPC/NOAA) (available at: https://www.cpc.ncep.noaa.gov/products/precip/Cwlink/daily_ao_index/aao/monthly.aao.index.b79.current.ascii.table).

In order to complement SST results over the Pacific, the Oceanic Niño Index (ONI) was obtained from CPC/NOAA (available at: https://origin.cpc.ncep.noaa.gov/products/analysis_monitoring/ensostuff/ONI_v5.php). This index is a 3-month running mean of ERSST v. 5 SST anomalies in the Niño 3.4 region (5° N-5° S-170º-120° W), based on centered 30-year base periods updated every five years.

The subtropical South Atlantic was further analyzed through time series (1981-2020) of austral summer anomalous SST averaged over the area located between 30º-60º W and 20º-45º S and a correlation map between austral summer SST averaged over the subtropical South Atlantic (same area as above) and precipitation (1981-2020). Both series were detrended. Student’s t-test (^{Wilks, 2006}) was applied to the correlation map to determine regions in which the composite variables have a confidence level of 90%.

To complement the results found for the 2020 austral summer (rainy), we also created the above-mentioned maps (except for the correlation map) for the 2019 austral summer (dry), with the aim of comparing both summers. Additionally, the ONI index was also obtained for 2019.

3. The rainy 2020 austral summer over SEB in a historical context

Figure 1a displays a temporal series of austral summer precipitation anomalies, averaged over SEB. A change of pattern between the 2020 summer and previous years is noteworthy. An anomaly of 1.6 mm day^-1 was recorded in the 2020 austral summer over SEB, in opposition to -1.6 mm day^-1 in the 2019 summer. Since 2011 this region had not displayed above-normal summer precipitation, and 2020 was the wettest summer since 1991. The precipitation pattern changed from December 2019 (dry) to January 2020 and the following months (rainy) (not shown). The driest summer occurred in 2014, causing severe impacts in water availability for public consumption, hydropower generation, and agriculture within the region (^{Coelho et al., 2016a}, ^b). The 2020 austral summer presented positive precipitation anomalies over almost all SEB (Fig. 1b), with higher values over the state of Minas Gerais and the division between the states of Rio de Janeiro and Espirito Santo. These positive anomalies extended into the Atlantic Ocean in a NW-SE direction, a similar configuration to oceanic SACZ (^{Carvalho et al., 2004}). This precipitation pattern could indicate a higher frequency and/or longer persistence of this system. The state of Sao Paulo was an exception in SEB, showing negative precipitation anomalies. The different behaviors of precipitation anomalies within SEB confirm that the impacts of low-scale modes are not similar across SEB. The state of Sao Paulo had a similar behavior than the southern region of Brazil in the 2020 austral summer. SEB and southern Brazil (including Sao Paulo) displayed a dipole pattern of precipitation anomalies. The dipolar pattern has also been addressed by previous works (e.g., ^{Cunningham and Cavalcanti, 2006}; ^{Vasconcellos and Cavalcanti, 2010}; ^{Jorgetti et al., 2014}; ^{Bernardino et al., 2018}; ^{Silva et al. 2020}). ^{Silva et al. (2020)}, for example, associated Sao Paulo and southern Brazil with a similar dipole, in opposition to southeastern Brazil, which experienced a positive phase of the Pacific Decadal Oscillation.

Fig. 1 Austral summer precipitation anomalies (mm day^-1): (a) 1981-2020 time series area averaged over SEB, and (b) 2020, with the thick black contour enclosing the area of SEB. Data source: Global Precipitation Climatology Project.

4. Teleconnections, circulation and mechanisms

Previous works indicate the influence of the SAM over South America (e.g., ^{Carvalho et al., 2005}; ^{Gillett et al., 2006}; ^{Vasconcellos and Cavalcanti, 2010}; ^{Vasconcellos et al., 2019}). Figure 2a shows a spatial pattern associated with the positive SAM phase (0.5 index [JFM mean]) in the 2020 austral summer, i.e., negative (positive) geopotential height anomalies over high (middle) latitudes. These results are in accordance with ^{Vasconcellos et al. (2019)} regarding the presence of wetter summers over the northern part of SEB in the positive SAM phases. According to ^{Rosso et al. (2018)}, the positive SAM phase is related with higher frequency, persistence, and total precipitation of SACZ events, which is in agreement with the positive precipitation anomalies over SEB displayed in Figure 1. The influence of lower frequency modes, like PDO, could also be related to this dipole (^{Silva et al., 2020}). It is noteworthy that, despite positive geopotential height anomalies at midlatitudes, related to the positive SAM phase, there was a negative anomaly over the South Atlantic, reaching the coast of SEB. This could be related to wave trains started at the Pacific and Indian oceans, as indicated by alternations of geopotential height anomalies presented in Figure 2a.

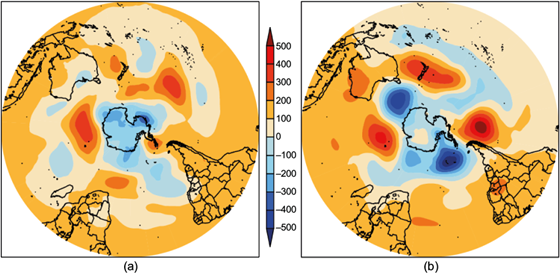

Fig. 2 Geopotential height anomalies at 700 hPa (mgp): (a) 2020 austral summer, and (b) 2019 austral summer. Data source: ERA5.

There were positive SST anomalies over most of the central and western equatorial Pacific (Fig. 3a), and the ONI index confirms the El Niño phase (Table I). Positive SST anomalies are also shown over the tropical Indian Ocean (Fig. 3a).

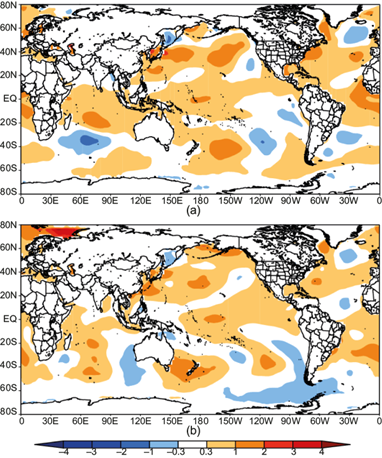

Fig. 3 SST (ºC) anomalies: (a) 2020 austral summer, and (b) 2019 austral summer. Data Source: NOAA ERSSTv5.

The Atlantic Ocean also influences the South American climate (Fig. 4). The correlation map between SST over subtropical South Atlantic and precipitation showed that SST is negatively correlated with rainfall over SEB, northward of Sao Paulo State. Also, it is positively correlated with southeastern South America, including Uruguay and northern Argentina and the Rio Grande do Sul state in Brazil (Fig. 4a). There is a positive tendency of austral summer SST over the subtropical South Atlantic, with highest values during the last years (Fig. 4b). Nonetheless, the 2020 austral summer presented an intense decrease of SST, compared to the 2019 austral summer. There were positive SST anomalies over the tropical South Atlantic and in a band near 60º S. However, there were negative SST anomalies near SEB and Argentina (Fig. 3). According to previous studies, the negative SST anomalies over tropical South Atlantic (near SEB) influence the intensification of SACZ, the increase of cyclogenesis in the ocean near SEB, and the migration of extratropical cyclones northward (^{Doyle and Barros, 2002}; ^{Bombardi et al., 2014a}, ^b; ^{Jorgetti et al., 2014}). Although some of these studies found the same signal of the subtropic region in tropical South Atlantic SST, opposite results were found here.

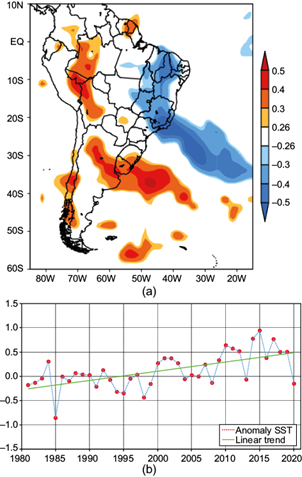

Fig. 4 (a) Correlation map between austral summer SST averaged over the subtropical South Atlantic (30º-60º W, 20º-45º S) and precipitation (1981-2020), detrended, with statistical significance level for p = 0.90 (Student’s t-test), and (b) 1981-2020 time series of anomalous SST (ºC) averaged over the subtropical South Atlantic (same area described above). The green line is the linear trend. Data source: Global Precipitation Climatology Project and NOAA ERSSTv5.

The anomalous high-level divergence was present over the tropical Indian Ocean (approximately 0º-50º E), the western equatorial Pacific (approximately 0º-180º W), and the eastern tropical North Pacific (approximately 10º N-140º W) on the summer of 2020 (Fig. 5a). These anomalous divergences were created by warmer waters over these regions (Fig. 3a) and, consequently, more convection in the underneath layer (not shown). The anomalous divergence over the Indian Ocean triggered a wave train towards the Pacific Ocean (Fig. 5b). The other two regions of anomalous divergence also triggered wave trains: the western equatorial Pacific divergence started a PSA-like wave train, while the eastern tropical North Pacific started a U-shape wave train. All these wave trains merged over southern South America in an anomalous anticyclonic circulation, which continued its path with an anomalous cyclonic circulation over the southern region of Brazil and the state of Sao Paulo, and an anticyclonic circulation northward, enhancing (inhibiting) convection over SEB. The SST anomalies over SEB and the coast of Argentina also contributed to this configuration.

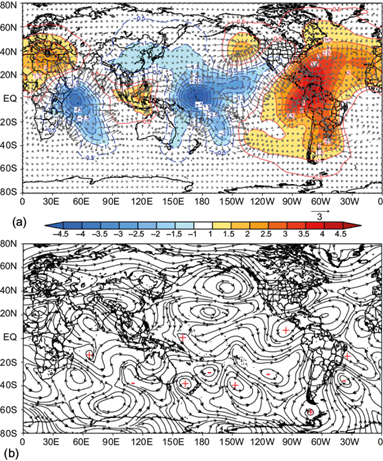

Fig. 5 Austral summer of 2020: (a) velocity potential anomalies (10⁶ m² s^-1 [contours and colors]) and divergent wind anomalies (m s⁻¹ [vectors]) at 200 hPa, and (b) wind streamlines anomalies at 200 hPa. Red + (-) signs show anticlockwise (clockwise) circulations associated with wave trains. Data source: ERA5.

5. Comparison with the 2019 austral summer

To improve the knowledge on the variability of SEB precipitation, the 2019 austral summer (dry) was compared to the 2020 austral summer (rainy). The first one displayed a signal inversion of the precipitation dipole anomaly over South America, compared with 2020, presenting a negative anomalous precipitation over SEB and positive anomalies over southern Brazil (Fig. 6). This could suggest a lower occurrence of the SACZ. Unlike 2020, the precipitation anomaly over the state of Sao Paulo in the summer of 2019 was similar to the rest of SEB. This non-uniformity of precipitation patterns within SEB between 2019 and 2020 ratifies the difficulty of understanding climatic variability over this region.

Fig. 6 2019 austral summer precipitation anomalies (mm day^-1) relative to the period 1981-2020). Data source: Global Precipitation Climatology Project.

Unlike the 2020 austral summer, the SAM pattern was not well defined in the summer of 2019 (Fig. 2b). The SAM index showed a neutral phase (0.31 index [JFM mean]). There were warm waters over all the equatorial Pacific (Fig. 3b). The ONI confirms the occurrence of El Niño on that summer (Table II). The tropical South Atlantic Ocean presented positive SST anomalies, similar to 2020. However, these anomalies extended southwards, reaching SEB, southern Brazil and the coast of Argentina. Besides, there was a region of negative SST anomalies near 60º S (Fig. 3b). The subtropical and extratropical South Atlantic presented an opposite configuration to the 2020 austral summer (Fig. 3a).

As in 2020, there was an anomalous high-level divergence at the western equatorial Pacific in 2019 (Fig. 7a). The eastern tropical North Pacific also presented an anomalous divergence (approximately 20 ºN, 140º W) northward, stronger than in 2020 (Fig. 7a). These anomalies also triggered two wave trains: a PSA-like wave train from the western equatorial Pacific and a U-shape wave train from the eastern tropical North Pacific passing over southern South America (Fig. 7b). However, in contrast to 2020, there was no anomalous divergence at high levels over the Indian Ocean; consequently, there was no wave train from this region to the South Pacific. Therefore, circulation over South America and the Atlantic Ocean in the 2019 austral summer was different from 2020. The U-shape and PSA-like wave trains over the Pacific merged in an anomalous anticyclonic circulation over the southeastern Pacific, near the South American coast. The continuation of this wave train downstream, over the continent, generated an anomalous anticyclonic circulation over the southern region of Brazil and a cyclonic one northward, an inversion of the 2020 configuration. The SST anomalies over SEB and the coast of Argentina also contributed to this configuration. These results inhibited (enhanced) the convection over SEB during the 2019 austral summer. A U-shape wave train was also found by ^{Coelho et al. (2016b)} associated with the 2014 summer drought over SEB. Thus, the main conclusion from this comparative analysis is the distinct South American climatic patterns for two El Niño conditions.

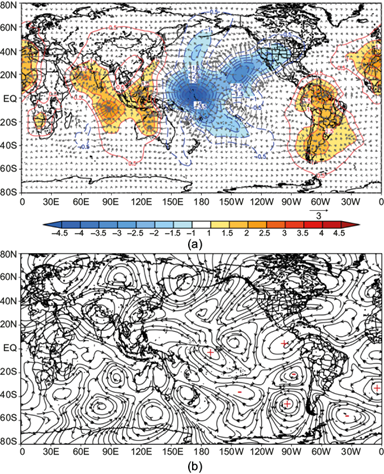

Fig. 7 2019 austral summer: (a) velocity potential anomalies (10⁶ m² s^-1 [contours and colors]) and divergent wind anomalies (m s⁻¹ [vectors]) at 200 hPa, and (b) wind streamlines anomalies at 200 hPa. Red + (-) signs show anticlockwise (clockwise) circulations associated with wave trains. Data source: ERA5.

6. Summary and conclusions

The predictability of climate precipitation in SEB has proven to be difficult to understand due to the unclear impact of climate variability modes on large-scale circulations that influence precipitation variability over this region (^{Koster et al., 2000}; ^{Nobre et al., 2006}). Therefore, a better knowledge of the causes of precipitation variability might provide the basis for increasing predictability, mainly during summers.

SEB has been experiencing dry summers in the last years, including the severe 2014 drought (^{Coelho et al., 2016a}, ^b). However, the 2020 austral summer in this region was unusually rainy, being the wettest summer in almost 20 years. Positive precipitation anomalies reached almost all SEB, with the exception of the state of Sao Paulo, ratifying that variability impacts are not similar in all SEB. These positive anomalies extended to the Atlantic Ocean, in a NW-SE direction, indicating a greater role of SACZ. The state of Sao Paulo had a similar behavior than the southern region of Brazil, i.e., negative precipitation anomalies. These two regions displayed a dipole pattern of precipitation anomalies, which have been reported by previous works (e.g., ^{Cunningham and Cavalcanti, 2006}; ^{Vasconcellos and Cavalcanti, 2010}; ^{Jorgetti et al., 2014}; ^{Bernardino et al., 2018}; ^{Silva et al., 2020}).

Precipitation anomalies over SEB in the 2020 austral summer were influenced by different mechanisms. The SAM pattern was in a positive phase, which according to ^{Vasconcellos and Cavalcanti (2010)}, ^{Rosso et al. (2018)}, and ^{Vasconcellos et al. (2019)} could lead to wetter summers in some parts of SEB. The ENSO pattern was positive (El Niño). The 2020 austral summer also presented negative SST anomalies over the South Atlantic near SEB and Argentina. Previous studies indicated that negative SST over the SEB coast lead to an increase in precipitation over SEB during the rainy season (^{Doyle and Barros, 2002}; ^{Bombardi, et al., 2014a}, ^b; ^{Jorgetti et al., 2014}).

A high level anomalous divergence over the Indian Ocean triggered a wave train to the Pacific Ocean. Two other wave trains, originated from the western equatorial Pacific and eastern north tropical Pacific, also contributed to an anomalous anticyclonic circulation southward South America, which continued its path with an anomalous cyclonic circulation over the southern region of Brazil and the state of Sao Paulo, and an anomalous anticyclonic circulation northward, enhancing (inhibiting) convection over SEB. The South Atlantic SST anomalies and the positive SAM phase contributed to this configuration over the continent.

A comparison between the austral summers of 2020 (rainy in the SEB) and 2019 (dry in the SEB) revealed an opposition of the precipitation anomaly dipole between SEB and southern Brazil. As in 2020, there was an El Niño event in the 2019 austral summer. The SAM pattern was not well configurated in 2019. The subtropical and extratropical South Atlantic presented positive SST anomalies over SEB, southern Brazil and the coast of Argentina in the 2019 summer, in opposition to the 2020 summer. There was no anomalous divergence at high levels over the Indian Ocean, in consequence, there was no wave train from this region to the Pacific in the 2019 austral summer, in contrast to 2020. The U-shape and PSA-like wave trains over the Pacific were also present in the 2019 austral summer; however, they merged into an anomalous anticyclonic circulation over the southeastern Pacific, near the South American coast. Therefore, this combined wave train and the warmer South Atlantic SST contributed to an anticyclonic anomalous circulation over the southern region of Brazil and a cyclonic one northward, an opposite configuration than in 2020.

Thus, this study presents a comparative analysis of two distinct South American climatic patterns for two El Niño conditions (austral summers of 2019 and 2020). The occurrence of negative SST near SEB, the positive SAM phase, and a wave train starting over the Indian Ocean were proven to be very important to change the dry pattern observed in the 2019 summer over this region. Enhancing the knowledge on the climate variability of SEB and its mechanisms has a great potential for several socioeconomic sectors, as a guide to better managing the risks of climate variability by developing adaptation strategies to climate conditions.
