1. Introduction

Determining the hydrocarbon generation potential; indicative of the present day kerogen type and an indication of thermal maturity of organic rich deposits, are the main applications of organic geochemistry (^{Waples, 1985}; ^{Bordenave, 1993}; ^{Peters et al., 2005}; ^{Evenick, 2016}). The source rock is a fine-grained sedimentary rock rich in organic matter, which after thermal maturation produces hydrocarbons. Different methods of analysis are commonly used to evaluate the hydrocarbon potential. Among them, Rock-Eval pyrolysis is nowadays a very common and inexpensive way to obtain the information needed to evaluate the hydrocarbon potential of sediments (^{Espitalie et al., 1985}). Although Rock-Eval pyrolysis examines the bulk properties of the organic matter rich sediments, Gas Chromatography (GC) determines the distribution of different types of the compound in the bitumen (^{Peters and Moldowan, 1993}).

The Zagros Basin with several potential source rock units is one of the most prolific hydrocarbon basins in the Middle East. The Zagros Fold Belt, characterized by NW-SE trending folds and thrust faults, extends over 2000 km from eastern Turkey and Kurdistan region in northern Iraq to southern Iran (^{Farzipour-Saein et al., 2009}). From a paleogeographic point of view, Zagros Foreland was created during the Cenozoic as a result of the collision between the Arabian and Iranian plates (^{Farzipour-Saein et al., 2009}; ^{Ezampanah et al., 2013}). Pabdeh Formation with Upper Eocene to Oligocene age in Zagros Basin is a formation with predominant carbonate lithology and shale-marl interlayers. This Formation is known as the only active hydrocarbon generating Paleogene source rock in the NE parts of the Dezful Embayment while in SW parts of the Dezful Embayment, the main source rock is the Kazhdumi Formation (^{Alizadeh et al., 2012}; ^{Bordenave and Hegre, 2010}; Opera et al., 2013; ^{Alizadeh et al., 2020}). So far, numerous studies have been carried out on the Pabdeh Formation in terms of studying the characteristics of the source rocks of this formation using Rock Eval Pyrolysis data (^{Kamali and Rezaee, 2003}; ^{Behbahani et al., 2007}; ^{Alizadeh et al., 2012}; ^{Mashhadi et al., 2015}). However, GC and GC-MS analyses have been less used in investigating the hydrocarbon potential of Pabdeh Formation (e.g. ^{Soleimani and Zamani, 2015}). The objective of this study was to investigate the hydrocarbon potential and the probability of being the source rock of Paleogene Pabdeh Formation in 14 wells (from 11 oil fields) in the northern Dezful Embayment (Figure 1) by using a combination of Rock Eval Pyrolysis, GC and GC-MS and comparison with some available data from the southern area of Dezful Embayment.

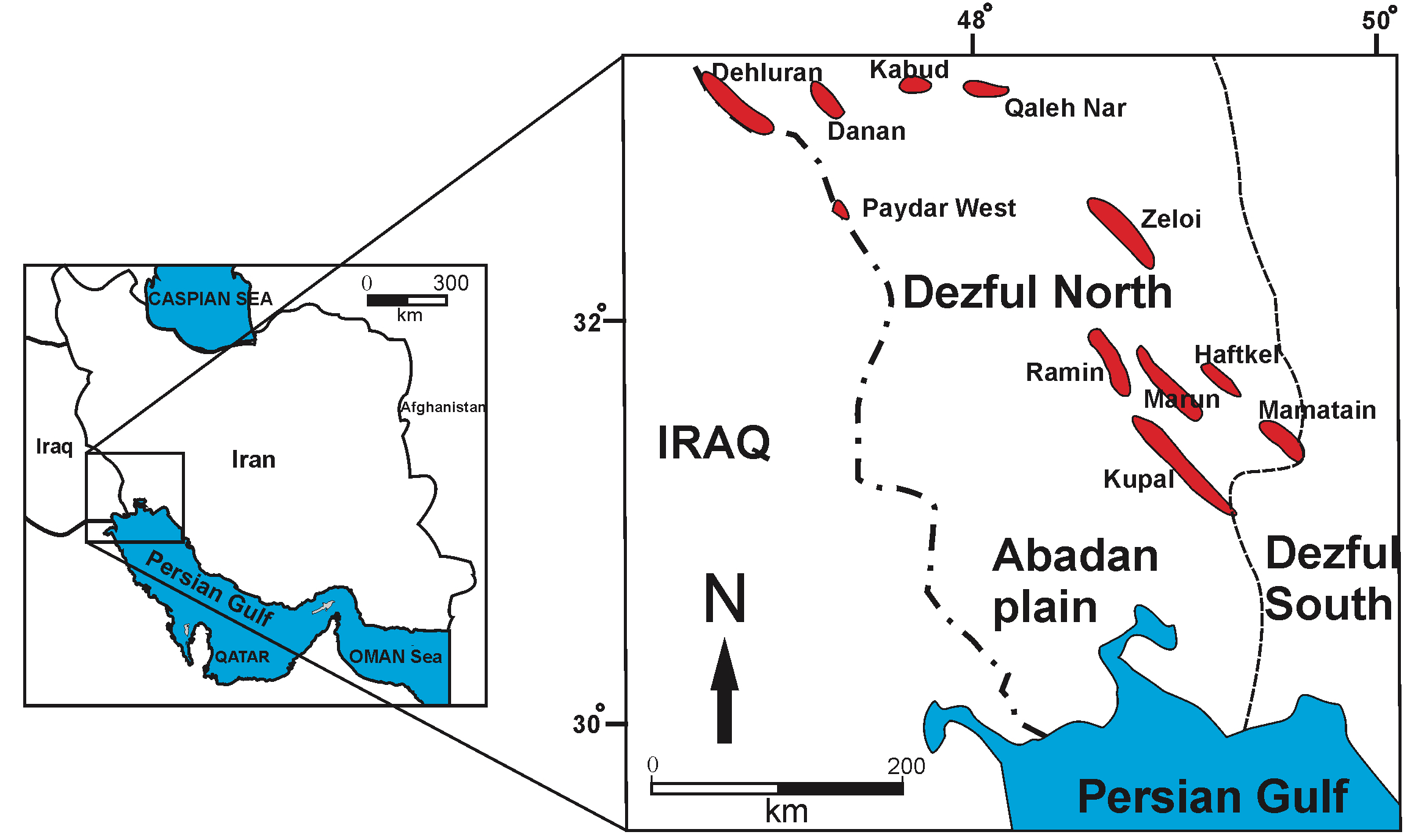

Figure 1 Location map of the North Dezful oil fields (modified after ^{Sherkati and Letouzey 2004}).

2. Geological setting

The NW-SE-trending Zagros Fold-Thrust Belt extends over 1800 km from Turkey to southeastern Iran, and it represents a large segment of the Alpine-Himalayan collisional system. This belt is divided into two provinces from northeast to southeast including the Dezful Embayment and Fars (^{Alavi, 2007}; ^{Lalami et al., 2020}). Dezful embayment, which is located in southwestern Iran, is one of the areas that include a thick sedimentary succession from Mesozoic to Cenozoic with high potential for petroleum targets (^{Ghanadian et al., 2017}). The Paleogene-Neogene sedimentary package of this succession is subdivided into different formations. Pabdeh Formation was named for the first time by ^{James and Wind (1965)} based on Kuh-e-Pabdeh in the Khuzestan Province. In the provinces of Khuzestan, Lurestan and Fars in the west and south of Iran, the Pabdeh Formation has been studied in different subsurface and surface sections (e.g. ^{Alizadeh et al., 2012}; ^{Mashhadi et al., 2015}; ^{Soleimani and Zamani, 2015}). This Formation encompasses the entire Zagros Basin, and contains planktonic fauna throughout the basin (^{Habibi et al., 2017}). Based on the paleontological data, the age of Pabdeh Formation is mainly Paleocene, although in upper parts of the sequence in the Khuzestan Province, Early Miocene fauna has also been observed (^{Konyuhov and Maleki, 2006}; ^{Alizadeh et al., 2012}; ^{Habibi et al., 2017}). Pabdeh Formation overlies disconformably the Gurpi Formation (Campanian-Maastrichtian) with the dominant shale lithology, and its upper boundary with the Asmari carbonates (Oligo-Miocene) is conformable (Figure 2). The Pabdeh Formation has two informal members called the purple shale member and the Talezang member. The thickness and lithology of the Pabdeh Formation vary significantly in each part of the Zagros basin (^{Mashhadi et al., 2015}). This formation was deposited in anoxic to suboxic conditiond and has significant variations in thickness as well as lithology in each part of the Zagros (^{Kamali et al., 2006}; ^{Alizadeh et al., 2012}). Uninterrupted argillaceous sedimentation of Pabdeh Formation in the Dezful Embayment and Fars occurs from Paleocene to Eocene time and in Lurestan province it continued until the Oligocene (^{Bordenave and Burwood, 1990}).

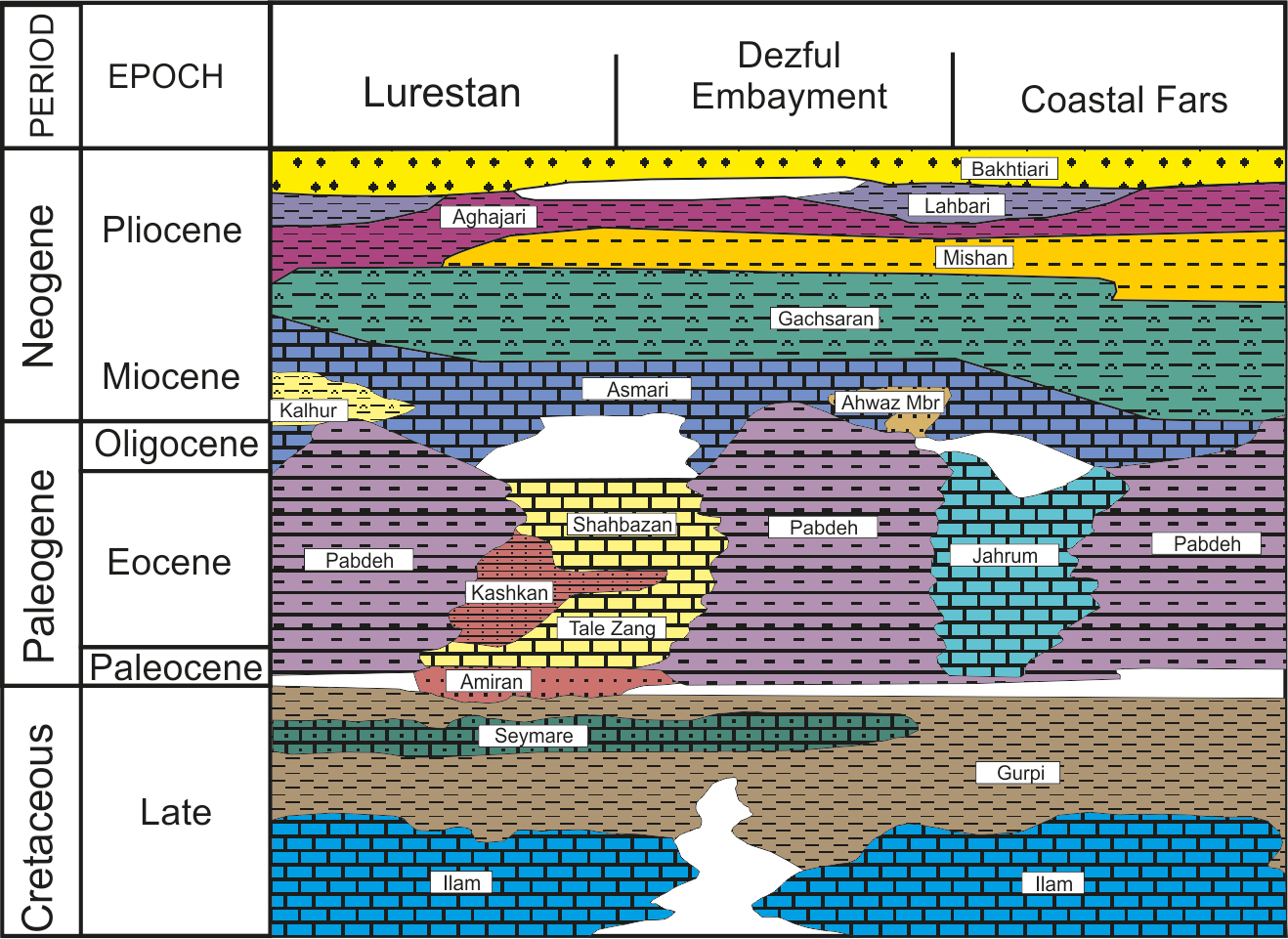

Figure 2 Stratigraphic column of the Lurestan, Dezful Embayment and coastal Fars region (modified after ^{Aldega et al. 2014}).

3. Methodology

A total of 14 shale samples from Pabdeh Formation were taken from 14 wells from 11 oil fields in the northern Dezful embayment were selected (Figure 1). The samples were selected from the shaley units of the upper part of Pabdeh Formation. In this study, a combination of different methods including thermal analyses (Rock-Eval pyrolysis), as well as gas chromatography (GC) and gas chromatography-mass spectrometry (GC-MS) data has been used to evaluate organic geochemistry. The major purpose of the Rock-Eval pyrolysis analysis was to obtain information on the following: determination of the organic matter quantity, diversity of kerogens and thermal maturity of organic matter. To achieve this goal, the Rock-Eval 6 pyrolysis technique applied to characterize parameters include S1(volatile hydrocarbons), S2 (remaining hydrocarbon potential) and S3 (amounts of CO₂). To obtain these parameters, about 70 to 80mg of pulverized samples were loaded into crucibles, following the standard procedure described by ^{Behar et al. (2001)}. Additional parameters including Hydrogen Index (HI=S2/TOC×100), Oxygen Index (OI=S3/TOC×100), maximum maturity experienced by source rock (Tmax) and Total Organic Carbon (TOC) were calculated from these measurements and used to evaluate the organic geochemistry and hydrocarbon generating capability of different source rocks (^{Espitalie et al., 1985}; ^{Scheeder et al., 2020}). In order to obtain information about biomarkers, samples of Pabdeh Formation were also analyzed by two analytical techniques of gas chromatography (GC) and gas chromatography-mass spectrometry (GC-MS). For Gas Chromatography (GC), an instrument equipped with a 30 m DB-1 fused silica capillary column, was used. For mass spectrometry analysis, the Gas Chromatography was coupled to a Finingan MAT GCQ ion trap mass spectrometer with the oven temperature from 70 to 300 °C (at a rate of 4°C/min) and helium carrier gas.

4. Results

Rock-Eval pyrolysis data obtained from studied samples of Pabdeh Formation are presented in Table 1. The TOC contents of 14 studied samples ranged from 0.47% and 7.20%, average TOC content of all samples was 2.24%. The S1 values of the studied samples ranged from 0.45mg HC/g to 5.78 mg HC/g (mean 2.58 mg HC/g; Table 1), and the S2 values ranged from 1.38mg HC/g to 17.1 mg HC/g (mean 6.94 mg HC/g; Table 1). The Tmax values of the shale samples ranged from 426 °C to 439 °C, with an average value of 430 °C. The HI values of the shale samples ranged from 157mg HC/g TOC to 480 mg HC/g TOC (mean 314 mg HC/g TOC; Table 1). The OI values of the studied samples ranged from 14 mg CO₂/g TOC to 86 mg CO₂/g TOC (mean 48 mg CO₂/g TOC; Table 1). The results of gas chromatography (GC) and gas chromatography-mass spectrometry (GC-MS) are also presented in Table 2. The ratio of isoprenoids to normal alkanes (Pr/n-C₁₇ and Ph/n-C₁₈) ranged from 0.20 to 0.78 and 0.68 to 3.3, respectively. The 20S/(20S+20R) C₂₉ sterane isomerization in the analyzed samples ranged from 0.11 to 0.62 and ββ/(ββ+αα) C₂₉ sterane isomerization ranged from 0.25 to 0.62. Table 2 also shows that Ts/Tm ratio often varies from 0.27 to 0.59 in the studied samples except for one in the Qaleh nar oil field, where this ratio is 1.22.

5. Discussion

5.1. THE USE OF ROCK-EVAL DATA FOR EVALUATION OF SOURCE ROCK

The amount of total organic carbon (TOC) of about 79% of the studied samples of the Pabdeh Formation in the present study (Northern Dezful Embayment) is above 1% (mean 2.24%). This TOC amount is similar to source rocks with medium to very good hydrocarbon potential (^{Peters, 1986}; ^{Peters and Cassa, 1994}; ^{Demirel, 2014}; ^{Hatampour et al., 2014}). ^{Alizadeh et al. (2012)} showed that the average of TOC in the Pabdeh Formation samples of southern Dezful embayment was 1.62%, which indicates higher TOC in the northern fields. High TOC values and low S1 content in the studied samples indicate that the hydrocarbons are autochthonous (Figure 3) and also indicate the absence of contamination for the studied samples (^{Hunt, 1996}). Given that obtaining accurate hydrocarbon potential based on TOC data alone is not very reliable, S1 and S2 values obtained from Rock-Eval pyrolysis are used to confirm the hydrocarbon potential interpretation (^{Peters and Cassa, 1994}). According to RockEval pyrolysis results (Table 1), S1 and S2 values confirm that the Pabdeh Formation has hydrocarbon potential ranging from poor to very good. The TOC versus S2 diagram (^{Peters and Cassa, 1994}) shows moderate to very good hydrocarbon potential for the analyzed samples (Figure 4a). The genetic potential of the studied samples (S1 + S2) varies from 1.96 to 21.72 mg HC/g rock. At the same time, the S1+S2 versus TOC diagram also confirms the medium to excellent hydrocarbon potential for the analyzed samples of the North Dezful oil fields (Figure 4b).

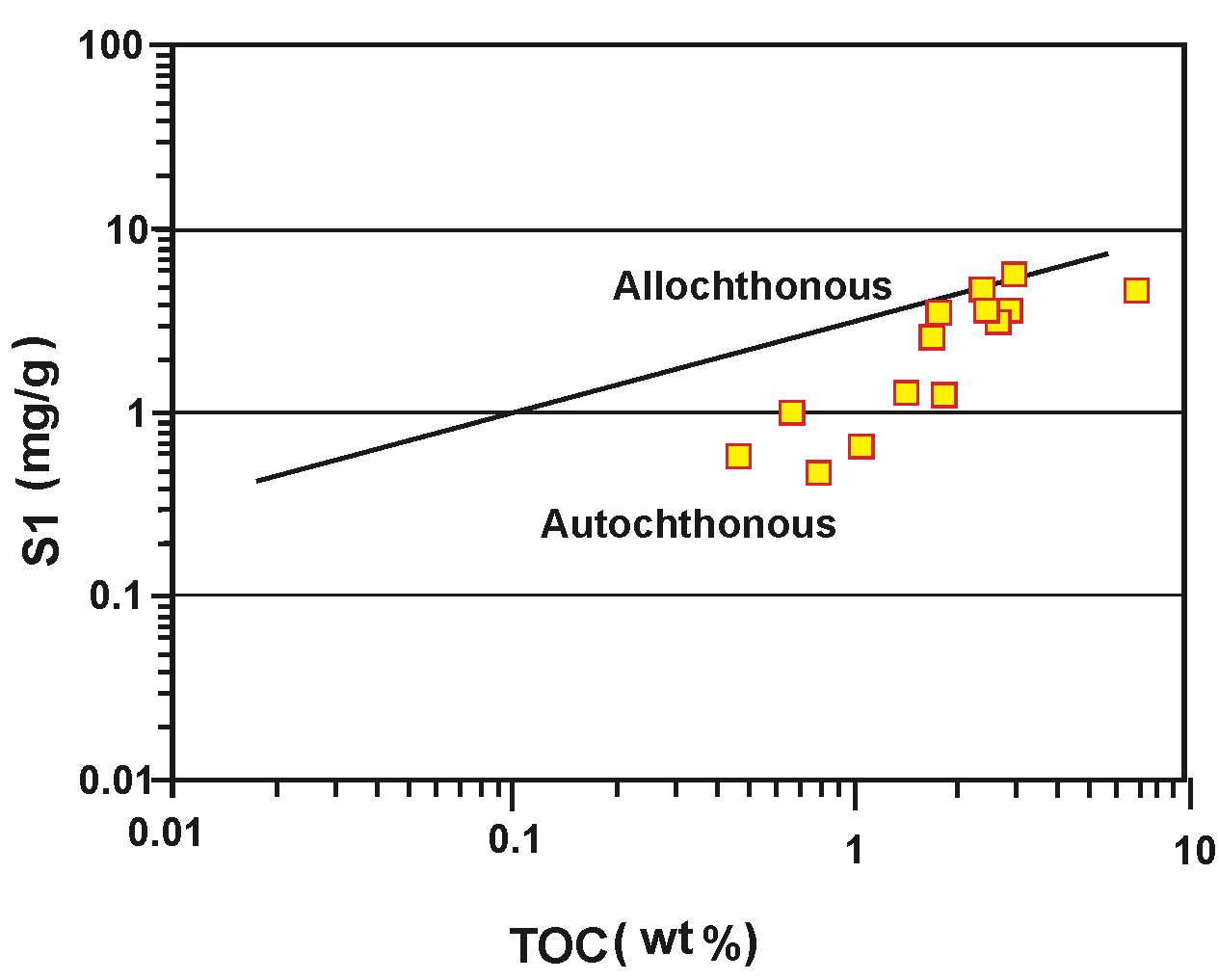

Figure 3 S1 versus TOC diagram to discriminate allochthonous and autochthonous hydrocarbons.

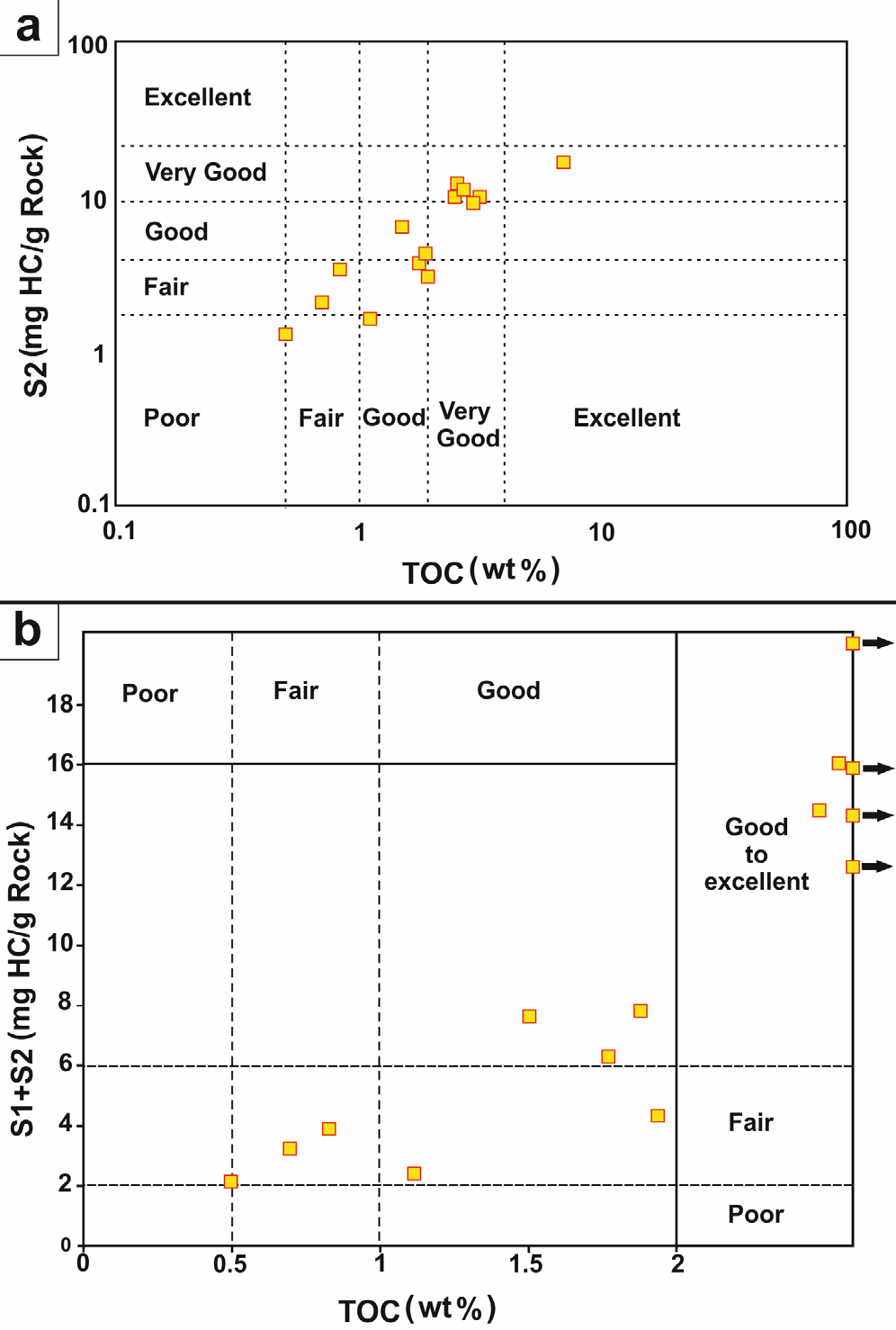

Figure 4 a) S2 versus TOC diagram for the Pabdeh Formation samples, b) Genetic potential (S1+S2) versus TOC diagram for the Pabdeh Formation samples.

The identification between types of organic matter is usually done by the values of the hydrogen index (HI) (^{Waples, 1985}). According to ^{Waples (1985)}, a hydrogen index less than 150 mg/g indicates that the organic matter of the sediments contains type III kerogen which has the potential for generation of gas. If the hydrogen index is between 150 and 300 mg/g, it demonstrates the presence of type III and II kerogen and oil and gas production capacity. Eventually, hydrogen indexes more than 300 and 600 mg/g show good to very good oil production potential. The hydrogen index values obtained for the studied samples (Table 1) vary between 157 to 480 mg HC/g TOC. The value of this parameter has been obtained for the samples of Pabdeh Formation in the South Dezful fields between 37 and 575 mg HC/g TOC (^{Alizadeh et al., 2012}). The analyzed samples also show the oxygen index between 14 to 86 mg CO₂/g TOC (Table 1). To distinguish the types of kerogens, we have used the diagram of oxygen index versus hydrogen index (Figure 5a). This diagram shows that the kerogen type II was the main component of organic matter constituting the analyzed samples in North Dezful. Meanwhile, ^{Alizadeh et al. (2012)} have shown that in the South Dezful, Pabdeh samples have mixed type II/III kerogen.

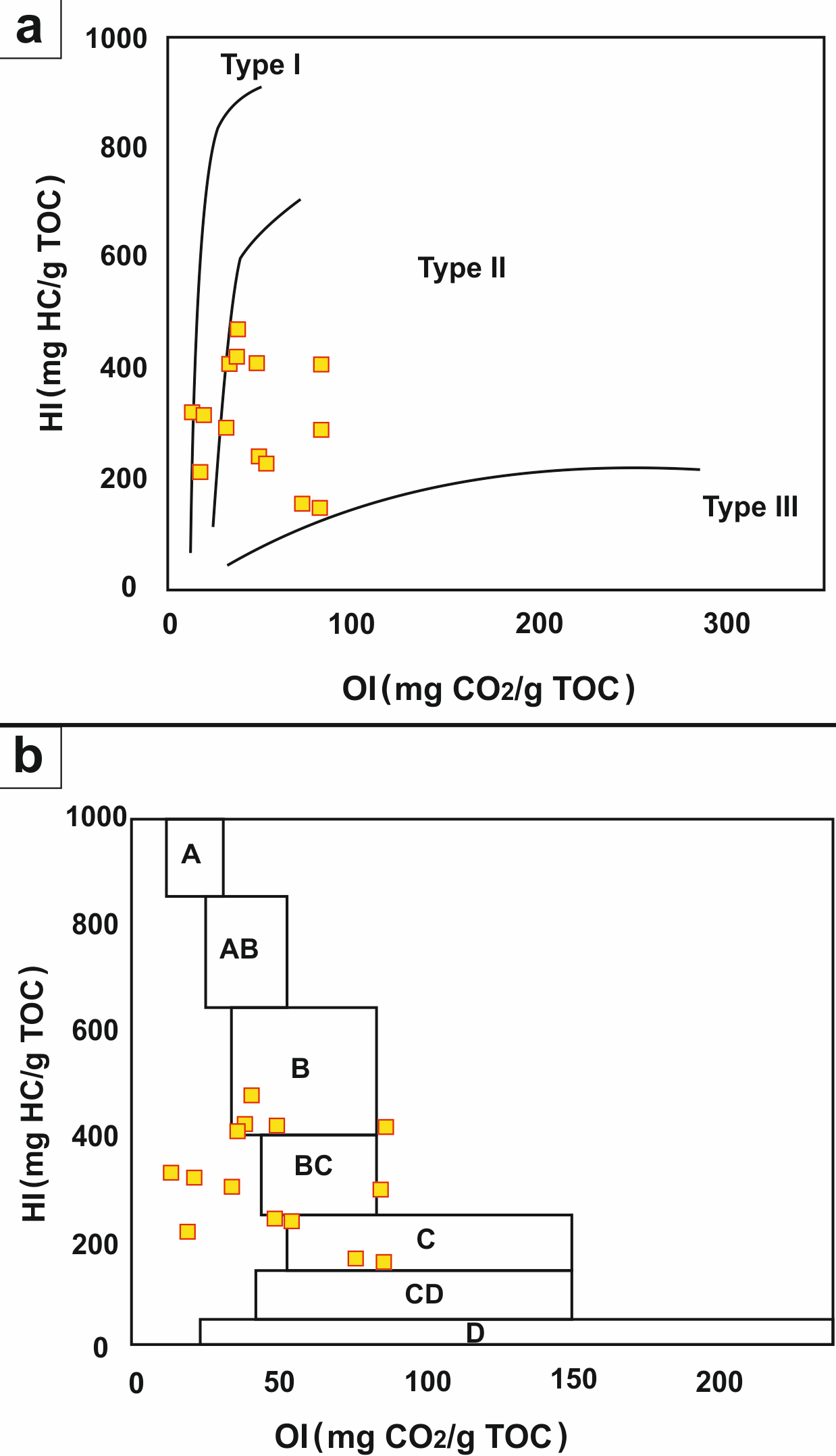

Figure 5 a) Kerogen types of the Pabdeh Formation samples based on plot of HI versus OI. b) Cross plot of HI vs. OI to discriminate the depositional environment of source rocks (^{Jones 1987}). A: Strongly reducing lacustrine environment, AB: Reducing transgressive marine environment, B: relatively reducing lacustrine or marine environment, BC: The environments that consist of terrestrial and marine organic matters together and have a high sedimentation rate in suboxic environment, C: Environments with intermediate sedimentation rate in reducing conditions, CD: Deep environments adjacent to orogeny areas, D: Strongly oxidant continental environments.

Hydrogen index along with oxygen index can also be used to determine the depositional setting of hydrocarbon sources (^{Jones, 1987}). The algal content of organic matters of sediment decreases from A (strongly reducing lacustrine environment) to D (strongly oxidant continental environments) organic facies and the entry of organic matter from terrestrial and oxidant sources increases (^{Jones, 1987}). Using this diagram (Figure 5b), most of the studied samples are plotted in or near areas B, BC and C of the Pabdeh Formation, which indicates that the analyzed samples were deposited in a mixed (terrestrial-marine) environments with a sedimentation rate of moderate to high and non-oxidant conditions were predominant. In organic geochemistry, the HI versus Tmax plot is also commonly used to estimate thermal maturity of the samples. This plot is also used to differentiate the type of organic matter (^{Bordenave, 1993}).

By plotting the data of the studied samples, these samples are generally plotted in the immature to early mature field and type II kerogen (Figure 6a), which confirms the data of the previous plots.

Figure 6 a) HI versus Tmax diagram for the Pabdeh Formation samples. b) Cross-plot of Pr/n-C₁₇ versus Ph/n-C₁₈ for the Pabdeh Formation samples.

5.2.EVALUATION OF SOURCE ROCK BASED ON GC AND GC-MS DATA

The ratio of isoprenoids such as pristane to phytane is one of the factors in organic geochemistry, based on which the oxidation-reduction conditions in the sedimentation environment of organic matter are studied) (^{Didyk, 1978}; ^{Peters et al., 2005}; ^{Mirshahani et al., 2018}). Accordingly, if this ratio is less than one in organic matter, it indicates a reducing environment, and if it is more than one, an oxidizing environment. In the studied samples from Pabdeh Formation, the ratio of isoprenoids to normal alkanes (Pr/n-C17 and Ph/n-C18) was calculated, and, based on this; these ratios vary between 0.20 to 0.78 and 0.68 to 3.3, respectively. The plot of Pr/n-C17 versus Ph/n-C18 of the analyzed samples (Figure 6b) shows that these samples are mainly type II kerogen and have an algal-marine origin, deposited in a non-oxidant environment.

The type of organic matter source of analyzed sediments can be obtained based on the relative abundance of regular steranes (C₂₇, C₂₈, and C₂₉) (^{Peters et al., 2005}) using a triangular diagram (Figure 7). This plot shows that most of the analyzed samples have mixed origin of organic matter (58%), and a limited number is in the range of terrestrial plants (14%), and also a small number is in the phytoplankton origin range (28%), which is consistent with B, BC and C fields of ^{Jones (1987)}, identified from pyrolysis data. The plot of C₂₉ steranes the 20S/(20S+20R) versus ββ/(ββ + αα) is one of the diagrams commonly used to determine the thermal maturity of organic matter because C₂₉ steranes increase with increasing thermal maturity (^{Peters and Moldowan, 1993}; ^{Peters et al., 2005}). The values of these two C₂₉ steranes for the studied samples are presented in Table 2. The 20S/(20S+20R) C₂₉ sterane isomerization in the analyzed samples varies from 0.11 to 0.62 and ββ/ (ββ+αα) C₂₉ sterane isomerization ranges from 0.25 to 0.62. Based on this plot (Figure 8), most of the analyzed samples are located at the peak of the oil window, two are plotted in the early oil window range, and three are in the immature organic matter field. These three samples are related to Dehluran, Paydar West, and Zeloi oil fields, in the northern sections of the North Dezful Embayment, and have small amounts of organic matter. The difference between the results of this diagram and HI versus Tmax diagram shows that pyrolysis data alone is not enough to examine maturity and biomarker data should also be used.

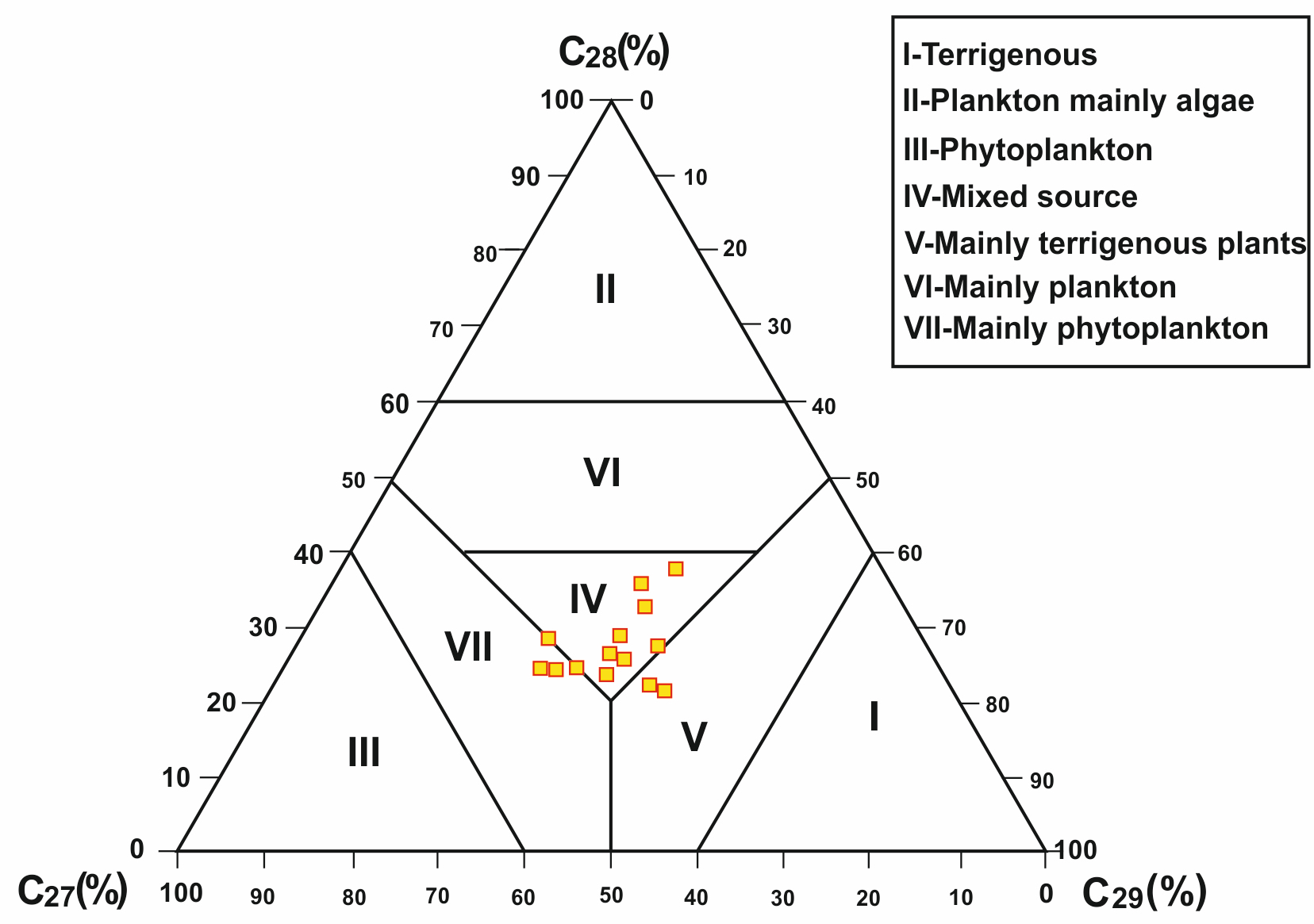

Figure 7 Ternary diagram showing C₂₇, C₂₈ and C₂₉ sterane in samples of the Pabdeh Formation.

Figure 8 The plot of C29 steranes ββ/(ββ+αα) versus C₂₉ steranes 20S/(20S+20R) for determining thermal maturity of Pabdeh Formation samples.

Various parameters of terpenes such as Ts/Tm, C₂₉/C₃₀, and C₃₄/C₃₅ ratios obtained from m/z 191 ion chromatograms are used to separate the depositional settings of sediments containing organic matter (^{Van Graas, 1990}). Accordingly, Ts/Tm and C₃₄/C₃₅ ratios have been used to investigate and determine the sedimentary environment of the samples in this study. ^{Hunt (1996)} has shown that the Ts/Tm ratio increases with increasing shale in calcareous facies. Ts/Tm ratios begin to decrease quite late during maturation (^{Van Graas, 1990}). Table 2 shows that this ratio often varies from 0.27 to 0.59 in the studied samples except for one in the Qaleh Nar oil field, where this ratio is 1.22. These values indicate that the samples studied were probably formed in calcareous facies. The C₃₄/C₃₅ ratio less than one indicates relatively reducing marine environments (^{Mello et al., 1988}). Considering the values of this ratio in the studied samples (Table 2), it can be concluded that all samples were formed in a reduced environment.

6. Conclusion

The Rock-Eval analyses on the Pabdeh Formation in the North Dezful Embayment revealed that a fair to very good hydrocarbon potential for analyzed samples of the Pabdeh Formation.

Hydrogen Index and Oxygen Index values indicate that the Pabdeh Formation samples were deposited in mixed terrestrial and marine environments with high to intermediate sedimentation rates and suboxic conditions. HI against Tmax shows that the studied sediments contain type II kerogens and generally plot in an immature to the early mature zone.

The gas chromatography and gas chromatography-mass spectrometric analyses revealed that organic matter in the studied samples contains mainly mixed materials terrigenous plants and phytoplankton. The ratio of Pr/n-C₁₇ versus Ph/n-C₁₈ for studied samples of Pabdeh Formation shows that all of the samples have algal-marine organic source, the samples are biodegraded and the kerogen of the samples is type II. In terms of maturity, most of the analyzed samples of Pabdeh Formation are in the peak oil window, but two samples are in the early oil window and three samples in the immature field. The Ts/Tm ratios suggest that the studied samples were probably generated from calcareous facies. The C₃₄/C₃₅ ratio from the studied samples shows that studied samples from Pabdeh Formation are mostly generated in reducing environments.
