2.1 Cochlear Model and Function Solution

In order to obtain an accurate cochlear frequency-position function, we analyzed a mathematical model of cochlear biomechanics, which is divided into the macro-mechanics and micro-mechanics systems [⁸].

In the macro-mechanics system, cochlea represents a fluid-filled box, which is separated into upper and lower halves by a flexible partition, while in the micromechanical one it is modeled as a two degrees-of-freedom system, illustrated in figure 1.

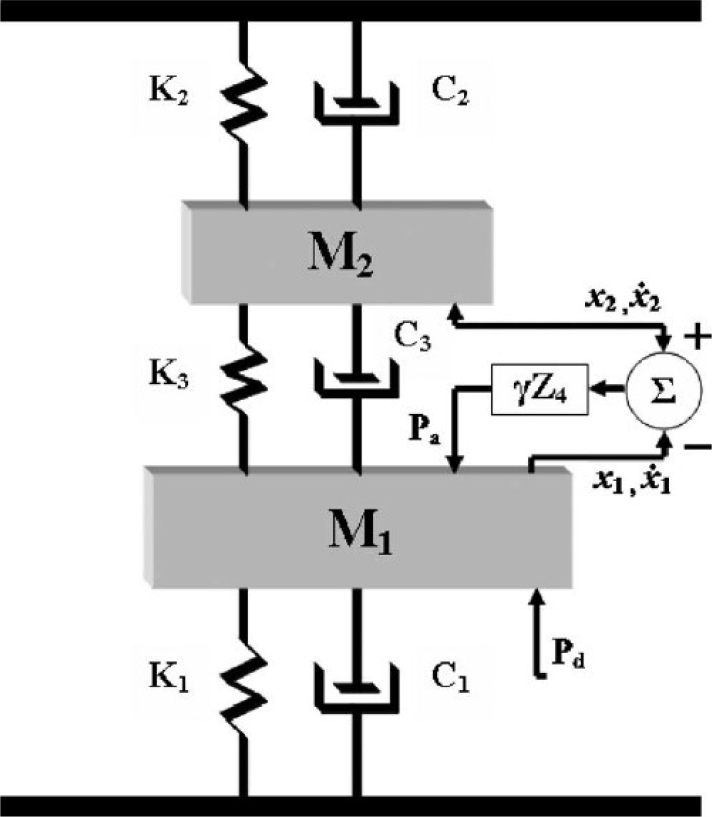

Fig. 1 Block diagram of the micromechanical model of Neely

The previous model was adapted, from representing a cat cochlea to representing a human cochlea [⁹]. Besides Perdigao [¹⁰] made an electrical-mechanical system equivalence, where the pressure for each point 𝑘 is defined as following:

This allowed us to calculate the pressure in the basilar membrane for 0 < x < 4 with 251 points, where each stimulus frequency value corresponding to a x-value, obtaining the graph in figure 2.

Fig. 2 Frequency as a function of the position along the cochlea

Given the behavior of the curve in figure 2, we used a non-linear regression method that allows finding a function that approximates the curve data, considering the exponential function (2):

where f is the frequency and x the position along of the cochlea, and a and b parameters were estimated by least-squares method.

Then, the functions (3) and (4) were obtained:

Then, we compare these functions behavior with [⁶] and [⁷].

The graph obtained from the function (3) is shown in figure 3.

Fig. 3 Frequency as a function of position along the cochlea (a) function (3) in red (b) function [6] in blue (c) function [7] in black:

2.2 Auditory Filter-Bank

The gamma-tone filter is a well-known model, inspired by human auditory system behavior based in auditory “channels”.

The filter widths are normally measured with critical band values and although it is possible to vary them [¹¹], we only focus our attention on the frequency spacing between the channels.

A criterion to allocate frequency spacing between the channels consist of to specify the highest and lowest frequencies along with the desired number of channels and so calculate a set of frequencies uniformly on the equivalent rectangular bandwidth (ERB) scale [¹²], where lowest frequency depends on the application and the highest value corresponds to half the sampling frequency.

We instead applied the functions (3) and (4) to calculate the center frequency of each channel at the same range and normalized them to constant energy of 1. Results are showed in figure 4.

Fig. 4 Bank of twelve auditory filters

3.1 NMF Model

NMF is a popular and used technique in AMT, whose goal is to factorize a nonnegative matrix ∈ℝ≥0M×N, a time–frequency representation with M∈ℕ as the feature dimensionality and N∈ℕ as the number of elements or frames along the time axis, into two other nonnegative matrices W∈ℝ≥0M×R and H∈ℝ≥0R×N, both called dictionary and activation matrix, respectively.

The rank R∈ℕ of the approximation is an important parameter that needs to be specified beforehand, we fix its value depending on the number of pitches in the piece musical.

We applied the version of NMF described and implemented in the toolbox of [¹³].

Columns of W are labelled and initialized with spectra of synthetized isolated piano notes.

3.2 Processing. Signal Filtering

We used the short-time Fourier transform (STFT) to compute the spectrogram of the musical signal, using Hanning window with a 50%, discarding the mirror spectrum (2049 samples per frame). Then we take its module as the non-negative matrix V.

The V spectrogram is passed through the filter-bank explained on section 2.2. We assume that the modified spectrogram contains the main harmonics of note. Figure 6 and 7 shows the analysis over E2 piano note.

Fig. 5 Fourier spectrogram of E2 piano note

Fig. 6 Auditory filter-bank applied on Fourier spectrogram of E2 piano note

Fig. 7 Comparison between original Fourier spectrogram and filtered spectrogram of E2 piano note

5.1 Mono and Polyphonic Music Tests

In order to verify an appropriate separation of components and understand the operation of NMF for analyzing alone and simultaneous activity of pitches in music, two preliminary tests were performed.

First test consisted of an analysis over individual notes played. An example of major scale based on C in the 4th octave of piano was created and synthetized to audio using a music software [¹⁴].

This scale consists of the pitches C4, D4, E4, F4, G4, A4, and B4, shown in figure 10.

Fig. 8 Diagram for the proposed polyphonic transcription system

Fig. 9 NMF decomposition of the analysis of Figure 10

Fig. 10 Example of a major scale in the 4th octave of piano

The example was analyzed by NMF, results are shown in figure 9, left graphs represent the frequency content while the ones on the right show temporal occurrences.

The second test was performed over a polyphonic example of execution of four chords in the same octave piano, shown in figure 11.

Fig. 11 Example of four piano chords.

Fig. 12 NMF decomposition of the analysis of Figure 11

Each chord C major (C, E, G), D minor (D, F, A), E minor (E, G, B) and F major (F, A, C) was played consecutively.

Although the software used to generate synthetic sounds makes notes of strictly identical pitch and therefore, a rather ideal situation, these test aids to understand operation of the NMF technique, demonstrating that the algorithm is useful in describing activity of each pitch.

Because of the maximum number of notes to recognize for both tests are seven, the number of components in algorithm was set to R = 7.

5.2 Main Experiment

We evaluate the performance of the proposed system using a set of thirty polyphonic classical pieces in MIDI format included in [¹⁵] and synthetized to audio (WAVE format) by same software used in 7.1.

We use the whole piece in all cases, MIDI files served as the ground truth and allowed comparison with the performed transcription.

The number of components was set to R = 60, including the notes within the range from the second to the sixth octave of piano.

We worked with the unmodified and filtered STFT spectrogram. Experiments with the different number of filters inside of the auditory filter-bank implementation were performed.

6.2 Performance Results

Table 1 shows the average transcription performance over the polyphonic dataset applying 8, 12 and none filters to input spectrogram of the NMF model. Although both recall and accuracy of unmodified spectrogram got over the proposed system, we achieved a better precision average using the proposed auditory filter-bank.

The results show that a spectrogram modified with eight filters gives the best precision value, thus this is the proposed system in this paper.

After we evaluated the performance of the proposed system against another system in the state-of-the-art, SONIC [¹⁷], using the same polyphonic dataset. Table 2 shows results for this evaluation. Considering that SONIC achieved solid results at the 12th running MIREX in 2016 on the evaluation of Multiple Fundamental Frequency Estimation & Tracking task and that it is currently available because of the executable file for testing is provided by the author [¹⁸], it is a suitable reference of comparison for this work.

Transcriptions of the pieces performed by proposed system, even when they are complex, reach an adequate rate of precision. Typical errors presented during evaluation include note detection errors wrong pitches (depending on the threshold value), difficulty recognizing low-pitched notes, and missing notes in chords of various notes. [⁴] explains that these same tendencies are present when they analyzed synthetic or real sounds, so a similar performance could be expected in those cases.

Last results in Table 2 show that proposed system achieving a better precision average again. However, in that case, recall and accuracy measures remain much lower. To improve them, a more sophisticated method could be investigated in future.
