1. Introduction

Suitable material selection is very crucial with respect to reduction in weight of armour and it is essential to determine the material with lowest possible areal density for a defined threat. Many high strength steels, aluminium alloys and titanium alloys are being used as armour. Amongst them high strength steels are predominantly used for armour applications owing to their low cost, superior mechanical properties, good machinability and high performance. Ballistic performance of metallic materials depends on parameters like strength, hardness, toughness, microstructure, strain hardening rate, etc. An optimization of these material properties against projectile impact has long been of practical interest in military applications. Some previous studies showed that ballistic performance largely depends on the hardness of the material.

^{Dikshit, Kutumbrao, and Sundararajan (1995)} found that under plain strain condition the ballistic resistance increases linearly with hardness of the steel. But, under plane stress conditions optimum ballistic performance is observed at an intermediate hardness level. In another study on the ballistic testing of 50CrV4 steel, it was pointed out that with increase in hardness of the target plate the penetration ability of the projectile decreases significantly (^{Ubeyli, Yildirim, & Ogel, 2007}). ^{Maweja and Stumpf (2008a, 2008b)} found that the microstructure and the ratio of yield to tensile strength had a significant influence on the ballistic behaviour of armour steels. In a recent study on the ballistic behaviour of different high strength steels by ^{Borvik, Dey, and Clausen (2009)}, it was demonstrated that there is a linear increase in perforation resistance with yield stress. ^{Srivathsa and Ramakrishnan (1999)} formulated ballistic performance maps for thick metallic armour target plates, and indicated that ballistic performance is a strong function of strain-hardening rate. In a previous study it was shown that ballistic performance does not depend on any specific independent parameter. Instead, an optimized value of all the parameters like strength, hardness, toughness leads to the best ballistic performance (^{Jena et al., 2010}).

Heat treatment is the commonly used process to develop desired properties in steels. Of all the microstructures produced by heat treatment, martensite forms the highest level of strength in steels. However, because of large internal stresses associated with the martensitic transformation, martensite phase is rarely used in an untempered condition. Tempering increases the ductility and toughness in steels, which are essential for enhancing impact energy absorption. In tempering two parameters, namely, temperature and time, play vital roles in determining the mechanical properties of the steel. A considerable amount of work has been carried out to understand the effect of tempering temperature on the mechanical properties of steel (^{Demir, Übeyli, & Yıldırım, 2008; Jena, Ramanjeneyulu, Sivakumar, & Bhat, 2009; Lee & Su, 1999; Malakondaiah, Srinivas, & Rao, 1997}). These studies reflect that the temperature employed for tempering is limited because of the loss of strength resulting from the high tempering temperatures. Temper embrittlement is another factor restricting the choice of temperature. Hence it is of interest to explore the effect of tempering time. Only limited studies on the effect of tempering time on the properties of steel are reported in open literature. In one of the earlier works, ^{Lee and Su (1999)} found that there is a slight decrease in strength and hardness with increase in tempering time. However, it was observed that ductility increases with increase in tempering time.

2. Material and experimental procedure

DMR-1700 steel is a medium carbon high strength armour steel. Previous studies on this steel showed that 300 °C tempering temperature gives maximum strength (^{Malakondaiah et al., 1997}). But the Charpy impact values obtained at this tempering temperature are not high. The low Charpy impact values are the contributions of the residual stresses at 300 °C tempering temperature. Charpy impact toughness is an important parameter which contributes to the ballistic performance (^{Jena et al., 2010}). So it is aimed in this study to explore the effect of increased tempering time on mechanical properties including Charpy impact values and ballistic performance of DMR-1700 steel.

The steel was made by vacuum arc melting in Mishra Dhatu Nigam Limited, India. It was supplied in the form of 50 mm thick rolled plates. The nominal chemical composition of the steel is given in Table 1. Samples of 150 mm × 150 mm × 50 mm were cut from a single plate and subjected to heat treatment. For the present tests, the austenitisation temperature was 925 °C and the tempering temperature was 300 °C. The samples were first austenitised for 2 h followed by quenching in oil. The plates were immediately tempered for 2 h, 24 h and 48 h followed by cooling to room temperature in air. Austenitizing and tempering were carried out in a neutral atmosphere furnace.

Small samples were cut from the heat-treated plates and subjected to standard metallographic examination. The specimens were etched at room temperature using 2% Nital (2 ml HNO₃, and 98 ml Methyl Alcohol) to reveal the microstructure. Optical and scanning electron microscope (SEM) was used to observe the microstructure of the heat-treated plates. Following metallographic observations, the bulk hardness of the target plates were measured according to ASTM E 140-02 using an AFFRI Vickers hardness tester under 30 kg applied load for 15 s. The average hardness of a particular sample was reported from measurements over 10 locations.

Cylindrical tensile specimens were machined from the heat treated plates in the longitudinal orientation of the rolled plate. The size and geometry of the specimens as well as the testing procedure are in accordance with ASTM E8-93. Tests were done at a strain rate of 4.8 × 10⁻¹ s⁻¹ using an Instron Universal Testing machine (Instron 5500R) to determine the mechanical properties. Three samples for each heat treated condition were prepared and tested at room temperature. Standard Charpy V-notch (2 mm deep notch) specimens (10 mm × 10 mm × 55 mm size) were also machined as per the ASTM standards (E23-02a) and the tests were carried out using the Tinius-Olsen impact testing instrument to find out the impact properties. The weight of the hammer used in the impact test was 27.3 kg. Five samples of each heat treatment were tested and the average value was taken as the impact value of plates for that heat treatment. Following the Charpy impact testing, the fracture surfaces of broken impact specimen were also carried out. The topographical features were observed by using a LEO scanning electron microscope operated at 20 kV.

Heat treated steel plates were impacted with 2 different non-deformable armour piercing steel projectiles. Fig. 1 presents the general views of the projectiles. Table 2 gives more detailed description of the projectiles. The angle of attack was normal to the target plates. The striking velocity of the projectiles was measured using infrared light emitting diode photovoltaic cell by measuring the time interval between the interceptions caused by the projectile running across two transverse beams placed 2 m apart. The projectiles were fired from a distance of 10 m. The testing arrangement is also given elsewhere (^{Jena et al., 2009}). Three shots were fired on each plate and three sets of plates of each heat treatment were fired in order to get the ballistic behaviour statistically. The average penetration value was taken as the ballistic performance of the plate. Following impact and penetration, damage patterns at the front face of the target plates were investigated.

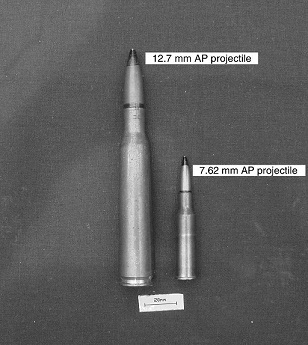

Fig. 1 Photographs of the two different armour piercing projectiles used for the present study.

3. Results

3.1 Microstructure

Fig. 2 shows the optical micrographs of the steel at differently tempered conditions. All the heat-treated steel samples show tempered martensitic structure. Scanning electron micrographs are taken to further examine the microstructural changes at different tempered conditions, Fig. 3. From SEM micrographs it is observed that in all the tempered cases the martensitic lath size and grain size are more or less similar.

Fig. 2 Optical microstructure of (a) 2h tempered sample, (b) 24h tempered sample and (c) 48h tempered sample.

Fig. 3 Scanning electron micrographs of (a) 2h tempered sample, (b) 24h tempered sample and (c) 48h tempered sample.

3.2 Mechanical properties

The mechanical properties of the steel samples at different tempering conditions are evaluated and the representative engineering stress-strain curves and true stress-strain curves are depicted in Fig. 4. It can be seen that the strength and hardness values are similar at all the tempered conditions, Fig. 5(a). A marginal increase in strength and hardness is observed with increasing the tempering time. However, there is a gradual decrease in ductility measured in terms of percentage elongation with increase in tempering time, Fig. 5(b). There is a significant effect of tempering time on the Charpy impact values of the steel, Fig. 5(b). The impact toughness of the steel substantially decreases with increase in tempering time.

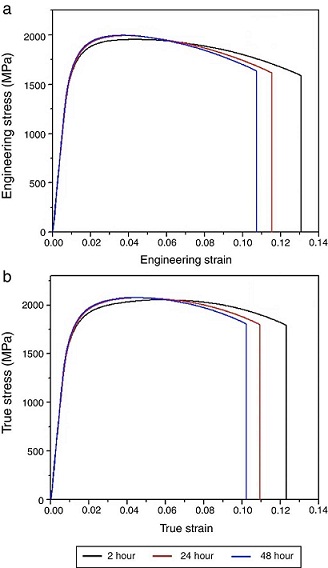

Fig. 4 (a) Engineering stress-strain curves for the differently heat treated plates. (b) True stress-strain curves for the differently heat treated plates.

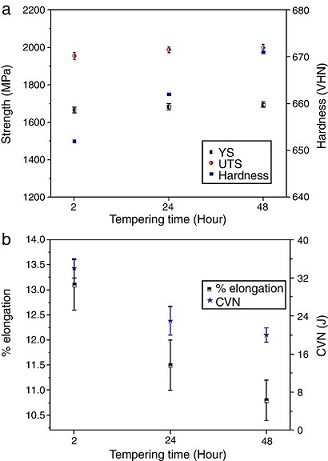

Fig. 5 (a) Variation in strength and hardness with tempering time. (b) Variation in percentage elongation and impact toughness with tempering temperature.

3.3 Fractography

Scanning electron microscopic observations are made at the fracture surface of the Charpy impact samples to identify the mode of fracture as a function of tempering time, Fig. 6. In the 2 h tempered specimens, ductile fracture mechanism is dominant as shown in Fig. 6(a). This dimple like morphology clearly indicates a ductile failure mode and the progress of damage following a void nucleation, growth and coalescence process. However, the fracture surface of the specimens tempered at 24 h and 48 h shows presence of quasi cleavage features along with dimples, which suggests a mixed mode fracture behaviour at higher tempering time, Fig. 6(b). The dimple size is also coarser than that in the case of 2 h tempered specimens.

Fig. 6 SEM fractographs of the broken Charpy impact samples. (a) 2h tempered sample. (b) 48h tempered sample.

3.4 Ballistic testing

Ballistic performance of all the samples was measured using the depth of penetration (DOP) method described elsewhere (^{Jena et al., 2010}). The DOP of all the samples are measured and are plotted against tempering time, Fig. 7. It can be seen that there is only a small variation in DOP in case of 7.62 AP projectiles. However in case of 12.7 AP projectiles there is a significant variation in DOP with tempering time. The DOP increases beyond 2 h of tempering. The average DOP of the 2 h tempered sample against 12.7 mm AP projectile is measured to be 14.2 mm, whereas it is 16.3 mm and 18.1 mm respectively in 24 h and 48 h tempered samples.

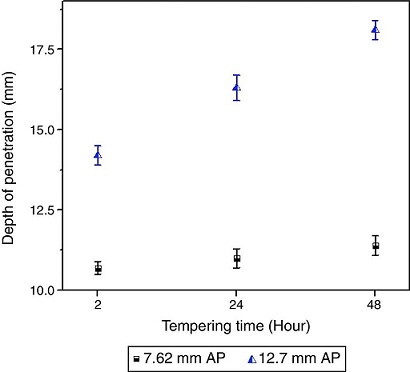

Fig. 7 Effect of tempering time on ballistic performance of target plates.

Fig. 8 shows a close view of the front face of the samples ballistically evaluated against 7.62 AP projectiles. The craters are almost similar in appearance. However, small cracks are observed inside of the crater wall in 24 h and 48 h tempered samples. But no such cracks are observed in case 2 h tempered samples.

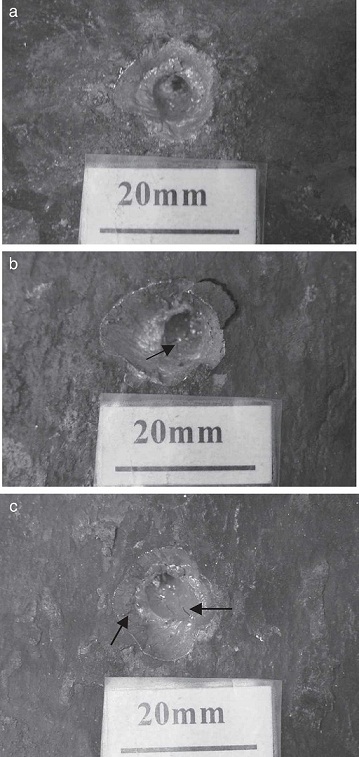

Fig. 8 Top view of the craters after ballistic impact against 7.62AP ammunition. Small cracks are pointed out by arrow marks in the crater in 24h and 48h tempering target plates. (a) 2h impacted sample. (b) 24h impacted sample. (c) 48h impacted sample.

Fig. 9 shows cut views of the craters in the target plates tempered at 48 h and impacted by 7.62 AP as well 12.7 AP projectiles. As can be seen the crater formed by 7.62 AP projectiles is considerably smaller to that of the crater formed by 12.7 AP projectiles. The average crater diameter formed by 7.62 AP projectiles is found to be approximately 12 mm where as the average crater diameter formed by 12.7 AP projectiles is measured to be approximately 25 mm. The crater volume is measured by filling the crater up to the original target plate level with plasticine of known density (^{Dikshit, 1998}). It is found that the average volume of the crater formed by 7.62 AP projectiles is measured to be 412 mm³ where as the average volume of the crater formed by 12.7 AP projectile is found to be 2620 mm³.

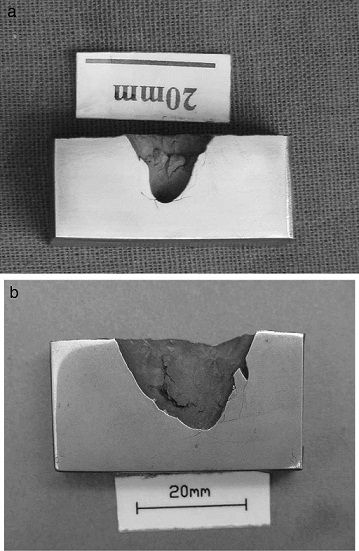

Fig. 9 Crater cut views of the 48h tempered samples impacted against. (a) 7.62mmAP projectile and (b) 12.7mmAP projectile.

4. Discussion

As per Hollomon and Jaffe the tempering parameter is T (c + log t ), where 'T ' is the temperature equal to °F + 460, 't ' is the time in hours and 'c ' a constant for a particular steel (^{Hollomon & Jaffe, 1945}). Grange and Baughman used the tempering parameter to formulate isohardness graphs which indicate equal hardness levels of tempered martensite with varying combinations of temperature and time during tempering (^{Grange & Baughman, 1956}). This means a particular hardness level of the tempered martensite can be achieved by different combinations of time and temperature. Grange and Baughman found that a value of 18 for the constant 'c ' holds good for majority of the steels. Using the tempering parameter other combinations of tempering temperature and time have been calculated which match the studied tempering temperature and time. From the calculations it is found that tempering the steel at 300 °C for 24 h and 48 h matches with tempering the steel at 361 °C for 2 h and 378 °C for 2 h respectively. Tempering time is taken 2 h in the calculations, so that all the differently tempered samples can be compared on the basis of equivalent temperature only.

Loss in toughness after tempering at 300 °C for 24 h and 48 h suggests occurrence of temper martensite embrittlement, which occurs due to the formation of interlath carbide films due to the decomposition of retained austenite (^{Lee & Su, 1999; Malakondaiah et al., 1997; Sarikaya, Jhingan, & Thomas, 1991}). So it can be inferred that increasing the tempering time has led to a heat-treatment condition where the steel is susceptible to temper martensite embrittlement (TME). This is well matched with the fracture surface observation of the higher tempering time Charpy impact samples, Fig. 7. This is again well supported from the observation of cracks in the crater surface of 24 h and 48 h tempered samples, Fig. 8. A previous study on DMR 1700 steel has also documented the drop in impact toughness around 350 °C tempering (^{Jena, Sivakumar, & Bhat, 2007}).

When projectile strikes, the kinetic energy of the projectile is transferred to the target plate. The kinetic energy (KE) of the 7.62 mm projectile and 12.7 mm projectiles are calculated according to the formula where m is mass of the projectile, v is velocity of the projectile. The KE values of the two projectiles are given in Table 2. Only the mass of the steel core is taken for calculating the KE of the projectiles, because the soft jacket gets readily deformed and does not cause any significant additional damage to the target plate. It can be seen that the 7.62 mm projectile carries almost 6 times lesser kinetic energy than that of 12.7 mm projectile while the volume of the holes created is nearly 5 times smaller. Hence the kinetic energy passed on to the unit volume of the interacting material is also smaller for 7.62 AP projectiles.

(1)

There are two principal parameters which control the ballistic performance of the target material. First, the strength parameters which determine energy absorption during deformation and second, toughness parameters which determine the energy absorption during fracture. Higher toughness of the material measured in terms of Charpy impact energy, enables absorption of higher amount of energy during the terminal fracturing process.

In the case of larger 12.7 mm AP projectile, as compared to 7.62 mm AP projectile more kinetic energy is imparted per unit volume of the armour material. The 2 h tempered material with a higher Charpy impact value is able to better dissipate the kinetic energy during the fracturing while due to lower Charpy impact values the 24 h and 48 h tempered samples absorb lower amounts of energy during fracturing of the material leading to lowered ballistic performance in spite of UTS and hardness remaining nearly similar.

5. Conclusion

Increase in tempering time leads to an embrittlement domain and hence reduced the toughness of the studied steel tempered at 300 °C. In case of 7.62 mm AP projectiles, hardness and strength of the material are important for ballistic performance. In 12.7 mm AP projectiles apart from strength and hardness, the Charpy impact value plays a significant role in determining the ballistic performance. Therefore studies on ballistic performance of materials against lower calibre projectiles cannot be extended for larger calibre projectiles even at similar velocities.

Conflict of interest

The authors have no conflicts of interest to declare.
