Norteamérica vol.10 no.1 Ciudad de México ene./jun. 2015



Ensayos

Shale Gas in the United States: Transforming Energy Security in the Twenty-first Century *

Gas de lutita en Estados Unidos: la transformación de la seguridad-energética en el siglo XXI

Maria Luisa Parraguez Kobek1

Alberto Ugarte2

Georgina Campero Aguilar3

1Leading researcher at 2014 Yale Research Summer Program; full-time professor and researcher in the Law and International Relations Department, Tecnológico de Monterrey, Mexico City campus, luisa.parraguez@itesm.mx.

2Senior research assistant, 2014 Yale Research Summer Program, Tecnológico de Monterrey, Mexico City campus, augarte22@gmail.com.

3Senior research assistant, 2014 Yale Research Summer Program, Tecnológico de Monterrey, Mexico City campus, ginacampero@gmail.com.


ABSTRACT

The United States is the biggest energy consumer in the world, accentuating its energy security priorities in twenty-first century geopolitics. As an alternative to oil, shale gas has modified today's economic and global political scenario, providing Washington with new capabilities for redesigning its national and foreign energy policies toward innovative, self-sufficient development. The U.S. economy is highly dependent on energy resources; however, in the last decade, the shale revolution has aided the country in gaining relative economic stability in a volatile global economy. Shale gas has encouraged economic development in the North American region, while raising important environmental concerns about the extraction process called hydraulic fracturing or "fracking".

Key words: United States; energy security; geopolitics; shale gas; economy; foreign policy

RESUMEN

Estados Unidos es el mayor consumidor de energía en el mundo, lo que acentúa sus prioridades de seguridad energética en la geopolítica del siglo xxi. El gas de lutita, como un recurso alternativo al petróleo, ha modificado los escenarios político y económico actuales. Le ha dado a Washington nuevas posibilidades de rediseñar sus políticas energéticas exteriores y nacionales para que se enfoquen en un desarrollo innovador y autosuficiente. La economía estadunidense es muy dependiente de los recursos energéticos; sin embargo, la revolución del gas de lutita ha ayudado al país a adquirir una estabilidad económica relativa dentro de una economía global volátil. El gas de lutita ha estimulado el desarrollo económico en la región norteamericana, al mismo tiempo que aumen tan las importantes preocupaciones respecto de su proceso de extracción, llamado fractura hidráulica o fracking .

Palabras clave: Estados Unidos; seguridad energética; geopolítica; gas de lutitas; economía; política exterior

We're proving that it is possible to grow our economy robustly while at the same time doing the right thing for our environment and tackling climate change in a serious way.

Barack Obama

Remarks by the President on Energy and Climate Change 2015

Introduction

The world's largest consumer of natural gas has found a way to deal with energy security and self-sufficiency in the first part of the twenty-first century by enhancing a new energy option in the United States: shale gas. Although oil continues to play a central role in the international energy market, the United States has doubled its production over the last six years and is now importing less (The Economist , 2014) . This has, in part, affected the international price of oil as it has dropped to less than half from June 2014 at US$115 a barrel to US$53 in April 2015, almost to levels of the 2009 recession (17; Bloomberg Business, 2015). The U.S. has increased its energy portfolio by using shale gas as a wildcard in the global energy game to offset geopolitical scenarios and it's challenging the rules by transforming part of the world's energy production and consumption.

As the United States positions itself in the global energy market, it also faces the task of overcoming environmental issues linked to the generation of electricity, energy, and fossil fuels. Since 2008, the Obama administration has increased energy efficiency by adopting an environmental policy to combat climate change. A highly efficient energy policy requires not only economic support, but also a sustainable long-term plan to achieve energy security. "This has been a team effort to make sure that we are doing everything we can to boost the energy efficiency of the American economy" (Obama, 2015). Even though renewable energy sources are still financially inefficient, the combination of conventional and renewable energy sources such as solar and wind, has had an impact on U.S. American environmental policy. In order to achieve ambitious environmental goals, the administration has instituted cutting greenhouse gas emissions 40 percent from the 2008 levels over the next decade and a 30-percent increase of federal renewable energy sources within the next 10 years (Obama, 2015).

Due to the low permeability of the shale rock formation, the extraction of this unconventional gas employs hydraulic fracturing of the rocks, or "fracking," a combined process of vertical and horizontal drilling, which injects liquids at high pressure and induces seismicity to break the formation and releases the gas. In the past few years, it has become a controversial topic in countries that are rich in the resource. Supporters of shale gas production argue that it diminishes CO2 greenhouse gas emissions in the long term compared to other fossil fuels. Others (David Hughes, Robert Howarth, Robert Jackson) point out that this practice creates a great demand for water, produces sizable quantities of wastewater, induces seismicity, releases methane greenhouse gas emissions, and pollutes groundwater.

President Barack Obama launched several bills regarding sustainability including the 2011 Blueprint, which outlined striving for sustainable development through clean, affordable, abundant, diverse, and secure energy sources; and the 2015 Department of the Interior (doi) drilling rules on federal lands, which requires companies to ensure that the wells are safe and to disclose the chemicals used in the process. To regulate the environmental impact caused by fracking, the doi rules represent an important standardization of the shale gas extraction technique: "The oil and natural gas industry has played a critical role in reviving [U.S.] America's economy and hydraulic fracturing has been the key to this revival" (Warrick, 2015). Obama's 2015 energy policy highlights the relevance of the shale gas revolution as a transitional energy resource, or a bridge, to a renewable energy portfolio.

Blueprinting North America´s Energy Security

In 2011, President Barack Obama launched the U.S. Blueprint for a Secure Energy Future and stated: "Our best opportunities to enhance our energy security can be found in our own backyard -because we boast one critical, renewable resource that the rest of the world can't match: American ingenuity, American know-how." Shale gas is currently leading the United States toward a "golden age of gas" as it aims to become a net exporter of energy by the year 2020, according to the Energy Information Administration (EIA). 1 The shale gas boom is currently changing the rules of the game by transforming energy security in the North American region and by turning toward a new extractable resource.

Some authors go as far as to state that "shale gas will revolutionize the industry -and change the world- in the coming decades. It will prevent the rise of any new cartels. It will alter geopolitics" (Myers and Hartley, 2011). The combined unconventional energy resources of the three North American countries (the United States, Canada, and Mexico) outweigh by far those of any other country, positioning the region as the number one energy powerhouse of the twenty-first century. "North America is on its way to being a net exporter of energy. The implications for geopolitical developments are vast. North America will have security of supply no matter what happens in the Middle East or elsewhere" (Shultz, 2013).

The United States and Canada are the only major producers of commercially viable natural gas from shale formations in the world; shale gas as a share of total natural gas production in 2012 was 39 percent in the U.S. and 15 percent in Canada (EIA, 2013). Mexico started to push shale gas development more actively in light of the initial EIA assessment in 2011 that suggested a resource base of 19 272.3 billion cubic meters, a volume approximately 57 times larger than the country's proved reserves of natural gas in 2010 (Lozano Maya, 2013). 2 Mexican shale is now a sought-after commodity as basins have reached 15 423.5 billion cubic meters in 2014; Mexico has an estimated 545 trillion cubic feet of technically recoverable shale gas resources (EIA, 2014d). Although Mexico's shale gas industry faces important challenges such as lack of infrastructure, insecurity, and uncertainty about the shale formations, technological advances in the hydraulic fracturing extraction process provide the country with the opportunity to match the regional energy perspectives, to create new jobs, to attract investment, and to increase competitiveness in the energy sector.

National deposits will provide the U.S. with a constant energy supply for the next 100 years (Obama, 2011). By 2035, the EIA projects that shale gas production will rise to 384.9 billion cubic meters (BCM), representing nearly half of all U.S. natural gas production. In 2012, capital expenditure on unconventional oil and gas activity in the United States surpassed US$87 billion, providing 1.7 million jobs; it is projected to reach US$172.5 billion in 2020, representing 3 million jobs, and more than US$353 billion in 2035 (3.5 million jobs) (IHS Global Insight, 2012). The shale gas revolution is changing the energy balance in favor of shale-rich and technologically advanced countries and will continue to build on future financial projections as energy becomes the most valuable resource in the twenty-first century.

The Economic Giant: The United States

"For some time, many people at home and abroad have bought into the myth of American decline, and increasing dependence on energy imports was often cited as evidence" (Nye, 2014). Despite numerous authors who argue the decline of the United States as a superpower (Eland, 2004; Chomsky, 2006; Johnson, 2007; Pollina, 2010; Buchanan, 2011; Ferguson, 2012), it is far from a weakening economic power. The U.S. is the biggest single-country economy in the world with a GDP of US$16.8 trillion in 2013 and a purchasing power parity (PPP) 3 of 18.6 percent of the global total, only below the European Union as a whole (World Bank, 2014a). It is the world's third largest country in size and population, with almost 319 million people (United States Census Bureau, 2014 estimate) and holds the number one place in military expenditure with US$640 billion in 2013 (SIPRI, 2013). The U.S. economy grew 2.8 percent in 2012, 1.9 percent in 2013, and is projected to reach 1.7 percent in 2014 and 3 percent by 2015 (International Monetary Fund, 2013).

The United States is ranked third -behind only Japan and Germany- in the United Nations Competitive Industrial Performance Report 2013, which measures a country's ability to produce and export manufactured goods competitively and shows the impact of its industrial production on the world market (UNIDO, 2013). It is the nation with the highest research and development tax incentives, direct support, and business research and development intensity. "Cheaper energy makes industry more competitive internationally, particularly energy-intensive industries like petrochemicals, aluminum, steel, and others" (Nye, 2014). The U.S. remains the world's richest large country, with an estimated per capita GDP of US$45 000, while the richest European nations manage only around a US$40 000 GDP per capita (The Economist , 2010).

Being on the top of global economic growth translates into consuming large quantities of energy resources. "We consume about 25 percent of the world's oil. We only have 2 percent of the reserves. So the only way for America's energy supply to be truly secure is by permanently reducing our dependence on oil" (Obama, 2011). The United States has approximately 2.3 percent of the world population and consumes almost 20 percent of the world´s energy (EIA, 2013). Its consumption is more than that of the UK, Germany, China, Iran, Japan, and Canada combined (Enerdata, 2014b). By 2035, shale gas production will rise to 385.1 million cubic meters, representing nearly half of all U.S. natural gas production. Just 28.3 billion cubic meters of natural gas is enough to heat 15 million homes for one year, generate 100 billion kilowatt hours of electricity, or fuel 12 million natural-gas-fired vehicles for one year (U.S. Department of Energy, 2012).

While energy statistics continue to show negative outputs, Washington continues to strive toward energy efficiency. President Barack Obama pointed out in the launching of the United States 2011 Energy Blueprint, "America's oil and natural gas supplies are critical components of our nation's energy portfolio. Their development enhances our energy security and fuels our nation's economy" (Obama, 2011). The United States is the number one natural gas consumer in the world, absorbing 735 billion cubic meters (BCM) in 2013, compared to Russia's 464 bcm and China's 160 bcm (Enerdata, 2014a). The Obama administration recognizes that consumption of these fuels will continue despite environmental concerns, and that alternative energy sources are needed to meet the demand.

Shale gas is still, after all, a hydrocarbon. The climate change debate on the environmental impact of hydraulic fracturing on greenhouse gas emissions is a major issue (see Casler, 2014). On the one hand, traditional fossil fuel consumption such as oil emits CO2 into the air. Yet, shale gas extraction releases methane, an aggressive heat-trapping agent, into the atmosphere. Issues of wastewater management and induced seismicity in the extraction process have also been raised.

The Geopolitical Importance of Shale Gas

With an established industry in the United States and Canada and growing markets in other nations such as Australia, Argentina, China, and European countries (see Figure 1), the shale gas market will see a capital expenditure of US$41.43 billion in 2014 (Visiongain, 2014). 4 The main issue, however, is not only having the resource but being able to extract the supply with the corresponding technology and know-how. For example, 70 percent of Chinese energy consumption comes from coal; however, shale gas extraction across its territory could dramatically reduce this percentage (David, 2013). Taking into account the size of China's economy, the global energy markets could rapidly be influenced when China starts extracting shale gas.

Source: Energy Information Administration (EIA, 2013b).

Figure 1. 2013 Basins with Assessed Shale Oil and Shale Gas Formations 5

China and Russia have also signed a 30-year, US$400-billion gas deal for 38 billion cubic meters in May 2014, giving Moscow a mega-market for its leading export and linking two major powers that, despite a rocky history of alliances and rivalries, have drawn closer to counterbalance the clout of the United States and Europe (Perlez, 2014). President Vladimir Putin is boosting diplomatic and bilateral relations with Beijing in order to secure one of the biggest energy regions in the world. Despite recent U.S. foreign policy efforts to shift toward the Asia Pacific region, Russia continues its energy agreements not only with China but also with countries such as Uzbekistan and Turkmenistan. While Russia and China are aiming to achieve Eurasian energy security, a North American regional energy agreement could rapidly have a positive impact for U.S. foreign policy (Jacoby, O'Sullivan, and Paltsev, 2012: 190).

Foreseeing the twenty-first century demand around the world, President Barack Obama launched an energy approach to deal with energy security and global economic stability by 2020 (White House, 2011). This document analyzed the United States' energy past in order to build its future, concluding that global market tendencies are unstoppable as is its move toward world leadership. Washington confirms U.S. America's continued world presence to ensure global economic and political stability (White House, 2011). U.S. foreign policy has been adapting to these new energy alternatives by decreasing its military presence in certain regions like the Middle East, while the shale gas boom sustains the idea of creating a North American region that satisfies both green development and energy security.

In an economically volatile world, the U.S. has turned to its natural neighbors and allies in North America: Canada and Mexico. Canada and the U.S. possess 54 percent of viable natural gas in the region, 6 which could increase if efficient shale gas extraction becomes a reality. North American shale represents an opportunity for U.S. economic leadership in the world (Fitterling, 2013). The regional impact of this unconventional gas across Mexico, Canada, and the United States may be the first step toward the integration of North America as a single energy power zone (Fitterling, 2013: 4-6). Table 1 shows the countries with technically recoverable shale gas resources, and the United States, Canada, and Mexico make up 50 4589 billion cubic meters (BCM), more than Russia and China combined.

Table 1 Top 10 Countries with Technically Recoverable. Shale Gas Resources (2013)*

Rank Country Shale gas (billion cubic meters) Shale gas (trillion cubic feet)
1 China 31 554.5 1 115
2 Argentina 22 696.6 802
3 Algeria 20 008.1 707
4 U.S. 18 819.5 665
5 Canada 16 215.9 573
6 Mexico 15 423.5 545
7 Australia 12 367.1 437
8 South Africa 11 037 390
9 Russia 8 065.5 285
10 Brazil 6 933.5 245
World Total 163 121.2 7 299
North American Total 50 458.90 1 783

* According to the Energy Information Administration (2013), when considering the market implications of abundant shale resources, it is important to distinguish between a technically recoverable resource and an economically recoverable resource. Technically recoverable resources represent the volumes of oil and natural gas that could be produced with current technology, regardless of oil and natural gas prices and production costs.

Source: Authors' compilation based on data provided by the Energy Information Administration (EIA, 2014).

Since natural gas markets are considerably less internationally integrated than global oil markets, the fast growth in shale gas production since 2006 has pointedly lowered natural gas prices in the U.S. and Canada compared to prices elsewhere, according to the EIA. In 2013, the production of natural gas in the U.S. was 24 282 billion cubic feet (BCF) (see Graph 1), yet consumption still shows a deficit with an average consumption of 26 037 billion cubic feet (BCF) (see Graph 2) (Enerdata, 2014b). With the exception of 2009, gas consumption increased for the twelfth year in a row in 2013. It rose at a rate of 2.8 percent per year, in line with the historical average of 2.7 percent (Forbes, 2009). This trend was mainly driven by U.S. demand, which represents one-third of G-20 consumption, with a 4.6 percent increase boosted by the use of shale gas (Enerdata, 2014a).

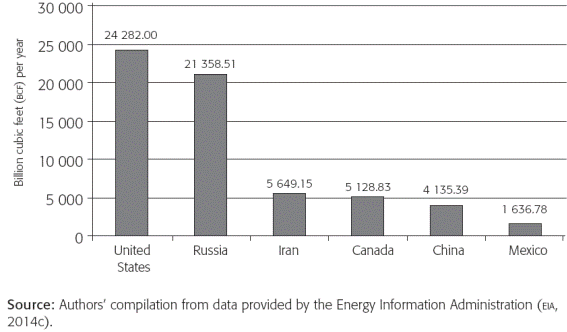

Graph 1. Natural Gas Production (selected countries, 2013)

Graph 2 Natural Gas Consumption (selected countries, 2013)

Canada is one of the world's five largest energy producers and one of the top natural gas producers, with 5,128.83 billion cubic feet (BCF) in 2013, and the main source of U.S. energy imports. 7 In 2011, Canada's energy exports were valued at US$120 billion, with 90 percent going to the U.S. in natural gas exports, representing 13 percent of U.S. consumption (Government of Canada, 2013). In 1980, technological development in horizontal drilling became commercially available in Canada, increasing its productive capacity not only in shale but also in conventional resources such as natural gas and oil (Government of Canada, 2013). The bilateral relationship between Canada and the United States has changed since U.S. shale basins have now become economically recoverable, transforming the North American region from a consumption giant to a major production area. Table 5 shows a total combined production of 30 798 billion cubic feet (BCF) in 2012. The economic partnership among these nations has the power to boost the regional economy (McCallum, 2011).

In December 2013, Mexico passed several constitutional reforms mostly related to the energy sector, striding toward energy efficiency and the technology it requires. These reforms have advantages for both Mexico and the United States: with private investment in alliance with the state-owned oil company, Petróleos Mexicanos (Pemex), 8 production will reinforce the notion of a North American regional powerhouse, while the Mexican energy sector will gain technological development. In coming years, the Mexican energy market has the capacity to reduce energy prices and increase its national production (Government of Mexico, 2014).

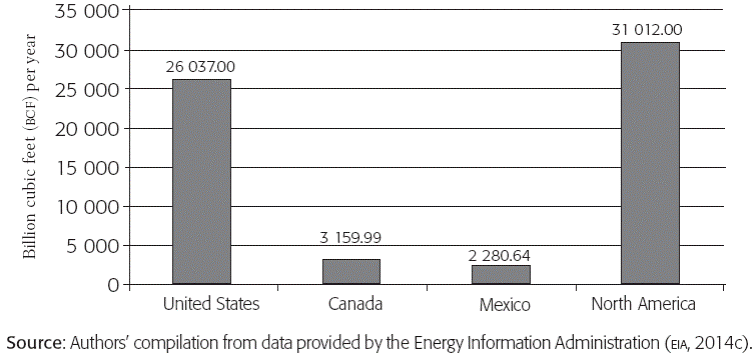

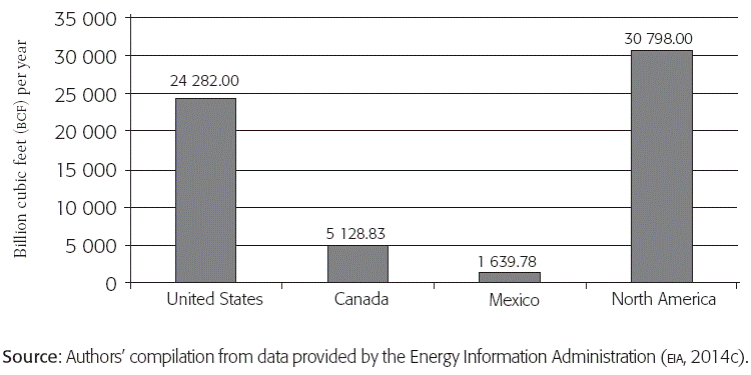

Graph 3 North American Natural Gas Production (2003)

Graph 4. North American Natural Gas Consumption (2003)

Economic Factors in Energy Security in North America

Energy plays a vital role in U.S. Americans' lives and in the U.S. economy as a whole, particularly in the provision of electricity, transportation, heating and cooling, and industrial processing, the four main energy-consuming sectors of the economy. These four sectors consumed the equivalent of 8.4 percent of the gross domestic product (GDP) in 2010. Petroleum products power 97 percent of all air, sea, and land transportation in the United States, making it extremely dependent on energy resources (McFarlane, 2012).

Due to the complexity, uncertainty, and investment involved in shale gas production, cost reduction is vital to increasing the supply. While the cost of a vertical well is approximately US$800 000 the amount increases to US$2.5 million or more for a horizontal well (Lozano Maya, 2013). In this case, unlike other markets where monopolies often guide production or are responsible for it, the U.S. oil extraction industry is owned by a large number of producers, predominantly medium-sized and small.

With a shale gas structure, producers' decisions are less restricted and more productive and flexible, thus creating an environment that favors the development and transfer of technology. Additionally, the economic benefit from the production of shale gas is important. It could take time to create a competitive market for means of transportation, and it will entail dedicated guidance for the U.S. to put an end to oil's virtual monopoly of transportation fuel. Making oil compete with alternative energy commodities has not only lowered its international price but has also begun to change the geopolitical balance of power in favor of net oil importers and governments with the resources to become non-petroleum fuel producers.

Price deregulation is another key element of the industry, since greater reciprocity exists between price movements and producers' activity, transmitting market signals to agents more efficiently. In the same way that the 164-percent increase in net Henry Hub prices from 2002 to 2008 triggered the production of shale gas (Berman, 2012), 9 more recently, as the gap between the price of natural gas and the price of oil tightens due to the latter's contraction, it still encourages investors to capitalize their resources and concentrate efforts on sites with higher content of liquids.

The gas industry's competitiveness extends to prices, which are deregulated and encourage a more effective dissemination of information amid producers and clients (Lozano Maya, 2013). Since 1980 when policies were applied to deregulate gas prices and through the ultimate creation of the Henry Hub (see Graph 5) as a reference for spot and future transactions, producers have been extremely responsive to gas prices. Consequently, shale gas production flourished in reaction to the steady growth in gas prices from 2000 despite the fall of prices starting in 2009. 10

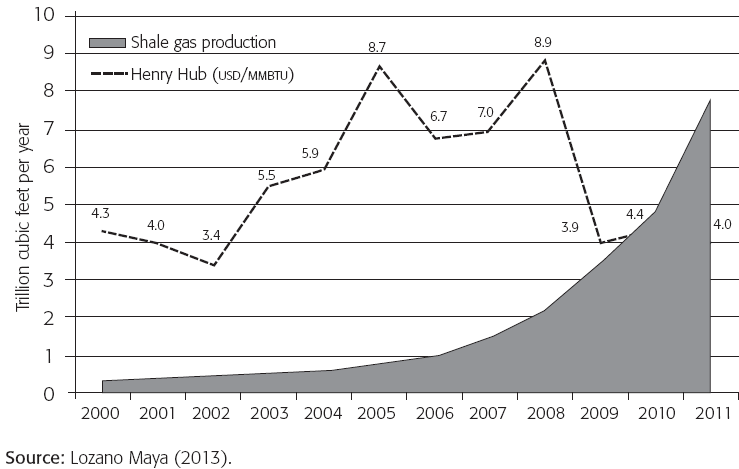

Graph 5 Shale Gas Production in the United States and the Henry Hub Price (2000-2011)

Finally, the legal system of land use that allows private ownership of hydrocarbons has accelerated the total area under production. Unlike most countries, where oil is owned by the government, in the United States, citizens who own property with shale gas resources can sell them for a profit or lease their land to gas-producing companies. Private ownership of these lands allows individuals to decide to sell in order to receive royalties for the resources.

Shale Gas as an Alternative Energy Source for the United States

Ever since the 1973 Arab oil embargo, one U.S. president after another has paid at least rhetorical attention to the need for the federal government to develop an energy independence policy (Barlas, 2012). Black gold dominated the energy scenario during the twentieth century, and natural gas production was originally forecast to decrease by 2025 (EIA, 2014b). According to the EIA, in 2013, U.S. energy production supplied 84 percent of its total consumption due primarily to oil restraints, an extremely important figure to consider at the microeconomic level. Shale gas as an unconventional natural resource increased the energy power of the U.S. vis-à-vis its local consumption and U.S. American world leadership. According to the Massachusetts Institute of Technology Emissions Prediction and Policy Analysis (mit-eppa), shale gas has the strength to modify more than one policy inside the U.S. government as it has the power to build new outstanding links to the environment, the economy, and foreign policy (see Graph 6).

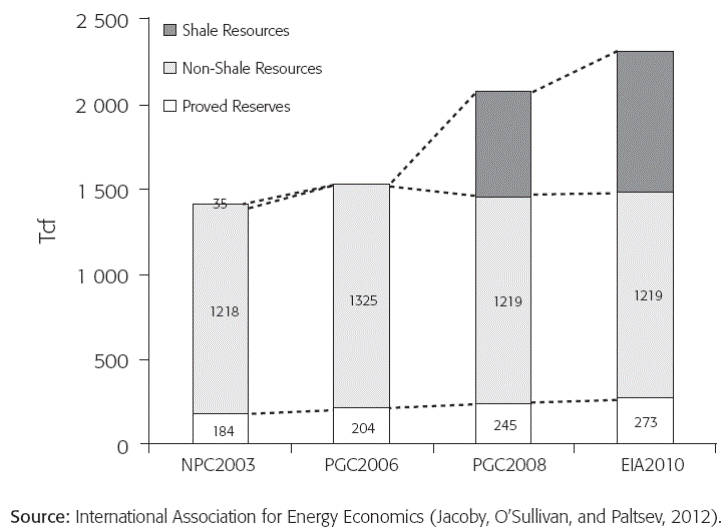

Graph 6 Impact of Shale Gas on Estimates of U.S. Resources and Proved Reserves (2003-2010)

The North American region has one of the biggest shale gas formations in the world, just under the size of the Siberian-Chinese gas reserves (EIA, 2013). It is transforming the entire region into a new energy power giving the three countries financial and economic strength. The main fields in the U.S. are the Barnett, Haynesville, Fayetteville, and Woodford shale in Texas, Louisiana, Arkansas, and Oklahoma, along with the Marcellus Play under parts of the states of Pennsylvania, West Virginia, and New York (see Figure 2).

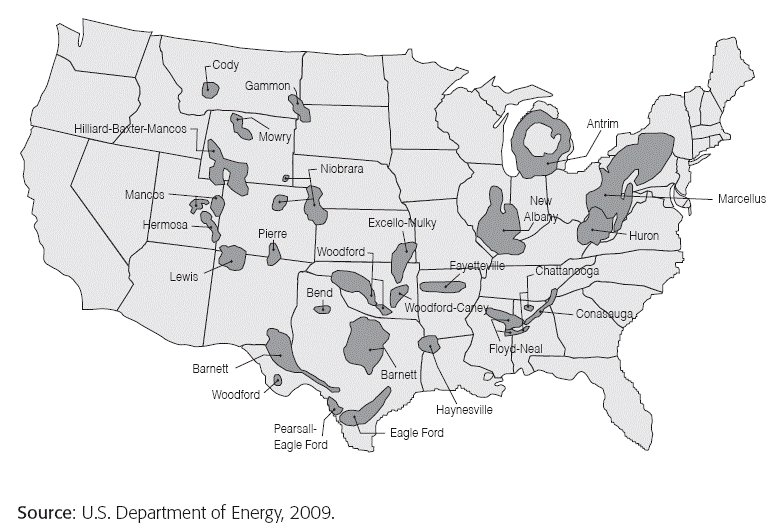

Figure 2 Modern Shale Gas Development in the United States

The Marcellus Play is the largest producing shale gas basin in the United States (see Figure 3 and Graph 7), exceeding 15 billion cubic feet per day (BCF/d) in July 2014, thus accounting for 40 percent of U.S. production (EIA, 2014e). It has developed infrastructure and, therefore, the capacity to sustain well drilling and pipeline network construction beyond those built in recent years (EIA, 2014e). This will provide natural gas to highly populated areas in the United States such as New Jersey, New York, and New England.

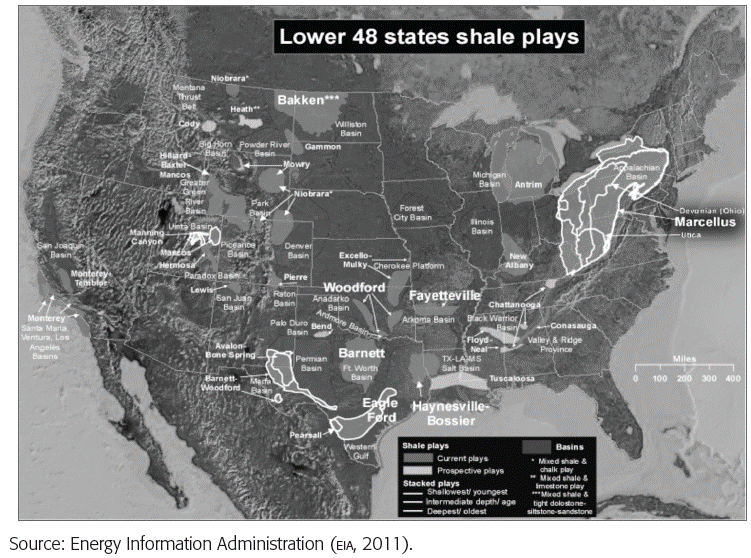

Figure 3 Shale gas plays in the united states

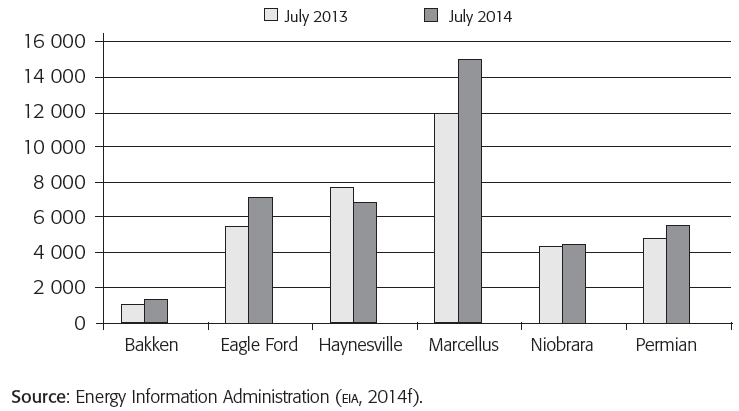

Graph 7 U.S. Natural Gas Production by Play (million cubic feet/day) (2013 and 2014)

The economic dimension lies in how Marcellus Play productivity helps boost local economies. Thus, the country's reliance on importing natural gas from other international producers decreases. At the same time, Marcellus meets the economic approach via pipeline construction. Each time pipelines intersect, a new market hub has to be established and price rate changes (Standard and Poor's, 2012). Finally the key role of the Marcellus Play addresses two major issues: the first is its ability to drive local companies in reaching transnational operations; and second, it helps strengthen the transnational impact of U.S. oil and gas companies.

"Fracking" in the United States

The two extraction methods for shale gas are horizontal drilling and hydraulic fracturing, known as "fracking." Due to the geological heterogeneity of the shale deposits, 11 optimization of production in the United States has relied on applying specific methods depending on the complexity of the basins and sites with different depths and recovery factors (see Figure 4). This indicates the level of uncertainty in shale exploitation, in that the risk of not producing gas is higher compared to conventional reservoirs because it requires greater technological and human capacity.

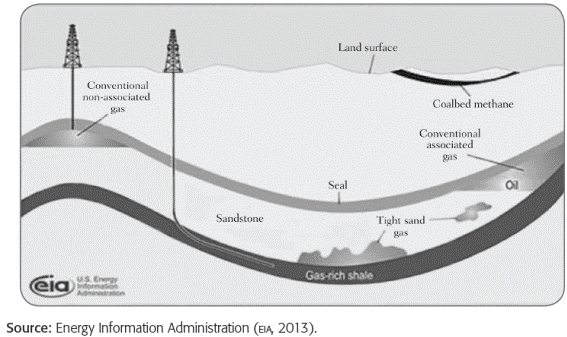

Figure 4 Schematic Geology of Natural Gas Resources

The "fracking" process consists of injecting fluids (mainly water), sand, and chemical agents into the layer formation at high pressure, causing fissures that allow resources to move freely from the rock pores where they are trapped. Conventional extraction of fossil fuels uses coal resources over several drilling pads, with a negative impact on the environment and global warming. Shale gas drilling, on the other hand, is done through a single pad site, thus reducing the surface presence of access roads, trucks, and pipelines (Energy from Shale, 2013). Since coal fuel use decreases in the process of hydraulic fracturing, the CO2 footprint is also reduced.

A major point of contention in the current "fracking" debate is the issue of leaked methane gas, CH4 (Jackson et al., 2011). Shale gas contains around 90 percent of methane gas, which is odorless, colorless, and tasteless. Methane has a global warming potential (gwp) 21 times higher per metric ton than CO2, 12 causing a resistant and very powerful radiation trap in the atmosphere, creating a much higher impact on the greenhouse effect (EPA, 2014). "Burn natural gas and it warms your house. But let it leak, from fracked wells or the melting Arctic, and it warms the whole planet" (Lavalle, 2012).

Another environmental impact associated with the development of shale gas is related to water; first, the possibility of the use, treatment, and recycling of the water, or "flow-back" water, containing among other products the fluids injected into the well to fracture the rock. The water is mixed with approximately 70 chemicals, some considered toxic, mutagenic, and carcinogenic (Schmidt, 2011: 350). According to the U.S. Environmental Protection Agency (EPA, 2014), only 15 percent to 80 percent of the flow-back water is recovered, creating additional concerns. Secondly, the process requires considerable volumes of water and varies depending on the geological characteristics of the deposit. It is estimated that 35 000 wells are fractured in the United States annually, representing approximately the amount of water used by some five million people (Schmidt, 2011: 352). There is also environmental concern about the contamination of groundwater, or aquifers, in the extraction process as methane is liberated from the shale formations through induced fracturing (see Figure 5).

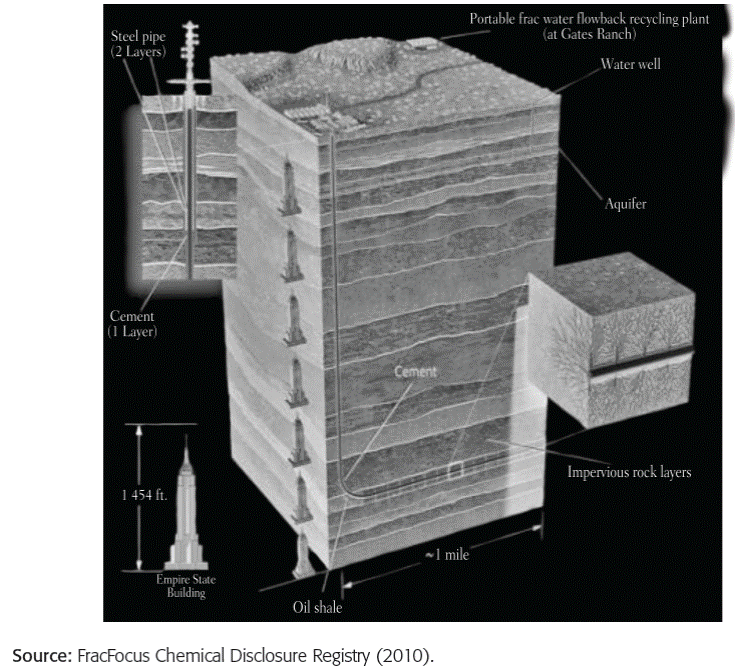

Figure 5 Hydraulic Fracturing Scheme of Shale Gas

Other factors to consider in the exploitation and extraction of shale gas are the intensive transfer of supplies and equipment to battery production, emissions from mobile sources, the levels of road traffic noise, disruption in the environment, and seismicity due to the fracking technique. It is fundamental, therefore, to establish adequate protection and control of the drilling sites. Since the useful life of the wells is shorter, it is necessary to maintain more intensive production-level drilling, which involves greater delivery capacity. This approach has been favored in the United States due to the availability of comprehensive infrastructure for natural gas including an extensive network of pipelines, underground storage, and liquefied natural gas. U.S. companies use intensive infrastructure for the production of this resource, which facilitates the exploitation, transformation, and transportation of shale gas resources.

The Energy Information Administration defines economically recoverable resources as those "that can be profitably produced under current market conditions" (EIA, 2013). The economic recoverability of oil and gas resources rest on three factors: the expense of drilling and completing wells, the quantity of oil or natural gas obtained from an average well over its lifetime, and the prices recovered from oil and gas production. Current experience with shale gas in the U.S. and other countries shows that economic recoverability may be considerably influenced by above-ground aspects along with geology. The main positive above-ground benefits in the United States and Canada include private ownership of sub-surface rights, which provide solid encouragement for development; obtainability of numerous independent operators and supporting contractors with relevant expertise and appropriate drilling rigs; pre-existent gathering and pipeline infrastructure; and the availability of water resources for use in hydraulic fracturing.

Also, the oil industry has been able to meet the specific needs of shale gas production in the field of logistics and support services, such as horizontal drilling equipment, pumping equipment, water treatment, trucking for freight and equipment, and water and injected fluids (see Graph 8). According to Enerdata's Global Energy Statistical Yearbook 2014, the United States ranks third in crude oil production, followed by Canada in sixth place, and Mexico in tenth.

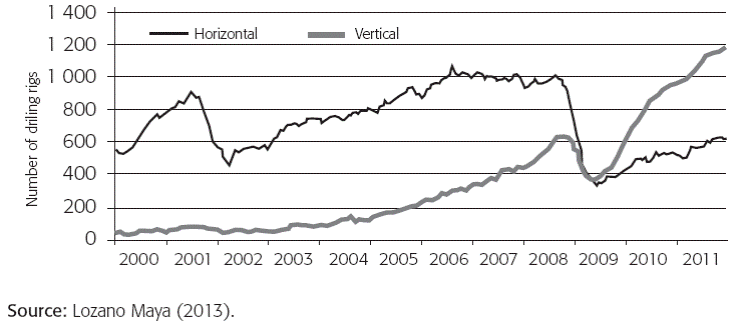

Graph 8 U.S. Rotary Drilling Rig Count for Oil and Gas Production by Type (2000-2011)

In the United States, production of shale gas and, more specifically, the environmental effects of hydraulic fracturing, had not been subject to federal regulation until the March 2015 Department of the Interior drilling rules for federal lands were published. Environmental issues and controversies about water, however, are confined mainly to local authorities. 13 This, coupled with producers' cooperation with the communities where they operate and royalty and pumping payments to citizens whose property they rent, have helped reduce the social resistance compared to other countries -Canada being in one of them- where the environmental factor or social impacts represent the main obstacles to producing shale gas.

Conclusions

Globalization embeds new environmental challenges as global warming and its repercussions have created economic and political concerns with major impacts on energy policies around the world. The United States' economy has adapted to and survived global disruptions in great part due to its ability to innovate. While Russia and China use oil and gas to negotiate geopolitically, the U.S. has turned to shale gas as its twenty-first-century tool of empowerment in energy security. "There has been a tectonic shift in the geopolitics of energy, but it was not the Russia-China gas pipeline deal" (Nye, 2014).

The Obama administration has indicated that shale gas reduces carbon emissions thus helping the environment, yet major concerns exist about methane emissions and water contamination, putting it still a long way from reaching complete green energy development. "With more research and incentives, we can break our dependence on oil with biofuels, and become the first country to have a million electric vehicles on the road by 2015" (White House, 2011:15). It is important to emphasize, nonetheless, that the 2015 regulation of the fracking method in the United States is part of the legitimization of this technique. Despite pressure by environmentalists, shale gas is seen by the U.S. government as an important bridge between conventional energy resources and sustainable development for achieving a greener future in the long run.

The twenty-first-century environmental paradigm has modified international concern regarding the energy industry; even though shale gas is a fossil fuel, U.S. technological developments and regulations allow for a more controlled extraction. President Barack Obama has pointed out with regard to U.S. energy needs, "We have [found] natural gas. But . . . we've got to make sure that we're extracting natural gas safely, without polluting our water supply" (2011). United States industry has improved its performance by using shale gas efficiently, while local shale transportation reduces financial costs, as in the case of the Marcellus Play. Shale gas has become an important contributor to U.S. American economic industrial growth.

A North American energy alliance may increase the level of engagement among Mexico, Canada, and the United States. Geography and economic treaties like nafta already bind these countries together; more importantly, shale gas is found across the North American region. While the three countries have very different legal structures regarding the energy sector, a strategic alliance would transform them into the world's biggest energy region with vast resources and the technology to extract, process, and transport shale gas.

Energy security and shale gas do not represent the end of U.S. involvement in regions like the Middle East or with opec nations, but rather imply a broader range of action on a global scale. Having found a new fossil fuel to complement its energy consumption without being constrained to foreign energy diplomacy, the United States continues to defend its energy position and sustain its values in the international arena. However, it is not a final solution in the U.S. American security portfolio. The importance of shale gas lies in providing the United States enough time to develop and affordable, sustainable strategy. Attaining energy security is not an isolated goal for the U.S.; it is an important part of its geopolitical strategy in the twenty-first century.

Finally, although it might not be the ultimate solution to U.S. energy security, shale gas has provided the country with more time to develop an affordable energy strategy and sustainable alternative technologies in the future. As Joseph Nye has outlined, achieving security is part of a bigger geopolitical shift: economically, shale gas lowers U.S. energy imports and stabilizes the financial market by boosting national energy investments; and, politically, energy independence allows Washington to extend its sphere of influence around the globe. The United States will continue to face off against other nations such as China and Russia as political contenders in the world arena as energy security becomes increasingly more critical in our time.

Acknowledgment

* We gratefully acknowledge the support provided for this project by YaleGlobal at the MacMillan Center for International and Regional Studies at Yale University and the Tecnológico de Monterrey.

Bibliography

Baffes, John, M. Ayhan Kose, Franziska Ohnsorge, and Marc Stocker, 2015, "The Great Plunge in Oil Prices-Causes, Consequences, and Policy Responses," March, Ayhan Kose, Franziska Ohnsorge, and Marc Stocker, 2015, "The Great Plunge in Oil Prices-Causes, Consequences, and Policy Responses," March, http://www.worldbank.org/content/dam/Worldbank/Research/ PRN01_Mar2015_Oil_Prices.pdf , accessed March 26, 2015. [ Links ]

Barlas, Stephen, 2012, "Does the U.S. Really Need an Energy Policy?" January, Really Need an Energy Policy?" January, http://www.highbeam.com/doc/1G1-279139186.html , accessed July 15, 2014. [ Links ]

Baumann, Florian, 2008, "Energy Security as Multidimensional Concept," March, Baumann, Florian, 2008, "Energy Security as Multidimensional Concept," March, http://edoc.vifapol.de/opus/volltexte/2009/784/pdf/CAP_Policy_Analysis_2008_01.pdf , accessed July 24, 2014. [ Links ]

Berman, Arthur , 2012, "U.S. Shale Gas after the Gold Rush: Will Natural Gas Be There When We Need It (and at What Price)?" June, Shale Gas after the Gold Rush: Will Natural Gas Be There When We Need It (and at What Price)?" June, http://www.publicpower.org/files/nationalconference/berman.pdf, accessed July 8, 2014. [ Links ]

Bloomberg Business, 2015, "Energy & Oil Prices," April, Bloomberg Business, 2015, "Energy & Oil Prices," April, http://www.bloomberg.com/energy/ , accessed April 14, 2015. [ Links ]

Buchanan, Patrick, 2011, Suicide of a Superpower , New York, Macmillan. [ Links ]

Caputo, James, 2011, "Shale Plays: Basic Geological and Engineering Concepts ," American Association of Profesional Landmen, Caputo, James, 2011, "Shale Plays: Basic Geological and Engineering Concepts ," American Association of Profesional Landmen, http://www.landman.org/docs/white-papers/ 03-caputo_aapl_shale_play_seminar_part1_final.pdf , accessed August 15, 2014. [ Links ]

Casler, Andrew, 2014 , "Conversation with Bob Howarth: Cornell Climate Change, Methane Expert Formed Opinion after Research," January, Casler, Andrew, 2014 , "Conversation with Bob Howarth: Cornell Climate Change, Methane Expert Formed Opinion after Research," January, http://www.sustainablecampus.cornell.edu/blogs/news/posts/conversation-with-bob-howarth-cornell-climate-change-methane-expert-formed-opinion-after-research , accessed July 30, 2014. [ Links ]

Cathles, L. M., 2012, "Assessing the Greenhouse Impact of Natural Gas," Cornell University, June, , 2012, "Assessing the Greenhouse Impact of Natural Gas," Cornell University, June, http://www.geo.cornell.edu/eas/PeoplePlaces/Faculty/cathles/Natural%20Gas/Assessing%20the%20greenhouse%20impact%20of%20natural%20gas%20FINAL%20UNFORMTTED.pdf , accessed March 20, 2015. [ Links ]

Ceaser, James W., 2012, "The Origins and Character of American Exceptionalism," , 2012, "The Origins and Character of American Exceptionalism," http://www. olisci.wisc.edu/Uploads/Documents/Ceaser.pdf , accessed 8 July, 2014. [ Links ]

Chomsky, Noam, 2006, Failed States: The Abuse of Power and the Assault on Democracy , New York, Henry Holt, Metropolitan Books. [ Links ]

Chong, Jed, and Milana Simikian, 2014 "Shale Gas in Canada: Resource Potential, Current Production and Economic Implications," January, Chong, Jed, and Milana Simikian, 2014 "Shale Gas in Canada: Resource Potential, Current Production and Economic Implications," January, http://www.parl.gc.ca/Content/LOP/ResearchPublications/2014-08-e.htm#a3 , accessed July 6, 2014. [ Links ]

Congressional Budget Office, 2012, "Energy Security in the United States," May, Congressional Budget Office, 2012, "Energy Security in the United States," May, http://cbo.gov/topics/energy-and-natural-resources , accessed July 6, 2014. [ Links ]

David, Victor, 2013, "China's Energy Challenge: Setting the Scene," Program on Energy and Sustainable Development II , Palo Alto, California, Stanford University. [ Links ]

Deloitte, 2012, "Deloitte White Paper: Shale and Renewable Energy," December, Deloitte, 2012, "Deloitte White Paper: Shale and Renewable Energy," December, http://www.slideshare.net/MarcellusDN/deloitte-white-paper-shale-renewable-energy , accessed July 6, 2014. [ Links ]

Dodo, Mahamat K., 2014, "The Securitization of China's Engagement with Africa: EU Energy Security Strategy," Journal of Alternative Perspectives in the Social Sciences , vol. 5, no. 4, pp. 744-774. [ Links ]

The Economist2014, "Why the Oil Price Is Falling," December, The Economist, 2014, "Why the Oil Price Is Falling," December, http://www.economist.com/blogs/ economist-explains/2014/12/economist-explains-4 , accessed April 14, 2015. [ Links ]

The Economist, 2010, "Why Is America So Rich?" November, The Economist, 2010, "Why Is America So Rich?" November, http://www.economist.com/blogs/freeexchange/2010/11/growth , accessed July 22, 2014. [ Links ]

Eland, Ivan, 2004, The Empire Has No Clothes: U.S. Foreign Policy Exposed , Oakland, California, The Independent Institute. [ Links ]

EIA (Energy Information Administration), 2014a, "Drilling Productivity Report," EIA (Energy Information Administration), 2014a, "Drilling Productivity Report," http://www.eia.gov/petroleum/drilling/ , accessed August 15, 2014. [ Links ]

Energy Information Administration 2014b, "Liquid Fuels and Natural Gas in the Americas," February, Energy Information Administration 2014b, "Liquid Fuels and Natural Gas in the Americas," February, http://www.EIA.gov/countries/americas/ , accessed July 13, 2014. [ Links ]

Energy Information Administration 2014c, "Countries Analysis", Energy Information Administration 2014c, "Countries Analysis", http://www.eia.gov/countries/ , August, accessed July 22, 2014. [ Links ]

Energy Information Administration 2014d, "Mexico: Overview" , April, Energy Information Administration 2014d, "Mexico: Overview" , April, http://www.EIA.gov/beta/international/analysis.cfm?iso=MEX , accessed March 8, 2015. [ Links ]

Energy Information Administration2014e, "Marcellus Region Production Continues Growth", August, Energy Information Administration2014e, "Marcellus Region Production Continues Growth", August, http://www.EIA.gov/todayinenergy/detail.cfm?id=17411 , accessed March 8, 2015. [ Links ]

Energy Information Administration 2014f, "Drilling Productivity Report: For Key Tight Oil and Shale Gas Regions" , Energy Information Administration 2014f, "Drilling Productivity Report: For Key Tight Oil and Shale Gas Regions" , http://www.eia.gov/petroleum/drilling/archive/dpr_jun14.pdf , accessed June 23, 2015. [ Links ]

Energy Information Administration 2013a, "North America Leads the World in Production of Shale Gas" , October, Energy Information Administration 2013a, "North America Leads the World in Production of Shale Gas" , October, http://www.EIA.gov/todayinenergy/detail.cfm?id=13491 , accessed July 23, 2014. [ Links ]

Energy Information Administration 2013b, "Technically Recoverable Shale Oil and Shale Gas Resources: An Assessment of 137 Shale Formations in 41 Countries Outside the United States" , June Energy Information Administration 2013b, "Technically Recoverable Shale Oil and Shale Gas Resources: An Assessment of 137 Shale Formations in 41 Countries Outside the United States" , June http://www.eia.gov/analysis/studies/worldshalegas/ , accessed June 26, 2015. [ Links ]

Energy Information Administration 2013c, "International Energy and Data Analysis" , Energy Information Administration 2013c, "International Energy and Data Analysis" , http://www.EIA.gov/countries/ , accessed June 26, 2015. [ Links ]

Energy Information Administration 2011, "Review of Emerging Resources: U.S. Shale Gas and Shale Oil Plays" , July, Shale Gas and Shale Oil Plays" , July, http://www.eia.gov/analysis/studies/usshalegas/pdf/usshaleplays.pdf , accessed June 23, 2015. [ Links ]

Enerdata Global Energy Statistical Yearbook 2014a, "Global Energy Year Book 2014: Natural Gas Production, Soaring Unconventional Gas Production in the USA" , Enerdata Global Energy Statistical Yearbook 2014a, "Global Energy Year Book 2014: Natural Gas Production, Soaring Unconventional Gas Production in the USA" , http://yearbook.enerdata.net/world-natural-gas-production.html , accessed July 2, 2014. [ Links ]

Enerdata Global Energy Statistical Yearbook 2014b,"Natural Gas Domestic Consumption" , Enerdata Global Energy Statistical Yearbook 2014b,"Natural Gas Domestic Consumption" , http://yearbook.enerdata.net/natural-gas-consumption-in-the-world.html , accessed July 6, 2014. [ Links ]

Enerdata Global Energy Statistical Yearbook 2013, "Global Energy Statistical Yearbook 2014: Crude Oil Production" , January, Enerdata Global Energy Statistical Yearbook 2013, "Global Energy Statistical Yearbook 2014: Crude Oil Production" , January, http://yearbook.enerdata.net/#crude-oil-production.html , accessed July 14, 2014. [ Links ]

Energy from Shale Organization , 2013, "Energy from Shale" , Energy from Shale Organization , 2013, "Energy from Shale" , http://www.energyfromshale.org , accessed August 1, 2014. [ Links ]

Energy Tomorrow Organization 2009a, "Gasoline Taxes by State" , January, Energy Tomorrow Organization 2009a, "Gasoline Taxes by State" , January, http://energytomorrow.org/economy/gas-prices/gasoline-taxes-by-state , accessed July 9, 2014. [ Links ]

Energy Tomorrow Organization 2009b, "Oil and Natural Gas Power America's Economy" , March, Energy Tomorrow Organization 2009b, "Oil and Natural Gas Power America's Economy" , March, http://energytomorrow.org/economy , accessed July 26, 2014. [ Links ]

EPA (United States Environmental Protection Agency), 2014, "Overview of Greenhouse Gases: Methane Emissions", EPA (United States Environmental Protection Agency), 2014, "Overview of Greenhouse Gases: Methane Emissions", http://www.epa.gov/climatechange/ghgemissions/gases/ch4.html , accessed August 15, 2014. [ Links ]

Ferguson, Niall, 2012, Colossus: The Rise and Fall of the American Empire . UK, Penguin. [ Links ]

Fitterling, Jim, 2013, "Shale Gas and American Manufacturing: Jobs, Growth and Economic Development" , Vital Speeches of the Day , vol. 6, no. 79, June, pp. 187-190. [ Links ]

Forbes2009, "A Global Break Down of the Recession in 2009" , February, Forbes, 2009, "A Global Break Down of the Recession in 2009" , February, http://www.forbes.com/2009/01/14/global-recession-2009-oped-cx_nr_0115roubini.html , accessed July 20, 2014. [ Links ]

FracFocus Chemical Disclosure Registry, 2010, "Hydraulic Fracturing: The Process," July, FracFocus Chemical Disclosure Registry, 2010, "Hydraulic Fracturing: The Process," July, https://fracfocus.org/hydraulic-fracturing-how-it-works/hydraulic-fracturing-process , accessed June 23, 2015. [ Links ]

Goldwyn, David L., 2014, "Refreshing European Energy Security Policy: How the U.S. Can Help" , March, Can Help" , March, http://www.brookings.edu/research/articles/2014/03/18-european- energy-security-policy-goldwyn , accessed July 6, 2014. [ Links ]

Government of Canada, 2013, "Energy Relations" , October, Government of Canada, 2013, "Energy Relations" , October, http://www.can-am.gc.ca/relations/energy-energie.aspx?lang=eng , accessed July 19, 2014. [ Links ]

Government of Mexico, 2014, "Energy Reform" , Government of Mexico, 2014, "Energy Reform" , http://reformas.gob.mx/en/energy-reform/myths , accessed August 30, 2014. [ Links ]

IHS Global Insight, 2013, "America's New Energy Future: The Unconventional Oil and Gas Revolution and the US Economy Volume 3: A Manufacturing Renaissance" , September, IHS Global Insight, 2013, "America's New Energy Future: The Unconventional Oil and Gas Revolution and the US Economy Volume 3: A Manufacturing Renaissance" , September, http://www.api.org/~/media/Files/Policy/American-Energy/Americas_New_Energy_Future_Mfg_Renaissance_Main_Report_4Sept13.pdf , accessed July 6, 2014. [ Links ]

IHS Global Insight 2012, "America's New Energy Future: The Unconventional Oil and Gas Revolution and the US Economy Volume 1: National Economic Contributions" , October, IHS Global Insight 2012, "America's New Energy Future: The Unconventional Oil and Gas Revolution and the US Economy Volume 1: National Economic Contributions" , October, http://marcelluscoalition.org/wp-content/uploads/2012/10/IHS_Americas-New-Energy-Future.pdf , accessed March 18, 2015. [ Links ]

Independent Petroleum Association of America, 2014 "Oil and Natural Gas Reserves-Definitions Matters" , Independent Petroleum Association of America, 2014 "Oil and Natural Gas Reserves-Definitions Matters" , http://oilindependents.org/oil-and-natural-gas-reserves-definitions-matter/ , accessed August 15, 2014. [ Links ]

Independent Petroleum Association of America 2011, "The Economic Contribution of the Onshore Independent Oil and Natural Gas Producers to the U.S. Economy" April, Economy" April, http://www.ipaa.org/wp-content/uploads/downloads/2012/03/IHSFinalReport.pdf , accessed March 21, 2015. [ Links ]

International Energy Agency 2011 "Are We Entering a Golden Age of Gas?" June, International Energy Agency 2011 "Are We Entering a Golden Age of Gas?" June, http://www.worldenergyoutlook.org/media/weowebsite/2011/GAS_Launch_London_June.pdf , accessed July 7, 2014. [ Links ]

International Energy Agency 2007 "Report: United States" , January, International Energy Agency 2007 "Report: United States" , January, http://www.iea.org/statistics/statisticssearch/report/?country=USA=&product=naturalgas&year=Select , accessed July 11, 2014. [ Links ]

International Monetary Fund, 2013, "Repunte gradual del crecimiento mundial en 2013" , January, International Monetary Fund, 2013, "Repunte gradual del crecimiento mundial en 2013" , January, https://www.imf.org/external/spanish/pubs/ft/weo/2013/update/01/pdf/0113s.pdf , accessed July 24, 2014. [ Links ]

Isenberg, David, 2008ª, Hard Look at China's Soft Power," May, Isenberg, David, 2008ª, Hard Look at China's Soft Power," May, http://www.cato.org/publications/ commentary/hard-look-chinas-soft-power , accessed July 11, 2014. [ Links ]

Jackson, Robert, Brooks Rainey Pearson, Stephen G. Osborn, Nathaniel R. Warner, and Avner Vengosh, 2011, "Research and Policy Recommendations for Hydraulic Fracturing and Shale-Gas Extraction", Warner, and Avner Vengosh, 2011, "Research and Policy Recommendations for Hydraulic Fracturing and Shale-Gas Extraction", https://nicholasinstitute.duke.edu/sites/default/files/publications/researchandpolicyrecommendationsforhydraulic-fracturingandshale2010gasextraction-paper.pdf , accessed June 23, 2015. [ Links ]

Jacoby, Henry D., Francis M. O'Sullivan, and Sergey Paltsev, 2012, "The Influence of Shale Gas on U.S. Energy and Environmental Policy" , International Association for Energy Economics, Energy and Environmental Policy" , International Association for Energy Economics, http://www.iaee.org/eeep/EEEP01_01_A05_Jacoby-EPUB/eeepissue.aspx , accessed June 23, 2015. [ Links ]

Johnson, Chalmers, 2007, Nemesis: The Last Days of the American Republic ,. New York, Macmillan [ Links ]

Jones, Toby, 2012, "America, Oil, and War in the Middle East" , June, Jones, Toby, 2012, "America, Oil, and War in the Middle East" , June, http://jah.oxfordjournals.org/content/99/1/208.full , accessed July 1, 2014. [ Links ]

Klare, Michael, 2007, "The Futile Pursuit of Energy Security by Military Force" , Brown Journal of World Affairs vol. 1, no. 1, pp. 130-200. [ Links ]

Laruelle, Marle, and Sebastian Peyrouse, 2013, Globalizing Central Asia: Geopolitics and the Challenges of Economic Development , Armonk, New York, Elliot School of International Affairs. [ Links ]

Lavalle, Marianne, 2012, "Methane: Good Gas, Bad Gas" , December, Lavalle, Marianne, 2012, "Methane: Good Gas, Bad Gas" , December, http://ngm.nationalgeographic.com/2012/12/methane/lavelle-text , accessed August 10, 2014. [ Links ]

Lozano Maya, Juan Roberto, 2013, "The United States Experience as a Reference of Success for Shale Gas Development: the Case of Mexico," Lozano Maya, Juan Roberto, 2013, "The United States Experience as a Reference of Success for Shale Gas Development: the Case of Mexico," http://aperc.ieej.or.jp/publications/papers/journal_articles/The_US_experience_as_a_Reference_Lozano_Maya.pdf , accessed July 2, 2014. [ Links ]

Luft, Gal, 2014a, "What Does America's Energy Revolution Mean for China?" February, Oxford Energy Forum , no. 95, at 95, at http://www.iags.org/Luft_Oxford.pdf , consulted July 2, 2014. [ Links ]

Luft, Gal 2014b. "Hard Truths, Difficult Choices: Recommendations to the G-7 on Bolstering Energy Security" , May, Institute for the Analysis of Global Security, "Hard Truths, Difficult Choices: Recommendations to the G-7 on Bolstering Energy Security" , May, Institute for the Analysis of Global Security, http://www.iags.org/G7energysecurityreport.pdf , accessed July 3, 2014. [ Links ]

Luft, Gal 2014c The Sino-Russian Gas Deal" , May, Luft, Gal 2014c The Sino-Russian Gas Deal" , May, http://www.ensec.org/index.php?option=com_content&view=article&id=551:sino-russian-gas-deal&catid=143:issue-content&Itemid=435 , accessed July 8, 2014. [ Links ]

Luft, Gal 2011. "Changing Energy Markets and U.S. National Security" , December, National Security" , December, http://www.iags.org/HFC-Energy_Dec2011.pdf , accessed July 5, 2014. [ Links ]

McCallum, John S., 2011, "Canadian Executive, The Canadian Economy and U.S. Job Growth" , February, Job Growth" , February, http://iveybusinessjournal.com/departments/viewpoint/canadian-executives-the-canadian-economy-and-u-s-job-growth#.VAnvocV5Mmt , accessed July 6, 2014. [ Links ]

McFarlane, Robert C., 2012 "A Flex-Fuel Mandate Is Pro Market" , The Wall Street Journal , March, , 2012 "A Flex-Fuel Mandate Is Pro Market" , The Wall Street Journal , March, http://online.wsj.com/news/articles/SB10001424052970204653604577251722168929822 , accessed July 12, 2014. [ Links ]

McFarlane, Robert C., and George Olah, 2013, "Let the Market Decide Our Energy Sources" , March, Financial Times , , and George Olah, 2013, "Let the Market Decide Our Energy Sources" , March, Financial Times , http://www.usesc.org/energy_security/ft030313.pdf , accessed July 11, 2014. [ Links ]

Murkowski, Lisa, 2014 "Powering the Future" February, United States Senate, Murkowski, Lisa, 2014 "Powering the Future" February, United States Senate, http://www.energy.senate.gov/public/index.cfm/files/serve?File_id=3c485574-7d19-4ee9-ae0e-c7e8f986032e , accessed March 18, 2015. [ Links ]

Murkowski, Lisa 2013 "Energy 20/20" February, United States Senate, Murkowski, Lisa 2013 "Energy 20/20" February, United States Senate, http://www.energy.senate.gov/public/index.cfm/files/serve?File_id=099962a5-b523-4551-b979-c5bac6d45698 , accessed March 22, 2015. [ Links ]

Myers, A., B. Kenneth, and Peter R. Hartley, 2011 "Shale Gas and U.S. National Security" , July, Energy Forum , James Baker III Institute for Public Policy, Rice University, National Security" , July, Energy Forum , James Baker III Institute for Public Policy, Rice University, http://bakerinstitute.org/files/ 496/ , accessed March 18, 2015. [ Links ]

Nye, Joseph, 2014, "Shale Gas Is America's Geopolitical Trump Card" , June, Nye, Joseph, 2014, "Shale Gas Is America's Geopolitical Trump Card" , June, http://online.wsj.com/articles/joseph-nye-shale-gas-is-americas-geopolitical-trump-card- 1402266357 , accessed July 4, 2014. [ Links ]

Obama, Barack, 2015, "Remarks by the President on Energy and Climate Change" , March, Obama, Barack, 2015, "Remarks by the President on Energy and Climate Change" , March, https://www.whitehouse.gov/the-press-office/2015/03/19/remarks-president-energy-and-climate-change , accessed April 14, 2015. [ Links ]

Obama, Barack 2011, "Remarks by the President on America's Energy Security" , March, Obama, Barack 2011, "Remarks by the President on America's Energy Security" , March, http://www.whitehouse.gov/the-press-office/2011/03/30/remarks-president-americas-energy-security , accessed July 16, 2014. [ Links ]

OCDE (Organization for Economic Co-operation and Development) 2011, "R&D Tax Incentives, Direct Support and Business R&D Intensity" , OCDE (Organization for Economic Co-operation and Development) 2011, "R&D Tax Incentives, Direct Support and Business R&D Intensity" , http://www.oecd.org/innovation/rd-tax-stats.htm , accessed July 9, 2014. [ Links ]

Organization for Economic Co-operation and Development 2007, "Energy Policies of the IEA Countries: The United States 2007 Review" , January, Organization for Economic Co-operation and Development 2007, "Energy Policies of the IEA Countries: The United States 2007 Review" , January, http://www.iea.org/publications/freepublications/publication/us2007. pdf , accessed July 13, 2014. [ Links ]

Organization of the Petroleum Exporting Countries, 2013, "OPEC: Brief History" , January, Organization of the Petroleum Exporting Countries, 2013, "OPEC: Brief History" , January, http://www.opec.org/opec_web/en/about_us/24.html , accessed July 20, 2014. [ Links ]

Perlez, Jane, 2014, "China-Russia Reach 30-Year Gas Deal" , May, The New York Times Perlez, Jane, 2014, "China-Russia Reach 30-Year Gas Deal" , May, The New York Times http://www.nytimes.com/2014/05/22/world/asia/china-russia-gas-deal.html?_r=0 , accessed August 28, 2014. [ Links ]

Petras, James, 2014, The Politics of Empire: The U.S., Israel and the Middle East , New York, Clarity Press. [ Links ]

Pollina, R. , 2010, Selling Out a Superpower: Where the U.S. Economy Went Wrong , Amherst, New York, Prometheus Book. [ Links ]

Posner, Rachel, 2014, "DoD Program: DoD Releases Comprehensive Energy Policy" , April, United States Department of Defense, Posner, Rachel, 2014, "DoD Program: DoD Releases Comprehensive Energy Policy" , April, United States Department of Defense, http://energy.defense.gov/Blog/tabid/2569/ Article/8676/dod-releases-comprehensive-energy-policy.aspx , accessed July 11, 2014. [ Links ]

Roubini, Nouriel, 2009, "A Global Break Down of the Recession in 2009" , January, Forbes, Roubini, Nouriel, 2009, "A Global Break Down of the Recession in 2009" , January, Forbes, http://www.forbes.com/2009/01/14/global-recession-2009-oped-cx_nr_0115roubini.html , accessed July 4, 2014. [ Links ]

Schmidt, Charles W., 2011, "Blind Rush?: Shale Gas Boom" , Proceeds amid Human Health Questions August, jstor. A348-A353, A348-A353, http://www.jstor.org/stable/41233450 , accessed August 15, 2014. [ Links ]

Shultz, George P., 2013, "The North American Global Powerhouse" , July, , 2013, "The North American Global Powerhouse" , July, http://www.hoover.org/research/north-american-global-powerhouse , accessed March 18, 2015. [ Links ]

SIPRI (Stockholm International Peace Research Institute), 2013, "SIPRI Military Expenditure Database" , SIPRI (Stockholm International Peace Research Institute), 2013, "SIPRI Military Expenditure Database" , http://www.sipri.org/research/armaments/milex/milex_database/milex_database , accessed July 14, 2014. [ Links ]

Standard and Poor's Rating Services, 2012, "How the Marcellus Shale Is Changing the Dynamics of the U.S Energy Industry" , October, Standard and Poor's Ratings Direct, S Energy Industry" , October, Standard and Poor's Ratings Direct, http://www.clermontwealth.com/pdf/SP%20Report-%20Marcellus%20Shale%20A%20Game%20Changer.pdf , accessed July 14, 2014. [ Links ]

UNIDO (United Nations Industrial Development Organization), 2013, "Industrialized Countries Still Top Performance Index, According to New unido Report" , September, UNIDO (United Nations Industrial Development Organization), 2013, "Industrialized Countries Still Top Performance Index, According to New unido Report" , September, http://www.unido.org/news/press/industrialized-t.html , accessed July 17, 2014. [ Links ]

United States Census Bureau, 2014, "U.S. and World Population Clock" , September, and World Population Clock" , September, http://www.census.gov/popclock/ , accessed July 25, 2014. [ Links ]

United States Department of Energy, 2012, "Producing Natural Gas from Shale" , January, United States Department of Energy, 2012, "Producing Natural Gas from Shale" , January, http://energy.gov/articles/producing-natural-gas-shale , accessed August 15, 2014. [ Links ]

United States Department of Energy 2009, "Modern Shale Gas Development in the United States: A Primer" , United States Department of Energy 2009, "Modern Shale Gas Development in the United States: A Primer" , http://energy.gov/sites/prod/files/2013/03/f0/ShaleGasPrimer_Online_4-2009.pdf , accessed June 23, 2015. [ Links ]

United States Energy Security Council, 2014, "Energy Security" , United States Energy Security Council, 2014, "Energy Security" , http://www.usesc.org/energy_security/ , accessed July 13, 2014. [ Links ]

United States Energy Security Council 2013, "Fuel Choice for American Prosperity" , June, United States Energy Security Council 2013, "Fuel Choice for American Prosperity" , June, http://www.iags.org/fuelchoices.pdf , accessed July 18, 2014. [ Links ]

Visiongain, 2014, "Shale Gas Market 2014-2024: Expenditure Forecasts for Key Markets, Plays and the Prospects for Leading Companies" , Visiongain, 2014, "Shale Gas Market 2014-2024: Expenditure Forecasts for Key Markets, Plays and the Prospects for Leading Companies" , https://www.visiongain.com/Report/1313/Shale-Gas-Market-2014-2024 , accessed September 6, 2014. [ Links ]

Walt, Stephen, 2006, Taming American Power: The Global Response to U.S. Primacy UK, Norton. [ Links ]

Warrick, Joby, 2015, "Obama Administration Tightens Federal Rules on Oil and Gas Fracking" , March, Warrick, Joby, 2015, "Obama Administration Tightens Federal Rules on Oil and Gas Fracking" , March, http://www.washingtonpost.com/news/energy-environment/wp/ 2015/03/20/obama-administration-tightens-rules-on-oil-and-gas-fracking/ , accessed March 30, 2015. [ Links ]

The White House, 2011, "Blueprint for a Secure Energy Future," March, The White House, 2011, "Blueprint for a Secure Energy Future," March, http://www.whitehouse.gov/ites/default/files/blueprint_secure_energy_future.pdf , accessed July 25, 2014. [ Links ]

Woolsey, James, 2012, "Destroying Oil's Monopoly and opec's Cartel" , Geopolitics of Energy March, Woolsey, James, 2012, "Destroying Oil's Monopoly and opec's Cartel" , Geopolitics of Energy , March, http://www.usesc.org/JRWGeopoliticsofEnergy0312.pdf , accessed July 10, 2014. [ Links ]

World Bank, 2014a, "Gross Domestic Product 2013" , July, World Bank, 2014a, "Gross Domestic Product 2013" , July, http://databank.worldbank.org/data/download/GDP.pdf , accessed July 19, 2014. [ Links ]

World Bank 2014b, "United States Data," World Bank 2014b, "United States Data," http://data.worldbank.org/country/united-states , accessed July 16, 2014. [ Links ]

1The EIA is the principal agency of the U.S. Federal Statistical System responsible for collecting, analyzing, and disseminating energy information to promote sound policymaking, efficient markets, and public understanding of energy and its interaction with the economy and the environment. The EIA is part of the U.S. Department of Energy.

2Proven oil and gas reserves are the quantities of oil and gas that, by analyzing geoscience and engineering data, can be estimated with reasonable certainty to be economically producible from a given date forward, from known reservoirs, and under existing economic conditions, operating methods, and government regulations (Independent Petroleum Association of America, 2014).

3Gross domestic product (GDP) refers to the value of all final goods and services produced within a nation in a given year. Purchasing power parity (ppp) is the use of standardized international dollar price weights to determine the value of goods and services produced in a given economy.

4Capital expenditure or "capex" refers to the money spent by a company to acquire or upgrade physical assets such as property, industrial buildings, and equipment. This tends to be a very large expense for companies with significant manufacturing facilities.

5Basins with assessed shale oil and gas formations are a bounded area where the rock boundaries dip inward toward the center and have an official estimate amount of shale oil and/or gas.

6Viable natural gas from an economic perspective is the natural gas that has a long-term survival and is able to provide sustainable profits over a period of time.

7A quarter of Canada's gdp is represented by exports to the U.S., and key industries such as car and truck manufacturing are integrated across North America for all practical purposes. Canadian and U.S. capital markets are inextricably linked through institutional arrangements, fund flows, interest rates, exchange rates, and stock markets (McCallum, 2011).

8Petróleos Mexicanos (Pemex) is Mexico's largest company and one of the biggest in Latin America. In 2012, total revenues amounted to Mex$1.647 trillion (US$125 billion), earning a net operating income of Mex$905 billion (US$69 billion), and investment reached Mex$311 billion (US$24 billion) (Pemex, 2014).

9The Henry Hub price refers to spot and future natural gas prices set at the Henry Hub gas distribution pipeline in the United States, denominated in $/mmbtu (millions of British thermal units) and normally seen as the primary price set for the North American natural gas market. North American unregulated wellhead prices are closely correlated to those set at Henry Hub.

10During the 2008 economic crisis, oil prices dropped by over two-thirds since their peak in July of that year. Slower economic activity brought less demand for oil, and this was sufficient to completely reverse the market.

11Shale gas can be found in fine-grained sedimentary rocks including sandstone, limestone, and shale.

12The U.S. Environmental Protection Agency stipulates that certain greenhouse gases create more global warming than others. These are defined with two specific characteristics: 1) the global warming potential (gwp), or how well the gas absorbs energy in a 100-year lapse; 2) how long it remains in the atmosphere. For example, carbon dioxide has a gwp of 1 and methane of 21, which means that methane has 21 times the warming effect as CO2 over 100 years.

13The Department of the Interior rules apply only to oil and gas drilling on federal lands, or about a quarter of the country's current fossil-fuel output. At least four times as many fracking operations are carried out on private or state land, where they are subject to local regulations, ranging from stringent to non-existent

Creative Commons License This is an open-access article distributed under the terms of the Creative Commons Attribution License
