2.1 Investigation of pathological manifestations

The systematization of investigation practices and the gathering of pathological manifestation information in building façades has been studied for a long time and by many authors (^{Mazer et al, 2016}; ^{Romero et al, 2011}; ^{Japiassú et al, 2014}; ^{Galletto, Andrello, 2013}).

According to ^{Gomide (2006)}, the façade inspections begin with in loco visual investigations of the damaged areas physical conditions. Such exams provide fundamental technical information to the inspection and assist in determining the problem cause and indicating its solution. In addition, the author states that such data collections are complicated due to approximated viewing difficulties of all the façade areas, recommending the utilization of additional technical procedures in the inspection.

In this type of situation, it becomes necessary to take advantage of other resources that may allow a meticulous visualization required for the data collection, whether they are direct or indirect. The mapping with tests consists on direct data collection with annotation in the blueprints of the damaged areas through the observation, by percussion, when descending along the façade, in a Bosun’s chair or suspended scaffold. The indirect resource usually used in this type of investigation consists in photographically mapping the façade (^{Gomide, 2006}). Another usable indirect resource is the façade thermographic mapping analysis.

2.2 Thermography principles

Thermography is a nondestructive and noninvasive inspection technique that has its base on the detection of infrared radiation naturally emitted by the bodies with intensity proportional to its temperature. This technique enables the identification of regions, or points, where the temperature is altered in relation to a preestablished pattern. It is based on the measurement of electromagnetic radiation emitted by a body in a temperature above absolute zero (^{Bauer, 2013}).

The technique may be classified in active and passive according to the thermal excitation used. For the passive thermography, a natural temperature differential between the sample and the current environment is necessary, that is, no artificial thermal stimulation is used. For the active thermography, an external stimulus is imperative to induce the thermal contrasts between the sample and the environment (^{Maldague, 2001}; ^{Bauer, 2013}).

The infrared radiation cannot be detected by the human eye; therefore, the infrared camera has the function of acquiring and processing data, presenting images that describe the temperature variations in the target objects (^{FLIR, 2012}).

The radioactive properties of objects generally are described in relation to a perfect black-body, that is, a perfect emitter/absorber of radiant energy. In the real world, there are no perfect emitter/absorber objects; however, it is possible to find objects with properties that are really close to those characteristics (^{FLIR, 2012}).

Considering that the energy emitted by a perfect black-body is denoted by W _bb and that the energy emitted by a regular object in the same temperature is denoted by W _obj , the relation between these two values describes the object emissivity ε, as indicated in (1).

Therefore, the emissivity is a value that varies from 0 to 1 and the better are the radiant object properties, the higher its emissivity is.

An object that has the same emissivity in all the wave-lengths is called a grey-body. The emission energy (W) of these bodies is determined by the Stefan-Bolzmann Law, presented in (2):

Where ε is the object emissivity, σ is the Stefan-Boltzmann constant and T is the temperature. Besides the object radiation in analysis, the camera lenses receive radiations from the surrounding environment that are reflected in the object surface. These two radiation components are attenuated by the atmosphere that also absorbs and emits in its own way part of the radiation (^{FLIR, 2012}).

Given the previous premises, the total received radiation (W _tot ) by the camera may be written as follows in (3):

Where ε is the object emissivity, τ is the transmission through the atmosphere, W _amb is the effective energy from the surrounding object environment (or the energy reflected by the environment) and W _atm is the energy present in the atmosphere between the object and the camera.

2.3 Thermographic techniques in the façade investigation

The growing utilization of the infrared thermography in civil construction is intrinsically related to the fact that it is a nondestructive test, presenting itself as a great diagnostic tool (^{Soares, 2014}).

With the infrared thermography it is only possible to detect anomalies associated to measurable modifications of the thermal characteristics, such as heat flow and resulting temperatures, and pathological manifestations with limited depths, in other words, close to surface (^{Pavón, 2015}).

Laboratory studies demonstrate that adherence failures or mortar absence behind the ceramic claddings are easily identifiable through thermography, presenting superior superficial temperatures during the positive heat flow period than in the surrounding area, and inferior superficial temperatures during the negative heat flow period (^{Bauer et al, 2015}).

In a study by ^{Edis et al. (2014)}, it was demonstrated that it is also possible to identify areas with the presence of confined moisture under the ceramic claddings. This situation is configurated by the identification of anomalies in superficial temperatures of the suspected areas in ceramic claddings during the positive heat flow, characteristics of detachment problems or of areas with presence of moisture.

For the case of façades coated with mortar and painting/texture, it is possible to identify other types of pathological manifestation such as fissures and moisture. Fissures are frequently associated with the presence of moisture, and the extension of affected areas is easily identifiable during the day, because water evaporation causes a reduction in superficial temperature within these regions. Similarly, the presence of moisture in masonry walls and concrete structures due to capillarity is also easily identifiable during the positive heat flow period (^{Pavon, 2015}).

^{Menezes et al (2015)} performed inspection campaigns of several anomalies using visual inspections, thermography, percussion tests, karsten tube and hygrometer tests in order to formulate a field methodology for investigating the pathological manifestations in claddings. As a result of the study, it was verified that the visual inspections together with qualitative thermography were sufficient in the fast identification of most of the found anomalies, especially for allowing the inspection of places with difficult access.

In civil construction, a temperature variation from 1ºC to 2ºC is usually an indicative or a suspicion of problem existence. Over 4ºC it is possible to affirm the existence of abnormality in the body (^{Maldague e Marinetti, 1996}; ^{Cortizo et al., 2008}).

For ^{Bauer (2013)}, the main influences in the results of quantitative thermographic inspections are in the material emissivity, which is function of the superficial temperature and of the observation angle; in the surface reflectivity, function of the direct incident radiation and of the radiation of close objects; and in the atmospheric mitigation, function of the meteorological conditions.

3.1 Infrared camera specification

A FLIR infrared camera (thermal imager), model E60, was used during the inspections. The camera personalized calibration parameters consist on emissivity, ambient temperature, reflected temperature, air relative humidity and distance to the object.

The equipment technical main specifications are presented in Board 1:

3.2 Exploratory study and definition of study areas

The exploratory study consisted in the visual and thermographic inspection of the blocks B and C façades of the Ecoville headquarters of the Federal Technological University of Parana - UTFPR. The choice study areas was made during the morning period through visual inspections of the existing anomalies in the façades, and also qualitative thermographic inspections to identify the temperature gradients in different regions of a same material, setting the device using the standard emissivity parameter of concrete (ε=0.95) and the parameters of ambient temperature (20ºC) and air relative humidity (70%). During inspection, the climate conditions were stable, without the presence of rain, partially cloudy and without the occurrence of wind.

The façade cladding systems found in the exploratory study consisted of external concrete brick masonry with white paint (IJ Block); external concrete brick masonry, mortar plaster and light gray acrylic texture (Blocks A, B and C); and ceramic cladding applied over mortar plaster (Blocks B and C).

Bellow, boards will be presented together with pictures and thermograms obtained in the exploratory study followed by a brief description of the interferences, found thermal anomalies and possibly associated pathological manifestations.

In Figure 1 is presented the study area 1, defined in the Block C façade, along with its region thermogram.

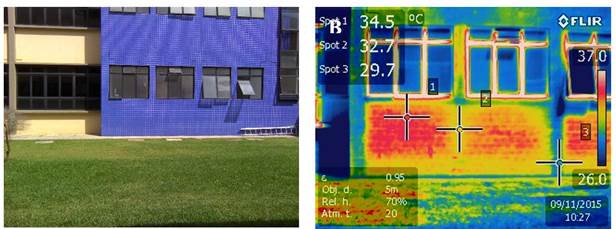

Figure 1 A) Block C façade constituting the study area B) Thermogram of study area 1.

Points with damaged grout joints between the ceramic tiles around the window framing region were identified in the visual exam of study area 1 presented in Figure 1A.

Additionally, the percussion test detected hollow sounds in wall parts and window framing regions. Figure 1B shows a thermogram where it is possible to identify thermal anomalies in part of the façade executed with ceramic tiles during the positive heat flow in region with direct exposure to solar irradiation during the morning period.

The visual inspection performed in study area 2, presented in Figure A, verified the existence of fissures in the cladding. Additionally, the percussion test detected hollow sounds along the entire fissure region and bellow the fissure.

In the thermogram presented in Figure 2B it is possible to identify a thermal anomaly in part of the façade during a positive heat flow period in region with no direct exposure to solar irradiation during the morning period. The characteristic anomaly from the presence of moisture identified by the thermogram, together with the presence of a fissure in the cladding and the coating detachment, infers the presence of moisture in the inferior region, between the mortar plaster and the concrete brick masonry.

Figure 2 A) Part of Block C façade consisted of light gray acrylic texture over mortar plaster. B) Thermogram of study area 2.

In study area 3, shown in Figure 3A, it is possible to observe block B lateral façade executed with light gray acrylic texture over mortar plaster applied in a concrete brick masonry during the positive heat flow period in a region with no direct exposure to solar irradiation during the morning period.

Figure 3 A) Block B lateral façade. B) Thermogram of study area 3.

In the thermogram presented in Figure 3B it is possible to observe a thermal anomaly in the interface region between the concrete brick masonry and the structural beam above, which is a characteristic of moisture presence. Likewise, it is possible to identify the structural elements, concrete tie beams that hold the concrete brick masonry walls and the more elevated temperature in the roof parapet wall region exposed to solar irradiation.

3.3 Determination of the thermal imager calibration parameters

Once the study areas were defined, field tests were carried out to determine the emissivity of the materials found. The tests consisted in determining the emissivity of the façade materials by comparing their surface temperatures with the temperatures of a material with known emissivity and in thermal stability with the analyzed surface.

For the material emissivity determination tests, pieces of black insulating tape adhered to the surface were used. The configuration parameters set for the thermal imager were:

The test consisted in measuring the surface temperature of the insulation tape, thermally stable with the surface indicated by point A, followed by the measurement of temperature in the material region to be analyzed, indicated by point B, modifying the emissivity parameter of the thermal imager until the temperature indicated at point B is equal to the temperature measurement indicated on the insulating tape surface. Figure 4 shows the calibration performed on the thermal imager for a ceramic cladding.

Figure 4 Ceramic cladding emissivity determination.

This procedure was performed for all claddings found in the study areas. The emissivity values found are presented in Table 1.

As the emissivity parameter used in the exploratory study was fixated, the thermographic inspection of this stage was qualitative, since the absolute temperature values of the surfaces did not reflect their real values. Nevertheless, the thermograms obtained in the exploratory study were entirely able to identify temperature gradients characteristic of the thermal anomalies in the inspected regions.

3.4 Confirmatory studies with the thermal imager

The confirmatory study sought to obtain complementary information on the heat flow dynamics of the study areas 1, 2 and 3 surfaces in order to confirm the preliminary suspicions about the potential pathological manifestations observed.

On the evening of the same day, the thermal imager was used in the study areas with a quantitative character, setting the equipment with the emissivity parameter obtained in Table 1 and the parameters of ambient temperature (22° C) and relative air humidity (88%).

Figure 5 shows the exploratory and confirmatory study thermograms of the study area 1.

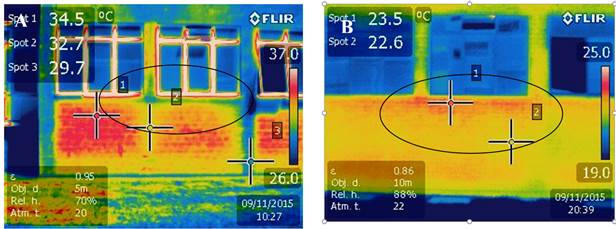

Figure 5 A) Exploratory study thermogram. B) Confirmatory study thermogram.

In the confirmatory study of study area 1, presented in Figure 5B, it is possible to identify a thermal anomaly that may be associated to a possible detachment with presence of moisture below the ceramic cladding in the window framing region, since the presence of moisture in the region has the characteristic of maintaining higher temperatures in the thermograms during the negative heat flow period in comparison to the unaffected region. This hypothesis is reinforced by the identification of points with damaged grout between the ceramic tiles in the window region. It is also possible to observe in the exploratory study thermogram, shown in Figure 5A, that during the positive heat flow period the temperatures in the window framing regions are smaller due to water evaporation.

A fissure was observed in the cladding of study area 2, as presented by the thermograms shown in Figure 6.

Figure 6 A) Exploratory study thermogram. B) Confirmatory study thermogram.

In the exploratory study thermogram, shown in Figure 6A, it is possible to observe the existence of a thermal gradient in the lower part of the façade and a diagonal line, with temperatures lower than the central part of the façade. In the confirmatory study thermogram, illustrated in Figure 6B, it is possible to verify the existence of the diagonal fissure, marked by point 1, and the region with mortar plaster detachment together with moisture presence marked by point 2, with a higher temperature due to the ability water has of retaining heat during negative heat flow periods when compared to that of cladding materials.

The exploratory and confirmatory study thermograms of study area 3 are presented in Figure 7.

Figura 7 A) Exploratory study thermogram. B) Confirmatory study thermogram.

In the exploratory study shown in Figure 7A, it is possible to observe the existing temperature variation, indicating lower temperatures in regions close to beams. In Figure 5B, obtained from the last floor interior, it is possible to observe a thermal anomaly in the region of the interface region between the concrete brick masonry and the structural beam above. The presence of moisture was evident in the interior of the building due to mold presence on walls in the humid region identified by the thermogram.

In addition, a visual inspection was carried out in the external region, due to the possibility of access by the fire scape ladder, from where it was verified the presence of a fissure in the entire extension of the interface region between the concrete brick masonry and the structural beam above in the affected region, thus allowing water infiltration into the building.
