Sediment geochemistry of marine shallow-water hydrothermal vents in Mapachitos, Bahía Concepción, Baja California peninsula, Mexico



Geoquímica de sedimentos de ventilas hidrotermales submarinas someras en Mapachitos, Bahía Concepción, península de Baja California, México



María Luisa Leal Acosta¹*, Evgueni Shumilin¹, and Nicolai Mirlean²



¹ Centro Interdisciplinario de Ciencias Marinas, Avenida IPN s/n, Col. Playa Palo de Santa Rita, Apdo. Postal 592, La Paz, Baja California Sur, Mexico.*maluleal40@yahoo.com.mx

² Laboratorio de Oceanografia Geologica, Instituto de Oceanografia, Universidade Federal do Rio Grande, Av. Italia, km-08, Campus Carreiros, Rio Grande, Rio Grande do Sul, Brasil.



Manuscript received: December 7, 2010
Corrected manuscript received: March 15, 2012
Manuscript accepted: March 22, 2012



ABSTRACT

The objective of this study was to determine the influence of marine shallow-water hydrothermal systems in Mapachitos, bahia Concepcion, on the composition of surficial sediments in the surrounding area of this bay. The following elements Al, As, Ba, Ca, Cd, Co, Cs, Cu, Fe, Hg, Li, Mn, Mo, Ni, Rb, S, Ti, U, V, Zn, C_org, and C_inorg were determined in sediment samples. The calculated CaCO₃ values in the sediments within some spots of the study area were as high as 90% (with an average of 61 %). The concentration of organic carbon in the sediments was approximately 1%. The total element contents in the sediments were compared with Earth's crustal average, and enrichment factors (EF) were calculated using Al as normalizing element. The results showed that the most of the elements (Ba, Co, Cs, Cu, Fe, Li, Mn, Ni, Rb, Ti, U, V, and Zn) are conservative, with average EF close to unity. Lithium, mollybdenum and uranium were enriched in the sediments with average values of EF between 2 and 10. The highest average EF determined in the study were for the following elements: As, Ca, Cd, and Hg. The average concentrations of potentially toxic elements in the sediments from the Mapachitos vents were 60 mg kg^-1 for As, and 21849 µg kg^-1 for Hg. The surface sediments of the adjacent area, however, have low average concentrations for As and Hg: 3.7 mg kg^-1 and 52 µg kg^-1, respectively. Other elements such as Cd (0.9 mg kg^-1) and Ca (28.3%) are highly enriched in the sediments of the study area, comparing to their average crustal abundances. The results of Principal Component Analysis allowed to determine three factors which explain 91% of data variance, as well as to differentiate four associations including terrigenous elements, calcareous components, elements of the hydrothermal origin and redox-sensitive elements in the surface sediments off the Mapachitos in the north-western portion of bahia Concepcion. Furthermore, the results confirmed the influence of the hydrothermal inputs of some trace elements on the sediments of the area surrounding the vents, in particular As and Hg, and to a lesser extent Al, Fe, and Mn at the venting site.

Key words: marine shallow-water hydrothermal systems, trace elements, marine sediments, bahia Concepcion, Baja California Sur, Mexico.



RESUMEN

El objetivo de este estudio fue determinar la influencia de las ventilas hidrotermales someras en Mapachitos, Bahía Concepción, en la composición de los sedimentos superficiales del área circundante de esta bahía. Los siguientes elementos Al, As, Ba, Ca, Cd, Co, Cs, Cu, Fe, Hg, Li, Mn, Mo, Ni, Rb, S, Ti, U, V, Zn, C_orgy C_inorgfueron determinados en muestras de sedimentos. Los valores de CaCO₃ calculado en los sedimentos dentro de algunospuntos del área de estudio son tan altos como 90% (con un promedio de 61%). La concentración de carbono orgánico en los sedimentosfue aproximadamente 1%. Los contenidos totales de los elementos fueron comparados con las abundanciaspromediospara la corteza continental, y los factores de enriquecimiento (EF) fueron calculados usando Al como elemento normalizador. Los resultados demostraron que la mayoría de los elementos (Ba, Co, Cs, Cu, Fe, Li, Mn, Ni, Rb, Ti, U, V, y Zn) son conservativos, con promedios de EF cercanos a la unidad. El litio, el molibdeno y el uranio fueron enriquecidos en los sedimentos con valorespromedios EF entre 2y 10. Los mayorespromedios de EF en el estudio fueron para los siguientes elementos: As, Ca, Cd y Hg. Las concentraciones promedio de elementos potencialmente toxicos en los sedimentos de las ventilas en Mapachitos, fueron 60 mg kg^-1 para As y 21849 µg kg^-1 para Hg. Los sedimentos superficiales del área adyacente, sin embargo, tienen bajas concentraciones promedios para As y Hg: 3.7 mg kg^-1 y 52 µg kg^-1, respectivamente. Otros elementos tales como Cd (0.1 mg kg^-1) y Ca (64%) son altamente enriquecidos en los sedimentos del área de estudio, comparando sus abundancias promedios con los de la corteza. Los resultados del análisis de Componentes Principales permitieron identificar tres factores los cuales explican el 91% de la varianza de los datos, asi como también diferenciar algunas asociaciones incluyendo elementos terrígenos, componentes calcáreos, elementos de origen hidrotermal y elementos de reducción -oxidación sensibles en los sedimentos superficiales frente a Mapachitos en la porción noroeste de la bahía Concepción. Además, los resultados confirman la influencia de las agregaciones hidrotermales de algunos elementos traza en el área circundante a las ventilas, en particular, As y Hg, y en grado menor Al, Fe y Mn en el sitio de las ventilas.

Palabras clave: Ventilas hidrotermales someras, elementos traza, sedimentos marinos, bahía Concepción, Baja California Sur, México.



INTRODUCTION

Submarine hydrothermal activity is primarily studied at deep-sea high temperature vent systems and typically includes the characterization of the chemistry of hydrothermal fluids, related geological formations, and the chemical and biological transformations that occur within the hydrothermal plumes (Lilley et al., 1995). In the coastal zone this phenomenon is less evident; however, the hydrothermal fluids dispersed in shallow areas are also important sources of trace elements to marine ecosystems (Chester, 2003; Tarasov et al., 2005). Shallow hydrothermal systems at the depth less than 200 m are typically associated with tectonic extensions of the crust (Vidal et al., 1981). Edmond et al. (1979) showed that, for some elements, fluxes of the hydrothermal zone (low-temperature systems) are comparable with, or are greater than, fluxes associated with riverine inputs into the sea. Several studies are focused on the chemical behavior of elements in hydrothermal fluids and formation of minerals (Pichler and Veizer, 1999). The majority of authors agree that marine shallow-water hydrothermal systems could have significant chemical and ecological impacts on surrounding environments. A number of geochemical studies of the hydrothermal influence on shallow ecosystems have already been conducted (Pichler and Veizer, 1999; McCarthy et al., 2005; Price and Pichler, 2005). The principal minerals found close to hydrothermal sources are Fe-oxyhydroxides containing potentially toxic elements such as As (Price et al., 2007). Off the Pacific coast of Mexico, there are hydrothermal vent systems which are related to the tectonic evolution of the upper crust. This type of hydrothermal systems has been identified in Punta Mita (State of Nayarit), bahia Banderas near Puerto Vallarta (State of Nayarit), Punta Banda (State of Baja California) and bahia Concepcion (State of Baja California Sur; Vidal et al., 1981; Kostoglodov and Bandy, 1995; Prol-Ledesma, 2003; Prol-Ledesma et al., 2002; Canet et al., 2003, respectively).

Bahia Concepcion is located in the central part of Baja California Peninsula (Figure 1). This bay is just south of latitude 26°N. It is 23 km long, 3 to 5 km wide, and is parallel to the Gulf of California, to which it is connected in the north by narrow mouth. The climate in this region is semi-arid with maximum temperatures during the summer (june to september) of 32.2° C to 35° C and with minimum temperatures of 6.6 °C during the winter. The rain fall is infrequent (average annual precipitation is approximately 100 to 250 mm) and commonly associated with the occurrence of tropical cyclones during august and september coming from the south (Aschmann, 1959).

The geology around the bay is characterized by a presence of a basement complex of Cretaceous granodiorite and quartz monzonite with small inclusions and roof pendants of older schists. These rocks belong to the Comondu Group and are composed of gabbro stocks with numerous associated diorite dikes and subsequently large tonalite stock (McFall, 1968). The northern portion of the Concepcion peninsula is characterized by El Gavilan and Guadalupe Mn deposits, which consist of Mn oxides (pyrulosite, coronadite, and romanechite), along with dolomite, quartz and barite (Camprubí et al., 2008). The granulometry of surface sediments of the bay has been described by Rodríguez-Meza et al. (2009) and Gonzalez-Yajimovich et al. (2010). The general geochemical study determined the existence of different associations between sediment components and elements. For example, CaCO₃ was associated with Ca, Cd, and Pb (which were probably incorporated during the formation of shells), and C_org was associated with several trace elements (Cd, Br, Cu, Hg, Ni, and Zn; likely due to aggregate formations), and finally Ba, Cs, Cu, Fe, Hf, lantanides, Rb, Th, U, and Zn were found to be associated with terrigenous sources (Rodríguez-Meza et al., 2009). The water column in bahia Concepcion is characterized by stratification in summer but it is well mixed during the other seasons. Sometimes anoxic and hypoxic conditions can appear during periods of strong stratification and high biological productivity (Lechuga-Devezé et al., 2000).

The shallow submarine hydrothermal vent area at Mapachitos, south of cape Santa Barbara, along the northwest coast of bahia Concepcion (Figure 1) has been recently discovered (Forrest et al., 2005). Its appearance and intensity are controlled by the northwest-southeast fractures that cut the volcanic rocks of the Requeson Formation (Comondu Group), revealing altered aureoles, secondary opal, and quartz aggregates (McFall, 1968; Camprubí et al., 2008). The vent system is located near the western coast of the bay between 5 and 15 m water depth with N₂ and CO₂ gas bubbling and minor amounts of CH₄, Ar, He, H₂, C₂H₆, and C₃H₈ (Forrest et al., 2005). This area is situated along a 700 m scarped coast line (Canet and Prol-Ledesma, 2006). The hydrothermal fluids (with temperatures of 60-85°C) are enriched in dissolved As, B, Ba, Ca, Cs, Fe, Hg, HCO₃^-, I, Li, Mn, Si, and Sr (Prol-Ledesma et al., 2004). The chemical and isotopic composition of hydrothermal fluid is explained by the interaction between seawater and thermal-meteoric water end members (Prol-Ledesma et al., 2004; Villanueva-Estrada et al., 2005; Villanueva-Estrada et al., 2010). The hydrothermal deposits are formed at marine shallow-water hydrothermal vents by a variety of precipitates, found in veins, breccias, crusts, and stockworks. These deposits consist of Mn-oxides (pyrolusite, coronadite, and romanechite), dolomite, quartz, barite, and opal, as well as stromatolites of Fe oxyhydroxides (characterized by their enrichment in As, Hg, and Sb which is probably due to sorption onto Fe-Mn oxides substrates; Canet et al., 2005). The last evidence of hydrothermal activity in Mapachitos was the high concentration (up to 5000 Bq m^-3) of the radioactive gas ²²²Rn detected in surface seawater over the vents. This concentration was 2-3 orders of magnitude higher than in the seawater of bahia Concepcion, not influenced by groundwater, geothermal, nor hydrothermal discharges (Santos et al., 2011).

The geochemical and ecological consequences of hydrothermal processes of the Mapachitos vent on the surrounding marine environment are almost unknown, with exception of the increased abundance of the phytoplankton, in particular cyanophyte cells at the point, where hydrothermal fluid discharged in october 2006 (the most abundant species were Nostoc pruniforme and Trichodesmiuni erythraum; Estradas-Romero et al., 2009). The objective of this study was to evaluate the degree of influence of the Mapachitos marine shallow-water hydrothermal vents on the chemical composition of surface sediments in bahia Concepcion in the western portion of the Gulf of California.



MATERIALS AND METHODS

Sampling and analysis

Fifty surface sediment samples were collected by scuba divers or by Van Veen grabs in front of the Mapachitos vent site. The location of sampling stations is shown in Figure 1. The collected samples were frozen at -4 °C until they were processed. Subsamples of sediments were dried at 60ºC and homogenized in an agate mortar. The contents of As and Hg were determined by atomic absorption spec-trophotometry after the generation of As hydride or elementary mercury, respectively (Leal-Acosta et al., 2010). The concentration of Al, Ba, Ca, Cd, Co, Cs, Cu, Fe, Li, Mn, Mo, Ni, Rb, Ti, U, V, and Zn in the sediment samples were determined by the combination of ICP-AES and ICP-MS methods after total digestion with concentrated strong acids (HNO₃, HCl, HClO₄, and HF) at 130 ºC. Sulphur content in sediments was determined also by ICP-AES in solution obtained by decomposition of sediments by alkali fusion with lithium metaborate, then dissolved in 1 M nitric acid (Wei and Haraguchi, 1999). The percent recovery was assessed using certified standard reference materials (PACS-2, MESS-3, and NIST-1646a; Table 1). The accuracy of the analyses for major elements (Fe, Al, and Ti) and trace elements (As, Pb, and Zn) was acceptable (Table 1). The inorganic and organic carbon contents in the sediments were measured by coulometry and infrared spectrophotometric techniques, respectively (Ostermann et al., 1990; Goñi et al., 2001). The accuracy of the analysis of inorganic and organic carbon was better than 2%. The statistical treatment of data (Principal Component Analysis) was carried out with the program STATISTIC® to determine the possible relationship between elements. The spatial distributions of elements, CaCO₃ and C_org contents in surface sediments were drawn using SURFER 8.0® software (Surface Mapping System, Golden Software, Inc. 2002 ) (Rodríguez-Meza et al., 2009). The enrichment factors (EFs) for elements were calculated using the Earth's crustal average (Taylor, 1964) with Al as the normalizing element (Salomons and Förstner, 1984):

where EF is the enrichment factor



RESULTS

The chemical composition of surface sediments in the vent region of Mapachitos is presented in Table 2, and for the sediments of surrounding area in Table 3. The concentrations of chemical elements (Tables 2 and 3) were compared with the average concentrations of surface sediments of two other coastal regions (polygons 1 and 2, Figure 1) in bahia Concepcion (Tables 4 and 5), and also to the average abundances in the continental crust (Taylor, 1964).

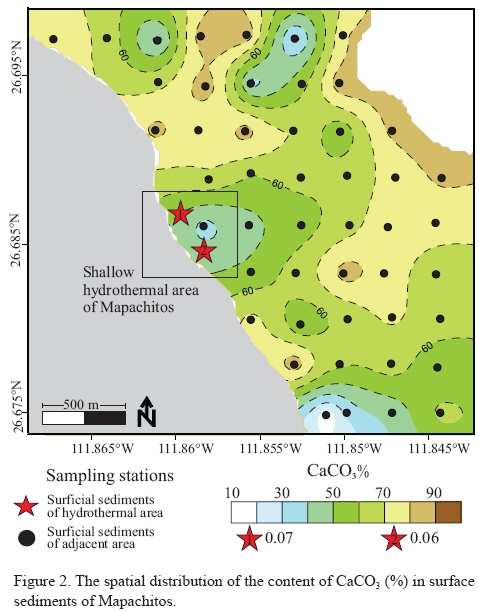

The concentration of major components (C_org, carbonates, and sulphur) in the surrounding area of the hydrother-mal vents was inverse between C_org and carbonates in sediments. The samples with high percent to carbonates (Figure 2) had low contents of C_org (Figure 3). For both components the marine shallow-water hydrothermal area had low contents. The sulphur had a similar spatial distribution as C_org probably due to reduction conditions in some stations. The Al and Fe contents, opposite to C_org and carbonates, were higher within the vent region and lower in the surrounding area (Figure 4).

The composition of sediments collected in the hydrothermal area is slightly different of those from the adjacent region with respect to trace elements. The As average content in the surface sediments of all areas analyzed in bahia Concepcion (Tables 2 to 5), and by Rodríguez-Meza et al. (2009) are higher than the continental crustal average (1.8 mg kg^-1; Taylor, 1964). The As concentration in the sediments collected from the hydrothermal vents were 115 times higher than the continental average value (Taylor, 1964), and decreases in the sediments of the adjacent zone (Figure 5a). The As average content in the sediments of the polygon 1 and polygon 2 are higher than in the sediments of the area surrounding the vents (Tables 5 and 6), probably because of lower contribution of the calcareous materials in the polygons 1 and polygon 2 sediments. However the enrichment factor for As of the sediments of the area surrounding the vents displays high enrichement because EF calculations eliminate dilution effects of biogenic carbonates.

For mercury, the results were similar. Although the average Hg concentration in sediments of vent area is high (30575 µg kg^-1, Table 2), the sediments of adjacent area have low concentrations of this element (range 8-431 µg kg^-1 and 52 µg kg^-1 in average, Table 3; Figure 5b).

Barium, Cs, Cu, Mn, Ni, Rb, U and Zn also have slightly higher contents in the sediments collected at the sites of the hydrothermal discharges, than in the sediments of the surrounding area (Tables 2 and 3; Figure 6a). The Ba and Mn accumulation is a common phenomenon for the sediments of the hydrothermal zones. The sediments of hydrothermal vents in Mapachitos have up to 1350 mg kg^-1 of Mn, while the sediments of the adjacent area and of other two reference areas have lower Mn concentrations (143 mg kg^-1 in average, Table 3; Figure 6b). This is probably due to the occurrence of most of trace elements in the dissolved fraction in Mapachitos hydrothermal fluids and water column of the adjacent zone. Another factor is the high carbonate concentration in the sediments of the adjacent area (with an average content of 64%; Table 3). The simple dilution effect by carbonates is eliminated by calculating the enrichment factor (EF) of the elements in the sediments.



DISCUSSION

Major components in surface sediments of the Mapachitos vent region

Major element concentrations may provide general information on the processes that control the mineralogical and chemical composition of oceanic sediments (Chester, 2003). The concentrations of major components such as biogenic CaCO₃, C_org, and terrigenous elements (Al, Fe, and Ti) in sediments collected at the sites of the hydrothermal discharges and in the sediments of the adjacent area are shown in Tables 2 and 3, respectively. The results show that surface sediments in the study area are composed primarily of mixed calcareous bioclast and rock fragments. The average CaCO₃ content (64%) in the sediments of the area adjacent to Mapachitos is higher than in sediments of the hydrothermal sites (33%), as well as for the average content of bahia Concepcion (41%; Rodríguez-Meza et al., 2009). The presence of shell debris depends on the fertility of the area, which controls primary productivity (Chester, 2003). The C_org content in the sediments is typical for nearshore sediments (Chester, 2003). The average content of this component was very low in sediments of hydrothermal area (0.3%; Table 2). The average C_org content of sediments of the area adjacent to the vent sites was 1.1%, with a maximum of 3.3%. Similar contents of C_org were found in surface sediments of bahia Concepcion, with values above 2% in the central part of the bay (Rodríguez-Meza et al., 2009) and the upper Gulf of California (Shumilin et al., 2002). The spatial distribution of C_org showed major accumulation in the central part of study area (Figure 2). As previously mentioned, both CaCO₃ and C_org, depend on primary productivity. Although bahia Concepcion is an oligotrophic environment, during some seasons mesotrophic conditions predominate, and thus there is an increase in phytoplankton biomass (López-Cortés et al., 2003). Therefore, the primary productivity may be an important source of organic carbon to the water column and sediments. Moreover, the reported hypoxic and anoxic conditions could indicate high fluxes of C_org in the study area (Lechuga-Devezé et al., 2000).

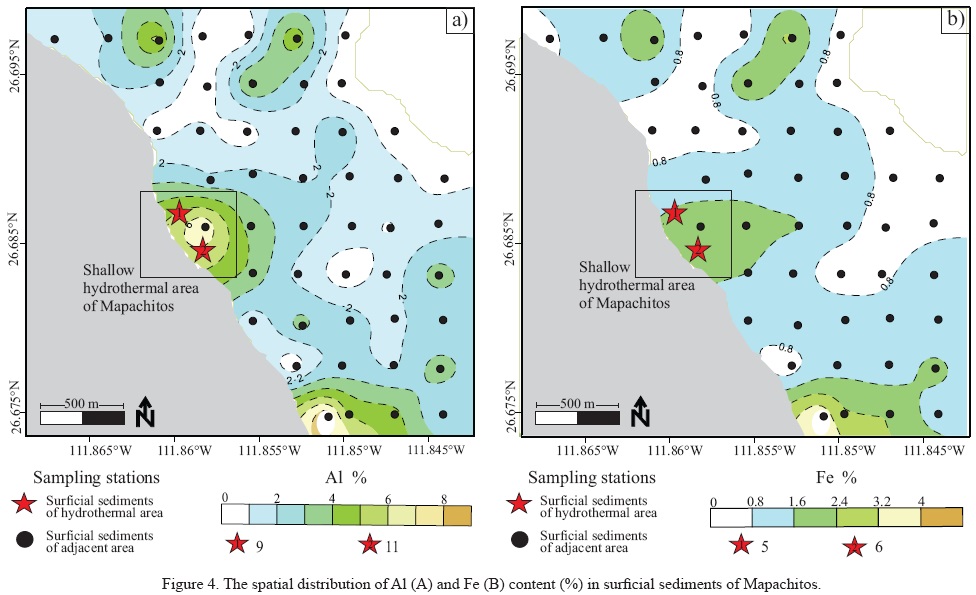

The elements Al, Fe, and Ti are considered to be of terrigenous origin due to their high abundance in the Earth's crust (Taylor, 1964). The maximum values of these elements in the sediments from the vent region exceed their average crust abundances (Table 2, Figure 3). The reactions between basalt and seawater are an important source of Fe in low temperature hydrothermal regions. Other elements such as Al and Ti show low interactions of that type (Honnerez, 1981). Canet et al. (2005), however, also reported precipitated Al2O3 and TiO2 near the vents. It is likely that the maximum concentrations of Al and Ti in the sediments of the hydrothermal vent region of this study are due to the leaching of the Al³⁺ and Ti⁴⁺ hydratated cations from the rocks of the hydrothermal channel to the acidic fluids with subsequent hydrolysis and precipitation of them during the contact of fluids with seawater. The Fe content (5.5%) in sediments near to vents matches with the composition of the precipitates, which were characterized as poorly crystallized Fe-oxyhydroxide and ferrihydrite aggregates with an elevated amount of As, probably accumulated through adsorption (Canet et al., 2005). It is common to find minerals rich in Fe in hydrothermal environments. For example, in Champagne Hot Springs (Dominica, Lesser Antilles) McCarthy et al. (2005) reported sediments with a Fe content up to 38.8% with Fe-rich minerals such as hydrous ferric oxides and ferrihydrite. In Tutum bay (Ambite island, Papua New Guinea) precipitated Fe (as Fe₂O₃) of hydrothermal origin also exhibited an elevated content in the sediments (44 to 45%; Price and Pichler et al., 2005). By comparing Mapachitos with these cases, it can be seen that the precipitates formed in the sediments of Mapachitos are of less importance than those formed in Tutum bay.

Sediments in the area adjacent to Mapachitos have Fe content similar to the average in bahia Concepcion (3%; Rodríguez-Meza et al., 2009), with a 3.3% average content for the samples collected in Mapachitos. It is possible that the Fe in the sediments adjacent to the vent site is derived from terrestrial erosion and fluvial input. The episodic fluvial contributions, however, are generally low due to the fact that bahia Concepcion is located in an arid zone with low precipitation (Mendoza-Salgado et al., 2006), though the influence of sporadic hurricanes may be considered an important source of terrigenous Fe (Silverberg et al., 2007).

Trace elements in surface sediments

The concentrations of trace elements in the surface sediments of the Mapachitos vent site are shown in Table 2. These values are compared with the average concentrations for the surface sediments of bahia Concepcion reported by Rodríguez Meza et al. (2009) and average crustal abundances (Taylor, 1964). It has been shown by Elderfield (1976) that low temperature weathering of basalt may be a source of Fe and Mn to sea water; in support of this finding, the "wall crust" sampled at the geothermal source in Santipac bight (north of Mapachitos) shows high concentrations of As (635 mg kg^-1), Hg (60.3 mg kg^-1) and Mn (10.35 %) (Leal-Acosta et al., 2010). It is likely that a similar situation is occurring at the Mapachitos vent site.

Arsenic and mercury

The potentially toxic elements As and Hg have been widely studied due to their effects on the marine biota (Clark, 2001). The vent sediments of Mapachitos have a maximum As concentration of 207 mg kg^-1, much higher than 1.8 mg kg^-1 for As average abundance in continental crust (Taylor, 1964). Arsenic frequently exhibits high concentrations in sediments and precipitates in shallow hydrothermal areas, primarily in Fe oxyhydroxide precipitates (Pichler and Veizer, 1999; Rancourt et al., 2001). Generally, As associates with the hydrous ferric oxide fraction. It was shown by traditional sequential leaching technique that 98.6% of As was in this fraction in vent precipitate, and in average of 93.3% in surface sediments of adjacent areas (Price and Pichler, 2005).

In Mapachitos, however, the Fe-rich precipitates are poorly formed as ferrihydrite aggregates with high concentrations of As, which are likely incorporated by adsorption (Canet et al., 2005). It is possible that due to the absence of abundant authigenic Fe-oxyhydroxides, arsenic remains in dissolved form in seawater after it is discharged within the hydrothermal fluids (Prol-Ledesma et al., 2004; Leal-Acosta et al., 2013). The concentration of dissolved As in vent fluids was 10.4 µmol kg^-1 compared to the concentration typically found in seawater (0.023 µmol kg^-1; Chester, 2003). This can be a reason for high As concentrations up to 640 mg kg^-1 in the seaweeds Sargassum sinicola collected near the vents in Mapachitos (Leal-Acosta et al., 2013), because it is well known that the macroalgae accumulate only dissolved trace elements from the seawater. The absence of low contribution of As particulate has as a consequence the low concentration range of As (0.9 - 9.2 mg kg^-1) in sediments of the area adjacent to the vent site.

Price and Pichler (2005) showed that in sediments collected in Tutum bay relatively far from a vent site (250 m) the As concentration decrease considerably (from 33200 mg kg^-1 at the vent site to 44 mg kg^-1 on a station away from the vent site).

Mercury also exhibited high concentrations (with a maximum value of 143 mg kg^-1) in sediments at the vent site. Canet et al. (2005) attributed high Hg concentrations with mineralized cinnabar in the absence of Cl; however, high Hg concentrations do not exclude the possibility of corderoite (Hg₃S₂Cl₂) incorporation into mineralized aggregates (Canet et al., 2005). Even the adjacent sediments have a high Hg range (8 - 431 µg kg^-1). The affinity of Hg to associate with organic particles such as humic substances has been well documented (Clark, 2001). However, in our study the correlation between C_org and Hg is very low (r²=0.05). In bahia Concepcion geothermal processes are an important source of Hg to the environment. The geothermal sediments in Santispac bight have as much as 25.2 mg kg^-1 of Hg in the sediments of the principal geothermal source (Leal-Acosta et al., 2010).

Redox sensitive elements

Dissolved manganese is a well recognized indicator of hydrothermal processes because it is highly enriched in the hydrothermal fluids (Baker et al., 1995). In high temperature, low pH, and reduced hydrothermal fluids, Mn remains in dissolved form, as it occurs at the Juan de Fuca ridge region, where the hydrothermal plume is distributed over 40 km² (McConachy and Scott, 1987). In shallow submarine hydrothermal vents the conditions are different: the fluid temperature in Mapachitos is 60°C and the pH value is about 6.8 (Prol-Ledesma et al., 2004). These conditions should favor the precipitation of Mn oxyhydroxide aggregates (Canet et al., 2005). However, the maximum concentrations of Mn found in the sediments at the vent site and adjacent area, are more than 39 times lower compared with the Earth's crust average abundance (Table 3; Taylor, 1964). The manganese deposits of the Conception peninsula (Camprubí et al., 2008; McFall, 1968) and the fluvial discharge from the peninsula could contribute to Mn accumulation in the surficial sediments. However, this is not the case in the Mapachitos area: the analysis of Mapachitos hydrothermal fluid reveals concentration of Mn up to 648 times higher than the seawater value: 43.14 to 64.8 µM of Mn in hydrothemal fluid versus 0.10 µM of Mn in the sea water (Prol-Ledesma et al., 2004). Manganese remains dissolved likely due to the specific hydrothermal conditions or because of low oxygen concentration in the water of the bay, at least near the venting area (Lechuga-Devezé et al., 2000).

The maximum values of V in the surface sediments of Mapachitos are also found in the sediments collected near the vent site. The pH of hydrothermal fluids is slightly acidic and the environment seawater is probably low in oxygen. The behavior of V, which is inverse to that of Mn, is characterized by the occurrence of the particulate phase of V, which in redox conditions generally forms insoluble aggregates. Nameroff et al. (2002) showed the enrichment of V in surface sediments of the Mazatlan shelf, when the O₂ concentration decreases below 10 µM and the sediments became depleted in Mn. Other indicators of redox conditions are U and Mo. Uranium concentration in the study sediments did not exceed the average abundance of the continental crust. However, the Mo concentration was about eight times above its reference value (Taylor, 1964). Both U and Mo have similar spatial distributions as C_org and S. The reductive conditions probably allow the formation of authigenic sulfide minerals and precipitation of these elements (Morford and Emerson, 1999). Cadmium spatial distribution is similar to that of organic carbon, which could be explained by the fact that it is a micronutrient for phytoplankton (Bruland et al., 1978). It was demonstrated that bahia Concepcion is a pristine environment and the organic carbon source primarily results from the high biological productivity of this marine ecosystem (López-Cortés et al., 2003).

Enrichment Factors

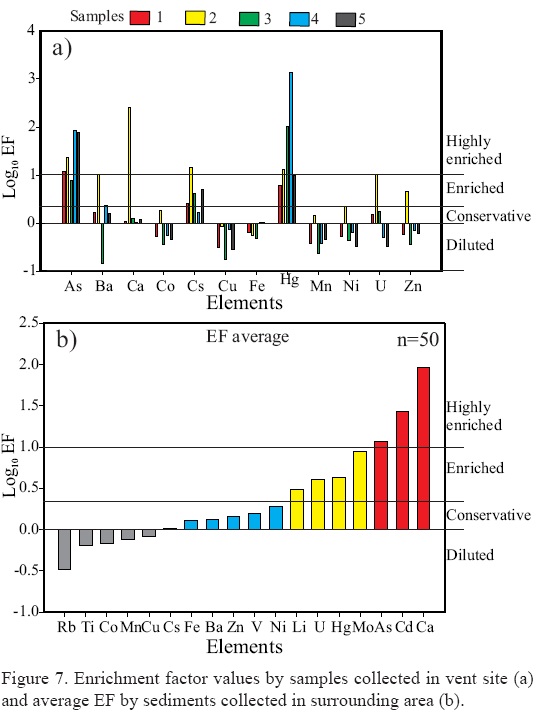

The average EF values are shown in Figure 7. It should be noted that the majority of the elements are conservative (do not show any notable enrichment). This is probably a result of the terrigenous input of eroded coastal rocks transported to the study area by wave action, episodic rain discharge, wind transport, and redistributed by tidal and residual currents (Rodríguez-Meza et al., 2009). Due to the high abundance of biogenic calcareous material (primarily rhodolith and shell fragments), according to enrichment factor, Ca was highly enriched (Figure 2b). Three other elements are also enriched: Li, Mo, and U. Molybdenum and U are redox sensitive elements that in reducing conditions have a high affinity towards other particles, including insoluble sulfides of chalcophilic elements (Chester, 2003). Lithium spatial distribution is highly similar to other terrigenous elements (including Al and Ti) and exhibits an inverse distribution to carbonates. Cadmium is also highly enriched in the sediments of Mapachitos. Its high concentration is presumably associated to biologic sources due to the fact, as previously mentioned, that it is a micronutrient for phytoplankton. Moreover, the spatial distribution of Cd was similar to that of C_org and S. This is an indication that it is possible that redox processes affect cadmium behavior in Mapachitos surficial sediments. The high EF value for As and Hg was likely caused by hydrothermal sources, since the maximum EF values for both elements were detected near the vent area. Furthermore, the hydrothermal fluid of Mapachitos showed elevated concentrations of dissolved As and Hg (Villanueva-Estrada et al., 2010). This can be observed also in the spatial distribution of EF values for As and Hg for the sediments of the study area (Figure 8). The enrichment of As, Ca, and Cd in surface sediments of Mapachitos is probably characteristic for the sediments of the rest of the bay (Rodríguez-Meza et al., 2009). These high values are associated with adjacent deposits which contain minerals rich in manganese oxides with some trace elements (As, Ba, Sr, and V; Camprubí et al., 2008).

Associations of elements in the sediments near the Mapachitos hydrothermal vent site

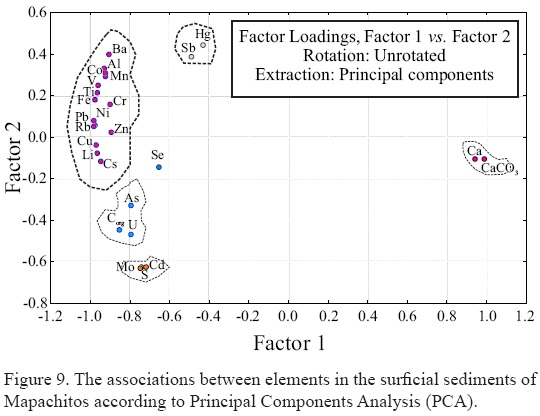

The statistical treatment of the geochemical data by Principal Components Analysis (PCA) allowed the identification of associations among elements according to their geochemical behavior and potential sources (Rodríguez-Meza et al., 2009). The results showed that three factors explain 91% of variance (Table 6). The first factor is important for the terrigenous elements (As, Al, Ba, Ce, Cs, Co, Cu, Fe, Mn, Ni, Rb, Ti, V, and Zn) with high negative scores, and for Ca, CaCO₃, and C_org with high positive scores. These components explain about 70% of the data variance. This also indicates that terrigenous material supply governs the geochemical composition of sediments in Mapachitos and that the biogenic calcareous material only dilutes them. The second factor displays high positive scores for Mo, U, and S. Since these elements are redox sensitive, this association is likely related to reduction processes, coinciding with the possible formation of authigenic insoluble molybdenum sulfides (Crusius and Thompson, 2000). However, this is a low intensity process in the study area, because the second factor explains only 15% of the data variance. The third factor corresponds only to 5% of variance and probably represents the hydrothermal influence, which is important for Hg and Sb. The high concentration of both elements is seen only in the vent area, and their distribution is precisely located within the vent site and adjacent zone. The groups of elements are showed graphically in Figure 9.



CONCLUSIONS

The chemical composition of surface sediments in the Mapachitos vent site indicates that they represent primarily the mixture of terrigenous materials of coastal erosion and biogenic calcareous materials, with elevated organic carbon contents in deeper areas. The high concentrations of Cd in sediments could be a product of a biological productivity, due to the fact that this element is a micronutrient for phy-toplankton. The statistical results allow the determination of five associations between elements (terrigenous, redox sensitive, biogenic, and micronutrient of hydrothermal origin). The comparison of trace element concentrations in the sediments with Earth's crustal average concentrations showed that only Hg and As concentrations in the sediments near underwater hydrothermal site greatly exceeded their average concentrations in the sediments of the bay and average crustal abundances. The concentrations of Hg and As also showed that a certain dilution by CaCO₃ occurs, decreasing the relative concentrations of trace elements. Enrichment factor values showed that the majority of elements are conservative in the surface sediments of Mapachitos. On the contrary, As, Ca, Cd, and Hg are highly enriched indicating that different processes control their geochemical behavior and accumulation in the sediments of the study area. Although hydrothermal As and Hg could represent environmental risk for adjacent marine ecosystem, their high concentration in the sediments is only seen in the vent area, while the other elements (e.g. Al, Ba, Fe and Mn) show low hydrothermal influence or its absence.



REFERENCES

Aschmann, H., 1959, The Central Desert of Baja; Demography and Ecology: Berkeley, University of California Press, 315 pp.         [ Links ]

Baker, E.T., German, C.R., Elderfield, H., 1995, Hydrothermal plumes aver spreading-center axes: global distributions and geological inferences, in Humphris, S., Zierenberg, R., Mullineaux, L.S., Thompson, R. (eds.), Seafloor Hydrothermal Systems: Physical, Chemical, Biological, and Geological Interactions: Washington, D.C., American Geophysical Union, Geophysical Monograph, 91, 47-71.         [ Links ]

Bruland, K.W., Knauer, G.A., Martin, J.H., 1978, Cadmium in northeast Pacific waters: Limnology and Oceanography, 23(4), 618-625.         [ Links ]

Camprubí, A., Canet, C., Rodríguez-Diaz, A.A., Prol-Ledesma, R.M., Blanco-Florido, D., Villanueva, R.E., 2008, Geology, ore deposits and hydrothermal venting in Bahia Concepcion, Baja California Sur, Mexico: Island Arc, 17, 6-25.         [ Links ]

Canet, C., Prol-Ledesma, R.M., 2006, Procesos de mineralización en manantiales hidrotermales submarinos someros. Ejemplos en Mexico: Boletín de la Sociedad Geologica Mexicana, 58(1), 83-102.         [ Links ]

Canet, C., Prol-Ledesma, R.M., Melgarejo, J.C., Reyes, A., 2003, Methane-related carbonates formed at submarine hydrothermal springs: a new setting for microbially derived carbonates?: Marine Geology, 199, 245-261.         [ Links ]

Canet C., Prol-Ledesma, R.M., Proenza, J., Rubio-Ramos, M.A., Forest, M.J., Torres-Vera, M.A., Rodríguez-Diaz, A.A., 2005, Mn-Ba-Hg mineralization at shallow submarine hydrothermal vents in Bahía Concepción, Baja California Sur, México: Chemical Geology, 224, 96-112.         [ Links ]

Chester, R., 2003, Marine Geochemistry: London, Unwin Hyman, 506 pp.         [ Links ]

Clark, R.B., 2001, Marine Pollution: Oxford, New York, 230 pp.         [ Links ]

Crusius, J., Thompson, J., 2000, Comparative behavior of authigenic Re, U and Mo during reoxidation and subsequent long-term burial in marine sediments: Geochimica et Cosmochimica Acta, 64(13), 2233-2242.         [ Links ]

Edmond, J.M., Measures, C.I., McDuff, R.E., 1979, Crest hydrothermal activity and balance of the major and minor elements in the ocean; the Galapagos data: Earth and Planetary Science Letters, 46, 1-18.         [ Links ]

Elderfield, H., 1976, Hydrogenous material in marine sediments: excluding manganese nodules, in Riley, J.P., Chester, R. (ed.), Chemical Oceanography: London, Academic Press, 5, 137-215.         [ Links ]

Estradas-Romero, A., Prol-Ledesma, R.M., Zamudio-Reséndiz, M.E., 2009, Relación de las características geoquímicas de fluidos hidrotermales con la abundancia y riqueza de especies del fitoplancton de Bahía Concepción, Baja California Sur, México: Boletín de la Sociedad Geológica Mexicana, 61(1), 87-96.         [ Links ]

Forrest, M.S., Ledesma-Vazquez, J., Ussler, W.III, Kulongoski, J.T., Milton, D.R., Greene, H.G., 2005, Gas geochemistry of a shalllow submarine hydrothermal vent associated with El Requeson fault zone in Bahia Concepcion, Baja California Sur, Mexico: Chemical Geology, 224, 82-95.         [ Links ]

González-Yajimovich, O., Pérez-Soto, J.L., Ávila-Serrano, G.E., Meldahl, K., 2010, Sediments transport trends in Bahia Concepcion, Baja California Sur, Mexico, based on textural parameters and heavy minerals concentrations: Boletín de la Sociedad Geológica Mexicana, 62(2), 281-304.         [ Links ]

Goñi, M.A., Hartz, D.M., Thunell, R.C., Tapa, E., 2001, Oceanographic considerations for the application of the alkenone-based paleotemperature U₃₇^K' index in the Gulf of California: Geochimica et Cosmochimica Acta, 65, 545-557.         [ Links ]

Honnerez, J., 1981, The aging of the oceanic crust at low temperature, in Emillani, C. (ed.), The Sea: New York, Interscience, 7, 525-587.         [ Links ]

Kostoglodov, V., Bandy, W.L., 1995, Seismotectonic constraints on the convergence rate between the Rivera and North America Plates: Journal of Geophysical Research, 100(17), 977-989.         [ Links ]

Leal-Acosta, M.L., Shumilin, E., Mirlean, N., Sapozhnikov, D., Gordeev, V., 2010, Arsenic and mercury contamination of sediments of geothermal springs, mangrove lagoon and the Santispac Bight, Bahia Concepcion, Baja California Peninsula: Bulletin of Environment Contamination and Toxicology, 85(6), 609-613.         [ Links ]

Leal-Acosta M.L., Shumilin, E., Mirlean, N., Delgadillo-Hinojosa, F., Sánchez-Rodríguez, I., 2013, The impact of marine shallow-water hydrothermal venting on arsenic and mercury accumulation by seaweeds Sargassum sinicola in Concepcion Bay, Gulf of California: Environmental Science, Processes & Impacts, 15, 470-477. DOI: 10.1039/C2EM30866E .         [ Links ]

Lechuga-Devezé, C.H., Reyes-Salinas, A., Morquecho-Escamilla, M. L., 2000, Anoxia in a costal bay: case study of a seasonal event: Revista de Biología Tropical, 49(2), 525-534.         [ Links ]

Lilley, M.D., Richard, A.F., Tefry, J.H., 1995, Chemical and biochemical transformations in hydrothermal plumes, in Humphris, S., Zierenberg, R., Mullineaux, L.S., Thompson, R. (eds.), Seaflor Hydrothermal Systems: Physical, Chemical, Biological, and Geological Interactions: Washington, D.C., American Geophysical Union, Geophysical Monograph, 91, 369-390.         [ Links ]

López-Cortés, D.J., Bustillos-Guzman, J.J., Gárate-Lizárraga, I., Hernández-Sandoval, F.E., Murillo-Murillo, I., 2003, Phytoplankton biomasses and hydrographic conditions during El Nino 1997-1998 in Bahia Concepcion, Gulf of California, Mexico: Geofísica Internacional, 42(3), 495-504.         [ Links ]

McCarthy, K.T., Pichler, T., Price R.E., 2005, Geochemistry of Champagne Hot Springs shallow hydrothermal vent field and associated sediments, Dominica, Lesser Antilles: Chemical Geology, 224, 55-68.         [ Links ]

McConachy, T.F., Scott, S.D., 1987, Real-time mapping of hydrothermal plumes over southem Explorer Ridge, NE Pacific Ocean: Marine Mining, 6, 181-204.         [ Links ]

McFall, C.C., 1968, Reconnaissance geology of Concepcion Bay Area, Baja California, Mexico: Stanford University Publications, Geological Science, 10, 1-25.         [ Links ]

Mendoza-Salgado, R.A., Lechuga-Devezé, C.H., Ortega-Rubio, A., 2006, Influence of rainfall on a subtropical arid zone coastal system: Journal of Arid Environment, 66, 247-256.         [ Links ]

Morford, J.L., Emerson, S.R., 1999, The geochemistry of redox sensitive trace metals in sediments: Geochimica et Cosmochimica Acta, 63(11/12), 1735-1750.         [ Links ]

Nameroff, T.J., Balistrieri, L.S., Murray, J.W., 2002, Suboxic trace metal geochemistry in the eastern tropical North Pacific: Geochimica et Cosmochimica Acta, 66(7), 1139-1158.         [ Links ]

Ostermann, D.R., Karbott, D., Curry, W.B., 1990, Automated system to measure the carbonate concentration: Woods Hole Oceanographic Institution (WHOI), Technical Report No. 90-03.         [ Links ]

Pichler, T., Veizer, J., 1999, Precipitation of Fe (III) oxyhydroxide deposits from shallow-water hydrothermal fluids in Tutum Bay, Ambitle Island, Papua New Guinea: Chemical Geology, 162, 15-31.         [ Links ]

Price, R.E., Pichler, T., 2005, Distribution, speciation and bioavailability of arsenic in a shallow-water submarine hydrothermal system, Tutum Bay, Ambitle Island, Papua-New Guinea: Chemical Geology, 224, 122-135.         [ Links ]

Price, R.E., Amend, J.P., Pichler T., 2007, Enhanced geochemical gradients in a marine shallow-water hydrothermal system: Unusual arsenic speciation in horizontal and vertical pore water profiles: Applied Geochemistry, 22, 2595-2605.         [ Links ]

Prol-Ledesma, R.M., 2003, Similarities in the chemistry of shallow submarine hydrothermal vents: Geothermics, 32, 639-644.         [ Links ]

Prol-Ledesma, R.M., Canet, C., Melgarejo, J.C., Tolson, G., Rubio-Ramos, M.A., Cruz-Ocampo, J.C., Ortega-Osorio, A., Torres-Vera, M.A., Reyes, A., 2002, Cinnabar deposition in submarine coastal hydrothermal vents, Pacific Margin of Central Mexico: Economic Geology, 97, 1331-1340.         [ Links ]

Prol-Ledesma R.M., Canet C., Torres-Vera M.A., Forrest M.J., Armienta, M.A., 2004, Vent fluid chemistry in Bahia Concepcion coastal submarine hydrothermal system, Baja California Sur, Mexico: Journal of Volcanology and Geothermal Research, 137, 311-328.         [ Links ]

Rancourt, D., Fortin, D., Pichler, T., Thibault, P.J., Lamarche, G., Morris, R.V., Mercier, P.H.J., 2001, Mineralogy of a natural As-rich hydrous ferric oxide coprecipitate formed by mixing of hydrothermal fluid and seawater: Implications regarding surface complexation and color banding in ferrihydrite deposits: American Mineralogist, 86, 834-851.         [ Links ]

Rodríguez-Meza, G.D., Shumilin, E., Sapozhnikov, D., Méndez-Rodríguez, L., Acosta-Vargas, B., 2009, Evaluación geoquímica de elementos mayoritarios y oligoelementos en los sedimentos de Bahía Concepción (B.C.S., México): Boletín de la Sociedad Geológica Mexicana, 61(1), 57-72.         [ Links ]

Santos, I.R., Lechuga-Devezé, C., Peterson, R.N., Burnett, W.C., 2011, Tracing submarine hydrothermal inputs into a coastal bay in Baja California using radon: Chemical Geology, 282, 1-10.         [ Links ]

Salomons, W., Förstner, U., 1984, Metals in the Hydrocycle: Heidelberg, Springer-Verlag, 346 p.         [ Links ]

Shumilin, E., Carriquiry, J.D., Camacho-Ibar, V.F., Sapozhnikov, D., Kalmykov, S., Sánchez, A., Aguiñiga-García, S., Sapozhnikov, Y.A., 2002, Spatial and vertical distribution of elements in sediments of the Colorado River delta and Upper Gulf of California: Marine Chemistry, 79, 113-131.         [ Links ]

Silverberg, N., Shumilin, E., Aguirre-Bahena, F., Rodríguez-Castañeda A.P., Sapozhnikov, D, 2007, The impact of hurricanes on sedimenting particulate matter in the semi-arid Bahia de La Paz, Gulf of California: Continental Shelf Research, 27(19), 2513-2522.         [ Links ]

Tarasov, V.G., Gebruk, A.V., Mironov, A.N., Moskalev, L.I., 2005, Deep- sea and shallow-water hydrothermal vent communities: two different phenomena?: Chemical Geology, 224, 5-39.         [ Links ]

Taylor, S.R., 1964, Abundance of chemical elements in the continental crust: a new table: Geochimica et Cosmochimica Acta, 28, 1273-1285.         [ Links ]

Vidal, V.M.V., Vidal, F.V., Isaacs, J.D., 1981, Coastal submarine hydrothermal activity of northern Baja California 2: Evolutionary history and isotope chemistry: Journal of Geophysical Research, 86-B, 9451-9468.         [ Links ]

Villanueva-Estrada, R.E., Prol-Ledesma, R.M., Torres-Alvarado, I.S., Canet, C., 2005, Geochemical modeling of a shallow submarine hydrothermal system at Bahia Concepcion, Baja California Sur, Mexico, in Proceedings World Geothermal Congress: Antalaya, Turkey, 1-5.         [ Links ]

Villanueva-Estrada, R.E., Prol-Ledesma, R.M., Canet, C., 2010, Dissolved arsenic in sallow hydrothermal vents, in Birkle, P., Torres-Alvarado, I.S. (eds.), Water Rock Interactions: London, Taylor & Francis Group, 189-192.         [ Links ]

Wei, R., Haraguchi, H., 1999, Multielement determination of major-to-ultratrace elements in river and marine sediment reference materials by inductively coupled plasma atomic emission spectrometry and inductively coupled plasma mass spectrometry: Analytical Science, 15, 729-735.         [ Links ]
